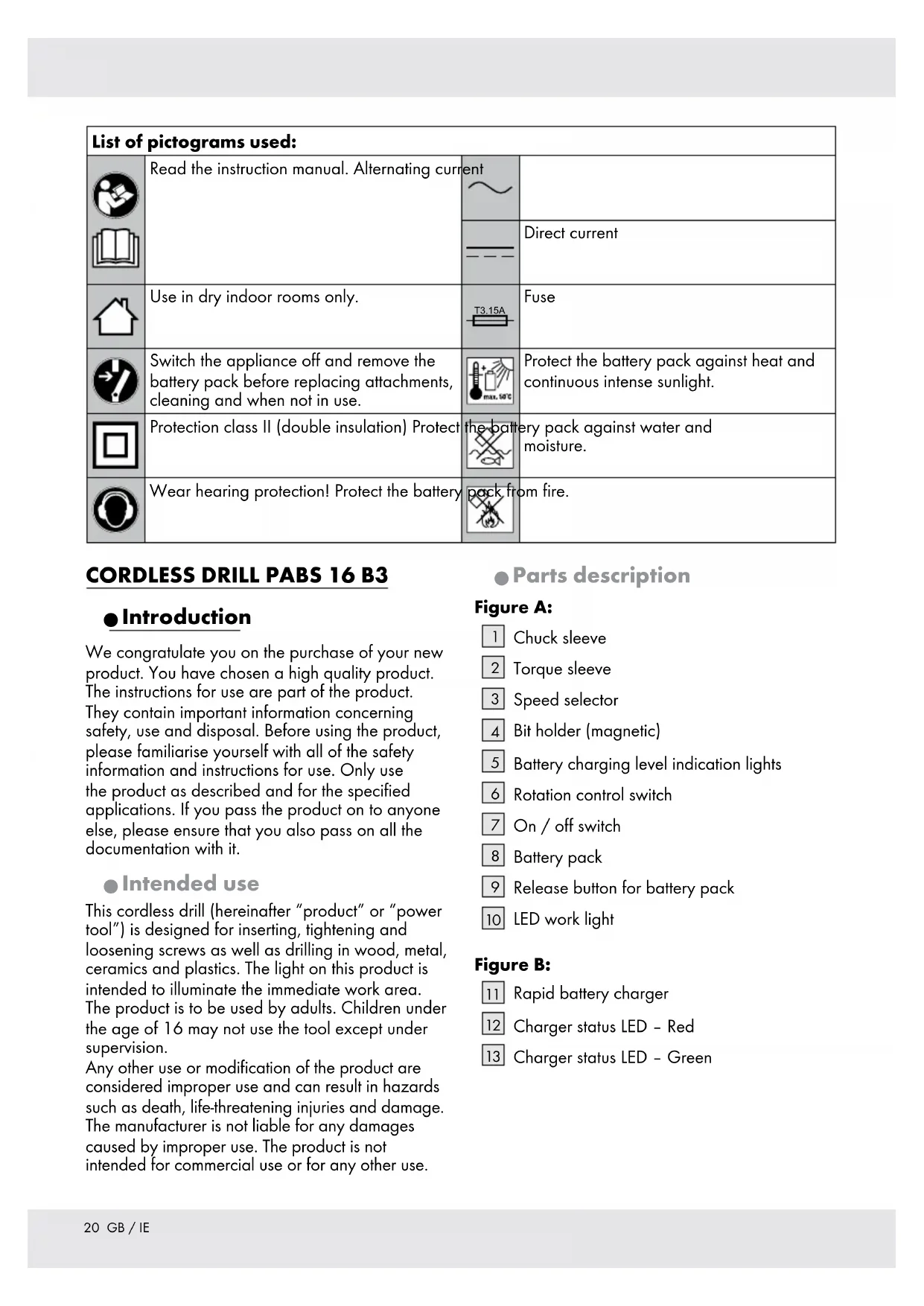

List of pictograms used:
	Read the instruction manual. Alternating current	~
		-	Direct current
	Use in dry indoor rooms only.	T3.15A	Fuse
	Switch the appliance off and remove the battery pack before replacing attachments, cleaning and when not in use.	max. 60°C	Protect the battery pack against heat and continuous intense sunlight.
	Protection class II (double insulation) Protect the battery pack against water and moisture.
	Wear hearing protection! Protect the battery pack from fire.

CORDLESS DRILL PABS 16 B3

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This cordless drill (hereinafter "product" or "power tool") is designed for inserting, tightening and loosening screws as well as drilling in wood, metal, ceramics and plastics. The light on this product is intended to illuminate the immediate work area. The product is to be used by adults. Children under the age of 16 may not use the tool except under supervision.

Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use or for any other use.

Parts description

Figure A:

Chuck sleeve
2 Torque sleeve
3 Speed selector
4 Bit holder (magnetic)
5 Battery charging level indication lights
6 Rotation control switch
7 On/off switch
8 Battery pack
9 Release button for battery pack
10 LED work light

Figure B:

11 Rapid battery charger
12 Charger status LED - Red
13 Charger status LED - Green

Scope of delivery

1 Cordless drill PABS 16 B3
1 Battery pack PABS 16 B3-1
1 Rapid battery charger PABS 16 B3-2
1 PZ2 bit
1 Carrying case
1 Operating instructions

Technical data

Cordless drill: PABS 16 B3

Rated voltage: 16V

Drill chuck type:keyless

Gearbox: 2 speed

No load speed no:

1st gear 0 - 400 min-1

2nd gear 0 - 1300 min

Max. torque: 25 Nm

Max. chuck capacity: 0 10 mm

Max. drill diameter: into steel 10mm

into wood 25mm

Battery pack: PABS 16 B3-1

Type: Lithium ion

Rated voltage: 16 V = = = max.

Capacity: 2.0 Ah

Number of cells: 4

Rapid battery charger: PABS 16 B3-2

INPUT:

Rated voltage, frequency: 230 - 240 V~, 50 Hz

Power consumption: 50 W

OUTPUT:

Rated voltage: 16.5 V

Charging current: 2.4 A

Charging time: approx. 60 min

Protection class: II /

Fuse (internal): 3.15 A

Noise emission value

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level L_pA 69 dB(A)

Uncertainty K_PA 3 dB

Sound power level LwA: 80 dB(A)

Uncertainty Kwa: 3 dB

Vibration emission value

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Screwing

Hand/arm vibration a_h: < 2.5 m/s^2

Uncertainty K: 1.5m / s^2

Drilling into metal

Hand/arm vibration a_h,D:2.6m / s^2

Uncertainty K: 1.5m / s^2

WARNING!

Wear ear protection!

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestimation of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

Safety warnings

• General power tool safety warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Drill safety warnings

1. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
2. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Screwdriver safety warnings

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use lowvibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

Only use the product as intended by its design and these instructions.
Ensure that the product is in good condition and well maintained.
Use correct attachments for the product and ensure they are in good condition.
- Keep tight grip on the handles / grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.

Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by flying objects.

WARNING!

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

- Battery charger safety warnings

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Do not charge non-rechargeable batteries. Disregarding this instruction is hazardous.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the product under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.
The appliance is suitable for indoor use only.
This charger is only designed for charging the battery pack type: PABS 16 B3-1.

CAUTION! RISK OF EXPLOSION

Never charge non-rechargeable batteries! Protect the battery pack against heat, e. g., against continuous intense sunlight, fire, water and moisture. Danger of explosion.

Initial use

Unpacking

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Do not use the product unless missing parts have been delivered in addition or defective parts have been replaced. Using an incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment.

Accessories

To operate this product safely and correctly, the following accessories, i.e. tools and attachments, are necessary:

Suitable drill bits
Suitable driver bits
Cooling lubricant (cutting oil) suitable for drilling in metal
Suitable personal protective equipment

Accessories and tools are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").

If you are not certain, ask a qualified specialist and get advice from your trusted dealer.

NOTE

This instruction manual contains information and suggestions for several attachments and their uses. The attachments depicted are not necessarily included in the shipment, but are meant to indicate additional possibilities for using this product.

Before use

- Attaching / removing the battery pack

CAUTION! RISK OF INJURY!

Always lock the on/off switch to avoid accidental starting by moving the rotation control switch into the centre position before attaching / removing the battery pack.

Attaching the battery pack:

1. Align the battery pack 8 to the handle and slide it into it. Ensure it clicks noticeably in place.

Removing the battery pack:

1. Press the release button [9] and remove the battery pack [8].

- Charging the battery pack

NOTE

The battery pack comes partly charged. Charge the battery pack 8 prior to first use, ideally at least 60 minutes.
Always pull out the plug of the charge from the mains before removing or connecting the battery pack 8 to the charger.
Never charge the battery pack when the ambient temperature is below 10^ or above 40^ .
If no battery pack is inserted into the charger [11] and the charger is connected to mains, the charging status LED [13] lights up green.

1. Connect the battery pack 8 to the battery charger [11].
2. Insert the mains plug into the socket. The charging status LED lights up red. Once the battery pack is completely charged, the green charging status LED indicates that the charging process is complete.
3. Disconnect the charger 11 from the mains and remove the battery pack 8 from the charger.
4. Attach the battery pack 8 back to the product (see "Attaching / removing the battery pack").

Charging status LEDs

Green LED continuously lit	Charger ready
Red LED continuously lit	Battery pack charging
Green LED continuously lit	Battery pack fully charged
Red LED flashing Battery pack defect
Green LED flashing	Battery pack too cold or warm

- Checking the battery charging level

Press the on/off button to check the charging level of the battery pack 8. The status / remaining charge will be shown on the battery charging level indication lights 5.

Green / red / orange	maximum battery charging level
Red / orange m	edium battery charging level
Red low battery	charging level

Charge the battery pack before operation when it is at medium or low battery charging level.

Operation

CAUTION! RISK OF INJURY!

• Keep your hands away from the tool when the product is in operation.

- Changing accessories

CAUTION! RISK OF INJURY!

Accessories can be sharp and may become hot during use. Always wear protective gloves when handling accessories!

This product is equipped with an automatic spindle lock to open or close the spindle with the chuck sleeve 1.

1. Push the rotation control switch 6 to the centre position to lock the on/off switch 7
2. Turn the chuck sleeve 1 clockwise to open the spindle.
3. Insert a suitable accessory into the spindle as deep as required.
4. Hold the accessory in position and turn the chuck sleeve 1 counter clockwise to close the spindle.
5. Push the rotation control switch 6 to the position required for your application.
6. After short operation, switch the product off and ensure the accessory is still properly fastened.

Speed control

Speed selector

WARNING!

Do not actuate the speed selector unless the spindle has come to a complete stop!

1. This product is equipped with a two speed gearbox. The 1^st gear is designed for screw driving operations with low speed and high torque, while the 2^nd gear is designed for drilling operations with high speed and low torque.
2. Preselect the gear for your application by moving the speed selector 3. 1^st gear: Speed selector switch 3 in position 1. 2^nd gear: Speed selector switch 3 in position 2.

On/off switch

The on/off switch 7 is combined with a speed control. The speed increases or reduces depending on how hard it is pressed. This allows you to change the speed during operation.

Rotation control

WARNING!

Do not actuate the rotation control switch unless the spindle has come to a complete stop!

Change the direction of rotation by pushing the rotation control switch towards left or right.
Push the rotation control switch to the centre position to lock the on/off switch (e.g. when changing accessories, transportation).

Q Torque control

This product is equipped with a torque control that disengages the spindle when a predefined torque is exceeded.

The torque can be adjusted using the torque sleeve [2].
- Select a low level for small screws or soft materials.
- Select a high level for large screws, hard materials or removing screws.
- Select the drill setting for drilling operation by turning the torque sleeve 2 to the position.

Q Bit holder

Use the bit holder 4 to store an extra driver bit for operations that require a frequent change of the accessories.

QLED work light

This product is equipped with a LED work light to illuminate the immediate working area to improve visibility in poorly lit areas.

1. As long as the on-off switch 7 is pressed, the LED work light 10 is lit and switches off as soon as the on/off switch is released.

q Switching on and off

Switching on:

1. Press the on/off switch 7 to switch the product on. Regulate the speed as required (see "Speed control").

Switching off:

1. Release the on/off switch to switch the product off.

Q After use

1. Switch the product off, remove the battery pack 8 and let it cool down.
2. Check, clean and store the product as described below.

Tips and tricks

Before operating the product, check whether the screw or drill bit is correctly positioned, i.e. centred in the spindle.
Screw bits are labelled according to their dimensions and their shape. If you are uncertain, always check whether the bit fits tightly in the screw head without any free play.

Torque

Smaller screws / bits can be damaged if you set the torque or rotational speed too high.

Hard screw joints (in metal)

Particularly high torque occurs, for example in metal screw joints made using drive sockets. Select a low rotational speed.

Soft screw joints (e.g. in soft wood)

□ Again, use a low rotational speed, e. g. to avoid damaging the surface of the wood upon contact with the screw head. Use a countersink.

Drilling in wood, metal and other materials

Use a high speed for drill bits with small diameter and a low speed for drill bits with large diameter.
- Select a low speed for hard materials and a high speed for soft materials.
- Secure or fasten the workpiece in a clamp or vice (if possible).
- Mark the spot where you want to drill using a centre punch or nail. Select a low rotational speed when starting.
Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole.

Drilling in metal

Use a metal drill (HSS). For optimum results, cool the drill bit with cooling lubricant (cutting oil). Metal drill bits can also be used to drill into plastics. Start with a 3mm diameter drill bit and then increase the size until the desired hole diameter is achieved.

Drilling in wood

Use a wood drill with a lathe centre; for deep holes, use an auger bit; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood.

- Cleaning and care

WARNING!

Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work!

- Cleaning

The product must always be kept clean, dry and free from oil or grease. Remove debris from it after each use and before storage.
Regular and proper cleaning will help ensure safe use and prolong the life of the product.
Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts.
Never allow fluids to get into the product.
Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
In particular clean the air vents after every use with a cloth and brush.
Remove stubborn dirt with high pressure air (max. 3 bar).

NOTE

Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

- Maintenance

Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements (see "Technical data").

Repair

This product does not contain any parts that can be repaired by the user. Contact an authorised service centre or a similarly qualified person to have it checked and repaired.

Storage

Switch the product off and remove the battery pack 8
Push the rotation control switch to the centre position to lock the on/off switch.
Clean the product as described above.
Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.

Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10^ and 30^ .
We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.
Regularly check the charge level of the battery pack, if it is to be stored for an extended period. Optimum storage conditions are cool and dry.

- Transportation

Switch the product off and remove the battery pack 8.
Push the rotation control switch to the centre position to lock the on/off switch
- Attach transportation guards, if applicable.
Always carry the product by its handle.
- Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Secure the product to prevent it from slipping or falling over.

Troubleshooting

WARNING!

Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself!

Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly.

Problem	Possible cause Solution
Product does not start	Battery pack not properly attached	Attach properly
	Battery pack discharged	Remove and charge the battery pack
	Battery pack damaged	Check by a specialist electrician
	Other electrical defect to the product	Check by a specialist electrician
Product does not reach full power	Battery pack capacity too low	Remove and charge the battery pack
	Air vents are blocked	Clean the air vents
Unsatisfactory result	Accessory is worn Rep	face with a new one
	Accessory not suitable for intended operation	Use suitable accessory
Product suddenly stops	Product overloaded Remove the product from the workpiece and switch it on again
	Battery pack discharged	Remove and charge the battery pack
	Battery pack too hot Remove the battery pack and let it cool down
Excessive vibration or noise	Accessory is dull / damaged	Replace with a new one
	Bolts / nuts are loose Tighten bolts / nuts

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Remove the batteries / battery pack from the product before disposal.

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead.

That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Service

WARNING!

Have your product repaired at the service centre or an electrician, using only original manufacturer parts. This will maintain the safety of this product.
Always have a plug or power cord replaced by the product manufacturer or its service centre. This will maintain the safety of this product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty for this rechargeable battery pack is 1 year from the date of purchase.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456) available as proof of purchase. You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min.,{peak})

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 291683

Translation of original declaration of conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: cordless drill PABS 16 B3, model no.: HG03285, version: 10/2017, to which this declaration refers, complies with the standards / normative documents of 2006/42/EC, 2014/35/EU, 2014/30/EU, 2011/65/EU.

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN 60745-2-1:2010

EN 60745-2-2:2010

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 60335-1:2012/A11:2014

EN 60335-2-29:2004/A2:2010

EN 62233:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Serial number: IAN 291683

Tobias Konig

Division Manager / Responsible for documentation

The declaration of conformity can also be viewed at: www.owim.com.

CE

The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Sommaire

Transmission: 2 vitesses

Nominate spanning: 16 V

Groene LED is constant verlicht	Groene LED is constant verlicht
Rode LED is constant verlicht	Rode LED is constant verlicht
Groene LED is constant verlicht	Groene LED is constant verlicht
Rode LED knippert	Rode LED knippert
Groene LED knippert	Groene LED knippert

Accu oplaadstatus controlleren

• Utilice brocas para metal (HSS) Para Obtener los最好的 resultados, enfríe el taladro con lubricante refrigerante (aceite de corte). Las brocas de metalSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEO SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEOEQ SEO EQ

Perforar en madera

Aparafusadora com accumulator:

PABS 16 B3
