USER MANUAL SGS 600 A1 SILVERCREST

Operation and Safety Notes

NL BE

GEZICHTSSAUNA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IEOperation and Safety NotesPage 17

List of pictograms used

Introduction

Intended use Page 18
Delivery contents.. 18
Parts description.. Page 18
Technical data.. Page 18

Safety notes.. Page 19

Before use.. Page 22

Setting up the product.. 22
Filling the water tank. Page 22

Set-up

Warming towels. Page 22
Using the facial sauna
Using the infuser function.. Page 23
Using the product as a humidifier.. Page 23

Maintenance and cleaning.. Page 24

Cleaning the product . Page 24

Disposal

Warranty

Warranty conditions.. Page 24
Warranty period and legal warranty rights.. Page 25
Scope of warranty . Page 25
Submitting warranty claims . Page 25

Service

Manufacturer

Declaration of conformity.. Page 25

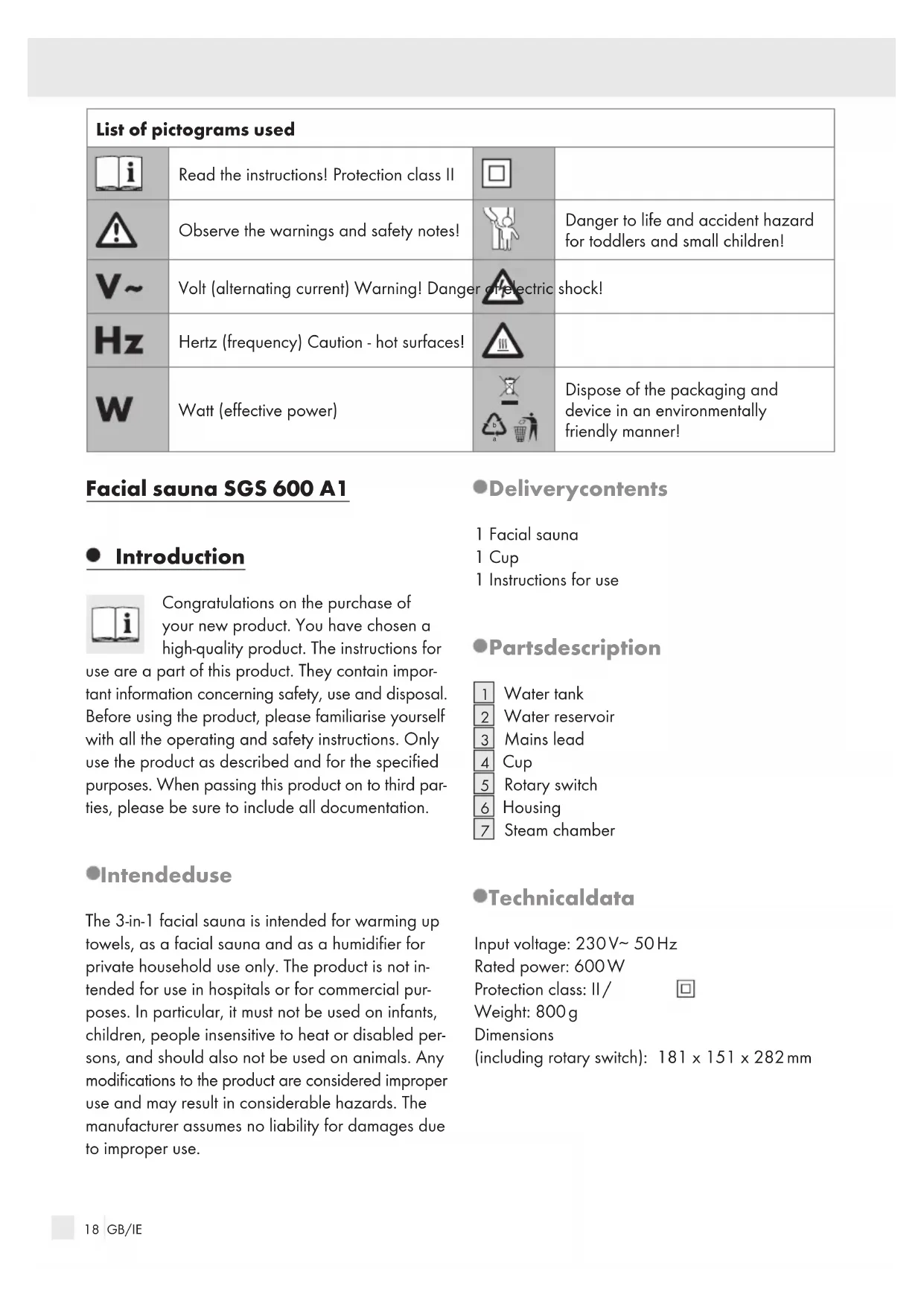

List of pictograms used
i	Read the instructions! Protection class II
	Observe the warnings and safety notes!		Danger to life and accident hazard for toddlers and small children!
V~	Volt (alternating current) Warning! Danger of electric	shock!
Hz	Hertz (frequency) Caution - hot surfaces!
W	Watt (effective power)		Dispose of the packaging and device in an environmentally friendly manner!

Facial sauna SGS 600 A1

Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. The instructions for

use are a part of this product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the specified purposes. When passing this product on to third parties, please be sure to include all documentation.

Intendeduse

The 3-in-1 facial sauna is intended for warming up towels, as a facial sauna and as a humidifier for private household use only. The product is not intended for use in hospitals or for commercial purposes. In particular, it must not be used on infants, children, people insensitive to heat or disabled persons, and should also not be used on animals. Any modifications to the product are considered improper use and may result in considerable hazards. The manufacturer assumes no liability for damages due to improper use.

Deliverycontents

1 Facial sauna
1 Cup
1 Instructions for use

- Partsdescription

Water tank
2 Water reservoir
3 Mains lead
4 Cup
5 Rotary switch
6 Housing
7 Steam chamber

-Technicaldata

Input voltage: 230V 50Hz

Rated power: 600W

Protection class: II /

Weight: 800g

Dimensions

(including rotary switch): 181 × 151 × 282 ~mm

Safety notes

PLEASE READ THE INSTRUCTIONS PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!

WARNING!

product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.

• Keep the packaging materials away from children!
  Store the product in a dry location, out of reach of children.
  Unplug the product from the socket when it is not in use.
  Do not use the product while bathing.

Always position the product in such a way that it can't fall into a bath or wash basin.
- Do not use or store the product in the bathroom or in very humid environments.
- Protect the product from moisture and humidity. Never immerse the product in water or other liquids!
- Do not reach for the product if it is in water or other liquids. In this event, immediately unplug from the socket.
Only use accessories included with the product or recommended by the manufacturer.
- Do not subject the device to shock and do not drop it.
- Do not use the product if the mains lead or plug is damaged, is not working properly, if it has been dropped on the floor or in water, or you detect any other damage. In this case, please contact a professional for repair.
- Keep the device and lead away from heat, oil and sharp edges. Never wrap the mains lead around the product!
- Do not use the product while sleeping.
- Do not insert or allow objects to fall into the openings on the product.

• Do not stick metal objects (e.g. needles, cables) into the steam chamber. Do not block these.
• Do not reach into or look directly into the steam chamber while it is in use. Scalding hazard.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! Please note, steam will continue to escape from the steam chamber for about a minute after disconnecting from power.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! Please note that the product housing becomes hot during use.

• Do not allow water to leak from the device's steam chamber. Otherwise hot water drops could spurt out of the steam chamber during next use. Scalding hazard.

• Do not use the product outdoors or in locations where aerosol (spray) is used or pure oxygen is administered.
  Unplug from the socket when adding water or cleaning the product.
  Only fill the water tank with purified, distilled or tap water.
  Make sure the device does not get wet when filling the water tank.

• Do not attach or remove the water tank during use. Allow the product to cool down for approx. 10 minutes after use before touching the water tank. Otherwise there is a risk of burns.
  Do not use extension cords.

• Place the product on an even, level surface. Never hold the product in your hands during use. Scalding hazard due to escaping water or steam.
• Fill the water tank 1 with water only (except for decalcification, see chapter "Maintenance and cleaning").
• Keep a minimum distance of 25cm from the steam chamber during use, to prevent scalding.
• Do not tip, shake or move the product after use. Hot steam or water could otherwise escape, causing scalding. Allow the product to cool down for approx. 10 minutes.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! This product must not be used by persons insensitive to heat and other vulnerable persons who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas

in the application area, after using analgesics or alcohol). There is a risk of receiving skin burns.

Unplug from the socket before maintaining the product.
Only use the product with the included mains lead. Do not use the mains lead with other devices.

WARNING!

DANGER OF ELECTRIC

SHOCK! If damaged, the mains lead must be replaced by the manufacturer or its authorized service centre to avoid any hazards. Otherwise there is a risk of electric shock.

If the product has not been used for a prolonged period and you notice a smell of burning when starting the device, or the mains lead and plug become hot, switch off the device, unplug from the socket and contact a specialty retailer.
- Do not modify or repair the product.
- Do not bend the mains lead sharply. Do not place any objects on it.
- Never touch the power supply or the product with wet hands.
Do not operate the product in potentially explosive environments

with inflammable vapours, gases or dusts.

WARNING! DANGER OF

ELECTRICSHOCK! Never

attempt to repair the product yourself. In the event of a defect, switch off and unplug the product and contact customer service.

• When disposing of the water, hold the product so hot water will not run onto your fingers. Scalding hazard.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! The water tank will be very hot after use. Allow to cool down before touching it.
Clean this item after every use to avoid the accumulation of fat and other residues.

This product should not be used by:

Pregnant or menstruating women (hormonal imbalance can cause skin irritation)
Allergysufferers
Persons with skin disorders, sensitive skin or atopic eczema
Persons with sunburn
Persons with injuries, eczema or facial swelling

Health Indications:

Excess use is harmful to the skin. The product should initially only be used once a day, no more than two to three times per week. Pay attention to how your skin responds to the treatment and adjust the frequency and duration of treatment accordingly.
If your skin becomes painful or you feel unwell during use, stop the treatment immediately and seek medical attention.
Skin must be cared for appropriately after every use. The treatment will otherwise dry out the skin.

Before use

Note: Remove all packaging material from the product.

- Setting up the product

Place the product on an even, level surface.

- Filling the water tank

WARNING! DANGER OF ELECTRIC SHOCK!

Always unplug from the socket before filling the water tank 1.
Lift the water tank 1 up out of the water reservoir 2.
Unscrew the cover counter-clockwise from the water tank.

Fill the water tank 1 with purified, distilled or tap water and screw the cover back onto the water tank 1.
If necessary, wipe the water tank dry.
Reinsert the water tank 1 in the water reservoir 2

Set-up

Warmingtowels

Unplug from the socket and make sure the product has cooled down.
Turn the steam chamber 7 counter-clockwise until the arrow on the steam chamber 7 lines up with the symbol on the housing 6 (see Fig. B).
Remove the steam chamber 7 from the housing 6 (see Fig. C).
- Fold a small, damp facial towel and place in the housing [6] (see Fig. D).

Note: Only use 100% cotton towels with a maximum size of 30 × 30 ~cm .

Push the steam chamber 7 back into the housing 6 (see Fig. E).
Turn the steam chamber 7 clockwise until the arrow on the steam chamber 7 lines up with the symbol on the housing 6 (see Fig. F).
Connect the mains plug to the mains socket.
Set the rotary switch 5 to position. The edge of the rotary switch 5 will light up blue.
Wait for 2 minutes.
Set the rotary switch 5 to position and wait for 2 minutes before opening the product to prevent scalding from hot steam.
Turn the steam chamber 7 counter-clockwise until the arrow on the steam chamber 7 lines up with the symbol on the housing 6 (see Fig. B).
Remove the steam chamber 7 from the housing 6 (see Fig. C).
Remove the hot towel from the housing 6 with tongs.

CAUTION! RISK OF BURNS DUE TO HOT

SURFACES! The towel is very hot! Allow the towel to cool to a comfortable temperature before applying to the facial skin.

Discard any water remaining in the water reservoir 2 after use to prevent the growth of bacteria. To do so, allow the product to cool down, remove the water tank 1 and tip the product so water can drain out of the water reservoir 2.

Using the facial sauna

Connect the mains plug to the mains socket.
Set the rotary switch 5 to position the edge of the rotary switch will light up blue. Steam will soon start coming out of the steam chamber 7.

Note: When using this function for the first time, first check the temperature of the steam with your hand from a distance of about 25cm from the steam chamber 7 before aiming the steam at your face. If you feel the steam is too hot, increase the distance to approx. 45~cm .

Now aim the steam at your face. Choose a distance which provides a comfortable steam temperature (see Fig. G). For example you can sit on a bar stool and place the device on a chair, etc.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Always keep a minimum distance of 25 cm from the steam chamber.

Note: Position your face so the steam hits your chin first. This ensures the steam will cover your entire face.

Note: With the tank full, the "Facial Sauna" function will last for approx. 15 minutes.

Set the rotary switch 5 to position to switch the product off again.
Discard any water remaining in the water reservoir 2 after use to prevent the growth of bacteria. To do so, allow the product to cool down, remove the water tank 1 and tip the product so water can drain out of the water reservoir 2.

Using the infuser function

Fill the cup 4 with chopped fruits and / or flowers. Or pour a few drops of essential oil onto a cotton ball and add to the cup 4.

Turn the steam chamber 7 counter-clockwise until the arrow on the steam chamber 7 lines up with the symbol 口 on the housing 6 (see Fig. B).
Remove the steam chamber 7 from the housing 6 (see Fig. C).
Place the filled cup 4 in the housing 6.
Push the steam chamber 7 back into the housing 6 (see Fig. E).
Turn the steam chamber 7 clockwise until the arrow on the steam chamber 7 lines up with the symbol 日 on the housing 6 (see Fig. F).
Connect the mains plug to the mains socket.
Set the rotary switch 5 to position The edge of the rotary switch will light up blue. Infused steam will soon start coming out of the steam chamber 7.

Note: When using this function for the first time, first check the temperature of the steam with your hand from a distance of about 25cm to the steam chamber 7 before aiming the steam at your face.

Now aim the steam at your face. Choose a distance which provides a comfortable steam temperature (see Fig. G).

ATTENTION! RISK OF SCALDING! Always keep a minimum distance of 25 cm from the steam chamber.

Note: Position your face so the steam hits your chin first. This ensures the steam will cover your entire face.

Set the rotary switch 5 to position to switch the product off again.
Discard any water remaining in the water reservoir 2 after use to prevent the growth of bacteria. To do so, allow the product to cool down, remove the water tank 1 and tip the product so water can drain out of the water reservoir 2.

Using the product as a humidifier

The product may also be used as a humidifier for small rooms and for short periods.

Connect the mains plug to the mains socket.
Set the rotary switch 5 to position __0^ . The edge of the rotary switch will light up blue. Steam will

soon start coming out of the steam chamber 7. With the water tank 1 full the product will humidify the air for approx. 30 minutes.

ATTENTION! RISK OF SCALDING! Always keep a minimum distance of 25 cm from the steam chamber.
Set the rotary switch 5 to position to switch the product off again.
Discard any water remaining in the water reservoir 2 after use to prevent the growth of bacteria. To do so, allow the product to cool down, remove the water tank 1 and tip the product so water can drain out of the water reservoir 2.

- Maintenance and cleaning

- Cleaning the product

Always unplug from the socket before maintaining and cleaning the product.
Do not use aggressive chemicals or scouring agents.
Clean the housing 6 with a soft, dry cloth.
Clean the inside of the housing about once a month to prevent limescale and bad odours.
To do so, fill the water tank 1 with water and vinegar (50% each).
Connect the mains plug to the mains socket.
Set the rotary switch 5 to position The edge of the rotary switch will light up blue. After approx. 1 minute steam will come out of the steam chamber 7.
Run the device for approx. 15 minutes.
Set the rotary switch 5 to position to switch the product off again.
Then unplug from the socket.
Now remove the water tank 1 and the steam chamber 7 and fill the housing 6 with clean water.
Cl ean the inside of the housing with a soft sponge.
Then discard the water from the housing 6 and place it upside down to dry, e.g. on a dish drying rack. The inside of the device must be completely dry before using the device again.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warrantyconditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or

replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

- Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

- Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

• Before using your product for the first time, please read the enclosed documentation carefully. Should

any problems arise which cannot be solved in this way, please call our hotline.

• Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
• If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

GB

Phone: [phone]

E-Mail: [e-mail]

IE

Phone: [phone]

E-Mail: [e-mail]

IAN 293233

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA GmbH

Coesterweg 45

DE-59494 Soest

GERMANY

Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

The complete EU Declaration Of Conformity is

available for download at:

www.targa.de/downloads/conformity/293233.pdf

Dimensoes (inclusive
