USER MANUAL SGS 100 A1 SILVERCREST

White blender with a curved handle and control knob, shown against a plain background (no text or symbols visible)

FACIAL SAUNA SGS 100 A1

HOYER Handel GmbHTasköprüstraße 3DE-22761 HamburgDEUTSCHLANDStatus of information - Informationernes stand - Version des informationsStand van de informatie - Ημερομηνία έκδοσης πληροφοριών - Stand der Informationen:04/2018 ID: SGS 100 A1_18_V1.2

GB IE NIFACIAL SAUNAOperating instructionsFR BESAUNA FACIALMode d'emploiGR CYΣΑΟΥΝΑ ΠΡΟΣΩΠΟΥΟδηγία χρήσης

DKANSIGTSSAUNABetjeningsvejledningNL BEGEZICHTSSAUNAGebruiksaanwijzingDE AT CHGESICHTSSAUNABedienungsanleitung

English.... 2

Dansk.... 14

Français.... 26

Nederlands.... 40

Ελληνικά 52

Deutsch.... 64

Overview / Oversigt / Aperçu de l'appareil / Overzicht /

Line drawing of a hand holding a cloth, with no text or symbols present

Line drawing of a person in profile view, viewed from the side (no text or symbols)

E MAX MIN 11

Contents

1. Overview ...... 2
2. Intended purpose 4
3. Safety information .... 4
4. Items supplied 6
5. Before using for the first time 6
6. Assembly 7

6.1 Fill in water 7
6.2 Herbs and oil 7
6.3 Set-up with face mask.... 7
6.4 Set-up with nose mask 7

1. Operation 8

7.1 Switching on and off 8
7.2 Switching off automatically.... 8
7.3 Face mask.... 8
7.4 Nose mask.... 9

1. Cleaning 9
2. Storage 10
3. Disposal 10
4. Troubleshooting 10
5. Technical specifications .... 11
6. Warranty of the HOYER Handel GmbH 11

1. Overview

1 Face mask with aroma reservoir
2 Nose mask
3 Lid for the aroma reservoirs
4 Aroma reservoir for the nose mask
5 Water container
6 Base unit
7 0 1 2 On/off switch / steam flow rate controller
8 LED, lights up when the device is switched on
9 Measuring beaker with scale 1 and scale 2 (5 min, 10 min, 15 min)
10 Connector cable with mains plug
11 Manual steam flow rate controller

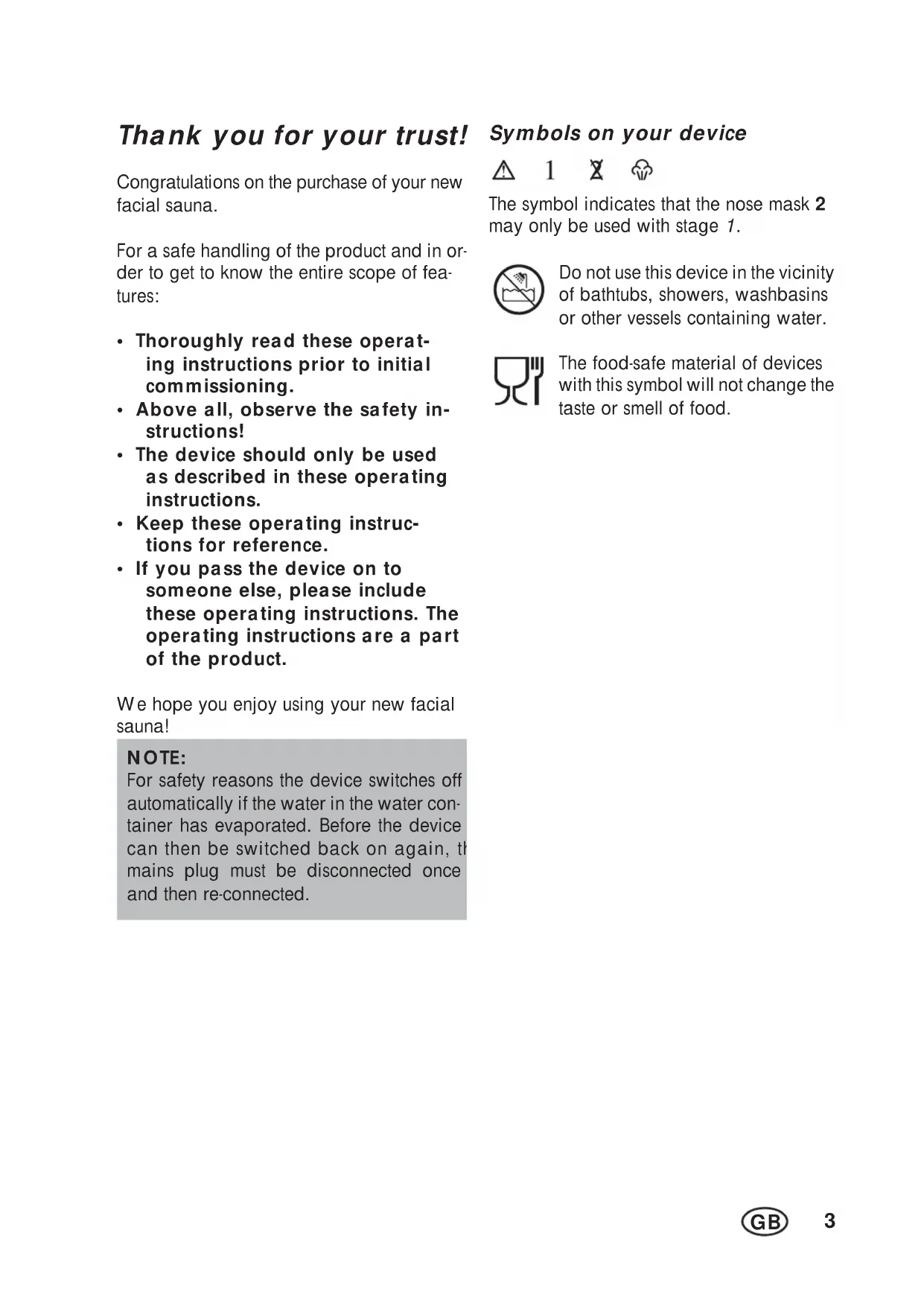

Thank you for your trust!

Congratulations on the purchase of your new facial sauna.

For a safe handling of the product and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions. The operating instructions are a part of the product.

We hope you enjoy using your new facial sauna!

NOTE:

For safety reasons the device switches off automatically if the water in the water container has evaporated. Before the device can then be switched back on again, the mains plug must be disconnected once and then re-connected.

Symbols on your device

△ 1 ✗

The symbol indicates that the nose mask 2 may only be used with stage 1.

Do not use this device in the vicinity of bathtubs, showers, washbasins or other vessels containing water.

The food-safe material of devices with this symbol will not change the taste or smell of food.

2. Intended purpose

The facial sauna is used for facial beauty care by steam.

The device is designed for private home use and must not be used for commercial purposes.

The device must only be used indoors.

Foreseeable misuse

WARNING! Risk of injury!

• This device does not replace a medical inhalation device.

• The facial sauna must not be used if you suffer from one of the following diseases.

• Skin inflammations

• Wounds/ swellings in the face
• Skin reddening
• Diabetes
• Eczema or psoriasis
• Heart disease.

If in doubt, ask you doctor whether the use of the facial sauna is medically compatible for you.

WARNING! Risk of material damage!

- Please do not add any additives to the water in the water tank such as e.g. oils. After the water has evaporated these additives may burn in and cause damage to the water tank.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and user maintenance must not be performed by children unless they are supervised.
• Keep children under the age of 8 away from the device and the power cable.
  Do not use this device in the vicinity of bathtubs, showers, washbasins or other vessels containing water.
• If you use the facial sauna in a bathroom, always pull out the mains plug afterwards. The proximity of water represents a hazard even when the device is switched off.
• If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.
• In order to avoid the accumulation of grease or the drying in of other residues, all device parts used must be cleaned after each use.

DANGER for children

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation!

DANGER to or from pets and livestock

Electrical devices can also represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

• Never place the device anywhere that it could fall into water while plugged in.
• Protect the device from moisture, water drops and water splashes.
• The device, the power cable and the mains plug must not be immersed in water or any other liquids.
• If liquid gets into the device, remove the mains plug immediately. Have the device checked before reusing.
• If the device has fallen into water, pull out the mains plug immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist.
• Never touch the device with wet hands.

DANGER! Risk of electric shock

• Do not use the device if the device or the power cable has any visible damage, or if the device has previously been dropped.
• Lay the power cable such that no one can step on it, get caught on it, or trip over it.
• Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device (Danger! Risk of cable damage!).
• Ensure that the power cable cannot be trapped or crushed.
• To pull the mains plug out of the wall socket, always pull on the mains plug, and never on the power cable.
• Disconnect the mains plug from the wall socket,...
  ... after every use,
  ... if there is a fault,
  ... when you are not using the device,
  ... before you clean the device and
  ... during thunderstorms.

DANGER! Fire hazard!

• Never leave the device unattended while it is plugged in.
• Never heat the device if it doesn't contain any water.

DANGER! Risk of injury through burning/scalding

• The water is boiling in the water container during operation. Any contact with boiling water or hot steam may cause serious injury.
• Do not touch the hot inner parts of the device.
• Allow the device to cool down completely before you transport or clean it.
• Allow all parts to cool down before removing them from the device.

WARNING! Risk of material damage

• Use the original accessories only.
• Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire.
• Do not use any astringent or abrasive cleaning agents.
• Do not expose the device to temperatures below -10 °C or above +40 °C.

4. Items supplied

1 base unit 6
1 face mask with aroma reservoir 1
1 nose mask 2
1 aroma reservoir for the nose mask 4
1 lid for the aroma reservoirs 3
1 measuring beaker 9
1 operating instructions

5. Before using for the first time

• Remove all packing material.
• Check that the device is undamaged.
• Clean the device prior to its first use! (see “Cleaning” on page 9)
• Place the device on level, water insensitive and (to the maximum extent possible) non-slip ground.
• Select the location such that you can comfortably sit in front of the device.

6. Assembly

You can use the facial sauna either with the face mask 1 or the nose mask 2.

6.1 Fill in water

WARNING! Risk of material damage!

- Please do not add any additives to the water in the water container 5 such as e.g. oils. After the water has evaporated these additives may burn in and cause damage to the water container 5.

- The measuring beaker 9 is labelled with a scale (5 min, 10 min, 15 min) on both sides:

• With switch setting 1 of the steam flow rate control 7 (lower steam quantity) use scale 1.

• With switch setting 2 of the steam flow rate control 7 (higher steam quantity, only for use with the face mask 1) use scale 2.

• Fill tap water into the measuring beaker 9: at least up to the minimum marking 5 min, but no more than to the max. marking 15 min of the used scale 1 or 2.

• Pour the water into the water container 5.

6.2 Herbs and oil

You can place herbs, tea leafs or oils (on a cotton ball) into the aroma reservoirs 1 and 4. These will then pass their beneficial effect on to you together with the steam.

Tips

• If you are not sure with regard to the effect of herbs or oils, ask your pharmacist or read the package leaflet.
  • Always add only just a few drops of oil to a cotton wool pad.
• If you wish to use very fine herbs or even powders, ensure that these do not

ingress into the water container 5. It is best if you first place such herbs/powders into a small filter bag or place the same on a cotton wool pad.

6.3 Set-up with face mask

1. Place the face mask 1 on the basic unit 6.

2. The opening of the face mask 1 is located above the on/off switch 7.

3. The lateral lugs must fit into the recesses on the basic unit 6.

4. If required: If necessary, take the lid 3 off the aroma reservoir 1. For this, grab both lugs and pull off the lid 3 upwards. Fill some tea leaves or herbs into the inner ring of the aroma reservoir 1 and put the lid 3 of the aroma reservoir on.

NOTES:

• Please add oils one drop at a time to a cotton wool pad and place the same into the aroma reservoir 1.

• If you are not sure about the effect of the herbs or oils (stinging eyes etc.), ask a pharmacist before first use.

• Turn the face mask 1 a bit clockwise until it is connected firmly with the base unit 6.

• Connect the mains plug 10 with a wall socket. The on/off switch 7 is set to 0.

6.4 Set-up with nose mask

1. Figure A: Place the aroma reservoir 4 onto the basic unit 6.

- The lateral lugs must fit into the recesses on the basic unit 6.

1. If required: If necessary, take the lid 3 off the aroma reservoir 4. For this, grab both lugs and pull off the lid 3 upwards. Fill some tea leaves or herbs into the inner ring of the aroma reservoir 4 and put the lid 3 of the aroma reservoir on.

NOTES:

• Please add oils one drop at a time to a cotton wool pad and place the same into the aroma reservoir 4.

• If you are not sure about the effect of the herbs or oils (stinging eyes etc.), ask a pharmacist before first use.

• Place the nose mask 2 with its aperture pointing toward the front onto the aroma reservoir 4.

• Connect the mains plug 10 with a wall socket. The on/off switch 7 is set to 0.

7. Operation

The heat and moisture of the steam opens the pores and thus provides for a better removal of any impurities. Using the facial sauna you prepare your skin optimally for further applications, such as for example face masks or deep cleansing. Naturally, the use of the facial sauna is also simply just fantastically relaxing.

DANGER! Risk of injury through burning/ scalding!

- The water is boiling in the water container 5 during operation. Any contact with boiling water or hot steam may cause serious injury. Use the device only with one of the two attachments 1 or 2.

NOTE: what to do when you are not feeling well

If you do not feel well during the use of the facial sauna or your breathing becomes restricted in any way (shortness of breath), stop using the device immediately and switch the device off.

7.1 Switching on and off

By turning the on/off switch / steam flow rate controller 7 you switch the device on and off and control the steam quantity in two stages.

• 0: device is switched off
• 1: lower steam quantity
• 2: higher steam quantity (only for use with the face mask)

7.2 Switching off automatically

For safety reasons the device switches off automatically if the water in the water container 5 has evaporated. Before the device can then be switched back on again, the mains plug 10 must be disconnected once and then re-connected.

7.3 Face mask

1. Prepare the face mask as described (see "Assembly" on page 7).
2. Switch the on/off switch / steam flow rate controller 7 to 1 or 2. The LED 8 lights up.
3. Figure C: after approx. 2-3 minutes, steam is generated. Hold your face into the face mask. Close your eyes and enjoy the beneficial effect of the steam.

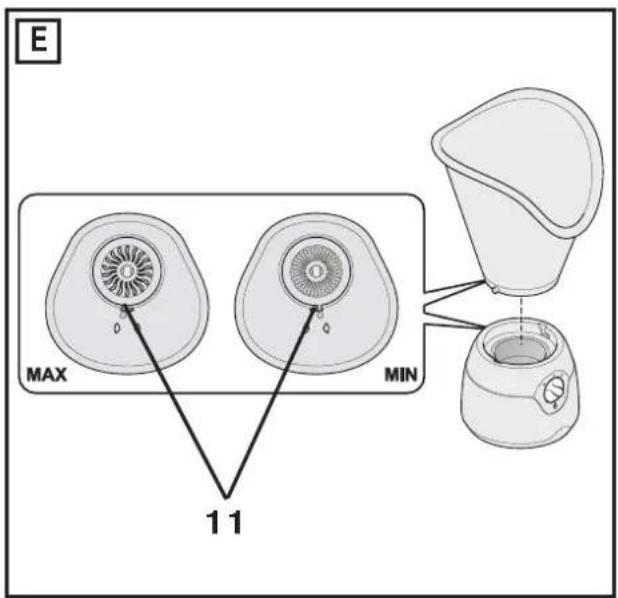

4. Figure E: the steam quantity can also be set by means of the manual steam flow rate controller 11. For more steam, you push the controller into the direction MAX, for less steam you push the controller into the direction MIN.

NOTE: the deeper you hold your face into the face mask, the more intensive the effect of the steam will be. If this becomes too much for you, take your head a little out of the face mask.

1. Switch the on/off switch / steam flow rate controller 7 to 0. The LED 8 extinguishes and the device is switched off.
2. Wait for the device to completely cool down.
3. Pull out the mains plug 10.
4. By a slight turn to the right you release the face mask 1 and take it off.
5. If necessary, you take off the lid of the aroma reservoir 3 and dispose of the content of the aroma reservoir.

7.4 Nose mask

DANGER! Hazard caused by hot steam!

Figure B: the distance to the water container is significantly less during use of the nose mask 2 and the steam effect is significantly higher. Therefore, the nose mask 2 may only be used with stage 1.

1. Prepare the nose mask as described (see "Assembly" on page 7).
2. Switch the on/off switch / steam flow rate controller 7 to 1. The LED 8 lights up.

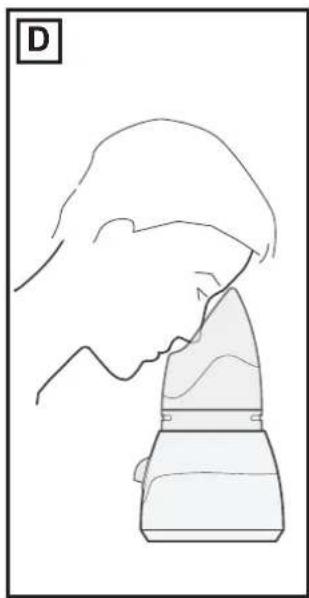

3. Figure D: after approx. 2-3 minutes, steam is generated. Hold your nose into the nose mask 2. Close your eyes and enjoy the beneficial effect of the steam.

NOTE: the closer you place your nose to the nose mask 2, the more intensive the effect of the steam on the nasal mucosa will be. If this becomes too much for you, take your nose a little out of the nose mask 2.

1. Switch the on/off switch / steam flow rate controller 7 to 0. The LED 8 extinguishes and the device is switched off.

2. Wait for the device to completely cool down.

3. Pull out the mains plug 10.

4. Pull off the nose mask 2 from the aroma reservoir 4.
5. By a slight turn to the right you release the aroma reservoir 4 and take it off.
6. If necessary, you take off the lid 3 of the aroma reservoir 4 and dispose of the content of the aroma reservoir.

8. Cleaning

DANGER!

• Pull out the mains plug 10 from the wall socket before cleaning the facial sauna.
• Allow the device to cool down completely before you transport or clean it.
• Allow all parts to cool down before removing them from the device.

WARNING! Risk of material damage!

- Do not use any astringent or abrasive cleaning agents.

Clean the device and the parts used after every use.

• Wipe off the basic unit 6, using a lightly moistened cloth.
• Wipe the water container 5 with a damp cloth and dry it.

Cleaning the parts

1. All accessory parts used such as face mask 1, nose mask 2, aroma reservoir 4 and the lid 3 of the aroma reservoir need to be cleaned with warm soap water.
2. Rinse off with clear water.
3. Dry off all accessory parts.

9. Storage

- Store the device in a dry place and out of the reach of children.

10. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

11. Troubleshooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

- Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Has the dry run protection switched off the device automatically when the water in the water container 5 had evaporated? Switch the on/off switch 7 to 0 (off) and pull the mains plug 10 out of the wall socket. Reconnect the mains plug with the wall socket.
Cannot be switched on.	Has the dry run protection switched off the device automatically when the water in the water container 5 had evaporated? Switch the on/off switch 7 to 0 (off) and pull the mains plug 10 out of the wall socket. Reconnect the mains plug with the wall socket.
Less steam than normal.	Have you placed a larger quantity of herbs or a cotton wool pad in the aroma reservoir 1 or 4? This may reduce the quantity of steam.

12. Technical specifications

Model: SGS 100	A1
Mains voltage: 2	20-240 V ~ 50 Hz
Protection class: II	☐
Power rating: 100 W

Symbols used

	Double insulation
	Certified Safety. Devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produktsicherheitsgesetz - ProdSG).
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
	Recyclable materials: cardboard (except corrugated cardboard)

Subject to technical modifications.

13. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 303318 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain Tel.: [phone] (£ 0.10/ Min.) E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/ Min., (peak)) (0,06 EUR/ Min., (off peak)) E-Mail: [e-mail]

MT Service Malta Tel.: [phone] E-Mail: [e-mail]

CY Service Cyprus Tel.: [phone] E-Mail: [e-mail]

IAN: 303318

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.
