Arctis 7 - Headphones STEELSERIES - Free user manual and instructions

Product type	Wireless headset
Brand	SteelSeries
Model	Arctis 7
Connection type	Wireless 2.4 GHz via USB transmitter
Battery life	Up to 24 hours
Charging time	Approximately 4 hours
Weight	375 g
Dimensions (approx.)	200 x 170 x 80 mm
Microphone	Retractable microphone with mute function
Volume control	Volume wheel and ChatMix wheel
Surround sound	DTS X v2.0 (Windows 7-10 only)
Compatibility	PC (Windows 7+), Mac OS X 10.8+
Power supply	Rechargeable battery, charges via micro-USB
Package contents	Headset, wireless transmitter, mobile/console cable, micro-USB cable, information guide
Care and cleaning	Clean with a soft dry cloth; do not use abrasive products
Safety	Complies with FCC/IC standards; avoid exposure to moisture
Spare parts and repairability	Headband, ear cushions, cables available at steelseries.com
Required software	SteelSeries Engine (download at steelseries.com)
Color	Black
Warranty	1 year (depending on country)

Frequently Asked Questions - Arctis 7 STEELSERIES

How to recharge the Arctis 7 headset?

Connect the provided micro-USB cable to the headset's charging port and to a USB source. The power button indicates the battery level: green (100-50%), yellow (49-20%), red (19-10%).

How to pair the headset with the transmitter?

The headset is pre-paired. If necessary, press and hold the pairing button on the transmitter for 5 seconds until the LED blinks, then on the headset (turned off), press and hold the power button for 6 seconds.

What is the battery life?

The battery life can reach up to 24 hours in normal use, depending on volume and surround sound.

The microphone does not work, what to do?

Ensure the microphone is properly extended and the mute button is not activated. In your system's sound settings, select 'Chat Arctis 7' as the default recording device.

How to use DTS X surround sound?

DTS X v2.0 surround sound is available only on Windows 7 to 10. Download and install SteelSeries Engine, then enable the option in the audio tab.

Can I use the headset with a console?

Yes, via the provided mobile/console cable (3.5mm jack). Connect it to the headset's jack and the controller. Wireless sound is not supported on console without an additional adapter.

How to clean the Airweave ear cushions?

Remove the ear cushions (they are removable) and hand wash with lukewarm water and mild soap. Let dry completely before reattaching.

How to adjust the headband?

Use the Velcro strap on top of the headband to tighten or loosen the fit. You can also replace the headband with other models available at steelseries.com.

What to do if the headset does not turn on?

Ensure the battery is charged. Connect the micro-USB cable and wait a few minutes. If the indicator does not light up, contact SteelSeries support.

Is SteelSeries Engine software mandatory?

No, the headset works without software. However, Engine allows you to customize the equalizer, surround sound, and microphone settings.

USER MANUAL Arctis 7 STEELSERIES

PRODUCT INFORMATION GUIDE

STEELSERIES ENGINE

To enjoy DTS Headphone:X v2.0, and custom audio effects on your new Arctis 7 headset, download SteelSeries Engine at steelseries.com/engine

WELCOME TO ARCTIS.

Your new headset is the result of more than 15 years of gaming expertise and our unyielding pursuit of perfection. We poured our hearts into making your new Arctis, giving it the best gaming mic available, 7.1 surround sound and comfort and style unlike anything you've experienced before.

a.

PACKAGE CONTENTS

Product Information Guide

Headset

Wireless Transmitter

Mobile / Console Cable

Micro-USB Charging Cable

SOFTWARE REQUIREMENTS

Platforms:

Windows 7 +

Mac OS X 10.8 +

120 MB of free hard drive space

for installation

SYSTEMCOMPATIBILITY

PC/MAC

DTS Headphone: X v2.0 is available

for Windows 7-10 only. Software

installation required

CONTENTS

SteelSeries Engine 1

Welcome 2

a. Info and Table of Contents 3-4
b. Product Overview 5-6

Setup 7

c. Charging 8
d. Power on/off 9
e. Pairing 10
f. Line in / Line out 11
g. Microphone 12
h. Ski Goggle Headband 13
i. System Setting: Windows 14
j. System Setting: Mac 15

Translations
Espanol 16
简体中文 18
繁體中文 21
日本語 24
27
Deutsch 29
Pycckn 32
Français 35
Italiano 38
Portugues 41

Regulatory

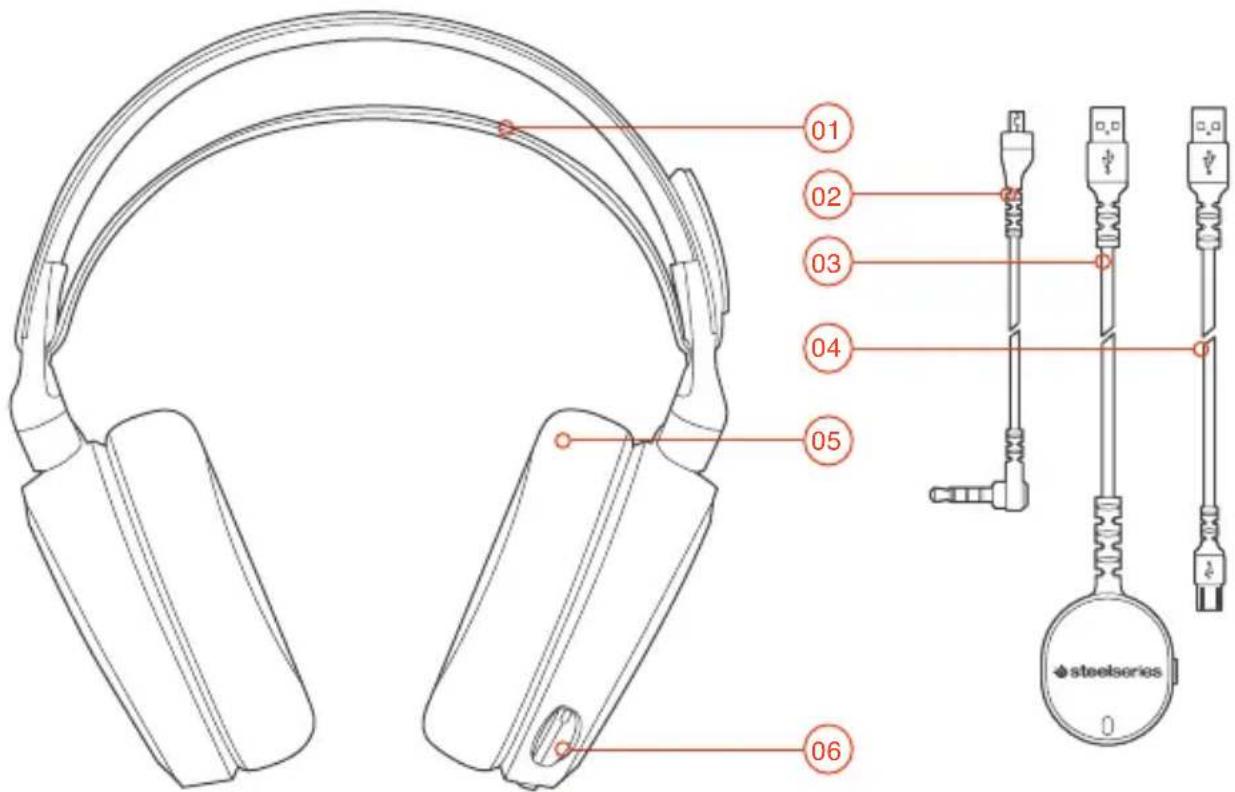

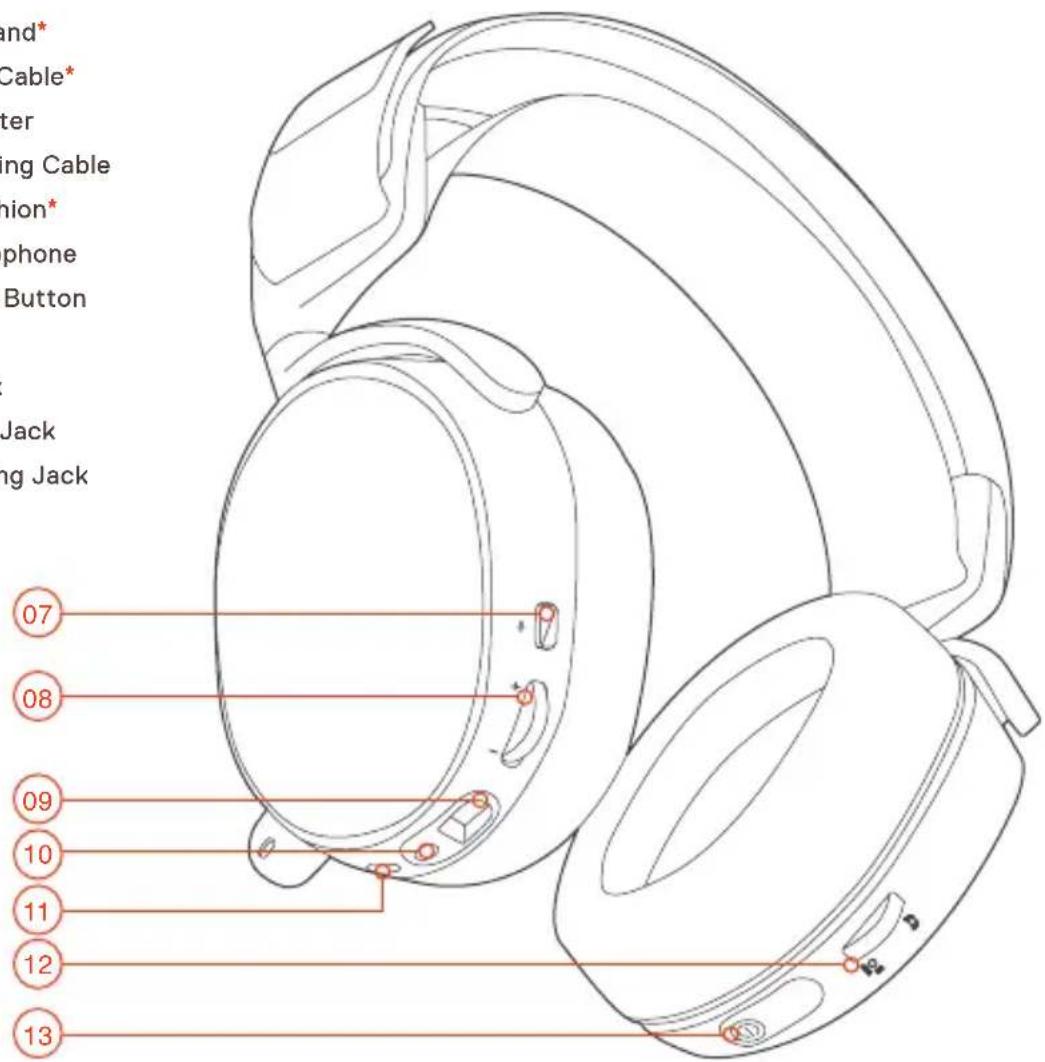

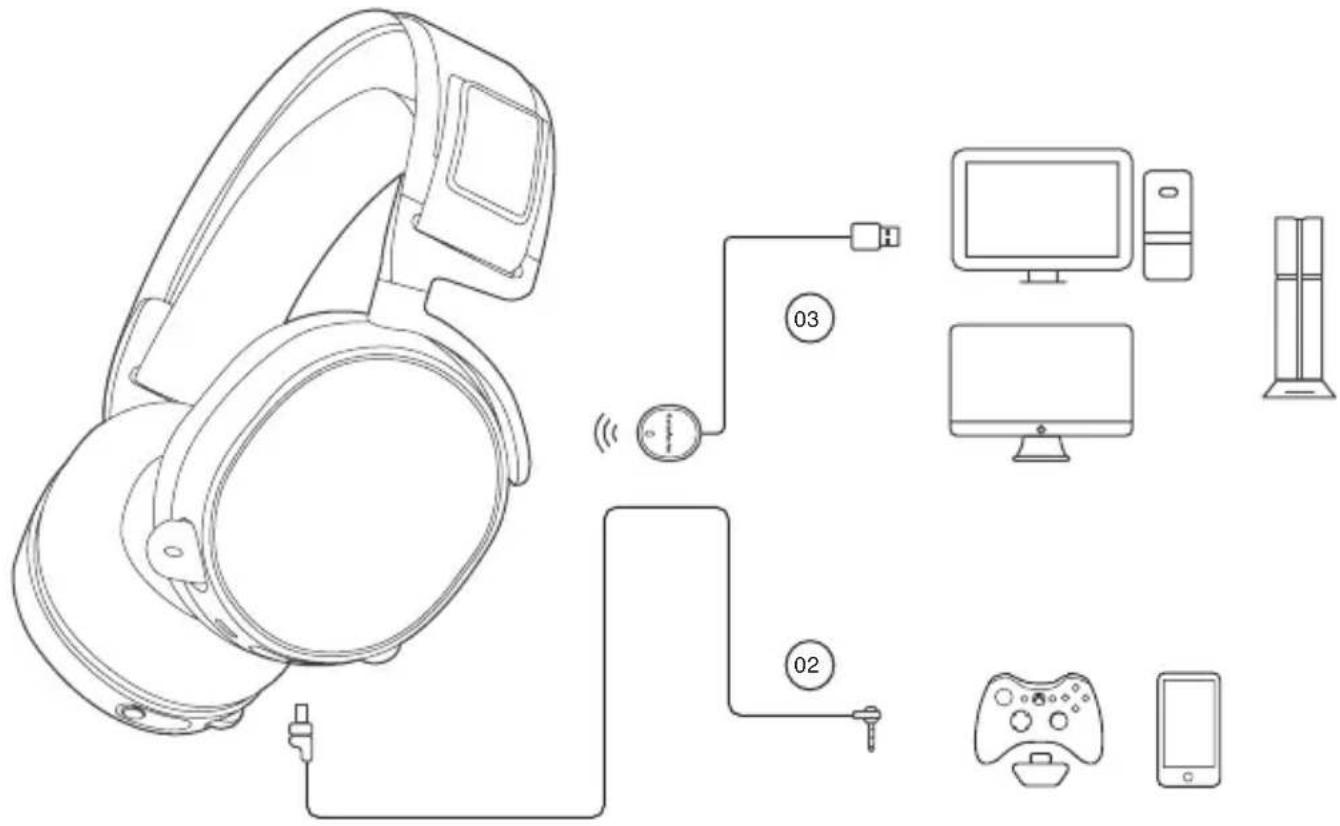

b. PRODUCT OVERVIEW

*selected accessories available at steelseries.com

01 Ski Goggle Headband
02 Mobile / Console Cable
03 Wireless Transmitter
04 Micro-USB Charging Cable
05 Airweave Ear Cushion*
06 Retractable Microphone
07 Microphone Mute Button
08 Volume Control
09 Mobile Cable Jack
10 Headphone Share Jack
11 Micro-USB Charging Jack
12 ChatMix Dial
13 Power Button

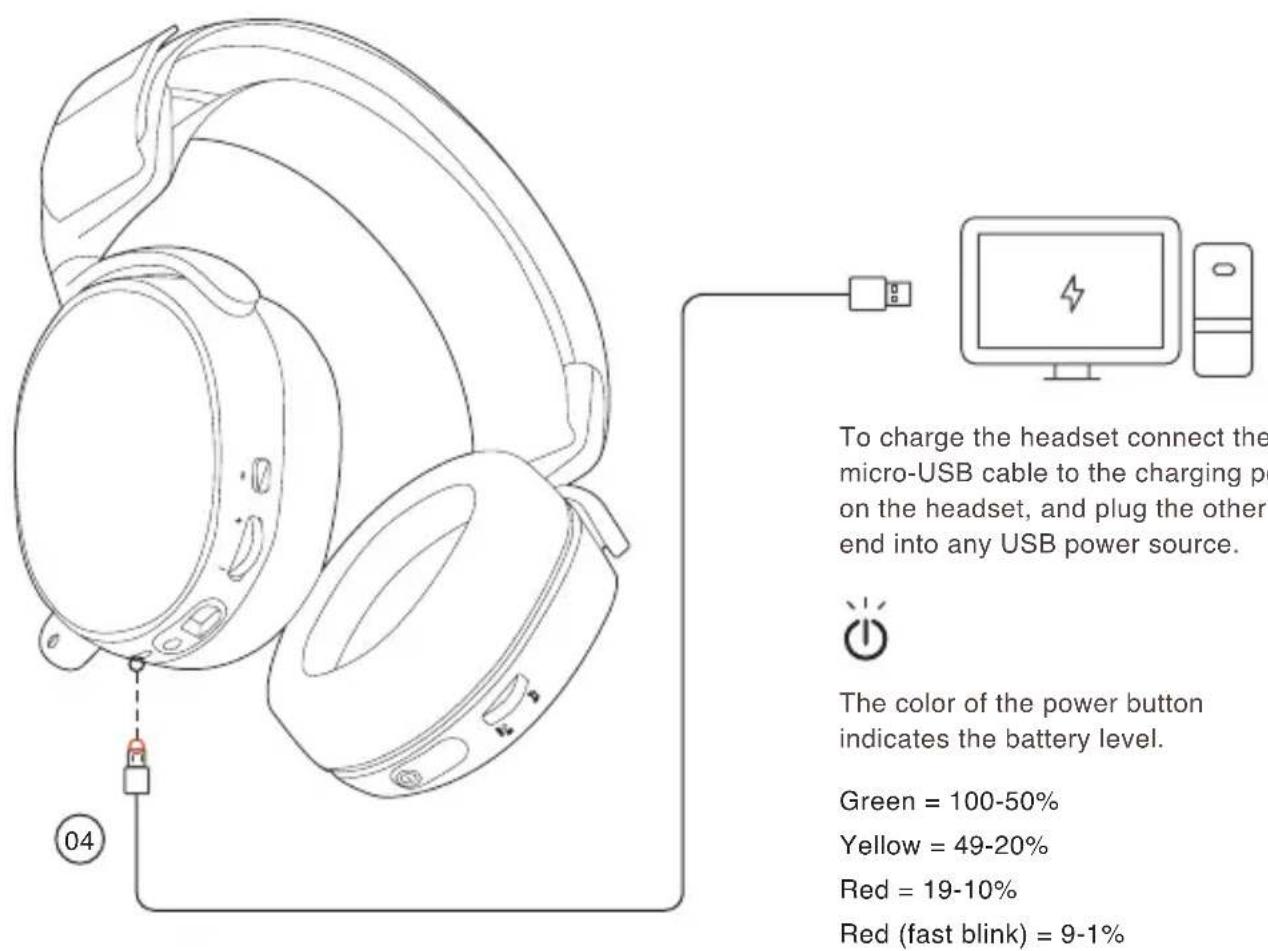

c. CHARGING

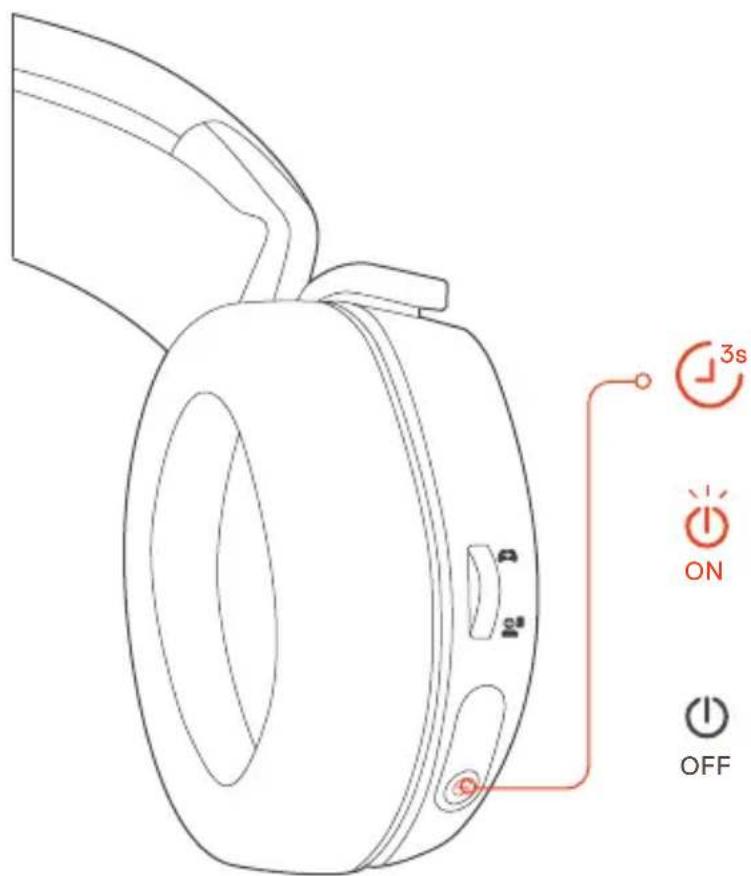

d. POWER ON / OFF

find help at support.steelseries.com

To power on the headset press and hold the power button for at least 3 seconds. You will hear a tone, and the power button will illuminate.

To power off the headset press and hold the power button for at least 3 seconds

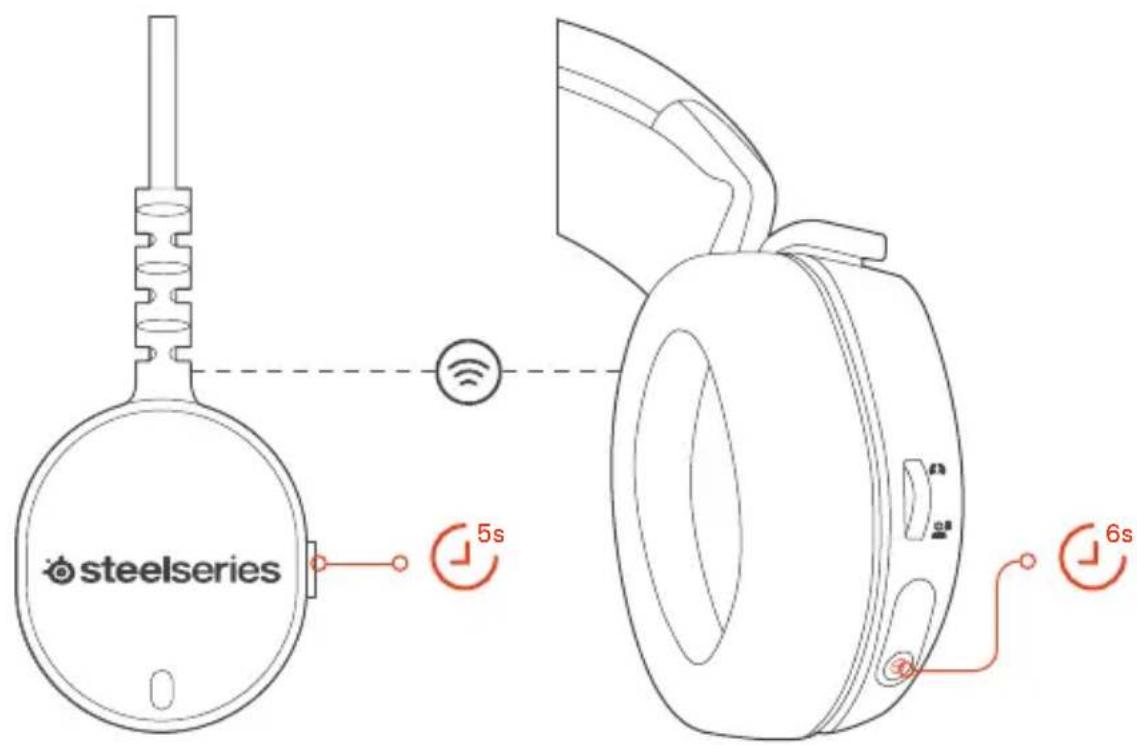

PAIRING

The headset is already paired to the transmitter when it arrives.

e-1 e-2

Press and hold the transmitter pairing button for 5 seconds until the LED begins blinking rapidly

With the headset off, press and hold the power button for 6 seconds.

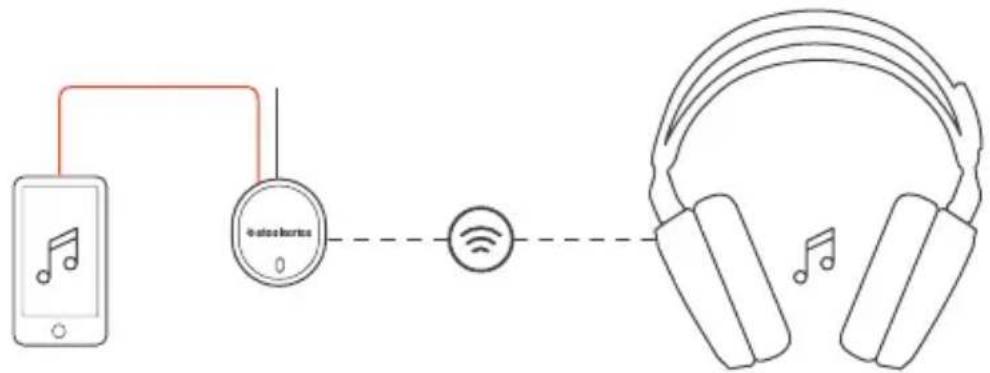

LINE IN / LINE OUT

find help at support.steelseries.com

LINE IN

LINE OUT

When headset is off, audio can be sent to speakers via Line Out. When headset is powered on Line Out is automatically muted.

9. MICROPHONE

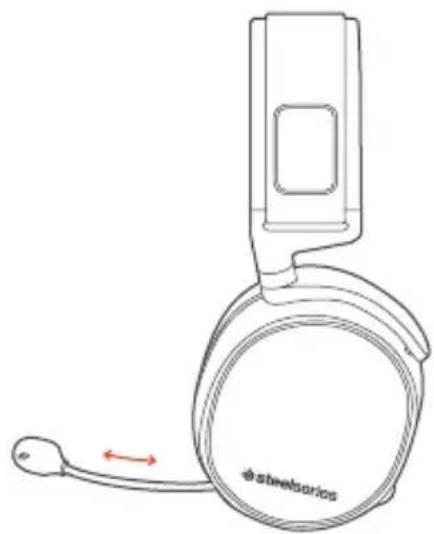

Retractable microphone

Positioning

top view

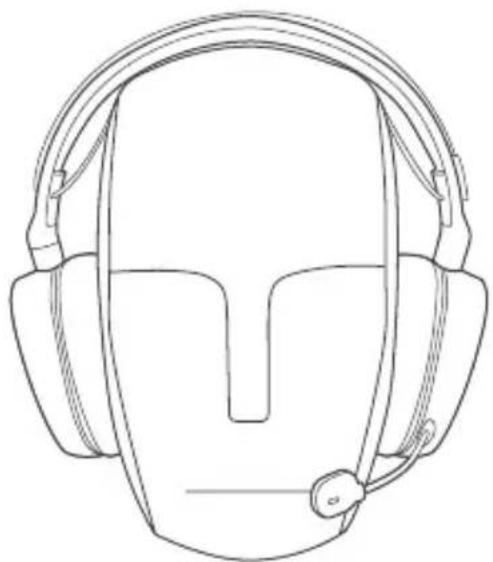

front view

Position the microphone close to the corner of your mouth with the flat surface facing you

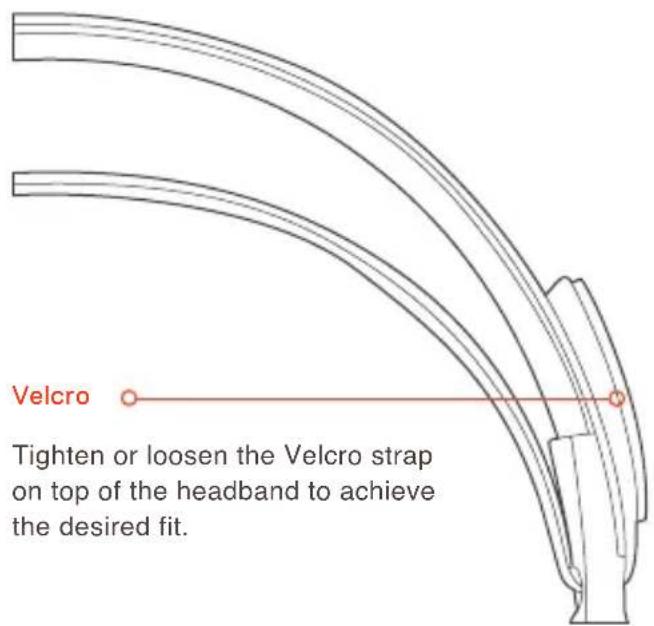

accessory headbands available at steelseries.com

Install

Direction of headband installation.

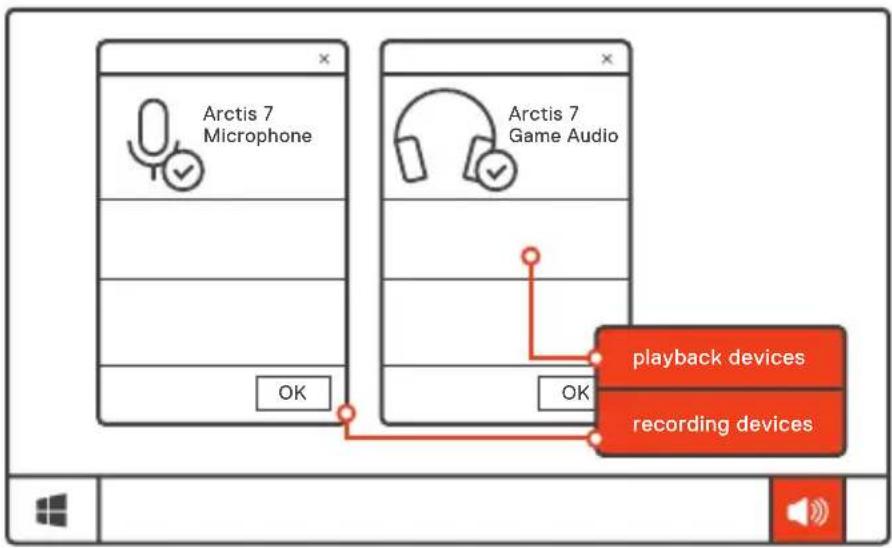

SYSTEM SETTING:WINDOWS

01 Go to Sound Settings
02 Under 'Playback' highlight Arctis 7 Game Audio and select 'Set Default'
03 Under 'Recording' highlight Arctis 7 Microphone and select Set Default
04 In your VoIP (chat) application select Arctis 7 Chat Audio as the default audio device

SYSTEM SETTING: MAC

find help at support.steelseries.com

01 Go to System Preferences > Sound
02 Under 'Output' select Arctis 7 Game Audio
03 Under 'Input' select Arctis 7 Microphone
04 In your VoIP (chat) application select Arctis 7 Chat Audio as the default audio device

ESPÁNOL

a. Contenso Del Paquete

steelseries.com/engine

DTS Headphone: X v2.0 Windows

7-10.7-10

日

steelseries.com/engine

表 1.2.3

b. 译音

01 トリド連連

02 麻巴日 / 凤鸯蝶儿啼

03 服务器安全

04 Micro-USB 馆庭 KeiI

05 Airweave 1epe

06 凳思

07 马氏克隆多夫贝特

08 覆蓋式

1. 乌巴尔尼基耶夫格

10 哉德邦官网

11 Micro-USB 首页

12 ChatMix daIeIe

1. 1

2. 此链接的私域群是steelseries.

com表从上到下，按序号排列的数字表示

c.

htde3e1e micro-USB

伊部落用赫德里的克格托莫里安

dān，反大快的音为A末USB前用

前日 贝德的生格将被美国

壹叁臻日言

主回原 值 = 100 - 50%

不 然 长 = 49 - 20 %

凿 凿 凿 凿 = 19 - 10 %

（迦列加）

d. 朝원 썉기 /고기

他德はの策を用将者用。

yctaHOBnTe 3ByK yata

Arctis 7» no ymoJuaHnIO.

TexnoДeprKka

support.steelseries.com

FRANÇAIS

Rouge (clignotement rapide) = 9-1%

d. Marche / arrêt

Europe - EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https:// steelseries.com/

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Headset and Transceiver)
a. Frequency band(s) in which the radio equipment operates:
WIFI:2.400-2.4835GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
WIFI:9.57dBm+2dBm
c. Software Version: V1.16

WEEE

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Safety Guideline for Lithium Battery

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

"CAUTION!" Risk of explosion if battery pack is not replace by same type as specified by the manufacturer. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.

Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location.

This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.

This battery pack shall not be exposed to moisture, dripping or splashing.

If any electrolyte flow out of this battery pack when touch the user's eyes and skin, please seek medical advice immediately.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

Headset FCC ID: ZHK-HS00013

Transceiver FCC ID: ZHK-HS00013TX

Regions Contact Information
USA	656 W Randolph St, Suite 3E Chicago, IL 60661, USA	[phone]

More information and support from https://steelseries.com/

Industry Canada Statement:

This device complies with RSS standards of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment.

This Class B digital apparatus complies with Canadian ICES-003.

The RoHS test method is based on the standards JIS C 0950 and CNS 15663

Custom Union Compliance. (Russia / Belarus / Kazakhstan)

ACMA Compliance (Australia/ New-Zealand)

Direct Current

Parts EC Number CAS Number Contained (PPM)Substance Name
LED	Hexahydromethylphthalic 2	47-094-1 25550-51	0 181125
· Please do not open the product and touch LED directly.

锂电池安全使用指南

More information and support from https://steelseries.com/

HIDF16000265

Operating Temperature: 0 to +40 °C.
