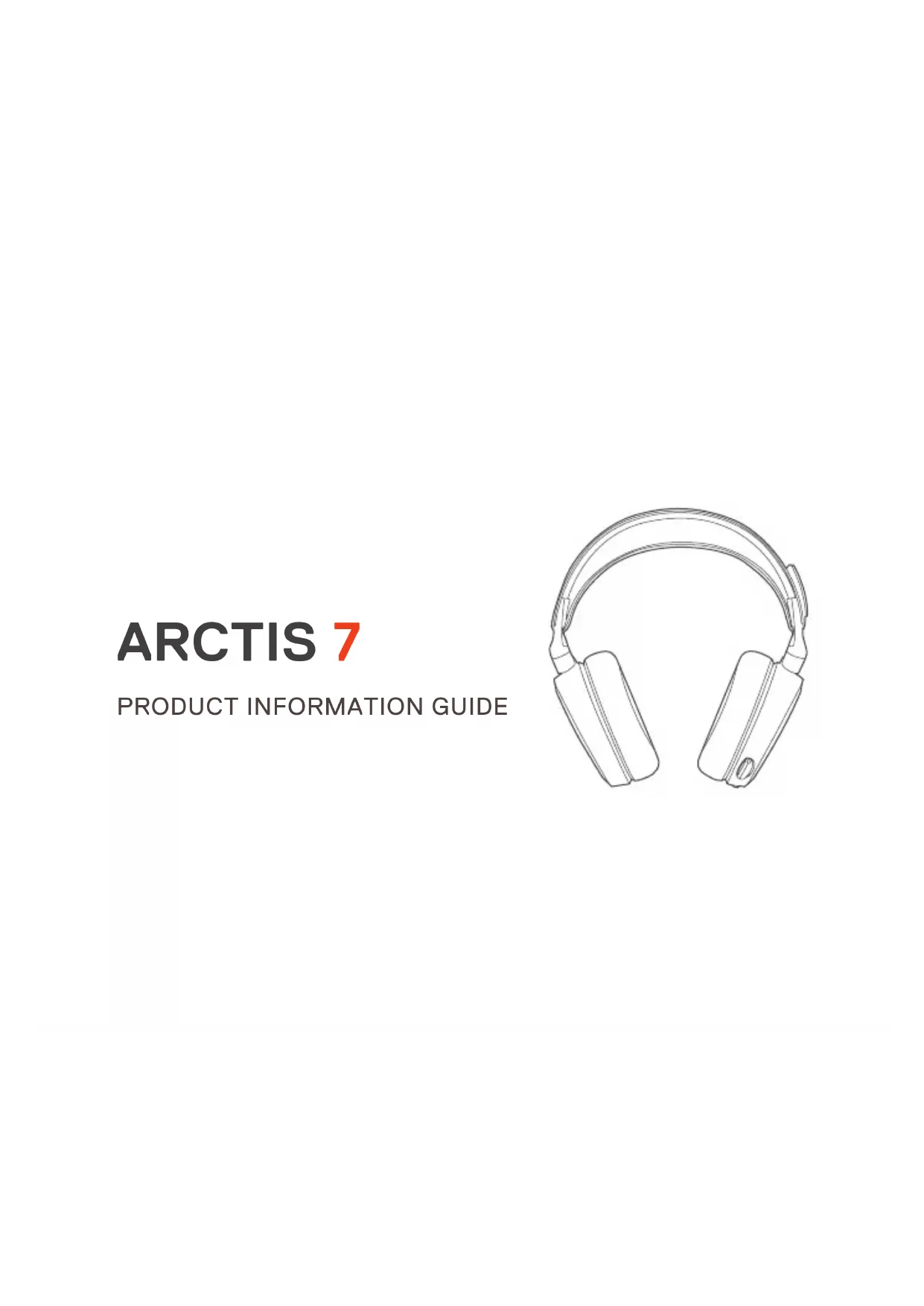

USER MANUAL Arctis 7 STEELSERIES

To enjoy DTS Headphone:X v2.0, and custom audio effects on your new Arctis 7 headset, download SteelSeries Engine at steelseries.com/engine STEELSERIES ENGINE STEELSERIES ENGINE2 WELCOME TO ARCTIS. Your new headset is the result of more than 15 years of gaming expertise and our unyielding pursuit of perfection. We poured our hearts into making your new Arctis, giving it the best gaming mic available, 7.1 surround sound and comfort and style unlike anything you’ve experienced before.

find help at support.steelseries.com Product Information Guide Headset Wireless Transmitter Mobile / Console Cable Micro-USB Charging Cable PACKAGE CONTENTS SYSTEM COMPATIBILITY SOFTWARE REQUIREMENTS PC / MAC DTS Headphone: X v2.0 is available for Windows 7-10 only. Software installation required Platforms: Windows 7 + Mac OS X 10.8 + 120 MB of free hard drive space for installation a.4 CONTENTS SteelSeries Engine Welcome Info and Table of Contents Product Overview Setup Charging Power on/off Pairing Line in / Line out Microphone Ski Goggle Headband System Setting: Windows System Setting: Mac Translations Español

j.5 *selected accessories available at steelseries.com PRODUCT OVERVIEW

To charge the headset connect the micro-USB cable to the charging port on the headset, and plug the other end into any USB power source. The color of the power button indicates the battery level. Green = 100-50% Yellow = 49-20% Red = 19-10% Red (fast blink) = 9-1% CHARGING

c.9 find help at support.steelseries.com

To power on the headset press and hold the power button for at least 3 seconds. You will hear a tone, and the power button will illuminate. To power off the headset press and hold the power button for at least 3 seconds d.10 Press and hold the transmitter pairing button for 5 seconds until the LED begins blinking rapidly The headset is already paired to the transmitter when it arrives. With the headset off, press and hold the power button for 6 seconds. PAIRING

OFF find help at support.steelseries.com When headset is off, audio can be sent to speakers via Line Out. When headset is powered on Line Out is automatically muted.

MICROPHONE top view Retractable microphone Positioning front view Position the microphone close to the corner of your mouth with the flat surface facing you

Velcro Tighten or loosen the Velcro strap on top of the headband to achieve the desired fit. Install Direction of headband installation. accessory headbands available at steelseries.com

Impostazioni di sistema: Mac j-1 Som Saída: Áudio de jogo Arctis 7 j-2 Som Entrada: Microfone Arctis 7 j-3 01 vá para Preferências do sistema > Som 02 Sob “Saída”, selecione áudio de jogo Arctis7 03 Sob “Entrada”, selecione chat Arctis 7 04 No seu aplicativo de VoIP (chat) selecione áudio de chat Arctis 7 como o dispositivo de áudio padrão. encontre ajuda em support.steelseries.comEurope – EU Declaration of Conformity Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community. The full text of the EU declaration of conformity is available at the following internet address: https:// steelseries.com/ SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our prod- ucts shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products. Frequency bands and Powers (Headset and Transceiver) a. Frequency band(s) in which the radio equipment operates:

• WIFI: 2.400 - 2.4835 GHz b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• WIFI:9.57 dBm +2 dBm c. Software Version: V1.16 WEEE This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product. Safety Guideline for Lithium Battery Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard. This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product. “CAUTION!” Risk of explosion if battery pack is not replace by same type as specified by the manufacturer. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed. Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.This battery pack shall not be exposed to moisture, dripping or splashing. If any electrolyte flow out of this battery pack when touch the user’s eyes and skin, please seek medical advice immediately. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. Headset FCC ID: ZHK-HS00013 Transceiver FCC ID: ZHK-HS00013TX More information and support from https://steelseries.com/ +1 312 258 9467 656 W Randolph St, Suite 3E Chicago, IL 60661, USA USA Regions Contact Information1. 상호명: SteelSeries ApS.

2. 기기명칭: Headset and Transceiver

Restricted substances and its chemical symbols

Polybrominated biphenyls (PBB)
