USER MANUAL Arctis Nova 7P Gen 2 STEELSERIES

Simple line drawing of a mechanical component with a handle and circular base (no text or symbols)

ARCTIS NOVA 7P

WIRELESS

GEN 2

PRODUCT INFORMATION GUIDE

TABLE OF CONTENTS

General 3

Product Overview 5

Setup 6

Power 7

Pairing 8

Bluetooth 9

Sidetone 10

Microphone 11

Perfect Fit 12

Translations 14

Deutsch.... 14

Español 16

Français 18

Italiano 20

Polski 22

Português (PT) 24

Português (BR) 26

Русский 28

日本語 31

简体中文 33

繁體中文 35

한국어 36

Regulatory 40

GENERAL

PACKAGE CONTENTS

Arctis Nova 7P Wireless Gen 2 Headset

USB-C Multi-Platform Dongle

USB-C Female to USB-A Male Dongle Adapter

USB-C to USB-A Charging Cable (5 ft / 1.5 m)

5-pole to 4-pole 3.5mm Cable (3.3ft/1m)

SYSTEM COMPATIBILITY

PlayStation 5

PlayStation 4

PC

Mobile

Nintendo Switch

Mac

SOFTWARE

FOR PC - STEELSERIES GG

Download the SteelSeries GG Software to customize your experience using the Engine and Sonar modules. Sonar is a breakthrough in gaming sound, offering 100+ parametric sound presets for all your games and the ability to fully customize and mix your audio.

Note: For ChatMix on PC you must download Sonar.

Download now – steelseries.com/gg

FOR CONSOLE + MOBILE - ARCTIS COMPANION APP

Download the SteelSeries Arctis Companion App for iOS and Android to customize your settings and access 100+ additional sound presets tailored specifically for each game.

Download on the App Store

GETTON Google Play

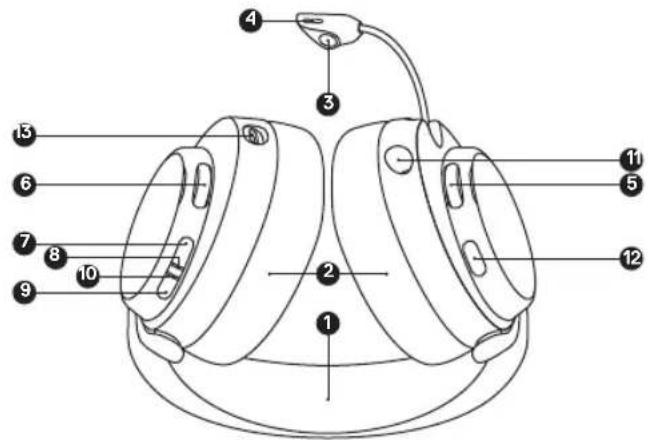

HEADSET

1 Elastic Headband*
2 Airweave Ear Cushions*
3 Retractable ClearCast Microphone
4 Microphone Mute LED
5 Volume Wheel
6 Sidetone Dial
7 Power Button
8 Power Indicator LED
9 Bluetooth Button
10 Bluetooth Indicator LED
11 3.5 mm Wired Audio Jack
12 Microphone Mute Button
13 USB-C Charging Jack

Labeled diagram of a mechanical device with numbered parts for identification

USB-C MULTI-PLATFORM DONGLE

14 USB-C Multi-Platform Dongle*
15 Pairing Button
16 Status LED

ACCESSORIES×

17 USB-C (Female) to USB-A (Male) Dongle Adapter
18 USB-C to USB-A Charging Cable
19 5-pole to 4-pole 3.5 mm Cable

17 18 19

SETUP

CONNECTION TO USB-A

2.4 GHz PS5 / PS4 PC Any BT Device

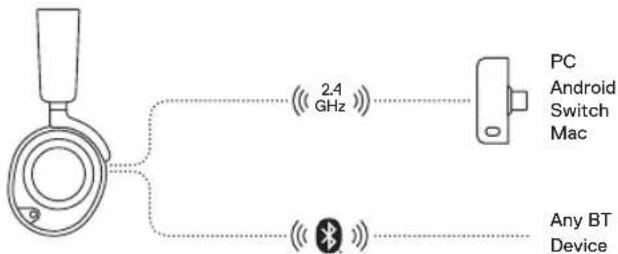

CONNECTION TO USB-C

2.4 GHz PC Android Switch Mac Any BT Device

PLAYSTATION 5 AUDIO SETTINGS

PS5 SETTING > AUDIO OUTPUT

Output to Headphones All Audio

PS5 SETTING > AUDIO OUTPUT > VOLUME

Headphones Set to Max

POWER

POWER ON/OFF

Press and hold the Power Button (7) for 1

second to power the Headset On/Off.

When the Headset is powered on and connected, the

Dongle's Status LED (16) increases brightness.

CHARGING

To charge the headset, connect the USB-C to USB-A

Charging Cable (18) from the Headset's USB-C

Charging Jack (13) to any USB power source.

The color of the Power Indicator LED (8) indicates the battery level.

Green 100–50%

Yellow 49–15%

Red 14–5%

Red (fast blink) 4–1%

PAIRING

Note: The headset and dongle come paired.

If you need to re-pair:

1 Connect the USB-C Multi-Platform Dongle (14) to your gaming device.
2 Press and hold the Dongle's Pairing Button (15) for 4 seconds until the Power Indicator LED (8) blinks rapidly.
3 With the headset off, press and hold the Power Button (7) for 4 seconds until the Power Indicator LED (8) blinks rapidly.
4 When pairing is successful you will hear a tone, and the Dongle's Status LED (16) will turn solid.

BLUETOOTH

BLUETOOTH POWER

Bluetooth can be powered On / Off independently of the 2.4 GHz wireless by pressing and holding the Bluetooth Button (9) for 1 second.

PAIRING

With Bluetooth Off, press and hold the Bluetooth Button (9) for 4 seconds.

MULTIMEDIA CONTROL

Answer/End Voice Call Single press the Bluetooth Button (9)
Play/Pause Music Single press the Bluetooth Button (9)
Skip Track Double press the Bluetooth Button (9)
Previous Track Triple press the Bluetooth Button (9)

Diagram of a device with labeled parts 7 and 9, showing a cable or connector assembly.

Note: The Power Button (7) can be used for Multimedia control in the same way.

SIDETONE

Use the on-headset Sidetone Dial (6) to adjust the level of your voice you hear in the headset.

Line drawing of a device casing with a labeled component (no text or symbols)

MICROPHONE

RETRACTABLE MICROPHONE

Out of the box, the Retractable ClearCast Microphone (3) is retracted. To use the microphone, slide it away from the headset until it reaches full extension.

Simple line drawing of a mechanical device with a curved handle and arrow indicator (no text or symbols)

POSITIONING

Position the Retractable ClearCast Microphone (3) close to the corner of your mouth with the front surface facing you. Note: The microphone should not be used when retracted.

Line drawing of a human head with headset and two medical device clips (no text or symbols)

PERFECT FIT

There are two ways to adjust the fit of your headset

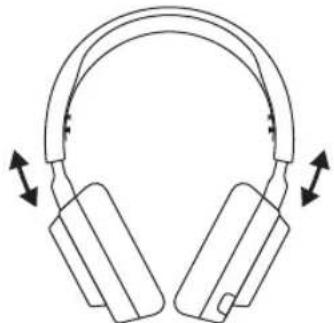

1 Slide the earcups up or down to change the overall height.

Line drawing of a pair of headphones with bidirectional arrows indicating head movement (no text or symbols)

2 Change the position of the Elastic Headband (1) on one or both sides to achieve the desired tension and flex.

TRANSLATIONS

DEUTSCH

ALLGEMEIN

LIEFERUMFANG

Arctis Nova 7P Wireless Gen 2 Headset

auf USB-A-Stecker

Multi-Plattform USB-C-Dongle

立即下载 - steelseries.com/gg

*在steelseries.com/gaming-accessories查找配件和替换件

设置

连接至USB-A

PS5/PS4, PC

任何BT设备

连接至USB-C

立即下载 - steelseries.com/gg

Hereby, GN Hearing A/S declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff

GN Hearing A/S hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for all of products.

Operating Temperature: 0°C to +40°C

Frequency bands and Powers (Headset and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• EIRP: GFSK: 5.14 dBm (Headset/SRD)
- EIRP: GFSK: 5.63 dBm (Headset/BT)
• EIRP: 8DPSK: 5.58 dBm (Headset/BT)

- EIRP: GFSK: 5.03 dBm (Transceiver/SRD)

c. Firmware Version: V1.0 (Headset); V1.0 (Transceiver)

Charge Care:

If product is charged with a USB cable, use only a suitable USB cable which is in good condition, and charge/power the product according to the instructions.

The power delivered by the charger shall be between min 0.25 Watts required by the radio equipment, and max 2.5 Watts in order to achieve the maximum charging speed.

AUDIO PRODUCT WARNING!

PERMANENT HEARING LOSS MAY RESULT FROM LONG-TERM EXPOSURE TO SOUNDS AT HIGH VOLUMES. USE AS LOW A VOLUME AS POSSIBLE.

WEEE

European Union: Product, Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste.

Please use the public collection system to return, recycle, or treat them in compliance with

the local regulations.

Battery Warning:

• Keep batteries out of reach of children.
• Do not swallow batteries. If swallowed, seek medical help immediately.
• Do not dispose of batteries in fire; they may explode or leak.
• Use only the specified battery type for this product.
• Dispose of used batteries according to local regulations.

Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user's manual should be noted.

Keep this equipment away from humidity and high temperature.

• Do not leave the equipment in an unconditioned environment with a storage temperature above 60°C (140°F) or below 0°C (32°F), which may damage the equipment.
• This unit should be operated under maximum ambient temperature of 40°C (104°F).
• To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended by the manufacturer only.
  • Always keep the battery in a safe place.

Caution: Do not continue using the battery if it is swollen.

UK Declaration of Conformity

Hereby, GN Hearing A/S declares that the following equipment, which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy & Industrial Strategy.

The full text of the UK declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff

Federal Communication Commission Interference Statement

Supplier's Declaration of Conformity: 47 CFR § 2.1077 Compliance Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC ID: ZHK-HS31(Headset)

FCC ID: ZHK-HS31TX(Transceiver)

Product Name: Wireless Headset

Model No.: HS31

Rated: 5V=500mA

Made in Vietnam

Accessories Information:

Product Name: Transceiver

Model No.: HS31TX

Rated: 5V=400mA

Made in Vietnam

Product: Rechargeable Li-ion Battery

Model No.: 653033PN3 11CP7/31/33

Rated Voltage: 3.8V

Rated Capacity: 850mAh

Rated Energy: 3.230Wh

Limited Charging Voltage: 4.35V

Made in China

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1 this device may not cause interference, and
2 this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.

The portable device is designed to meet the requirements for exposure to radio waves established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when

properly worn on the body.

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Region Contact information
Asia GN Audio Taiwan Ltd.4F and 4F,-4, No. 186, Jian 1st Rd.,Zhonghe Dist., New Taipei City 235 , Taiwan		[phone]
Europe GN Hearing A/SLautrupbjerg 7, 2750 Ballerup Denmark.		[phone]
USA GN Hearing Care Corporation656 W Randolph St., Suite 3EChicago, IL 60861, USA		[phone]

More information and support from steelseries.com

Malaysia Approval (SIRIM)

ACMA Compliance (Australia)

Singapore approval (IMDA)

R-NZ Compliance (New Zealand)

Français

AUDIO PRODUKTWARNUNG!

WAARSCHUWING AUDIOPRODUCT!

PERMANENT GEHOORSCHADE KAN HET GEVOLG ZIJN VAN LANGDURIGE BLOOTSTELLING AAN GELUIDEN OP HOGE VOLUMES. GEBRUIK EEN ZO LAAG MOGELIJK VOLUME.

ADVARSEL OM LYDPRODUKT!

PERMANENT TAB AF HÖRELSE KAN KOMME AF LANGVARIG UDSÄETTELSE FOR HÖJE LYDE. BENYT EN SÅ LAV LYDSTYRKE SOM MULIGT.

1 상호명 SteelSeries Aps.

2 기기명칭 Wireless Headset / Transceiver

3 모델명 HS31/HS31TX

設備名稱:無線耳機 型號(型式):HS31(耳機),HS31TX(收發器)Equipment name: Wireless Headset Type designation: HS31(Headset),HS31TX(Transceiver)
單元Unit	限用物質及其化學代號Restricted substances and its chemical symbols
	鉄Load(Tb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六價铬Hexavalent chromium(C2%)	多溴顯苯Poly-brominated biphenyls(PBB)	多溴二苯酚Poly-brominated diphenyl ethers(PBDE)
經理部件Plastic	○	○	○	○	○	○
電路接及元件PCBA	-	○	○	○	○	○
線材Cables	-	○	○	○	○	○
金屬部件(綠定)Metal	-	○	○	○	○	○
備考1 “鋁出0.1 wt %”及“鋁出0.01 wt %”係指限用物質之百分比含量超出百分比含量達作。Note 1 “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2 係指該項限用物質之百分比含量以超過百分比含量達作。Note 2 indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3 一係指該項限用物質各排除項目。Note 3 indicates that the restricted substance corresponds to the oxampation

產品名稱: 無線耳機

型號: HS31

規格: 5V=500mA

越南製造

配件資訊：

產品名稱: 收發器

型號: HS31TX

規格: 5V=100mA

越南製造

產品: 可充式鋰離子電池組

型號: 653033PN3 1ICP7/31/33

標稱電壓: 3.8V

额定容量: 850mAh

額定能量: 3.230Wh

充電限制電壓: 4.35V

中國製造

Remember to Recycle

All SteelSeries products have parts that can be recycled and repurposed. You can help by taking your electronics, not just SteelSeries products, to local retailers and drop-off points to ensure they are processed properly.

For more information on recycling your SteelSeries product visit steelseries.com/sustainability/recycling
