USER MANUAL Arctis Nova 5X Wireless STEELSERIES

Simple line drawing of a mechanical component with concentric circles and a handle (no text or symbols)

ARCTIS NOVA 5X WIRELESS

PRODUCT INFORMATION GUIDE

TABLE OF CONTENTS

General 3

Product Overview 5

Quick Start Guide 6

Setup 7

Power 9

Dongle Pairing 10

Bluetooth 11

Multimedia Controls 11

QuickSwitch Button Controls 12

Microphone 13

Perfect Fit 14

Translations 16

Deutsch 16

Español 18

Français 21

Italiano.... 24

Polski 26

Português 29

日本語 32

简体中文 34

繁體中文 36

한국어 39

Regulatory 42

GENERAL

PACKAGE CONTENTS

Arctis Nova 5X Wireless Headset Charging Cable (5ft / 1.5m)

USB-C Wireless Dongle Product Information Guide

USB-C to USB-A Adapter Cable (5 ft / 1.5 m)

SYSTEM COMPATIBILITY

Xbox Series X|S Mobile

Xbox One Nintendo Switch

PC Mac

PlayStation

NOVA 5 COMPANION APP

Complete your setup with fast access to custom sound settings from your smartphone with the Nova 5 Companion App. Enjoy over 100+ game audio presets in-game or on the go.

STEELSERIES GG

Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic.

GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools.

GG Home Moments Engine Sonar ARCTIS NOVA 5X

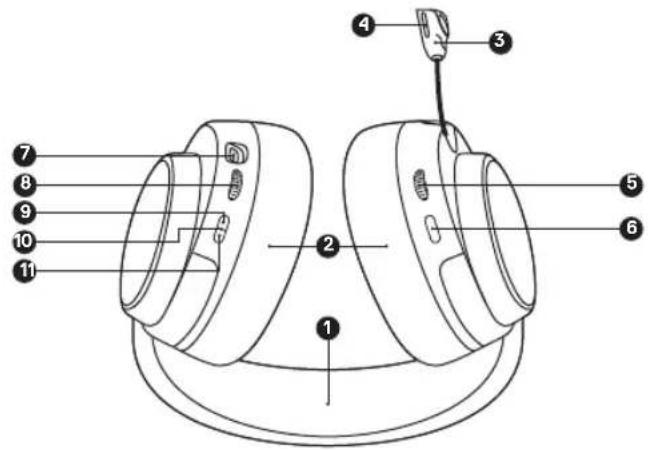

HEADSET

1 Elastic Headband*
2 Airweave Ear Cushions*
3 Retractable ClearCast Microphone
4 Microphone Mute LED
5 Volume Wheel
6 Microphone Mute Button
7 USB-C Charging Jack
8 ChatMix Dial
9 Power Button
10 Power Indicator LED
11 Quick Switch Button

Labeled diagram of a smartwatch with numbered parts for identification

DONGLE

12 USB-C Wireless Dongle*
13 Wireless Mode Switch
14 Pairing Button
15 Status LED

ACCESSORIES\*

16 USB-C to USB-A Adapter Cable*
17 Charging Cable*

16 17

QUICK START GUIDE

Arctis Nova 5X Wireless can easily switch between a dongle and Bluetooth connection for seamless usability. Need to take a call while you're gaming? Want to switch from your phone to your PC? Get started here.

2.4 MODE

1 Connect the USB-C Wireless Dongle (12) into the USB-C to USB-A Adapter Cable (16)
2 Plug the USB-C to USB-A Adapter Cable (16) into your Xbox or computer directly
3 Once the headset is turned on you will hear the connected sound effect and the Power Indicator LED (10) on the headset will blink slowly

BLUETOOTH MODE

1 To switch to BT mode, press the Quick Switch Button (11) on the headset and you will enter pairing mode
2 Go to your main device's Bluetooth settings and pair to the "Nova 5X" device. Once successfully paired the blue Power Indicator LED (10) will go from fast blinking to blinking slowly
3 Now that you're setup you can switch between 2.4 GHz mode and Bluetooth mode seamlessly with the press of the Quick Switch Button (11)

Xbox / PC 16 12 0

Line drawing of a pair of hardcover headphones with labeled buttons (no text or symbols beyond numbers)

SETUP

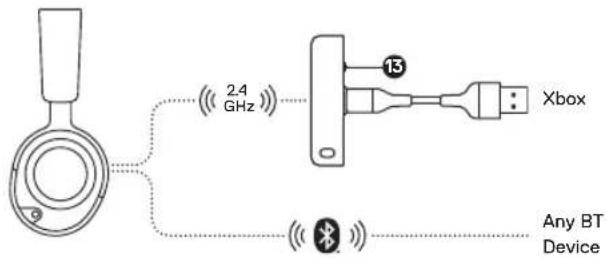

XBOX CONNECTION

Set the Dongle's Wireless Mode Switch (13) to "Xbox"

2.4 GHz 13 Xbox Any BT Device

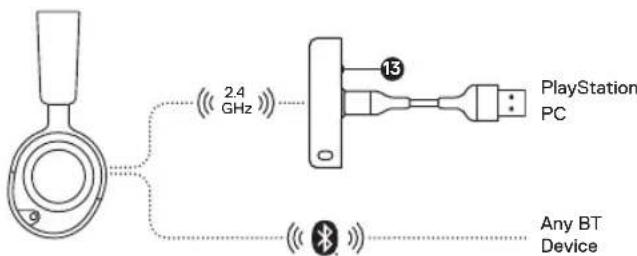

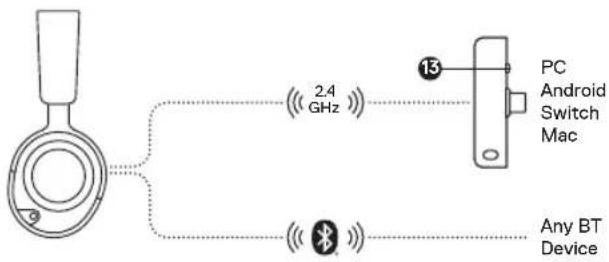

OTHER CONNECTIONS

Set the Dongle's Wireless Mode Switch (13) to "USB".

CONNECTION VIA USB-C

24 GHz 13 PC Android Switch Mac Any BT Device

CONNECTION TO USB-A

2.4 GHz 13 PlayStation PC Any BT Device

PLAYSTATION 5 AUDIO SETTINGS

PS5 SETTING > AUDIO OUTPUT

Output to Headphones All Audio

PS5 SETTING > AUDIO OUTPUT > VOLUME

Headphones Set to Max

POWER

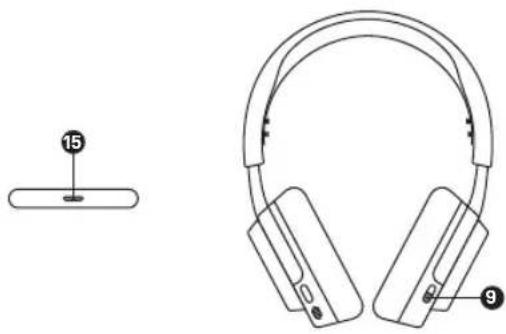

POWER ON/OFF

Press and hold the Power Button (9) for 1 second to power the headset on/off.

When the Headset is powered on and connected, the Dongle's Status LED (15) increases brightness.

Technical line drawing of a pair of headphones with labeled parts (no text or symbols beyond labels)

CHARGING

To charge the headset, connect the Charging Cable (17) from the Headset's USB-C Charging Jack (7) to any USB power source.

The color of the power LED indicates the battery level.

Green 100–50%

Yellow 49–15%

Orange 14–5%

Red 4–1%

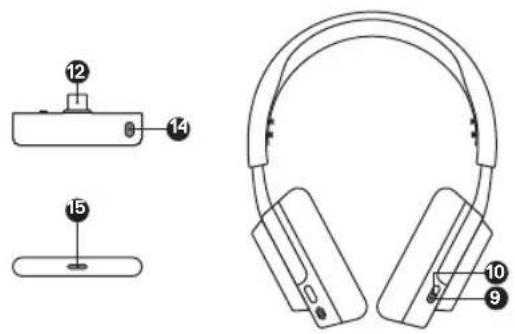

DONGLE PAIRING

Note: The headset and dongle come paired

If you need to re-pair:

1 Connect the USB-C Wireless Dongle (12) to your gaming device
2 Press and hold the Dongle's Pairing Button (14) for 4s until the Dongle's Status LED (15) blinks rapidly
3 Headset On - Press and hold the Quick Switch Button (11) for 2 seconds until you hear "Dongle Pairing Mode" and the Headset's Power Indicator LED (10) blinks rapidly Headset Off - Press and hold the power button for 2s until the Headset's Power Indicator LED (10) blinks rapidly
4 When pairing is successful you will hear "Dongle Connected", and the Dongle's Status LED (15) will turn solid

Technical diagram of an ear with labeled components including head, earbell, and connector parts

BLUETOOTH

Bluetooth can be used independently from 2.4 GHz Wireless by pressing the Quick Switch Button (11) and hearing "Bluetooth Mode".

PAIRING

Headset on – Press & hold the Quick Switch Button (11) for 2 seconds until you enter pairing mode and the Headset's Power Indicator LED (10) blinks rapidly blue. To switch between dongle and BT pairing mode, press the QuickSwitch button.

Headset off – Press and hold the Power Button (9) for 2s until the Headset's Power Indicator LED (10) blinks rapidly. If the headset is in dongle pairing mode, press the Quick Switch Button (11) to switch to Bluetooth pairing mode.

MULTIMEDIA CONTROLS

Play / Pause Music Single · press the Power Button (9)
Skip Track Double · · press the Power Button (9)
Previous Track Triple · · · press the Power Button (9)
Answer / End Voice Call Single · press the Quick Switch Button (11) (If call is answered in 2.4 GHz mode, you will return back to 2.4 GHz mode after the Bluetooth call is over.)
Ignore Call Double · · press the Quick Switch Button (11)
Increase Call Volume Single - press the Power Button (9)
Decrease Call Volume Double · · press the Power Button (9)

QUICKSWITCH BUTTON CONTROLS

MODE SWITCH

Switch between dongle & bluetooth mode by pressing the Quick Switch Button (11).

PAIRING MODE

Hold Quick Switch Button (11) for 2 seconds.

MICROPHONE

RETRACTABLE MICROPHONE

Out of the box, the Retractable ClearCast Microphone (3) is retracted. To use the microphone, slide it away from the headset until it reaches full extension.

Simple line drawing of a mechanical device with a handle and circular base (no text or symbols)

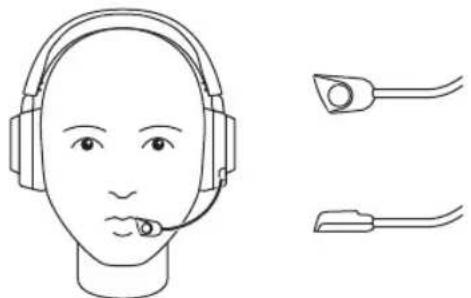

POSITIONING

Position the Retractable ClearCast Microphone (3) close to the corner of your mouth with the front surface facing you.

Note: The microphone should not be used when retracted.

Line drawing of a human head with earphones and two medical device outlines (no text or symbols)

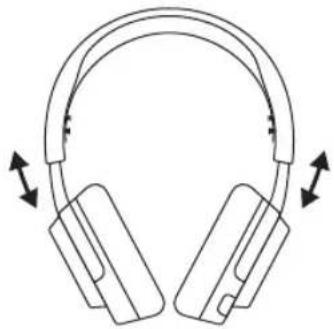

PERFECT FIT

There are two ways to adjust the fit of your headset.

Slide the Earcups up or down to change the overall height.

Line drawing of a pair of headphones with bidirectional arrows indicating head movement (no text or symbols)

Change the position of the Elastic Headband (1) on one or both sides to achieve the desired tension and flex.

TRANSLATIONS

DEUTSCH

ALLGEMEIN

LIEFERUMFANG

Arctis Nova 5X Wireless Headset

Ladekabel (1,5 m)

USB-C Wireless-Dongle

steelseries.com/gaming-accessories

Dongle wireless USB-C

*在steelseries.com/gaming-accessories查找配件和替换件

快速入门指南

*在steelseries.com/gaming-accessories查找配件和替换件

快速入門指南

Europe – EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https://support.steelseries.com/ho/en-us/categories/360001256111-Other-Stuff

SteelSeries Ap3. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Headset and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
• EIRP: GFSK: GFSK: 9.81 dBm (Headset/ SRD)
- EIRP: GFSK: 12.68 dBm (Headset/ BT)
- n/4-DQPSK: 10.22 dBm (Headset/ BT)
- GFSK: 10.39 dBm (Transceiver/ SRD)
c. Firmware Version: V0033

UK Declaration of Conformity

Hereby, SteelSeries ApS. declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy & Industrial Strategy.

The full text of the UK declaration of conformity is available at the following internet address: https://support.steelseries.com/ho/en-us/categories/360001256111-Other-Stuff

WEEE

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Turkey RoHS Compliance

Republic of Turkey: In conformity with the EEE Regulation

Federal Communication Commission Interference Statement

Supplier's Declaration of Conformity: 47 CFR § 2.1077 Compliance Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement; the device can be used in portable exposure condition without restriction.

The portable device is designed to meet the requirements for exposure to radio waves established by the FCC. These requirements set a SAR limit of 0.11 w/kg (FHSS_Headset), 0.09 w/kg (DTS_Headset) and 0.24 w/kg (Dongle) averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.

FCC ID: ZHK-HS43(Wireless Headset)

FCC ID: ZHK-HS43TX(Transceiver)

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.

The portable device is designed to meet the requirements for exposure to radio waves established by the ISED. These requirements set a SAR limit of 0.11 w/kg (FHSS_Headset), 0.09 w/kg (DTS_Headset) and 0.24 w/kg (Dongle) averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body.

Result for highest Simultaneous Transmission SAR value is 0.11 w/kg (FHSS_Headset), 0.09 w/kg (DTS_Headset) and 0.24 w/kg (Dongle).

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

The RoHS test method is based on the standards JIS C 0950 and CNS 15663.

型号Unit	限用物質及其化学代號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	鎘Cadmium(Cd)	六価铬Hexavalent chromium( Cr^2 )	多溴路苯Poly-brominated biophenyls(PBB)	多溴二苯對Poly-brominated diphenyl ethers(PBDF)
特殊部件Plastic	○	○	○	○	○	○
電路板及元件PCBA	-	○	○	○	○	○
綜材Cables	-	○	○	○	○	○
金属部件Mota	-	○	○	○	○	○
備考1 “超 1.01wt% 次”超 1.001wt% ”為指限用物質之百分比含量超出百分比含量基本準值。Note 1 “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2 ○係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2 ○indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3 — 係控該項限用物質表排除項目。Note 3 — indicates that the restricted substance corresponds to the exemption

欧盟

Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Safety Guideline for Using Lithium Battery

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.

Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user's manual should be noted. Keep this equipment away from humidity and high temperature.

• Do not leave the equipment in an unconditioned environment with a storage temperature above 60°C (140°F) or below 0°C (32°F), which may damage the equipment.
• This unit should be operated under maximum ambient temperature of 35^ (95°F).

- To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended by the manufacturer only.

- Always keep the battery in a safe place.

Union européenne

"The power delivered by the charger must be between min 0.25 Watts required by the radio equipment, and max 2.5 Watts in order to achieve the maximum charging speed"

European Union RED Compliance Statement

English

Hereby, Steelseries ApS. declares that all CE Marked Steelseries products incorporating Radio and Telecom Terminal Equipment functionality are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Български

RISK OF EXPLOSION IF BATTERY PACK IS NOT REPLACE BY SAME TYPE AS SPECIFIED BY THE MANUFACTURER.

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
2. Please keep this battery pack away from fire and high heat sources (Above 60°C or 140°F) due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.
3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flows out of this battery pack when touching the user's eyes and skin, please seek medical advice immediately.

"MISE EN GARDE!"

RISQUE D'EXPLOSION SI LE BLOC-PILES N'EST PAS REMPLACÉ PAR LE MÊME TYPE QUE SPÉCIFIÉ PAR LE FABRICANT.

More information and support from steelseries.com

Singapore approval (IMDA)

ACMA Compliance

(Australia/ New Zealand)

Direct Current

Product Name (產品名稱/產品名稱): Wireless Headset (無線耳機/无线耳机)

Model No. (型號/型号): HS43

Rated (规格/规格): 5V = 500mA

Accessories information (配件資訊/配件信息)

Product Name (產品名稱/產品名稱): Transceiver (收發器/收发器)

Model No. (型号/型号): HS43TX

Rated (規格/規格): 5V = 50mA

Operating Temperature: 0 to +40 °C

產品使用環境溫度: 0 - 40度
