USER MANUAL MobiCool M40 AC WAECO
Our Name is our Mission
M35 AC/DC
M40 AC/DC
GB Thermoelectric cooler Instruction Manual 6
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
Contents
1 Notes on using the instruction manual. 6
2 Safety instructions .... 7
3 Intended use 9
4 Scope of delivery 9
5 Accessories 10
6 Technical description .... 10
7 Operation....11
8 Cleaning and maintenance 14
9 Troubleshooting....15
10 Disposal 15
11 Technical data .... 16
Please observe the following safety instructions.
1 Notes on using the instruction manual
The following symbols are used in this operating manual:
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.
NOTE
Supplementary information for operating the product.
▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
√ This symbol describes the result of an action.
fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.
Please observe the following safety instructions.
2 Safety instructions
2.1 General safety
DANGER!
- On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.
WARNING!
- Do not operate the device if it is visibly damaged.
- This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
- Persons whose physical sensory or mental capacities prevent them from using this device safely should not operate it without the supervision of a responsible adult.
● Electrical devices are not toys.
Always keep and use the device out of the reach of children.
● Children must be supervised to ensure that they do not play with the device.
- If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
CAUTION!
- Disconnect the device from the mains – before cleaning and maintenance – after use
- Food may only be stored in its original packaging or in suitable containers.
NOTICE!
- Only connect the device as follows: - With the DC cable to a DC plug socket in the vehicle (e.g. cigarette lighter) - Or with the 230 V connection cable to the 230 V AC mains supply
- Check that the voltage specification on the type plate corresponds to that of the energy supply.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.
● Never pull the plug out of the socket by the cable. - If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
- If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
2.2 Operating the device safely
DANGER!
- Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply.
CAUTION!
- Before starting the device, ensure that the power supply line and the plug are dry.
NOTICE!
- Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
- Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
● Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
● Ensure that the ventilation slots are not covered. - Do not fill the inner container with ice or fluid.
● Never immerse the device in water.
● Protect the device and the cable against heat and moisture.
3 Intended use
The cooling device is suitable for cooling foodstuffs.
The device is designed for use with:
- a DC vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan (see voltage specification on the type plate)
● a 230 V AC mains supply
The appliance may also be used for camping use. The appliance shall not to be exposed to rain.
CAUTION! Health hazard!
If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.
4 Scope of delivery
No. in fig. 1, page 3 Quantity Description
1 1 Cooling device
- 2 Grid divider
- 1 Instruction manual
5 Accessories
Designation Description
Y24 24/12 DC/DC converter
for connecting 12-V--- cooling device to 24 V---
6 Technical description
The cooler is suitable for mobile use. You can cool products to a maximum of
● M35 AC/DC: 20 °C
● M40 AC/DC: 18 °C
under the ambient temperature.
A grid divider can be used to separate foodstuffs, e.g. bottles and fruit.
Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.
Additionally the cooler is equipped with a connection jack for a music player (e.g. MP3 player). The sound is transferred via the lid which thus works as a loudspeaker.
M35 AC/DC
The cooler M35 AC/DC can additionally warm the contents of the cooler to approx. 65 °C or keep them warm.
An integrated battery monitor can be switched on to protect your vehicle battery from discharging to dangerously low levels (see chapter “Using the battery monitor (M35 AC/DC only)” on page 14).
The cooling box is equipped with an automatic priority circuit. Thus it is ensured that with simultaneous connection to the alternating current circuit and to a 12-V-battery, the alternating current circuit will be used.
6.1 Description of the device
M35
No. in fig. 2, page 3 Description
1 Handle
2 Ventilation slots
3 Control panel and connection sockets for voltage supply
4 Compartment for music player
M40
No. in fig. 2, page 3 Description
1 Handle
2 Ventilation slots
3 Cable compartment
4 Compartment for music player
7 Operation
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable containers.
NOTE
- Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 14).
- A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.
7.1 Energy saving tips
- Choose a well ventilated installation location which is protected against direct sunlight.
- Allow warm food to cool down first before placing it in the device to keep cool.
- Do not open the cooling device more often than necessary.
- Do not leave the cooler unit open for longer than necessary.
7.2 Using the cooler
NOTICE! Risk of damage
- Ensure that the objects placed in the cooler are suitable for cooling or (M35 AC/DC only) heating to the selected temperature.
- Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.
- Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.
Using M35 AC/DC
▶ Place the cooler on a firm base.
▶ Connect the 12 V connection cable (fig. 1 2, page 3) to the cigarette lighter or a 12 V plug socket in the vehicle.
or ...
▶ Connect the 230 V connection cable (fig. 1 3, page 3) to the 230 V AC mains supply.
Switch the battery monitor (fig. 4 2, page 4) to "OFF".
▶ Push the switch (fig. 3 3, page 4) on the operating panel to “COLD” (Cooling) or “HOT” (Heating) to switch on the cooler.
√ The indicators on the control panel show you the operating mode:
Operating display Operating mode
| Green (fig. 3 1, page 4) | Cooling |
| Red (fig. 3 2, page 4) | Warming |
√ The cooler starts cooling/heating the interior.
▶ If you wish to switch the cooler off:
- Slide the switch (fig. 3 3, page 4) to the "OFF" position
– Unplug the connection cable.
Using M40 AC/DC
▶ Place the cooler on a firm base.
▶ Connect the 12 V connection cable (fig. 1 2, page 3) to the cigarette lighter or a 12 V plug socket in the vehicle.
or ...
▶ Connect the 230 V connection cable (fig. 1 3, page 3) to the 230 V AC mains supply.
√ The cooler starts cooling the interior.
▶ To switch off the cooler, disconnect the plug.
7.3 Connecting music player
You can connect a music player (e.g. a MP3 player) to the cooler.

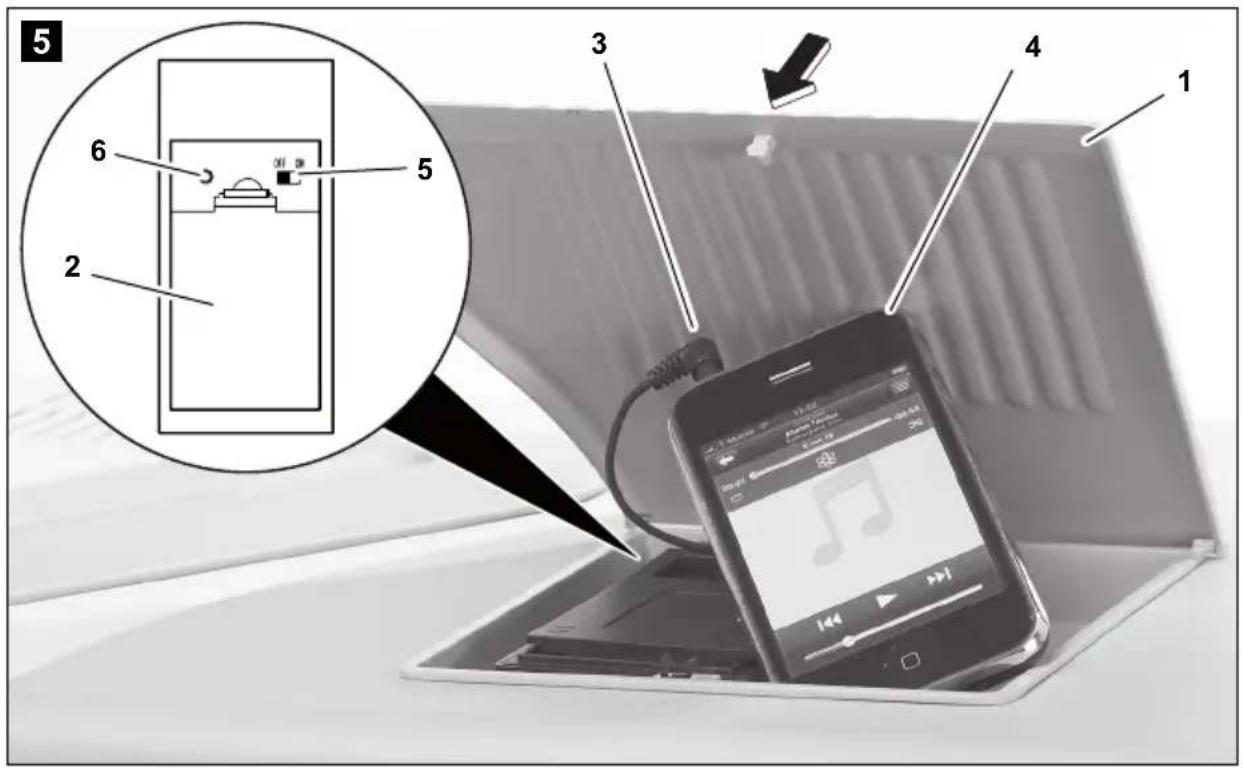

▶ Press the cover (fig. 5 1, page 4, arrow) to open it.
Thereby the locking is released and the cover snaps open.
Place three 1.5 V batteries, type AA (Mignon), into the battery compartment (fig. 5 2, page 4).
The batteries are not included in the scope of delivery.
▶ Connect the stereo jack (fig. 5 3, page 4) to your music player (fig. 5 4, page 4).
▶ Push the switch (fig. 5 5, page 4) to "ON".
√ The green LED (fig. 5 6, page 4) lights up.
▶ Turn on your music player.
▶ Adjust the desired loudness at your music player.
▶ Close the cover (fig. 5 1, page 4).
7.4 Connecting to the cigarette lighter
NOTE
If you connect the cooler to the cigarette lighter, remember that the ignition must be turned on to supply it with power.
7.5 Using the battery monitor (M35 AC/DC only)
NOTICE!
If you have connected your cooler to the 220–240 V AC mains supply, switch the battery monitor off.

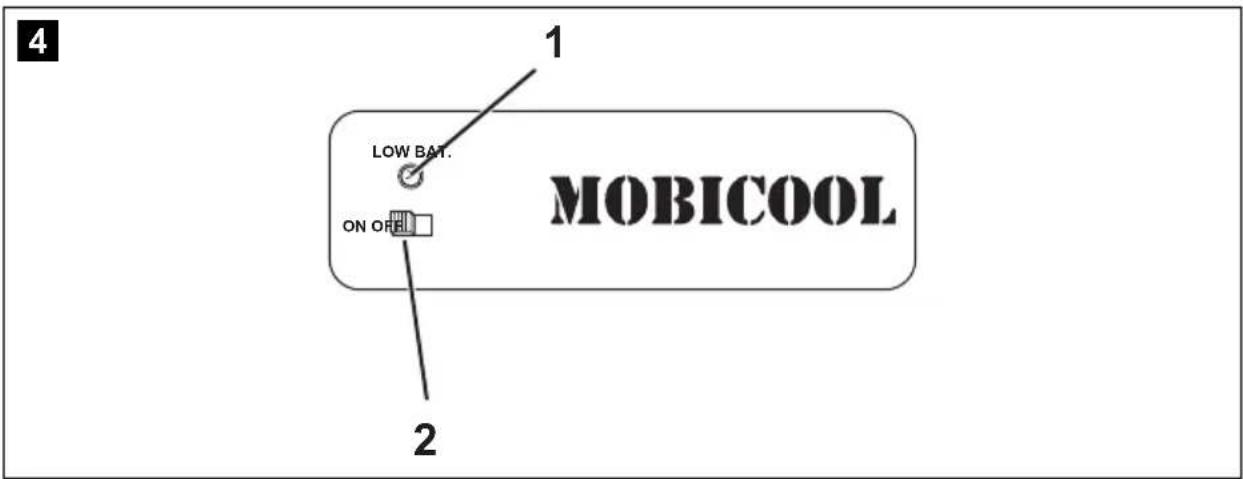

▶ Push the switch (fig. 4 2, page 4) on the operating panel to "ON" to switch on the battery monitor.
√ The red LED (fig. 4 1, page 4) on the operating panel displays the status of the battery monitor:
Operating display Operating mode
LED glows The switch-on voltage (13.1 V ± 0.2 V) is available and the cooler is in operation.
LED flashes The switch-off voltage (11.7 V ± 0.2 V) has been reached and the battery monitor has switched off the cooler.
▶ Push the switch (fig. 4 2, page 4) on the operating panel to "OFF" to switch off the battery monitor.
8 Cleaning and maintenance
WARNING!
Always disconnect the device from the mains before you clean and service it.
NOTICE! Risk of damage
● Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.
▶ Occasionally clean the device interior and exterior with a damp cloth.
9 Troubleshooting
| Problem Possible cause Suggested remedy | ||
| Your device is not working (plug is inserted). | There is no voltage flowing from the DC socket (cigarette lighter) in your vehicle. | The ignition must be switched on in most vehicles to supply current to the cigarette lighter. |
| No voltage present in the AC voltage socket. | Try using another plug socket. | |
| The inner fan or the cooling element is defective. | This can only be repaired by an authorised repair centre. | |
| When operating from the DC socket (cigarette lighter):The ignition is on and the cooler is not working. | The fuse of the DC plug is dirty. This results in a poor electrical contact. | If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly. |

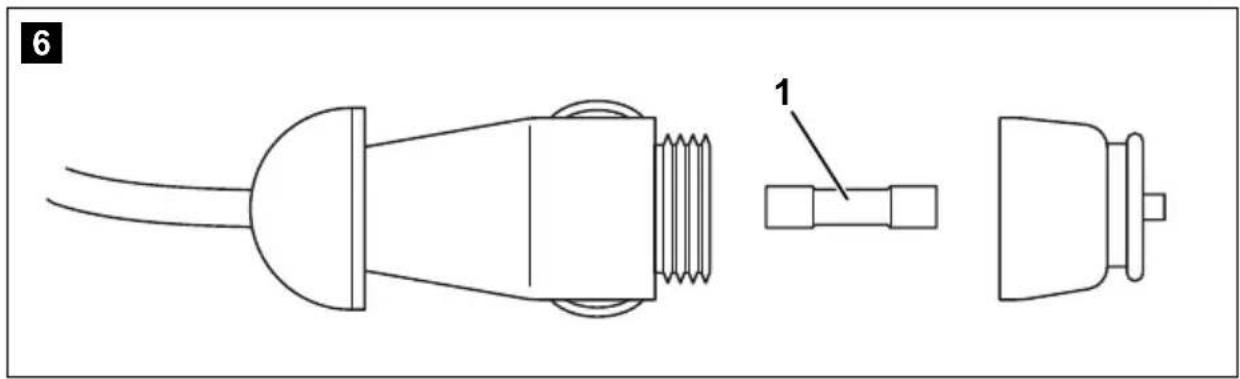

| The fuse of the DC plug has blown. | Replace the fuse of the DC plug with one of the same rating (fig. 6 1, page 5). | |
| The vehicle fuse has blown. | Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle. | |
| No music. The batteries are empty. Insert three new type AA (Mignon). | 1.5 V batteries, type AA (Mignon). | |
10 Disposal
▶ Place the packaging material in the appropriate recycling waste bins wherever possible.
If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
Protect the environment!
Do not dispose of any batteries with general household waste. Return defective or used batteries to your retailer or dispose of them at collection points.
11 Technical data
| M35 AC/DC M40 AC/DC | ||
| Gross capacity: 35 litres 40 litres | ||
| Connection voltage: 12 V=220-240 V~, 50 Hz | ||
| Power consumption:Cooling: 47 W 47 WHeating: DC: 41 W | AC: 42 W | - |
| Cooling capacity: max. 20 °C max. 18 °Cunder ambient temperature | ||
| Heating capacity: approx. | 65 °C interiortemperature | - |
| Batteries for music player: | 3 x 1,5 V, Type AA (Mignon) | |
| Weight: | ca. 7.8 kg | ca. 8.8 kg |
| Dimensions (mm): | 540 x 350 x 445 | 560 x 380 x 420 |
| Testing/certification: |    | |
Versions, technical modifications and delivery options reserved.
