GW14581 - Digital timer switch Gewiss - Free user manual and instructions

Product type	Digital flush-mount timer switch
Brand and model	Gewiss GW14581
Dimensions	2 Chorus modules (width 36 mm, height 45 mm, depth 45 mm)
Weight	Approximately 50 g (without packaging)
Power supply	Mains 230 V~ / 50 Hz; rechargeable lithium battery ML1220 (backup)
Consumption	Low (a few mA in normal operation)
Display	Backlit LCD with icons (time, day, relay status, mode, time profile)
Controls	4 push buttons: MODE, ▲, ▼, SET/PROG
Operating modes	Automatic (programmed), Manual (permanent ON/OFF), OFF (relay open)
Programming	Daily and weekly with 5-minute resolution, up to 12 switchings per hour
Relay output	1 changeover contact (NO/NC) isolated, 8A (AC1) / 4A (AC15) at 250 V~
Remote control	Compatible with GSM system GW90821 (serial connector 4-5-6)
Backup	Internal battery keeps time and program for up to 24 hours in case of power outage
Installation	Flush-mounted into a mounting box (min. depth 40 mm), comply with electrical standards IEC 60364 / HD 60364
Operating temperature	-5°C to +40°C (domestic use)
Safety	Installation by a qualified electrician, cut off power before intervention
Maintenance	Clean with a dry cloth; do not use harsh products
Spare parts / Repairability	Replaceable battery (access via small cover); no consumer spare parts
Standards	Compliant with European directives (CE marking) and NF standards

Frequently Asked Questions - GW14581 Gewiss

How to set the time and day on the Gewiss GW14581 timer switch?

Press the SET/PROG button once until 'SET' appears. Use the ▲ and ▼ buttons to set first the day (1=Monday...7=Sunday), then the hour, then the minutes. Confirm each setting with the MODE button or wait 30 seconds to exit.

How to program a time cycle (on/off)?

Press SET/PROG twice to enter 'PROG' mode. Select the day with ▲/▼ and confirm with MODE. Then set the time of the first transition (5-minute steps) with ▲/▼, confirm, then choose the output state (ON/OFF) with ▲/▼ and confirm. Repeat for each transition (up to 12 per hour). To copy the program to the next day, simultaneously press ▲ and ▼ after confirmation.

How to switch to manual mode and manually turn the load on/off?

Press MODE several times until 'MAN' appears on the screen. Use the ▲ or ▼ buttons to toggle the output between ON and OFF. The state remains until you change mode or reprogram.

What to do in case of power outage? Are the programs lost?

The GW14581 has a rechargeable backup battery (ML1220) that keeps the time and programs for about 24 hours. As long as the battery is operational, the programs are not lost. If the battery is discharged, only the time and day need to be reprogrammed; the programs remain in memory.

How to use remote control via GSM?

Connect the timer to the remote system GW90821 via terminals 4 (TX), 5 (GND), and 6 (RX). Send predefined SMS to change the mode (MAN/AUTO/OFF) or output state (ON/OFF). The device confirms by SMS and displays the remote control symbol on the screen.

The display does not light up, what should I check?

First check the 230 V~ power supply at terminals L and N. If the device is powered and the screen remains off, the backlight is only activated when a button is pressed. If nothing appears, try pressing a button. In case of malfunction, the self-test at startup (15 s) displays all icons; if not, the device may be defective.

How to copy the program from one day to the following days?

In PROG mode, after programming a day (e.g., Monday), instead of confirming normally, simultaneously press ▲ and ▼ within 30 seconds. The program is copied to the next day. Repeat the operation for each desired day.

How to reset the device to factory settings?

There is no direct software reset. To delete all programs, you can hold down all four buttons (MODE, ▲, ▼, SET/PROG) simultaneously for a few seconds. Note that this also disconnects the backup battery. Reconnect the power to reconnect the battery.

What type of relay is used and what load can it control?

The output contact is an isolated relay with a changeover (COM, NO, NC). It can switch resistive loads up to 8 A (AC1) or inductive loads up to 4 A (AC15) at 250 V~. Examples: lighting, awning motor, pump.

How to replace the internal battery?

Disconnect the power supply. Remove the small cover on the back of the housing (see figure A in the manual). Use a small screwdriver to extract the battery (type ML1220). Insert the new battery respecting polarity (+ facing up) and close the cover. The battery reconnects automatically when power is restored.

USER MANUAL GW14581 Gewiss

16:28 07 AM PM OFF MAN AUTO SET PROG MODE SET PROG

16:28 AUTO SET

Technical line drawing of an electronic device showing internal components and housing (no text or symbols)

A 1 2 3 6 N L

Attention - Important

Warning ! The safety of this appliance is only guaranteed if all the instructions given here are followed scrupulously.

These should be read thoroughly and kept in a safe place.

Chorus products can be installed in environments which are dust-free and where no special protection against the penetration of water is required.

They shall be installed in compliance with the requirements for household devices set out by the national standards and rules applicable to low-voltage electrical installations which are in force in the country where the products are installed, or, when there are none, following the international standard for low-voltage electrical installations IEC 60364, or the European harmonization document HD 60364.

Gewiss sales organization is ready to provide full explanations and technical data on request.

CONTENTS

USER INSTRUCTIONS page

- General description 20

- Control description 21

- Operating modes.... 22

- Setting parameters.... 23

- Programming 24

- Automatic operation 26

- Manual operation 26

- Visual display unit 27

- Remote control.... 27

- Operating in case of blackout.... 28

- Preset parameters.... 28

INSTALLATION INSTRUCTIONS

- Assembly 29

- Terminal description 30

- Battery removal.... 30

FUNCTIONAL FEATURES/TECHNICAL DATA 31

USER INSTRUCTIONS

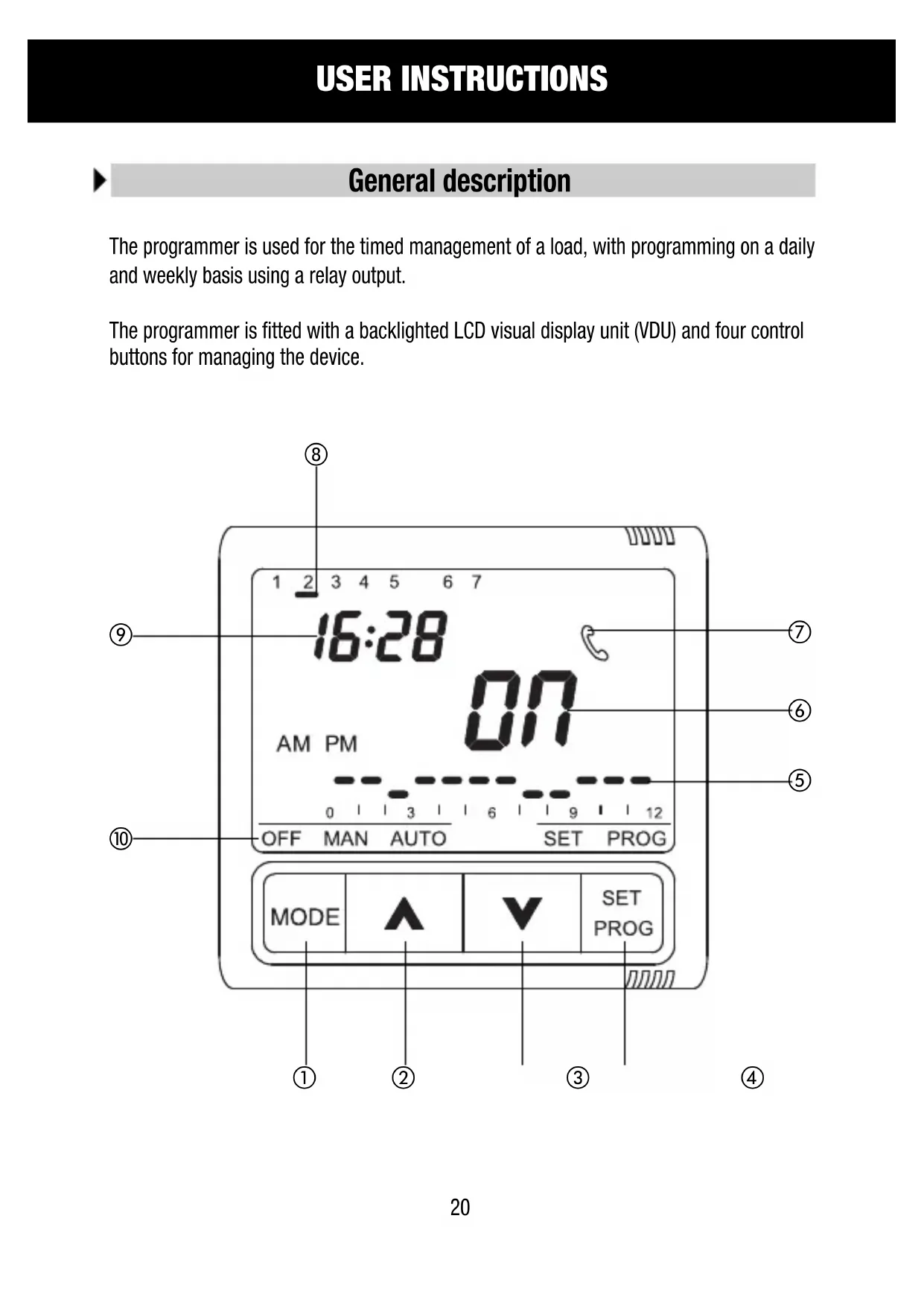

General description

The programmer is used for the timed management of a load, with programming on a daily and weekly basis using a relay output.

The programmer is fitted with a backlighted LCD visual display unit (VDU) and four control buttons for managing the device.

16:28 07 AM PM OFF MAN AUTO SET PROG MODE SET PROG

Control description

USER INSTRUCTIONS	Symbol
1 MODE: select mode	MODE
2 Increment/Select parameters
3 Decrement/Select parameters
4 SET/PROG: Set programs/Programming	SET/PROG

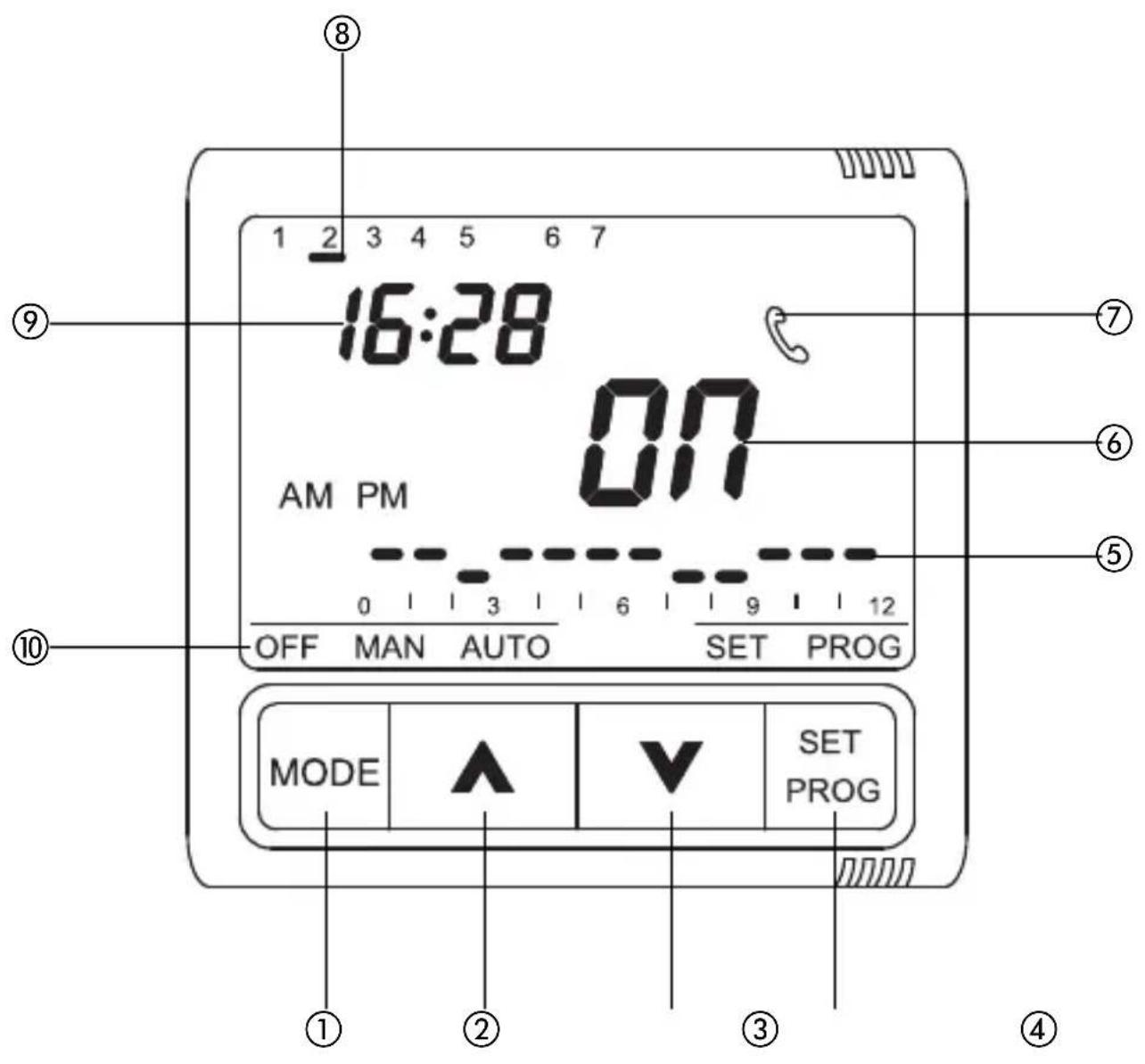

VDU SIGNALS

5	Daily program profile
6	Relay status (ON/OFF)
7	Control signal via SMS through the GSM remote control unit
8	Day
9	Time
10	Operating mode OFF MAN AUTO

Warning: at switch-on the programmer carries out a self-diagnosis of approximately 15 seconds displaying all the icons on the VDU.

Operating mode

The programmer provides three different operating modes:

• MANUAL
• AUTOMATIC
• OFF

The MODE key is used to switch from one mode to another.

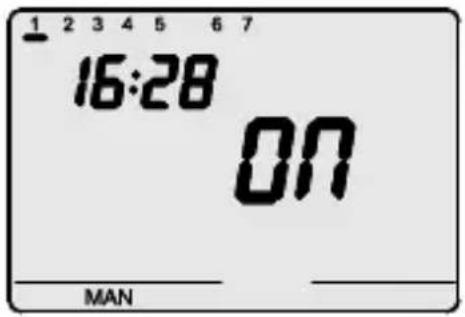

1 2 3 4 5 6 7 16:28 ON MAN

In manual mode it is possible to set the output in a permanent state. The time, the day of the week, the message MAN and the indication of the relay status (ON/OFF) are displayed on the VDU.

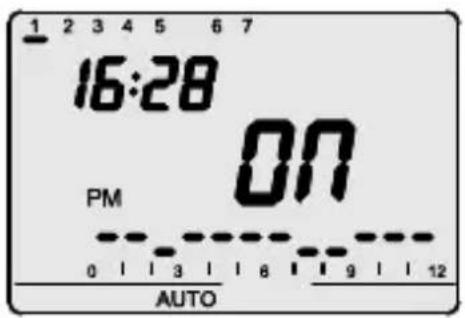

1 2 3 4 5 6 7 16:28 PM ON 0 3 6 9 12 AUTO

In automatic mode the device uses a program set by the user, which can also be differentiated for each day of the week. The time, the day of the week, the message AUTO and the current relay status (ON/OFF) are displayed on the VDU. The message AM or PM shows which fraction of the day is displayed in the hourly profile.

The segment relative to the current time blinks in the hourly profile with the representation of the status of the output (high segment ON, low segment OFF).

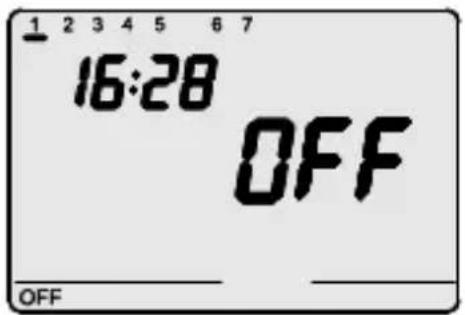

1 2 3 4 5 6 7 16:28 OFF OFF

In OFF mode the N.A. relay contact is kept constantly open while the N.C. contact is closed.

The time, the day of the week and the message and indication of the relay status (OFF) are displayed on the VDU.

Setting parameters

The SET/PROG key is pressed once to set the parameters.

The message SET is displayed on the VDU.

At this point the following can be modified, in sequence:

• the day of the week
• the hour
• the minutes

The value of each parameter is confirmed by pressing the MODE key.

The setting phase is exited by pressing the SET key again or, in automatic mode, 30 seconds after the last key entry.

16:28 AUTO SET

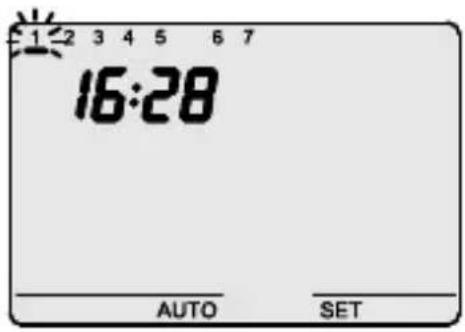

Setting the day of the week

When the day of the week bar blinks, select the day of the week using the keys(Monday=1, Tuesday=2.....

Sunday=7).

The value set is confirmed by pressing the MODE key within 30 seconds.

1 2 3 4/5 6 7 16:28 AUTO SET

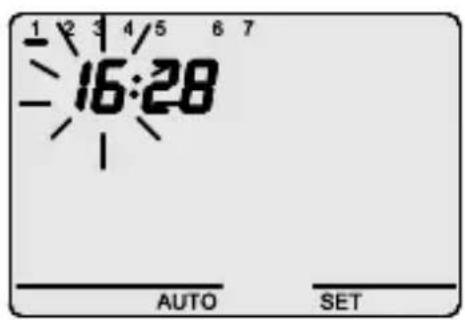

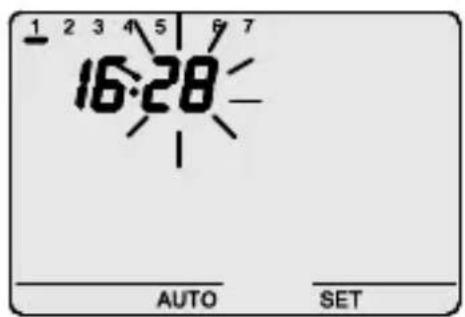

Setting the hour

When the hour figures blink, set the hour using the AV keys.

The values set are confirmed by pressing the MODE key within 30 seconds.

1 2 3 4 5 6 7 16:28 AUTO SET

Setting the minutes

When the minutes figures blink, set the minutes using the keys.

The values set are confirmed by pressing the MODE key within 30 seconds.

USER INSTRUCTIONS

Programming

The SET/PROG key is pressed twice to personalise the preset daily/weekly program or to make a modification to a previously set cycle.

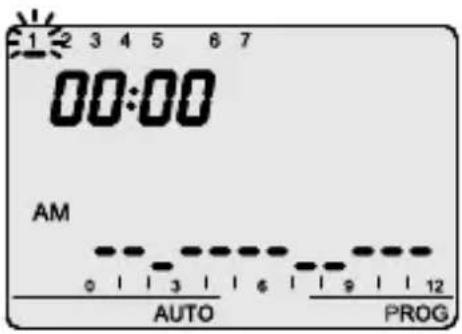

1 2 3 4 5 6 7 00:00 AM 0 | | 3 | | 6 | | 9 | | 12 AUTO PROG

a) The message PROG is displayed on the VDU while the bar for the first day of the week starts to blink. The required day is selected with the keys. The selection is confirmed by pressing the MODE key within 30 seconds.

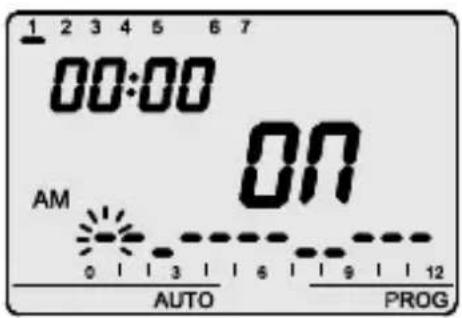

1 2 3 4 5 6 7 00:00 ON AM 0 3 6 9 12 AUTO PROG

b) The profile of the day selected is displayed on the VDU. c) The time starts to blink. The keys are used to select the start hour from which it is required to modify the proposed profile; while the time profile is being incremented, the column relative to the selected time will blink. The selection is confirmed by pressing the MODE key within 30 seconds.

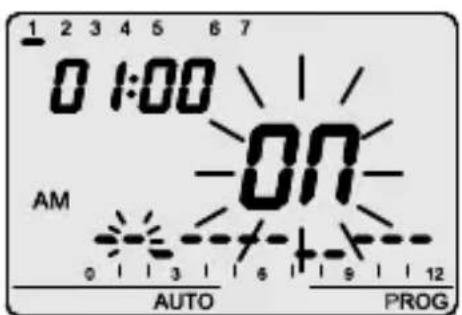

1 2 3 4 5 6 7 0 1:00 AM ON 0 3 6 9 12 AUTO PROG

The message ON (or OFF) blinks on the VDU. The Key can be used to modify the output status, The modification takes effect starting from the time selected and extends until the next transition or until the end of the day that is being programmed if there are no subsequent transitions. The choice is confirmed by pressing the MODE key within 30 seconds.

Programming

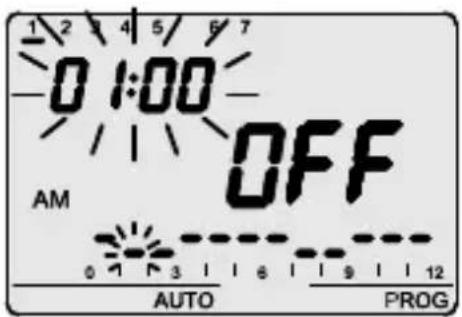

1 2 3 4 5/6/7 0 1:00 OFF AM 0 1 2 3 4 5 6 7 8 9 10 11 12 AUTO PROG

e) The time blinks, select the start hour from which it is required to select a new switch as described in point c).

The time is incremented/decremented in steps of 5 minutes each time the keys are pressed.

It is therefore possible to define up to 12 relay switches every hour.

The programming is confirmed by prolonged pressure on the MODE key.

A move is made automatically to programming the next day.

The programming phase is exited by pressing the SET key or, in automatic mode, 30 seconds after the last key entry.

Save and propose again

If, however, it is required to copy the program directly to the next day, the programming just done is confirmed by pressing the keys simultaneously 30 seconds.

In this mode the program just run is saved and also proposed again the next day; to copy and save the same program over several days, repeat the operation of simultaneously pressing the keys within 30 seconds.

On completion of weekly programming the SET/PROG key is pressed to return to normal operating.

Automatic operation

The program is started by selecting automatic mode by pressing the MODE key until the AUTO symbol is displayed on the VDU.

In AUTO operating mode the hourly profile relative to the fraction of the day in progress (AP/PM) is displayed.

The profile relative to the other fraction of the day can be displayed by pressing the

AV keys simultaneously. The indication is active for 5 seconds, after which the current profile reappears.

Manual operation

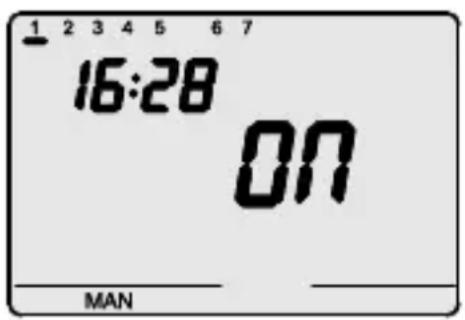

1 2 3 4 5 6 7 16:28 ON MAN

The manual operating mode activated by pressing the MODE key until the MAN message is displayed on the VDU.

The Keys are used to set the required output status. The selected status (ON/OFF) is displayed on the VDU.

Visual display unit

The LCD visual display unit is provided with backlighting which is active for 5 secs whenever a key is pressed.

In SET or PROG mode the backlighting remains active during parameter setting and programming. It is deactivated on exit from these modes.

Remote control

The programmer can be connected to the GW90821 GSM remote control unit using a serial connection. SMS commands (e.g. from a cellular telephone) can be used to:

• Set the operating mode (MAN/AUTO/OFF)
• Set the output status (ON/OFF)
• Request the current status

Each command SMS sent to the device will be answered by a corresponding SMS in confirmation (with non-configurable predefined text); the status request message provides a reply including the following information:

• current operating mode (OFF/AUTO/MAN)
• output status (ON/OFF)

Whenever the output status or operating mode are modified from the remote control unit, the symbol is displayed on the VDU.

The symbol also appears for the current contact status request.
The symbol remains displayed on the VDU until a key is pressed.

Operating in case of blackout

The device is fitted with a backup battery that guarantees updating of the time and day of the week in case of blackout.

When power is supplied by the battery alone there is an autonomy of 24 hours in the following conditions:

• time display active
• backlighting inactive
• output status display inactive
• relay switching not enabled (the relay contact retains the status prior to the blackout)
• front keys inactive (except when all 4 keys are pressed simultaneously)

In the absence of power, simultaneously pressing all four front keys causes disconnection of the backup battery inside the device.

This function is used to preserve the efficiency of the battery when the device is not used for a long period.

The battery is connected again automatically once the device has been connected to the power mains.

The set programs are not lost either in the case of a blackout or in that of battery disconnection.

Preset parameters

Day of the week 1 : Monday

Time 00:00

Output status (MAN mode) OFF (MAN)

INSTALLATION INSTRUCTIONS

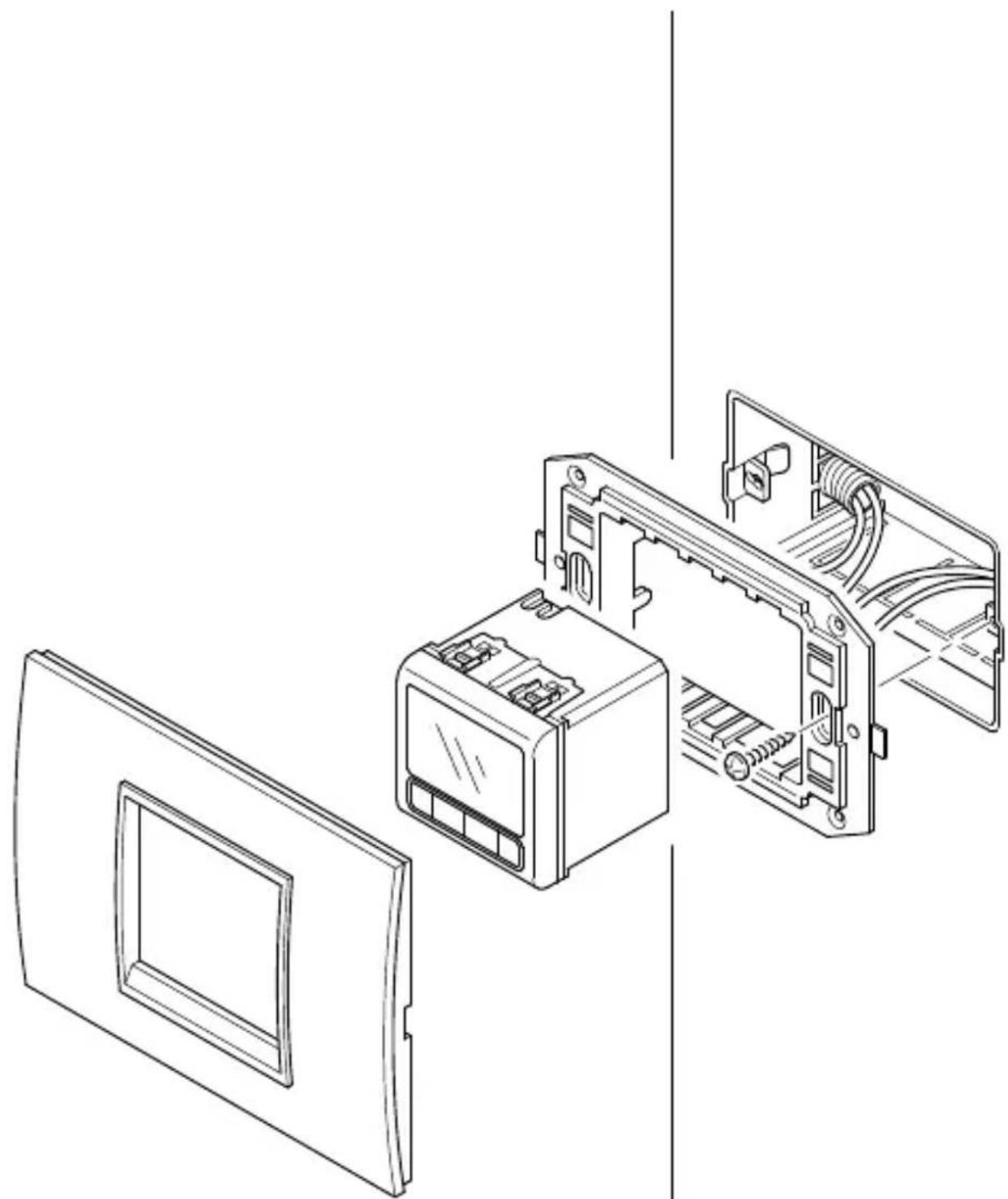

Assembly

Technical line drawing of an electronic device showing internal components and assembly (no text or symbols)

INSTALLATION INSTRUCTIONS

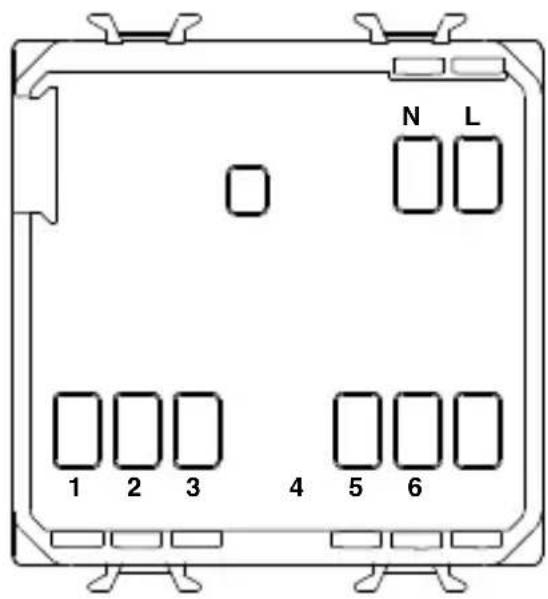

Terminal description

N L 1 2 3 4 5 6

1 2 3

Cabling terminals

Power supply

L - Phase

N - Neutral

Output relay

1 - NA contact

2 - NC contact

3 - Common

Serial line

4 - TX (output data)

5 - GND (common)

6 - RX (input data)

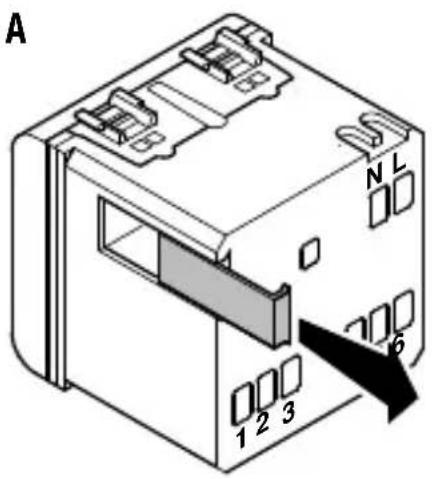

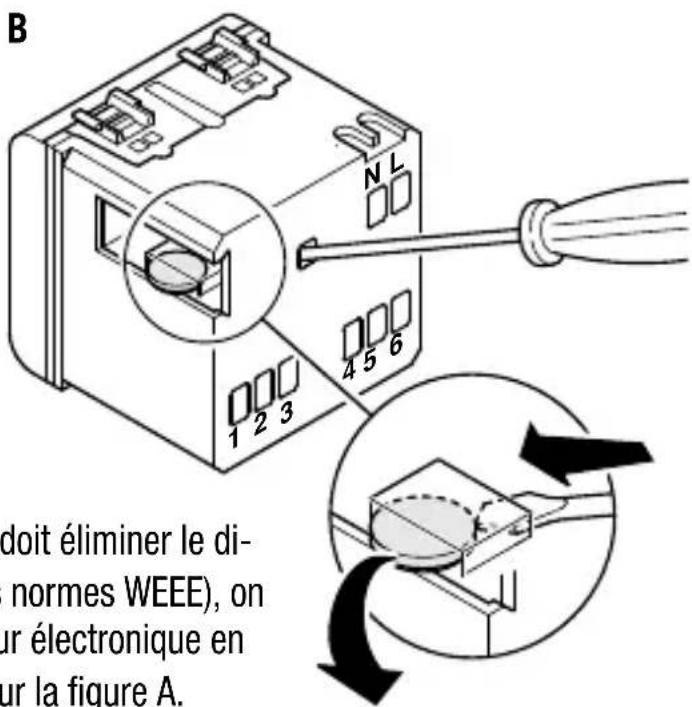

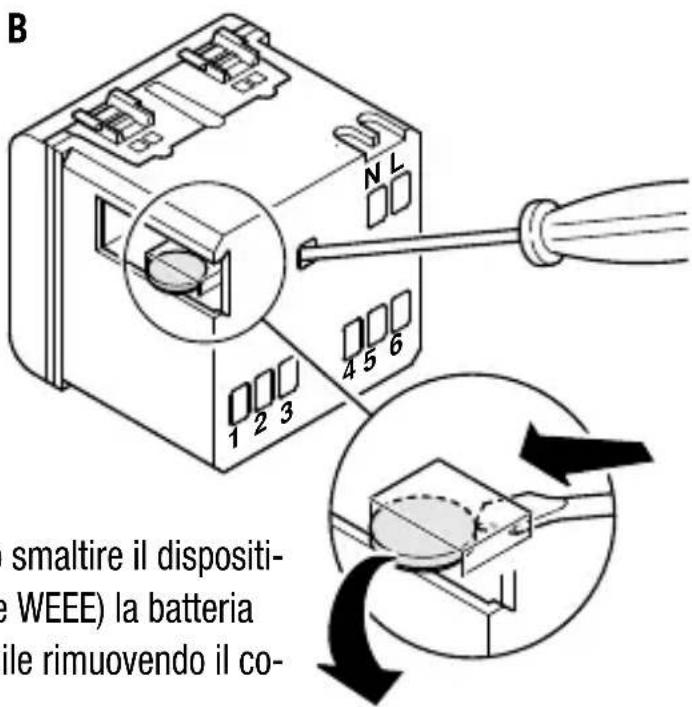

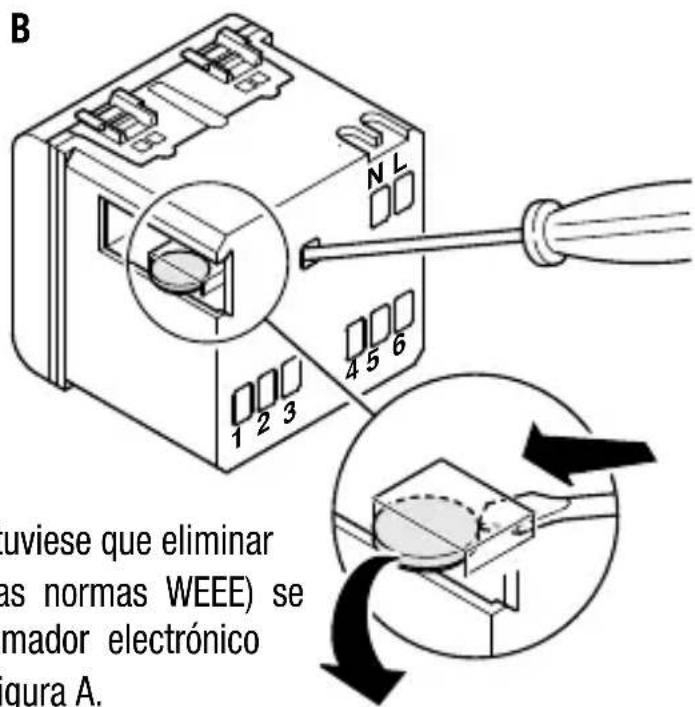

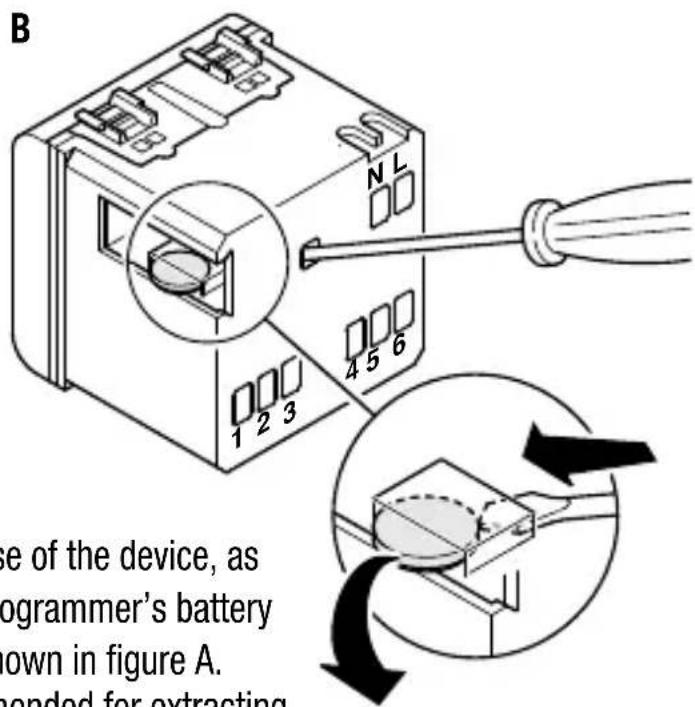

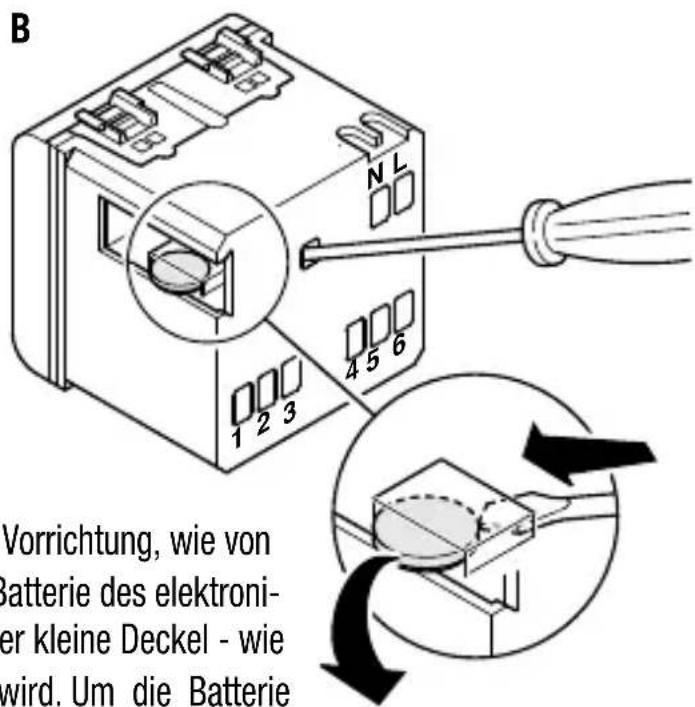

Battery removal

A 1 2 3 6 N L

B 1 2 3 4 5 6 NL e of the device, as programmer's battery own in figure A. ended for extracting

In case of necessity (e.g. having to dispose of the device, as laid down by the WEEE standards), the programmer's battery is accessible by removing the cover as shown in figure A. The use of a small screwdriver is recommended for extracting the battery as shown in figure B.

FUNCTIONAL FEATURES/TECHNICAL DATA

Operating modes Automatic, manual, off

Time programming resolution 5 minutes

Max. n° of settable relay switches 12 per hour

Remote control With GW 90821 GSM remote control unit

Output contact Relay, without potential

1 NA/NC 8A (AC1)/4A (AC15), 250Vac

Power supply Mains (230V ac) – normal operation

Rechargeable battery (ML1220) – mains blackout

Dimensions 2 Chorus modules
