TLSL3452 - Switch TP-LINK - Free user manual and instructions

Product Type	Managed / Smart Network Switch
Brand	TP-Link
Model	TLSL3452
Number of Ethernet ports	24 RJ45 10/100/1000 Mbps ports
SFP slots	2 SFP slots for fiber modules
Console port	1 RS232 console port for CLI configuration
Dimensions (W x D x H)	440 x 180 x 44 mm (19-inch rack mount 1U)
Weight	2.5 kg
Power supply	12V DC, 2A power adapter (included)
Power consumption	12 W maximum
Main features	VLAN, QoS, link aggregation, IGMP Snooping, management via web interface or CLI, Easy Smart utility
Management interface	Web GUI (default 192.168.0.1) and CLI (via console or Telnet/SSH)
Default credentials	Username: admin / Password: admin
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% RH (non-condensing)
Maintenance and cleaning	Disconnect before cleaning, use a dry cloth, do not use liquid or abrasive products
Safety	Do not expose to water, do not open the casing, disconnect for maintenance, keep vents clear
Spare parts and repairability	No user-serviceable parts; contact TP-Link support for any repairs
Warranty	3-year TP-Link limited warranty (subject to general conditions)
Package contents	Switch, power adapter, console cable (depending on model), rubber feet, mounting brackets, manual

Frequently Asked Questions - TLSL3452 TP-LINK

How to reset the TP-Link TLSL3452 switch to factory settings?

To reset, press and hold the Reset button on the back of the switch for about 10 seconds until the LEDs flash. Factory settings will be restored.

What is the default IP address of the switch?

The default IP address is 192.168.0.1. Make sure your computer is on the same subnet (e.g., 192.168.0.x).

How to access the switch management interface?

Connect to the switch network, open a browser and enter http://192.168.0.1. Use the username admin and password admin.

What to do if I forgot the administrator password?

Perform a factory reset by holding the Reset button (see previous question). This will erase all settings.

Can I use SFP modules from other brands?

It is recommended to use TP-Link compatible SFP modules for optimal performance. Third-party modules may work but without guarantee of compatibility.

How to connect the switch to a computer via the console port?

Use the supplied console cable to connect the switch's console port to the computer's serial port. Configure your terminal (e.g., PuTTY) with a baud rate of 115200, 8 data bits, 1 stop bit, no parity.

How to update the switch firmware?

Log into the web interface, go to System Tools > Firmware Upgrade. Download the firmware from the TP-Link website and follow the on-screen instructions.

What do the LED indicators on the front panel mean?

The Power LED indicates power. The Link/Act LEDs for each port: solid = link established, blinking = activity. The PoE LEDs if applicable.

Can this switch be rack-mounted?

Yes, the switch is designed for 19-inch rack mounting. Attach the supplied mounting brackets to the sides, then screw it into the rack with appropriate bolts (not included).

What is the power consumption and what type of power supply to use?

The maximum consumption is about 12 W. Use only the supplied power adapter (12V DC, 2A). Plug it into a standard power outlet.

USER MANUAL TLSL3452 TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch. 01
English. 06
Espanol. 11
Elambdaviká. 16
François. 21
Italiano 26
Portugues. 31
Suomi. 36
Nederlands. 41
Svenska 46
Norsk. 51
Dansk. 56
Türkge. 61

Installation

- Tischmontage

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.

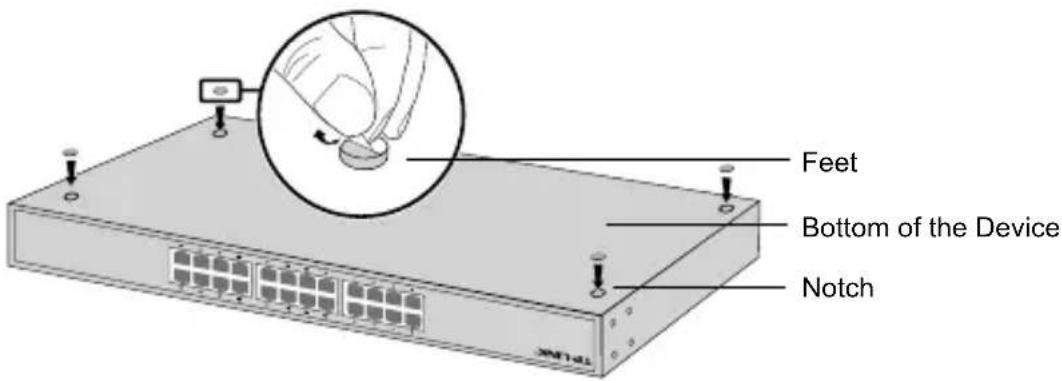

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

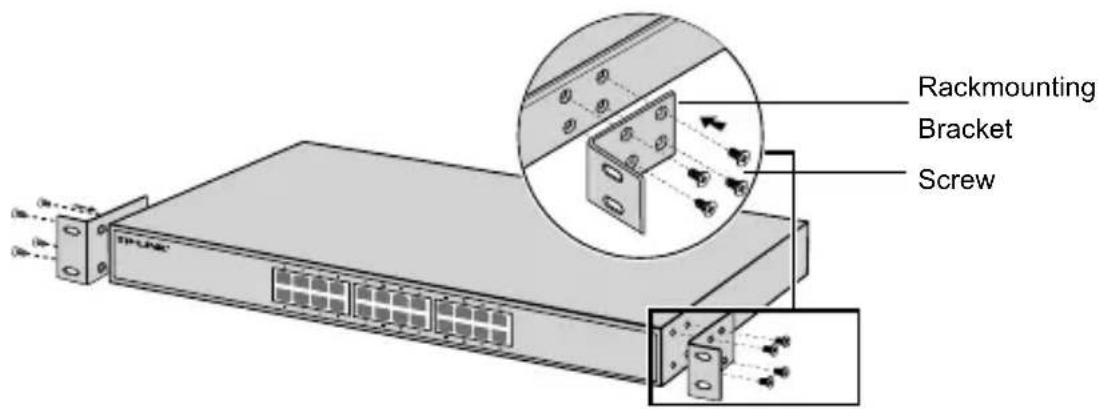

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

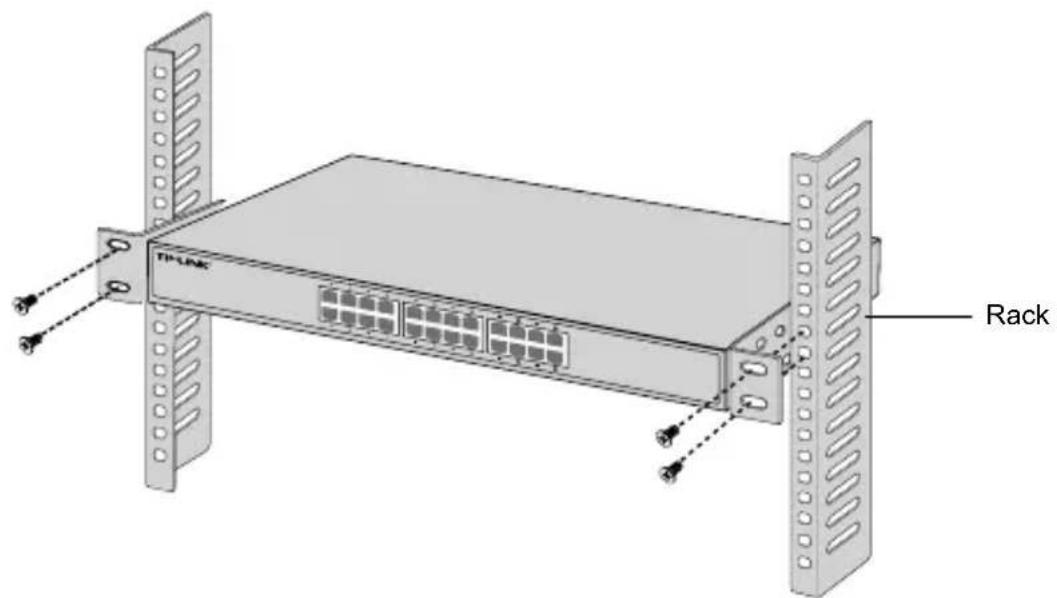

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

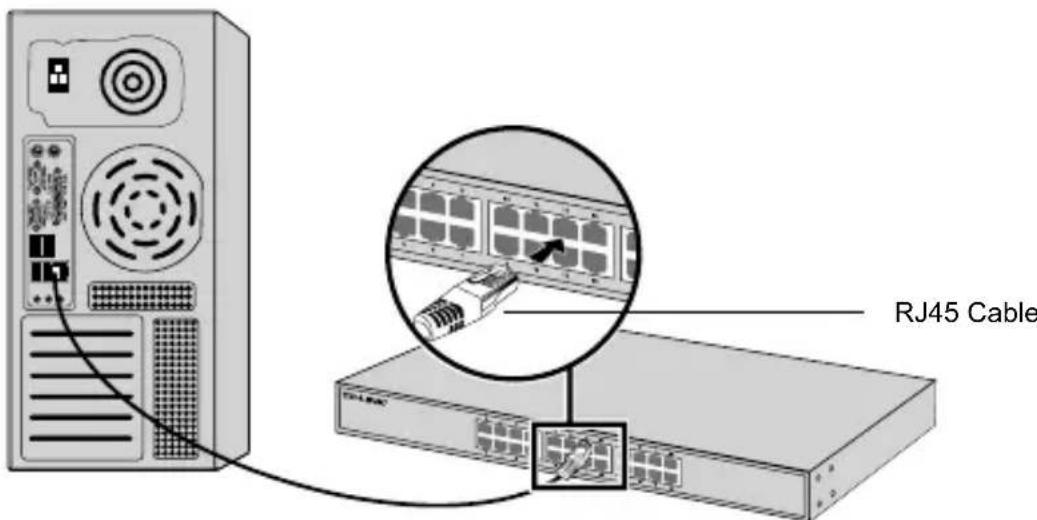

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- SFP Port

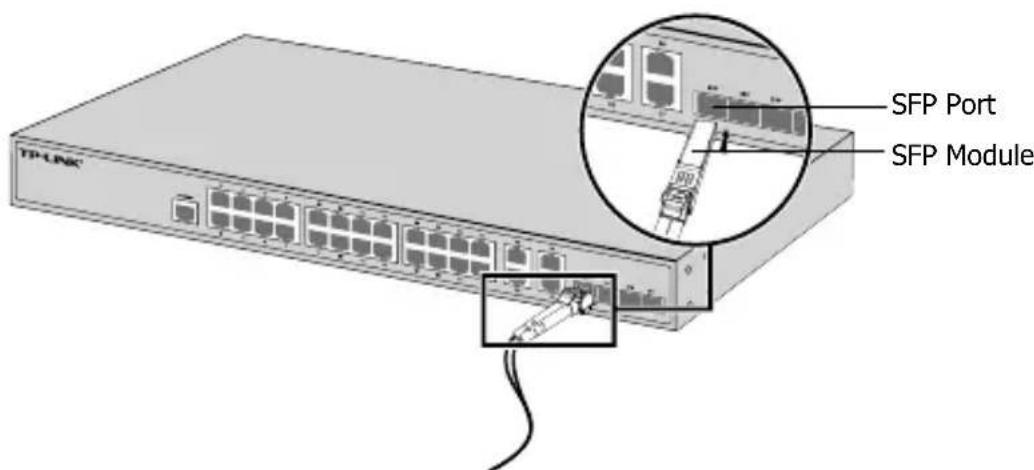

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

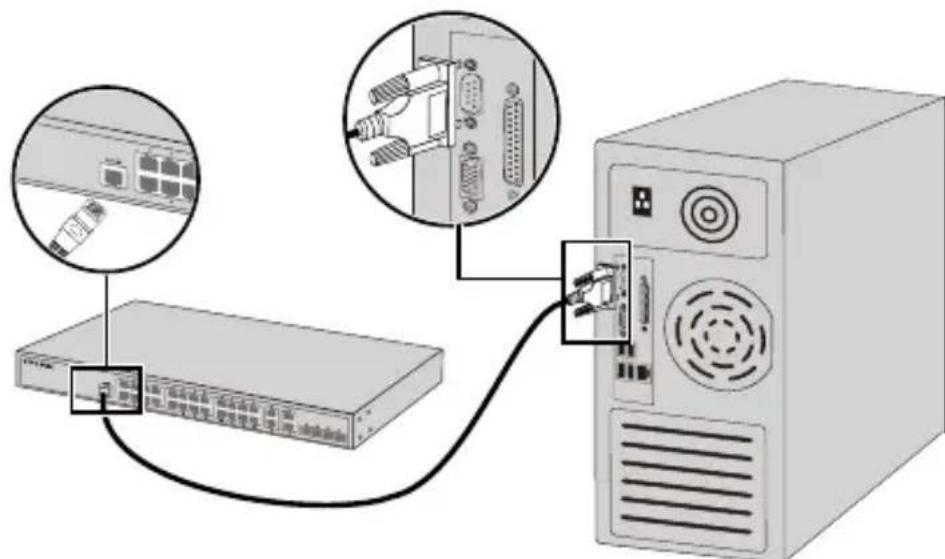

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

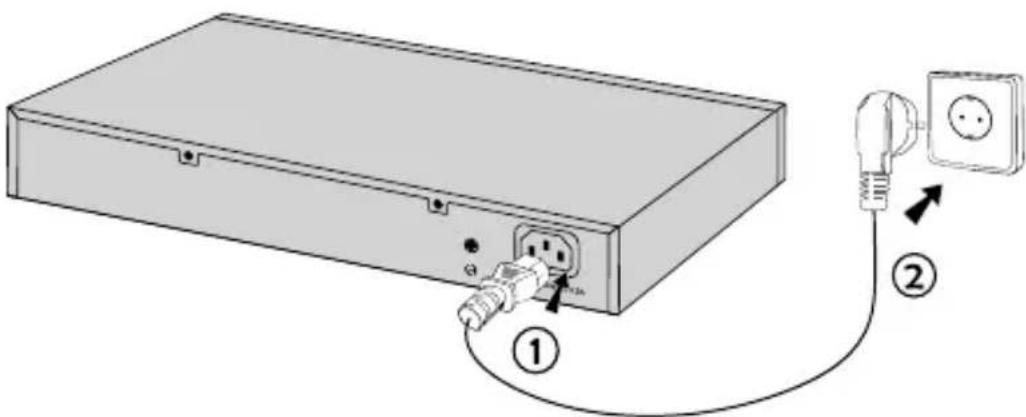

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

• TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
