Feature	Details
Device type	Tea maker
Capacity	1.2 liters
Material	Stainless steel
Features	Automatic brewing, automatic shut-off
Water temperature	Adjustable according to tea type
Usage	Easy to use with an intuitive control panel
Maintenance	Hand wash recommended, do not immerse in water
Energy consumption	Energy saving with standby function
Safety	Protection against overheating and dry boiling
Dimensions	25 x 15 x 20 cm
Weight	1.2 kg
Warranty	2 years

Frequently Asked Questions - Mr. Tea BEEM

How do I use the BEEM Mr. Tea to prepare tea?

Fill the water tank, add the tea to the filter, select the desired temperature and brewing time, then press the start button.

How much tea can I put in the filter?

It is recommended to add about 10 to 15 grams of tea per 1 liter of water, but this may vary according to personal preferences.

Can the BEEM Mr. Tea prepare cold infusions?

No, the BEEM Mr. Tea is designed for hot infusions only. For cold infusions, it is better to use another device.

How do I clean the BEEM Mr. Tea after use?

Disassemble the filter and tank, then rinse them with warm water. Use a soft cloth to clean the exterior and avoid abrasive products.

What should I do if the device does not turn on?

Check that the device is properly plugged in and that the outlet is working. If the problem persists, contact customer service.

Can I use tea bags with the BEEM Mr. Tea?

Yes, you can use tea bags, but for optimal brewing, loose tea is recommended.

What is the recommended brewing time for different types of tea?

For green tea, 2-3 minutes; for black tea, 3-5 minutes; and for herbal teas, 5-7 minutes, according to your preferences.

Are there temperature settings for different types of tea?

Yes, the BEEM Mr. Tea allows you to set the temperature between 70°C and 100°C, suitable for different types of tea.

How do I prevent the tea from becoming bitter?

Monitor the brewing time and do not let the tea steep too long. Also use water at the correct temperature.

Where can I find the user manual for the BEEM Mr. Tea?

The user manual is usually included in the packaging. You can also download it from the manufacturer\'s website.

USER MANUAL Mr. Tea BEEM

7. Making tea the Oriental way in accordance with the “samovar” principle........... 20

Dear customer, This combined water boiler / teamaker and samovar is a versatile utensil suitable for optimum preparing of tea and other hot and instant drinks. We hope you will enjoy using your utensil. YOUR BEEM (Blitz-Elektro-Erzeugnisse Manufaktur)

2. Notes on these instructions

This appliance is equipped with various safety features. Nevertheless please read this instruction carefully and use the appliance only as described in this instruction manual, in order to avoid injuries or damage. Keep these instructions so you can refer to them. Should you give this appliance to anybody else, take care that you pass on the instructions as well. Safety terms in this instruction: The signal word DANGER advises against severe injuries or deadly peril. The signal word WARNING advises against injuries and severe damage to property. The signal word ATTENTION advises against light injuries or damages.BEEM – Elements of Lifestyle Seite 17 / 100

5. 1.0L teapot with handle

9. Water level indicator and water container device

10. 4.0L water container,with handle

12. Removable limescale filter

13. Tap lever (in balck)

17. Base unit with integrated powerlineBEEM – Elements of Lifestyle

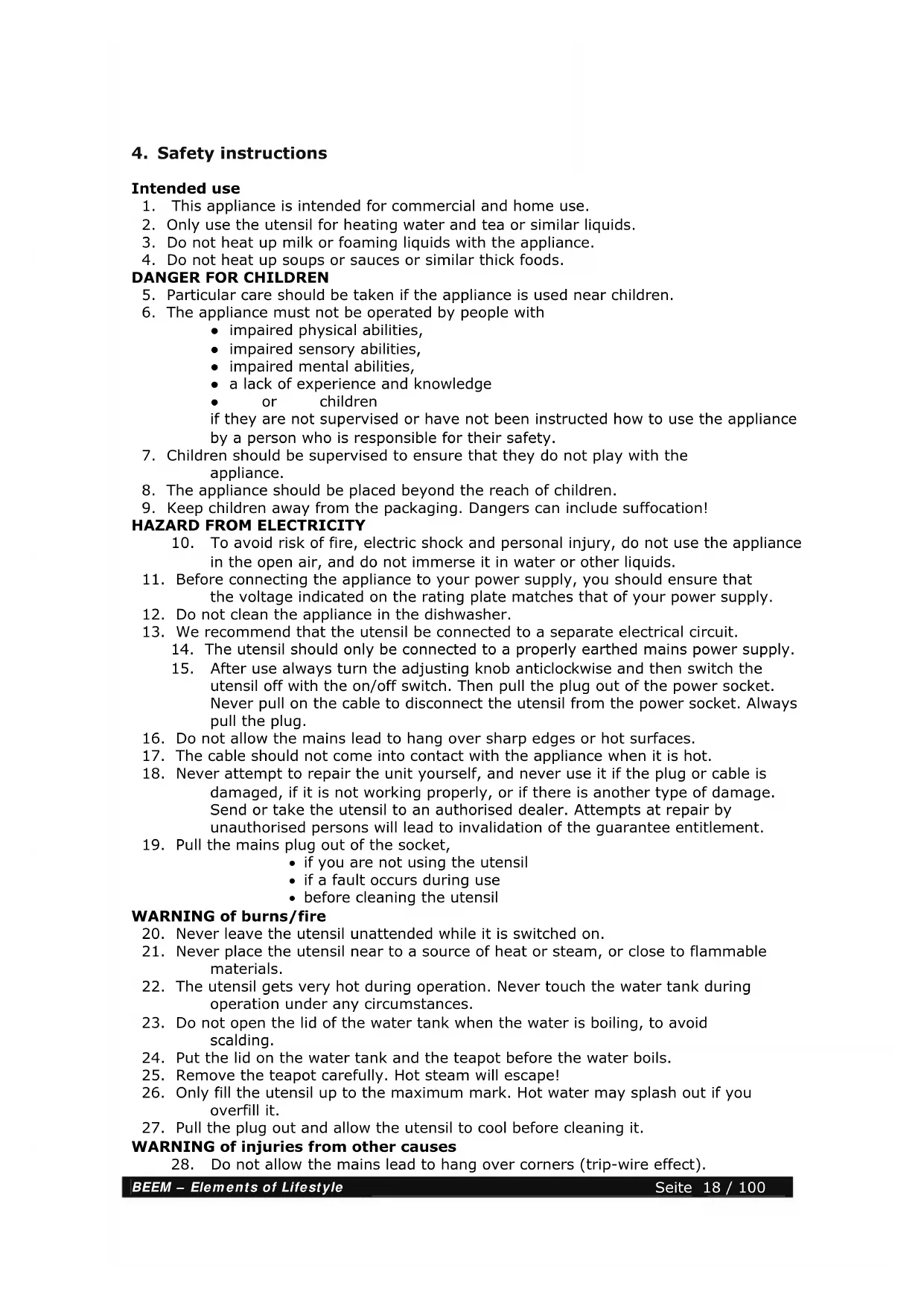

1. This appliance is intended for commercial and home use.

2. Only use the utensil for heating water and tea or similar liquids.

3. Do not heat up milk or foaming liquids with the appliance.

4. Do not heat up soups or sauces or similar thick foods.

5. Particular care should be taken if the appliance is used near children.

6. The appliance must not be operated by people with

● impaired physical abilities, ● impaired sensory abilities, ● impaired mental abilities, ● a lack of experience and knowledge ● or children if they are not supervised or have not been instructed how to use the appliance by a person who is responsible for their safety.

7. Children should be supervised to ensure that they do not play with the

8. The appliance should be placed beyond the reach of children.

9. Keep children away from the packaging. Dangers can include suffocation!

HAZARD FROM ELECTRICITY

10. To avoid risk of fire, electric shock and personal injury, do not use the appliance

in the open air, and do not immerse it in water or other liquids.

11. Before connecting the appliance to your power supply, you should ensure that

the voltage indicated on the rating plate matches that of your power supply.

12. Do not clean the appliance in the dishwasher.

13. We recommend that the utensil be connected to a separate electrical circuit.

14. The utensil should only be connected to a properly earthed mains power supply.

15. After use always turn the adjusting knob anticlockwise and then switch the

utensil off with the on/off switch. Then pull the plug out of the power socket. Never pull on the cable to disconnect the utensil from the power socket. Always pull the plug.

16. Do not allow the mains lead to hang over sharp edges or hot surfaces.

17. The cable should not come into contact with the appliance when it is hot.

18. Never attempt to repair the unit yourself, and never use it if the plug or cable is

damaged, if it is not working properly, or if there is another type of damage. Send or take the utensil to an authorised dealer. Attempts at repair by unauthorised persons will lead to invalidation of the guarantee entitlement.

19. Pull the mains plug out of the socket,

• if you are not using the utensil

• if a fault occurs during use

• before cleaning the utensil WARNING of burns/fire

20. Never leave the utensil unattended while it is switched on.

21. Never place the utensil near to a source of heat or steam, or close to flammable

22. The utensil gets very hot during operation. Never touch the water tank during

operation under any circumstances.

23. Do not open the lid of the water tank when the water is boiling, to avoid

24. Put the lid on the water tank and the teapot before the water boils.

25. Remove the teapot carefully. Hot steam will escape!

27. Pull the plug out and allow the utensil to cool before cleaning it.

WARNING of injuries from other causes

28. Do not allow the mains lead to hang over corners (trip-wire effect).BEEM – Elements of Lifestyle

29. Never transport the utensil when it is hot, and make sure it is empty before

30. The handles of the tank are only for transportation purposes.

31. Operate the appliance only on a horizontal, even surface. This base must be

heat resistant and sufficiently stable. Think about the overall weight of the utensil when full. Always make sure there is a safe distance to flammable parts.

32. The plug must be easily accessible so that you can pull it out quickly if

33. Do not place the utensil on a base with a surface which is sensitive to water.

Splashing water or condensed steam could cause damage.

34. Never place the appliance near a gas flame, electric hotplate or other source of

heat. External heat can damage the appliance.

5. Before first using this appliance

• Ensure that all packaging material has been removed from the appliance (protective film, etc.).

• Under no circumstances remove the rating label or any warning labels. CAUTION: check that the appliance is not damaged. If any parts are damaged, do not use the appliance and contact a qualified service engineer.

• Place the appliance on a level, stable and heat-resistant surface. Do not place the appliance beneath an overhanging cupboard.

• Clean the appliance and the accessories before using it for the first time. This will remove any debris that might remain from the production process.

6. How to use this appliance

• Remove the kettle from the base unit to fill it with water.

• Pour the required amount of fresh water (note the maximum capacity of 4.0 litres); do not fill the water container past the fill level mark (9).

• Replace the steam cover and the teapot (5+7).

• Place the kettle onto the base unit (17). It can be placed in any position (360° rotation).

• Ensure that the adjusting knob (16) is turned anticlockwise until it reaches its detent.

• Then insert the plug into the mains socket.

• Turn the adjusting knob clockwise to its detent. The thermostat allows stepless adjustment of the degree of heat. You can choose between the settings: boil / interval boil / hot / warm.

• If you turn the adjusting knob to the detent, the water will boil rapidly. If you leave the adjusting knob in this position, the water will boil continuously until it eventually all evaporates. In order to avoid this continuous boiling function, push the knob back down until the signal light on the base unit goes out. Now the thermostat only switches on again when the temperature of the water drops, heating it again. In this way, the thermostat regulates energy supply in accordance with requirements, saving a great deal of energy. The signal light switches on and off in the thermostat cycle.BEEM – Elements of Lifestyle Seite 20 / 100

●●● - Boiling water: Adjusting knob turned to the detent; water temperature approx. 100°C - Interval boiling: Maximum 1/4 turn back - as soon as the water has boiled; water temperature approx. 95°C – 100°C ●● - Hot water: Adjusting knob turned back by about 1/3 (to the position marked "●●"); water temperature approx. 85°C – 95°C ● - Warm water: Adjusting knob turned back by about 2/3 (to the position marked "●"); water temperature approx. 60°C – 70°C

• When the water container is taken from the base unit it is disconnected from the electricity supply. The thermostat switches on again when it is placed back on the base unit.

• To switch off the water container completely, turn the knob anticlockwise to its detent. The signal light is extinguished.

• The signal light also extinguishes after a short time when all of the water in the water container has boiled away. For this reason, always check that there is sufficient water in the container, that the thermostat adjusting knob is in the right position and that continuous boiling is prevented. For safety reasons, remove the mains plug after the appliance has been used.

Making tea the Oriental way in accordance with the “samovar” principle Tea is not always like tea. Strictly speaking, tea is solely a watery infusion of the tea plant Camellia sinensis. This infusion can be black or green tea. It needs to be differentiated from tea-like products, so-called herbal and fruit teas. Making tea is therefore not always the same. To give them their valuable ingredients and taste, teas have water of different temperatures poured on them, and are left to brew for different amounts of time. Green tea, for example, is prepared preferentially with water at 85°C. The instructions for how to prepare the tea indicated on the packet should be observed in any case. a) Black tea

• Fill the strainer (2) with tea leaves (approx. one teaspoon per cup) or put tea bags in the teapot without strainer (1 tea bag for approx. 1 - 2 cups).

• Place the steam cover securely in the opening of the kettle, and the teapot on top of the steamer ring. The base of the teapot is designed so that it precisely fits into the steam cover, hence guaranteeing stability. At the same time, the teapot is pre-heated.

• Remove the teapot from the water container.

Caution: hot steam will escape! A small amount of condensed water may also drip from the base of the teapot.

• Now pour boiling water over the tea from the tap. By lightly pushing downwards, the tap opens and you can then withdraw the water. As soon as you release it, it closes again. If you want to withdraw more water, to fill the teapot up for example, tilt theBEEM – Elements of Lifestyle Seite 21 / 100

tap lever backwards. When you push the lever forwards again the water supply will be shut off.

• Add a maximum of 1 L to the teapot, up to the fill level mark (4).

• The more tea leaves or tea bags and the less water you place in the teapot, the stronger the tea concentrate (“professionals” like their infusion to have 2.86 g of tea per cup). It is better to use somewhat more tea so that a concentrate is actually formed in the teapot.

• Replace the teapot with the tea concentrate on the water container. The steam rising in the water container keeps the tea in the teapot at precisely the right temperature required for brewing.

• After the desired brewing time, remove the tea strainer from the teapot and replace the lid.

CAUTION: hot steam will escape. Use oven gloves.

• Next pour the required amount of tea concentrate from the teapot into your glass (to taste) and then top your glass up with water from the water container. This will allow you to vary the strength and taste of your tea.

• The teapot can be left on the water container when the appliance is operating, so you can help yourself to more tea at any time. Position the knob somewhat above the “●●” position (but not to the detent), so that the water remains hot but does not boil continuously. The signal light will illuminate and extinguish in cycle. However, the maximum heating setting should only be used for initial boiling of the water. b) Green Tea

• Green tea can also be prepared with the the samovar. Green tea should generally not be brewed with boiling water as this gives it a slightly bitter taste. Depending on the kind of tea, the ideal water temperature is 50 – 90 °C. Most green teas develop their optimum taste at around 80 °C. The higher the quality of the green tea, the lower the optimum water temperature. Teas of the highest quality are brewed with water at 50 – 60 °C.

• Normal green teas must infuse for 1 to 3 minutes, whilst high-grade green teas only need around 1 to 1½ minutes. Please follow the manufacturer's instructions when using tea bags.

• Green tea is always dosed less than black tea. Around 1 g per 100 ml or 1 level teaspoon to 200 ml of water. You can determine the strength of the concentrate yourself.

• Boil the water in the water container. Then pour some hot water into the cups (the teapot has been pre-warmed on the water container during the boiling process). Then turn the adjusting knob back to the “●”position (depending on the type of tea) and allow the water to cool down a little (approx. 3 - 5 minutes). Now pour hot water from the water container onto the tea (note the fill level mark (4)). Place the teapot on top of the water container as described before so that the tea remains hot, and then proceed as for black tea. c) Herbal tea Important information: Herbal, fruit, rooibos and spice teas always require boiling water and have to brew for at least 5 - 10 minutes! This is the only way to ensure a safe product!

• Herbal teas – whether loose or tea bags – have to be made with boiling water and the indicated brewing time should be adhered to. This is because in herbal tea blendsBEEM – Elements of Lifestyle Seite 22 / 100

there may, in rare cases, be germs such as salmonella which are killed by heating. With the wrong preparation these may become a health risk, especially with children’s teas.

• Herbal tea should never be made with just warm water in order to bring it quicker to a drinkable temperature, for example. For babies, small children and sick people in particular there may be health risks here if, in an unfortunate case, there are germs in the herbal tea. Herbal tea which has been brewed should also not be left standing for several hours. This is because although the boiling water kills the germs, spores in the herbal tea are not killed. These may germinate in warm water.

8. Cleaning and maintenance

1. Switch off the appliance, disconnect it from the mains supply and allow it to

2. Empty the utensil after every use. Then clean it using a damp cloth and, if

you wish, some ordinary washing-up liquid. Rinse out the utensil with fresh water.

3. Never immerse the appliance in water. Just wipe it with a damp cloth.

4. If the limescale filters in the

water container becomes blocked up, they can be removed. Remove the filter from inside tap’s entry point. (see diagram). It can then easily be removed. After having been cleaned in the dishwasher or with a mild soap, insert it from the inside again.

5. The removable parts should not be cleaned in a dishwasher. Please clean the

gold-plated or chrome-plated parts carefully. Use any common detergent.

6. Do not use solvents or benzine to clean the equipment. Aggressive cleaning

materials, steel-wool soap pads, scouring pads and handwash paste are also unsuitable. Note: The samovar’s water tank must be emptied completely and cleaned at regular intervals to avoid the formation of harmful germs. The water tank must be de-scaled every 1 - 2 weeks (depending on water quality and frequency of use):

1. Fill the water container with water and either de-scaler or vinegar essence,

and very briefly heat up. Allow with the de-scaling mixture some time to have an effect.

2. Rinse the container a few times and pour out the de-scaling mixture along

with the dislodged limescale. Leave a fraction of the decalcifying solution to drain through the tap in order to rid it of any limescale which might be there: Rinse with fresh water, and likewise let it run through the tap. We recommend INOX-METAL-POLISH from Beem for routine cleaning and for the removal of stubborn stains. This polish restores the original sheen to your appliances. INOX- METAL-POLISH is supplied in tubes and can be used for all other stainless steel, chrome,BEEM – Elements of Lifestyle Seite 23 / 100

brass, copper, aluminium, silver and hard plastic items as well as cooking pots. INOX- METAL-POLISH is used in factories to polish stainless steel. You can order INOX-METAL- POLISH from your specialist retailer, from us directly via telephone or from our website www.beem.de

9. Faults and troubleshooting

In the event of a fault during use, unplug the appliance. If the samovar fails to operate, please check whether

• The appliance is plugged in.

• The on/off switch is on.

• The knob is in the right position.

• Other appliances with high wattage are in operation simultaneously, causing the main fuse to blow. If this happens disconnect the utensil from the mains first. Then reconnect the fuse.

• If the main fuse blows, this is normally an indication of a fault. In this case, qualified service personnel should check the appliance.

WARNING Danger of burns Before cleaning, always remove the plug and allow the utensil to cool down. Only clean it when it has cooled down fully.

DANGER Danger to life from electric shock Never immerse the water container in water or any other liquid.

CAUTION Risk of damage to the appliance If lime scale covers the bottom of the boiler the appliance can be damaged (accumulation of heat). De-scale the appliance regularly.

The following regulations apply under certain circumstances only to countries belonging to the European Community. Dispose of the packaging sorted according to type. If you want to dispose of the appliance, do so in an environmentally-conscious manner and in accordance with current regulations.

The following standard regulation applies for Germany and some other countries of the European Community: This product is not to be treated as normal domestic waste, but must be taken to a collection point for the recycling of electrical and electronic devices in accordance with the regulations applicable in the respective country. Information can be obtained from your local authorities. Some EC and non-EC countries have their own specific regulations for the disposal of old appliances. Information can be obtained from the responsible authorities.BEEM – Elements of Lifestyle Seite 24 / 100

Model: Mr. Tea Model no.: S 2.4.1 Power supply: 230 V ~ 50 Hz. Power consumption: 2500 Watt Protection class: I Protection type: IP X0 Capacity of kettle: 4.0 litres Capacity of teapot: 1.0 litre We reserve the right to make technical alterations and changes to the design. Printing errors reserved.

This appliance has been tested and certified by INTERTEK.

This appliance complies with the European Directives for electromagnetic compatibility (EMC) 2004/108/EC and its revisions, as well as Low Voltage Directive (LVD) 2006/95/EC and its revisions.

This appliance complies with the RoHS Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This appliance complies with the WEEE Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE).

13. Warranty, service, repair

This high quality product from BEEM has been made in accordance with the latest manufacturing methods. We guarantee that this high-quality product is in perfect condition. We will remedy all material or manufacturing defects free of charge within the warranty period. The warranty period for this product is 2 years. With industrial or similar use e.g. in hotels, guesthouses or communal facilities, or when the customer is not a consumer in terms of the German Civil Code, the manufacturer provides a warranty of 6 months. This does not affect the warranty exclusion. Warranty exclusion: the warranty specifically excludes defects that have been caused by incorrect manipulation, disregard of the operating instructions and safety notes, use of force, alterations, attempts at self-repair or repair attempts undertaken by unqualified third parties. Also excluded are defects caused by normal wear & tear.BEEM – Elements of Lifestyle Seite 25 / 100

Insofar as we are legally obliged to provide a warranty, we will either repair or replace the defective item free of charge – with rights of replacement or reduction in price being excluded. If it is not possible to repair the product after a number of attempts have been made, or if the replacement is also defective for reasons which are our responsibility, then the customer is entitled to a reduction in price or, at his discretion, to withdraw from the contract. The warranty is not extended by availment thereof. The dealer from whom you purchased the product is responsible in the first instance for swapping (exchange or replacement), return of the product (withdrawal from the sales contract) or reduction in the sale price. This is especially the case in the event of return or claims for reduction in price, since these must be settled with consideration for the sale price. Refund of the sale price in the event of return of goods, or issue of a credit note in the case of price reduction, can only be effected by the dealer from whom you bought the product. If defects should transpire, contrary to expectations, please try first by telephone to clear up the problem. If the problem still remains please send the carefully-packed article to your dealer or to the customer service address given below. Include your full address, the product’s type and model number and the serial number; these are to be found on the rating label. Describe as detailed as possible the defects or deficiencies. A machine- generated and dated sales receipt or invoice is to be enclosed with the product or spare parts order. Warranty services cannot be rendered without a machine-generated and dated sales receipt or invoice, either for repairs, spare parts or other claims. Outside of Germany and especially in non-EC countries, send the article to your dealer or to your local distributor. You can obtain information from the customer service address below, preferably via email. You can also arrange for repairs that are not covered by the warranty to be carried out by customer service - outside of Germany, via your dealer or distributor. These will be invoiced on their individual merits. Consumable parts & materials can be ordered from your dealer or from the stated customer service address. Outside of Germany, please contact your dealer or distributor in the first instance. Contact your dealer or the stated customer service department if you want product information or wish to order accessories or ask questions relating to service matters. Outside of Germany and especially in non-EC countries, please contact your dealer or distributor in the first instance. Please also use the internet. On our website www.beem.de can be found accessories, replacement parts and instruction manuals in various languages. Also further product information. Customer service address, Germany: BEEM GmbH, Customer Service Department, Dieselstrasse 19 – 21, D-61191 Rosbach Service telephone number: [phone] | Service fax number: [phone] (Service number subject to a charge, may vary according to the country) | Service email address: [e-mail] | Internet: www.beem.deBEEM – Elements of Lifestyle Seite 26 / 100

14. Spare parts and accessories

You can find the article numbers for spare parts and accessories on our website www.beem.de or by inquiring at customer services. Disclaimer: this translation into English of the binding original German version of the instructions is for information purposes only.BEEM – Elements of Lifestyle Seite 27 / 100
