USER MANUAL Pyramid A4 BEEM

Samovar Water Boiler & Teamaker 4.0 I + 1.0 I

Samovar Bouilloire et Théière 4.0 I + 1.0 I

Samovar Water- & Theeketelset 4.0 I + 1.0 I

Semaver Su isitici & Cay makinesi 4.0 I + 1.0 L

Camobap nI KINpHeyn BODbI npNroTOBJIeHny 4,0 n + 1,0 n

Open the fold-out page at the beginning and end of the user manual in order to view the illustration during reading.

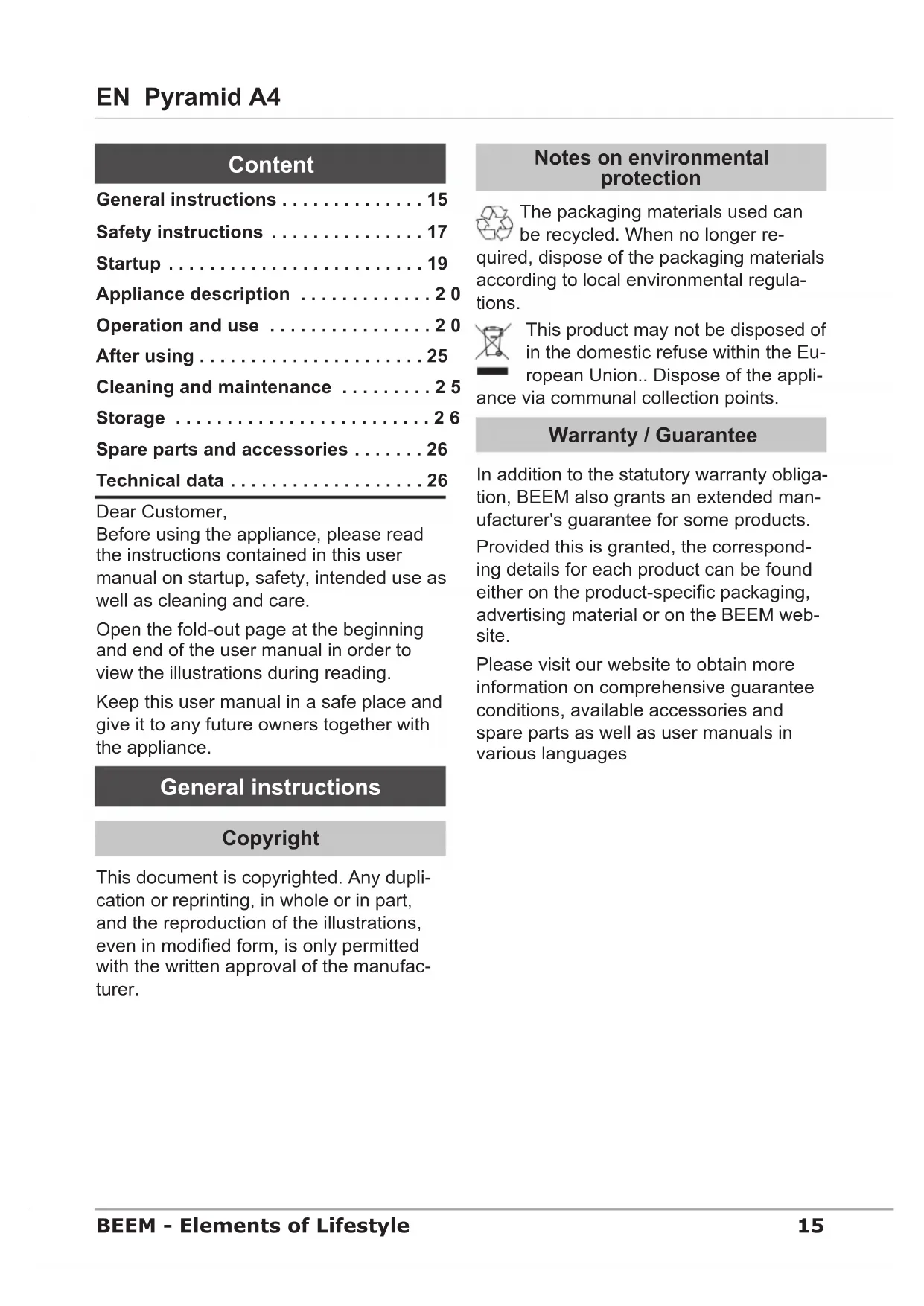

General instructions 15

Safety instructions 17

Startup 19

Appliance description 20

Operation and use 20

After using 25

Cleaning and maintenance 25

Storage 26

Spare parts and accessories 26

Technical data 26

Dear Customer,

Before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and give it to any future owners together with the appliance.

General instructions

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.

This product may not be disposed of in the domestic refuse within the European Union.. Dispose of the appliance via communal collection points.

Warranty / Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products. Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

ATTENTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid danger.

NOTE

A note contains additional information to simplify the use of the appliance.

Intended use

This appliance is intended primarily for non-commercial use in closed rooms for brewing tea and other hot drinks.

Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the appliance only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Limitation of liability

We assume no liability for damage or follow-up damage in the case of:

failure to observe the instructions in the user manual,

use for other than the intended purpose,

improper or unsuitable handling,

incorrectly performed repairs,

unauthorised modifications,

use of non-approved parts or spare parts,

use of unsuitable supplementary or accessory parts.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC and und 2009/125/EC directives.

Safety instructions

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.

Children must be supervised to ensure that they do not play with the appliance.

Store the appliance and accessory parts out of the reach of children.

Do not leave the appliance unattended during operation.

Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty or guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Only use spare parts from the manufacturer or spare parts that are specifically recommended by the manufacturer. The guarantee will otherwise be invalidated.

Do not use this appliance together with an external timer or a separate remote control system.

DANGER

Danger of electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the ap- pliance. Danger from electric current if live connections are touched and/ or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

Pull the plug out of the mains socket, if you are not using the appliance, if a malfunction occurs during operation, before you clean the appliance.

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

WARNING

Never heat any other liquids in the appliance other than water.

Danger from hot steam and hot water!

Never fill the appliance above the maximum mark.

Do not open the lid of the water tank while water is boiling; spurting hot water and escaping steam can lead to scalding.

Danger to health from germs!

The water tank of the appliance must be emptied, cleaned and disinfected at regular intervals to avoid cultivation of dangerous germs.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:

Place the appliance on a firm, dry, flat, waterproof and heat-resistant surface.

Do not install the appliance in a hot, wet or very humid environment.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

The surface finishes on furniture may contain substances that can be detrimental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.

ATTENTION

Do not use sharp objects or abrasive cleaning agents to clean the surfaces.

Never lift or move the appliance with the mains cable.

Do not pull the connecting cable to remove the plug from the mains socket.

Never operate the appliance when the jug is empty.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions on the electrical connection must be be observed:

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 10 A automatic circuit breaker.

Ensure that the mains cable is undamaged and is not laid over sharp edges.

The mains cable must not be pulled tightly, bent or come into contact with hot surfaces.

Route the mains cable to prevent risk of tripping.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the warranty or guarantee.

Checking the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Before using for the first time

Familiarise yourself with the appliance and the accessories using this user manual before using the appliance for the first time.

Before using for the first time, clean the appliance and accessories as described in the section Cleaning and care (page 25).

Appliance description

(See illustration on the left fold-out page)

Tea strainer, teapot1

Lid, teapot2

Teapot handle3

Teapot4

Steam outlet5

Water tank handle6

water container7

Mains plug8

Rotary knob9

Non-slip adjustable feet10

Indicator lamp 1, red (indicates: not

enough water)

Indicator lamp, blue

(indicates: heating activity)

Dispensing tap13

Dispensing tap lever14

15 Max. level mark on water tank
16 Water tank cover
17 Handle, water tank cover
18 User manual (not illustrated)

Indicator lamp (12)

The appliance is equipped with an indicator lamp to indicate heating activity.

As soon as the water heats, the blue indicator lamp (12) lights up.

The indicator lamp lights up intermittently while keeping warm and intermittent boiling.

Operation and use

Switching the appliance on/off

Turn the rotary knob (9) anticlockwise until it stops and you hear a distinct "click". The appliance is then switched off.
Turn clockwise to switch on the appliance. This is also indicated by an audible "click".
The settings and temperatures can be obtained from the table in the section Rotary knob (page 21).

Rotary knob (8)

Symbol Meaning
Blue indicator lamp (12) lights up: appliance is heating
Red indicator lamp (11) lights up: refill with water, descale, boil-dry protection is active
Warm water Water temperature: approx. 55 °C – 65 °C
Hot water intermittent boiling	Water temperature: approx. 85 °C – 95 °C
Boiling water Water temperature: approx. 100°C

Filling with water

To fill the appliance with water, remove the lid (16) of the Samowar.

For this, proceed as follows:

Take the teapot off the water tank.

Turn the lid (16) in the direction until it stops and lift off the lid of the water tank (16).

Fill the water tank (7) with water. Pay attention to the maximum level mark (15).

Put the lid of the water tank (16) onto the appliance. The nib mm the edge of the lid fits into the recess on the edge of the water tank. Turn the lid in a direction until it stops.

Put the teapot back onto the appli- ance.

Operating the dispensing tap

Touch mode

Press the lever (14) downwards. The dispensing tap (13) opens. To close the dispensing tap again, release the lever.

Continuous operation

Push the lever (14) fully upwards. It locks in this position. The dispensing tap (13) opens. To close the dispensing tap again, push the lever downwards.

Heating water

ATTENTION

Make sure that the rotary knob (9) is turned anticlockwise until it stops. Only then insert the plug into the mains socket.

To heat up water, proceed as follows:

Fill the water tank with the desired quantity of fresh water. Pay attention to the maximum level mark (15).

If necessary, dry the appliance.

Close the water tank with steam insert lid and subsequently put the teapot on top of it.

Turn the rotary knob clockwise until the desired setting is reached.

The thermostat enables individual setting of the water temperature, as described in the section Rotary knob (page 21).

Boiling

If you turn the rotary knob (9) clockwise until it stops in the position, the water is boiled quickly. If you leave the switch in this position, the water will continue boiling until it has completely evaporated.

Intermittent cooking

After the water has boiled, turn the rotary knob (9) back until the indicator lamp (12) extinguishes. This switches the appliance to intermittent boiling. The appliance then switches itself on again and starts heating when the water temperature drops. The thermostat then controls the power supply as required and saves energy. The thermostat cycle switches the indicator lamp (12) on and off.

Refilling with water

WARNING

Filling up the hot container can cause steam to escape and lead to scalding!

To switch off the appliance, turn the rotary knob (9) anticlockwise until it stops.

Allow the appliance to could down for a few minutes before refilling with water (see Filling with water, page 21).

NOTE

If you forget to fill with water, the boil-dry protection will switch off the appliance. The red indicator lamp (11) lights up.

Switch off the appliance and wait 5 - 10min so that it can cool down. Refill the appliance with water (see Filling with water, page 21). Switch on the appliance again.

Serving suggestions

Brewing tea according to the oriental "Samovar principle"

Tea is not just tea. Strictly speaking, tea is only a water infusion of the tea plant camellia sinensis. This infusion can be black or green tea. A distinction must be made between this and tea-like products such as the so-called herbal and fruit teas.

Therefore, brewing tea is not always just brewing tea. In order to preserve valuable ingredients and the taste, teas are brewed with water at different temperatures and allowed to steep for different lengths of time. For example, green tea is preferably brewed with water heated to 85^ C. In every case, the brewing instructions on the packaging should be observed.

Black tea

To brew black tea, proceed as follows:

Fill the water tank with water.

Fill the teapot with tea leaves (approx. one teaspoon per cup) or tea bags (1 tea bag for approx. 1 - 2 cups).

Close the lid of the water tank and subsequently put the teapot on top of it. The teapot is then warmed up at the same time.

Boil the water in the water tank (see section Heating the water, page 22).

Take the teapot off the water tank.

NOTE

Condensation may drip off the bottom of the teapot.

Pour boiling water from the water tank over the tea.

NOTE

The more tea leaves or tea bags and the less water you fill into the teapot, the stronger the tea concentrate will be (professionals enjoy an infusion with precisely 2.86 g of tea per cup). It is preferable to use slightly more tea so that a real concentrate is produced in the teapot.

Place the teapot with the tea concentration on the water tank again.

The steam rising from the water tank keeps the tea in the teapot at exactly the temperature it needs to "steep".

After the desired steeping time, serve the tea from the teapot.

Pour the tea concentrate from the teapot into your glass and top up with water from the water tank. This allows you to adjust the strength and taste of your tea.

You can leave the teapot standing on the water tank while the appliance is in operation so that you can add hot tea and hot water at any time.

Move the rotary knob to intermittent boiling so that the water remains hot but does not constantly boil. The indicator lamp (12) switches on and off in line with the thermostat cycle.

Green tea

Green tea can also be brewed in the Samovar. It should not normally be infused with boiling water since it may then taste slightly bitter. Depending on the type, the ideal water temperature is between 50^ and 70^ . Most green teas develop their optimum taste at around 70^ . The higher the quality of the green tea, the lower the optimum water temperature. High-quality teas are brewed with hot water at a temperature between 50^ - 60^ .

Normal green teas need to steep for approximately 1 - 3 minutes, whereas high-quality green teas only need to steep for approximately 1 - 112 minutes.

NOTE

If you use tea bags, add the number as specified by the manufacturer.

The amount of green tea is always less than black tea. Use roughly 1 g per 100 ml or 1 level teaspoon for 200 ml water. You can specify the strength of the concentration yourself.

To brew green tea, proceed as follows:

Boil the water in the water tank (see section Heating the water, page 22).

Warm up the cups by filling them with a little hot water (the teapot was already warmed up by placing it on the water tank during the boiling process).

Turn the rotary knob (9) to the position (depending on the type of tea) and allow the water (roughly 5 - 6 minutes) to cool slightly.

Now pour hot water from the water tank over the tea.

Place the teapot onto the water tank as previously described so that the tea remains hot and continue according to the instructions for brewing black tea (see section Black tea, page 23).

Herbal tea

ATTENTION

Germs in herbal tea mixtures can represent a health risk if the tea is not brewed properly.

Always pour boiling water over herbal, fruit, rooibos and spice teas (loose and in tea bags) and allow to steep for at least 5 - 10 minutes! This is the only method for ensuring that the tea is safe to drink!

Do not allow freshly brewed herbal tea to stand for several hours.

In rare cases, herbal tea mixtures may contain germs such as salmonella that are normally killed off when heated over a prolonged period. If not properly brewed, they can become a health risk, particularly for children.

Do not allow freshly brewed herbal tea to stand for several hours. Although the germs are killed off by the boiling water, the spores in the tea can survive. These can germinate in the warm water. Herbal teas are brewed in the same way as black tea (see section Black tea, page 23).

Hot instant drinks

To prepare hot instant drinks such as instant coffee, add the appropriate amount to the cup. Subsequently pour hot from the Samovar into the cup.

After using

Switch off the appliance and pull the plug out of the mains socket. Rinse the jug and the accessories used with water.

Clean the appliance and the accessories used as described in the section Cleaning and care.

Cleaning and maintenance

Before beginning any cleaning work, pay attention to the safety instructions in the section Safety instructions (page 17)

Cleaning

Empty the appliance after every use.

Clean the appliance with a damp cloth and with a little washing-up liquid if necessary.

Rinse the appliance well with clear water and dry it.

The removable parts can be cleaned in a dishwasher.

We recommend using INOX-METAL-POLISH from BEEM for regular maintenance and the removal of difficult stains from stainless steel surfaces. The polish restores appliances to their original shine. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminium, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel. You can obtain INOX-METAL-POLISH from

your retailer or by phoning us or visitingour website at www.beem.de .

Dscaling

Depending on the frequency of use and the water quality, the water tank must be descaled roughly every 1 - 2 weeks.

ATTENTION

When the bottom of the water tank is scaled, the resulting heat accumulation can cause damage.

To descale the water tank, proceed as follows:

Fill the water tank with a mixture of water and a little descending solution or vinegar essence and allow the mixture to boil briefly.

Allow the descending mixture to work for some time.

Shake the tank a few times and then pour out the descending mixture together with the dissolved scale residues. Allow some of the descending solution to run through the dispensing tap in order to descale this also.

Rinse with clear water and allow this also to run through the dispensing tap.

Repeat the process, if necessary.

ATTENTION

When using commercial descending agents, please pay attention to the instructions on use from the manufacturer.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care (page 25) to prevent mould from building up. Mould can damage the appliance and cause stains that cannot be removed.

Store the appliance and all accessory parts at a dry, clean and frost-free location which is protected against direct sunlight.

Spare parts and accessories

Spare parts and accessories are available from our customer service on request.

Technical data

Model	Samowar water boiler & tea maker 4.0 I + 1.0 L Pyramid A4
Type number S9.4.0
Water tank capacity	4.0 I
Teapot capacity 1.0 I
Dimensions L x W x H	320 x 360 x 460 mm
Approximate weight 3 kg
Operating voltage 230 V ~
Mains frequency 50 Hz
Power consumption 2500 W
Protection class I
Degree of protection IPX0

Sommaire

Remarques generales 27

Suggestions de service

Kontrol lambasi mavi

(Gösterge: Isitma islemi)

Musluk13

Musluğun kolu14

I P E D U N P E X K D E H N E

UcnoIb3yemc4 dna 6o3HaueHua 6o3MOx-Hou onaChou cumyaquu, Komopar MOxem npueecmu K mKum meJechbIM Noepex-DeHua umcmepeMbHOmy uCXody.
Bo n36exaHne onacHOCTn cneJeT co6JIIOdaTb npINBeHeHHbIe B 3TOM nyHKTe INHcTpkyKcN.

BHHMAHNE

IcnoB3yemcra dna o6o3haeHua 803- MoKHOU onaCHO cumyaUU, Komopar MoXem npueecmu K JneKUM mpaBMam UUN MamepuAIBHomu yuep6y.
Bo n36exaHne onacHOCTn CneJeT CO6JIIOdaTb npINBeEHHbIe B 3TOM NyHKTe INHcTpkyKcN.

YKA3AHVE

Yka3aHne coepKNT DOIOJIHTeJIbHbIe CBeDeHn, OSeJIeTuOuNte ObpaUeHne c np6opom.

PpimHeHne no Ha3HaueHnIO

NcNoJIb3OBaHnI DeTaJIeN IIN 3aNaChbIX
UacteN OT dpynx npOn3BOJnteN,

HcnoJb3ObaHn HeNoDxOJaXuNX DOnoJI- HnteJbHbIX YacTeN n npHaIaNexKHOCTeN.

ДeКларачи O COOTBETCTBn Tpe6oBaHnM EC

HactoI m 3aBnEeT, yTo HactoI np6op nIoHOCTbIO COOTBeTCTByeOCHOBOIOnaIauIUM Tpe6OBaHnM IN dpym M DeiCTbYIOUIm NIOJoxEHnM IInpeK- TnB 2006/95/EC, 2004/108/EC 2009/125/EC.

Yka3aHnno 6e3ONaChocTn

IpeepnpimHeHem npOBepbTe np6Op HaHaJIuHne BnIMbIX NobpeXdeHn. He 3KcPnyaTnpyTe NOBpeXdeHHbI np6Op.

Hactoyn npnbop He npedHa3NaueH IJRA 3KcnpyaTaun NlcaMn (B TOM YNCSJe DeTbMn) C OrpaHnueHHbIMN cN3NueCKnM, CEHCOPHBIM N yMCTBeHHbIMN CNOco6HOCTN, a TaKKe HeIOCTaTOUHbIM ONblTOM n/INn HeIOCTaTOUHbIMN 3HaHnAIMN, Kpome cIyuaeB paOtbl NOd HaD3OpOM, OcyueeTBJIeMbIM JInC0m, OTBETCTBeHNbIM 3a INx 6e3OpacHOCTb INn Pocne IOnyuHnO T Takoro JInca INHCTpykTaJaNo BOIpocam NOnb3OBaHn Pnp6Opom.

IeTNdoJXHbI6bITb NOI npNCMOTpOM,BO n36exaHne IX INrC pnp6opom.

XpaHnte npnbop B HeIOCTyHOM dIpy DeTei MeTe.

He octabnayte npnbop 6e3 npncmoTpa BO Bpempa60Tbl.

Pemont npnbopa B TeueHne rapaHTnHO- ro cpoka MoKeT npOn3BOuNTbcra TOpIbKO yNoJIHOMOueHHo n3rOToBnteJeM cepBnCHOH CnyKboB, B npOTUBHom Cnyuae npTeH3nn NO rapaHTn 3a NOBpeXdEHHn COpJxKeHHbIe C HmN HeNCnpaBHOCTn He npINHMaOTcA, a rapaHTnHoe o6CnyKJBaHHe He npOn3BOUNTcR.

HeicnpaBhIe y3JIpa3peWaeTcra 3a- MeHЯTb TOJbKO Ha opuRHaJIbHbIe 3a- nachbIe Yactn. IcnoJIb3OBAHne ToJIbKO TaKnx YacteY rapaHTpyET BblONJIHeHne Tpe6oBaHm 6e3OnacHOCTn.

IcnoIb3yIte TOLbKO npHaJNeXHOCTN OT npOn3BOIDTeJIЯ nIIIO OCo6O peKoMeHIOBAAHbIe N3rOTOBITeIeM. B IpOTnBHOM Cnyae yTpaUNBaETcra IpaBO Ha rapaHTnHoe 06CnykBaHne n aHHyInpyETc rapaHTnIa.

He nCnoJb3yIte 3OT npnbop C BHeUHM TaMepom IIN OTdEInbHOH CNCTeMOI DnCTaHcNIOHHOTo ynpabLeHn.

ONACHOCTb

Onachocmb npaxeHua 3neKmpuueckum mokom!

He nCnoJb3yIte np6op, ecn 3neK- Tpueckn Ka6eIb nn BNkKa NOBpeK- DeHbl.

HnB Koem cnyuae He OTKpbBaIte Kopnyc np6opa. PpIKoCHOBHeNe K HaxOJaUIMCra NOD HaPRAKeHNEm COeINHeHnM IN BHeCEHne I3MeHEnB 3JIeKTPnueCKyIO mExaHnueCKyIO qactb Blueet 3a Co6oI onaCHOCTb nopaxHeHna 3JIeKTPnueCKm TOKOM.

HnBkoemcnyaeHe norpykaite npu6opnn3neKtpueckyU BUNKy B Bodynnpdyrme KndKoctn.

3BnKeKnte BnIky n3 po3eTKN

• Na BpemЯперьВ NOIb3OBaHnnpi6opom,
• B Cnyae BbIaBHeHn HeuCnpaBHOCTn npn 3KcNpyataun npnbopa,
• nepeД чисткой пибopa.

Onachocmb ydyweHua!

NakOBouHbIe MaTePnAJIbI HeJIb3a IcNoJIb3OBAtB dIpyIrp.CuIecTByeT ONaCHOCTb yDyWeHnI.

I P E D U N P E X K D E H N E

Hn B Koem cnyae He harpeBaIte B npnbope dpyrne KndKoctn Kpome BObl.

Onachocmb om 2opqyeo bdoaHOzo npau 2opqyeo do!

HnB Koem Cnyuae He HanoJHnTe Pnp6op BblIe MaKcImaJIbHOm MeTKn.

Bo n36exaHne ownapnBaHnHe ot- KpbIbAIne KpbIuKy 6aka dJa BODbl npi KInpaJe Bode; 6pbI3rN KInpTa N nap MOrTy npNBecTn K OwnapnBaHnIO.

Onachocmbdna 3doopobya u3-3a Mukpo6o8!

Bodno6ak npnbopa cneyuET uepe3 peyIrpHbIe INHTepBaJIb I BpeMeHN IOHOCbIO ONOpOxHrTb, YnCTNTb N De3INHcNUPoBaTb BO n36eKaHne ONaCHOCTn pa3MHOKeHnO NaChbIX DnA 3DopOBbMaKpO6OB.

BHIMAHHE

ДячNTКИ NOBepxHOCTeH He pa3pe- ⅢaETcI NOb3OBaTbC8 OCTpbIMN ppeMometAMN IIN YNCTaUIMN CpeCTBAMn a6pa3NBHO DeiCTBn.

HnB Koem cIyuae He nepenocite, He IoHNMaITe, Hne nepemueaTe npi6op 3a ceTeBOI shyp.

Bcerda oTcoeHnHnTe OT po3eTK coeHHntbHbI Ka6eJIb, DePxacb 3a BnIKy, a He 3a ceTeBOHnHyp.

He ekcnnyatnpyte np6op,ecn 6ak nyct.

Tpe6obHnK MeCTy yctaHOBKn

Дя 6e30nachHи 6e30Ka3Hoi pa6oTbI np6opa MeTo yCTaHOBKn DOJXHO OTBeuAtb cJeDyUOuM ycNoBnA M:

UcTaHaBnBaIte np6op Ha npOHyO, cyXyO, POBHyO, BOIOCTOnKyO u Japo-npoUHyO NOCTaBky.

He yctaHaBnBaIe np6op B ropaHx, Cbipbx NIN OueHb BnaJXhIX ycIOBnAX NIN B6N3n rOpOero MaTePnAna.

Po3eTka D0JxHa 6bITb JERKO DOCTyNHa c TEM, YTO6bI B 3KCTpeHHOM Cnyae MOXHO 6blIO 6bICTpo pa3beDINHTb JINHNO 3JIeKTpOINTaHnA.
IIOBepxHOCTM6eHIMOryT COePkaTb KOMHOENTbI, CNOcO6HbIe aRpeCCNBHO BO3dEiCTBOBaTb Ha peryJInpyEmbIe HOKKn pIn6opa I npINBOOnITb Knx pa3- MraHEnIO. PnI Heo6XoDmOcTn yloKnTe IOD peYJInpyEmbIe HOKKn pIn6opa NODKJaKy.

3JIeKtpnueckoe noDKIIOUoyHne

Дя 6e30anchonи 6e3OTka3HOn pa6Otbl np6opa npn 3JekTpnueeKOM nokkIoueHn cneyuET co6nOdaTb cneDyUcne yka3aHn:

Ipepe noiknueHnem np6opa cpaBn- Te daHHbIe nO noKIOUcHIO (HaipjKeHne uacToTa) Ha 3aBOdCKoT a6nueKe C npamEtpaMn DaHHoN 3JeKTPocETn. 3Tu DaHHbIe DOJXHbI COBnaDaTb BO n36eKaHne NOBpeXDeHnraP6opa.B cnyuae COMHeHn IPOKOCyNbTnpuYTeCb B cneZnAIN3nPoBaHHOM mara3nHe 3JeKTPoTOBapOB.

Дя 3auntbIpo3eTKN CneDyeT npme- HrTb, KaK MUNHmym, 3aunTHbI aBTOMaT Ha 10 A.

Y6eNTecb B TOM, YTO UHyp NHTaHnI He IMeet NOBpeKdEHN I He IPOXoDIT Chepe3 ropyne IOBepxHOCTN /INI IN OcTpbIM KpaAM.

Hyp nHaHn He doJKeH 6bItb Tyro Ha- TAHyT, a TaKke He doJKeH NMeTb nepeIOMOB IIN COpNkacTaBc C RopAUMN NOBepxHOCTaMn.

PpoknaDbBaIte uHyp nHTaHnra TaKIM o6pa3OM, yTo6bI onaCHOCTb CNOTbKaHnra 6bIa nCKJIIOUeHa.

3JIeKTPnuecka 6e3oNaChocb npi6opa rapaHTnpoBaHa TOnbKO B TOM Cnyae, ecNI OH NODKNUoyen K yCTaHOBLeHHO CORIacHO ppeINcAHm CNCTeMe C 3aunTHbIM nPOBOOM. Pa6ota OT po-3ETKn 6e3 3aunTHoro nPOBOda 3anpe- uhe. B cnyae comHeHry BBIOBtce CneuAInCTa-3NeKTPnka dIy IPOBepkn DomawHe CEtn. N3rTOBNTb He HeceT OTBeTCTBeHHOCTN 3a yUep6, Bbl3BaHHbIOTcyTCTBnEM INI O6pbIBOM 3aunTHoro npoBOda.

BbOaB 3KcnpnyatauHIO

PacnaKobka

I3Bneueb n3 Kopo6Kn npnbop, Bce npn- HaJeXHOCTN IN pyKOBOcTBO NO 3Kc- Pnyatau.

IOnaHaNcNoB3OBaHnCnTb C npi6opa n npHaJnxKHOteB BCE yNaKOBOuHbIe MaTePnaJIbI N 3aUHTHyIO pHeKy.

YKA3AHVE

He ydaIaTe 3aBOdckyIO Ta6nUky I BO3MOxHbIe npeDynpexKaIOuIne Yka3aHna.

EcnB03MOxHo, coXpaHnTe opnHaJIbHyU yNakOBky np6opa B TeueHne rapaHTnHOrO cPoka C TeM, YTO6bl B rapaHTnHOM cIyuae np6op MOxHO 6blNo yNakOBaTb HaJIpeKaUIM O6pa3OM. TpaHCnOpTHbIe NOBpeKdEHHraJIaOTcO OCHOBaHnEM dIpy npeKpaUeHHraPaHTn HHeOKa3AHnRApaHTn-HbIX ycIyr.

Ipeed nepBbIM npimMeHHeM NOUcHTe np6op i npHaJnEJXHOCTN, KaK OINCAHO B pa3dene Yucmka u yxod (cmp. 85).

Oпсангпрбoga

Cobetbl no npnroTOBneHIO

Elements of Lifestyle

BEEM

Subject to printing error.

For service in other countries contact your local dealer.
