Product type	CB transceiver
Brand	PRESIDENT
Model	JIMMY III
Number of channels	40
Modulation modes	AM, FM
Frequency range	Depending on configuration (CEPT band, UK band, etc.)
Antenna impedance	50 ohms
Supply voltage	13.2 V DC
Transmit current consumption	Less than 2 A
Receive current consumption	180 to 500 mA
Carrier power	4 W
Receiver sensitivity (AM)	0.5 µV (-113 dBm)
Receiver sensitivity (FM)	0.35 µV (-116 dBm)
Max audio power	3 W
Dimensions (mm)	Not specified in manual (estimated: 200 x 60 x 150 mm)
Weight	Not specified (estimated: 1 kg)
Included accessories	1 Electret microphone with holder, 1 mounting bracket with screws, power cord with fuse
Warranty	2 years parts and labor, extendable to 5 years with PRESIDENT antenna
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Never transmit without an antenna connected; respect power polarity; use a correctly rated fuse.
Repairability	Spare parts available from PRESIDENT after-sales service. Repairs by an authorized technician.

Frequently Asked Questions - JIMMY III PRESIDENT

How to install the antenna on the PRESIDENT JIMMY III?

The antenna must be installed on a metal surface (ground plane) clear of roof pillars. For a mobile antenna, mount it on the roof or trunk. Ensure good electrical contact by slightly scratching the paint. Use a quality coaxial cable and avoid pinching it.

How to adjust the SWR (Standing Wave Ratio)?

Connect an SWR meter between the transceiver and the antenna. Set the transceiver to channel 20 in AM. Set the switch to FWD, press the PTT and calibrate. Switch to REF: the value should be close to 1. If needed, adjust the antenna and recalibrate.

Why is my transceiver not transmitting?

Check that the antenna is properly connected and the SWR is correctly set. Make sure the microphone is connected and the modulation mode (AM/FM) matches that of your contact. Also verify the frequency band configuration.

How to use the squelch function?

The squelch removes background noise. In manual mode, turn the SQ knob until the noise disappears. In ASC mode (Automatic Squelch Control), the adjustment is automatic: turn SQ to the ASC position to activate.

How to select channels and use scan?

Use the / keys (4) to go up or down channels. To activate scan, press and hold both / keys simultaneously. The transceiver scans channels. Repeat the action to deactivate.

How to configure the frequency band (U, d, PL, In)?

Turn on the device while holding the F button (6). The configuration letter flashes. Use the / keys to change the configuration. Press F for 1 second to confirm, then turn off and on again.

What to do if the transceiver does not power on?

Check the 12 V power supply, the fuse condition, and wire polarity (red +, black -). Make sure the battery is properly connected.

How to activate the VOX function?

Press and hold the VOX button (6) to activate the function. 'VOX' is displayed. To adjust sensitivity (L), anti-vox (R), and delay (E), briefly press then long-press VOX. Adjust with the / keys and confirm with the PTT.

What is the range of the transceiver?

The range depends on the antenna, terrain, and conditions. In FM, close-range communication on flat terrain; in AM, average range with obstacles. With a good antenna, the range can reach several kilometers.

How to obtain warranty and after-sales service?

The warranty is 2 years in the country of purchase. For the 5-year extension, purchase a PRESIDENT antenna and return the warranty card within 30 days. In case of failure, contact your dealer. Attach proof of purchase.

USER MANUAL JIMMY III PRESIDENT

FONCTION AVEC LA PEDALE D'EMISSION PTT 8

CARACTERISTIQUES TECHNIQUES 9

GUIDE DE DÉPANNAGE 9

COMMENT ÉMETTURE OU RECEVOIR UNMESSAGE 10

GLOSSAIRE 10

DECLARATION DE CONFORMITE EU SIMPLIFIEE 11

CONDITIONS GENE RALES DE GARANTIE 12

TABLEAUX DES FREQUENCES. 38\~40

NORMES-F. 42

SUMMARY

English

INSTALLATION 23

HOW TO USE YOUR TRANSCEIVER 25

FUNCTION TURNING ON THE UNIT 26

FUNCTION WITH THE PTT SWITCH 26

TECHNICAL CHARACTERISTICS 27

TROUBLESHOOTING 27

HOW TO TRANSMIT OR RECEIVE AMESSAGE 28

GLOSSARY 28

SIMPLIFIED EU DECLARATION OF CONFORMITY 28

GENERAL WARRANTY CONDITIONS 29

FREQUENCY TABLES 38~40

NORMS-F 42

SUMARIO

Espanol

INSTALACION 14

UTILIZACION 16

FUNCTIONES AL ENCENDER LA EMISORA 18

FUNCION CON LA PALANCA DE EMISION PTT. 17

CHARACTERISTICAS TECNICAS. 18

GUIA DE PROBLEMAS 18

COMO EMITIR O RECIBIR UN MENSAJE 19

LEXICO 19

VOX SET (Combination 6+6)

7) PÉDALE D'ÉMISSION PIT (Push To Talk)

(Configuration: EU; PL; d; EC; U; In)

H Hotel
India
J Juliet
K Killo
Lima
M Mike
N November

Oscar
P Papa
Queb
R Rome
Sierra
Tango
U Uniform

VVictor
W. Whiskey
X X-ray
Y.Yankee
Z Zulu

LANGUAGE TECHNIQUE

QRH :Frquence instable

QSB :Fading,variation

QTH: Position de station

QTR Heure locale

CANAUX D'APPEL

https://president-electronics.com/DC/TXPR046.

CONDITIONS GENÉRALES DE GARANTIE

Type: Radio CB JIMMY III

N° de série :

SANS LE CACHET DU DISTRIBUTEUR LA GARANTIE SERA NULLE

7) TECLA DE EMISSION PTT (Push To Talk)

HHotel
1 India
J Juliet
K Kilo
L Lima
M Mike
N November

O Oscar
P Papa
Quebec
R Romeo
Sierra
Tango
U Uniform

V Victor
WWhiskey
X X-ray
Y Yankee
Z Zulu

TERMINOS DEL ARGOT CEBEISTA:

A.L.
ARMONICOS
AVE MARIA
BARBAS
BARRA MOVIL

Tip: Radio CB JIMMY III

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "F" on page 27 and the Configuration table on page 42.

The warranty of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance transceiver equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT JIMMY III is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT JIMMY III.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose a well ventilated place most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

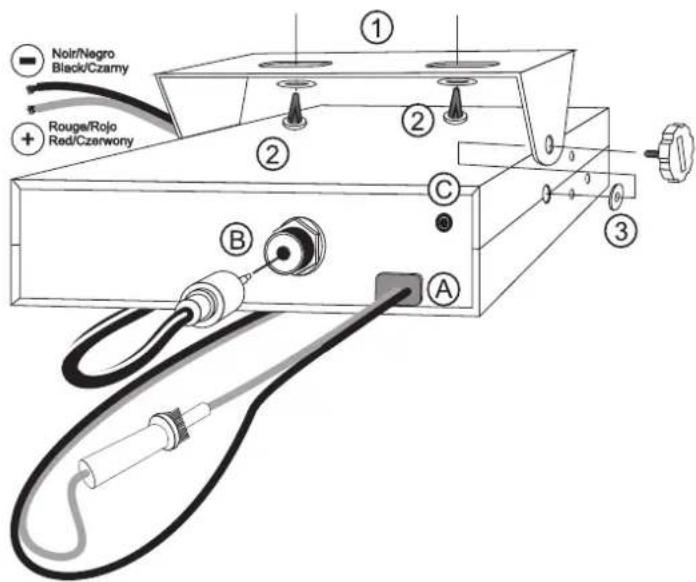

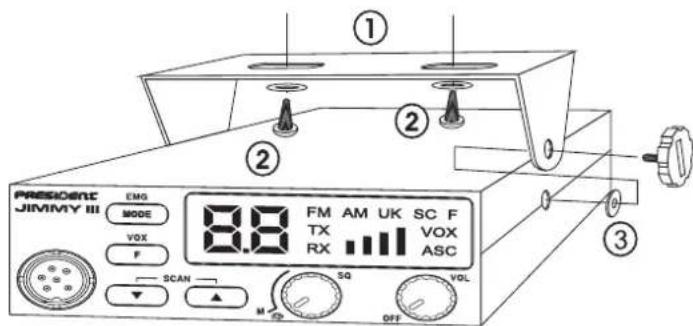

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2mm ). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Do not forget to insert the rubber joints (3) between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.

N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loudspeaker to improve the sound quality of communications (connector EXTSP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna

• For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

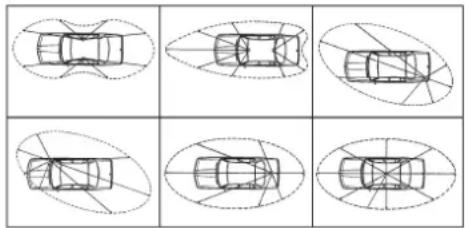

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.

• If you already have a radio-telephone antenna installed, the transceiver antenna should be higher than this.

• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § HOW TO ADJUST SWR below).

• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

OUTPUT RADIUS PATTERN

c) Fixed antenna

• A fixed antenna should be installed in as clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

3) POWER CONNECTION

Your PRESIDENT JIMMY III is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.
a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.

c) It is necessary to connect your CB to a permanent (+) and (-) . We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.

e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone.
b) Check the antenna connections.
c) Turn the set on by turning the VOL knob (1) clockwise.
d) Turn the squelch SQ knob (2) to minimum M.
e Adjust the volume to a comfortable level.
Go to channel 20 by using the keys (4) on the transceiver.

5) HOW TO ADJUST SWR (Standing Wave Ratio)

Warning: This must be carried out when you use your radio for the first time and whenever you re-position your antenna. This adjustment must be carried out in an obstacle-free area.

* Adjustment with external SWR-meter (e.g. TOS-1 PRESIDENT)

a) To connect the SWR meter :

• Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40~cm cable, type President CA 2C).

b) To adjust the SWR meter:

• Set the CB on channel 20 in AM.
  Put the switch on the SWR-meter to position FWD (calibration).
  Press the PTT "push-to-talk" switch (7) on the microphone to transmit.

• Bring the index needle to by using the calibration key.

• Change the switch to position REF (reading of the SWR level). The reading on the Meter should be as near as possible to 1. If this is not the case, readjust your antenna to obtain a reading as close as possible to 1. (A SWR reading between 1 and 1.8 is acceptable).

• It will be necessary to recalibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m .

Your transceiver is now ready for use.

B) HOW TO USE YOUR TRANSCEIVER

1) ON/OFF ~ VOLUME

Turn on: turn VOL knob (1) clockwise. The radio emits a beep if the key beep is activated (see § KEY BEEP page 26). The radio is "on".
Display briefly shows the frequency band (see § FREQUENCY BAND SELECTION page 26).
Turn Off: turn VOL knob (1) counterclockwise until radio emits click sound. Your radio is "off".
Volume Adjustment: rotate VOL knob (1) clockwise to increase the volume.
Turn the same knob counterclockwise to reduce the sound level.

2) ASC (Automatic Squelch Control) ~ SQUEELCH

Suppresses undesirable background noises when there is no communication.
Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: AUTOMATIC SQUEELCH CONTROL

Worldwide patent, a PRESIDENT exclusivity.

Turn the SQ knob (2) anti-clockwise into ASC position. ASC appears on display. No repetitive manual adjustment and a permanent improvement between the sensitivity and the listening comfort when ASC is active. This function can be disconnected by turning the switch clockwise. In this case the squelch adjustment becomes manual again. ASC disappears from display.

b) MANUAL SQUEELCH

Turn the knob (2) clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum (fully clockwise), only the strongest signals will be received.

3) Display

It allows you to visualize all the functions:

The BARGRAPH displays the reception level and the transmitted power level.

4) CHANNEL SELECTOR ~ SCAN

CHANNEL SELECTOR: keys / on the unit

These keys allow you to move up or down the channels. A beep sound is emitted each time the channel is changed if the key beep is activate (see § KEY BEEP page 26).

SCAN

Scans channels.

1. Press and hold the / keys simultaneously to activate SCAN mode.
2. Repeat the same action to deactivate SCAN mode.

5) MODE EMG VOLUME ACCESSORY

MODE (AM/FM)

Press the MODE (5) key to select the modulation mode: AM, FM. The selected mode appears on display. Your modulation mode has to correspond to the one of your correspondent.

Frequency Modulation / FM: for nearby communications on a flat open field.
Amplitude Modulation / AM: communication on a field with relief and obstacles at middle distance (the most used).

In U configuration only: a short press on the MODE key (5) alternates between the ENG or CEPT frequency bands. "UK" is displayed when the ENG frequency band is selected. "UK" disappears from display when the CEPT frequency band is selected (see table on page 38).

EMG (long press)

Emergency channels will be automatically selected by pressing the EMG key (5). First press: emergency channel 1 is activated. Second press: emergency channel 2 is activated. Third press: return to the current channel.

The emergency channels are see page 42.

VOLUME ACCESSORY

This function allows you to control the volume of the unit and of an accessory connected to the 6-pin plug (accessory available soon). Briefly press the F key (6) and then the MODE key (5) to modify the value.

or stored value flashes.

Use the / keys (4) to change the value.

Press the PTT switch (7) to validate the chosen value.

• VOL button (1) affects internal speaker volume.
  I-VOL button (1) affects accessory's volume.
  C2 - VOL button (1) affects the volume of the internal speaker and of the accessory. Default value is []

6) FREQUENCY BAND SELECTION (F) ~ VOX FREQUENCY BAND SELECTION (F)

See page 27

VOX

The VOXfunction allows transmitting by speaking into the original microphone (or in the optional vox microphone) without pressing the PTT switch (7). Long press the VOX key (6) in order to activate the VOX function. "VOX" appears on the display. Long press again the VOX key (6) to disable the function. "VOX" disappears.

VOX SETTING (Combination 6+6)

1. Press the VOX/F button (6) once briefly, then press the VOX/F button (6) a second time for one second to enter VOX ADJUSTMENT mode. "VOX" flashes, and the active parameter and its value appear in the display. Three parameters are used to adjust VOX: Sensitivity: L / Anti-Vox: R / Delay: E.
2. Use the / keys (4) on the unit to modify the current parameter then, press the PTT switch (7) to confirm and select next parameter.

3. When all adjustments are done, press PTT switch (7) to store and exit. A long beep sounds to confirm the success of the operation.

4. If no key is pressed for 10 seconds, the unit automatically exits the function VOX SETTING without save.

5. Sensitivity L: allows the adjustment of the microphone (original one or optional vox) for an optimum transmission quality. Adjustable level from L1(high level) to L9 (low level). Default value: L5.
6. Anti-Vox: allows disabling the transmission generated by the surrounding noise. The level is adjustable. RF (according the squelch level) and from RO (without anti-vox) to RO (low level). Default value: RF.
7. Delay time: allows avoiding the sudden cut of the transmission by adding a delay at the end of speaking. The level is adjustable from 1 (short delay) to 9 (long delay). Default value: 1.

VOX SETTING doesn't activate the VOX function automatically.

7) PTT(Push To Talk)

Transmission key, press to transmit a message, TX is displayed and release to listen to an incoming communication, TX disappears.

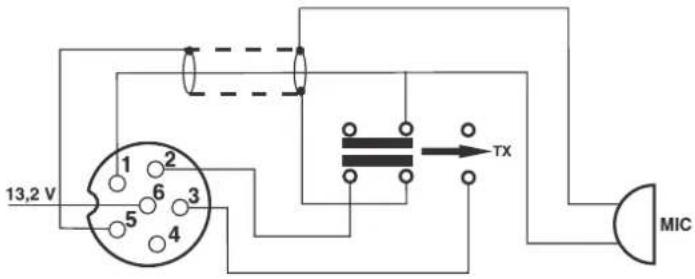

8) 6-pin microphone plug

The plug is located on the front panel of your transceiver, making it easy to integrate into your vehicle's dashboard. See Cable Diagram on page 41.

Some operations like changing the channels, pressing the buttons, etc. are confirmed by a beep sound.
This beep can be activated or deactivated as follows: Switch on the unit by holding down the key on the front panel. b indicates that the beep is activated.
bF indicates that the beef is deactivated.

2) FREQUENCY BAND SELECTION (F)

(Configuration: EU; PL; d; EC; U; In)

The frequency bands have to be chosen according to the country of use.

Don't use any other configuration. Some countries require a user's licence. See table on page 43.

1. Switch on the unit by pressing and holding the F key (6). The letter corresponding to the current configuration flashes.
2. In order to change the configuration, use the / keys (4) on the unit.
3. When the configuration is selected, press the F key (6) during 1 second. The letter corresponding to the configuration is continuously displayed and a confirmation beep sounds.
4. At this point, confirm your selection by switching the unit off and then switching it on again.

See frequency bands on pages 38 to 40 / configuration table on page 42.

-Channels:40
- Modulation modes : AM / FM
- Frequency ranges : from 26.965 MHz to 27.405 MHz
- Antenna impedance : 50 ohms
- Power supply : 13.2 V
- Dimensions : 115 (W) x 130 (D) x 45 (H) mm
Weight : 0.560 kg
- Accessories supplied : 1 microphone electret with support, mounting cradle, screws and fused power cord.

2) EMISSION

• Frequency allowance : ± 300 Hz
• Carrier power : 4W
• Spurious emission : < 4 nW (-54 dBm)
• Audio response : 300 Hz to 3 KHz
• Emitted power in the adj. channel : < 20 μW
• Microphone sensitivity : 3.0 mV
• Max. drain : <2 A (13.2 V)
• Modulated signal distortion : 2%

3) RECEPTION

Max. sensitivity at 20 dB sinad
Frequency response
- Adjacent channel selectivity
Max. audio power
Squelch sensitivity

Frequency Image rejection rate Intermediate frequency rej. rate
-Drain

0.5uV-113dBm (AM)
0.35 V - 116 dBm (FM)
:300Hzto3kHz
:60dB
:3W
min. 0.2 V -120 dBm
max. 1 mV - 47 dBm
0 dB
:70dB
180~500mA max.(13.2V)

E) TROUBLE SHOOTING

1) YOUR RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• You are using the same modulation mode as your
• Check that the programmed configuration is the correct one (see table page 42).

2) YOUR RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the squelch level is properly adjusted.
  Check that the volume (1) is set to a comfortable listening level.
• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.
• Check that the programmed configuration is the correct one (see table page 42).
• Consult the VOLUME ACCESSORY menu page 27.

Check the power supply.
- Check the connection wiring.
- Check the fuse.

F) HOW TO TRANSMIT OR RECEIVE AMESSAGE?

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected). Press the «push-to-talk» switch (7) and announce your message «Attention stations, transmission testing», which will allow you to check the cleanness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

G) GLOSSARY

INTERNATIONAL PHONETIC ALPHABET

A Alpha

H Hotel

1 India

J Juliett

K Kilo

L Lima

M Mike

N November

O Oscar

P Papa

Quebec

R Romeo

Sierra

Tango

U Uniform

V Victor

WWhiskey

X X-ray

YYankee

Z Zulu

TECHNICAL VOCABULARY

AM : Amplitude Modulation

CB :Citizen's Band

CH : Channel

CW : Continuous Wave

DX : Long Distance Liaison

DW : Dual Watch

FM : Frequency Modulation

GMT:Greenwich Meantime

HF : High Frequency

LF : Low Frequency

LSB : Lower Side Band

RX :Receive

SSB : Single Side Band

SWR : Standing Wave Ratio

SWL : Short Wave Listening

SW : Short Wave

TX:CB Transceiver

UHF : Ultra High Frequency
USB : Upper Side Band
VHF : Very High Frequency

SIMPLIFIED EU

DECLARATION OF CONFORMITY

Hereby, Groupe President Electronics, declares that the CB radio equipment :

Brand: PRESIDENT

Type: TXPR046

Commercial Name: JIMMY III

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://president-electronics.com/DC/TXPR046.

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labor in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.
• Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.
  Any repair under warranty will be free and the return delivery costs will be covered by our company.
• A purchase proof must be necessarily included with the device to be repaired.
• The dates listed on the warranty certificate and proof of purchase must match.
• Do not proceed with the installation of the device without reading the user manual.
  No spare part will be sent nor exchanged by our services under warranty.

The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...)
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

• Check the power supply of your device and the quality of the fuse.

• Check that the antenna, the microphone.... are correctly connected.

• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...

• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
• In case of real malfunction, please contact your dealer first; they will decide action to be taken.
• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager and Quality Manager

Date of purchase :

Type: CB Radio JIMMY III

Serial N°:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

UWAGA!

7) PTT (Nacisnj i mow)

https://president-electronics.com/DC/TXPR046

OGOLNE WARUNKI GWARANCJI

FREQUENCY TABLE for U (ENG)

TABLEA CZEESTOTLIWOSCI dlA U (ENG)

N° du canal FréquenceN° Canal FrecuenceChannel Frecuency Channel FrequencyKanal Częstotiwość Kanal Czȩstotiwość
1 26,965 MHz 21	27,215 MHz
2 26,975 MHz 22	27,225 MHz
3 26,985 MHz 23	27,255 MHz
4 27,005 MHz 24	27,235 MHz
5 27,015 MHz 25	27,245 MHz
6 27,025 MHz 26	27,265 MHz
7 27,035 MHz 27	27,275 MHz
8 27,055 MHz 28	27,285 MHz
9 27,065 MHz 29	27,295 MHz
10	27,075 MHz 30	27,305 MHz
11	27,085 MHz 31	27,315 MHz
12	27,105 MHz 32	27,325 MHz
13	27,115 MHz 33	27,335 MHz
14	27,125 MHz 34	27,345 MHz
15	27,135 MHz 35	27,355 MHz
16	27,155 MHz 36	27,365 MHz
17	27,165 MHz 37	27,375 MHz
18	27,175 MHz 38	27,385 MHz
19	27,185 MHz 39	27,395 MHz
20	27,205 MHz 40	27,405 MHz

N° du canal FréquenceN° Canal Frecuencel Channel Frequency Channel Frequcency Channel Frequcency
Kanal Częstotliwość	Kanat Czȩstotliwość
1	27,601	25 MHz	2	27,80
2	27,611	25 MHz	22	27,81
3	27,621	25 MHz	23	27,82
4	27,631	25 MHz	24	27,83
5	27,641	25 MHz	25	27,84
6	27,651	25 MHz	26	27,85
7	27,661	25 MHz	27	27,86
8	27,671	25 MHz	28	27,87
9	27,681	25 MHz	29	27,88
10		27,69125 MHz	30	27,89125 MHz
11		27,70125 MHz	31	27,90125 MHz
12		27,71125 MHz	32	27,91125 MHz
13		27,72125 MHz	33	27,92125 MHz
14		27,73125 MHz	34	27,93125 MHz
15		27,74125 MHz	35	27,94125 MHz
16		27,75125 MHz	36	27,95125 MHz
17		27,76125 MHz	37	27,96125 MHz
18		27,77125 MHz	38	27,97125 MHz
19		27,78125 MHz	39	27,98125 MHz
20		27,79125 MHz	40	27,99125 MHz

FREQUENCY TABLE for d

FREQUENCY TABLE for In

TABLEA CZESTOTLIWOSCI dla In

N° du canal FréquenceN° Canal Frecuencel Channel Frequency Channel FrequencyKanal Częstotliwość Kanal Czȩstotliwość
1	26,960 MHz	21	27,210 MHz
2	26,970 MHz	22	27,220 MHz
3	26,980 MHz	23	27,250 MHz
4	27,000 MHz	24	27,230 MHz
5	27,010 MHz	25	27,240 MHz
6	27,020 MHz	26	27,260 MHz
7	27,030 MHz	27	27,270 MHz
8	27,050 MHz	28	27,280 MHz
9	27,060 MHz	29	27,290 MHz
10	27,070 MHz	30	27,300 MHz
11	27,080 MHz	31	27,310 MHz
12	27,100 MHz	32	27,320 MHz
13	27,110 MHz	33	27,330 MHz
14	27,120 MHz	34	27,340 MHz
15	27,130 MHz	35	27,350 MHz
16	27,150 MHz	36	27,360 MHz
17	27,160 MHz	37	27,370 MHz
18	27,170 MHz	38	27,380 MHz
19	27,180 MHz	39	27,390 MHz
20	27,200 MHz	40	27,400 MHz

N° du canal FréquenceN° Canal Frecuencel Channel Frecuency Channel FrequencyKanal Częstotiwość Kanat Czȩstotiwość		FréquencesNáciaFrecuency Channel FrequencyKanat Czȩstotiwość
1 26,965 MHz 2		27,2	15 MHz
2	26,975 MHz	22	27,225 MHz
3	26,985 MHz	23	27,255 MHz
4	27,005 MHz	24	27,235 MHz
5	27,015 MHz	25	27,245 MHz
6	27,025 MHz	26	27,265 MHz
7	27,035 MHz	27	27,275 MHz
8	27,055 MHz
9	27,065 MHz
10	27,075 MHz
11	27,085 MHz
12	27,105 MHz
13	27,115 MHz
14	27,125 MHz
15	27,135 MHz
16	27,155 MHz
17	27,165 MHz
18	27,175 MHz
19	27,185 MHz
20	27,205 MHz

PRISE MICROA6 BROCHES · CONEXIONDELMICRO6 PINS 6-PINMICROPHONEPLUG · WTYKMIKROFONU6-PIN

The frequency band and the transmission power of your transceiver must correspond with the configuration authorized in the country where it is used.

Countries in which there are particular restrictions (Licence / Register²)

Please see updated table on website www.president-electronics.com, page The CB radios" then President Radio CB and Europe.
