USER MANUAL Convect 2000E Eurom

EN - Instruction booklet

This product is only suitable for well insulated spaces or occasional use.

NL Elektrische convectorkachel

EN Electrical convector heater

RO Radiator-convector electric

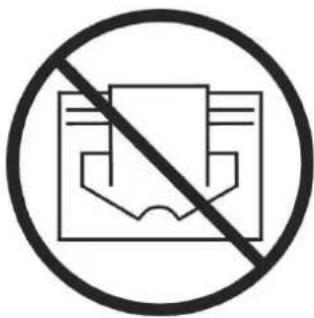

EN This symbol on your device means: do not cover!

RU 3TOT CIMBOJ Ha BaIeM yCTpOJCTBe O3Haayet: He HApBbIaTb!

General safety instructions

1. Read this instruction booklet carefully and completely, and keep teh booklet to consult again later.

2. Before using your new heater, check it, including cord and plug, for any visible damage. Do not use a damaged heater, but send it back to your dealer for replacement.

3. Do not use the heater until it is been fully installed in accordance with the instructions under the heading 'Description and Installation'.

4. This heater is strictly intended for normal domestic use. Only use it for the additional heating of your home.

5. This heater in not suitable for use in wet or damp spaces such as bathrooms and laundry rooms. Do not place the heater in the vicinity of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the heater itself. If, at any time, the heater does fall into water, unplug it immediately! Do not use a heater that has a damp interior but have it repaired. Never immerse the heater, cord or plug in water and never touch it with wet hands. Do not place the appliance in an open window to avoid rain or on wet surfaces and avoid that no moisture spillage.

6. The supply voltage and utility frequency, specified on the machine, need to match those of the socket that is used. The socket used needs to be earthed and the electrical installation needs to be secured with a ground-fault circuit interrupter (max. 30 mAmp).

7. Fully extend the cord before plugging in the heater. Make sure it does not come into contact with any part of the heater and prevent it from heating up any other way. Do not run the cord underneath carpeting; do not cover it with mats, carpet strips, or similar and make sure it is not placed in any passageways. Make sure the cord cannot be stepped on and that no furniture is placed on top of it. Do not lead the cord around sharp corners and do not roll it up too tightly after use! Do not rotate or kink the cable and do not wind it around the stove as this can damage the insulation!

8. If possible, do not use an extension cord, as this poses the risk of overheating and fire. If the use of an extension cord is unavoidable, then make sure it is an undamaged, approved extension cord with a minimum diameter of 3 × 2.5 ~mm^2 and a minimum permissible power of 2500 Watt. To prevent overheating, always fully extend the cord!

9. To prevent the circuit being overloaded and fuses blowing, make sure no other appliances are connected to the same socket or wired to the same electrical circuit as the heater.

10. Do not use the heater outdoors and do not use it in spaces, smaller than 22m^3
11. A heater contains hot and/or glowing and sparking components. Do not, therefore, use it in areas where fuels, paint, flammable liquids and/or gasses etc. are stored.
12. Do not place the heater near, under, or directly opposite a socket and do not place it near an open fire or other heat source.
13. Do not use the heater near or directly opposite furniture, animals, curtains, paper, clothes, bedding or other inflammable objects. Keep them at least 1 metre away from the heater!
14. Never cover a heater! The heater's ventin openings should never be obstructed in any way, so as to prevent the possibility of fire. Never use the heater to dry clothes and do not place anything on top of the heater.
15. Make sure that the air around the heater can circulate freely. Do not place the heater too close to walls or large objects and do not place it under shelves, cupboards or similar. For minimum free space around the heater, see 'Description and Installation'.
16. Prevent foreign objects from entering the heater via the venting openings as this may lead to electric shock, fire or damage.
17. Never leave the heater unattended when switched on. Always switch the heater off before removing the plug from the socket. Always unplug the heater when not in use! Pull on the plug to remove from the socket, never pull on the cord.

18. Always switch the heater off, unplug it and leave to cool down before:

19. cleaning the heater

20. carrying out maintenance on the heater

21. touching or moving the heater.

22. This machine gets hot when in use. To prevent burns, do not let bare skin come into contact with hot surfaces.

23. Do not use a timer or a similar product to automatically switch on the heater. Always perform safety checks before using the heater!

24. Close supervision is necessary if the product is used near children or incapacitated persons. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

25. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

26. Keep the heater clean. Dust, dirt and/or a build up of deposits in the heater are a common cause of overheating. Make sure these deposits are removed regularly.

27. Do not turn on the appliance if you have discovered damage to the appliance itself, the cord or the plug, if the appliance is malfunctioning, if it has been dropped or if there are any other signs of a defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for the original parts.
28. Do not pack the appliance in a box before it has cooled off properly.
29. Do not use attachments and/or accessories that have not been recommended or supplied by the manufacturer.
30. The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.
31. Only use this heater for its intended purpose and as described in this instruction manual.

Not abiding by instructions 26, 27 & 28 may lead to damage, fire and/or personal injuries. A failure to adhere to these rules also immediately nullifies the guarantee and vendor, importer and/or manufacturer do not take responsibility for any of the consequences!

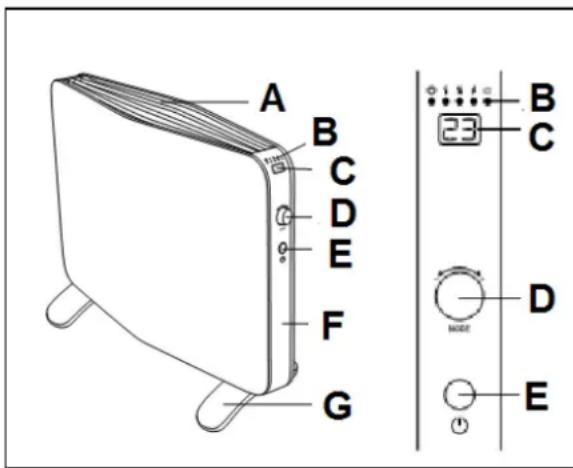

Description and Installation

A. Air outlet
B. Indicator lights
C. Display
D. Function button
E. Standby button
F. Control panel
G. Feet

Remove all the packaging material and keep it out of reach of children. After you remove the packaging, check that the device is not damaged or shows any signs of error/defect/malfunction. In case of doubt, do not use the device, but contact your supplier for inspection/replacement.

Do not use the heater before you have installed it according to the following instructions!

Select a suitable place for the heater, at least one metre away from all obstructions, walls and flammable materials (also see the safety requirements).

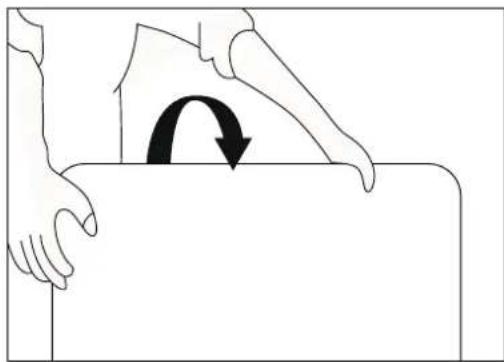

Attach the separately supplied feet under the heater (see diagram):

• Turn the heater over, bottom side up. Place it on a cloth or soft surface to prevent damage.
• Position the feet on the bottom so that the screw holes line up.
• Use the supplied self-tapping screws (2x2) to firmly attach the feet to the heater.

• Turn the heater back over.
• Make sure that when in operation, the heater is always positioned on a firm, level, horizontal surface. Never place it on plush carpet.
• Unroll the electric cable fully and plug the plug into a suitable, grounded 220-240V outlet. Only plug in the heater into a grounded outlet! The standby indicator light (1) will light up. To avoid overload, check that no other equipment is connected to the same group.

Use and Operation

1. Standby indicator light
2. 750W power (s)
3. 1250W power (‰)
   2+3 2000W power (5 +8)
4. Heating Working Indicator
5. Timer
6. LED display
7. Function button
8. Standby button

• Press the standby button (8). The display shows the temperature setting.
• Turn the function button (7) to set the temperature
• Press the function button (7) to set the power. The power lights will light up, if light () is lit up, the heater is operating at 750W, if light () is lit up the heater is operating at 1250W, if both ( + ) are lit up then the heater is operating at 2000W.
• By turning the function button (7), you can set the desired temperature higher or lower. The device has a thermostat and will heat up until the set temperature is reached. After that, it will stay at the set temperature. Once the temperature drops 2^ , it automatically switches back on.
• Attention: the heater saves the set temperature and choice of power; next time you turn on the heater, the heater will start with the last thermostat setting and choice of power you used.

Timer

• When you hold down the function button (7) for 3 seconds, the timer light (5) lights up. By turning the button, you can set the number of hours after which the device will turn itself off. 1 hour to max. 24 hours. The display shows the set

number of hours. By pressing the timer button (7) again or waiting 15 seconds, you can set the timer. The timer light (5) stays lit up.

• To turn this off, press the stand-by button again, and unplug the plug from the outlet.

Safety features

The heater is fitted with a tipping safeguard which automatically shuts off the appliance if it inadvertently falls over. When the heater is returned to its upright position, it will resume functioning as normal but, before reusing, switch off, unplug and check for damage. Do not use the heater if it is damaged or malfunctioning, but have it inspected/ repaired!

In case of internal overheating, the overheating safeguard will switch the heater off. This may occur if the heater cannot give off enough heat or if it cannot draw in enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater, obstructing the air intake and/or outlet grills or installing the heater too close to a wall or something similar. When the heater has cooled down sufficiently, it will in principle start again automatically, however if you do not remove the cause of the cut-off then this will probably be repeated. Regular overheating can give rise to irreparable damage. In case of overheating, switch off the heater and unplug. Give the heater time to cool down, remove the source of the overheating and use as normal. If the problem persists or if you have not been able to trace the source of the overheating, turn the heater off immediately and unplug. Contact a servicing point to have the heater repaired.

Cleaning and Maintenance

Keep the heater clean. Deposits of dust and dirt in the appliance are a common cause of overheating so these should be removed regularly. Switch off the heater, remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work.

• Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions!
• Use a vacuum cleaner to carefully remove any dust and dirt from the grills and ensure that the air intake and outlet openings are clean. Be careful not to touch or damage any internal parts during cleaning!
• The heater contains no other parts which need maintenance.
• At the end of the season, store the cleaned heater in the original packaging if possible. Store it upright in a cool, dry and dust-free place.
• Do not dispose of heater with household waste when it becomes worn or damaged beyond repair. Take it to your local authority's collection point for electrical appliances where any reusable materials will be collected and redistributed.

CE-statement

Eurom - Genemuiden-NL hereby declares that the EUROM electrical convector heater, type Convect 2000E, complies with the LVD guideline 2014/35/EU and the EMC guideline 2014/30/EU and meets the following standards:

EN 60335-1:2012+A11:2014 EN 55014-1:2017

EN 60335-2-30:2009+A11:2012 EN 55014-2:2015

EN 62233:2008 EN 61000-3-2:2014

RoHS 2011/65/EU EN 61000-3-3:2013

Genemuiden, 03-07-2018

W.J. Bakker, alg. dir.

Français

Données techniques

Information requirement for the electric local space heaters

Model identifier(s):Convect 2000E
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,900	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	Pmin	0,0007	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	1,900	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,0007	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	EUROM-KOKOSSTRAAT 20-8281JC-GENEMUIDEN-NETHERLANDS
