USER MANUAL BL 480 AutoIQ NINJA

Technology at kende c Pro Extractor Blades

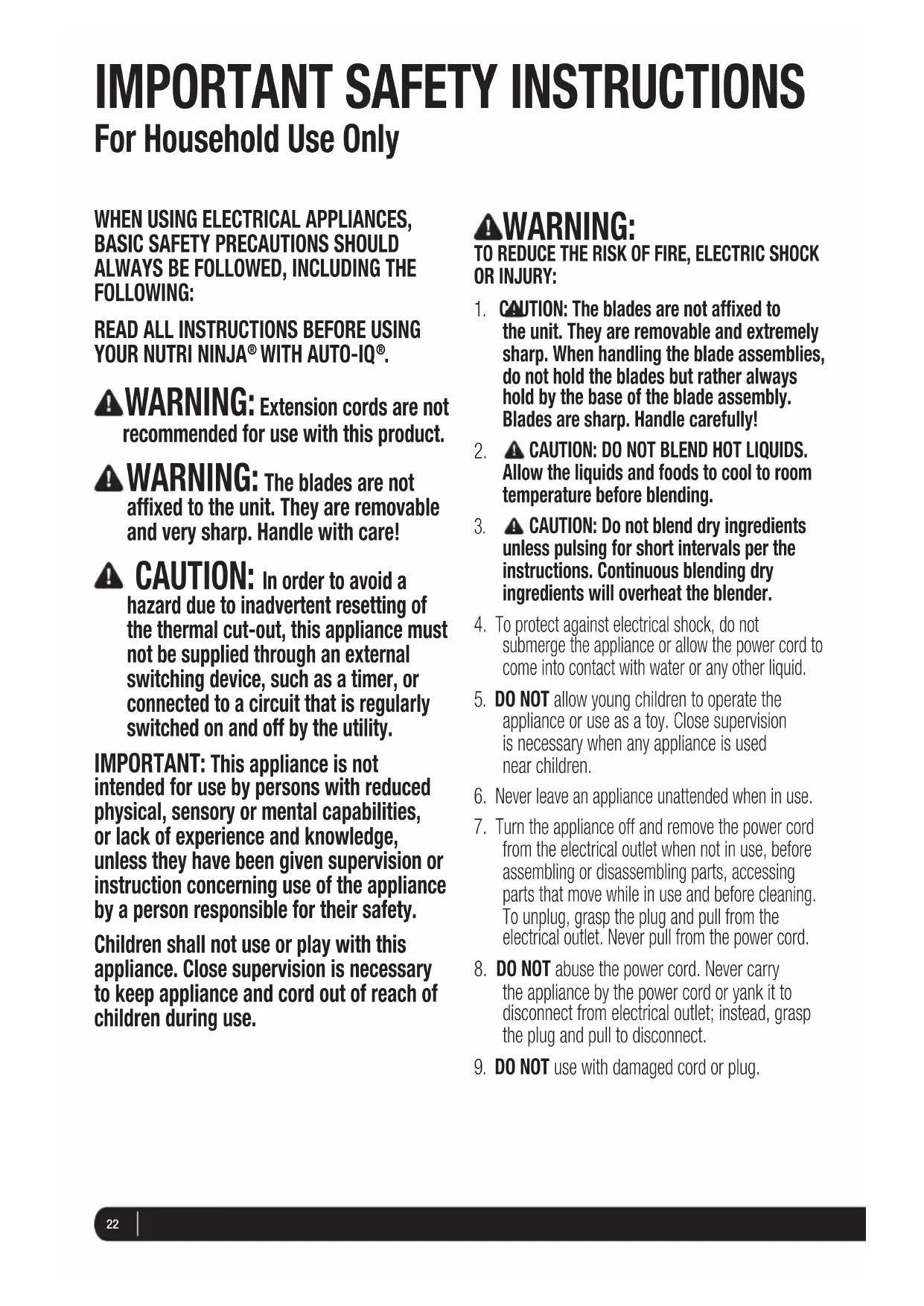

WARNING: Extension cords are not

recommended for use with this product.

WARNING: The blades are not

affixed to the unit. They are removable and very sharp. Handle with care! CAUTION: ln order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. IMPORTANT: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall not use or play with this appliance. Close supervision is necessary to keep appliance and cord out of reach of children during use.

1. CAUTION: The blades are not affixed to

the unit. They are removable and extremely sharp. When handling the blade assemblies, do not hold the blades but rather always hold by the base of the blade assembly. Blades are sharp. Handle carefully!

CAUTION: DO NOT BLEND HOT LIQUIDS. Allow the liquids and foods to cool to room temperature before blending.

CAUTION: Do not blend dry ingredients unless pulsing for short intervals per the instructions. Continuous blending dry ingredients will overheat the blender.

4. To protect against electrical shock, do not

submerge the appliance or allow the power cord to come into contact with water or any other liquid.

5. DO NOT allow young children to operate the

appliance or use as a toy. Close supervision is necessary when any appliance is used nearchildren.

6. Never leave an appliance unattended when in use.

7. Turn the appliance off and remove the power cord

from the electrical outlet when not in use, before assembling or disassembling parts, accessing parts that move while in use and before cleaning. To unplug, grasp the plug and pull from the electrical outlet. Never pull from the power cord.

8. DO NOT abuse the power cord. Never carry

the appliance by the power cord or yank it to disconnect from electrical outlet; instead, grasp the plug and pull to disconnect.

9. DO NOT use with damaged cord or plug.

base while the appliance is in operation. Always unplug the unit when not in use.

23. To reduce the risk of injury, NEVER operate the

appliance without the blade assembly in place; DO NOT try to defeat the interlock mechanism; make sure that the attachment is properly installed before operating the appliance.

24. DO NOT expose containers to extreme

temperature changes.

25. DO NOT overfill. Do not exceed “MAX” fill line.

become activated and shut off the motor. To reset, unplug the appliance and let it cool down for approximately 30 minutes before using again.

28. To reduce the risk of burns, always allow the

appliance to cool before taking off parts and before cleaning.

29. Max ON time is 1 minute under 1000W load. If

the appliance overheats, a thermal switch will become activated and shut off the motor. To reset, unplug the appliance and let it cool down for approximately 30 minutes before using again.

30. THIS PRODUCT IS INTENDED FOR

HOUSEHOLD USE ONLY. Do not use this appliance for anything other than its intended use. Do not use outdoors.

31. Appliance accessories are not intended to be

used in the microwave as it may result in damage to the accessories. SAVE THESE INSTRUCTIONS

10. DO NOT USE if the appliance is not working, has

been dropped, dropped into water, damaged or left outdoors.

11. NO SERVICEABLE PARTS. Incorrect re-

assembly or repair can cause a risk of electrical shock or injury to persons when the appliance is used. Contact Customer Service.

12. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

13. DO NOT let the power cord hang over the edge of

table or counter or touch hot surfaces such as the stove.

14. Always use the appliance on a dry, level surface.

15. Keep hands, hair, clothing, as well as utensils

out of container while processing or blending to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

16. Avoid contact with moving parts.

19. To reduce the risk of injury, never attempt to

place the Pro Extractor Blades

onto the motor base without first assembling the Pro Extractor Blades to the Nutri Ninja Cup.

20. DO NOT operate this appliance on or near any

hot surfaces (such as gas or electric burner or in a heated oven).

21. The use of attachments or accessories

including canning jars, not recommended by the manufacturer may result in fire, electric shock or personal injury.24 THIS BOOK COVERS MODEL NUMBERS: BL480EU 30 TECHNICAL SPECIFICATIONS Voltage: 220-240V~, 50/60Hz Power: 1000 Watts Nutri Ninja

Cup Capacity: 500ml 650ml This appliance complies with the WEEE-Directive 2012/19/EU on the disposal of electrical and electronic equipment (WEEE). This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmental safe recycling. This appliance complies with the European directives for electromagnetic compatibility (EMC) 2014/30/EU and its revisions, as well as Low Voltage Directive (LVD) 2014/35/EU and its revisions. Guarantee: This product is unconditionally guaranteed for two years against all defects of workmanship and materials. This guarantee does not affect your statutory rights. If this product proves unsatisfactory please contact your local retailer or visit www.ninjakitchen.eu25 ENGLISH www.ninjakitchen.eu Thank you for purchasing the Nutri Ninja

b27 ENGLISH www.ninjakitchen.eu FEATURES:

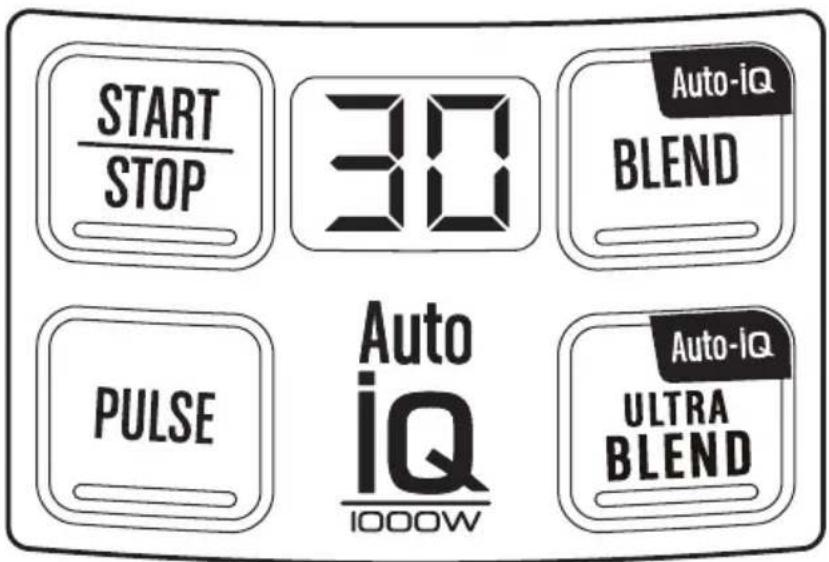

• User Interface: START | STOP Press once to start continuous running, press again to stop. Timer counts up by seconds, up to 60 seconds. PULSE Runs only while pressed down. Short presses make short pulses. Timer counts up by seconds as long as pressed down. AUTO-IQ BLEND Pulses and blends fresh or softer ingredients to create smooth consistent results. Timer counts down.

Pulses and blends frozen, fibrous or hard ingredients to create smooth consistent results. Timer counts down.

• Personalised, healthy drinks and juices

lids for drinks on the go

• Nutri Ninja Cups, BPA free

• Cord storage Welcome to the Ninja

with Auto-iQ features pre-programmed settings that take the guesswork out of drink and meal making. These programs are timed to deliver consistent, delicious results that finish on their own so all you have to do is press a button and enjoy!28 Before First Use CAUTION: Blade assemblies are sharp and removable, handle with care. When handling the blade assemblies, do not hold the blades, always hold by the base of the blade assembly. 1 Remove all packaging material and labels from the appliance. 2 Wash the lids, cups, and Pro Extractor Blades

in warm, soapy water with a soft cloth. CAUTION: Handle the blade assemblies with care when washing as the blades are very sharp. 3 Rinse and dry thoroughly. 4 Cups, lids and Pro Extractor Blades are all dishwasher safe. It is recommended that the lids and attachments be placed on the top rack. Ensure that the blade assembly is removed from the cup before placing in the dishwasher. 5 Wipe the motor base clean with a damp cloth.

PLEASE KEEP THESE IMPORTANT

WARNING: Never leave the appliance

unattended while in use. CAUTION: Do not blend hot liquids. Allow liquids and foods to cool to room temperature before blending. CAUTION: Blades are sharp! Use extreme caution when handling the blade assemblies. Always hold them by the base of the blade assembly. CAUTION: Never remove the container while the appliance is still running. CAUTION: We do not recommend grinding in any of our Nutri Ninja

Cups. IMPORTANT: Never run the appliance empty. IMPORTANT: Appliance accessories are not intended to be used in the microwave as it may result in damage to the accessories.29 ENGLISH www.ninjakitchen.eu 1 Place the motor base on a clean, dry, level surface such as a counter or table top. Press down on the motor base to make sure that the suction cups adhere to the counter or table top. 2 Make sure that the motor base is plugged in for use. Lights will not yet illuminate. 3 Add ingredients to the cup. NOTE: Do not overfill! To avoid spilling, do not add ingredients past the “MAX” fill line. 4 Place the Pro Extractor Blades onto the cup and twist it on tightly until you have a good seal. (Fig. 1) 5 Turn the cup upside down and place it onto the motor base, aligning the tabs on the cup with the motor base. Turn it clockwise, until you feel it click into place. The Timer light will illuminate. (Fig. 2) 6 Press one of the buttons to activate. (Fig. 3) NOTE: When using the Auto-iQ

Technology presets, the unit will operate using pulses, pauses and continuous runs. The pauses allow the contents of the cup to settle. When the timer reaches “0”, it will stop by itself. Use of the Nutri Ninja

ASSEMBLY USE REMOVAL

7 To remove the cup, ensure that the motor has stopped running. Then turn the cup anticlockwise (Fig. 4) and pull straight up to remove. (Fig. 5) 8 Turn the cup upright and remove the Pro Extractor Blades by twisting the Pro Extractor Blades anticlockwise. Be sure to store the Pro Extractor Blades attached to an empty cup when not in use. 9 Twist the Sip & Seal

lid onto the cup to enjoy your drink on the go. Press flip top cap firmly into the opening to get the best seal. The flip top cap locks open when pressed backward. 10 Make sure that the motor base is unplugged when not in use. 11 To remove the motor base unit, tip the unit forward from the rear to easily disengage the suction cups. Fig. 2 Fig. 3 Fig. 4 Fig. 5

WARNING: Never leave the appliance unattended while in use.

are sharp and removable, handle with care. When handling the Pro Extractor Blades, do not hold the blades, always hold by the base of the blade assembly. CAUTION: DO NOT BLEND HOT LIQUIDS. Allow the liquids and foods to cool to room temperature before blending. IMPORTANT: Make sure that the motor base is plugged in for use. IMPORTANT: When processing soft dry ingredients such as day-old bread or cheese use quick, short 1 second pulses. Do not overfill to avoid overheating the appliance. Allow the appliance to cool after each use. Fig. 1 or or30 Suggested Uses PURPOSE / FUNCTION SUGGESTED CUP TYPE OF FOOD Chopping/Pulsing 500 ml Nutri Ninja cup 650 ml Nutri Ninja cup Salsa Leafy Herbs Mixing 500 ml Nutri Ninja cup 650 ml Nutri Ninja cup Batters Dips Sauces 500 ml Nutri Ninja cup 650 ml Nutri Ninja cup Vinaigrettes Salad Dressings Simple Sauces Frozen Blending 500 ml Nutri Ninja cup 650 ml Nutri Ninja cup Ice Frozen Fruit Ice Cream Nutrient Juices/Smoothies 500 ml Nutri Ninja cup 650 ml Nutri Ninja cup Fruits Vegetables Leafy Greens

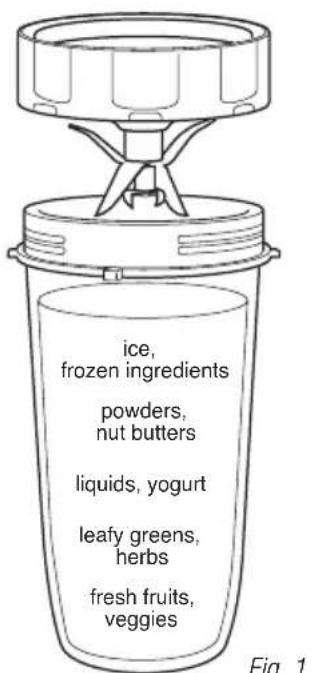

Want to create smooth and delicious drinks using your Nutri Ninja cups? Simply add ingredients to the container in the order they appear in each recipe, or follow the guideline below when creating your own customised recipes. (Fig. 1) fresh fruits, veggies leafy greens, herbs powders, nut butters ice, frozen ingredients liquids, yogurt Fig. 1 Replacement Parts

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, please visit our website: www.ninjakitchen.eu31 ENGLISH www.ninjakitchen.eu

1 Store the Nutri Ninja with Auto-iQ

Technology upright. Secure the power cord underneath the base by wrapping the cord around the cord wrap. Do not place anything on top. Store the cups and the rest of the attachments along side the appliance where they will not be damaged and won’t cause a hazard.

RESETTING THE MOTOR THERMOSTAT

The Nutri Ninja with Auto-iQ features a unique safety system which prevents damage to the unit’s motor and drive system should you inadvertently overload your appliance. If the appliance is being overloaded, the motor will stop. To reset the appliance, follow the resetting procedure below: 1 Unplug the appliance from the electrical outlet. 2 Remove and empty the cup and ensure that no food is jamming the blades. 3 Allow the appliance to cool for approximately 30 minutes. 4 Re-install the cup onto the base and re-plug the appliance into the electrical outlet. 5 Proceed to use the appliance as before while making sure not to exceed the recommended maximum capacities.

CAUTION: Make sure that the motor base is unplugged from the power source before inserting or removing any attachment and before cleaning. CAUTION: DO NOT immerse the motor base into water or any other liquid. CAUTION: Use caution when handling the blade assemblies as the blades are very sharp. 1 Separate/remove all parts from each other. 2 Clean the motor base with a damp cloth and wipe dry. 3 Place cups in the dishwasher. Place the lids, and attachments on the top rack.

4 Carefully hand wash the lids, Nutri Ninja

cups, and blade assemblies in warm, soapy water with a soft cloth. Care & Maintenance Troubleshooting Guide

PROBLEMS POSSIBLE REASONS & SOLUTIONS

Unit doesn't turn on Make sure the unit is plugged in. Insert and rotate cup clockwise in the base until it "clicks". Display should turn on. Unit doesn't turn off Remove cup from base by rotating cup anticlockwise and lifting out. Display should turn off. Unplug the power cord from the outlet. Lid/blade assembly hard to assemble Set the cup on a level surface. Place the lid or blade assembly on the top of the cup and align the threads so that the lid/blades sit flat on the cup. Twist clockwise so that the lid/blades evenly align to the cup until you have a tight seal. Food is not evenly chopped For best results when chopping, make sure all ingredients are as dry as possible. Cut pieces down to even sizes, and reduce the amount of food in the cup. Use very short pulses by quickly pressing the "PULSE" button

Doesn't mix well, food gets stuck Using the Auto-iQ

Technology programs is the easiest way to achieve great results. The pulses and pauses allow the food to settle towards the blade. If food is routinely getting stuck adding some liquid will usually help. When packing the cups, start with fresh fruit and vegetables, then add leafy greens and herbs, then add liquids, next add powders/nuts, finally add frozen fruit and ice. Unit moves on counter while blending Make sure the surface as well as the feet of the unit are clean and dry. Unit is difficult to remove from counter for storage Tip unit forward from the back to easily disengage the suction feet.32 EL USO DE APARATOS ELÉCTRICOS EXIGE
