Product type	Digital photo frame
Brand	Braun
Model	DigiFrame 7040
Screen size	7 inches (17.8 cm) TFT
Resolution	800 x 600 pixels
Supported image format	JPEG
Memory card types	SD, SDHC, MMC, MS
USB port	USB 2.0 HOST
Power supply	5 V / 1 A power adapter
Adapter input voltage	AC 100-240 V, 50/60 Hz
OSD languages	French, English, German, Italian, Spanish, Dutch, Portuguese, Swedish, Greek
Slideshow effects	More than 10 effects (random, split, venetian, etc.)
Display modes	Single, double, quadruple window
Display settings	Contrast, brightness, saturation, color
Built-in functions	Slideshow, calendar, clock, file copy/delete
Remote control	Included, CR2025 battery provided
Included accessories	Frame, power adapter, remote control, user manual
Screen cleaning	Soft cloth (e.g., lens cloth) with screen cleaning solution
Usage precautions	Do not expose to moisture, do not disassemble, turn off before inserting card or USB
Warranty	Warranty void if disassembled

Frequently Asked Questions - DigiFrame 7040 BRAUN

How to insert a memory card into the frame?

First, turn off the device. Insert the card (SD/SDHC/MMC/MS) into the slot on the back, face forward. Then turn on the frame. The slideshow starts automatically.

How to start a slideshow?

Insert a memory card or USB flash drive containing JPEG images. The slideshow starts automatically. You can also press the SLIDE SHOW button on the remote control.

Which image formats are supported?

The frame only supports JPEG format. Other formats (PNG, BMP, etc.) are not read.

What to do if the remote control does not work?

Check that the CR2025 battery is correctly installed and in good condition. Replace it if necessary. Also ensure there are no obstacles blocking the signal between the remote control and the frame.

How to adjust screen brightness?

Go to the Settings menu from the main screen. Select Display, then adjust Brightness or Contrast using the navigation keys. Confirm with OK.

The frame does not display any images, what to do?

Check that the card or USB drive contains JPEG files and is properly inserted. If the problem persists, try another card or format the card to FAT32.

How to use the calendar function?

In the main menu, select Calendar and press OK. The time is displayed at the top left and images from the card scroll in the background.

Can I copy images from a card to internal memory?

Yes. In 9-image display mode, select the image to copy with the navigation keys, press OK to open it in full screen, then press SETUP to access the copy menu. Confirm with OK.

How to reset to factory settings?

Go to Settings, then Reset settings. Select Yes using the ▲▼ keys and press OK. All settings will return to default values.

What type of battery does the remote control use?

The remote control uses a CR2025 lithium coin battery. To replace it, open the compartment by pressing the ribbed cover and pulling. Observe correct polarity (+ side up).

USER MANUAL DigiFrame 7040 BRAUN

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Design and specifications are subject to change without notice. During a period of time, the company may receive new customer requests.

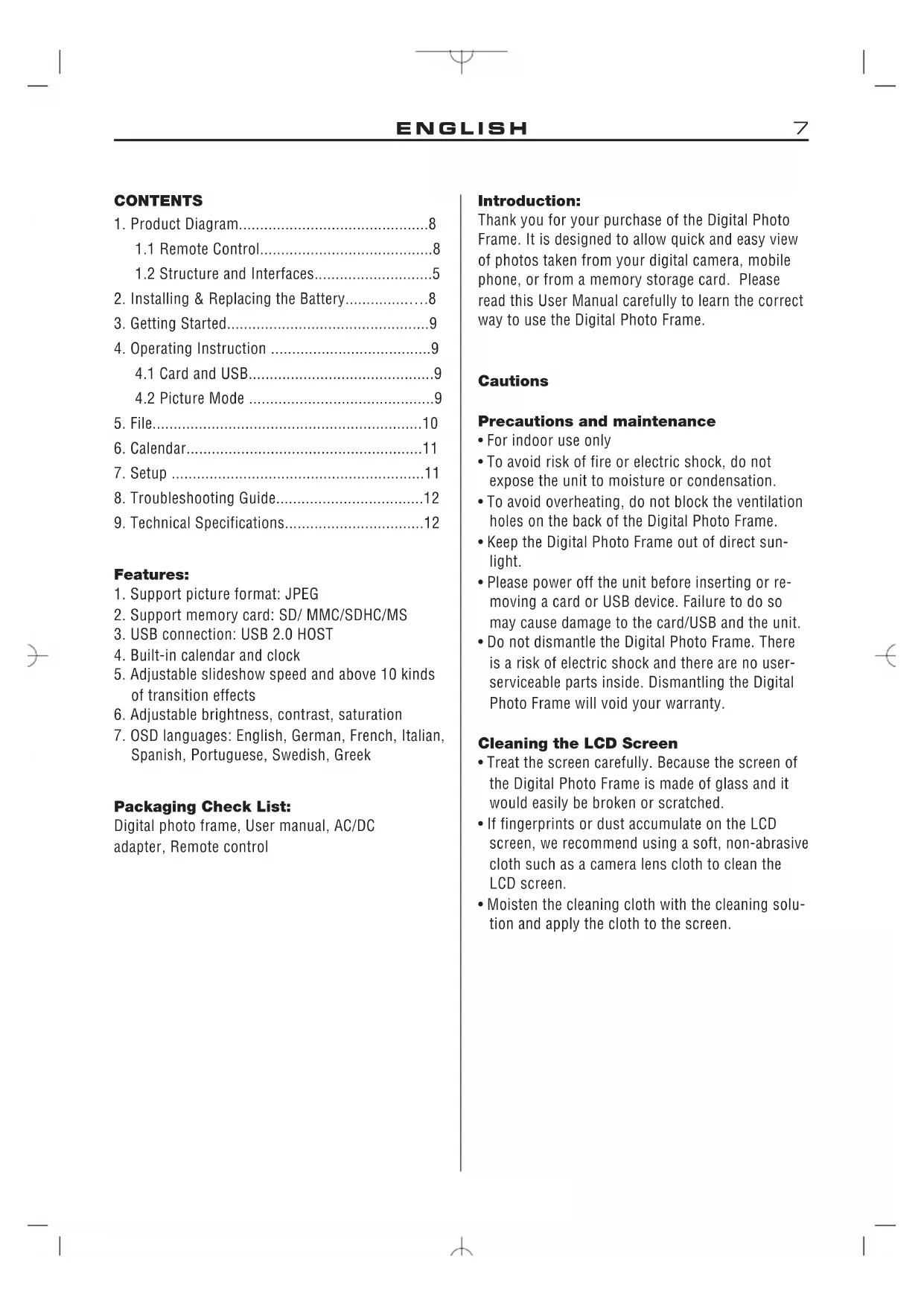

1.1 Remote Control. 8 1.2 Structure and Interfaces 5

1. Installing & Replacing the Battery.. 8
2. Getting Started 9
3. Operating Instruction 9

4.1 Card and USB 9 4.2 Picture Mode 9

1. File 10
2. Calendar 11
3. Setup 11
4. Troubleshooting Guide 12
5. Technical Specifications.. 12

Features:

1. Support picture format: JPEG
2. Support memory card: SD/ MMC/SDHC/MS
3. USB connection: USB 2.0 HOST
4. Built-in calendar and clock
5. Adjustable slideshow speed and more than 10 kinds of transition effects
6. Adjustable brightness, contrast, saturation
7. OSD languages: English, German, French, Italian, Spanish, Portuguese, Swedish, Greek

Packaging Check List:

Digital photo frame, User manual, AC/DC adapter, Remote control

Introduction:

Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy viewing of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

Cautions

Precautions and maintenance

• For indoor use only
• To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Please power off the unit before inserting or removing a card or USB device. Failure to do so may cause damage to the card/USB and the unit.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

1 Product Diagram

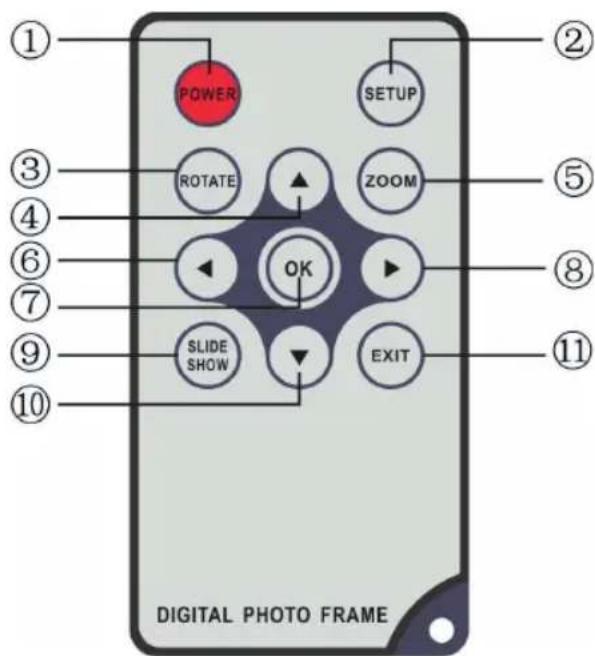

1.1 Remote Control

1. POWER Switch On/Off
2. SETUP_Enter copy & delete interface.
3. Rotate _In the pause status of single picture, press ROTATE to revolve the picture 90 degrees in counterclockwise each time.
4. Functional selection button - top cursor.
5. Zoom_In the pause status of single picture, magnify picture display size.
6. Left cursor - functional selection button
7. OK_Press to confirm. Play/pause: In single picture mode, press it to start slideshow; In slideshow mode, press it to pause, then repress it to play.
8. Functional selection button - right cursor
9. SLIDE SHOW: Press to start slideshow directly
10. Functional selection button - bottom cursor
11. EXIT: Press to return to upper page, or enter the main menu

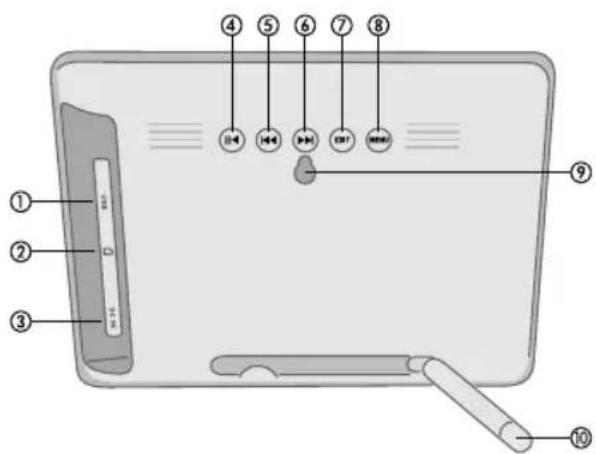

1.2 Structure and Interfaces

1 USB port 2 SD/SDHC, MMC, MS, MS pro card slot 3 DC in: 5V/1A 4 Play / Pause 5 Forward, Next 6 Back, Previous 7 Exit 8 Menu, Menu 2-3 sec -> POWER on/off 9 Wall mount 10 Stand

2. Installing & Replacing the Battery

Place the upside of the remote control down, press down on the ridged area of the battery cover and pull towards you to remove the tray. Place one CR2025 lithium button-cell battery on the tray with the positive "+" side facing you. Reinsert the tray.

3. Getting Started

3.1 Extend the digital photo frame bracket on the back of the frame to the widest position for greatest stability, and then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the right side of the frame.

3.2. Remove the protective film covering the LCD.

3.3. Remove the plastic battery insulator from the battery compartment and make sure the remote control has a battery inside. Please refer to "Installing & Replacing Battery" if you need a new battery.

3.4. Power on the unit by pressing the Power button on the remote control or at the backside of the unit (Press MENU button for a longer period).

4. Operating Instruction

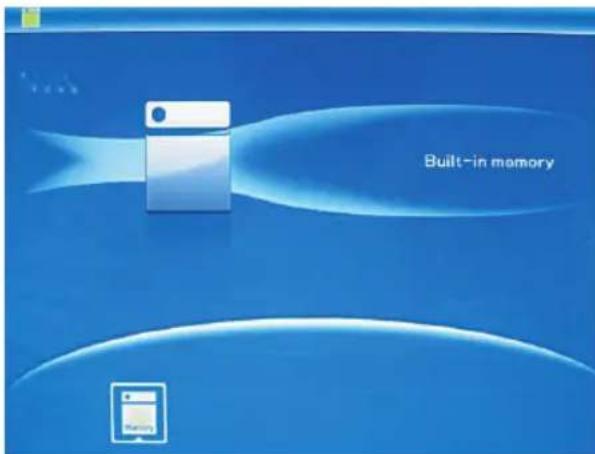

After turning on the unit, it will show the startup picture, press EXIT to get to the card select interface.

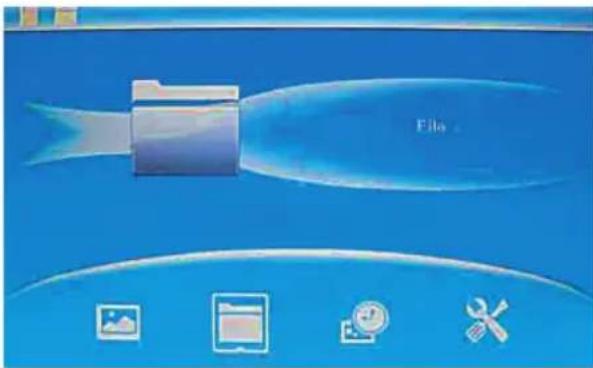

4.1 Card and USB

It supports SD/SDHC/MMC/MS and USB 2.0. After inserting a card or USB device, slideshow will play automatically, then press EXIT twice to access to photo, file, calendar and setup. Press OK to confirm.

Note:

Make sure there are supported picture files in the Card or USB device.

4.2 Picture Mode

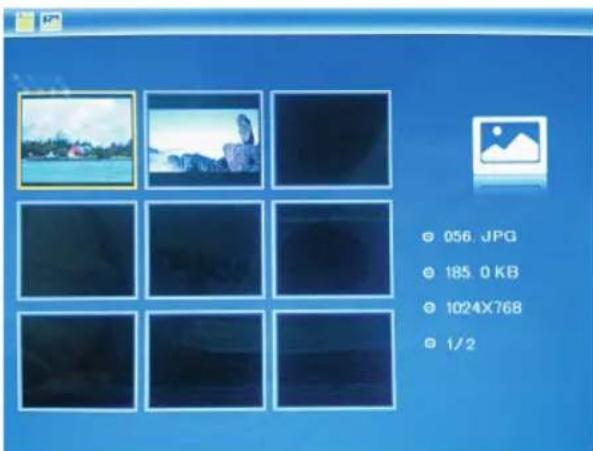

Press EXIT to choose "MEMORY CARD" in the main menu. Highlight Photo, press OK to access to the nine-picture mode, use the arrow keys to choose the picture, press OK to play the picture in single window.

Press OK to start slideshow pictures in the selected slide mode.

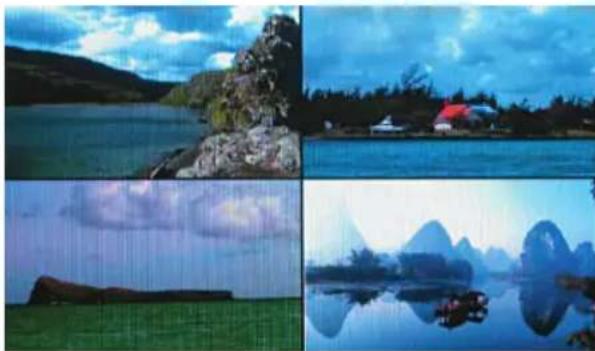

Change slide mode as follows: press SETUP to choose SLIDE MODE (single/triple/four windows), select with the arrow keys, press OK to confirm.

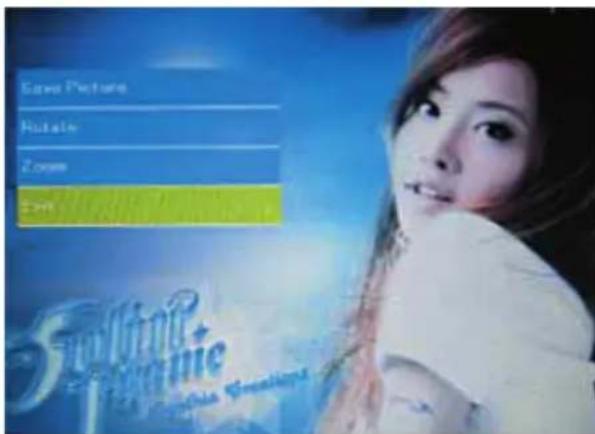

Copy & Delete function

In 9-picture mode, use the arrow keys to select the picture you want to copy to the built-in memory, press OK to enter the single-picture mode, then press SETUP to enter copy interface, press OK to confirm.

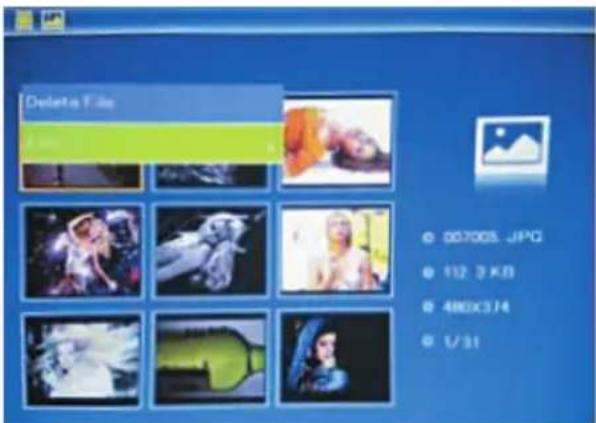

In 9-picture mode, use the arrow keys to select the picture you want to delete, then press SETUP to enter delete interface, press OK to confirm.

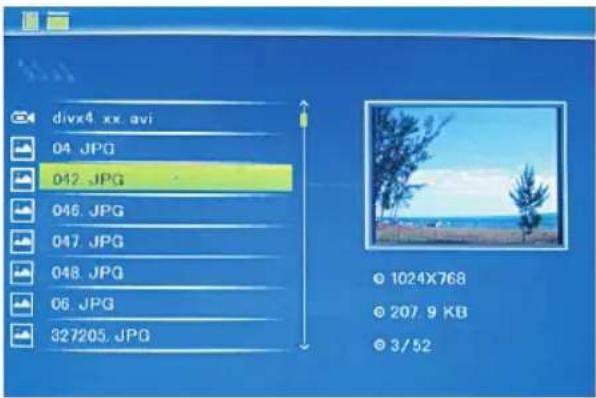

5. File

Press EXIT to choose "MEMORY CARD" in the main menu. Press File, then press OK to access to file interface. You can browse all the files in the memory card in this mode, and delete files in built-in memory or external device.

Delete function

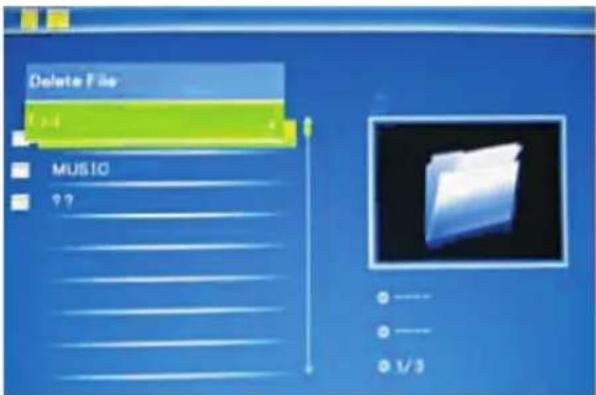

Use the arrow keys to select the file you want to delete, then press SETUP to enter delete interface, press OK to confirm.

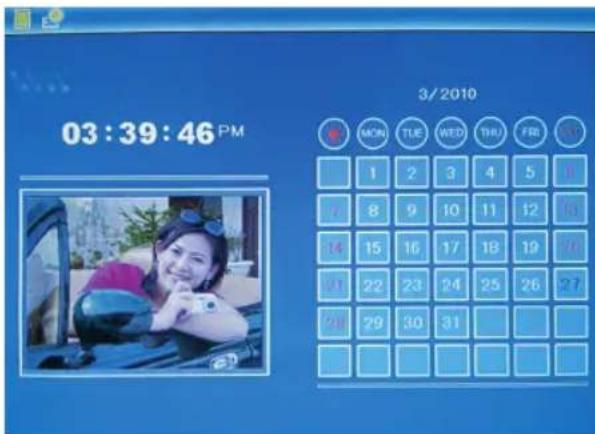

6. Calendar

Select Calendar from the main menu, press OK to enter. The time is displayed on the top left side. Under the time, the pictures in the memory card slide show automatically.

7. Setup

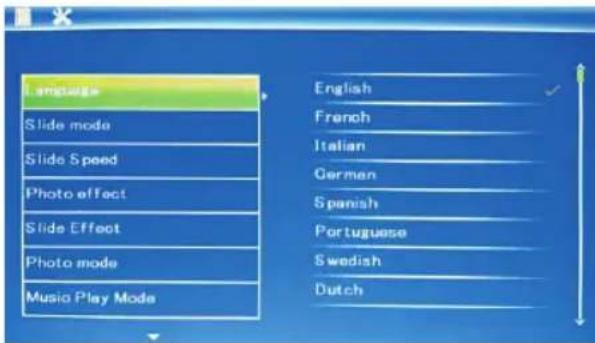

Select Setup from the main menu, and then press OK to access the Setup interface. Use the up and down arrow keys to select the item you want to set up. Press OK to show the submenu, select with the arrow keys, then press OK to confirm.

7.1 Language: English, French, Italian, German, Spanish, Dutch, Portuguese, Swedish, Greek. 7.2 Slide mode: Single window, Four windows, Triple windows. 7.3 Slide speed: 3/5/15/30 seconds, 1/5/15/30 minutes, and 1 hour.

7.4 Photo effect: Color, Mono, Sepia. 7.5 Slide effect: Random, Split Horizontal in/out, Jalousie, Split Vertical in/out, Radiation, Surround. 7.6 Photo mode: Auto fit, Optional, Full.

7.7 Display

Contrast: Use the left/right arrow keys to select between 00 (lowest) and 40 (highest).

Brightness: Use the left/right arrow keys to select between 00 (lowest) and 40 (highest).

Saturation: Use the left/right arrow keys to select a point between 00 (lowest) and 40 (highest).

Tint: Use the left/right arrow keys to select between 00 (most color) and 40 (least color).

7.8 Set time/date: Press OK, choose setup items with the up/down arrow keys as follows: Year, Month, Date, Hour, Minute, Second. Press OK, use the left/right arrow keys to set, press Save Time to confirm. 7.9 Set time format: 12/24. Press OK, select with the up/down arrow keys, press OK, then use the up/down arrow keys to set, press OK to confirm. 7.10 Format built-in memory: Press OK, choose No/Yes with the up/down arrow keys, press OK to confirm. 7.11 Reset setting: Press OK to enter, use the arrow keys to select or unselect to reset all settings to default values, press OK to confirm. 7.12 Exit: Press to exit the setup interface.

8. Troubleshooting Guide

If you are having problems with your player, please consult both this guide and the manual. If you need further assistance, please contact Technical Support.

- No power:

Please check whether the plug is inserted correctly.

- Remote control no function:

Please check whether the battery has power (the battery can be used for half a year in normal conditions). Replace with new battery if necessary.

- Can not read the CARD or USB:

Please confirm whether there is storage in the card or USB device.

Empty devices cannot be read.

- Can not play the file:

Please confirm if the file format is compatible with the player.

- Display too bright or too dark:

Please adjust the brightness or contrast in the setup menu.

The color is light or no color:

Please adjust the color and contrast setup.

9. Technical Specifications

Adapter

Input: AC 100-240V 50/60HZ

Output: DC 5V/1A

Picture Formats:

JPEG

Memory Cards:

SD/SDHC/MMC/MS

USB:

USB Host 2.0

Screen Parameter:

Screen Size: 17.8 cm (7 inch) TFT

Aspect Ratio: 4:3

Resolution: 800X600 Pixel

Table of Contents

1.2 Structure and Interfaces

1 USB port 2 SD/SDHC, MMC, MS, MS pro card slot 3 DC in: 5V/1A 4 Play / Pause 5 Forward, Next 6 Back, Previous 7 Exit 8 Menu, Menu 2-3 sec -> POWER on/off 9 Wall mount 10 Stand

To remove the battery, first press the top side towards the bottom, slide the marked area of the battery compartment downwards, and pull it towards the outside to remove it. Insert a CR2025 battery into the compartment, with the positive side (+) facing outward. Insert the compartment back.

3. First steps

3.1. Pull the arms to the bottom side of the digital photo frame as far as possible to achieve the maximum tilt. Insert one end of the supplied AC adapter into the electrical outlet (110-240V) and the other end into the DC input of the frame. Note: For the base of the digital photo frame, different positions are possible. Please refer to the illustrations. 3.2. Remove the protective film that covers the screen to avoid scratches. 3.3. Remove the plastic battery tab from the battery and make sure it is in the battery compartment. If you need a new battery, please refer to the section 'Replacing the batteries'. 3.4. Turn on the device by pressing the power button on the device or on the remote control.

4. Instructions for use

After turning on the device, the initial screen appears. Press the exit button three times to access the internal memory.

4.1 Card and USB

Supports SD/SDHC/MS/MMC/MS and USB 2.0. After inserting a card or USB drive, it is automatically played. Press the exit button twice to access the menu, photos, TXT, videos, music, and settings. Press OK to confirm.
