USER MANUAL ESTM6500 ELECTROLUX

UA ПОСІБНИККОРИСТУВАЧА Instruction Book2www.electrolux.com Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories and Consumables for your appliance: www.electrolux.com/shop

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.3www.electrolux.com

mod uret (B) for at afmontere.

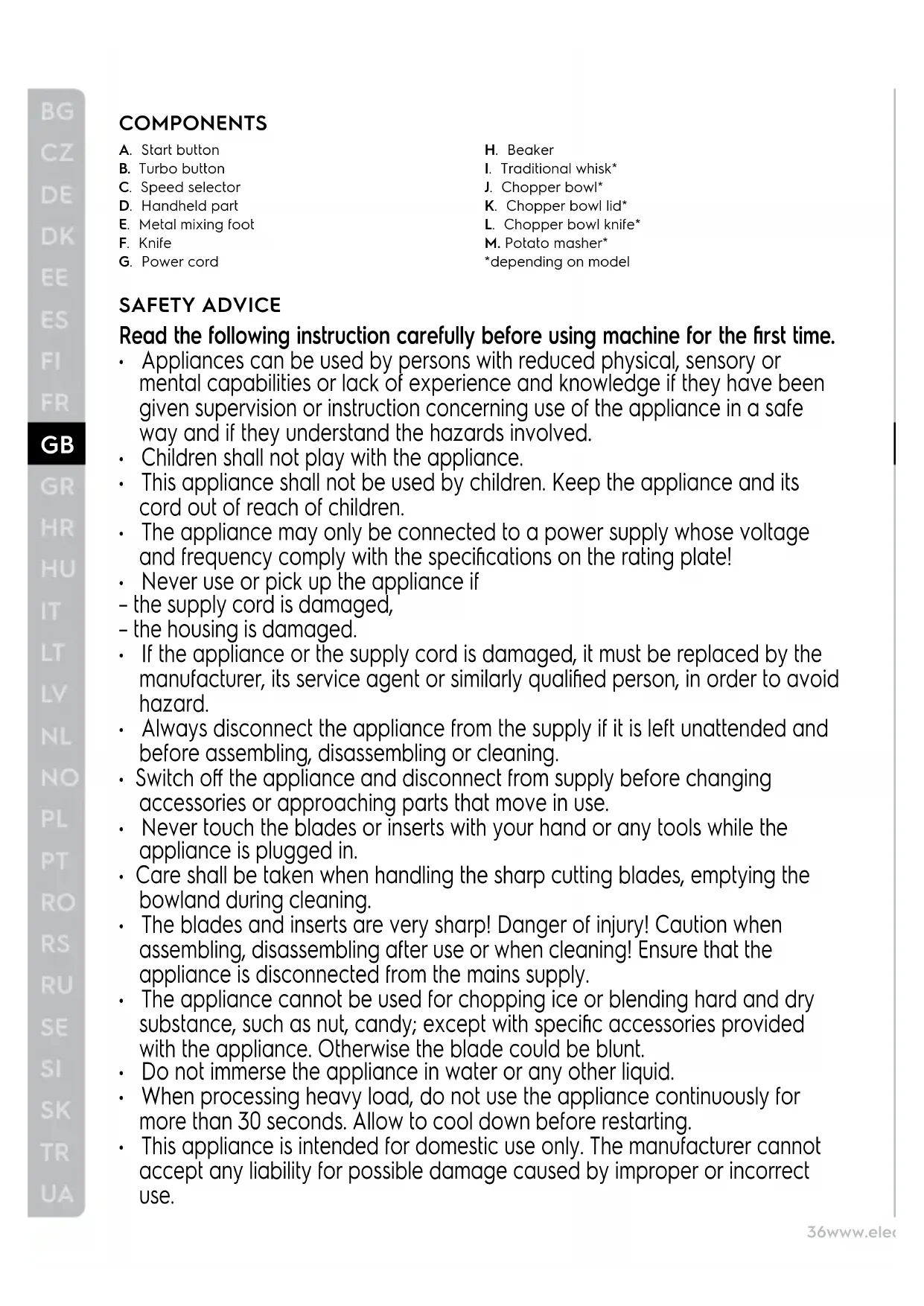

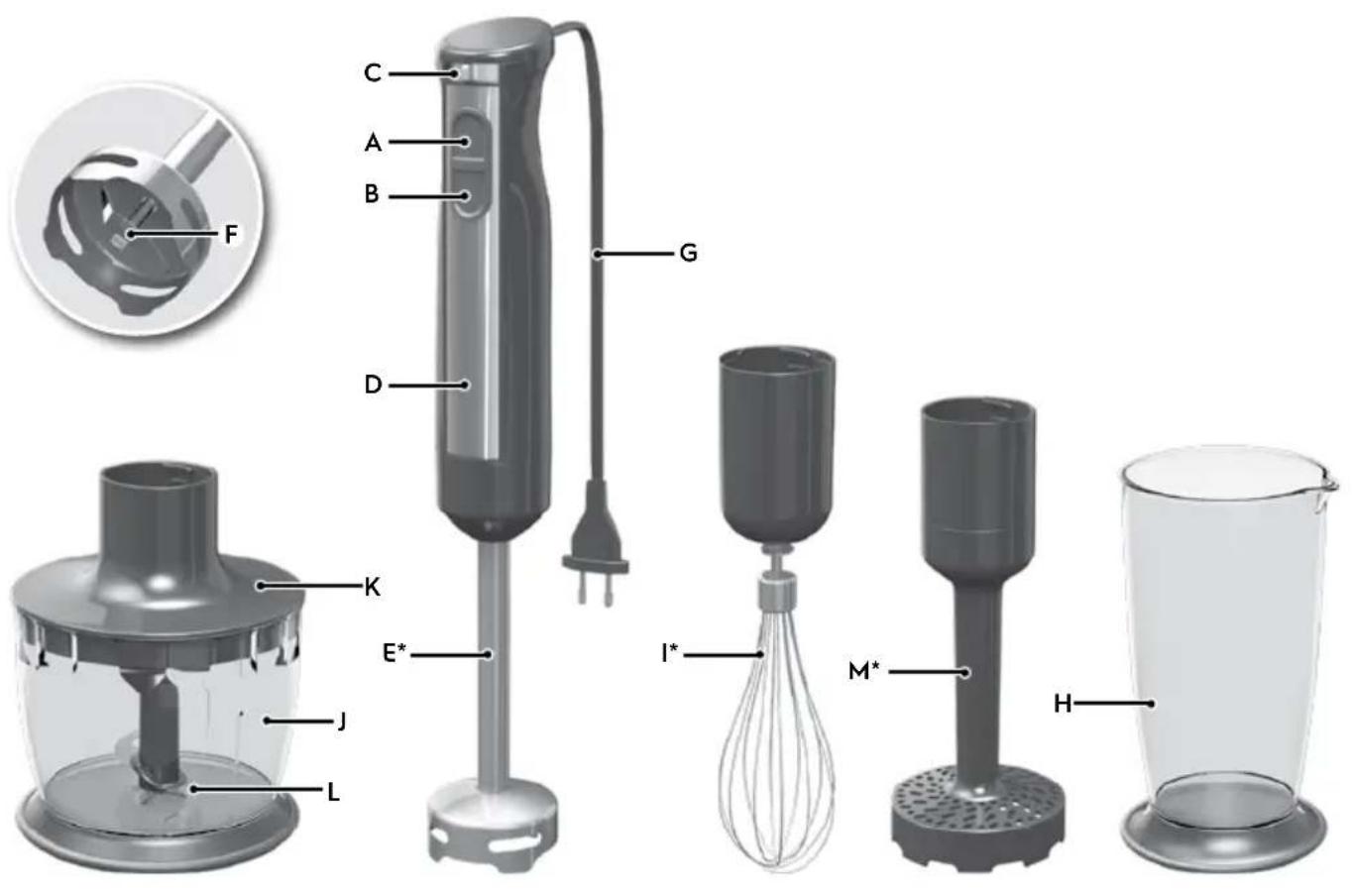

J. Chopper bowl* K. Chopper bowl lid* L. Chopper bowl knife* M. Potato masher* *depending on model SAFETY ADVICE Read the following instruction carefully before using machine for the first time.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!

• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.

• Care shall be taken when handling the sharp cutting blades, emptying the bowland during cleaning.

• The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply.

• The appliance cannot be used for chopping ice or blending hard and dry substance, such as nut, candy; except with specific accessories provided with the appliance. Otherwise the blade could be blunt.

• Do not immerse the appliance in water or any other liquid.

• When processing heavy load, do not use the appliance continuously for more than 30 seconds. Allow to cool down before restarting.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.37www.electrolux.com

1. Before using your appliance, remove all packing material, plastic, labels, stickers or tags that may be

attached to the motor base, bowls or attachments. Warning! Never immerse the housing, plug, or cord in water or any other fluid. Caution! Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

2. Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use.

If using the dishwasher, place parts only on the top rack of your dishwasher. All parts, except for potato masher foot, whisk adapter and chopper upper part, can be washed on the top rack of your dishwasher.

3. The housing should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance. GETTING STARTED

4. Insert the mixing foot to handheld part, turn clockwise (A) and lock into position. To remove, turn

mixing foot counter clockwise (B).

5. Select the speed by moving the sliding speed selector (A). Press power button (B) to start mixing. Press

Turbo button (C) for the highest speed. LED light will indicate the mixing speed. Appliance can be used continuously for 60 seconds. Afterwards, allow to cool for 1 minute.

6. Insert the stick mixer deep into the beaker, begin mixing by starting at normal speed. Make sure the

beaker is no more than 2/3 (600 ml) full. If you do not use the beaker, do not immerse the mixing foot more than 2/3 of its length. Move stick mixer lightly up and down to ensure best processing of content. Release switch to stop.

8. Place food into the chopper bowl*. Amount of food to be chopped cannot exceed 300 g ( Indicated

max level). Close the lid.

9. Insert handheld part into the chopper lid, turn clockwise (A) and lock into position. Plug into power

outlet and press switch to start. Release to stop. Remove handheld part by turning counter clockwise (B).

10. Working with the traditional whisk*. To assemble whisk with handheld part, turn handheld part

clockwise until tightened. To disassemble, turn counter clockwise.

11. Using the potato masher*. To assemble potato masher with handheld part, turn handheld part

clockwise until tightened. To disassemble, turn counter clockwise. Note: Potatoes are boiled and then smashed at maximum speed during 60 seconds.

12. Switch the appliance off, remove the plug from the wall socket and wait until the tools have stopped

completely. Warning! Never immerse the housing, plug, or cord in water or any other fluid.

13. Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use.

If using the dishwasher, place parts only on the top rack of your dishwasher. All parts, except for potato masher foot, whisk adapter and chopper upper part, can be washed on the top rack of your dishwasher.

14. The housing should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance. Before storage remove the plug from the power outlet. Ensure the appliance is clean and completely dry.38www.electrolux.com

5 Pulses ON for 3 sec, OFF for 2 sec 10 Pulses ON for 3 sec, OFF for 2 sec Turbo

WHISKING/WHIPPING QUANTITIES AND PROCESSING TIMES

ACCCESSORY TRADITIONAL WHISK*

Ingredients Quantity Time Speed Cream 500 g 50-70 sec Turbo Egg whites 4 units 60 sec Turbo Note: it is possible to use the traditional whisk* for whipping cream in the beaker, as long as the temperature of the cream is between 4 and 8 Degree Celcius. For whisking eggs, please use a 1,5 Litre bowl.

Ingredients Max quantity Time Speed Cooked-potato pieces, cooked-pumpkin pieces (size 20mm x 20mmx20mm) 300 g 30 sec High speed TROUBLESHOOTING Problem Possible cause Solution Blades do not turn when processing. May be too much food in beaker. Pieces of food are too large. Stuck food around the blades. Reduce quantity of food. Reduce size of food. Motor sounds like it is not able to process load. Speed may not be correct. See processing guide for correct speeds. The mini chopper* does not work. The chopper lid is not correctly fastened. Make sure the lid and the chopper bowl are properly assembled. The mixing foot/traditional whisk* does not work. The mixing foot/traditional whisk* is not correctly assembled. Make sure to lock mixing foot/traditional whisk* into position. The potato masher* does not work. The potato masher* is not correctly assembled. Make sure to lock potato masher* into position. Make sure blade is correctly mounted in the foot bell.

DISPOSAL Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it.. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
