USER MANUAL EHM3310 ELECTROLUX

White electric hand mixer with a metal whisk, no visible text or symbols on the device itself.

GB INSTRUCTION BOOK

FR MODE D'EMPLOI

AR كتيب الإستخدم

BG БРОШУРА С ИНСТРУКЦИИ

CZ NÁVOD K POUŽITÍ

Black electric mixer with coiled-coated wires and a power plug (no text or symbols visible)

Close-up of a hand holding a curved metallic object, possibly a tool or device, with no visible text or symbols.

Illustration of a printer with a grid-patterned cover and two circular icons showing electrical components (no text or symbols)

Illustration of a handheld device with a magnified inset showing a mechanical component (no text or symbols)

Illustration of a hand tool and its close-up view showing the handle and grip (no text or symbols)

Illustration of a hand mixer blending liquid into a bowl (no text or symbols)

Close-up of a dark, curved mechanical component with a small metallic clip and a white arrow pointing to its side (no text or symbols visible)

Close-up of a black plastic electronic component with a small dial and a downward arrow indicator (no text or symbols)

Black electric mixer with coiled-coated wires and a power plug, shown against white background (no text or symbols)

Close-up of a metallic curved tool or tool with a wavy handle, no visible text or symbols

Illustration of a printer emitting a sheet of paper with two circular insets showing a hand holding a switch and a cross symbol (no text or labels)

CONTENTS

ENGLISH 6		SUOMI 33		ROMÂNĂ 59
FRANÇAIS 9		ΕΛΛΗΝΙΚΑ	36	SRPSKI 63
عربي	13	HRVATSKI	39	PYCCKИЙ	65
БЪЛГАРСКИ 15		MAGYAR	42	SVENSKA	69
ČEŠTINA 18		ITALIANO	45	SLOVENŠČINA	72
DEUTSCH 21		LIETUVIŠKAI	48	SLOVENČINA	75
DANSK 24		LATVIEŠU 51		TŸRKÇE	77
EESTI 27		NORSK	54	УКРАЇНСЬКА	80
ESPAÑOL 30		POLSKI	57

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

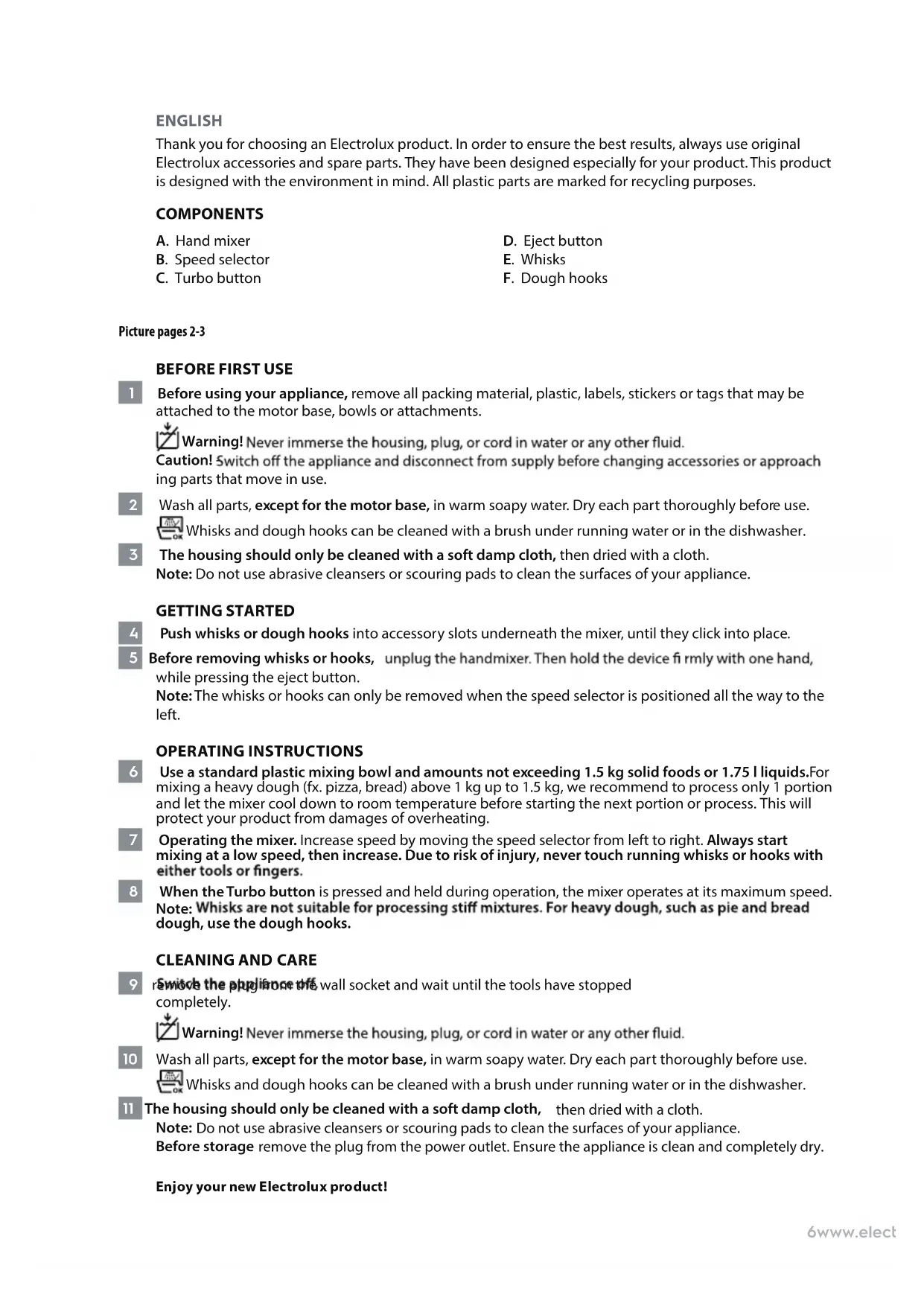

ENGLISH

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Hand mixer

D. Eject button

B. Speed selector

E. Whisks

C. Turbo button

F. Dough hooks

Picture pages 2-3

BEFORE FIRST USE

Before using your appliance, remove all packing material, plastic, labels, stickers or tags that may be attached to the motor base, bowls or attachments.

Warning! Never immerse the housing, plug, or cord in water or any other fluid.

Caution! Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

2 Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use.

Whisks and dough hooks can be cleaned with a brush under running water or in the dishwasher.

3 The housing should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

GETTING STARTED

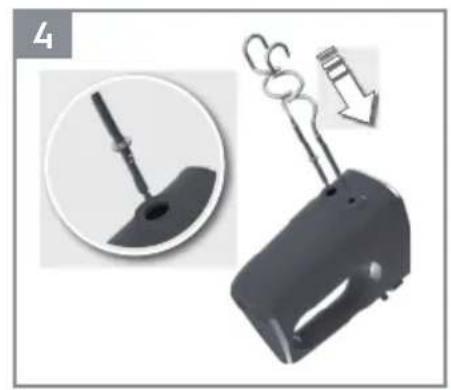

4 Push whisks or dough hooks into accessory slots underneath the mixer, until they click into place.

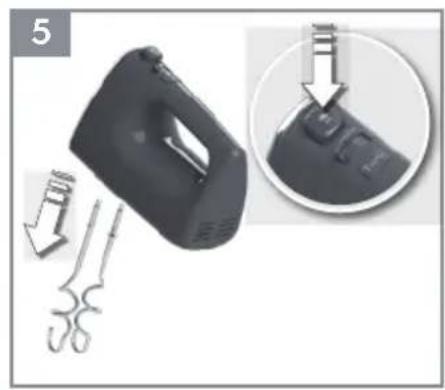

5 Before removing whisks or hooks, unplug the handmixer. Then hold the device firmly with one hand, while pressing the eject button.

Note: The whisks or hooks can only be removed when the speed selector is positioned all the way to the left.

OPERATING INSTRUCTIONS

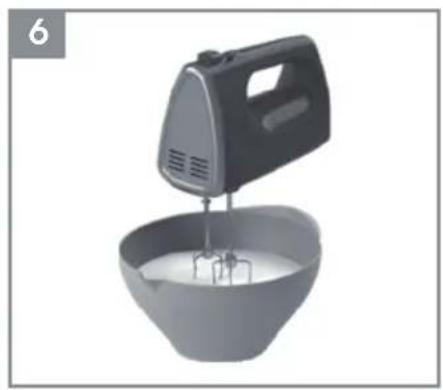

6 Use a standard plastic mixing bowl and amounts not exceeding 1.5 kg solid foods or 1.75 l liquids. For mixing a heavy dough (fx. pizza, bread) above 1 kg up to 1.5 kg, we recommend to process only 1 portion and let the mixer cool down to room temperature before starting the next portion or process. This will protect your product from damages of overheating.

7 Operating the mixer. Increase speed by moving the speed selector from left to right. Always start mixing at a low speed, then increase. Due to risk of injury, never touch running whisks or hooks with either tools or fingers.

8 When the Turbo button is pressed and held during operation, the mixer operates at its maximum speed. Note: Whisks are not suitable for processing stiff mixtures. For heavy dough, such as pie and bread dough, use the dough hooks.

CLEANING AND CARE

9 switch the appliance off wall socket and wait until the tools have stopped completely.

Warning! Never immerse the housing, plug, or cord in water or any other fluid.

10 Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use.

Whisks and dough hooks can be cleaned with a brush under running water or in the dishwasher.

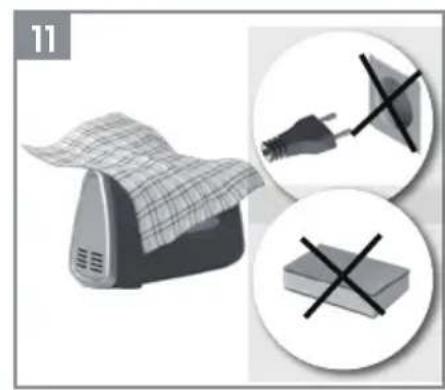

11 The housing should only be cleaned with a soft damp cloth, then dried with a cloth.

Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

Before storage remove the plug from the power outlet. Ensure the appliance is clean and completely dry.

Enjoy your new Electrolux product!

SAFETY ADVICE

Read the following instruction carefully before using machine for the first time.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Never use or pick up the appliance if
  – the supply cord is damaged,
  – the housing is damaged.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Care shall be taken when handling the tools, emptying the bowl and during cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Do not immerse the appliance in water or any other liquid.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

RECIPES

RECIPE	LIST OF INGREDIENTS
Yeast dough (Pizza dough)Max quantities	Wheat flour	950 gr
	Water 600 ml
	Oil 100 ml
	Salt 3 tsp
	Sugar	2 tsp
	Dry Yeast	1 tbs
1. Place yeast, sugar and warm water in a container, and let it stand until creamy.2. Add flour, salt and oil to the mixture.3. Mix at lower speed for 30 sec.4. When the dough is formed homogeneously, increase speed to speed 5 for 4 min and 30 sec.5. The dough is ready when it does not stick to the side of the bowl, neither to the tool.6. Spread the dough with a rolling pin to the desired thickness on a lightly floured surface.7. Place the dough in a lightly greased pan and spread with toppings.

SETTINGS AND TROUBLESHOOTING

SETTING	SPEED
Kneading, Mixing	Start with low speed, then increase to high speed.
Folding in	Medium speed.
Stirring	Start with medium speed, then increase to high speed.
Whisking, Frothing	Medium or high speed.
Start processing at low speed to avoid powdery foods and liquids spraying out.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The motor slows down during operation.	Amount of dough may exceed maximum capacity.	Remove half and process in two batches.
	Dough may be too wet, it sticks onto the side of the bowl.	Add more flour, 1 tablespoon at a time until the motor speeds up. Process until dough cleans the side of the bowl.
The motor does not work. The appliance is not connected to the mains.		Make sure to plug in the appliance before operation.
If the appliance is still not working, contact the customer service.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

FRANÇAIS

.攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷攷

A. خلاط يدوي

Abstract geometric design with three white petal-like shapes on black background (no text or symbols)

3483 E EHM33XX 02 05 0122

Share more of our thinking at www.electrolux.com

electrolux.com/shop

Electrolux Floor Care AB

S:t Göransgatan 143

S-105 45 Stockholm

Sweden
