USER MANUAL PBS 900 C3 PARKSIDE

PDF online www.lidl-service.com PARKSIDE PBS 100 C3

BANDSCHLEIFER / BELT SANDER / PONCEUSE À BANDE PBS 900 C3

DE AT CH

BANDSCHLEIFER

Translation of the original instructions

NL BE

BANDSCHUURMACHINE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Technical diagram of a weapon system with numbered components and labeled parts

A B C 9

6

Technical diagram showing a device with labeled parts, including numbered callouts ⑪ and ⑫.

Line drawing of a mechanical device with no visible text, numbers, or symbols

Inhaltsverzeichnis

Einleitung....2

WARNUNG! EXPLOSIONSGEFAHR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE - 44867 BOCHUM

GERMANY

www.kompernass.com

Original-

Sofia Fjord CE

Semi Uguzlu

Depicted components....12

Package contents 12

Technical details.... 12

General Power Tool Safety Warnings 13

1. Work area safety.... 13
2. Electrical safety 13
3. Personal safety.... 14
4. Use and handling of the power tool 14
5. Service.... 15
   Appliance-specific safety instructions for belt sanders 15
   Safety information for sanders....15

Operation 15

Tensioning/replacing the abrasive belt 15

Working procedures....16

Dust extraction 16

Operation 17

Switching on and off 17

Selecting speed and abrasive belt (continuous operation) 17

Stationary work 18

Tips and tricks....18

Maintenance and cleaning....18

Disposal....18

Kompernass Handels GmbH warranty 19

Service....20

Importer 20

Translation of the original Conformity Declaration....20

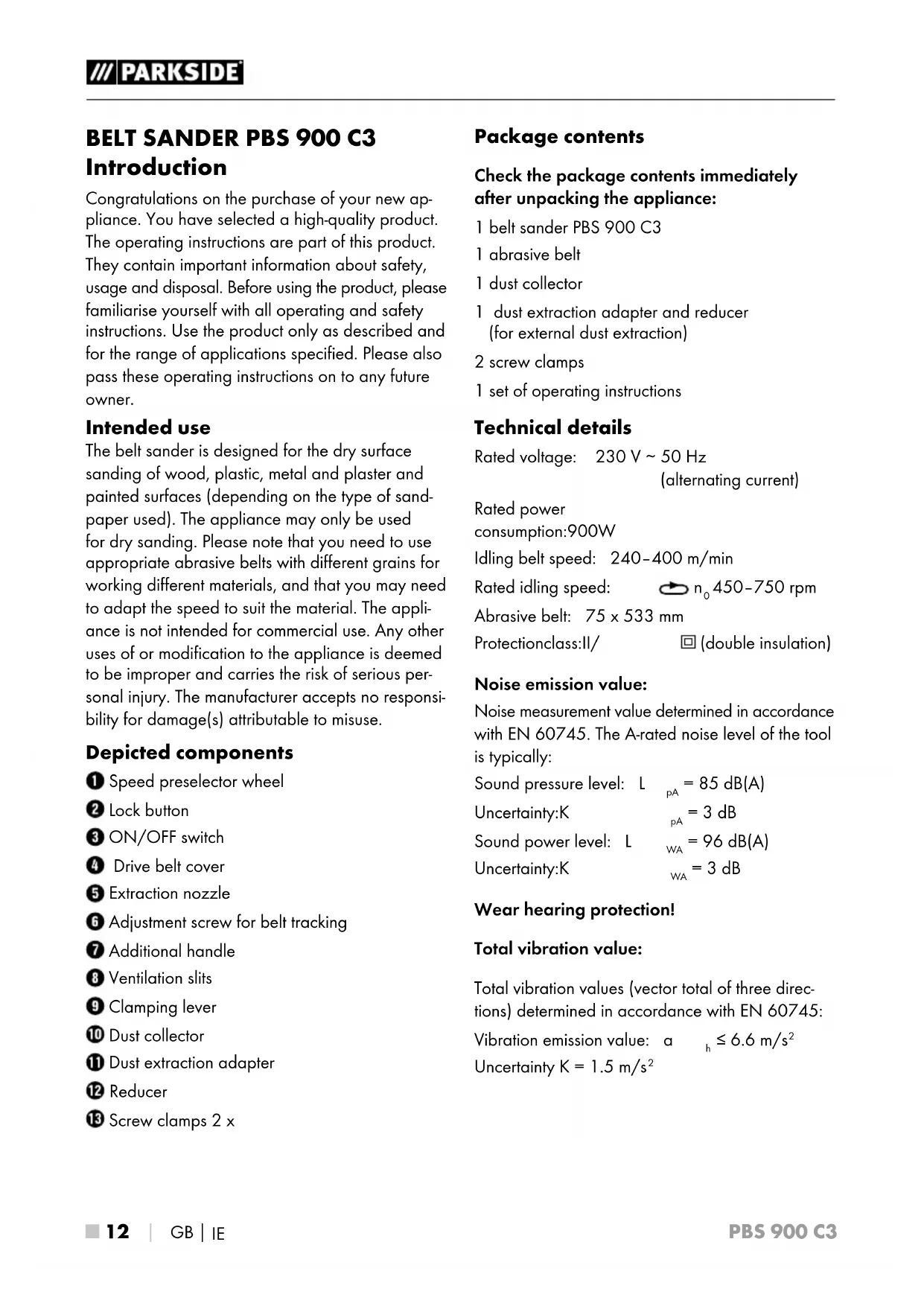

BELT SANDER PBS 900 C3 Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The belt sander is designed for the dry surface sanding of wood, plastic, metal and plaster and painted surfaces (depending on the type of sand-paper used). The appliance may only be used for dry sanding. Please note that you need to use appropriate abrasive belts with different grains for working different materials, and that you may need to adapt the speed to suit the material. The appliance is not intended for commercial use. Any other uses of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Depicted components

① Speed preselector wheel
② Lock button
3 ON/OFF switch
4 Drive belt cover
⑤ Extraction nozzle
6 Adjustment screw for belt tracking
⑦ Additional handle
8 Ventilation slits
9 Clamping lever
10 Dust collector
⑪ Dust extraction adapter
12 Reducer
13 Screw clamps 2 x

Package contents

Check the package contents immediately after unpacking the appliance:

1 belt sander PBS 900 C3
1 abrasive belt
1 dust collector
1 dust extraction adapter and reducer (for external dust extraction)
2 screw clamps
1 set of operating instructions

Technical details

Rated voltage: 230 V \~ 50 Hz

(alternating current)

Rated power

consumption:900W

Idling belt speed: 240–400 m/min

Rated idling speed:

n_0 450-750 rpm

Abrasive belt: 75 x 533 mm

Protectionclass:II/

(double insulation)

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the tool is typically:

Sound pressure level: L _pA = 85 dB(A)

Uncertainty: K

$$ _ {\mathrm{pA}} = 3 \mathrm{dB} $$

Sound power level: L

$$ _ {\mathrm{WA}} = 9 6 \mathrm{dB(A)} $$

Uncertainty: K

$$ _ {\mathrm{WA}} = 3 \mathrm{dB} $$

Wear hearing protection!

Total vibration value:

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Vibration emission value: a _h ≤ 6.6 m/s ^2

Uncertainty K = 1.5 m/s ^4

NOTE

The vibration emission value specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration emission value varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the power tool in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Examples of measures for reducing the vibration load are wearing gloves when using the tool and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

neral Power Tool Safety Warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the safety information and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Use and handling of the power tool

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for belt sanders

- Hold the appliance by the insulated handles since the grinding belt can come into contact with its own power cable. Damage to a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.

Safety information for sanders

WARNING!

■ Dusts from materials such as leaded paint, some types of wood and metal can be harmful to your health.
■ Contact with or inhalation of these dusts can represent a health hazard for the person operating the appliance and other people in the vicinity.
■ Wear safety goggles and a protective dust mask!

Operation

Tensioning/replacing the abrasive belt

WARNING! RISK OF INJURY

■ Always remove the power plug from the wall socket before carrying out any work on the belt sander.

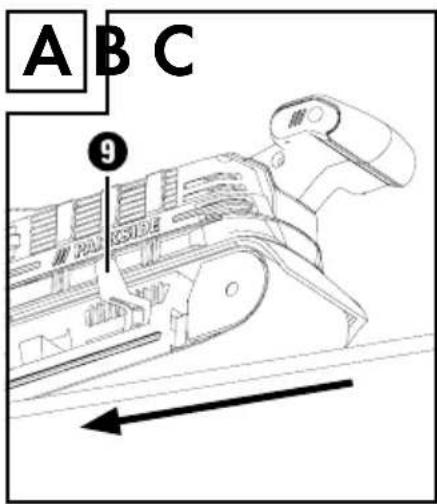

1. Loosen the clamping device for the abrasive belt by swivelling the clamping lever ⑨ all the way out (see fig. A). The clamping device is now open and the abrasive belt can be removed.
2. Now fit a new abrasive belt or swap the belt to work a different material or to use a different grain size. IMPORTANT: The direction of the arrows on the inside of the abrasive belt and on the appliance housing must match.
3. Push the clamping lever ⑨ back into its initial position.

Adjusting the abrasive belt:

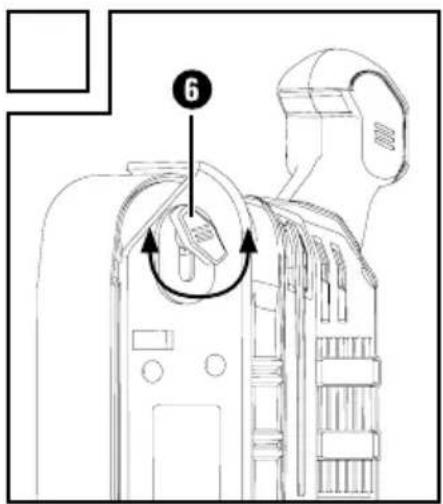

Pick up the appliance, switch it on and turn it over. Adjust the belt tracking. To do this, turn the adjustment screw 6 until the edge of the abrasive belt is flush with and runs parallel to the appliance edge (fig. B). IMPORTANT: It is important to ensure that the abrasive belt does not rub against the housing. Check the belt tracking regularly and adjust it with the adjusting screw if required 6

Working procedures

A light grinding pressure is sufficient:

- Apply minimal pressure when grinding. The belt sander's own weight is sufficient for a good grinding result. In addition, working this way helps to reduce the wear on the abrasive belt and the surface of the workpiece will become smoother.

Removal and surface:

The material removal rate and surface quality are determined by the belt speed and grain strength of the sandpaper (see also the section "Selecting speed and abrasive belt").

Grinding:

Place the appliance on the workpiece when switched on and work at a moderate feed rate. Guide the sander in parallel and overlapping sanding motions over the workpiece. To avoid unpleasant transverse grinding marks, always sand in the direction of the grain. After completing the task, lift the appliance from the workpiece and then switch it off.

NOTE

▶ Always hold the appliance firmly with two hands while working.

Dust extraction

WARNING! RISK OF EXPLOSION!

If there is an explosive dust/air mixture, you must use a specially-designed extraction device. RISK OF FIRE DUE TO FLYING SPARKS! Do not use dust extraction systems (dust collector 10 or vacuum cleaners) when grinding metals.

■ Materials containing asbestos may not be processed. Asbestos is a known carcinogen.

WARNING! RISK OF FIRE!

When working with power tools which have a dust collector or can be connected to a vacuum cleaner via a vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the dust collector (or the bag of the vacuum cleaner) can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, do not allow the workpiece to overheat and always empty the dust box or the dust bag of the vacuum cleaner before taking a break from work.

■ Ensure that your workplace is adequately ventilated.

- Observe the regulations applicable in your country regarding the materials to be worked.

Wear a dust mask.

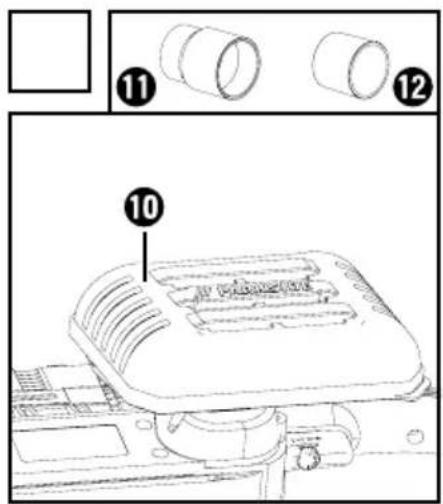

Dust extraction with dust collector (see fig. C):

♦ Push the dust collector onto the extraction nozzle 5

Dismantling/removing the dust collector:

◆ Pull the dust collector⑩ off the appliance.

Dust extraction adapter (with reducer) (see fig. C):

◆ Push the dust extraction adapter onto the extraction nozzle if necessary, use the reducer by pushing it onto the dust extraction adapter.

♦ Push the hose from a suitable dust extraction appliance (e.g. a workshop vacuum cleaner) onto the dust extraction adapter ⑪; use the reducer ⑫ necessary.

Removal:

◆ Pull off the dust extraction device hose.
◆ Pull the dust extraction adapter ^11 off (and also the reducer ^12 f attached).

Operation

Switching on and off

While operating the belt sander, you can choose between instantaneous and continuous operation.

Switching to instantaneous operation:

◆ Press the ON/OFF switch③.

Switching off instantaneous operation:

◆ Release the ON/OFF switch③.

Adjusting the rotational speed (instantaneous operation)

Press the ON/OFF switch ③ lightly for a low speed. Increasing the pressure increases the speed.

Switching to continuous operation:

◆ Press the ON/OFF switch ③, keep it pressed in and then press the lock button ②

Switching off continuous operation:

◆ Press the ON/OFF switch③ and then release it.

Selecting speed and abrasive belt (continuous operation)

You can use the speed preselector wheel ① to adjust the speed, while the appliance is running (− = lower speed, + = higher speed). The optimum belt speed is dependent on the workpiece or material being processed. We recommend carrying out a practice run to determine the correct speed. In the table below, you will find some recommended values which will help you determine which belt and speed to use for which job.

Material/working area	Softwood
Rough sanding(grain size)	60
Finishing (grain size) 240
Speedpreselectionhigh

Material/working area	Hardwood
Rough sanding(grain size)	60
Finishing (grain size) 180
Speedpreselectionhigh

Material/working area	Chipboard
Rough sanding(grain size)	60
Finishing (grain size) 150
Speedpreselectionhigh

Material/working area	Removing paint/varnish
Rough sanding(grain size)	60
Finishing (grain size) --
Speedpreselectionhigh

Material/working area	Rubbing down paintwork/varnish
Rough sanding (grain size)	150
Finishing (grain size) 320
Speedpreselectionlow

Material/working area	Removing rust from steel
Rough sanding (grain size)	40
Finishing (grain size) 120
Speedpreselectionmedium/high
Material/ working area	Plastics
Rough sanding (grain size)	120
Finishing (grain size) 240
Speedpreselectionlow/medium
Material/ working area	Non-ferrous metals (e.g. aluminium)
Rough sanding (grain size)	80
Finishing (grain size) 150
Speedpreselectionmedium/high

Stationary work

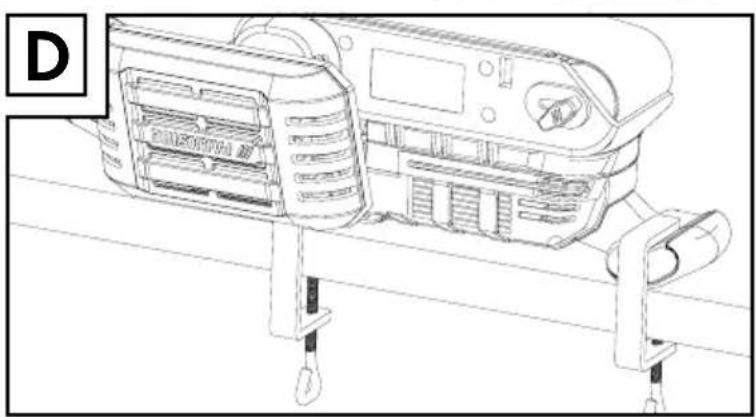

• Turn the power tool over as shown in figure D and place it on a stable worktop.
  ◆ Attach the two screw clamp to the power tool as shown and tighten them.
  ◆ Set the speed using the speed preselector wheel ①.

Tips and tricks

■ Never use the same abrasive belt to process wood and metal.
■ Worn or cracked abrasive belts can damage the workpiece. Therefore, be sure to replace worn abrasive belts before starting work.
■ Always hang up the abrasive belts to store them, as kinks etc. can make them unusable.

Maintenance and cleaning

HING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance.

The belt sander is maintenance-free.

■ Always clean the appliance directly after finishing work.
■ Use a dry cloth to clean the housing. Under no circumstances should you use detergents, solvents or abrasive cleaners.

■ Ensure ventilation openings are always free.
■ Remove any adhering grinding dust with a brush.

Disposal

ckaging is made from environmen- tally friendly material and can be dis- posed of at your local recycling plant.

t dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

■ Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

WARNING!

■ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

NOTE

▶ Replacement parts not listed (such as carbon brushes, switches) can be ordered via our call centre.

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 306938

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, Deutschland, hereby declare that this product complies with the following standards, normative documents and the EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1: 2009/A11: 2010

EN 60745-2-4: 2009/A11: 2011

EN 55014-1: 2006/A2: 2011

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 50581: 2012

Type designation of machine:

Belt sander PBS 900 C3

Year of manufacture: 05 - 2018

Serial number: IAN 306938

Bochum, 04/05/2018

Sofing CE

Semi Uguzlu

- Quality Manager -

The right to effect technical changes in the context of further development is reserved.

Table des matières

Introduction....22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

⚠ WAARSCHUWING! LETSELGEVAAR

WAARSCHUWING! EXPLOSIEGE-VAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Sofia Fynd CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NIEMCY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

(RoHS) (2011 / 65 / EU)*

Sofia Fjork CE

Semi Uguzlu

- manažer kvality -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE - 44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stan informacji · Stav informacií · Stav informácií :

05 / 2018 · Ident.-No.: PBS900C3-052018-1
