USER MANUAL Barcelona Eurom

Exterior view of a black electric heating unit with visible flames and cooling fins (no text or symbols)

Barcelona

Art.nr. 363265

363326 (Swiss plug)

This product is only suitable for well insulated spaces or occasional use.

elektrische sfeerhaard / elektrischer Kamin / electrical atmospheric fireplace / foyer électrique d'ambiance / elektrisk dekorationsbrasa / elektrická okrasná kamna / elektrický kozub / șemineu electric de ambianță

EUROM®

POWERFUL PRODUCTS

Row of seven gray square icons representing environmental and safety symbols (no text or labels)

Item	Symbol	Value	Unit		Item BARCELONA	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	KW		manual heat charge control, with integrated thermostat	Not applicable
Minimum heat output (indicative)	P_min	1.0	KW		manual heat charge control with room and/or outdoor temperature feedback	Not applicable
Maximum continuous heat output	P_max,c	2.0	KW		electronic heat charge control with room and/or outdoor temperature feedback	Not applicable
Auxiliary electricity consumption					fan assisted heat output	Not applicable
At nominal heat output	el_max	0.014	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0.014	KW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0	W		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details		EUROM-KOKOSSTRAAT 20-8281JC-GENEMUIDEN-NETHERLANDS

Dank

3 2 1 II I I

Simple line drawing of a rectangular box placed on a platform with two legs (no text or symbols)

Simple line drawing of a hand holding a blank rectangular object with two downward arrows above (no text or symbols)

Simple line drawing of a trash bin with crossed diagonals and a horizontal bar at the bottom (no text or symbols)

A B C D E CJCR

3 2 1 II I I

Simple line drawing of a rectangular frame with two side supports and a dashed top section, no text or symbols present.

Hand holding a blank rectangular object with two downward arrows above it (no text or symbols)

fest lose

Lampe links

Simple line drawing of a trash bin with no text or symbols

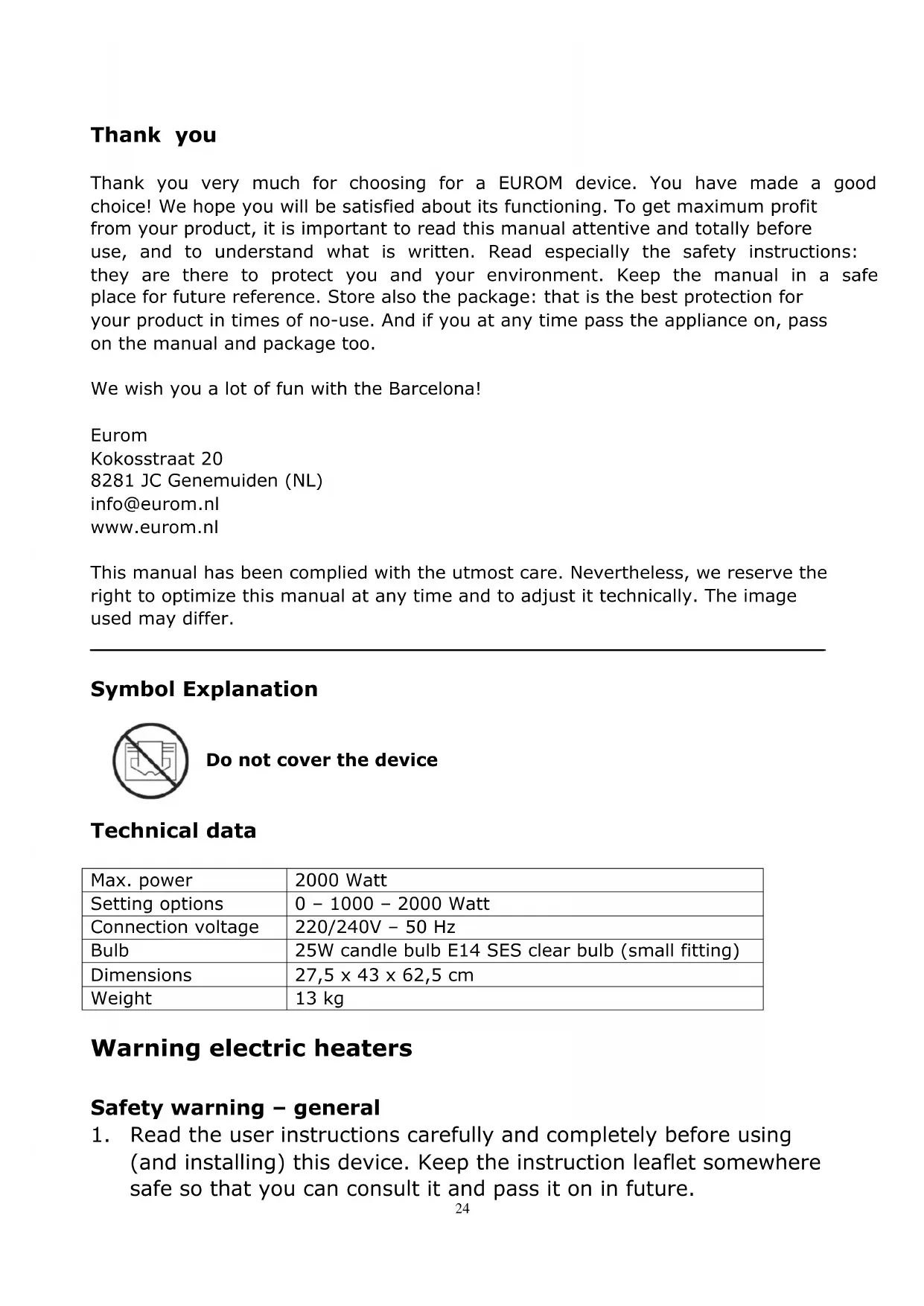

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning. To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment. Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Barcelona!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol Explanation

Do not cover the device

Technical data

Max. power	2000 Watt
Setting options	0 - 1000 - 2000 Watt
Connection voltage	220/240V - 50 Hz
Bulb	25W candle bulb E14 SES clear bulb (small fitting)
Dimensions	27,5 x 43 x 62,5 cm
Weight	13 kg

Warning electric heaters

Safety warning – general

1. Read the user instructions carefully and completely before using (and installing) this device. Keep the instruction leaflet somewhere safe so that you can consult it and pass it on in future.

2. Before use, check your new device (including cable and plug) for any visible damage. Never use a damaged device but take it back to the supplier for a replacement.

3. In the event of incorrect usage or installation, there is a risk of electric shocks and/or a fire hazard.

Warnings positon device

1. The wheels are already mounted under the device. Using the device without wheels creates a significant risk of fire.
2. This device is not suitable for wall or ceiling installation.
3. Do not use this device in the immediate vicinity of a bath, shower or swimming pool.
4. This device is not suitable for use in damp spaces such as bathrooms, wash rooms etc. Never locate the device near water-points and reservoirs (tap, bath, shower, toilet, sink, swimming pool, etc.). Make sure that the device cannot fall into water and that it cannot be penetrated by water. If the device falls into water make sure you remove the plug from the socket! Do not use a device that is wet inside but take it to be repaired. Never immerse the device, cable or plug in water or any other fluid and never touch device with wet hands.
5. The air around the device must be able to circulate freely. Never install it too close to walls or large objects and never under a shelf, cupboard, curtains or similar. When locating the device, make sure you have the following minimum free space:

Front, minimum free space 100 cm

Back, minimum free space 10 cm

Sides, minimum free space 100 cm

Top, minimum free space 100 cm

1. Always place the unit on a sturdy, flat horizontal surface
2. The base on which the device is placed must not be made of flammable materials.

It must be resistant to temperatures of at least 125^ C without burning, melting, deforming or bursting into flames.

Check regularly to ensure that the surface is not overheating; this could be dangerous!

1. Never place the device on surfaces such as beds or deep-pile carpet as openings could be blocked.
2. Do not place the device near an open window as rain could blow in; do not place on wet surfaces and avoid any liquids being spilt

nearby. Do not place the device behind a door or along a walking route to avoid accidental trips.

1. Do not place the device near, under or facing an electrical socket and not in the vicinity of an open fire or heat source.
2. Do not use the device nearby or facing furniture, curtains, paper, clothing, bedding or other flammable materials. Keep at least 1 metre from device!
3. Do not use the heater outdoors or in areas that are smaller than 15m^3 .
4. The device contains hot and/or glowing and sparking components. Do not, therefore, use where fuels, paint, flammable fluids and/or gases are stored.

Do not use the device in an environment that poses a fire risk, e.g. near gas tanks, gas pipes or aerosols. This is an explosion and fire risk!

Warnings - use

1. Do not use additions/accessories on the device that have not been supplied or approved by the manufacturer.
2. Only use the device for its intended purpose and in the manner set out in this instruction leaflet.
3. Some parts of this device will get very hot and could cause burns. You must pay particular attention to children, vulnerable persons and pets that are present near the device. Never leave them alone with a working device.
4. Never cover or block the device; it will overheat and this could lead to a fire risk. Never hang or place objects such as clothing, blankets, cushions, paper, etc. on the device. The minimum distance of 1 metre between the device and flammable materials must always be applied. Ventilation openings should never be blocked as this may pose a fire risk. Never use the device to dry clothing or place anything on it. Do not let anything lean against the device!
5. Do not set the device to come on automatically using a timer, clock or other facility. You must always check for safe conditions before using the fireplace! Never use the device with an external voltage regulator such as a dimmer or similar, as this could be dangerous!
6. The device is exclusively intended for normal, household usage. Only use for providing heat in your home.
7. The connection voltage and frequency, as given on the device, must correspond to that of the socket to be used. The electrical socket to

be used must be an earthed connection. The electrical installation must be protected via a 30 mA earth leakage circuit breaker. The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.

1. To avoid overloading and/or fuses being blown, do not use any other equipment on the same socket or electrical group as the one used for the device.

2. Unroll the electric cable for the device fully before inserting the plug into the socket and ensure that the electrical cable does not come into contact with the fireplace or get hot. Do not run the electrical cable under carpet, cover with mats, runners or similar and do not place in areas that are walked on frequently. Ensure that it cannot be stepped on and that no furniture is placed on top of it. Do not bend the electrical cable around sharp corners and do not roll up too tightly after use! Prevent the electrical cable coming into contact with oil, solvents and sharp objects. Check the cable and plug regularly for damage. Do not bend or pinch the electrical cable and do not wind it around the device; this could damage the insulation!

3. The use of an extension cable is not advised as this can lead to overheating and fire. If the use of an extension cable is unavoidable, make sure that it is not damaged and that it is an approved extension cable with a minimum diameter of 3 × 2.5 mm^2 and a minimum permitted capacity of 2500 Watt. Always fully extend the cable in order to prevent overheating.

4. Only connect the device to a fixed socket. Do not use multi-plug adapters or similar.

5. During use, the plug may begin to feel warm; this is normal. If it's really warm, there may be something wrong with the socket. Please contact your electrician.

6. Always turn off the device and remove the plug from the power socket: Never turn the device off using the plug!

7. Prevent foreign objects entering the radiation/ventilation or outlet openings on the device. This may cause electric shock, fire or damage.

8. Never leave a working device unattended but switch off and then remove the plug from the socket.

9. Always remove the plug from the socket when the unit is not in use! Always remove plug by pulling on the plug itself; never pull on the electrical cable!

10. This device gets hot during use. Never touch the device when it is on or shortly thereafter; it could burn you.
11. Never operate the device with wet hands.

Warnings by whom the device may be used

1. Children younger than 3 must be kept out of the vicinity of the device unless they are continuously supervised.
2. Children between the ages of 3 and 8 may only switch the device on or off if it is set up or installed at its usual location and they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards. Children between the ages of 3 and 8 may not insert the plug into the socket, adjust the device settings or clean or maintain it.
3. This device can only be used by children from the age of 8 and elderly persons and persons with diminished physical or mental capacities or a lack of experience and expertise if they are supervised or have received instructions regarding the safe use of the device and understand the corresponding hazards.
4. Children may not clean or maintain the device without supervision.
5. Children may not play with the device.

Warnings for maintenance

1. Keep the device clean. Dust, dirt and/or deposits in the device often lead to overheating. Ensure that this type of build-up is regularly removed.

2. Always switch the device off, remove plug from socket and let the device cool down before you:

3. clean the device

4. users maintain the device.

5. touch or move the device.

6. Do not use the device if the glass panel is damaged/broken.

7. Never switch the device on if you have noticed damage to the device itself, the cable or plug or if it does not work properly, makes strange noises, smells odd or you can see smoke, or if it has fallen or shows any other signs of damage. Remove the plug from the socket immediately. Take the entire device back to your supplier or a recognised electrician to be checked and/or repaired. Always ask for original parts to be used.

8. The device may only be opened and/or repaired by a competent and qualified person. Do not carry our your own repairs as this could be dangerous! Repairs carried out by unauthorised persons or changes made to the device could damage the dust/waterproof capacity of the device and will nullify the guarantee and the manufacturer's liability.

9. If the electrical cable is damaged, it must be replaced by the manufacturer, their service department or somebody with similar qualifications in order to prevent creating a hazard.

Failing to adhere to points 3, 4, 5, 6, could lead to damage, fire and/or personal injury. They will invalidate the guarantee and the supplier, importer and/or manufacturer shall not be liable for the consequences.

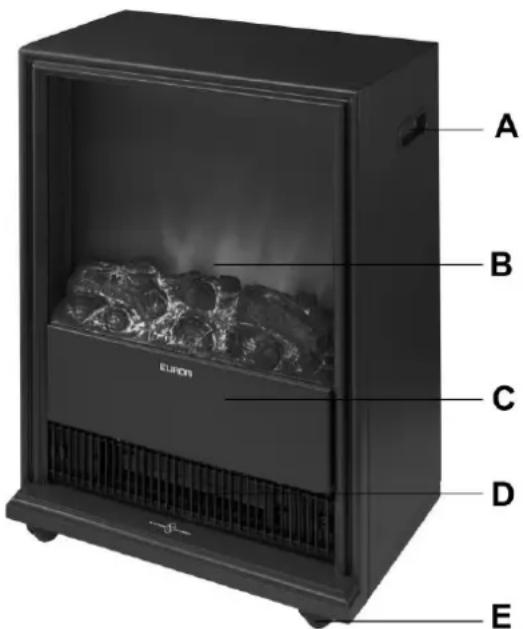

Description

The BARCELONA is a nostalgic fire with an internal heating element and a ventilator. The hot air is blown out through the grate on the front. The BARCELONA is equipped with castor wheels and hand grips for easy moving from room to room. Normally the fire is positioned against a wall.

A. Handle
B. Flame screen
C. Cover plate switches
D. Ventilation grate
E. Castor wheels

A B C D E Euroon

Installation and connection

• Remove the packaging materials and keep out of the reach of children. After removing packaging, check device for damage or any evidence that may point to a defect/failure. If in doubt, do not use the device but refer to your supplier for checks/repairs.
• Select a suitable location for the device taking into account all the aforementioned warnings in this manual.

- Completely unwind the electrical cable and insert the plug into a suitable 220-240V earthed socket. To prevent overloading, check that no other equipment is connected to the same group.

Operating

- Check that the details on the data plate correspond to those of the electrical supply which you wish to use for the fireplace. Do not use the same connection for any other equipment.

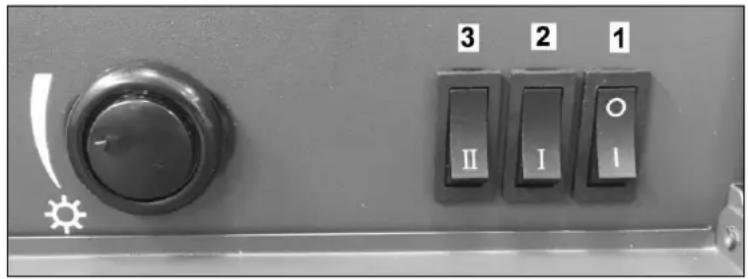

- The three control switches and the thermostat knob are located behind the metal panel on the front of the heater. Pull out the panel and you will find three control switches. By pressing the bottom switches you will make the following happen:

3 2 1 II I I

Switch 1: switch on the power supply to the heater and the flame

effect (without heating) (O depressed is OFF - I depressed is ON).

Switches 1+2: switch on 1000 Watt heating, with flame effect

Switches 1+2+3: switch on 2000 Watt heating, with flame effect

• Check whether switch 1 is set to OFF (O depressed)
• Connect the plug to an earthed power outlet.
• Turn the thermostat dial to maximum (clockwise as far as possible).
• Press switch 1 and, depending on what you want, switches 2 and 3 to start using the heater.
• Once the desired temperature is reached, turn the thermostat dial back slowly until you hear a click. The temperature is now set. The heater will automatically switch on and off to maintain the set temperature. To set a higher or lower temperature, turn the thermostat dial either clockwise or anticlockwise.
• Switch off the heater by resetting all switches to the OFF position. Remove the plug from the power outlet; do this whenever the heater is not in use!

Replacing a bulb

Warnings:

• Always unplug the fireplace before replacing a bulb!
  The bulbs get hot during use; allow plenty of time for them to cool down before touching them!
• The two lamps are located behind the small panel at the rear of the fire. To get to the lamps you must unscrew two screws that keep the panel in place. Slide the panel downwards and remove it (see figure).

Simple line drawing of a rectangular box placed inside a rectangular frame with two supports at the bottom (no text or symbols)

Hand holding a blank rectangular object with two downward arrows above it (no text or symbols)

• Unscrew the broken lamp and replace it by a 25W E14 SES clear candle lamp. Do not screw in the lamp too tight!
• Refit the panel and tighten the screws.

Left bulb

Right bulb

loose tight

Safeguards

The Barcelona atmospheric fireplace is equipped with an overheating safeguard. The overheating safeguard switches the heater off if it overheats internally. This may occur if the heater cannot give off enough heat or if it cannot draw in enough fresh air. As mentioned above, this is generally caused by (partially) covering the heater, obstructing the air intake and/or outlet grills or installing the heater too close to a wall or something similar. If this happens, turn the fireplace off by switching the main switch to O and remove the plug from the socket. Leave the fireplace to cool down for at least 15 minutes and remove the cause of overheating. You can then switch the fireplace back on. If the device overheats again or you cannot ascertain the reason for this, take the fireplace to your service point to be checked/ repaired.

Important! For safety reasons the fire will not automatically restart after overheating. Check whether conditions are safe before switching it on! So never switch on the heater by means of a timer and never connect it to a power supply that regularly switches on and off.

Cleaning and maintenance

Always remove the plug from the socket and let the fireplace cool down before cleaning or touching. The Barcelona atmospheric fireplace does not need much maintenance. Always keep the in- and outlet openings clean and dust-free. Use a soft cloth or a soft brush to clean the outside of the metal case. The glass plate can also be cleaned with a soft cloth. Do not use abrasive cleaning fluids or special glass cleaners! Apart from the bulbs, the fireplace contains no parts which need to be replaced by the user. If the device malfunctions, immediately remove the plug from the socket and take to a service point. Do not carry out repairs yourself and

always ask for original parts to be used. If the fireplace is to be stored after the winter period, clean it, pack it in original packaging if possible and store in a cool, dry and clean place. Make sure the fireplace is kept upright.

Problems and solutions

If the fireplace will not work check the electrical supply. Is the socket working properly? Has the fuse blown?

If the fireplace stops working suddenly, it may mean that the overheating safeguard has been triggered (see under 'Safeguards').

If the atmospheric lighting is not working or does not work properly, one or more of the bulbs may need to be replaced (see 'Replacing a bulb').

In the event of other defects, immediately switch the fireplace off, remove the plug from the socket and consult a supplier or recognised electrician. Never carry out repairs yourself as this invalidates the guarantee and may be dangerous!

Removal

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

Eurom - Genemuiden-NL hereby declares that the EUROM electrical atmospheric fireplace, type Barcelona, complies with the LVD guideline 2014/35/EU and the EMC guideline 2014/30/EU and meets the following standards:

EN 60335-1:2012+A11:2014 EN 55014-1:2006+A1:2009+A2:2011

EN 60335-2-30:2009+A11:2012 EN 55014-2:1997+A1:2001+A2:2008

EN 62233:2008 EN 61000-3-2:2014

RoHS 2011/65/EU&(EU)2015/863 EN 61000-3-3:2013

Genemuiden, 24-06-2019

W.J. Bakker, alg. dir.

Remerciements

3 2 1 II I I

Simple line drawing of a rectangular box placed inside a rectangular frame with four corner supports (no text or symbols)

Hand holding a blank sheet with two downward arrows above it (no text or symbols)

immobile mobile

mobile immobile

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

3 2 1 II I I

Simple line drawing of a rectangular box placed on a platform with two legs, no text or symbols present.

Hand holding a blank rectangular object with two downward arrows above it (no text or symbols)

Vämster lampa fast lös

Höger lampa lös fast

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

3 2 1 II I ○ I

Simple line drawing of a rectangular box placed on a platform with two legs and a curved wall (no text or symbols)

Illustration of a hand holding a blank rectangular object with two downward arrows above it (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

3 2 1 II I I

Simple line drawing of a rectangular box placed on a platform with two legs and a wavy top line above (no text or symbols)

Illustration of a hand holding a blank rectangular object with two downward arrows above it (no text or symbols)

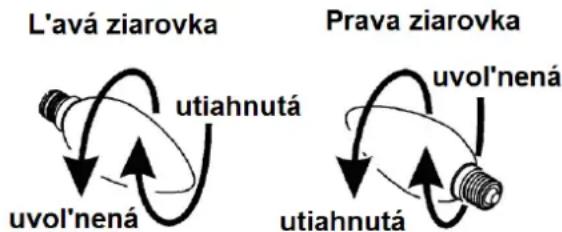


Zabezpečenie

Simple line drawing of a trash bin with two crossed lines and a black bar at the bottom (no text or symbols)

Close-up of a control panel with three switches labeled 1, 2, and 3, showing a circular icon with sun and light symbol (no readable text beyond labels)

Simple line drawing of a rectangular box placed on a platform with two legs and a wavy top line (no text or symbols)

Hand holding a blank rectangular object with two downward arrows above it (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.
