MCD11

CD/ FM / AUX IN MP3 / USB (OPTIONAL)

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Contents

Setting Started 1

Safety and Notice 1

Care for your product 2

What's in the box 3

Description of Parts 3

Remote Control 3

Power

Operation

Setting the clock 4

Listening to the radio 5

CD Play 5

MP3 Play 6

Headphone jack 7

AUX input jack 7

4 Product specifications 7

4 Remarks 8

Setting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.
• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Apparatus shall not be exposed to dripping or splashing.
15. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
16. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
17. Make sure there is enough free space around the product for ventilation.
18. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM

This product contains a low power laser device.

What's in the box?

Check and identify the contents of your package:

• Main unit
• Speakers
  Adaptor
• Remote control (for USB version only)
• User manual
• Sticker set (optional)

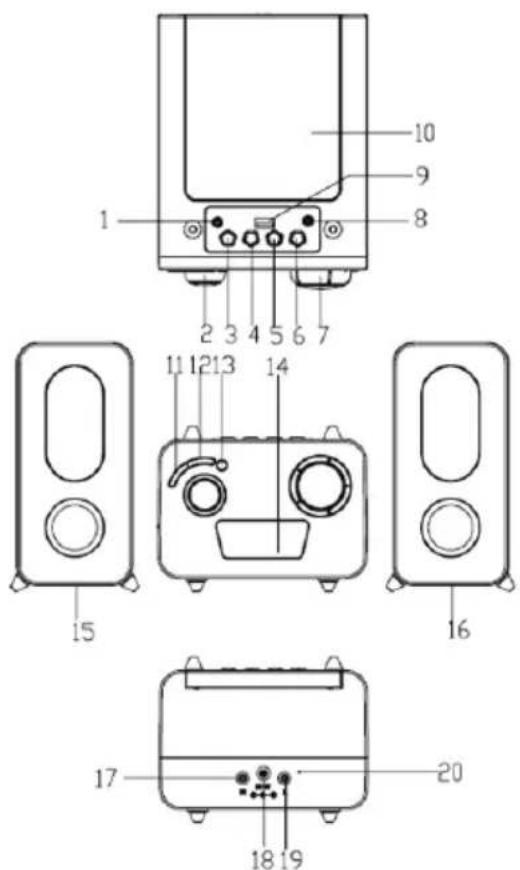

Description of Parts

1. HEADPHONE JACK
2. VOLUME KNOB
3. PREVIOUS TRACK BUTTON
4. NEXT TRACK BUTTON
5. STOP BUTTON
6. PLAY/PAUSE/TIME SET BUTTON
7. TUNING +/- KNOB
8. AUX JACK
9. USB PORT(For USB version only)
   10.CDDOOR
10. REPEAT/PROG BUTTON
11. PRESET BUTTON
12. POWER/FUNCTION BUTTON
13. LCD DISPLAY
14. LEFT SPEAKER
15. RIGHT SPEAKER
16. RIGHT SPEAKER OUTPUT JACK
17. DC JACK
18. LEFT SPEAKER OUTPUT JACK
19. FM ANTENNA

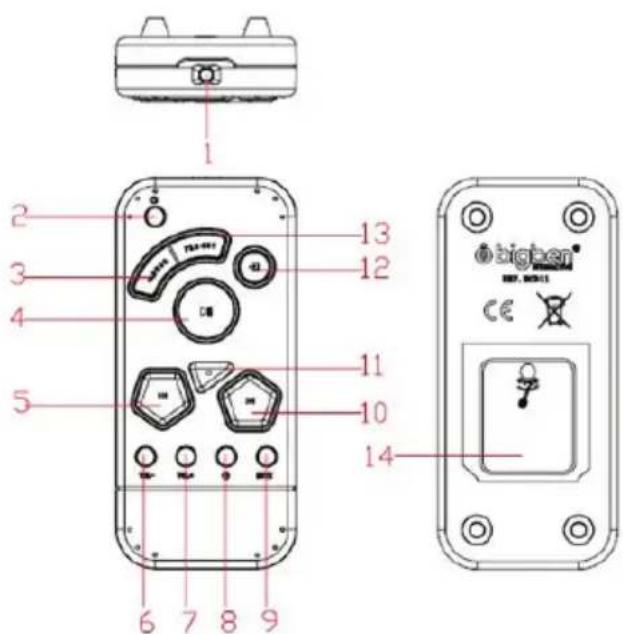

Remote Control (For USB version ONLY)

1. IR LED
2. POWER ON/OFF
3. REPEAT/PROG
4. PLAY/PAUSE BUTTON
5. PERVIOUS TRACK BUTTON
6. VOLUME -
7. VOLUME +
8. CLOCK SET
9. MUTE
10. NEXT TRACK BUTTON
11. STOP BUTTON
12. FUNCTION BUTTON
13. PRESET BUTTON
14. BATTERY DOOR

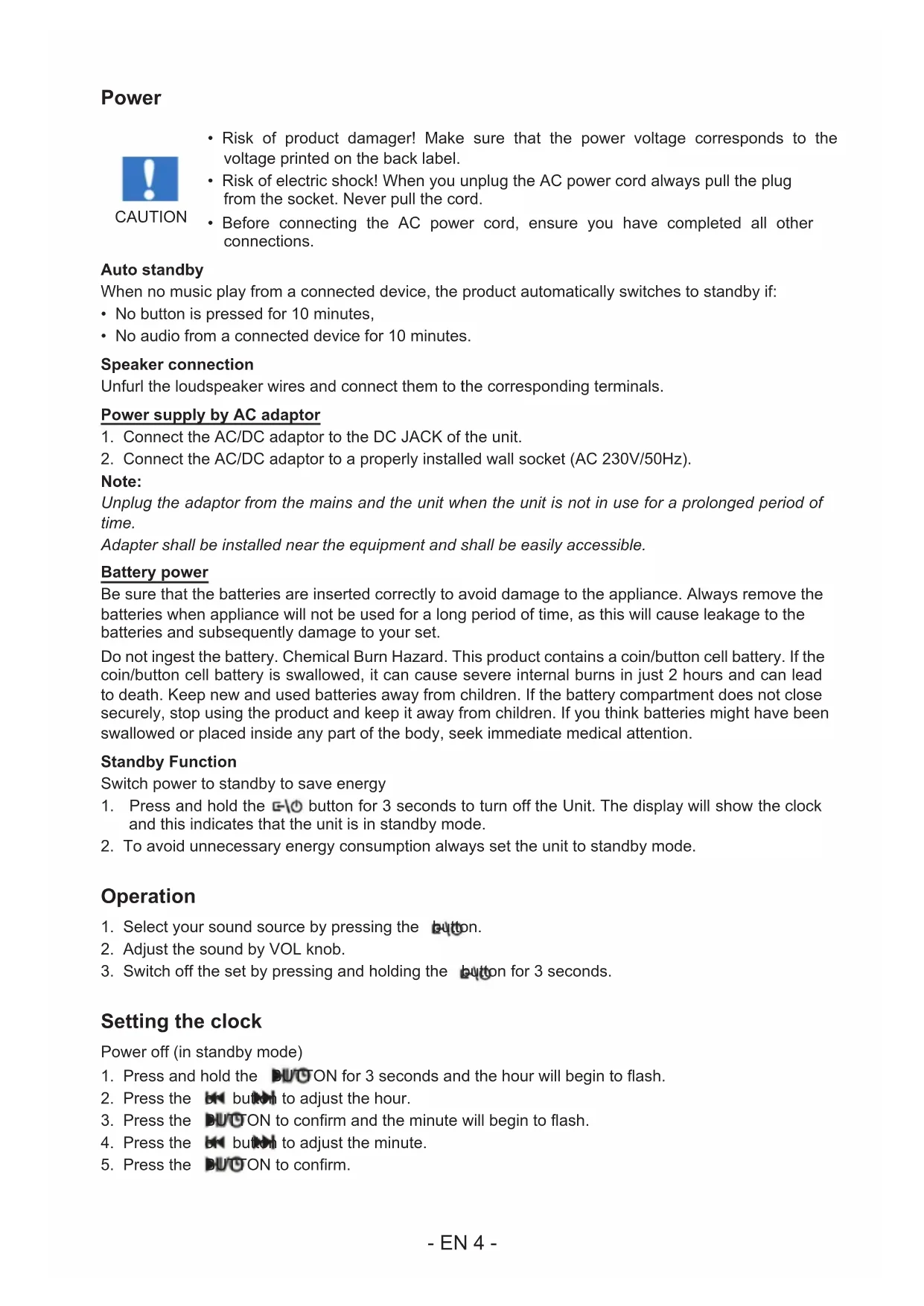

Power

CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.
• Before connecting the AC power cord, ensure you have completed all other connections.

Auto standby

When no music play from a connected device, the product automatically switches to standby if:

• No button is pressed for 10 minutes,
• No audio from a connected device for 10 minutes.

Speaker connection

Unfurl the loudspeaker wires and connect them to the corresponding terminals.

Power supply by AC adaptor

1. Connect the AC/DC adaptor to the DC JACK of the unit.
2. Connect the AC/DC adaptor to a properly installed wall socket (AC 230V/50Hz).

Note:

Unplug the adaptor from the mains and the unit when the unit is not in use for a prolonged period of time.

Adapter shall be installed near the equipment and shall be easily accessible.

Battery power

Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Do not ingest the battery. Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Standby Function

Switch power to standby to save energy

1. Press and hold the button for 3 seconds to turn off the Unit. The display will show the clock and this indicates that the unit is in standby mode.
2. To avoid unnecessary energy consumption always set the unit to standby mode.

Operation

1. Select your sound source by pressing the button.
2. Adjust the sound by VOL knob.
3. Switch off the set by pressing and holding the button for 3 seconds.

Setting the clock

Power off (in standby mode)

1. Press and hold the DUTON for 3 seconds and the hour will begin to flash.
2. Press the button to adjust the hour.
3. Press the button to confirm and the minute will begin to flash.
4. Press the button to adjust the minute.
5. Press the DUGON to confirm.

Listening to the radio

1. Turn on the unit by pressing the button.
2. Press the button repeatedly to select "FM" function.

Antenna: For FM reception fully extend the external FM antenna wire and adjust the direction for optimum reception.

FM radio channels setting

Manual adjustment of channels (frequency)

• Adjust the frequency using the tuning +/- knob

Automatic channel (frequency) tracking

1. Tune to the desired radio station by using the 串 or 串 button and the frequency will be displayed.
2. When a channel of sufficient strength has been found, tracking function will stop, or you can stop the automatic tuning by pressing it again.
3. Repeat until you reach your desired channel.
4. Adjust the volume by rotating the VOL knob

PRESET CHANNELS (FREQUENCY)

1. Tune to your desired station according to the normal tuning procedure.
2. Press the PROG button, then press the PRESET button to change the number where the station will be stored. (No.1 to No.20)
3. Store the current frequency by pressing the /PROG button again when you get the desired number.
4. Repeat the same procedure to save other desired frequencies to Memory No.1 up to No.20 Remarks:

A stored frequency can only be erased by storing another frequency in its place.

The unit can hold up to 20 preset stations.

MEMORY RECALL

Recall the stored frequencies by pressing the PRESET button to select station 1 to 20 as desired.

CD Play

PLAYING A CD

1. Open the CD Door by pressing it.
2. Insert a CD with the printed side facing up.
3. Close the CD Door
4. Power on the unit by pressing the / - button and press it repeatedly until "CD" indicator appears on the LCD display.
5. The CD will automatically play from the first track.
6. Press the button to momentarily pause.
7. To stop playback, press the button

REWIND/FORWARD BUTTON

While playing a CD, the 串串 / button can be used to jump to a different track number or to scan tracks at high speed.

1. Press the button once to hear the beginning of the current track.
2. Press the button two times to hear the previous tracks on the disc.
3. Press the button to hear the next track on the disc.
4. Press and hold the button. The current track will be scanned and will move backwards to the previous track(s). When the desired track section is found, release the button and normal play will resume.
5. Press and hold the button. The current track will be scanned and will move forward to the next track(s). When the desired track is found, release the button and normal play will resume.

PROGRAMMED PLAYBACK

Up to 20 tracks can be programmed to play in any desired sequence.

1. In CD stop mode, press the /PROG Button until PROGRAM 01 indicator appears on the display.
2. Press the button to select a desired track to be memorised.
3. Press the /PROG Button to program the track.
4. Repeat steps 2 and 3 to program tracks.
5. Press the button to start playing.
6. To cancel program-play, Press the TOP button twice.

REPEAT PLAY

To repeat a single track during audio CD play.

Press the /PROG Button while the track you want to repeat is playing. The " " will appear on the display.

• To repeat another track, press the Button or Button.
• To cancel repeat-play, Press the PROG Button 3 times.

TO REPEAT ALL TRACKS

Press the PROG Button twice during play. The "A" will appear in display.

• All tracks will be played through in sequence and then the sequence will be repeated continuously.
• To cancel repeat-play, press the PROG Button 2 times.

RANDOM PLAY

Press the ROG Button 3 times during play. The "RAND" will appear on the display.

• All tracks will be played randomly.
• To cancel random-play, press the PROG button again.

MP3 Play (for USB version only):

USB Port

The appliance is fitted with a USB port to play music files (MP3) stored on a USB key.

• No disc should be playing.
• Connect a USB drive to the USB port of the reader.
• Press successively and "USB" will appear on the screen and the contents of the USB stick will be read automatically.

TO REPEAT A SINGLE TRACK

Press the 3 /PROG Button while the track you want to repeat is playing. The " 3 " will appear on the display.

To repeat another track, press the button.
- To cancel repeat-play, Press the PROG Button 4 times.

TO REPEAT A FOLDER

Press the PROG Button twice during play. The "FOODER" will appear on the display.

All tracks will be played through in sequence and then the sequence will be repeated continuously.
- To cancel repeat-play, press the PROG button 3 times.

TO REPEAT ALL TRACKS

Press the PROG button 3 times during play. The "Alt will appear on the display.

• All tracks will be played through in sequence and then the sequence will be repeated continuously.
• To cancel repeat-play, press the PROG button 2 times.

RANDOM PLAY

Press the PROG Button 4 times during play. The "RAND" will appear on the display.

• All tracks will be played randomly.
• To cancel random play, press the PROG button again.

Remark: Please note that only FAT32 format USB keys with a capacity of 16GB and under can be read by the unit.

Headphone jack

The unit is equipped with a HEADPHONE JACK for private listening. Simply plug any 3.5mm plug type stereo headphone into the HEADPHONE JACK. With the headphone connected the speaker in the unit will be automatically disconnected.

AUX input jack

1. Plug in the Aux Cable and connect the other end to an Audio Playing Device.
2. Power on the unit by pressing the 0 / - 3 button and press it repeatedly to select the "AUX" function. The LCD display will show "AUX" to indicate.
3. Start Playing from your Audio Playing Device. For instructions on how to play from your Audio Playing Device, please refer to its own manual.

Product specifications (basic CD version)

Input: 100 - 240V 50 / 60Hz0.3A
Output: 5V 1.5A
Frequency ranges: FM: 87.5 - 108Mhz
Clock Backup: 2 X 1.5V, AAA, LR03

Product specifications (USB version)

Input: 100 - 240V 50 / 60Hz0.3A
Output:5.9V 13A
- USB output: DC5V 100mA
Frequency ranges: FM: 87.5 - 108Mhz
Remote Backup: 1 X 3V, CR2032

WARNING! Risk of hearing impairment

• Set a low volume on the playback device before connecting the headphones to the sound source.
• Avoid excessive volume, particularly over extended periods or frequent use. Excessive volume can result in permanent hearing impairment.

ABOUT THE DISKS

	Handling Do not touch the underside of disks. Hold disks by the edges to avoid leaving fingerprints on the surface. Any dust, fingerprints or scratches may cause a malfunction. Never affix a label or sticky tape to the disk.
	Storage Put disks back in their case after use. Never expose disks to direct sunlight or heat sources. Never leave disks inside a car parked in full sunlight.
	Cleaning Use a clean, soft, lint-free cloth to clean the disk, working from the centre outwards in a straight line. Do not use solvents such as petrol, thinners, commercially available cleaners or antistatic sprays for vinyl disks.

Remarks :

Don't discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.

• Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

• You can find the information on the plate located at the back of the unit.

To download the full statement, please visit our website: http://www/bigben-interactive.co.uk/support and the section <>.

Imported by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

Made in China

REACH

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

MCD11

CD/ FM / AUX IN

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail] www.bigben.eu

MCD11

CD / RADIO FM / AUX IN MP3 / USB (OPZIONALE)

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE.

Index

Per iniziare 1

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

MCD11

CD / FM / AUX IN MP3 / USB (OPCIONAL)

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail] www.bigben.eu

MCD11

CD/FM/AUX-IN MP3/USB (OPTIONAL)

BEDIENUNGSANLEITUNG

LASERPRODUKT DER KLASSE I

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail] www.bigben.eu

MCD11

CD/ FM / AUX IN

MP3 / USB (OPTIONEEL)

VEILIGHEIDSINSTRUCTIES

LEES DEZE GEBRUKSAANWIJZING VOLLEDIG DOOR ALVORENS DEZE EENHEID TE BEDIENEN, EN BEWAAR DIT BOEKJE VOOR UW ADMINISTRATIE.

Inhoud

Aandeslag1

KLASSE 1 LASERAPPARAAT

CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

OPGELET ONZICHTBARE LASERSTRALING KOMT VRIJ WANNEER GEOPEND EN DE VERGRENDELING NIET WERKT. VERMIJD BLOOTSTELLING AAN DE STRAAL

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu
