USER MANUAL CB2200 CASO

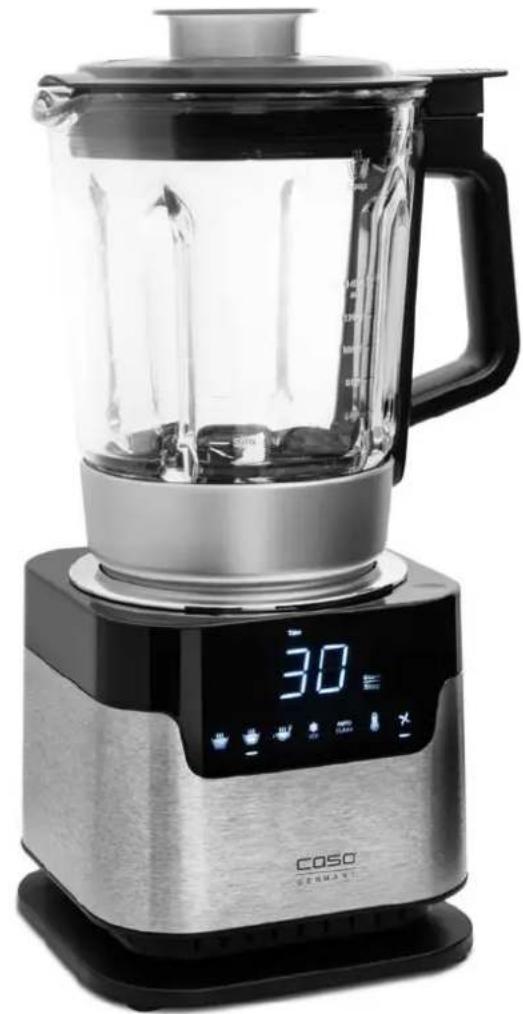

Original Operating Manual Blender with cooking function CB 2200

Item No. 2710

E

www.fuv.com ID 109906000

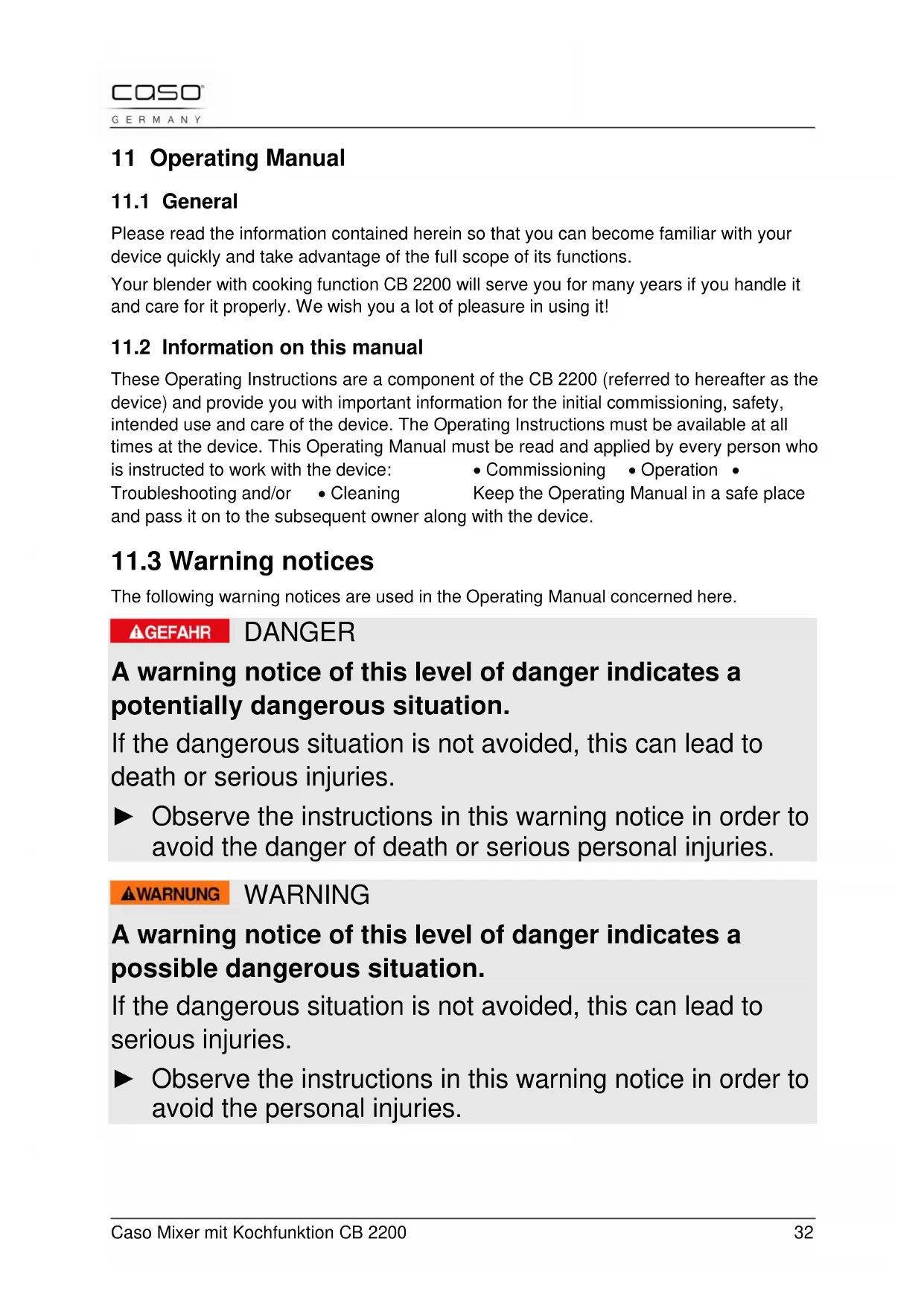

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your blender with cooking function CB 2200 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the CB 2200 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who

is instructed to work with the device: Commissioning Operation Troubleshooting and/or . Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

△GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
- Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for

• making soups
  crushing ice cubes
• making smoothies

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.

HINWEIS Please note

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
Do not leave the device unsupervised when it is in operation.
- Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
To disconnect, turn Off "ON/OFF" key, then remove plug from wall outlet.
- Be sure the parts are properly assembled to original base and in place.
Do not remove the measuring cup or add ingredients when the appliance is blending.

HINWEIS Please note

• Do not insert a spatula or spoon by the hole of the measuring cup on the lid, during a heating or blending cycle.
  Do not add cool or cold water in the bowl after a warm cycle, to avoid thermal shock.
  Do not use a chemical descaler or a coffee machine descaler on the bowl non stick-heating plate.
  Do not operate the appliance (heating, blending functions or programmes) when the bowl is empty.

WARNING WARNING

Avoid contacting moving parts.
Always operate blender with cover in place.
- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. The spatula may be used but only the blender is not running.
- When blending hot liquids, remove measuring cup from cover.
A short power-supply cord is not be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
Unplug from the outlet when not in use and before cleaning and before putting on or taking of parts.
- Allow to cool before putting on or taking off parts and before cleaning or storing the appliance.

12.3 Sources of danger

12.3.1 Risk of burns

WARNING WARNING

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

This appliance generates heat. Do not touch hot surfaces. Graps the handle of the glas bowl and use mitt or potholder.
To prevent burns, always use a mitt or potholder for handling.
Remove the lid slowly with the underside of the lid pointing away from you and let steam escape gradually.
Exercise caution when moving your appliance if it contains anything hot.
The glass bowl contains hot liquid, pour it out carefully.

A VORSICHT Attention

Dangers due to hot surfaces!

On the upper back of the housing unit (glas bowl) this warning sign can be found. The Device can get really hot.

Do not touch the hot surfaces of the Device. Risk of burns!

12.3.2 Danger of fire

WARNING WARNING

There is a danger of fire due to the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

Do not set up the device near flammable material.
- Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

12.3.3 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
- Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

▲GEFAHR

Danger

Do not attempt to open the housing or dismantle any parts from the appliance.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the CB 2200 is delivered with the following components:

Glass bowl

• Lid

• Measuring cup

• Housing unit

Rubber spatula

• Cleaning Brush

• Operating Instructions

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS

Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.
• Do not operate the appliance near wall or outlet to prevent damage from steam.
• Do not let cord hang over the edge of table or counter or touch hot surface.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Function

In this chapter, you'll find important information on the function of the device.

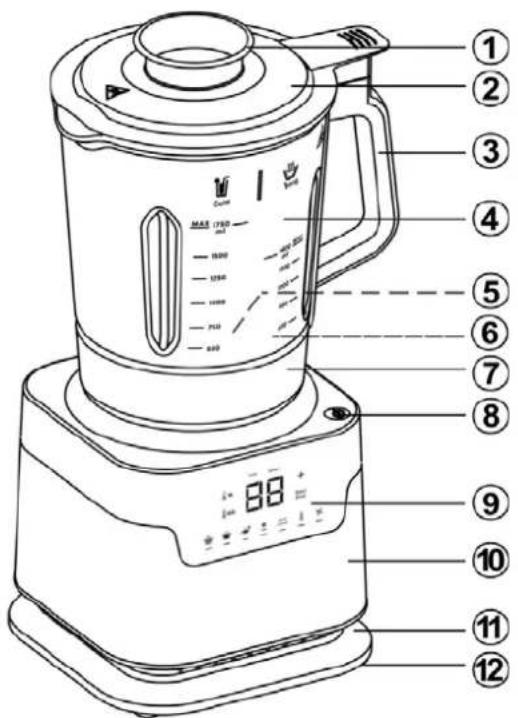

14.1 Overview

1. Removable measuring cup
2. Lid
3. Handle
4. Glass bowl
5. Blade
6. Non-stick heating plate
7. Glass bowl bottom
8. ON/OFF key
9. Control panel
10. Base housing
11. Base bottom
    12.Non-slip rubber feet

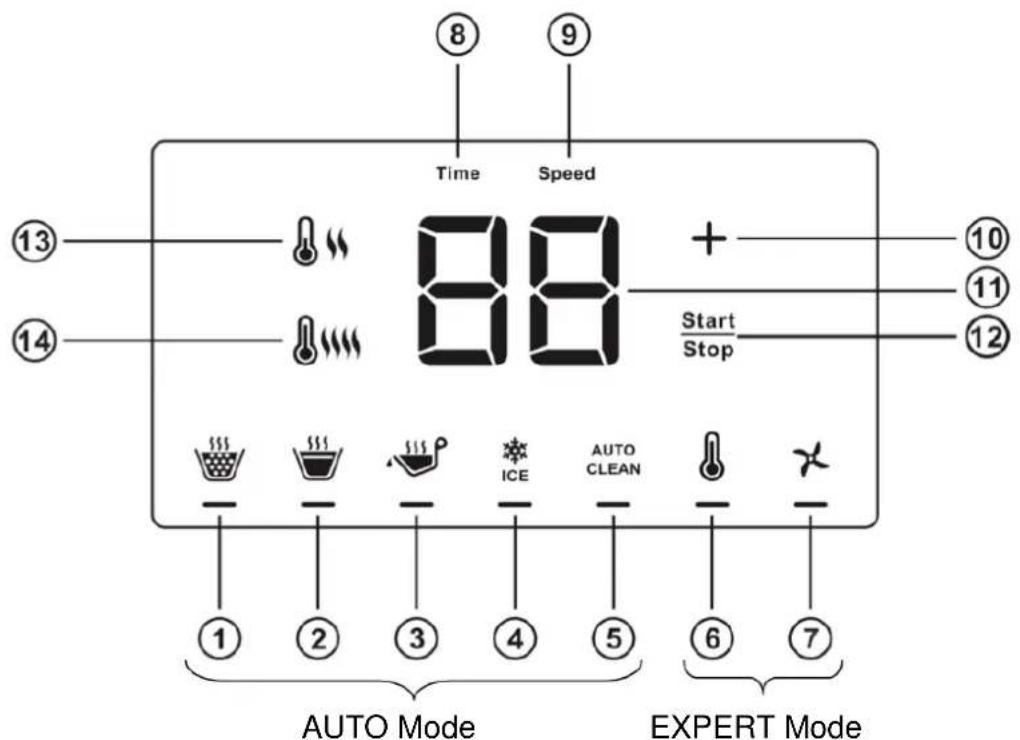

14.2 Control panel

5 automatic programmes
User adjustable settings

AUTO Mode

1. Chunky/Thick soup key (P1)
2. Veloute/Fine soup key (P2)
3. Sauce key (P3)
4. Ice crushing/Smoothie key (P4)
5. Auto clean key (P5)
6. Time indicator
7. Speed indicator
   10.Increase or decrease key
   11.Display
8. Start/Stop key
9. Low temperature indicator
10. High temperature indicator

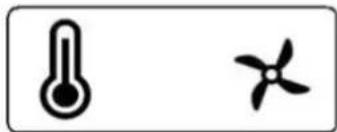

EXPERT Mode

1. Temperature set key (P6)
2. Blend key (P7)

14.3 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

WARNING

Warning

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Before initial use

1. Remove any packaging of the device and the accessories.
2. Before initial use, clean all the parts that get in touch with food thoroughly and dry them.

15.2 How to use

1. Place the appliance on a firm, stable & flat surface, allow sufficient ventilation.

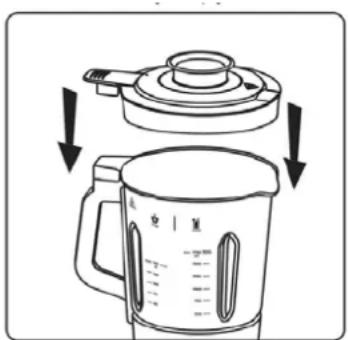

2. Place the lid on the glass bowl and press it down firmly & properly.

1. Place the measuring cup into the opening on the lid.

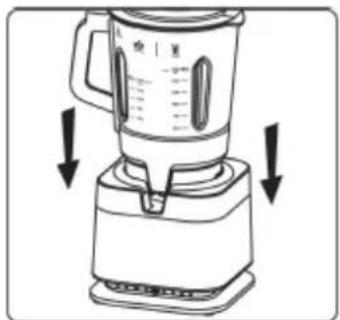

2. Position the glass bowl on to the motor base housing unit by using guided grooves and make sure glass bowl fits properly on motor base housing unit.

HINWEIS

Please note

The appliance will start only if the glass bowl is correctly positioned on motor base housing unit and lid on the glass bowl.

1. Connect the appliance to a suitable mains supply outlet.
2. Press ON/OFF key to start the appliance, and it initializing the programme and go to 'standby' mode.
3. Select the desired programme and start the process by pressing Start/Stop key.

WARNUNG

Warning

Do not touch the bottom of glass bowl and glass bowl during cooking, as they get very hot.
If the glass bowl contains hot liquid, pour it out carefully.

HINWEIS

Please note

• During the programme, press Start/Stop key to pause the process. When press it again the programme continues. After completion of the programme, if no button is press for 10 minutes the appliance will shut down automatically.
  To turn off the appliance in any condition, press ON/OFF key.
  At the end of the programme the LCD displays "00" and the appliance will sound an alert (5beeps).
  Disconnect the appliance from mains supply and let it to cool down completely once finished cooking.

15.3 AUTO Mode

15.3.1 Commissioning

1. Place the base housing on a firm, stable & flat surface.
2. Assemble the glass bowl correctly and plug in the appliance to a suitable main supply outlet.
3. Put the diced vegetables/ingredients into the glass bowl and add water as per your desired recipe, then replace the lid.
4. Press the ON/OFF key, the appliance initializing the program, then goes to 'standby' mode.

HINWEIS Please note

The Maximum fill for hot ingredients is 1400ml. During the cooking process, you can add more ingredients by lifting the measuring cup and dropping them through the opening in the lid.

WARNING Warning

Do not remove the measuring cup or add ingredients when the appliance is blending.

Place the bowl on base unit select the program

put ingredients and water start the program

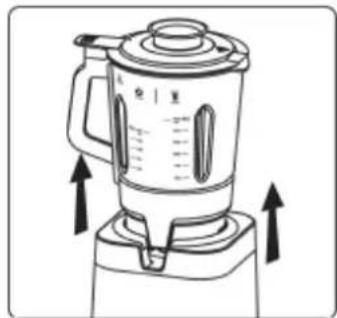

replace the lid lift up the bowl after finished

15.3.2 Chunky / thick soup

1. Press the key (P1) to select the Chunky soup programme, then the selected programme is highlighted and flashing the Start/Stop key.
2. Press the Start/Stop key to start the process, then it stop flashes and the color changed from white to red. The cooking time will decrease as time goes on.
3. The appliance cooking up the ingredients for a few minutes, then automatically start stirring the ingredients.

HINWEIS Please note

During the cooking process, you can stir at any time by pressing the key on control panel.

1. After stirring, the appliance continues the cooking process intermittently.

2. Then the last minute of the programme, the appliance will automatically start to mix the ingredients faster alternately until end of the programme.

3. Once the cooking time has ended the appliance will sound an alert (5beeps), then it will automatically switch to keep warm mode, which will keep your soup at low temperature for 20 minutes.

4. After 20 minutes of keep warm function, the appliance will sound an alert (5beeps) and then it will automatically goes into standby mode.

15.3.3 Veloute / Fine soup

1. Press the key (P2) to select the Veloute soup programme, then the selected programme is highlighted and flashing the Start/Stop key.
2. Press the Start/Stop key to start the process, then it stop flashes and the color changed from white to red. The cooking time will decrease as time goes on.
3. The appliance cooking up the ingredients for few minutes, then automatically start stirring the ingredients.

HINWEIS Please note

During the cooking process, you can stir at any time by pressing key on control panel.

1. After stirring, the appliance continues the cooking process intermittently and also stirring up the ingredients intermittently until end of the programme.
2. Then the last minute of the programme, the appliance will automatically start to mix the ingredients faster alternately until end of the programme.
3. Once the cooking time has ended the appliance will sound an alert (5beeps), then it will automatically switch to keep warm mode, which will keep your soup at low temperature for 20 minutes.
4. During this keep warm function, the appliance automatically stirs the veloute/fine soup for 1 second in every 3 minutes until the end of the keep warm program.
5. After 20 minutes of keep warm function, the appliance will sound an alert (5beeps) and then it will automatically goes into standby mode.

15.3.4 Sauce function

1. Press the key (P3) to select the sauce programme, then the selected programme is highlighted and flashing the Start/Stop key.
2. Press the Start/Stop key to start the process, then it stop flashes and the color changed from white to red. The cooking time will decrease as time goes on.
3. The appliance start to cooking up the ingredients, also start to blending the ingredients alternately.

HINWEIS Please note

During the cooking process, you can stir at any time by pressing key on control panel.

1. At the end of the programme, the appliance will sound an alert (5beeps) and then it will automatically goes to the standby mode.

HINWEIS Please note

In Auto mode, the cooking temperature, time duration and blending speed will be automatically selected according to below mentioned table.

Programme	Cooking time	Keep warm	Blending
Chunky / thick soup	30 Min.	20 Min.	Medium Speed
Veloute / fine soup	30 Min.	20 Min.	High Speed
Sauce	20 Min.	-	Low Speed

15.3.5 Ice crushing / Smoothie function

1. Press key ICE(P4), then Start/Stop key to start the process.
2. In this mode, the high speed of rotation alternatively up to 1 minute.
3. The appliance will sound an alert (5 beeps) to indicate the crushing process is completed.

15.4 EXPERT Mode

15.4.1 Commissioning

1. Place the base housing unit on a firm, stable & flat surface.
2. Assemble the glass bowl correctly and plug in the appliance to a suitable main supply outlet.
3. Put the ingredients into the glass bowl and add water, then replace the lid.
4. Press the ON/OFF key, the appliance initializing the program, then go to 'standby' mode.

15.4.2 Making soup

1. Press the key (P6) on control panel, by default the high temperature selected and dis plays a default cooking time 30 minutes.

HINWEIS Please note

To change the temperatre by press

(75^ - 85^)

high temperature (90^ - 100^)

1. Adjust the cooking time using key + from 1 minute to 60 minutes. Default setting is 30 minutes. If you want to increase or decrease the cooking time, press the + key until your desired cooking time is selected.

2. If you want to change the timer faster, keep maintaining the ^+ key.

3. After selected the cooking temperature and cooking time, then Start/Stop key to start the process.

HINWEIS Please note

During the cooking process, you can stir at any time by pressing key on control panel.

1. Once the cooking time has ended the appliance will sound an alert(5beeps), then it will automatically switch to keep warm mode, which will keep your soup at low temperature for 20 minutes.
2. After 20 minutes of keep warm function, the appliance will sound an alert(5beeps) and then it will automatically goes into standby mode.

15.4.3 Blending/Mixing

1. To blend the ingredients according to your preference, press the key control panel, by default the Medium(2) speed will be selected. (P7) on
2. Press key + to adjust the speed of blending function. In this blend mode, can select three different speeds such as LOW(1), MEDIUM(2), HIGH(3) accordingly and no time duration.
3. Put the ingredients into the glass bowl, cover up with lid and make sure it fits properly.
4. Once selected the blending speed, press key to start blending. If you keep the finger on this key, the blending will continue, if you remove the finger from this key it will stop.
5. The blending speed and time will make the texture of the preparation.

HINWEIS Please note

For safety reasons, the blending function in manual operation will stop automatically after few seconds.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

VORSICHT Attention

Please observe the safety instructions, before cleaning your device

Never immerse the base, glass bowl, power cord or mains plug into water.
- Do not clean glass bowls, interface and base housing with abrasive side of a sponge or pad. Only use soft cloth to clean.

▲VORSICHT Attention

• Do not use any harsh abrasives or strong household cleaners or any abrasive tools as these may damage the non-stick coating surface.
  ▶ Handle the blades inside the glass bowl carefully when cleaning them; they are very sharp.
  Do not put the glass bowl in the dishwasher.

16.2 Cleaning in AUTO Mode

1. Fill the glass bowl with 1200ml of water with 3 or 4 drops of washing-up liquid.
2. Rinse the inside of the bowl using 'cleaning brush' to remove residue sticking on glass bowl.
3. Wash the lid in water with washing up liquid and rinse it using 'cleaning brush', then cover the glass bowl with lid.
4. Select auto cleaning function by pressing the key AUTO (P5) on control panel.
5. Press Start/Stop key to start the cleaning process.
6. The appliance will start to blending the liquid at the beginning of the cleaning process, and it will heat up the water up to 2 minutes, then automatically start blending the liquid alternatively until end of programme. This may help release any food that may be on the underside of the blades.
7. Once the programme is complete, unplug the appliance.
8. Lift the glass bowl from base housing unit and place it on flat surface.

9. Remove the lid and finish cleaning the glass bowl with a sponge, and dry them thoroughly.

10. Clean the base housing unit with moist damp soft cloth.

HINWEIS Please note

To clean easily, wash the removable parts(lid, gasket & measuring cup) in warm soapy water immediately after use.
Do not use a chemical descaler or a coffee machine descaler on the bowl non stickheating plate.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

17.1 Security advices

▲VORSICHT Attention

Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

17.2 Troubleshooting

The Device does not work.
The appliance is not plugged in.	Check the appliance mains plug is connected in the socket properly.
The glass bowl is not placed on base unit.	Place the glass bowl properly with guided grooves.
The lid is not placed/ fitted well onto the glass bowl.	Place the lid properly onto the glass bowl and make sure it fits properly.
The ingredients have not blended well.
The ingredients exceeded the Max indication in the glass bowl.	Remove some of the ingredients and ensure the ingredients are placed evenly over the bottom of the glass bowl.
The water or cooking liquid is not enough to blend well	Make sure the water/liquid level is correct as mentioned in the recipe.
The food is burnt.
The water or cooking liquid is not enough.	Make sure the water/ cooking liquid level is correct as mentioned in the recipe.
No response or the sensitivity of control panel is getting low by pressing several times on function keys.
Appliance is under electromagnetic interference.	Unplug the appliance from power socket. Restart after few minutes.
Dirt on control panel.	Clean the panel with soft cloth.

AVORSICHT Attention

If above mentioned steps don't solve the problem, please contact your customer service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the

environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
• Ensure that your old device is stored safely away from children until it is taken away.

19 GB Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device.

Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery.

All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device	Blender with cooking function CB 2200
Model 1330-0
Item No.: 2710
Mains data	220 -240 V, 50-60 Hz
Heating power 1000 W
Motor power 500 W
Capacity hot 1400 ml
Capacity cold 1750 ml
External measurements (W x H x D): 23,5 x 43 x 19 cm
Net weight 5,35 kg

Mode d'emploi

▲WARNUNG WAARSCHUWING
