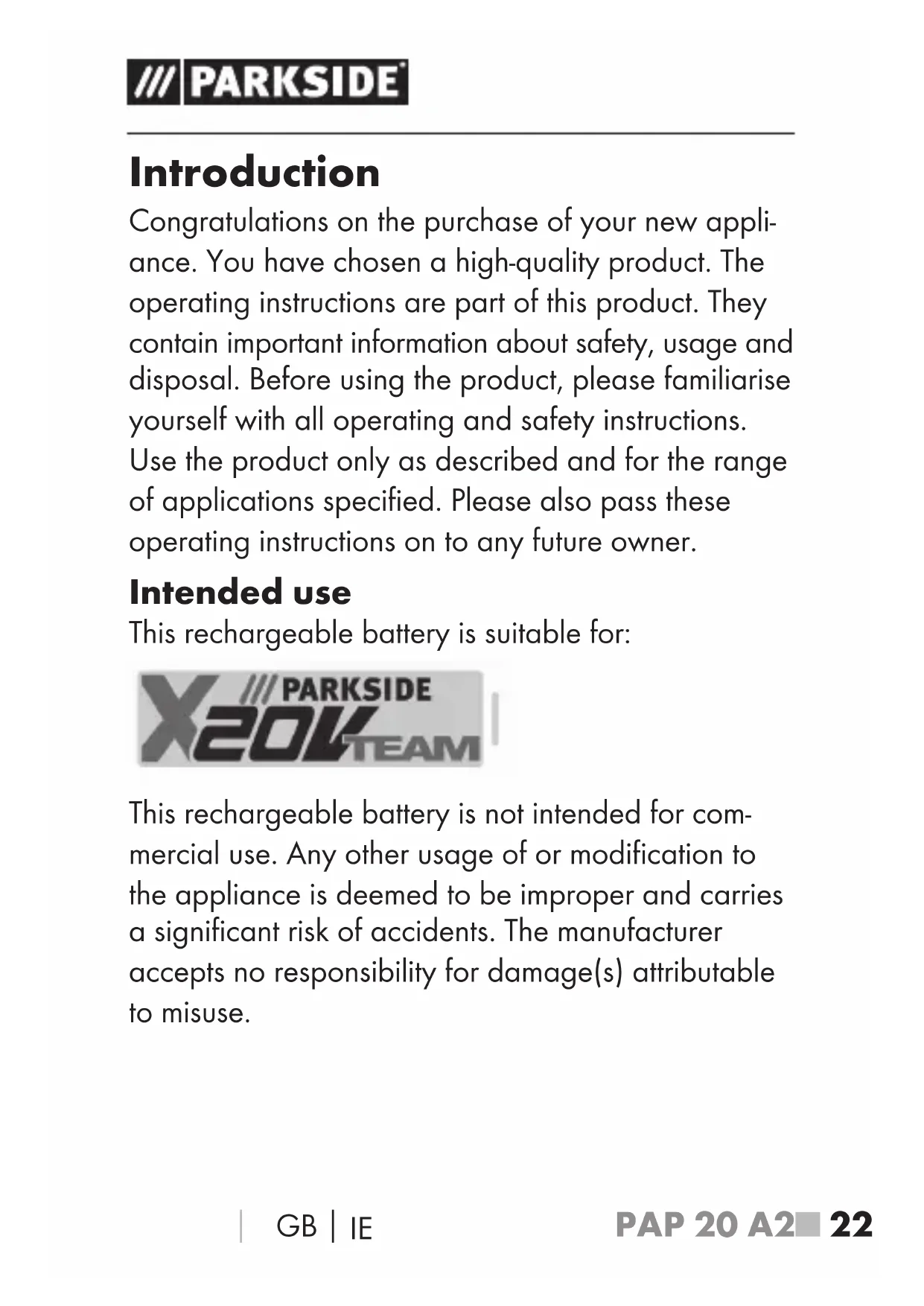

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This rechargeable battery is suitable for:

This rechargeable battery is not intended for commercial use. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Features

1 Battery pack
2 Battery charge level button
3 Battery display LED
4 High-speed charger (not supplied)
Red charge control LED
Green charge control LED

Package contents

13Ahbattery
1 set of operating instructions

Technical data

3 Ah battery: PAP 20 A2

Type:

LITHIUM

Rated voltage: 20 V

$$ = = (D C) $$

Capacity:

3.0

Ah

Cells:

10

To charge the battery pack, use only the following high-speed battery charger:

X20V Team Serie

(not supplied)

PLG 20 A2:

INPUT:

Rated voltage: 230 - 240 ~V 50 ~Hz (AC)

Rated power

consumption: 85 W

Fuse (internal): 3.15 A

OUTPUT:

Rated voltage: 21.5V (DC)

Rated current: 3.5 ~A

Charging time: approx. 60 min

Protection class: II / (double insulation)

General Power Tool SafetyWarnings

WARNING!

■ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

ON! RISK OF EXPLOSION!

Never charge non-rechargeable batteries!

ct the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture.

There is a risk of explosion.

Extended safety guidelines

• Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
• Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ C ( 265^ F ) can cause an explosion.
• Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions.

Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

Charging the battery pack (see fig. A)

CAUTION!

Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

NOTE

Never charge the battery pack if the ambient temperature is below 10^ or above 40^ . If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .

Connect the battery pack to the high-speed battery charger (4 see fig. A).
Insert the power plug into the socket. The control LED 5 lights up red.
The green LED 6 indicates that the charging process is complete and the battery pack 1 ready.

CAUTION!

If the red control LED 5 flashes, this means that the battery pack 1 as overheated and cannot be charged.
If the red and green control LED 5 6 both flash, this means that the battery pack 1 is broken.

Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Checking the battery charge level

Press the battery charge level button to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED s follows:
RED/ORANGE/GREEN = maximum charge RED/ORANGE = medium charge RED = low charge - charge the battery

Maintenance and storage

If you do not intend to use the battery for an extended period, remove it from the appliance and store it in a clean, dry place out of direct sunlight.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage environment is cool and dry.

Never try to repair damaged batteries.

Maintenance of batteries should only be carried out by the manufacturer or an approved customer service centre.

This appliance has a 6 months warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within 6 months of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

• You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

• You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 • DE - 44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

The packaging protects the device from damage during transport. The packaging materials have been selected for their environmental friendliness and disposal attributes, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.

Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics,

20-22: Paper and cardboard,

80-98: Composites

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Notes concerning the EC Declaration of Conformity

This device complies with the basic requirements and other relevant provisions of the RoHS Directive 2011/65/EU.*

The complete original Declaration of Conformity is available from the importer.

CE

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Ordering a replacement battery

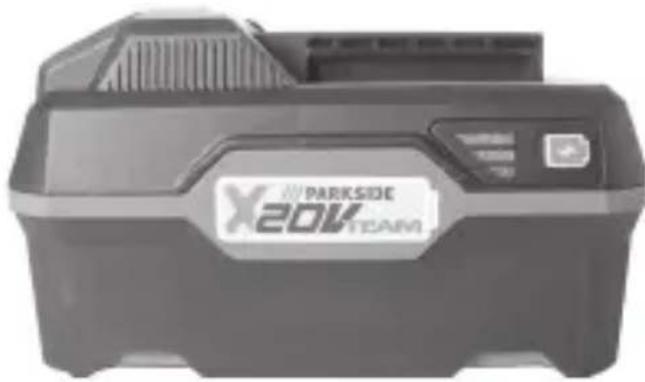

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

NOTE

• Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

The promotion is limited to one battery per customer/appliance and also to a timeline of two months after the promotion period. Thereafter, the replacement battery can be ordered as a replacement part under other conditions.

Telephone ordering

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN 12345) in case of questions. The article number can be found on the type plate or the title page of these instructions.
