USER MANUAL ASCS 6.3 Fein

OBJ DOKU-0000001098-002.6m Page 1 Wednesday, January 13, 2016 2:07 PM

▶ ASCS4.8 7 113 10 ▶ ASCS6.3 7 113 11

CE

EN 60745-1:2009 + Cor.:2009 + A11:2010

EN 60745-2-2:2010

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-2:1997 + Cor.:1997 + A1:2001 + A2:2008

EN 61000-4-2:2009

EN 50581:2012

2011/65/EU, 2006/42/EG,

2004/108/EG (→ 2016-04-19), 2014/30/EU (2016-04-20 →)

0714

Chuib

Hammersdorf

Quality Manager

Dr. Schreiber

Director of Advanced Technology

FEIN Service

C. & E. Fein GmbH

Hans-Fein-Straße 81

3D rendering of two robotic arm actuators with articulated arms and control buttons (no text or symbols visible)

2

ASCS4.8 ASCS6.3
7 113 10 7 113 11

	V=44,4 18
UV 14,4 18	---
	/min, min^-1 ,rpm,r/min	0-2500 0-1700
n_0
	/min, mln^-1 ,rpm,r/min	0-2000 0-1500
n_1
M... Nm 20/7 30/10
	kg 1,6 1,8
		1/4'' 14''
	mm 4,8 6,3
L_pA	dB 71 73
K_pA	dB 3 3
L_wA	dB 82 84
K_wA	dB 3 3
L_pCpeak	dB 88 92
K_pCpeak	dB 3 3
a_h	m/s^2	0,7 1,0
K_a	m/s^2	1,5 1,5

de

13

pt

32

tr

51

sl

73

et

94

th

113

en

16

el

35

hu

54

sr

76

lt

97

ja

117

fr

19

da

39

cs

58

hr

79

lv

100

hi

120

it

23

no

42

sk

61

ru

82

zh(

104

ar

125

nl

26

sv

45

pl

65

uk

86

zh(

107

[Non-Text]

[Non-Text]

es

29

fi

48

ro

69

bg

90

ko

110

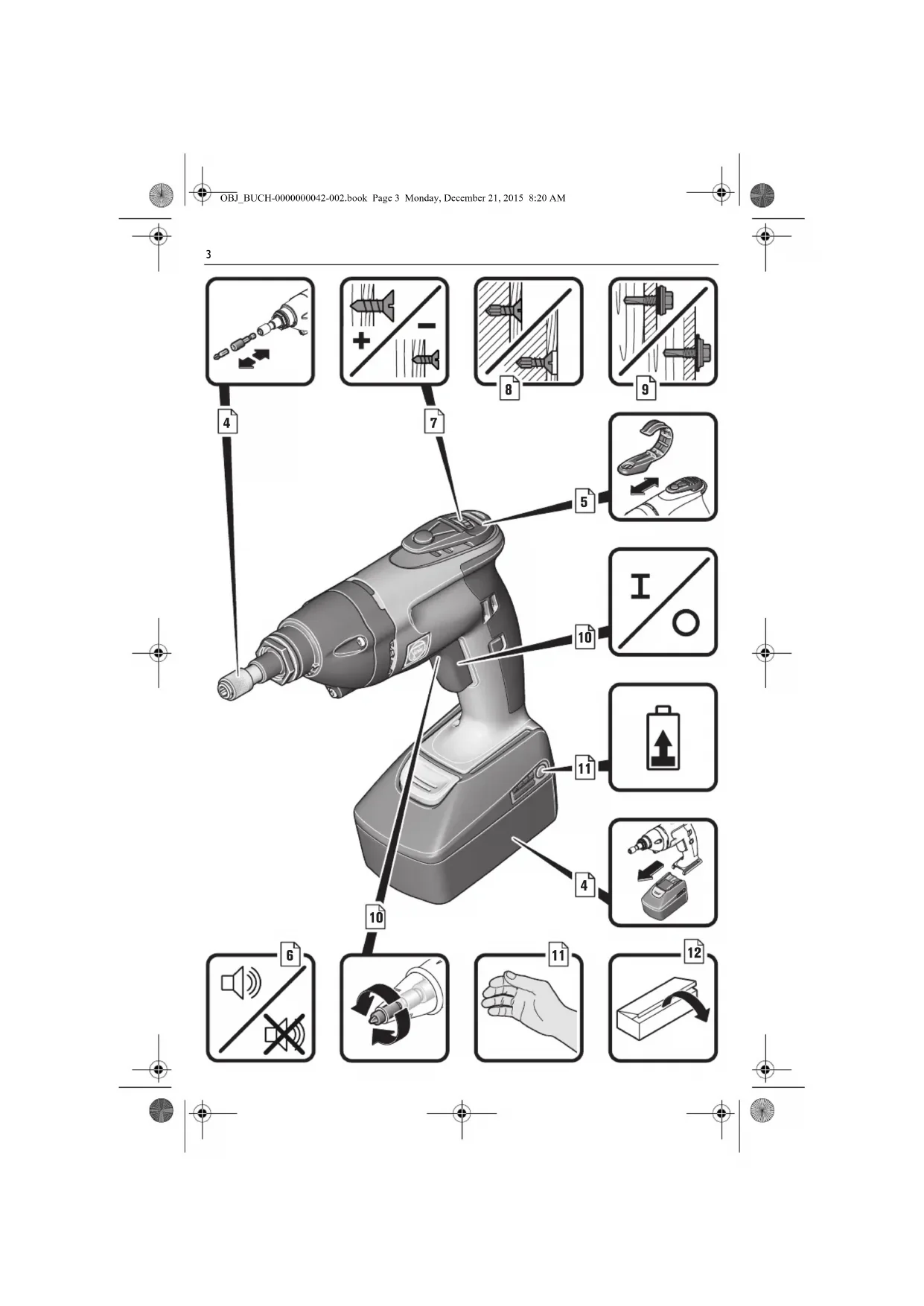

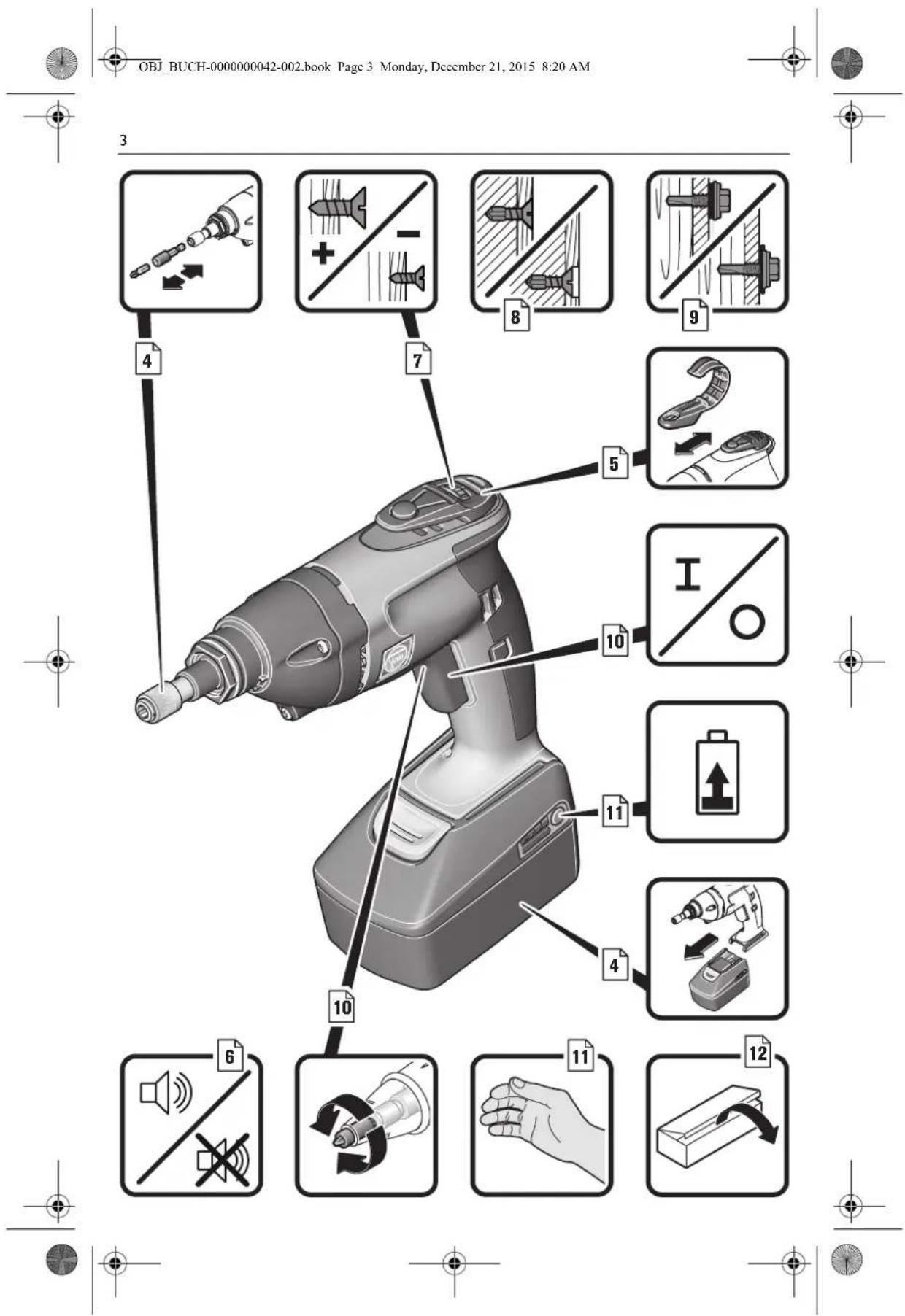

OBJ BUCH-000000042-002.book Page 3 Monday, December 21, 2015 8:20 AM 3 4 7 8 9 5 10 I/O 11 4 6 10 11 12

4

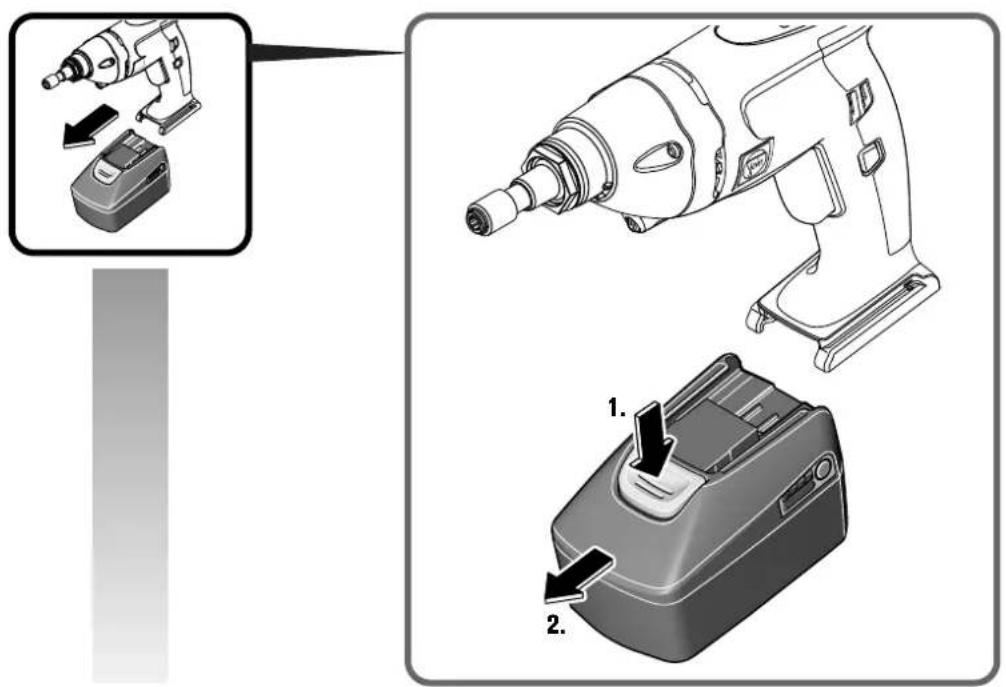

Diagram showing a drill press and battery assembly process with labeled parts 1 and 2

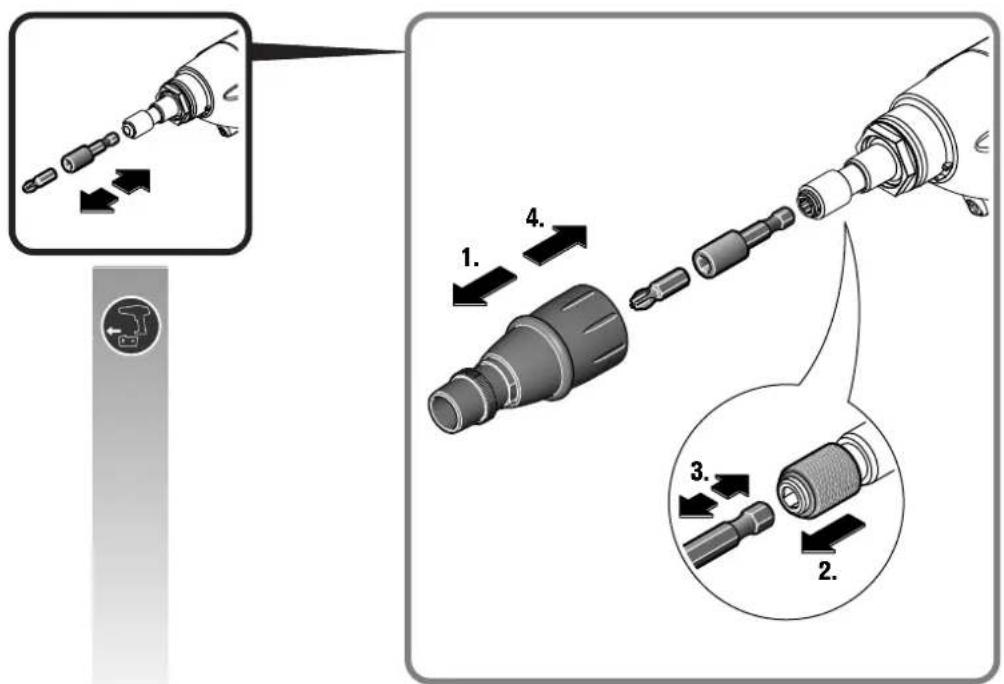

Diagram illustrating the step-by-step installation of a drill bit with labeled parts and directional arrows indicating motion.

OBJ BUCH-0000000042-002.book Page 5 Monday, December 21, 2015 8:20 AM

5

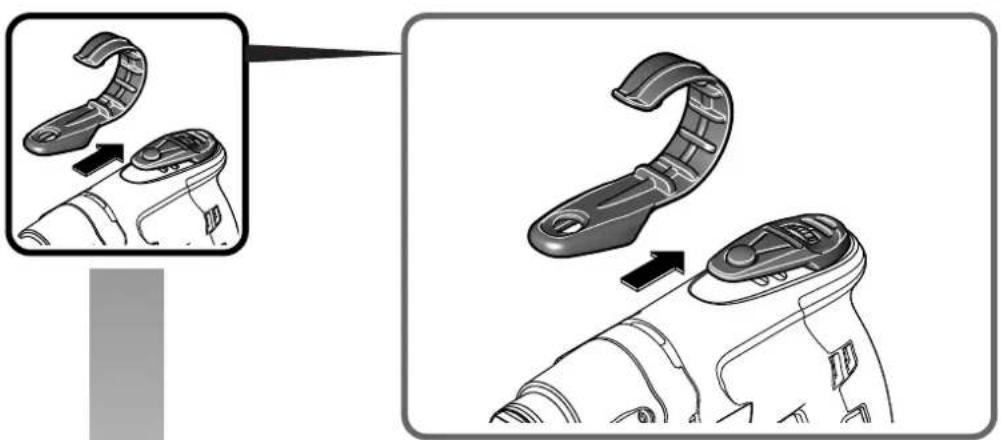

Diagram illustrating a mechanical component being adjusted, showing two steps with arrows indicating motion direction.

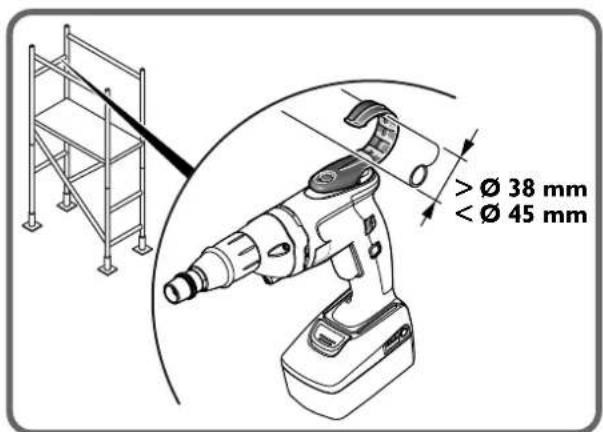

>Ø 38 mm <Ø 45 mm

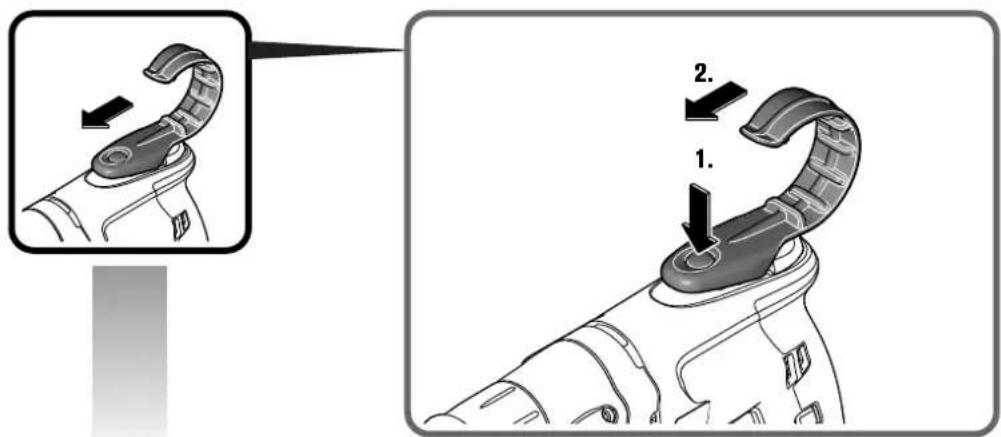

Diagram illustrating a device grip adjustment step with labeled arrows and component details

6

OBJ BUCH-0000000042-002.book Page 7 Monday, December 21, 2015 8:20 AM

7

Diagram illustrating a mechanical or electrical setup with labeled components and a vertical scale indicating maximum values.

8

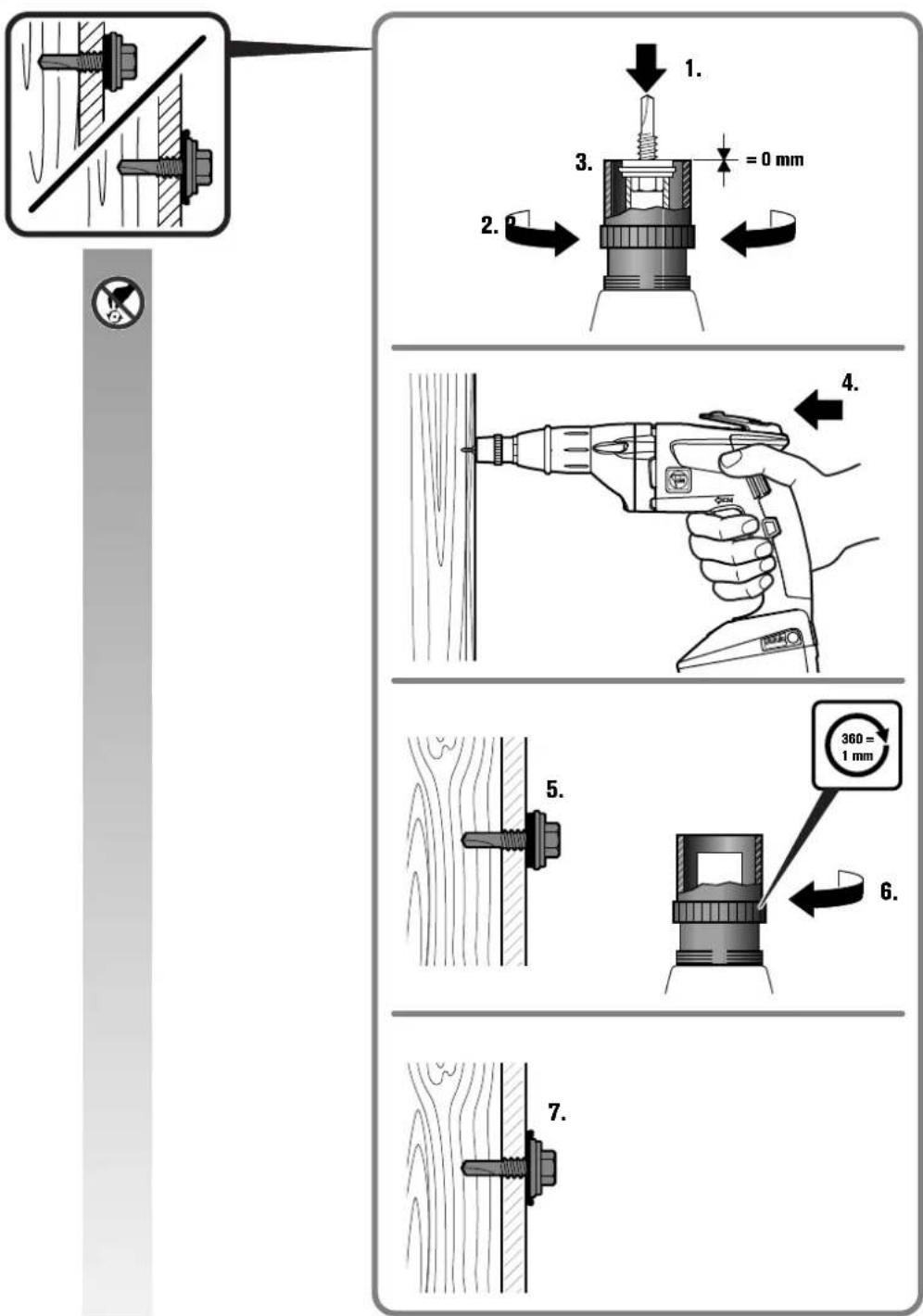

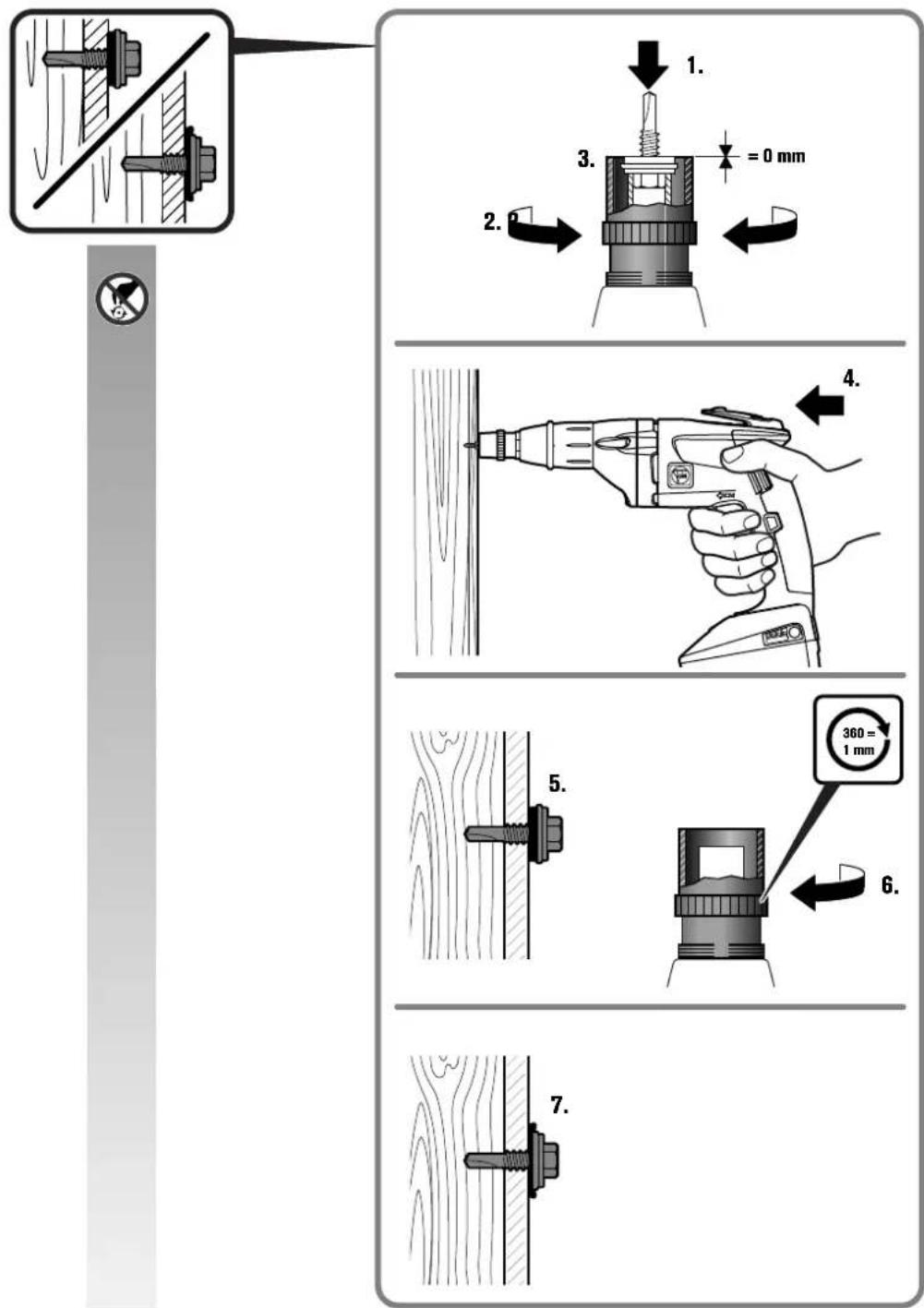

1. 3. = 0 mm 2. 4. 5. 6. 360 = 1 mm 7. 7.

1. 2. 0 mm 3. 4. 5. 6. 7. 360 = 1 mm

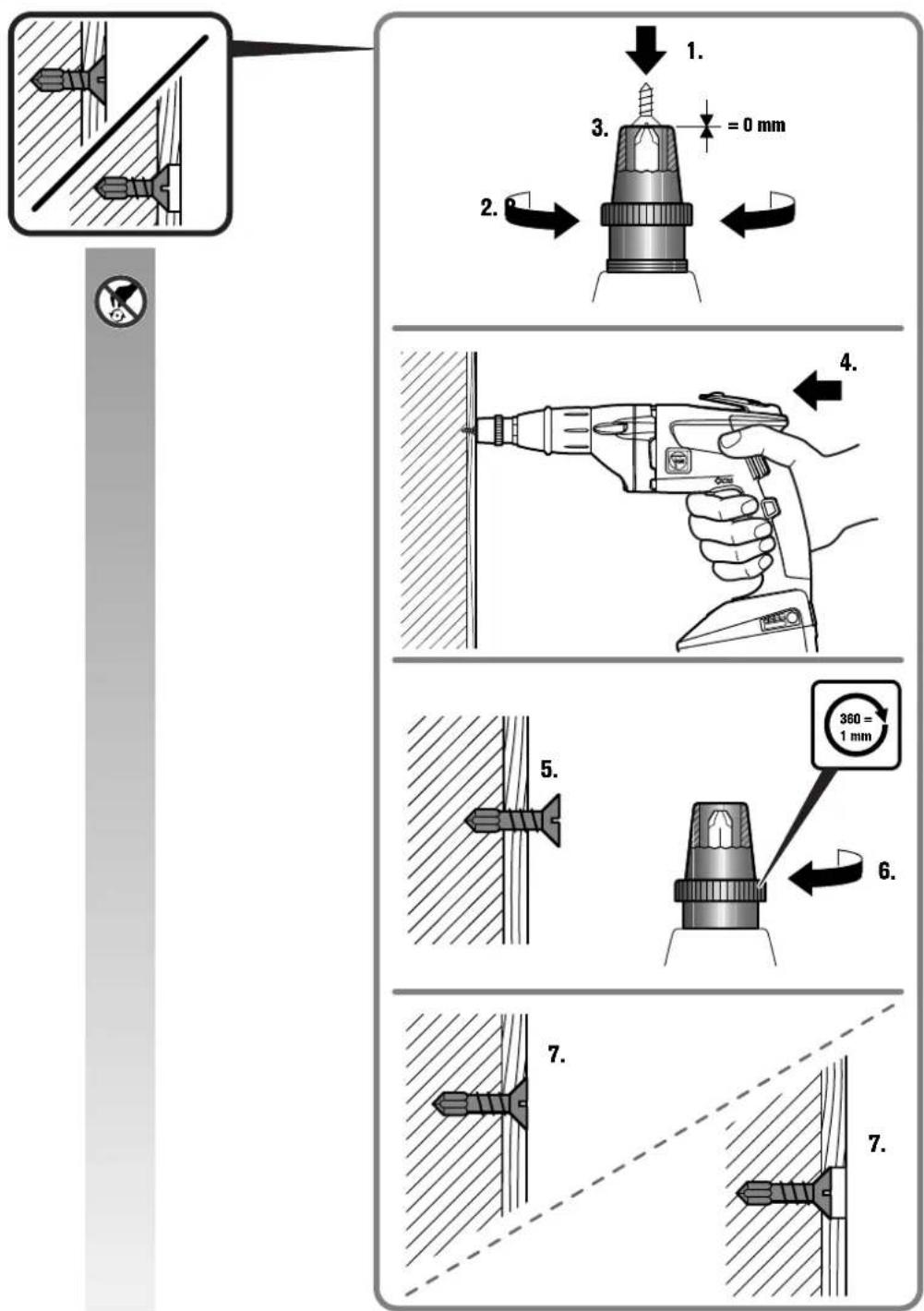

1. 2. 0 3. = 0 mm 4. 5. 6. 360 = 1 mm 7.

1. 2. 0 3. = 0 mm 4. 5. 6. 7. 360 = 1 mm

OBJ BUCH-0000000042-002.book Page 10 Monday, December 21, 2015 8:20 AM

10

Diagram showing a mechanical device with rotating components and a close-up view of the internal structure (no text or symbols)

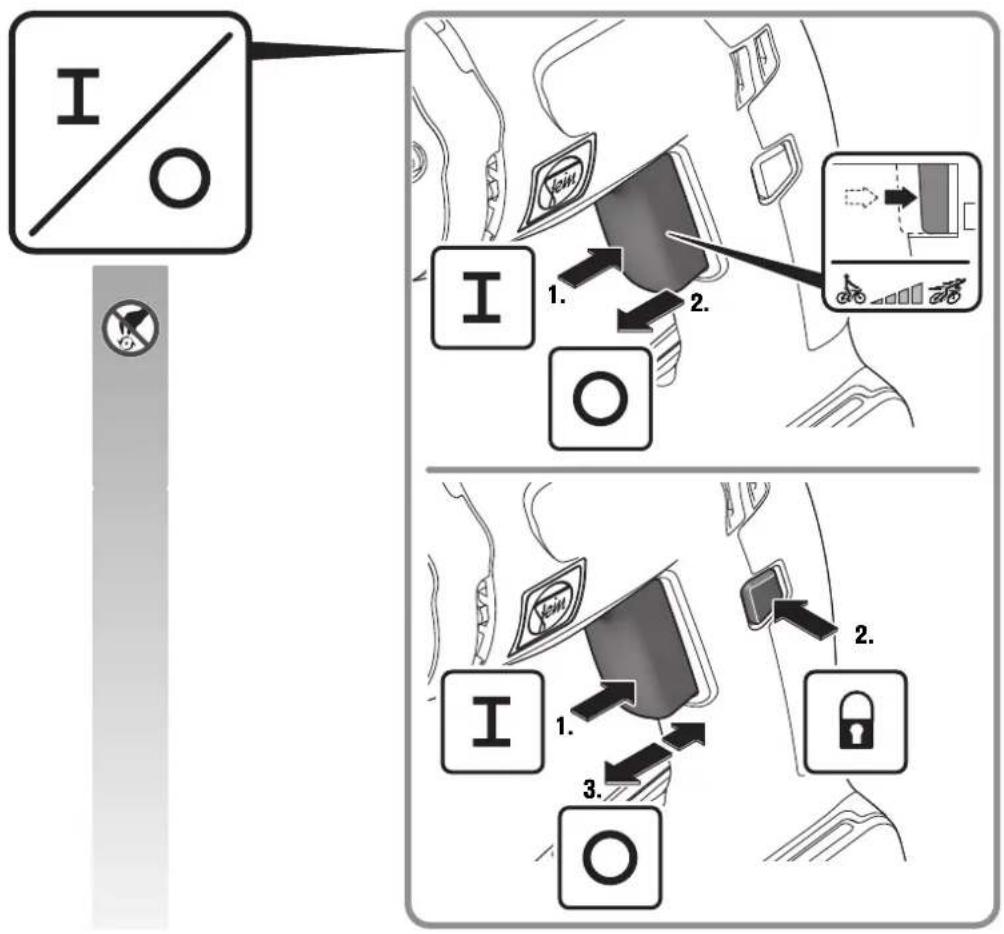

I O 1. 2. I O 1. 3. 2. I O

OBJ_DOKU-0000001101-002.fm Page 11 Monday, January 18, 2016 3:08 PM

11

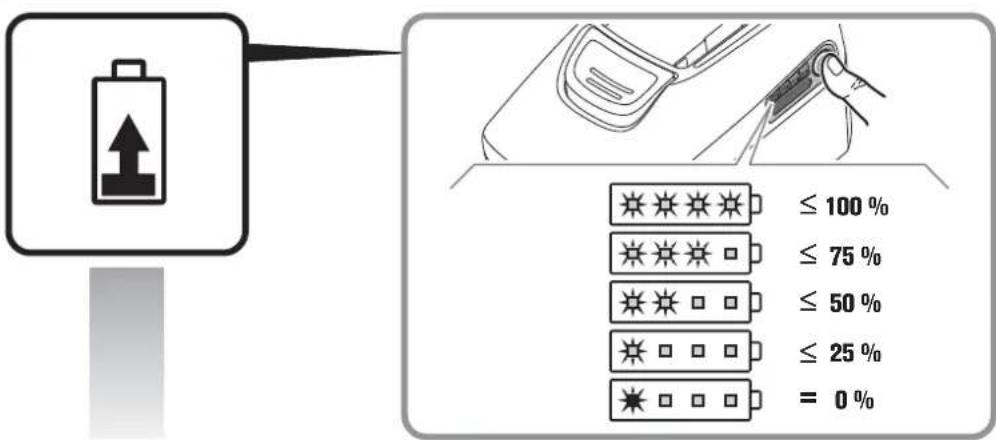

≤ 100 % ≤ 75 % ≤ 50 % ≤ 25 % = 0 %

Illustration showing a hand holding a tool and a handheld device with warning labels, likely illustrating a manual or diagnostic procedure.

12

ASCS4.8 ASCS6.3 ASCS4.8 ASCS6.3 ASCS6.3 ASCS4.8 ASCS4.8 ASCS6.3 ASCS4.8 ASCS6.3 ASCS4.8 ASCS6.3

Original Instructions for Cordless Screwdriver.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Do not touch the rotating parts of the power tool.
	Observe the instructions in the text or graphic opposite!
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Before commencing this working step, remove the battery from the power tool. Otherwise there may be danger of injury caused by unintentional starting of the power tool.
	Use eye protection during operation.
	Do not charge damaged batteries.
	Keep the battery away from fire. Protect the battery against heat, e. g. against continuous Intense sunlight.
	Observe the information in the adjacent text!

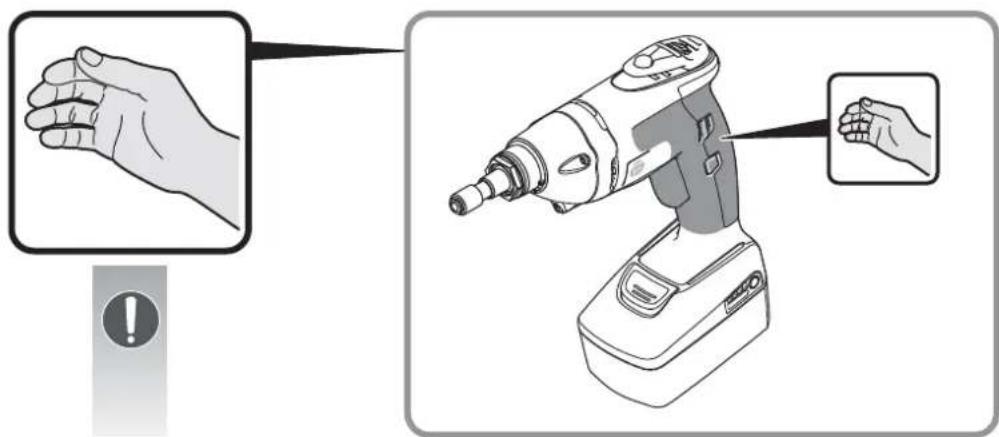

	Gripping surface
CE	Confirms the conformity of the power tool with the directives of the European Community.
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Recycling symbol: designates recyclable materials
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Battery type
	Audio signal switched on
	Audio signal switched off
	Low speed
	High speed
	Reduce torque
	Increase torque

Character Unit of measurement, international		Unit of measurement, national	Explanation
UV			C v o
n_0	/min, min ^-1 , rpm, r/min	rpm No-load speed
n_1	/min, min ^-1 , rpm, r/min	rpm Speed, full load
M... Nm Nm Torque○	(hard/soft screwdriving application)inch inch Hexagon socket tool holder
∅mm	mm mm Screw diameter
	kg kg Weight according to EPTA-Procedure level		01
L_pA	dB dB Sound pressure level
L_wA	dB dB Sound power level
L_pCpeak	dB dB Peak sound pressure level
K...			Uncertainty
a	m/s2	m/s2	Vibrational emission value according to EN 60745 (vector sum of three directions)
a_h	m/s2	m/s2	Vibrational emission value (screwdriving)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number

3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

Hand-guided screwdriver for screwing in and unscrewing screws, especially for self-drilling and self-cutting screws, in weather-protected environments using the application tools and accessories recommended by FEIN.

Special safety instructions.

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not machine any material containing asbestos. Asbestos is cancerogenic.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Use and handling of the battery (battery pack).

To avoid hazardous situations such as burns, fire, explosion, skin injuries, and other injuries when handling the battery, observe the following instructions:

Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.

When battery fluid from a damaged battery has come into contact with objects close by, check the respective components, clean them or replace them as required.

Keep the battery away from heat and fire. Do not store the battery in direct sunlight.

Do not remove the battery from its original packaging until it is going to be used.

Before any work on the machine itself, remove the battery from the power tool. If the power tool accidentally starts, there is danger of injury.

Remove the battery only when the power tool is switched off.

Keep the battery away from children.

Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth.

Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion.

Follow the safety warnings in the operating instructions of the battery charger.

en

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Operating Instructions.

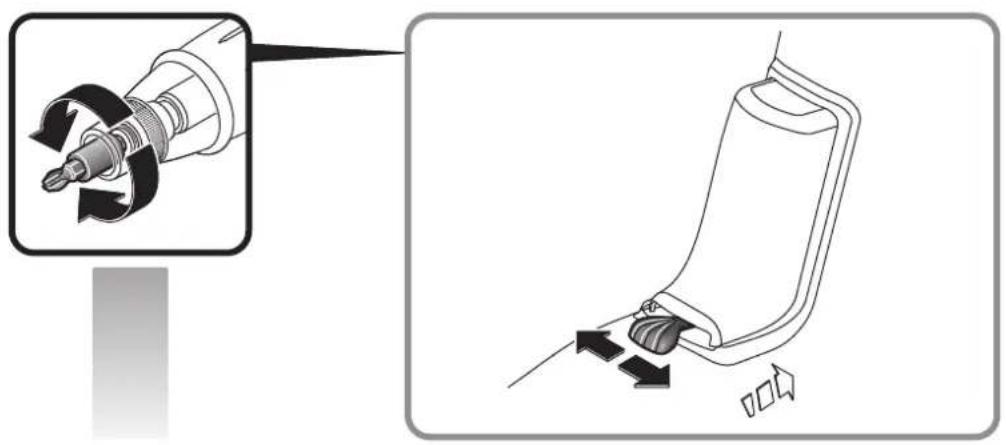

Adjust the rotation selector switch only when the machine is at a complete stop.

To avoid accidental starting, e. g., during transport, set the rotation selector switch to the centre position.

When overheated, the machine runs with short, low-power impulses. Allow the machine to cool down at no-load speed.

For reliable working results, always carry out screwdriving operations using the depth stop.

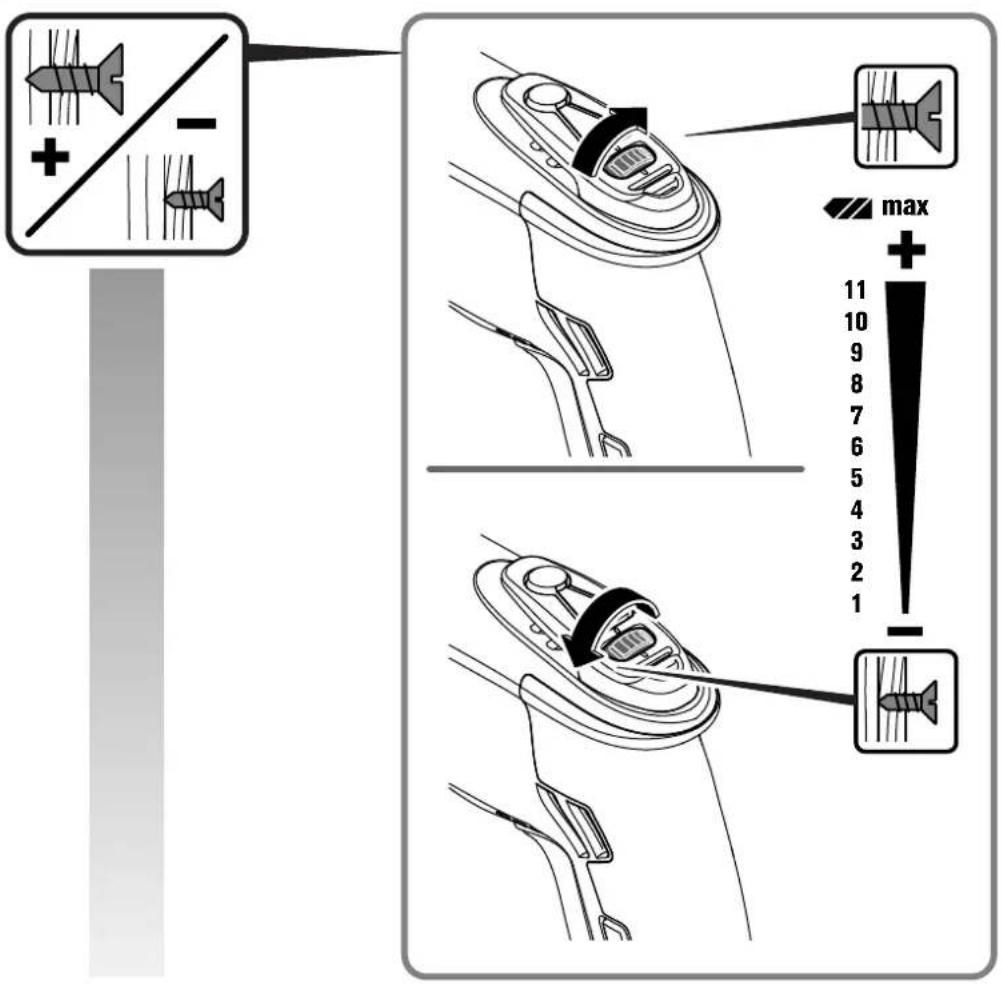

Electronic torque shut-off (see pages 6-7).

The electronic torque shut-off can be used when working without depth stop.

Adjust the torque only when the machine is at a complete stop.

The motor switches off when reaching the set torque and an audio signal sounds. After the shut-off has taken place, release the on/off switch and press it again for the next screwdriving operation.

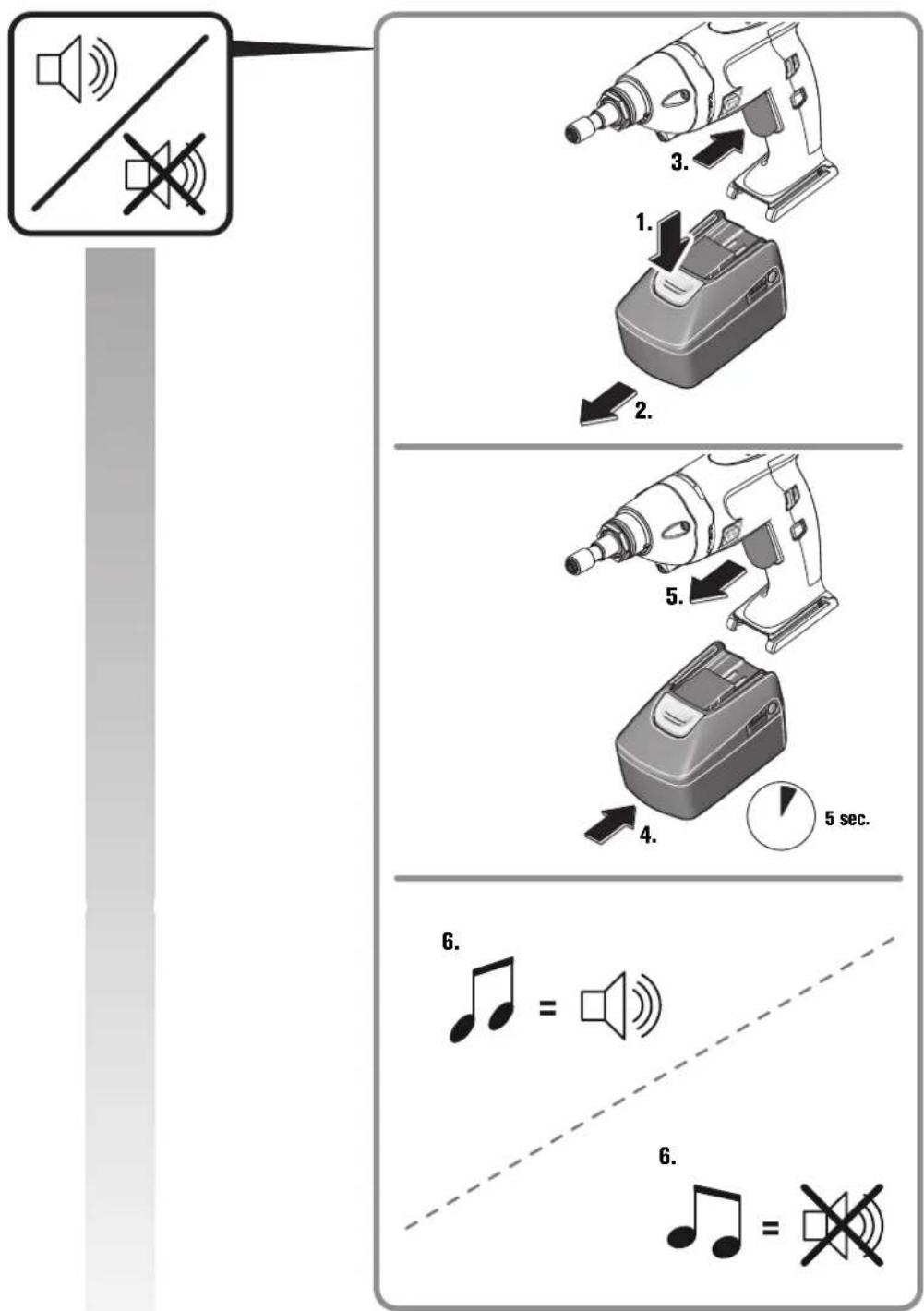

The audio signal can be switched on and off.

The electronic shut-off is deactivated when working in the “ torque level.

To achieve good working results, press the power tool with sufficient force against the screw.

Handling the battery.

Operate and charge the battery only within the battery operating-temperature range of 0°C - 45°C (32°F -

113°F). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.

LED indicator	Meaning Activity
1 – 4 green LED	Percentage of charge condition	Operation
Continuous red light	Battery is almost empty	Charge battery

LED indicator	Meaning Activity
Red flashing light	Battery is not ready for operation	Bring the battery into the battery operating-temperature range, then charge

The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool.

Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air.

If required, you can change the following parts yourself: application tools, depth stop, battery, belt clip

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

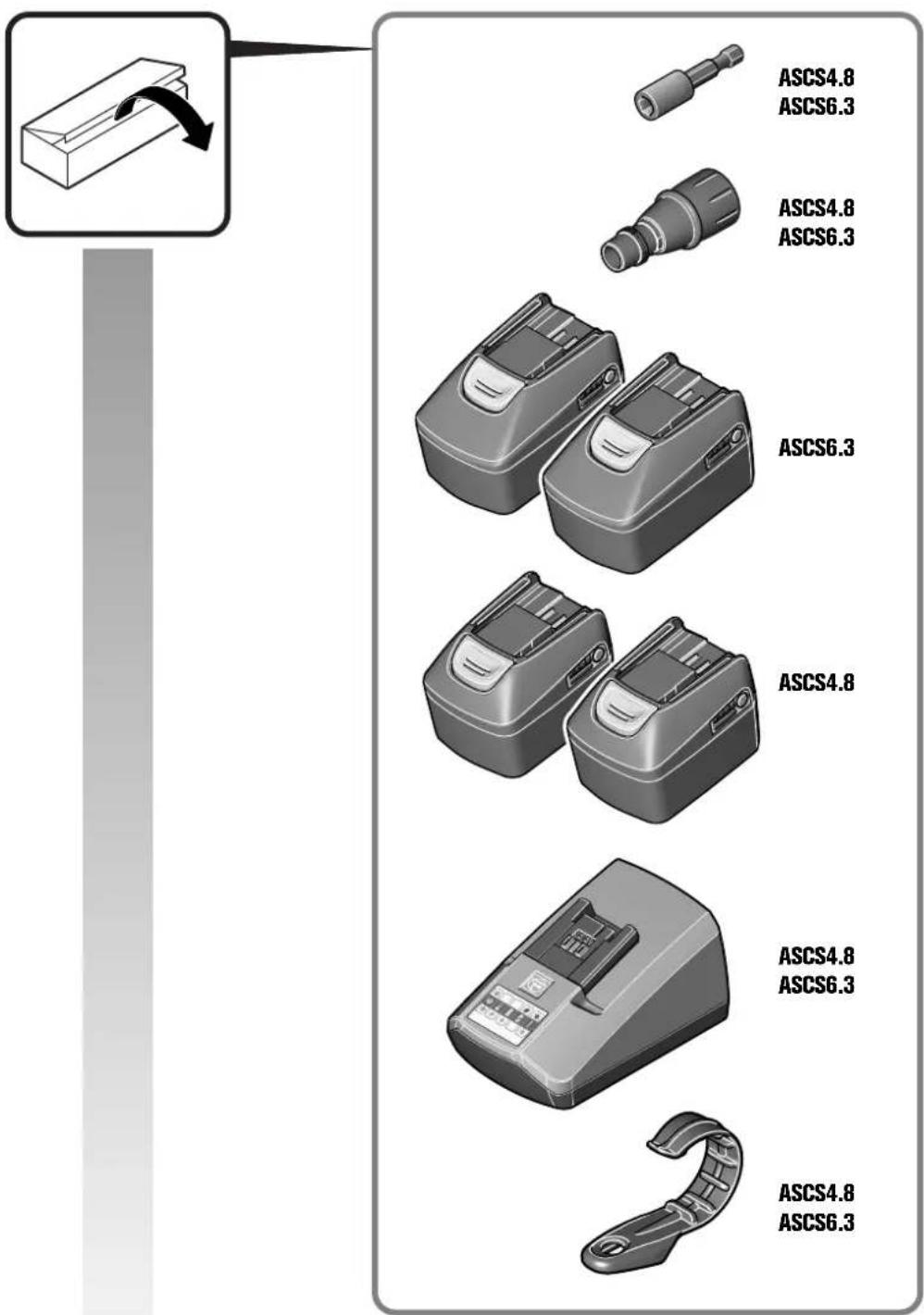

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. Fein GmbH, C-DB_IA, D-73529 Schwäbisch Gmünd

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.

Dispose of batteries only when discharged.

For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.
