USER MANUAL GW14796 Gewiss

PROGRAMMING WITH ETS SOFTWARE 16

TECHNICAL DATA 17

GENERAL DESCRIPTION

The KNX 1 channel 16 A Actuator - flush-mounted, allows you to activate/deactivate an electrical load using 1 16 A relay fitted with 1 output exchange contact (1 NO/NC). The relay switching command can be given by Building Automation control or sensor devices using the KNX/EIB bus, or they can be generated locally using the front button. The actuator is powered by the bus line and is fitted with a green LED which indicates the output status and an amber LED for night localisation. This device sends to the bus information on the relay status (ON = NO contact closed, 0FF = NO contact open) at the ignition, at the reception of a command and when it is commanded via the local button.

WARNING: the local command buttons are enabled only when the BUS power is available.

Functions

The actuator is configured by the ETS software to achieve one of the functions listed below.

Switching:

• Timing of stairway lights with option to set the length of the time via bus
• timing of stairway lights with off prewarning function
• activation/deactivation delay
• flashing

Scenes:

• Memorising and activation of 8 scenes (value 0-63)
• Enabling/disabling memorising of scenes via bus

Priority controls:

• Setting of output relay value parameters at the end of an override

Block command:

• Setting of the blocked object value and the output relay value at the end of the block

Logic functions:

• AND/NAND/OR/NOR logic operations with command object and logic operation result
• AND/NAND/OR/NOR/XOR/XNOR logic operations up to 4 logic inputs

Output status:

• Sending to bus with settable parameters

GENERAL DESCRIPTION

Safety functions:

• Periodic monitoring of input object

Other functions:

• Output behaviour setting during bus blackout/reinstatement
• Local command button behaviour settings
• Priority settings for input objects

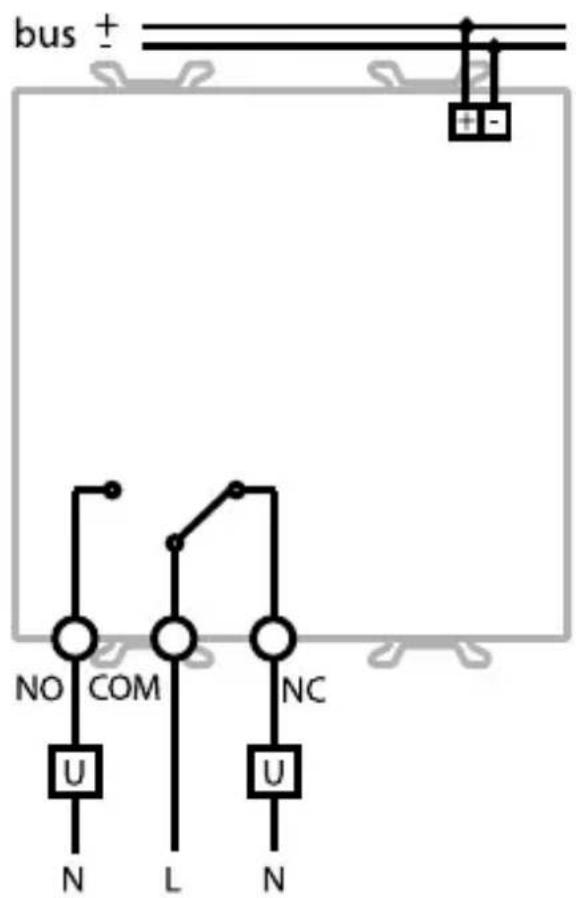

Connection diagram

INSTALLATION

WARNING: only qualified personnel are permitted to install this device, according to the regulations in force and guidelines provided for KNX/EIB installation in the Technical Manual.

Electrical connections

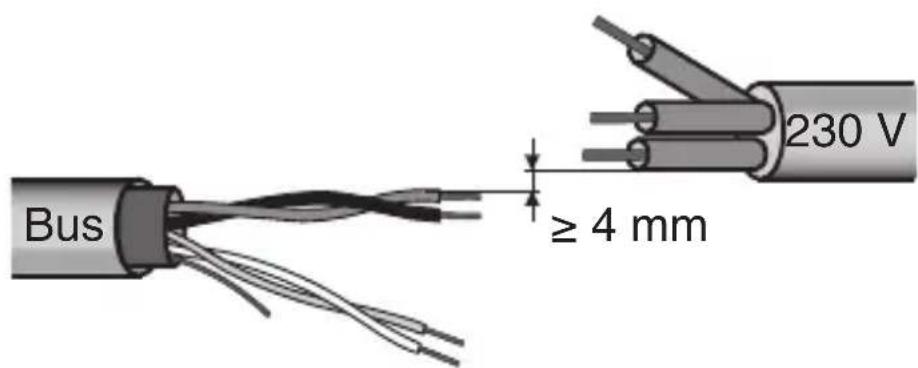

Minimum bus distance - electrical power line

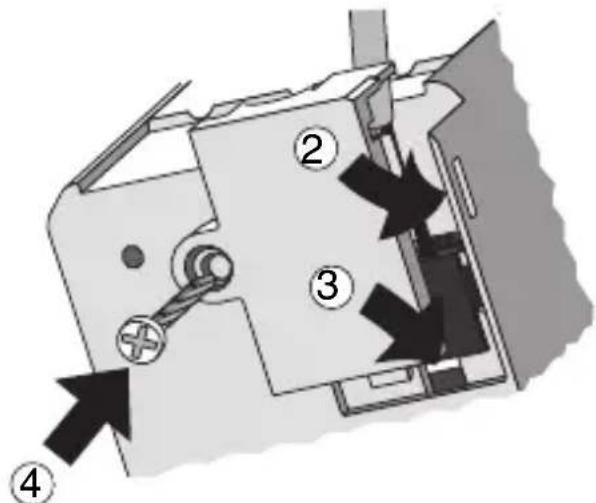

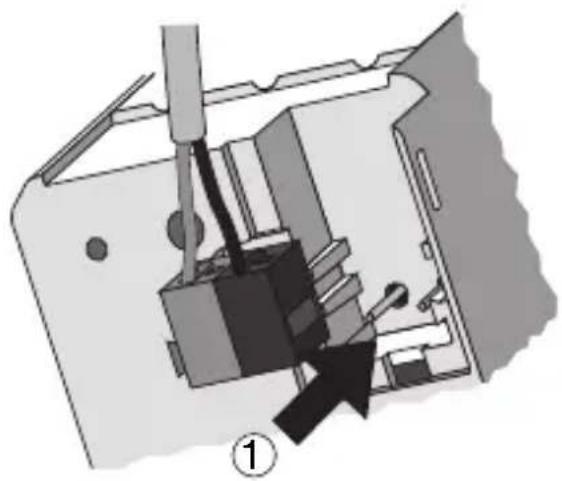

Slot in terminal fixing

INSTALLATION

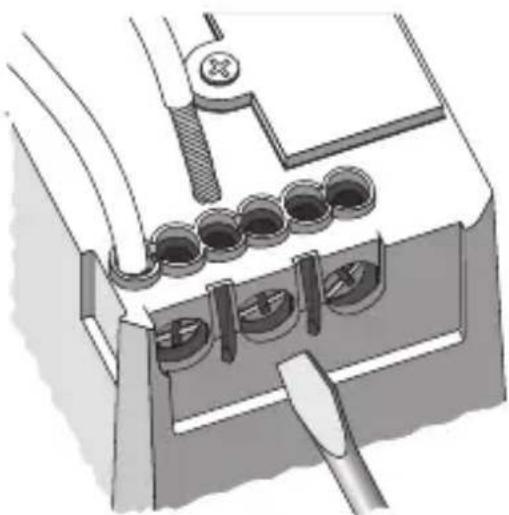

Loads connection

Completing installation

Insert the devices into a Chorus support, making sure the local command button is at the top.

Complete the installation with other Chorus devices or hole covers and fix it to the relative container (flush-mounted box, wall-mounted box etc).

Apply the finish plate.

PROGRAMMING WITH ETS SOFTWARE

This device must be configured using the ETS software.

Detailed information on the configuration parameters and their values can be found in the

Technical Manual.

TECHNICAL DATA

Communication KNX/EIB Bus

Power Supply By KNX/EIB Bus, 29 V dc SELV

Bus cable KNX/EIB TP1

Bus current consumption 5 mA max

Control elements 1 mini physical address programming key,

1 relay local command buttons

Display elements 1 red physical address programming LED,

1 green output status indicator LED,

1 amber LED for night localisation

Actuator element 1 NO/NC 16 A relay with potential free contact

Output contact 1 NO/NC 16 A (AC1) / 10 A (AC15)

Max current per load type Resistive load: 16 A

Incandescent lamps: 10 A

Uncompensated fluorescent lamps: 4 A

Fluorescent lamps with electronic transformers: 4 A

Not suitable for compensated fluorescent lamps

and discharge lamps; please use an auxiliary relay to control such lamps

Motors and reduction units: 10 A

Ambit of use Indoors, dry places

Operating temperature -5 ÷ +45 °C

Storage temperature -25 ÷ +70 °C

Relative humidity

Max 93% (no condensation)

Bus connection

Slot in terminal, 2 pin 1 mm

Electrical connections

Screw terminals, max cable width: 4mm^2

Protection rating

IP20

Dimensions

2 Chorus modules

Reference standards Low Voltage Standard 2006/95/CE

Electromagnetic Compatibility Standard

2004/108/CE

EN50428, EN50090-2-2

Certifications

KNX/EIB

SOMMAIRE

page

DESCRIPTION GENERALE 20

INSTALLATION 22

PROGRAMMATION AVEC LOGICIEL ETS 24

PROGRAMMATION AVEC LOGICIEL ETS

Communication Bus KNX/EIB

Alimentation Avec bus KNX/EIB, 29 V cc SELV

Cable bus KNX/EIB TP1

Cable bus KNX/EIB TP1
