Product Type	Universal USB adapter for 5 V devices
Brand	Philips
Model	SCM4480
Dimensions (H x W x D)	70.3 x 55.5 x 35.5 mm
Weight	70 g
Input power	110-240 V AC, 50/60 Hz
Output power	5.6 V DC, 450 mA max.
Operating temperature	0 °C to 45 °C
Key features	Charging of 5 V devices, PHILIPS indicator light, foldable plug, detachable USB cable, multiple connector tips
Care and cleaning	Clean with a soft, lint-free cloth. Do not use harsh chemicals.
Safety	Do not use in a humid environment. Ambient temperature 0-45 °C. Do not disassemble the adapter.
Spare parts and repairability	Adapter not user-serviceable. In case of fault, contact your local dealer.
General information	Instructions available in multiple languages. Register at www.philips.com/welcome.

Frequently Asked Questions - SCM4480 PHILIPS

How can I tell if my device is charging?

The PHILIPS logo lights up continuously during charging. It flashes when the device is fully charged.

Why is my device not charging?

Check that the device voltage is 5 V DC and its current consumption does not exceed 450 mA. Make sure the USB cable and tip are properly connected and not damaged.

Can I use a different USB cable than the one provided?

No, only use the USB cable and tips provided. Using other cables could damage the adapter or your device.

What is the maximum output current?

The maximum output current is 450 mA at 5.6 V DC.

Can the adapter be used abroad?

Yes, the adapter accepts an input voltage of 110 to 240 V AC, making it compatible with most outlets worldwide. The plug is foldable, but you may need a travel adapter.

How to clean the USB adapter?

Use a soft, lint-free cloth. Do not use harsh chemicals, solvents, or strong detergents.

What should I do if the adapter has been dropped or appears damaged?

Do not use the adapter if it has been impacted or damaged. Submit it to your local dealer for inspection.

Can I charge a device with a voltage other than 5 V?

No, the adapter is only designed for devices requiring 5 V DC. Check your device's voltage in its manual.

What should I do if the PHILIPS logo does not light up?

Check that the adapter is properly plugged into a working power outlet. If the logo still does not light up, the adapter may be defective; contact your dealer.

What is the typical charging time?

The charging time depends on the connected device. The adapter provides up to 450 mA; a device with a 1000 mAh battery will take approximately 2 to 3 hours for a full charge.

USER MANUAL SCM4480 PHILIPS

Register your product and get support at www.philips.com/welcome

SCM4480

EN universal USB adapter 3
FR adaptateur USB universel 6
ES adaptador USB universal 9
DE universeller USB-Adapter 12
NL universele USB-adapter 15
IT adattatore universale USB 18
PT adaptador USB universal 21
GR προσαρμογέας USB 24
TR USB adaptörünüz 27
DK universal-USB-adapter 30
SV universell USB-adapter 33
FI USB-yleissovitin 36
PL uniwersalny adapter USB 39
CZ univerzální adaptér USB 42
SK univerzálny adaptér USB 45
HU univerzális USB-csatlakozó 48
RU универсальный адаптер USB 51

White digital phone with 'PHILIPS' illuminated screen and support base (no text or symbols on device)

PHILIPS

PHILIPS ① ② ③

A

PHILIPS

B

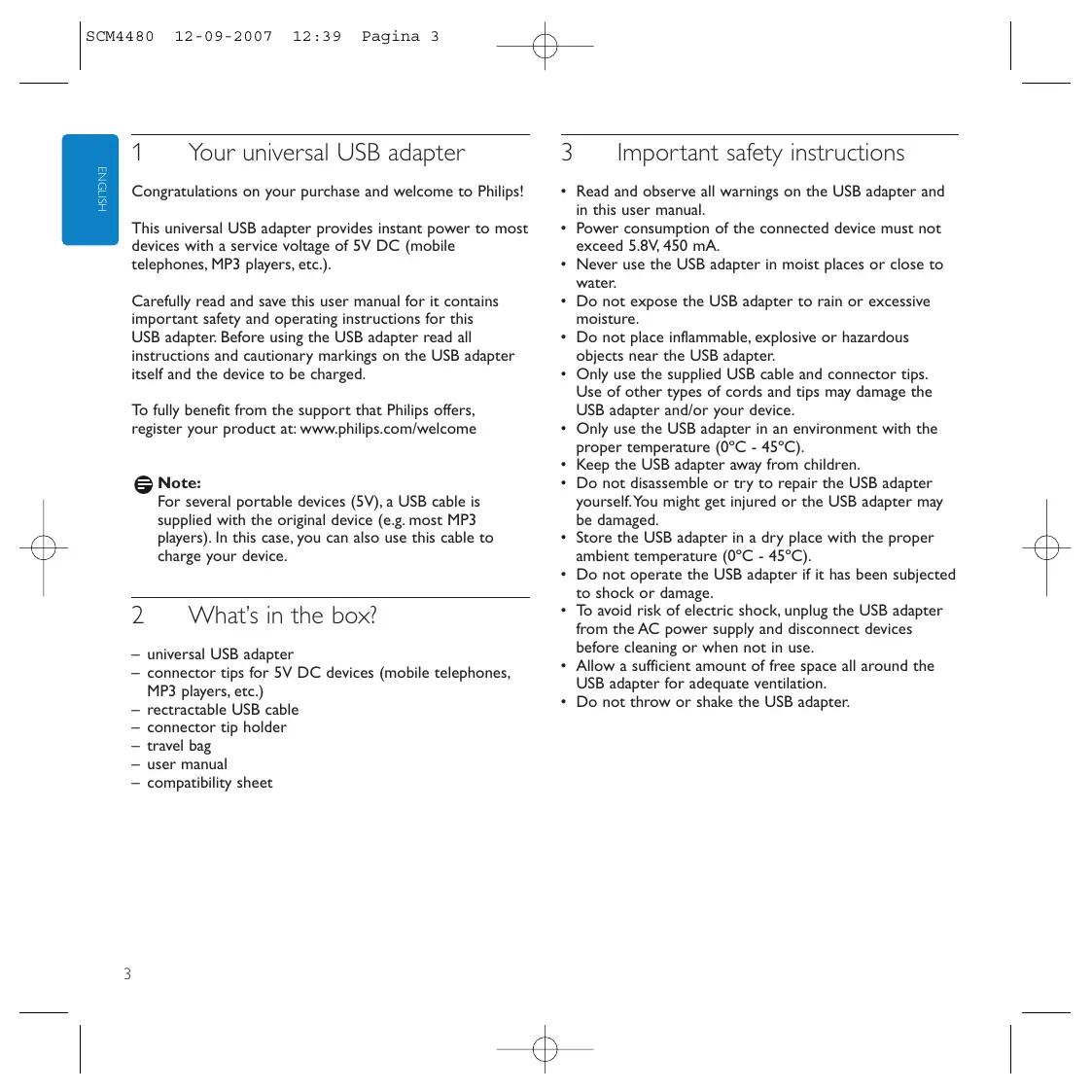

1 Your universal USB adapter

Congratulations on your purchase and welcome to Philips!

This universal USB adapter provides instant power to most devices with a service voltage of 5V DC (mobile telephones, MP3 players, etc.).

Carefully read and save this user manual for it contains important safety and operating instructions for this USB adapter. Before using the USB adapter read all instructions and cautionary markings on the USB adapter itself and the device to be charged.

To fully benefit from the support that Philips offers, register your product at: www.philips.com/welcome

Note:

For several portable devices (5V), a USB cable is supplied with the original device (e.g. most MP3 players). In this case, you can also use this cable to charge your device.

2 What's in the box?

– universal USB adapter
– connector tips for 5V DC devices (mobile telephones, MP3 players, etc.)
- retractable USB cable
- connector tip holder
- travel bag
- user manual
- compatibility sheet

3 Important safety instructions

• Read and observe all warnings on the USB adapter and in this user manual.
• Power consumption of the connected device must not exceed 5.8V, 450 mA.
• Never use the USB adapter in moist places or close to water.
• Do not expose the USB adapter to rain or excessive moisture.
• Do not place inflammable, explosive or hazardous objects near the USB adapter.
• Only use the supplied USB cable and connector tips. Use of other types of cords and tips may damage the USB adapter and/or your device.
• Only use the USB adapter in an environment with the proper temperature (0°C - 45°C).
• Keep the USB adapter away from children.
• Do not disassemble or try to repair the USB adapter yourself. You might get injured or the USB adapter may be damaged.
• Store the USB adapter in a dry place with the proper ambient temperature (0°C - 45°C).
• Do not operate the USB adapter if it has been subjected to shock or damage.
• To avoid risk of electric shock, unplug the USB adapter from the AC power supply and disconnect devices before cleaning or when not in use.
• Allow a sufficient amount of free space all around the USB adapter for adequate ventilation.
• Do not throw or shake the USB adapter.

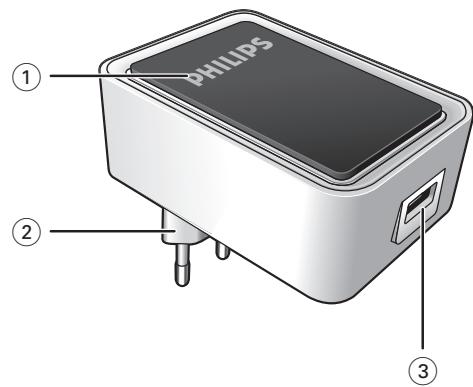

4 Functional overview (fig. A)

① PHILIPS

• Lights up when a 5V device is charging (when no device is connected, the PHILIPS logo will flash).
• Flashes when the device is fully charged.

② Foldable power plug

Connects to the wall outlet.

③ USB port

Connects to 5V DC devices (mobile telephones, MP3 players, etc.).

5 Operation

Charging devices - preparation

1 Check the maximum input voltage (V DC) of the device you wish to connect. For this see the user manual that came with the device.
2 Make sure the device does not consume more current (mA) than 450 mA.
3 Check what connector tip is required for your device. See the compatibility sheet for the proper tip for your device.

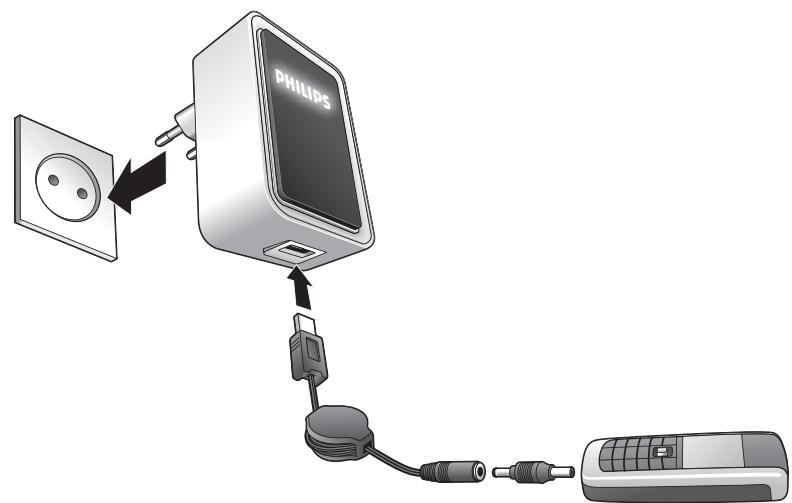

Charging 5V devices (fig. B)

1 Insert the plug of the USB cable into the USB port (3).
2 Connect the connector tip to the USB cable.
3 Insert the connector tip into the power supply jack of the device.

PHILIPS lights up when a device is charging.
PHILIPS will flash when the device is fully charged.
4 Disconnect the device from the USB adapter.

6 Technical specifications

• Rated input: 110V - 240V AC (60/50Hz)
• Rated output: 5.6V DC, max. 450 mA
- Operating temperature: 0^ - 45^
• Size: 70.3 x 55.5 x 35.5 mm (h x w x d)
- Weight: 70 g

7 Troubleshooting

Problem

- Possible cause

- Solution

USB adapter does not charge connected device

• Voltage of device does not correspond with that of USB adapter.
  • Refer to the user manual that came with the device.
• Improper connection between device and USB adapter.
• Make sure that the USB cable is properly inserted into the device and the USB adapter.
  – Damaged USB cable or connector tip.
• Replace USB cable and/or connector tip.
• Wrong connector tip used.
• Check connector tip and replace if necessary.
• Non supplied USB cable / connector tip used.
• Replace with supplied USB cable/connector tip.
  – Problems with electrical circuit of USB adapter.
  • Take the USB adapter to your local distributor.

8 Maintenance

• Use a soft, lint-free cloth to clean the USB adapter exterior. Do not use harsh chemicals, cleaning solvents or strong detergents.
• When any problems occur with the USB adapter or the accessories, take the adapter and accessories to your local distributor.

9 Need help?

Online help: www.philips.com/welcome

For interactive help and frequently asked questions.

EN Information to the consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two diagonal lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two diagonal lines, with no text or numbers present.
