USER MANUAL WS 1601 ADE

Sendefrequency: 433, 92 MHz

Max. Sende- +10dBm

leistung:

Funk-Außensor

Batterien: 2x LR03 (AAA) /

$$ 1, 5 \mathrm {V} = = $$

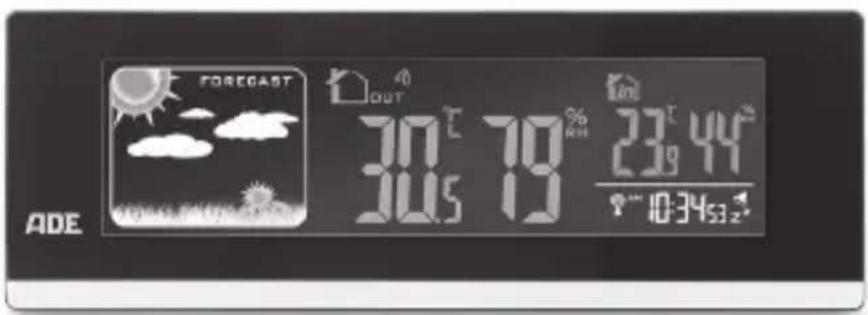

Weather Station with Wireless Outdoor Sensor

Quick Guide WS 1601

Table of Contents

Scope of delivery 2

Tips on installation site 5

Base station 6

Wireless outdoor sensor 8

Start-up 8

Main functions of the weather station. 11

Alarm 13

Technical Data. 15

Declaration of Conformity 16

Guarantee. 16

Disposal 16

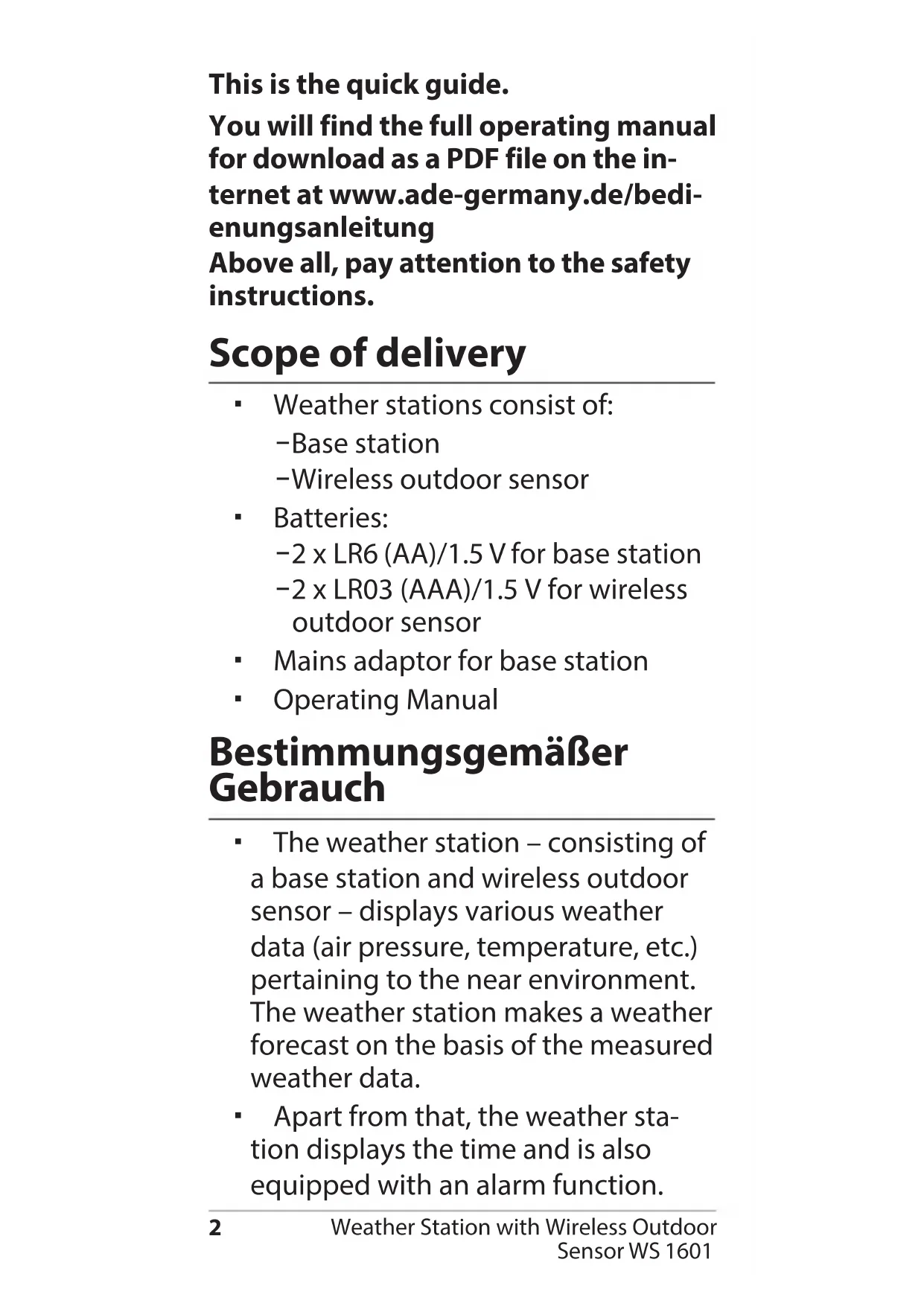

This is the quick guide.

You will find the full operating manual for download as a PDF file on the internet at www.ade-germany.de/bedienungsanleitung

Above all, pay attention to the safety instructions.

Scope of delivery

• Weather stations consist of:
  -Base station
  -Wireless outdoor sensor
  Batteries:
  -2 x LR6 (AA)/1.5 V for base station
  -2 x LR03 (AAA)/1.5 V for wireless outdoor sensor
• Mains adaptor for base station
• Operating Manual

• The weather station – consisting of a base station and wireless outdoor sensor – displays various weather data (air pressure, temperature, etc.) pertaining to the near environment.

The weather station makes a weather forecast on the basis of the measured weather data.

• Apart from that, the weather station displays the time and is also equipped with an alarm function.

• The weather station is unsuited to commercial use in weather forecasting or in taking meteorological measurements.

Safety

• This device can be used by children 8 years of age and older, as well as by persons with reduced physical, sensory, or mental capabilities or lacking experience and/or knowledge, if they are being supervised or have been instructed in the safe use of the device and understand the dangers that may arise.
• The device and the mains adaptor must be kept away from children younger than 8 years.
• Cleaning and maintenance by the user must not be carried out by children unless they are 8 years of age or older and are being supervised.
  Children must be supervised to ensure that they do not play with the device.

• The wireless weather station and mains adaptor must not be submerged in water or other liquids. Risk of electric shock! You should therefore not use the base station of the wireless weather station in the vicinity of sources of moisture, such as wash basins.

• Only use the supplied mains adaptor and replace it only with one of the same type. The mains adaptor may only be used in dry indoor spaces and must be protected from moisture.

• Batteries, when swallowed, can be life-threatening. You should therefore keep the weather station, wireless sensor, and batteries out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately.
• Keep children away from packaging material and other small parts included in the scope of delivery. Risk of choking if swallowed.
• Connect the device to a correctly installed socket that has a voltage corresponding to that described under "Technical Data".
• Ensure that the socket is easily accessible, so that the mains adaptor can be pulled out quickly if necessary.
• Do not use the wireless weather station if the mains adaptor or mains adaptor cable are damaged.

• Attention: Risk of explosion if batteries are improperly used. Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or shortcircuited.

• Avoid contact of the battery fluid with skin, eyes, and mucosa. If you do come into contact with the fluid, you must immediately flush the affected areas thoroughly with clean water and promptly see a doctor.

• Protect the base station and wireless outdoor sensor from dust, impacts, extreme temperatures and direct sunlight.
• Protect the base station from moisture. Position the base station exclusively in a dry, closed room.
• The wireless external sensor is protected against moisture, it must however be protected from direct exposure to moisture, e.g. rain.

Tips on installation site

The maximum distance between base station and wireless outdoor sensor is 60 metres. ("direct line-of-sight").
- Protective building materials, e.g. reinforced concrete, reduce or inhibit signal reception between the base station and wireless external sensor.
Devices such as TVs, cordless phones, computers, and fluorescent tubes can likewise disrupt signal reception.

Base station

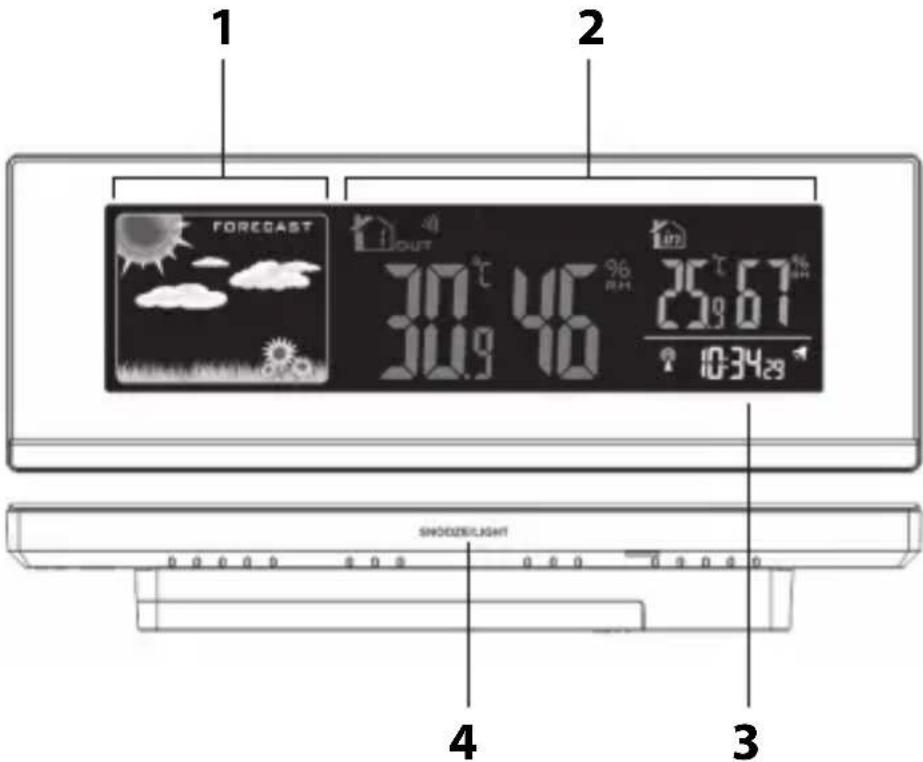

Front view

1 see "Weather forecast"
2 see "Weather data"
3 see "Time and alarm indicator"
4 Activate display light / Snooze function

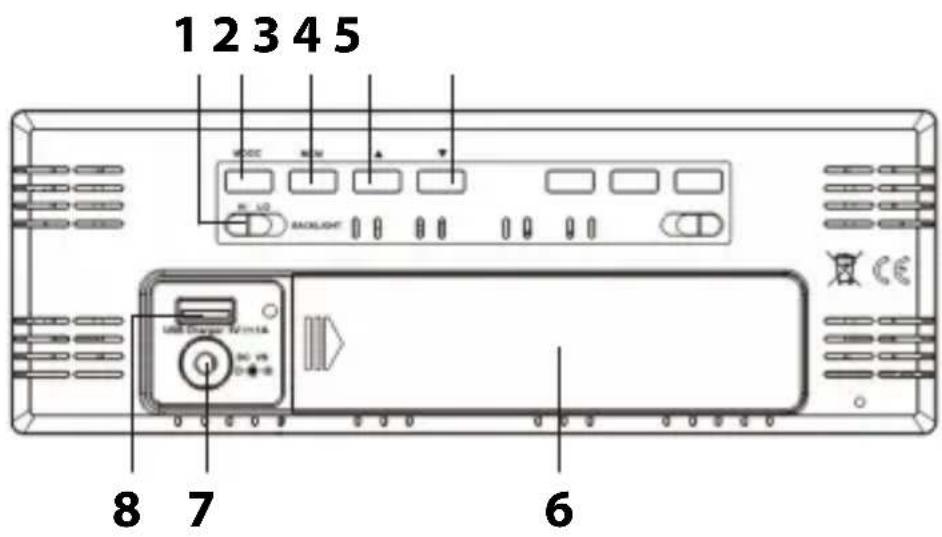

Rear view

1 Select brightness of display light

2 Activate settings mode

• Save changed settings
• Set and display alarm time

3 Display highest (MAX) and lowest (MIN) saved value for humidity and temperature

4·Adjust values (increase)

• Manually start signal reception

5 - Adjust values (decrease)

• Transmit values from the wireless sensor

6 Battery compartment

7 Connection socket for mains adaptor

8 USB socket for charging of external devices (smartphone, MP3 player, etc.)

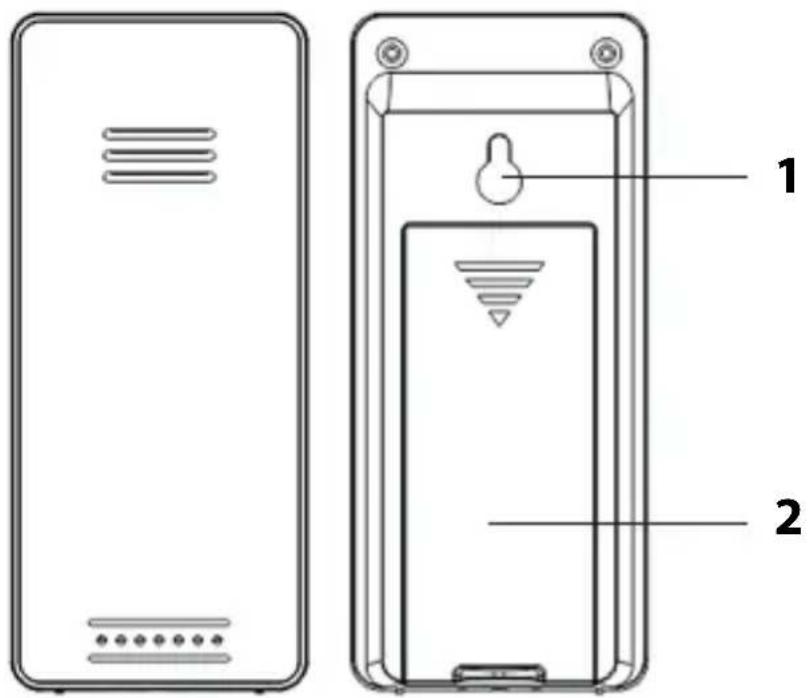

1 Hanging eyelet
2 Battery compartment

Start-up

Proceed in the order specified below and first insert the batteries into the outdoor sensor. Only then can the weather station function without flaws.

Outdoor sensor

1. Remove the battery compartment cover on the rear side of the outdoor sensor by pressing with a little force on the imprinted arrow. Slide the battery compartment cover in the direction of the arrow, away from the outdoor sensor.

2. Insert 2 batteries of type LR03 (AAA)/1.5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity of the batteries (+/-).

3. Slide the battery compartment cover back into place on the outdoor sensor.

Base station

You can operate the wireless weather station with the mains adaptor or with batteries. If the wireless weather station is connected to a mains socket, then it operates via mains power, even when the batteries are inserted in the device. Remove discharged batteries from the battery compartment, since they can leak.

NOTE on material damage

• For operation via mains power, use only the mains adaptor delivered with the weather station.

Current mode

1. Insert the plug of the supplied mains adaptor into the connection socket of the base station.

2. Plug the mains adaptor into a socket that has a voltage corresponding to that described under "Technical Data".

3. Wait approx. 30 minutes. The base station requires this time to collect all weather data and to receive radio signals from the time signal transmitter.

Battery operation

1. With some force, press on the battery compartment cover and slide it to the side.
2. Insert 2 batteries of the type LR6 (AA) / 1,5 V as depicted on the bottom of the battery compartment. Pay attention to the correct polarity (+/-).
3. Then slide the battery compartment cover back into place.
4. Wait approx. 30 minutes. The base station requires this time to collect all weather data and to receive radio signals from the time signal transmitter.

Starting signal reception

As soon as the base station is supplied with current, all of the indicators on the display will fade in for a brief moment. Furthermore, the display is briefly lit up and a beep sounds.

The device then switches to receiving-mode, during which the number of radio waves indicates the quality of the reception: The more radio waves shown on the display, the better is the reception.

While receiving, only the button functions; all other buttons are deactivated during this time.

As soon as the signal has been received with sufficient strength, the corresponding data and the radio-tower symbol will be shown on the display. This process can last a few minutes.

From now on, the weather station automatically switches to receiving-mode multiple times each night. During this process, the displayed time is compared with that received from the time signal transmitter and, if necessary, corrected.

If no sufficiently strong signal has been received, the base station aborts the receiving process after a few minutes and the radio-tower symbol goes out. The receiving process is started again at a later point in time.

Main functions of the weather station

Additional functions are described in the full operating manual.

Weather forecast

After start-up, the information can still not be used for weather forecasting for approximately 12 hours, since the weather station needs this time to collect and analyse the weather data.

The weather forecast is based on the collected data and the measured air pressure changes. The forecast pertains to the region around the weather station with a radius of approx 30 to 50km , for a period of 12 to 24 hours.

The accuracy of the weather forecast lies around 75% .

sunny light cloudy

cloudy rainy

Saved weather data

Using the MEM button, you will get the highest and lowest temperature and humidity values for the last 24 hours displayed.

-Press 1x: MAX values are displayed

-Press 2x: MIN values are displayed

-Press 3x: normal display indicator In order to delete the saved values:

-Press and hold the MEM button for approx. 2 seconds until the displayed values are deleted.

Setting the alarm time

1. Pres MODE 1x.

An alarm time and AL are shown on the display.

1. Hold down MODE for a few seconds until the alarm hour indicator blinks.
2. Using the and buttons, set the desired alarm hour. As shown on the display; the alarm function is now already activated
3. Press MODE.

The minute indicator for the alarm time blinks on the display.

1. Using the and buttons, set the desired alarm minute.
2. Using the buttons or , set the desired snooze time (pause between two alarms). If you select OFF, the SNOOZE function is deactivated.
3. Finally, press MODE to save the settings.

Switching the alarm function on/off

-Using the button, turn the alarm function on and off. As soon as the alarm symbol is displayed, the alarm function is activated.

Stopping the alarm

At the set time you will be woken by an alarm signal, which will become more intense as the waking time increases.

Switching the alarm off completely

-Press any button on the base station (except SNOOZE/LIGHT) to stop the alarm.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 2 minutes. After 24 hours, the alarm will be triggered again.

Snoopze function

-Press SNOOZE/LIGHT when the alarm signal sounds.

The alarm signal goes silent after the snooze time set by you. Then the device switches back on and the alarm sounds again.

This procedure can be repeated multiple times. If the snooze function is activated, "z" will be shown on the display.

Base station

Model: Weather Station WS 1601

Input: 5 V

Batteries: 2x LR6 (AA) / 1,5 V

Transmission 433,92 MHz

frequency:

Max. Transmission +10dBm

power:

Wireless outdoor sensor

Batteries: 2x LR03 (AAA) / 1,5 V ---

Range: approx. 60 metres (open terrain)

Mains adaptor

Input: 230V ,50Hz Output: 5 V = /1,5A Protection class:

Distributor:
Waagen-Schmitt GmbH
Hammer Steindamm 27-29
22089 Hamburg, Germany, january 2018

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the weather station WS 1601 complies with the directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.ade-germany.de/doc

This declaration loses its validity if modifications are made to the weather station without our approval.

C E

Guarantee

Dear Valued Customer, The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange. In the event of a guarantee claim, please return the scales with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposal

Dispose of the weather station in accordance with the regulations that apply in your country. You will find complete information about disposal in the full operating manual.
