USER MANUAL Essential Luvion

Monitor Frequency Antenna Modulation Display Display colors Brightness Control VOX Dimensions Weight Power Operating temperature

Monopole antenna GFSK, FHSS 3.5" LCD panel Full-color 8 levels Voice activation 12(W) x 8.3(H) x 2.6(D) cm 154g DC 6V, 800mA or Li battery 0℃ ~ 40℃ (32℉ ~ 104℉) This item is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Specifications Specifications subject to change without notice Camera Frequency Antenna Transmission distance Modulation Image Sensor Lens IR LED Dimensions Weight Power Operating temperature

Dipole antenna 150 M (Line of Sight) GFSK, FHSS CMOS image sensor f 3.0mm, F 2.4 8 pcs 8.5(W) x 11(H) x 10(D) cm 140g DC 6V, 800mA 0℃ ~ 40℃ (32℉ ~ 104℉) To prevent deaths and injuries associated with baby monitor cords :

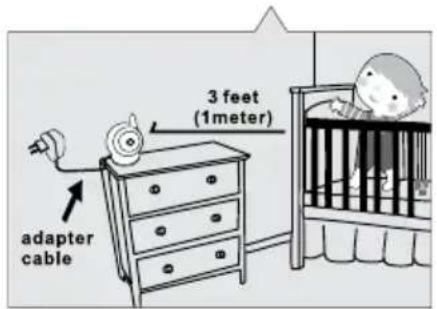

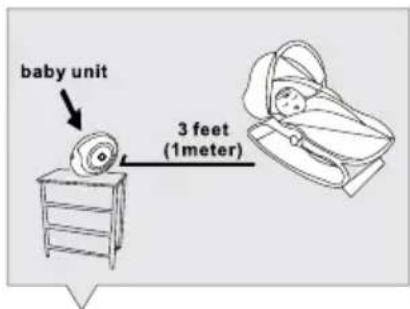

baby at least 3 feet (1 meter) away. It's important even if your baby is not yet standing or mobile. Ÿ Use a wireless baby monitor to avoid risk of strangulation. Ÿ Never use extension cords with AC adapters. Only use the AC adapters provided. Following the safety tips Make sure the baby unit and AC adapter cords are always out of reach of the Note :17 LUVION Premium Baby products VEiLiGhEiDSVOOrSchriftENVolgdezeveiligheidsvoorschriftenopomletseldoorkabelsvandebabyfoontevoorkomen:

Monitor Frequency Antenna Modulation Display Display colors Brightness Control VOX Dimensions Weight Power Operating temperature

Monopole antenna GFSK, FHSS 3.5" LCD panel Full-color 8 levels Voice activation 12(W) x 8.3(H) x 2.6(D) cm 154g DC 6V, 800mA or Li battery 0℃ ~ 40℃ (32℉ ~ 104℉) This item is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Specifications Specifications subject to change without notice Camera Frequency Antenna Transmission distance Modulation Image Sensor Lens IR LED Dimensions Weight Power Operating temperature

Dipole antenna 150 M (Line of Sight) GFSK, FHSS CMOS image sensor f 3.0mm, F 2.4 8 pcs 8.5(W) x 11(H) x 10(D) cm 140g DC 6V, 800mA 0℃ ~ 40℃ (32℉ ~ 104℉) To prevent deaths and injuries associated with baby monitor cords :

baby at least 3 feet (1 meter) away. It's important even if your baby is not yet standing or mobile. Ÿ Use a wireless baby monitor to avoid risk of strangulation. Ÿ Never use extension cords with AC adapters. Only use the AC adapters provided. Following the safety tips Make sure the baby unit and AC adapter cords are always out of reach of the Note : nl18

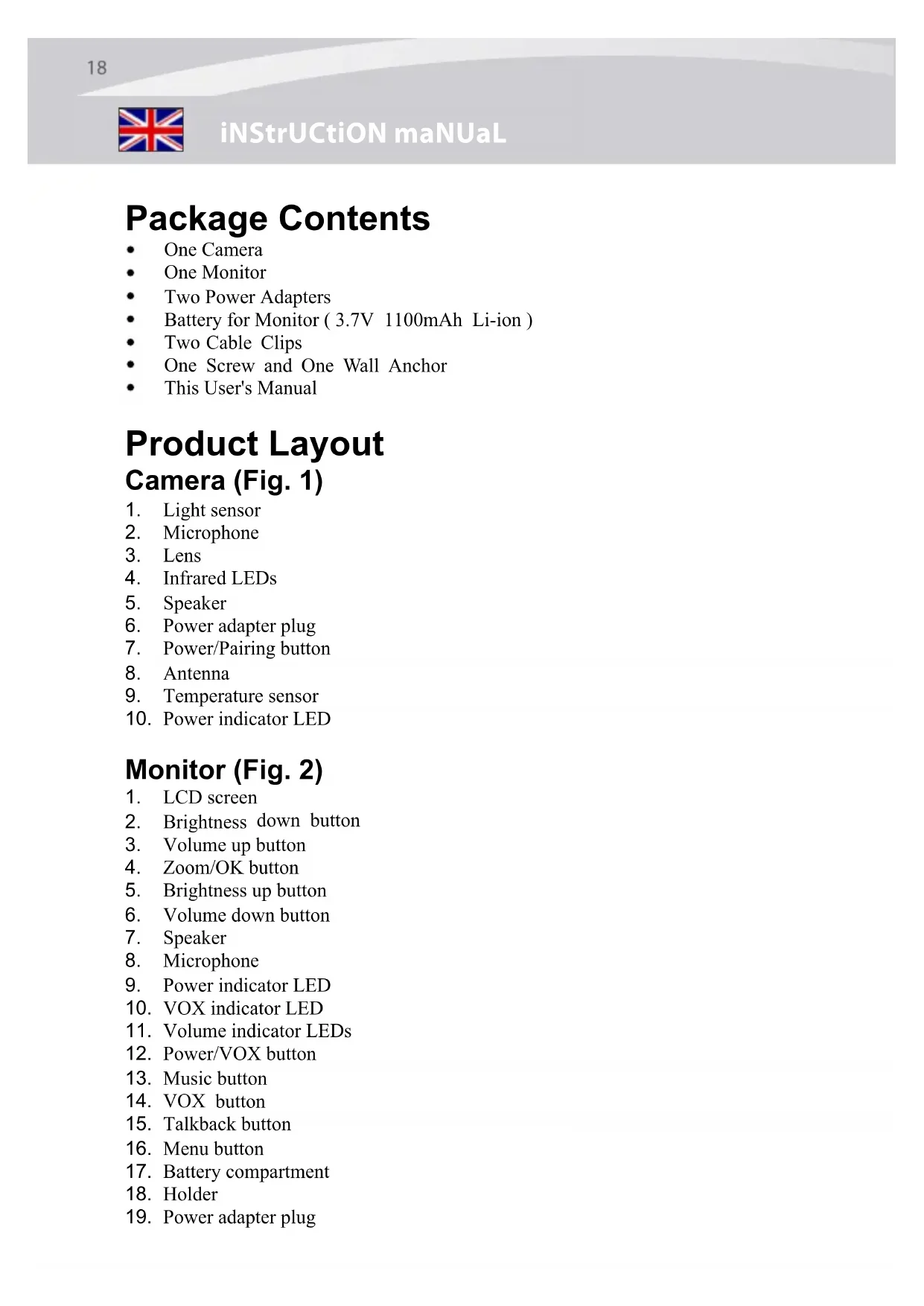

Package Contents Two Power Adapters Battery for Monitor ( 3.7V 1100mAh Li-ion ) Two Cable Clips One Screw and One Wall Anchor This User's Manual Product Layout Camera (Fig. 1) 1. Light sensor 2. Microphone3. Lens4. Infrared LEDs5. Speaker6. Power adapter plug7. Power/Pairing button8. Antenna9. Temperature sensor10. Power indicator LED Monitor (Fig. 2)

1. LCD screen2. Brightness

1. Plug one end of the provided power adapter into a wall outlet and the other

end into the back of the camera. See Fig. 3. Note : Use the adapter labeled OUTPUT: 6V DC with the camera.

2. Press the POWER button and keep it around 3 seconds to turn on the

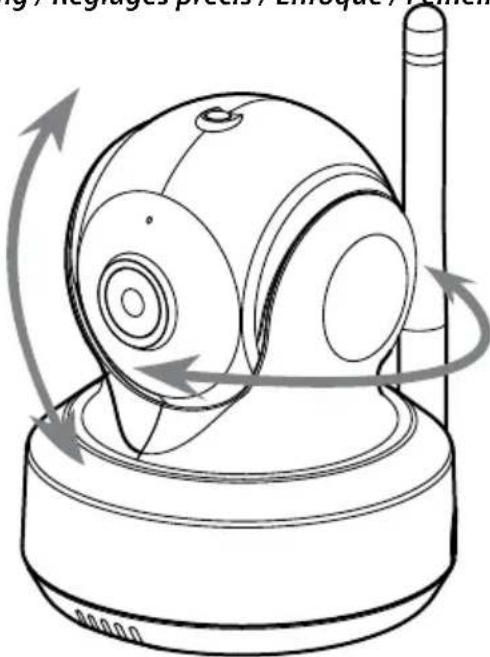

camera. The LED on the camera will light up (green light). See Fig. 3. Note : Press the POWER button and keep it around 3 seconds to turn off the camera. Fine Tuning Place the camera in a convenient location, point the lens toward the observation area and adjust the angle by rotating the lens head. See Fig. 4. Night Vision The camera has eight high-intensity LEDs for picking up clear images in the dark. When the light sensor detects low ambient light levels, the LEDs will be automatically activated. Room Temperature Measurement Temperature sensor can measure room temperature on camera side and the room temperature indicator will be displayed on the screen of the monitor unit. Camera Setup ower Supply - Using AC Power

Power Supply current. Loading the Battery

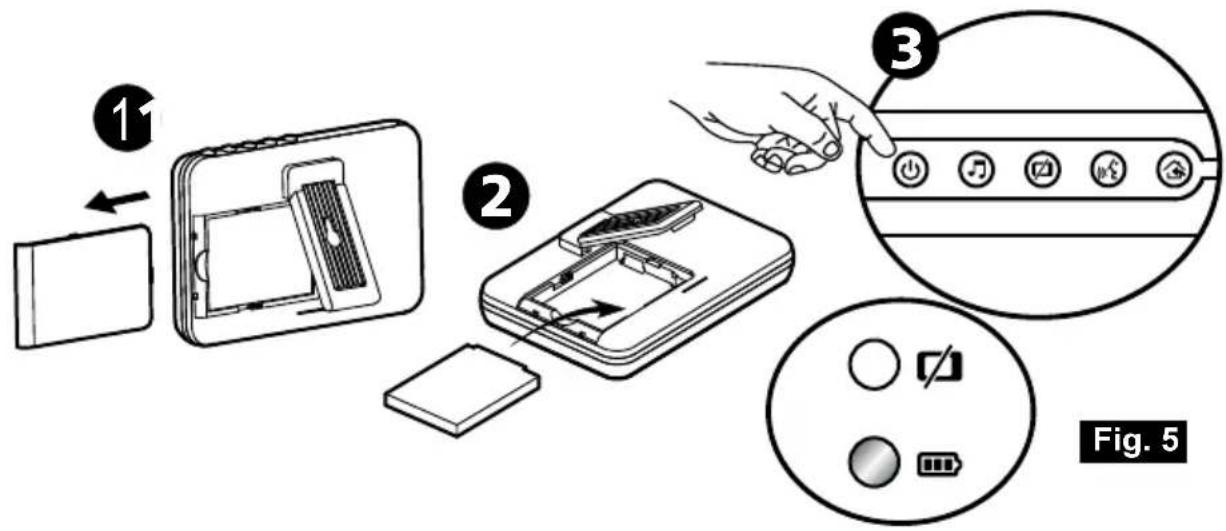

1. Open the battery compartment cover on the rear of the monitor. See Fig. 5.

2. Insert the battery with the metal facing the battery compartment. See Fig. 5.

3. Close the battery compartment cover, and make sure it is locked securely.

4. Press the POWER button and keep it around 3 seconds to turn the

monitor on. See Fig. 5. Note 1: When power is sufficient, the "Power/Charging" LED will light up (green light); When battery is low, the red LED light will start blinking. Note 2: Press the POWER button and keep it around 3 seconds to turn off the monitor. Monitor Setup The monitor uses 3.7V 1100mAh (Li-ion) battery or the household AC power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the back of the camera. See Fig. 3.Note : Use the adapter labeled OUTPUT: 6V DC with the camera.2. Press the POWER button and keep it around 3 seconds to turn on the camera. The LED on the camera will light up (green light). See Fig. 3. Note : Press the POWER button and keep it around 3 seconds to turn off the camera.Fine TuningPlace the camera in a convenient location, point the lens toward the observation area and adjust the angle by rotating the lens head. See Fig. 4.Night VisionThe camera has eight high-intensity LEDs for picking up clear images in the dark. When the light sensor detects low ambient light levels, the LEDs will be automatically activated.Room Temperature MeasurementTemperature sensor can measure room temperature on camera side and the room temperature indicator will be displayed on the screen of the monitor unit. Camera Setup ower Supply - Using AC Power

Power Supplycurrent.Loading the Battery1. Open the battery compartment cover on the rear of the monitor. See Fig. 5.2. Insert the battery with the metal facing the battery compartment. See Fig. 5.3. Close the battery compartment cover, and make sure it is locked securely.4. Press the POWER button and keep it around 3 seconds to turn the monitor on. See Fig. 5. Note 1: When power is sufficient, the "Power/Charging" LED will light up (green light); When battery is low, the red LED light will start blinking. Note 2: Press the POWER button and keep it around 3 seconds to turn off the monitor. Monitor Setup The monitor uses 3.7V 1100mAh (Li-ion) battery or the household AC power

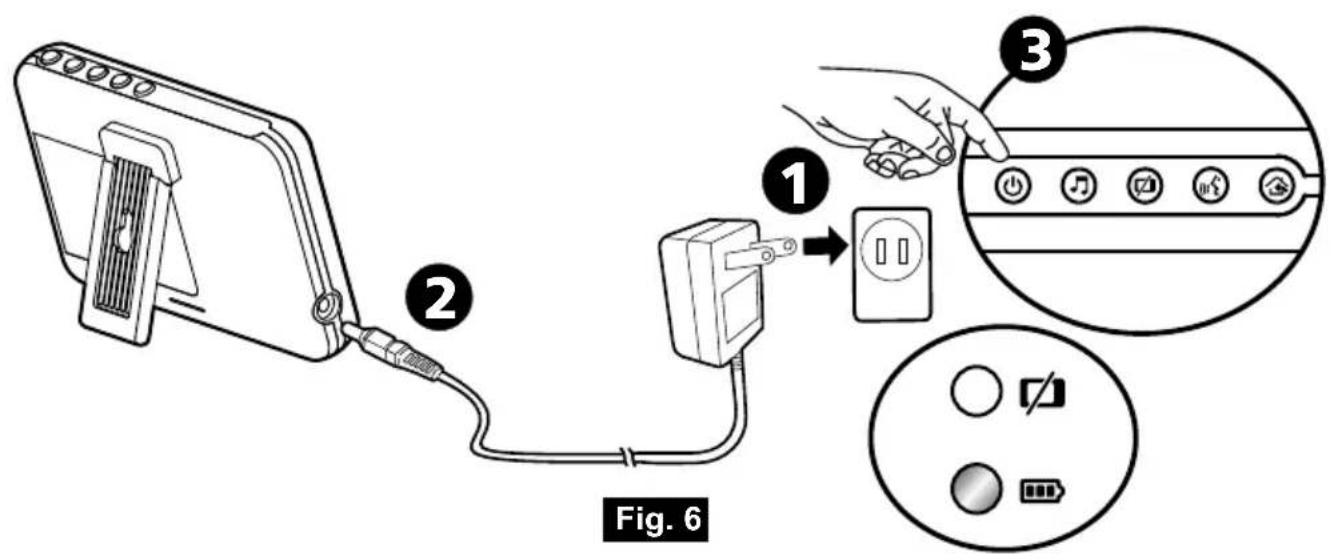

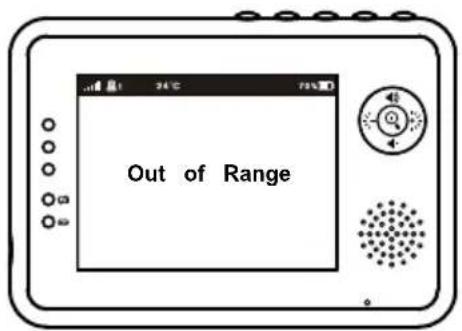

into the monitor. See Fig. 6.Note : Use the adapter labeled OUTPUT: 6V DC with the monitor.2. Press the POWER button and keep it around 3 seconds to turn the monitor on. See Fig. 6. Note 1: When charging starts or power on the monitor, "Power/Charging" LED will light up (green light). Note 2: "Out of Range" will be displayed on the LCD screen if the monitor exceeds the range (unlink). Note 3: Press the POWER button and keep it around 3 seconds to turn off the monitor. Volume Setting Press the volume selection button & to adjust volume level, and then press the Zoom/OK button to confirm the setting. See Fig. 7. Brightness Setting Press the brightness selection button & to adjust brightness level, and then press the Zoom/OK button to confirm the setting. See Fig. 8. Zoom in Function Press the Zoom/OK button on monitor once for a 2X zoom of image and press again to change back to normal view. See Fig. 9. VOX ( Voice-Operated Transmission) Function 1. Press the VOX button on the monitor unit. This will turn off the screenbut VOX LED will remain ON (green). See Fig. 10.2. When the sound from the camera reaches the setting level (See Fig. 18), the screen will turn ON automatically. It will turn OFF again after 30 seconds. If the sound from the camera still reaches the setting level during the 30 seconds, it will extend 30 seconds to turn OFF the screen from the last voice event. Music Function You can play the music with the camera (three pieces of music) .1. Press the music button , the camera will play music. See Fig. 11.2. Press the music button again, the camera will play the next song. Talkback Function Press the talkback button to speak through the camera unit, and the iconwill then be displayed on the screen. See Fig. 12. Using AC Power Plug one end of the provided power adapter into a wall outlet and the other end

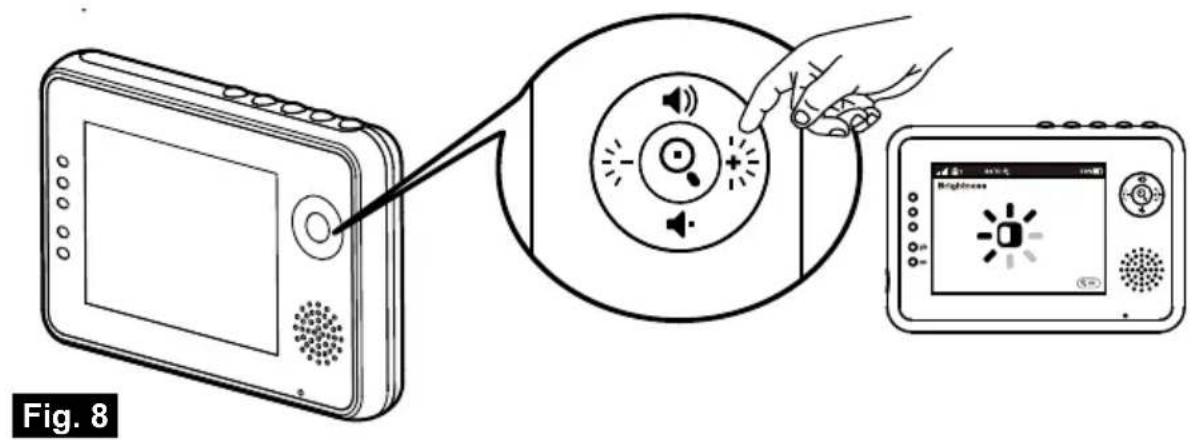

2. Use the brightness down and brightness up buttons to navigate

3. Press the Zoom/OK button to confirm a setting.

4. The main menu contains 5 submenus.

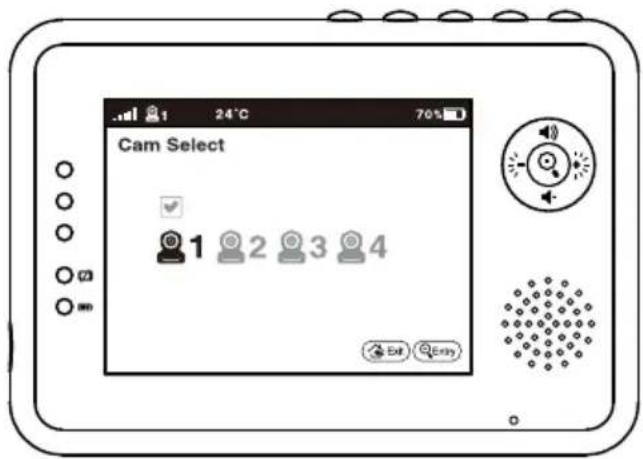

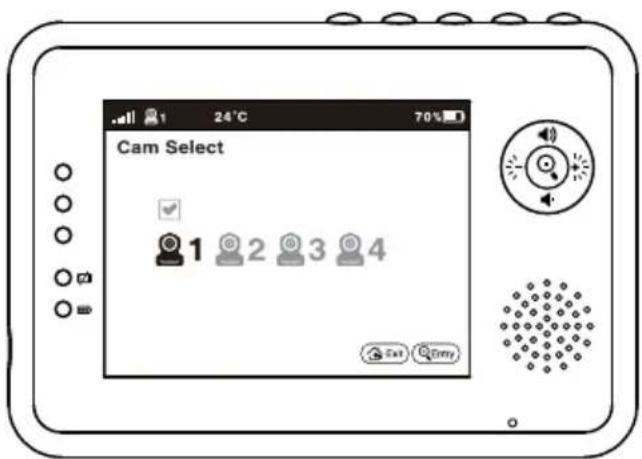

Camera Selection ( Camera Select ) In this submenu you can switch between multiple cameras if the cameras have been paired. See Fig. 14. Feed Timer Setting ( Feed Timer ) In this submenu you can set up feed timer to remind you the timing. See Fig. 15. Temperature Setting ( Temp. Setting )

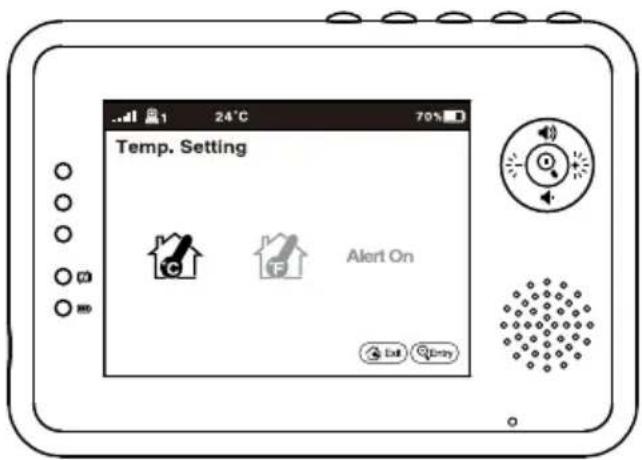

1. In this submenu you can choose the temperature unit between degrees

Celsius or degrees Fahrenheit. See Fig. 16.

2. You can set the temperature range of the temperature alert. If you select

"Alert On" to enable the temperature alert and the temperature is outside the range, a warning sound will be emitted from the monitor unit. See Fig. 16. Camera Setting ( Camera Setting ) The system comes with a camera unit that has already been paired with the monitor unit. The "Cam Setting" function gives each baby unit a separate channel on the monitor unit. This is necessary for configuring additional camera units.

1. If you want to add a new camera, please choose which number of cameras

you want to add, and then select add camera icon and press the button to confirm your selection (See Fig. 17). The screen will show "Press the pairing button on the Baby unit" , and then please also press and hold the power button less than 1 second on the camera side at the same time.

2. If you want to delete a paired camera, please choose which number of

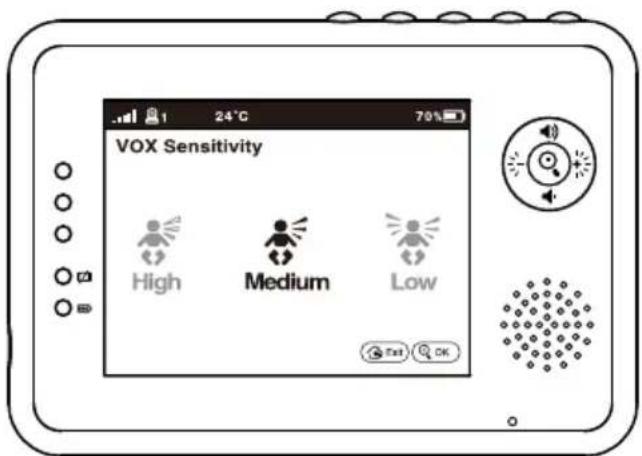

cameras you want to delete, and then select delete camera icon to delete the camera (See Fig. 17). Menu Options VOX Sensitivity ( VOX Sensitivity ) This submenu lets you choose the VOX (voice activation) sensitivity level. When the level set to high, the screen will turn on by lower sounds. See Fig. 18.

1. Press the menu button on the monitor unit to display the main menu on the screen. See Fig. 13.2. Use the brightness down and brightness up buttons to navigate through the menu.3. Press the Zoom/OK button to confirm a setting.4. The main menu contains 5 submenus. Camera Selection ( Camera Select ) In this submenu you can switch between multiple cameras if the cameras have been paired. See Fig. 14. Feed Timer Setting ( Feed Timer ) In this submenu you can set up feed timer to remind you the timing. See Fig. 15. Temperature Setting ( Temp. Setting )

1. In this submenu you can choose the temperature unit between degrees

Celsius or degrees Fahrenheit. See Fig. 16.

2. You can set the temperature range of the temperature alert. If you select

"Alert On" to enable the temperature alert and the temperature is outside the range, a warning sound will be emitted from the monitor unit. See Fig. 16. Camera Setting ( Camera Setting ) The system comes with a camera unit that has already been paired with the monitor unit. The "Cam Setting" function gives each baby unit a separate channel on the monitor unit. This is necessary for configuring additional camera units.1. If you want to add a new camera, please choose which number of cameras you want to add, and then select add camera icon and press the button to confirm your selection (See Fig. 17). The screen will show "Press the pairing button on the Baby unit" , and then please also press and hold the power button less than 1 second on the camera side at the same time.2. If you want to delete a paired camera, please choose which number of cameras you want to delete, and then select delete camera icon to delete the camera (See Fig. 17). Menu Options VOX Sensitivity ( VOX Sensitivity ) This submenu lets you choose the VOX (voice activation) sensitivity level. When the level set to high, the screen will turn on by lower sounds. See Fig. 18.

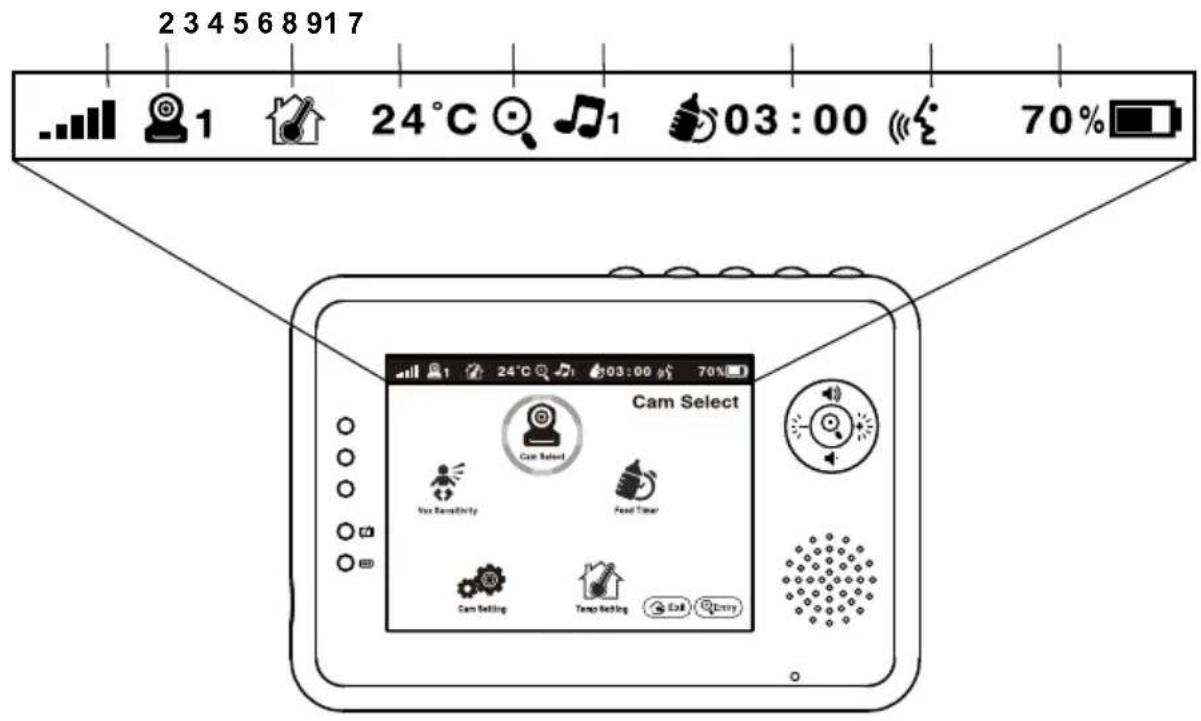

5. Zoom in indicator

9. Battery status/Charging indicator
