USER MANUAL Split 812 UHD MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product: the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

1. INTRODUCTION

Congratulations on your purchase of the Split 812^TM!

This HDMI splitter connects one HDMI source (Blu-ray player, digital TV set-top box, game console, etc.) with two screens (HDTV, projector or even an AV amplifier). Unlike ordinary HDMI splitters, the Split 812^TM can simultaneously display two different video resolutions. This allows you to enjoy Ultra HD optimally, without having to replace all of your other equipment. Suitable for 4k2k Ultra HD, 1080p Full HD and all 3D formats.

Marmitek products are manufactured with the utmost precision and are of high quality. Please read this user manual first and follow the instructions so you can make the most of this product's capabilities.

2. PACKAGE CONTENTS

1x HDMI splitter
1x Power adapter
1x HDMI cable
1x Usage instructions

3.PRODUCT CHARACTERISTICS

• Split and scale your HDMI signal to a 2nd (Ultra) HDTV or projector.
• Enables playing video and audio from your HDMI device (Digital TV Decoder, Blu-ray player or HDD recorder) simultaneously on 2 screens.
• Continue to use your non-Ultra HD-enabled equipment*, simply by using the unique automatic output scaling feature, which prevents it from switching back to a lower resolution.
• The Auto Scaling feature automatically detects the highest possible resolution of your display, and can simultaneously display two different video resolutions again (1080p and 4k2k).

• Suitable for 4k2k Ultra HD, 1080p Full HD and all 3D formats.
  Supports High Definition LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.

• Devices supporting a maximum resolution of Full HD 1080p (v1.3), such as an HDTV, Projector, AV Receiver, etc.

HDMI PROPERTIES

• Video bandwidth 300MHz (enables 4k2k Ultra HD image display)
• 3D (suitable for use with your own 3D equipment).
• Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle gradation variances and higher contrasts).
• Dolby TrueHD & DTS HD Master Audio (high quality audio support).
• Lip-Sync (prevents synchronisation problems between image and sound).

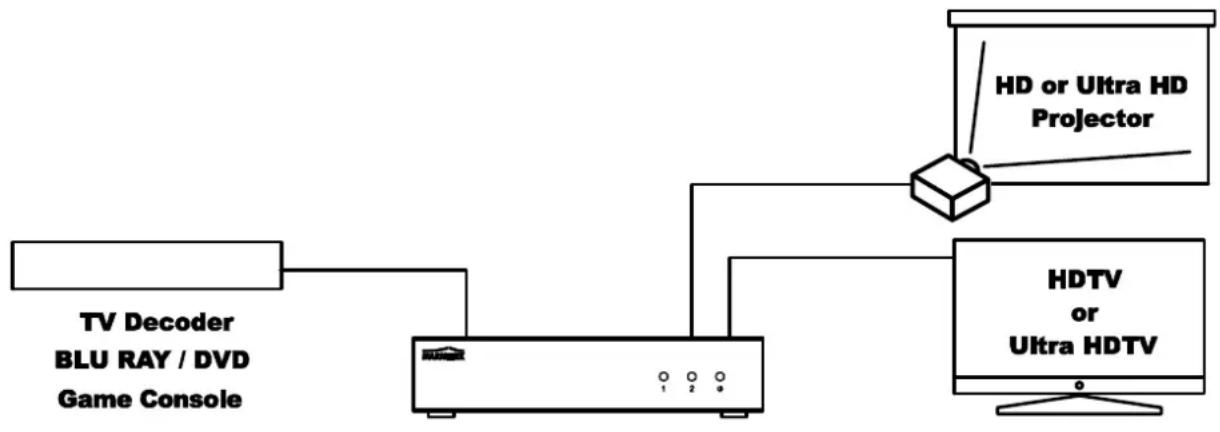

4. INSTALLATION

1. Connect the HDMI source to the Split 812^TM 'input' via an HDMI cable.
2. Connect the HDMI screens to the Split 812^TM 'output' via HDMI cables.
3. Connect the power adapter to the Split 812^TM and plug into the socket.

Tip for installation:

Only use High Speed HDMI® certified cables for the best picture and sound quality. Do not use much force to connect or disconnect the HDMI cables otherwise they may become damaged.

5. USE

On both outputs, the Split 812^TM detects the highest resolution possible for the connected HDMI screens. The automatic scaling function selects the highest resolution possible for each HDMI output, prevents compatibility issues and ensures the highest possible image quality.

What can you do with it?

• Watch an Ultra HD source (4k2k) on a standard HDTV (1080p)
• Watch an Ultra HD source (4k2k) on an Ultra HDTV (4k2k)
• Watch an HD source (1080p) on an Ultra HDTV (4k2k)
• Watch an HD source (1080p) on a standard HDTV (1080p)

PLEASE NOTE:

3D resolutions cannot be adapted to 4k2k, but will be displayed unchanged on both HDMI outputs.

6. FAQ

No (or bad) image and sound

If you see a bad image or no image at all after connecting the HDMI splitter, try to establish what the problem is by connecting your devices, one by one, to your screen (TV, monitor or projector). This will allow you to establish whether the problem lies in the HDMI sources, the HDMI cables, the HDMI splitter or the screen. HDMI equipment that has not been tested and certified by ATC (Authorized Test Centers) may cause image and sound problems.

• Check whether the Split 812 power adapter is connected and plugged in;
• Only use High Speed HDMI® certified cables for the best picture and sound quality;
• Do not use HDMI cables that are longer than specified in the technical data;
• Check whether the HDMI cables and/or connectors are damaged;
• Both the HDMI source as well as your screen must fully support HDMI;
• Check whether your HDMI sources and screen support HDCP (Highbandwidth Digital Content Protection).

No proper 3D picture

• Check whether the HDMI source has been set to 3D and/or that this is set to automatic.
  Both the HDMI source as well as the HD screen must support the same 3D formats.
• Check whether the proper 3D picture is reproduced by directly connecting the HDMI source to the screen with an HDMI cable.

Do you have a question that has not been answered here? Then have a look at www.marmitek.com

7. TECHNICAL INFORMATION

Resolution

Supported Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4k2k@23/24/30Hz

Supported 3D formats 1080p@23.98/24Hz, 720p@59.94/60/50Hz

Maximum Pixel Frequency (max.) 300MHz

Single link Bit Rate (max.) 3 Gbps

Video Data Rate (max.) 9 Gbps

Output Video HDMI HDCP1.0/1.1

Inputs and outputs

HDMI Input (19-pin female) 1 HDMI

HDMI Output (19-pin female) 2 HDMI

Maximum HDMI cable length 15m

Splitter housing

Dimensions (HxWxD) 124 x 70 x 27mm

Weight 170g

Environment

Ambient temperature +0 to +70^

Ambient humidity 10% up to 85%

Power

External power adapter Input: 100-240VAC @50-60Hz

Output: 5VDC @ 2A

Specifications may be modified without prior notice.

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this Split 812^TM is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies

MARMITEK BV - P.O. BOX 4257 - 5604 EG EINDHOVEN - THE NETHERLANDS

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the

government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
