USER MANUAL 86745 UNOLD

Instructions for use Model 86745

Technical Specifications. 18

Explanation of the symbols 18

For your safety. 18

Montage 23

The ideal location 24

Preparing the appliance for operation 24

Cleaning and care. 25

Guarantee Conditions. 26

Waste Disposal /

Environmental Protection 26

Service 17

Specification technique 27

1 Glass plate
2 Light
3 Infrared sensors (3 pcs)
4 Heating elements/Housing
5 ON/OF switch - light
6 ON/OFF switch - heating elements
7 Base

F Page 27

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA
Route der Servion
CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

"Quadra-net" Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

TSCHECHIEN

befree.cz s.r.o.

Skroupova 150

537 01 Chrudim

Telefon [phone]

Dimensions: Aprrox. 50 cm diameter, 68 cm height

Power cord: Approx. 180 cm

Weight: Approx. 13.7 kg

Degree of

protection: IP 24

Glass plate: Heat-resistant, diameter approx. 50 cm

Features: Infrared technology, carbon infrared heating elements, lighting can be switched on separately, three infrared sensors for automatic switching at 60 cm approach/distance

Accessories: Operating instructions

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

This symbol warns that the appliance must not be covered with objects.

FOR YOUR SAFETY

General safety instructions

1. Please read the following instructions and keep them on hand for later reference.

2. This appliance is not intended for This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use

of the applicance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.

2. Children aged from 3 years and less than 8 years shall only swith on/off the appli

ance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance out of the reach of children.
4. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
5. Do not operate this appliance with an external timer or remote control system.
6. Never immerse the appliance or the power cord in water or other liquids - life-threatening danger!
7. Do not open the motor housing under any circumstances, there is danger of electric shock!

8. The appliance is intended for household use only, or for similar areas of use, such as,

9. kitchenettes in businesses, offices or other workplaces,
   for use by guests in hotels, motels or other lodgings,

10. in private guest houses or holiday homes.

11. Check the appliance, the plug and the power cord regularly for wear or damage. In the event of damage to the power cord cable or other parts, please send the appliance or the power cord to our customer service organisation for inspection and repair. Unauthorised repairs can result in serious hazards for the user and void the warranty.

12. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or by the manufacturer's customer service organisation, or by a person with similar qualifications, to prevent hazards.
13. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.
14. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.
15. We assume no liability for damage that occurs due to improper operation, power failure, frost, poor insulation or if the heating capacity is incorrectly selected for the size of the room.

Safety instructions for set-up and operation of the appliance

1. The appliance is only suitable for dry, well-ventilated areas.
2. Do not operate the appliance in garages, woodsheds or similar spaces.
3. Only place the appliance on a suitable, level, heat-resistant substrate.
4. The appliance must be set up at least 1,50 meters away from walls.
5. Ensure that the power cord is laid out in such a manner that there is no possibility of stumbling over it.
6. To avoid damage to the cord, never wrap the power cord around the appliance.
7. To avoid damage to the cord, always unplug the mains plug from the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.
8. Ensure that the electrical outlet used is easily accessible, in order to unplug the appliance in an emergency.
9. To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.

10. If possible, do not use an extension cord. If you must use an extension cord, completely unwind the extension cord and comply with the power limits of the respective extension cord.

11. The appliance is very hot during and after operation, consequently ensure that the power cord cannot touch hot appliance parts.

12. Never place the appliance directly under an electrical outlet.
13. For safety reasons, the appliance must not be used in the vicinity of sinks, bathtubs, or water connections.
14. Never touch the appliance with wet or moist hands - life-threatening danger due to electric shock!
15. For safety reasons do not use the appliance for the following purposes:

For defrosting iced-up vehicle windows/heating vehicle interiors
For animal breeding or-animal husbandry applications
Commercial use

1. Maintain a safety distance (at least 1,50 meter) to other objects, such as furniture, curtains, etc. and ensure that air can flow in and out unhindered.
2. Do not use the appliance to dry laundry - fire hazard.
3. The appliance is not suitable as a heater for saunas.
4. Never leave the house when the appliance is switched on. Do not allow the appliance to run unattended.
5. Injuries can occur due to escaping hot air. Conse

sequently always keep children away from the appliance.

1. Do not stick any objects in the appliance openings, this can result in electric shock.
2. Do to use any highly flammable substances or sprays, for example, in the vicinity of the appliance - fire hazard!

3. When it is not in use, only store the appliance in closed, dry interior spaces.

4. Ensure that dust does not accumulate on the appliance and clean it regularly.

5. Do not operate the appliance in dusty environments - danger of a dust explosion!
6. Never sit on the appliance.

The appliance is very hot during and after operation - danger of burn injuries!

Do not use timers or other external switch-on / switch-off systems to operate the appliance. Use of such items could unintentionally reset the overheating protection circuit and cause a fire hazard.

To prevent overheating and the associated fire hazard, never cover the appliance during operation.

Do not operate the appliance in the vicinity of sinks, bathtubs or other containers filled with water.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

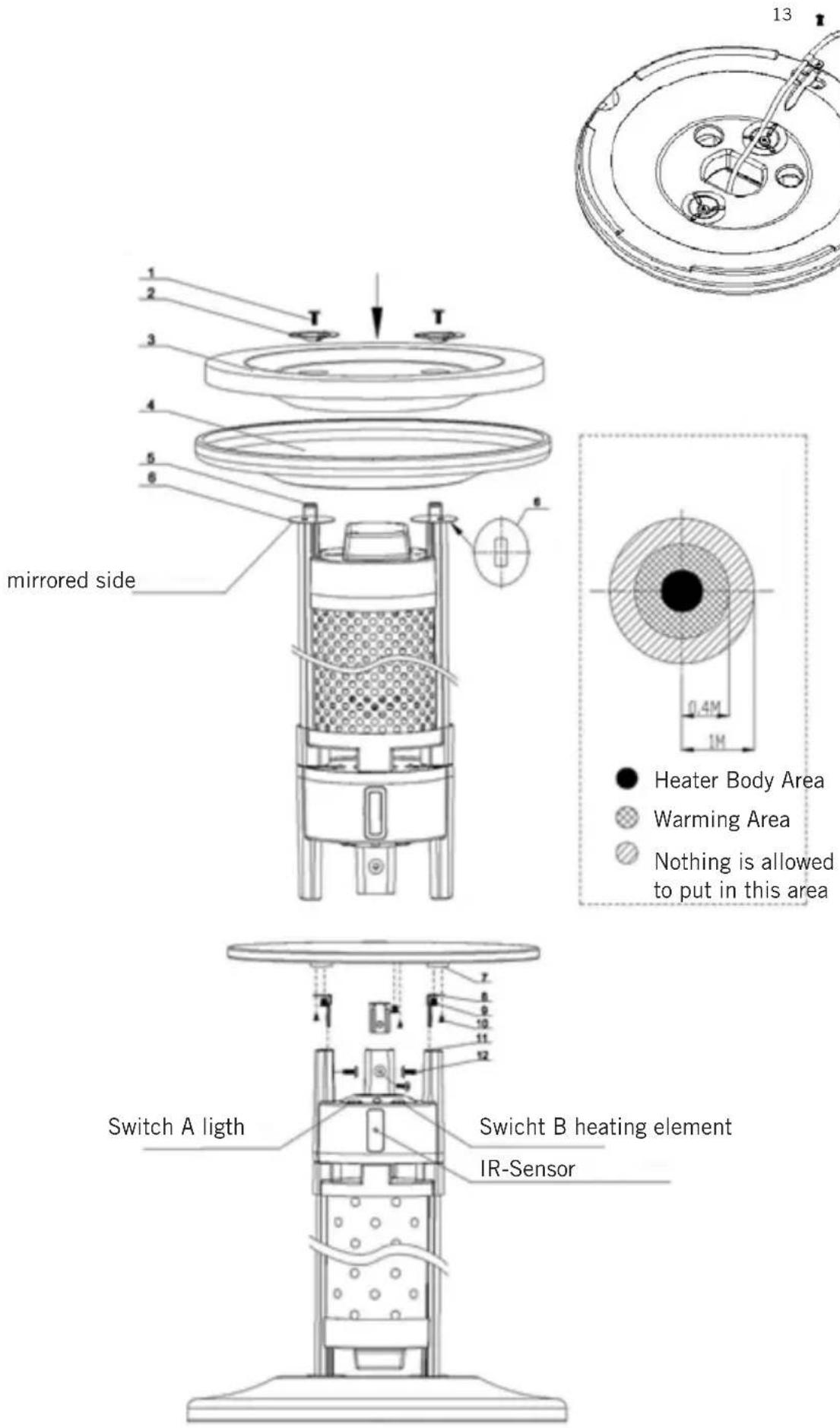

MONTAGE

Parts list

No. 1 Screws M 6 x 20
No. 2 Washers (2 pcs)
No. 3 Base (1 pc.)
No. 4 Base cover (1 pc.)
No. 5 Holders
No.6 Panels (2 pcs, mirrored side facing downward)
No. 7 Hinged holder
No.8 Hinges

No. 9 Screws M 8 x 6
No. 10 Screws M 4 x 6
No. 11 Glass plate holders
No. 12 Screws M 6 x 16
No. 13 Cable-Clip (incl. Screws

M 4 x 35)

For set-up you require a Phillips head screwdriver and the hex socket screwdriver.

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children.
2. Check whether all listed accessory parts are present and intact.
3. First turn the housing over so that the lower end is up.
4. Insert the two panels (6) on the holders. Ensure that the side that is slightly reflective points downward for optical reasons.
5. Route the power cord through the base. Note that the plug for the electrical outlet must poke out on the underside of the base. The end of the power cord, on which the connection socket is mounted, must be threaded through the housing. Fastening the power cord with the cable clip.
6. Carefully place the base (3) in the base cover (4) and place both the

base and base cover onto the holders (5) together.

1. Now place the washers (2) and firmly screw all parts onto the housing with screws M 6 x 20.
2. Turn the housing over again so that it is now right side up.
3. Now attach the three hinges (8) on the glass plate: Screw the hinges onto the aluminium-coloured holders of the glass plate with the M 8 x 6 and M 4 x 6 screws.
4. No you can carefully insert the glass plate into the three glass plate holders (11).
5. Firmly screw the glass plate onto the glass plate holders with the M 6 x 16 screws.

THE IDEAL LOCATION

1. Maintain an adequate safety distance (at least 1,50 meter) to other objects, such as walls, furniture, curtains, bushes, shrubbery, etc.
2. Only place the appliance in operation in a vertical position.
3. Ensure that air can flow in and out unhindered - the heating element of the appliance must not be covered under any circumstances!
4. Only place the appliance on a solid and level substrate. Do not place the appliance on soft surfaces (sofa, bed) because the appliance can tip over.

5. In addition, ensure that the appliance is not set up on deep-pile carpets or in dusty environments.

6. For safety reasons, the appliance must not be used in the vicinity of sinks, bathtubs, ponds or water connections.

7. Never place the appliance directly under an electrical outlet, and ensure that the power socket used is easily accessible at all times.
8. Check whether the power cord is routed in such a manner that no one can stumble over it.
9. The power cord should not touch any housing parts, this could cause the cable to melt.

Be aware that the appliance can become very hot - danger of burns! Particularly ensure that children and animals are kept away from the appliance.

PREPARING THE APPLIANCE FOR OPERATION

1. Comply with all safety instructions and safety regulations.
2. Ensure that you have selected a safe location.
3. Plug the mains plug of the appliance into an electrical outlet (220-240 V ~ 50 Hz).
4. The appliance has two switches:
5. Switch A for the lighting (only the lighting is activated, the appliance does not heat)
6. Switch B is for the heating mode.
7. In switch position " - " the large heating element heats up, there is no automatic switch-off. In the switch position = " automatic switching is active. When

switching on, the small heating element is immediately active, the IR sensors are flashing. When the sensors detect movement within their measuring range, the IR sensors will be permanently illuminated and the large heating element starts to heat. The small heating element switches off. When the sensors no longer detect movement, the heating element switches off after several seconds, while the small heating element is activated automatically and the IR sensors continue to flash.

1. Please note: The perception sensitivity of the IR sensors varies depending on the object, its colour, etc. For example if reflective material is in the vicinity (mirror, stainless steel, etc.) the perception distance can be greatly extended.

2. Adjust the appliance as you desire, always ensure that you never get too close to the heating element, because this becomes very hot.

3. When you no longer require the appliance, switch all switches to "0" and unplug the plug from the electrical outlet.

Be aware that the appliance can become very hot - danger of burns! Particularly ensure that children and animals are kept away from the appliance.

CLEANING AND CARE

Switch off the appliance.

To switch off the appliance, switch all switches to the "0" position and unplug the mains plug.

Allow the appliance to cool completely.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants.
2. Clean the glass plate with a damp cloth if necessary.
3. You can remove dust in the appliance if you carefully hold a vacuum cleaner against the air inlet and outlet grille.
4. Store the hot table in a dry, safe place so that it is protected from dust, shocks, heat and moisture.
5. To protect the appliance from environmental influences, such as dust, rain, etc. you can order a practical protective cover directly from us or from your authorised dealer. The article number of the protective cover is 867405.

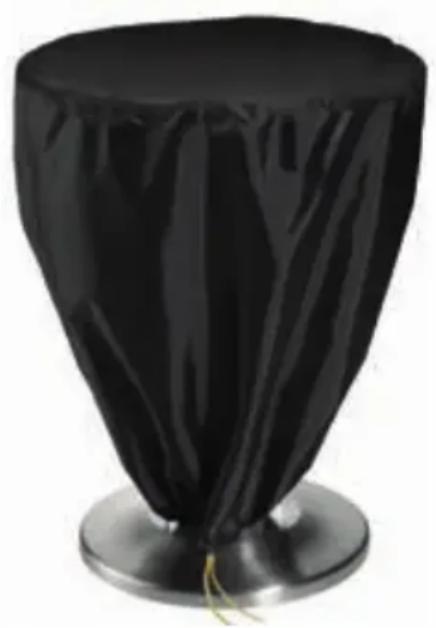

Please note: When the appliance is switched on, do not place the cover over the device - danger of fire!

Switch off the appliance (both switches on "0") und allow the appliance to cool completely. Only place the protective cover over the appliance after the appliance has cooled completely.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

NOTICE D'UTILISATION MODELE 86745

SPÉCIFICATION TECHNIQUE

Puisance:1200Watt,220-240V\~，50Hz

CONDITIONS DE GARANTIE

N° 11 Supporti lastra in vetro

N° 12 Viti M 6 x 16

N° 13 Clip del caov, viti M 4 x 35
