| Product type | Portable power station with jump start |
| Brand | Einhell |
| Model | CCJS 12 |
| Battery | Li-Po 41.1 Wh |
| Charger input voltage | 100-240 V ~ 50/60 Hz |
| Charger output voltage | 15 V ⎓ 1 A |
| Charging time | Approximately 4 hours |
| USB output | 5 V ⎓ 2 A max |
| 19 V output | 19 V ⎓ 3.5 A max |
| 12 V output | 12 V ⎓ 10 A max |
| Jump start current | 200 A (5 sec) / 400 A (max) |
| Temperature range for jump start | -15 °C to +40 °C |
| Charge indicator | 5 LEDs: 100% = 5 LEDs on, <10% = no LEDs |
| LED lamp | Fixed light, strobe, SOS |
| Reverse polarity protection | Yes (red LED + sound signal) |
| Package contents | Power station, mains charger, 12V cigarette lighter cable, jump start cable, USB cable, connection cable, connector kit, cover, manual |
| Maintenance and cleaning | Clean with a damp cloth and a little black soap; avoid water ingress |
| Wear parts | Internal battery (not user-replaceable) |
| Warranty | 24 months |
Frequently Asked Questions - CCJS 12 EINHELL
User questions about CCJS 12 EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Battery in PDF format for free! Find your manual CCJS 12 - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CCJS 12 by EINHELL.
USER MANUAL CCJS 12 EINHELL

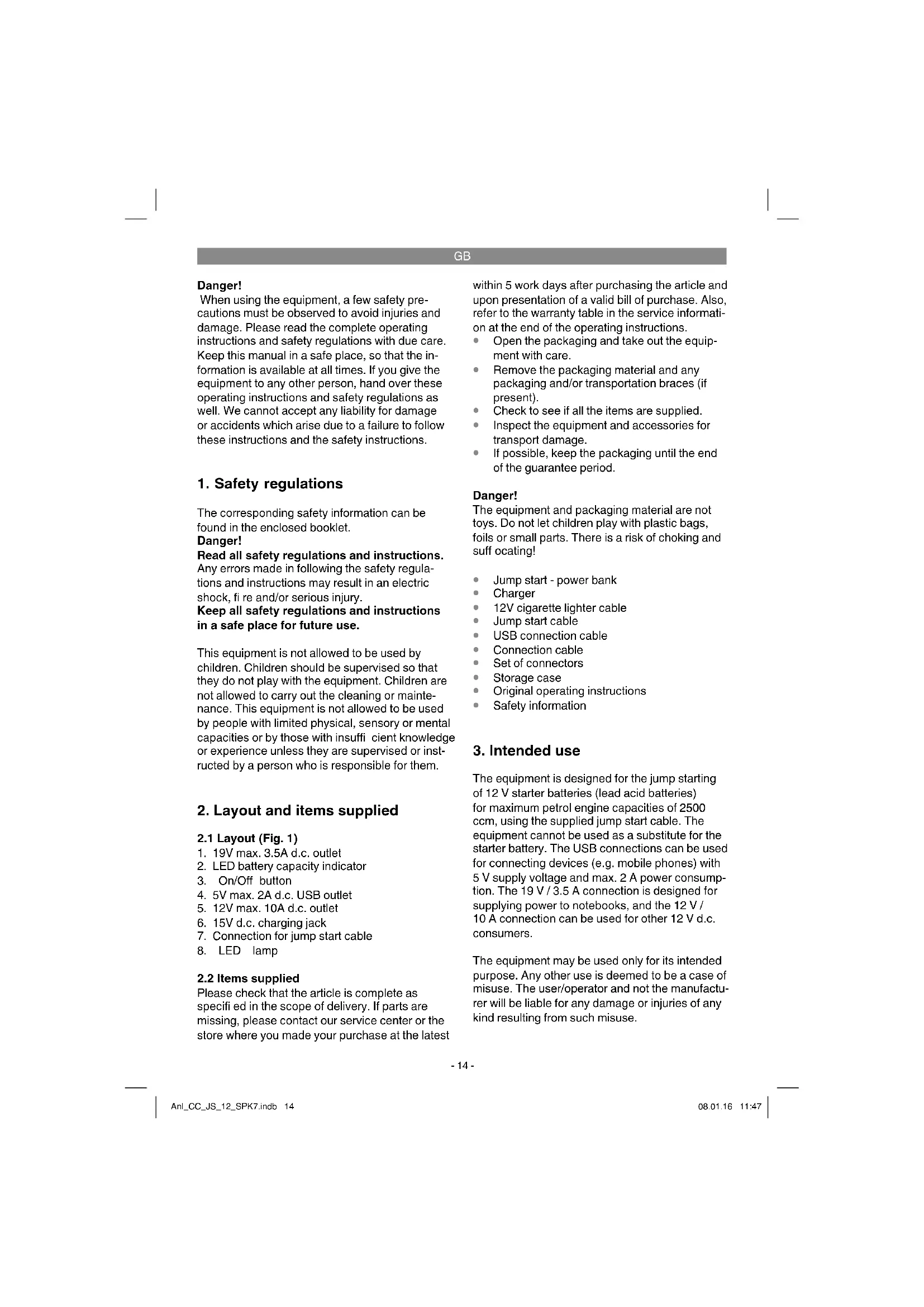

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Danger!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.
Keep all safety regulations and instructions in a safe place for future use.
This equipment is not allowed to be used by children. Children should be supervised so that they do not play with the equipment. Children are not allowed to carry out the cleaning or maintenance. This equipment is not allowed to be used by people with limited physical, sensory or mental capacities or by those with insufficient knowledge or experience unless they are supervised or instructed by a person who is responsible for them.
2. Layout and items supplied
2.1 Layout (Fig. 1)
- 19V max. 3.5A d.c. outlet
- LED battery capacity indicator
- On/Off button
- 5V max. 2A d.c. USB outlet
- 12V max. 10A d.c. outlet
- 15V d.c. charging jack
- Connection for jump start cable
- LED lamp
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the store where you made your purchase at the latest
within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if present).
- Check to see if all the items are supplied.
- Inspect the equipment and accessories for transport damage.
If possible, keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a risk of choking and suffocating!
- Jump start - power bank
- Charger
12V cigarette lighter cable - Jump start cable
USB connection cable - Connection cable
Set of connectors
Storage case - Original operating instructions
Safety information
3. Intended use
The equipment is designed for the jump starting of 12V starter batteries (lead acid batteries) for maximum petrol engine capacities of 2500 ccm, using the supplied jump start cable. The equipment cannot be used as a substitute for the starter battery. The USB connections can be used for connecting devices (e.g. mobile phones) with 5V supply voltage and max. 2 A power consumption. The 19V / 3.5A connection is designed for supplying power to notebooks, and the 12V / 10A connection can be used for other 12V d.c. consumers.
The equipment may be used only for its intended purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.
GB
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Jump start power bank
Li-Po battery: 41.1 Wh
Charging time approx. 4 hr
USB d.c. voltage outlet: 5 V max. 2 A
d.c. voltage outlet: 19 V max. 3.5 A
d.c. voltage outlet: 12 V max. 10 A
Jump starting current: 200 A (5 sec) / 400 A (max.)
Ambient temperature for jump starting:
+15°C-+40°C
Charger
Nominal input voltage: ...100-240 V ~50/60 Hz
Nominal output voltage: 15 V DC
Nominal output current: 1 A
5. Before starting the equipment
5.1 Charging the jump start power bank with the supplied charger
The following applies to the charger:
This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.
Before you connect the equipment to the power supply make sure that the data on the rating plate are identical to the supply voltage.
Important! Pull out the power plug before making adjustments to the equipment. Charge the equipment only with the charger supplied.
Observe the enclosed safety information with detailed information about charging.
The outlets must not be used while charging is in progress.
- Connect the supplied charger (Fig. 2a / Item 2) to the "15V 1A input" charging jack (Fig. 1 / Item 6) on the equipment.
Plug the charger into the socket outlet and the battery will be charged. The LED (Fig. 1/ Item 2) shine (flash) during charging and indicate the charging status. When charging is finished, all the LED shine.
The time it takes to fully recharge an empty battery is approximately 4 hours. The temperature of the battery pack may rise slightly during the charging operation. This is normal.
5.2 Charging the jump start power bank with the 12 V cigarette lighter cable
Charging should be performed only while driving, as the vehicle's battery is discharged in the process. Place the equipment in a suitable location where it cannot move in response to an abrupt change in speed and/or direction.
- Connect the supplied 12 V cigarette lighter cable (Fig. 2b / Item 11) to the ,15V 1A input charging jack (Fig. 1 / Item 6) on the equipment.
Plug the 12 V connector into a suitable 12 V cigarette lighter socket.
5.3 Battery capacity indicator
Press the ON/OFF button (Fig. 1/Item 3) briefly. The LED for the battery capacity indicator (Fig. 1 / Item 2) light up. The number of LED that are lit indicate the current charge level of the integrated Li-Po battery.
100% charged = 5 LED steady on
<10% charged = no LED
6. LED lamp
Caution! Do not look into the light beam.
- Press the ON/OFF button for 3 seconds - the LED lamp (Fig. 1 / Item 8) will be permanently lit.
- Press the ON/OFF button again - the LED lamp will be lit as a "strobe light".
Press the ON/OFF button again - the LED lamp will be lit as an „SOS“ Morse code signal lamp. - Press the button again to switch the LED lamp off again.
GB
7. Outputs
Caution! Check the voltage and current ratings of the device you want to connect (e.g. mobile phone, notebook). Observe the operating instructions for the device.
The supply time varies according to the level of the charge of the jump start power bank, the level of power consumption and the intensity of use of the connected device. The battery needs charging when the remaining charge is 40 - 50% (2 LED shine) (see section 5).
7.1 Charging/operating devices with a USB connection
- Connect an available (or the supplied) USB connection cable to the USB connection (Fig. 1 / Item 4) on the jump start power bank and then to the device you want to connect.
- Press the ON/OFF button (Fig. 1 / Item 3).
7.2 Operating 12 V d.c. devices
- Connect the supplied connection cable (Fig. 2d / Item 13) to the 12V d.c. outlet (Fig. 1 / Item 5) on the jump start power bank and then to the 12V d.c. device, using the supplied connector (Fig. 2d / Item 14) if necessary. The maximum power consumption must not exceed 10A .
- Press the ON/OFF button (Fig. 1 / Item 3).
7.3 Operating 19 V d.c. devices
- Connect the supplied connection cable (Fig. 2d / Item 13) to the 19V d.c. outlet (Fig. 1 / Item 1) on the jump start power bank and then to the 19V d.c. device, using the supplied connector (Fig. 2d / Item 14) if necessary. The maximum power consumption must not exceed 3.5A .
- Press the ON/OFF button (Fig. 1 / Item 3).
8. Jump starting for the vehicle
The 12 V jump starting function provides welcome help with starting difficulties due to too little battery capacity.
Warning! Only the jump start cable is allowed to be connected during jump starting. Any power supply to a connected device, e.g. via the USB connection, must be disconnected fi rst. We would like to point out that vehicles are fitted with a whole host of electronic equipment. Please also refer to the instructions in the owner's manu
Warning! Never connect to the vehicle bodywork!
Make sure that the connector on the jump start cable is securely connected to the device socket. If the connection is loose during jump starting, the connector could melt as a result of the high current.
- The poles on the vehicle battery must be clean and the clamps of the jump start cable must be securely attached to the battery poles.
- Do not connect the clamps of the jump start cable together during jump starting - short-circuit.
Check that at least 3 LED of the battery capacity indicator are lit. The equipment temperature must be within the range of +10^ + 40^ and the ambient temperature during jump starting within the range of -15^ + 40^ . Use only the supplied jump start cable (Fig. 2c / Item 12).
- Fig. 3: Pull open the cover on the jump start cable connection (Fig. 1 / Item 7) and plug the jump start cable into the equipment.
- Fig. 4a: Connect the red cable to the positive pole on the vehicle's battery and the black cable to the negative pole on the vehicle's battery.
- Fig. 4a: The green, correct"LED on the jump start cable will light up.
Note: If the green LED does not light up or flashes, press the „Boost“ button on the jump start cable.
- Start the vehicle within 30 seconds (no longer than 5 seconds for each attempt to start the engine, allowing at least 30 seconds waiting time between each attempt).
- As soon as the engine is running, remove the jump start cable from the equipment and then remove the red clamp from the battery first, followed by the black clamp.
- Let the engine run. The generator will charge up the built-in battery.
GB
LED status signals on the jump start cable
Fig. 4a: Green LED = Start engine
Fig. 4b: Green LED flashing + acoustic warning signal = Press the „Boost“ button and start the engine within 30 seconds.
Fig. 4c: Red LED + acoustic warning signal = Battery connected reverse polarity (see 2.)
Fig. 4d: No LED, no acoustic warning signal = Check the connector to the equipment, press the "Boost" button and start the engine within 30 seconds.
The number of times that you can attempt to start the engine (max. 10) varies according to the ambient temperature, the condition of the battery you want to start and the charge level of the jump start power bank battery.
9. Cleaning, maintenance and ordering of spare parts
Hazard!
Always pull out the power plug before starting any cleaning work.
9.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.
We recommend cleaning the equipment immediately each time after use.
Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment. The ingress of water into an electric power tool increases the risk of an electric shock.
9.2 Maintenance
There are no other parts inside the equipment which require maintenance.
9.3 Ordering spare parts
Please provide the following information when ordering spare parts:
Type of unit
Article number of the unit
ID number of the unit
- Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info
10. Repair
Should the tool experience problems beyond those mentioned above, let only an authorised professional or a customer service shop perform an inspection.
11. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
12. Storage
Store the equipment and its accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Observe the enclosed safety information with detailed information about storage. Since the battery reacts if the temperature is too high (above +40^ ) or too low (below 0^ ), do not keep the battery permanently in a vehicle. For transporting in a vehicle, place the equipment in a suitable location where it cannot move in response to an abrupt change in speed and/or direction. Keep the equipment in its original packaging.
GB
13. Troubleshooting guide
| Fault Possible cause Remedy | ||
| The equipment can-not be switched on: | - Battery voltage too low - Charge battery | |
| Jump starting does not work | - Battery voltage too low- Connections on the vehicle con- nected with reverse polarity- Ambient temperature outside the temperature range | - Charge battery- Check the polarity and connect cor- rectly- Try jump starting within the tempe- rature range |
| All LED flash - The overload cutout has responded- Equipment too hot- Ambient temperature too low/high | - Switch off the equipment, check for possible overloading- Observe equipment temperature of + 10°C - + 40°C.- Observe ambient temperature ran- ge of - 15°C - + 40°C |
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
This consignment contains lithium-ion batteries.
In accordance with special provision 188 this consignment is not subject to the ADR regulations. Handle with care. Danger of ignition in case of damage to the consignment package. If the consignment package is damaged: Check and if necessary repackage. For further information contact: 0049 1807 10 20 20 66 (fixed network 14 ct/min, mobile phone max. 42 ct/min) Outside Germany charges will apply instead for a regular call to a landline number in Germany.
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Battery | |
| Consumables* | |
| Missing parts |
- Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GB
Warranty certificate
Dear Customer:
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:
- These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
- The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
-
The following are not covered by our guarantee:
-
Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
-
Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
-
The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
-
To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
