USER MANUAL IceMaster Ecostyle 3304 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your IceMaster Ecostyle will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

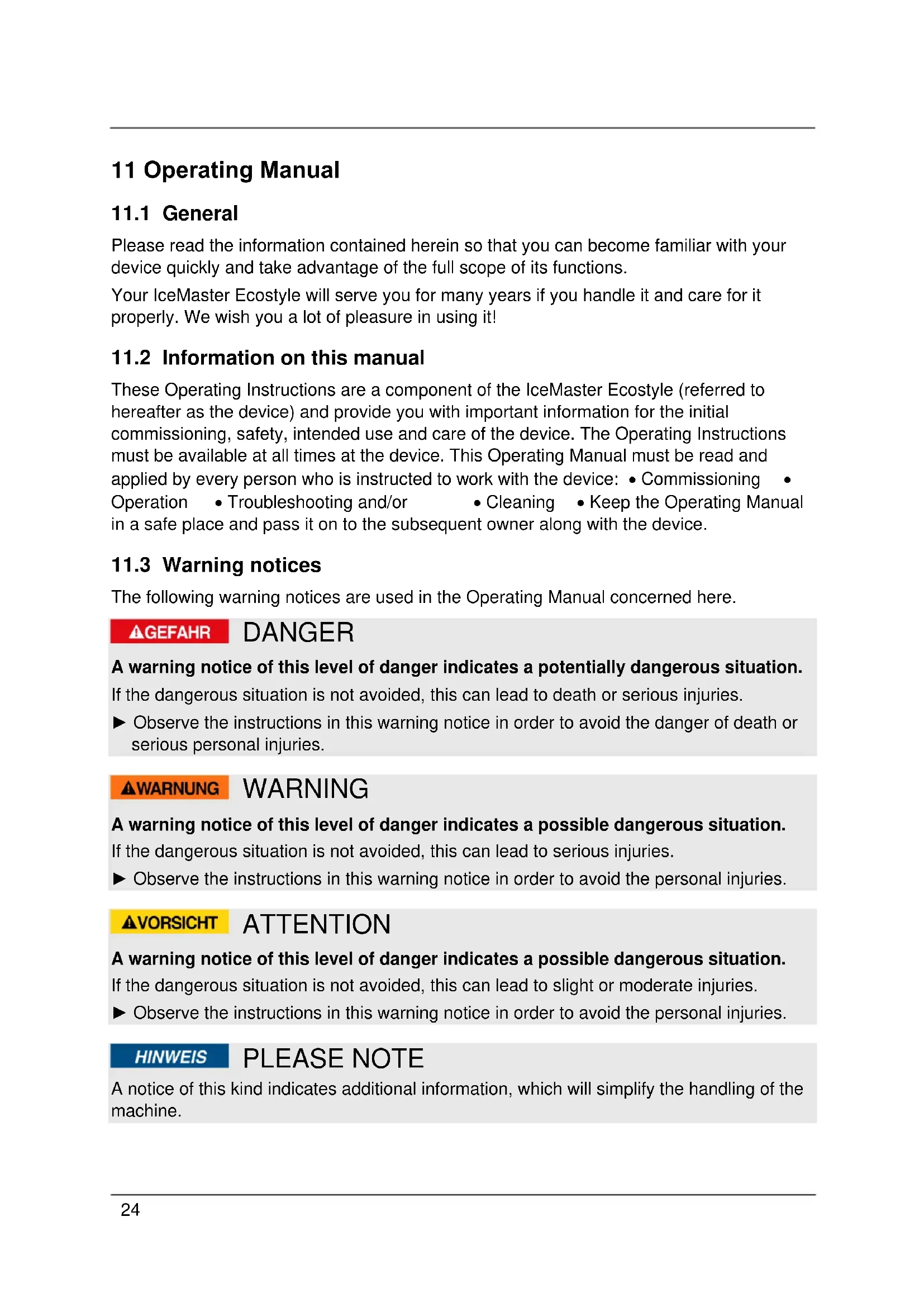

11.2 Information on this manual

These Operating Instructions are a component of the IceMaster Ecostyle (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning • Operation • Troubleshooting and/or • Cleaning • Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.25 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for making ice cubes. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► The device and its connecting cable must be kept away from children who are less than 8 years old.26 Please note ► Children are not allowed to play with the device. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► Persons, who are not able to operate the device because of any physical, mental or motor disabilities may only use the device under the supervision or under the instructions of a responsible person. ► Do not permit children to use the device, unless they are supervised. ► Do not leave the device unsupervised when it is in operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Do not use any other liquids than water to make ice cubes. ► Do not tilt the ice maker upwards.27 Please note ► Please only use the ice maker at room temperature and not in outdoors areas. ► Fill with potable water only. ► Before you scrap the appliance, please take off the lid to prevent children trapped.

Warning: Risk of fire / flammable materials used.

► Do not store explosive substances such as aerosol cans with a flammable propellant in this device. ► Blowing gas inside the unit is flammable ► Do not cover any ventilation openings of the devixe and do not block them. ► Do not use mechanical devises or other means to accelerate the ice harvesting process. ► Do not use electrical devices inside the device. ► Do not damage the cooling circuit of the device.

12.4 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.28 Danger ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual Uses for non-intended purposes

• Improper repairs Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.29

13.3 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

13.4 Delivery scope and transport inspection

As a rule, the IceMaster Ecostyle is delivered with the following components:

• IceMaster Ecostyle • Ice basket • Ice scoop • Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

Unpack your ice maker as follows:

• Take out the ice maker from the box and remove the interior and exterior packaging.

• Remove the tapes for fixing the ice scoop and ice basket.

• Before using your ice maker for the first time, thoroughly clean the water reservoir and the ice basket as well as the ice shovel (see chapter Cleaning and Maintenance).

• Clean the interior of the machine with water. Open the drain cap on the front bottom side to drain out the water from the ice maker.

13.6 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.7 Setup location requirements:

• In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.30

• Do not leave the ice maker to direct sunlight.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 10 cm on all sides.

• WARNING! Do not close the ventilation openings in the device housing.

• Do not remove the device’s adjustable feet.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.8 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.31 14 Function In this chapter, you'll find important information on the function of the ice maker.

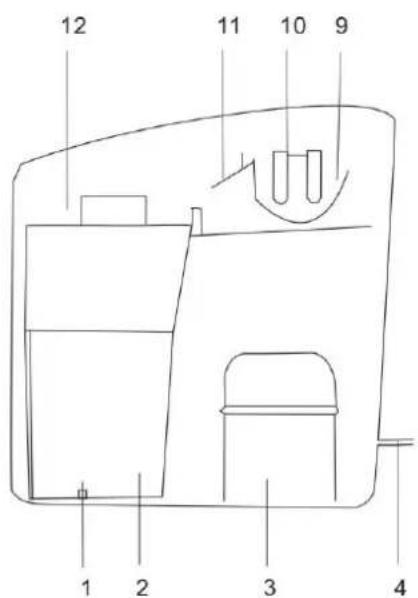

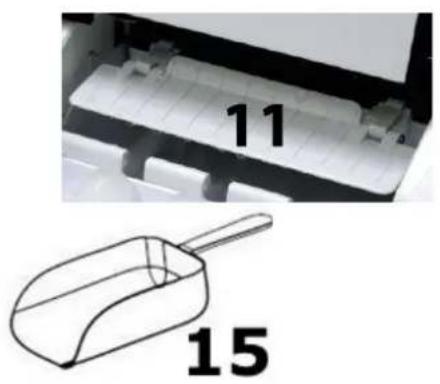

1 water outlet with silicon plug (pull it from the inside) 2 watertank 3 compressor 4 powercord 5 lid 6 window 7 housing of device 8 controll lamp (ICE Full) 9 water basket 10 evaporator 11 ice pusher 12 ice basket 13 MIN = minimum water level 14 MAX = maximum water level 15 ice scoop

The rating plate with the connection and performance data can be founded beneath the device. 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.32

ON/OFF = on/off button ICE FULL = control lamp (ice basket is full) ICE= flashes, when device is on, lights when device is working ADD WATER = Add water into watertank

Please note ► Please wait min 24 hours before you switch on the ice maker. You will find that the cooling agent settles out in this time.

• Open the cover of the ice maker and remove the ice basket.

• Check that silicon plug is correctly placed in water outlet.

• Fill water into the water reservoir and observe the min and max marking. Close the lid of the device.

• Press the "on/off" button to begin the ice making cycle.

• Depending on water and room temperature, the ice making cycle lasts approx. 6 to 13 minutes.

• If water pump can't inject water, the ice maker will stop automatically and signal tone sounds. The "Add Water" indicator will be on. Press the "on/off" button and fill in water.

• The ice maker stops working when the ice basket is full. In this case the "ICE FULL" indicator will light up and signal tone sounds.

• Drain all the water, if unit isn't used. Always store the unit without water in the water reservoir. Attention ► Change water in the water reservoir every 24 hours to avoid pathogenic organisms. 16 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.33

16.1 Safety information

ATTENTION Please observe the safety instructions, before cleaning your ice maker. ► Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. ► Before cleaning switch off the unit and take the power plug out of the outlet. ► Clean the unit with a soft cloth. ► Don't clean the ice maker with inflammable detergents. ► Clean the ice maker again thoroughly when the machine hasn't been used for a long time.

16.2 Cleaning before first use

• Take out the ice basket.

• Clean the interior with diluted detergent, warm water and a soft cloth.

• Clean the interior of the machine with lukewarm water. Drain out the water by unplugging the drain cap.

• Clean the outside of the ice maker with a soft cloth and warm water. 17 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Security advices

ATTENTION ► Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. ► Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

17.2 Troubleshooting

Problem Possible cause Solution "Add Water" indicator is on. Lack of water. Stop the ice maker and press "on/off”button again to restart the unit. "Ice full" indicator is on Ice is full in basket. Remove ice from ice basket.34 Ice cubes stick together. The ice making cycle is too long. Stop the ice maker and start it again when the ice blocks are melt. Water temperature in inner tank is too low. Replace the water. Temperature of water recommended at 8-32°C. Ice making cycle is normal but no ice formed. Room temperature or water temperature in inner tank is too high. The room temperature should be 5-40°, water temperature should be 8-32°C. Not enough cooling agent in the coolant reservoir or a part of the electronics is defect. Contact your customer service. ATTENTION ► If above mentioned steps don't solve the problem, please contact your customer service. 18 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. ► Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations. 19 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.35 The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 20 Technical Data Device Ice cube Maker Name IceMaster Ecostyle Item No.:
