IceChef Pro 3302 - Ice machine CASO - Free user manual and instructions

Product type	Ice maker
Brand	Caso
Model	IceChef Pro 3302
Dimensions (W x D x H)	250 x 325 x 370 mm
Net weight	9.0 kg
Power supply	220-240 V, 50 Hz
Power consumption	120 W
Water tank capacity	Approx. 2 L (MAXI mark)
Ice basket capacity	Approx. 1 kg
Recommended ambient temperature	15 °C to 30 °C
Recommended water temperature	8 °C to 32 °C
Ice production cycle	6 to 13 minutes per cycle
Ice cube sizes	Small (S) and large (L) – selectable
Indicators	Ice full, water shortage, production status
Special features	Integrated cleaning function, automatic stop when basket is full
Cleaning	Change water every 24 h; clean with a soft cloth and warm water
Safety	Safety device in case of overheating or water shortage; automatic stop
Warranty	24 months from date of purchase
Package contents	Machine, ice basket, ice scoop, instruction manual
Repairability	Repairs only by an authorized after-sales service; use original parts

Frequently Asked Questions - IceChef Pro 3302 CASO

How to put the IceChef Pro 3302 ice maker into service?

Wait at least 24 hours after installation before first use. Open the lid, remove the ice basket, ensure the drain plug is in place, fill the water tank to the MAXI mark, close the lid, and press the on/off button.

How to choose the ice cube size?

Press the S/L button to select the size: S for small ice cubes, L for large. The corresponding indicator lights up. By default, large ice cubes are selected.

What to do if the water shortage indicator lights up?

Press the on/off button to stop the machine, then fill the water tank. Then restart the appliance.

What to do if the ice basket full indicator lights up?

Immediately remove the ice cubes from the basket to prevent overflow. The machine stops automatically when the basket is full.

How to clean the ice maker?

Turn off and unplug the appliance. Remove the ice basket. Clean the interior with a soft cloth soaked in warm water and diluted detergent. For the exterior, use a soft cloth and warm water. You can also use the cleaning function by pressing the Clean button then on/off.

How often should the water in the tank be changed?

Change the water every 24 hours to ensure good hygiene and prevent the formation of microorganisms.

Why are the first ice cubes small and irregular?

This is normal during the first three production cycles. The quality of the ice cubes improves afterwards.

What safety precautions should be observed?

Do not use the appliance if the cable or plug is damaged. Do not open the housing. Use only drinking water. Do not cover the ventilation openings. Keep out of reach of children under 8 years old.

How to store the machine when not in use?

Empty the water from the tank and store the machine without water. Keep it in a dry place, away from sunlight and out of reach of children.

What to do if the machine does not produce ice?

Check that the water tank has enough water and that the ambient temperature is between 15 and 30 °C. If the problem persists, contact customer service.

USER MANUAL IceChef Pro 3302 CASO

Exterior view of a modern stainless steel appliance with a clear lid and label 'COSO DESIGN' (no additional text or symbols visible)

CE

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

11 Operating Manual....27

11.1 General....27

11.2 Information on this manual 27

11.3 Warning notices....27

12 Safety 28

12.1 Intended use....28

12.2 General Safety information 28

12.3 Risk of fire / flammable materials used....30

12.4 Dangers due to electrical power 30

13 Commissioning ....31

13.1 Safety information....31

13.2 Limitation of liability 31

13.3 Copyright protection....31

13.4 Delivery scope and transport inspection....31

13.5 Unpacking....32

13.6 Disposal of the packaging....32

13.7 Setup location requirements:....32

13.8 Electrical connection....33

14 Function....33

14.1 Rating plate....36

15 Operation and Handing....36

15.1 Key functions 36

15.2 Operation 37

16 Cleaning and Maintenance....38

16.1 Safety information....38

16.2 Cleaning (also before first use)....38

16.3 Cleaning function....38

17 Troubleshooting....39

17.1 Security advices....39

17.2 Troubleshooting....39

18 Disposal of the Old Device....40

19 Guarantee ....40

20 Technical Data....41

Close-up of a white industrial machine component with a black number '5' on its side (no text or symbols on the device itself)

13 Clean S/L Start/stop 14

White plastic soap shaker with handle, labeled number 16 (no text or symbols on the object itself)

4.1 Typenschild

6 1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99

8 Clean 9 S/L 10 Start/stop

Exterior view of a stainless steel CosO design appliance with clear lid (no text or symbols on body)

CE

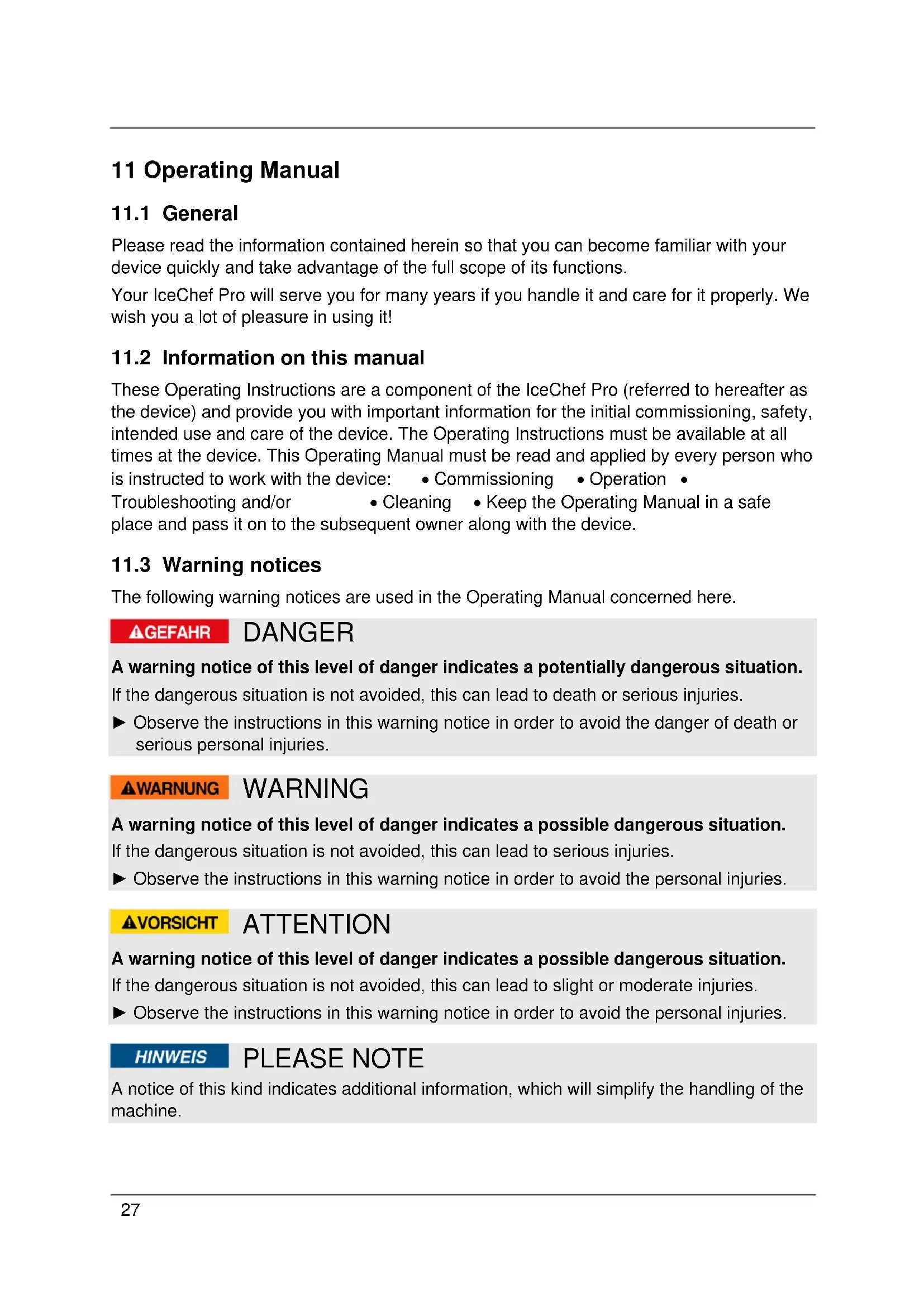

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your IceChef Pro will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the IceChef Pro (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: • Commissioning • Operation •

Troubleshooting and/or • Cleaning • Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for making ice cubes. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.

HINWEIS

Please note

▶ Children are not allowed to play with the device.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ Persons, who are not able to operate the device because of any physical, mental or motor disabilities may only use the device under the supervision or under the instructions of a responsible person.
▶ Do not permit children to use the device, unless they are supervised.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not use any other liquids than potable water to make ice cubes.
▶ Do not tilt the ice maker upwards.
▶ Please only use the ice maker at room temperature and not in outdoors areas.
▶ Before you scrap the appliance, please take off the lid to prevent children trapped.

12.3 Risk of fire / flammable materials used.

⚠GEFAHR

Danger

Warning: Risk of fire / flammable materials used.

▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this device.
▶ Blowing gas inside the unit is flammable
▶ Do not cover any ventilation openings of the device and do not block them.
▶ Do not use mechanical devises or other means to accelerate the ice harvesting process.
▶ Do not use electrical devices inside the device.
▶ Do not damage the cooling circuit of the device.

12.4 Dangers due to electrical power

⚠️GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

▲WARNUNG Warning

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual • Uses for non-intended purposes
- Improper repairs - Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

13.3 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

13.4 Delivery scope and transport inspection

As a rule, the IceChef Pro is delivered with the following components:

- IceChef Pro

- Ice basket

- Ice scoop

- Operating Instructions

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.5 Unpacking

Unpack your ice maker as follows:

• Take out the ice maker from the box and remove the interior and exterior packaging.
• Remove the tapes for fixing the ice scoop and ice basket.
• Before using your ice maker for the first time, thoroughly clean the water reservoir and the ice basket as well as the ice shovel (see chapter Cleaning and Maintenance).
• Clean the interior of the machine with water. Open the drain cap on the front bottom side to drain out the water from the ice maker.

13.6 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.7 Setup location requirements:

• In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.
• Do not leave the ice maker to direct sunlight.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 10 cm on all sides.
• WARNING! Do not close the ventilation openings in the device housing.
• Do not remove the device's adjustable feet.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.8 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 ~mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Function

In this chapter, you'll find important information on the function of the ice maker.

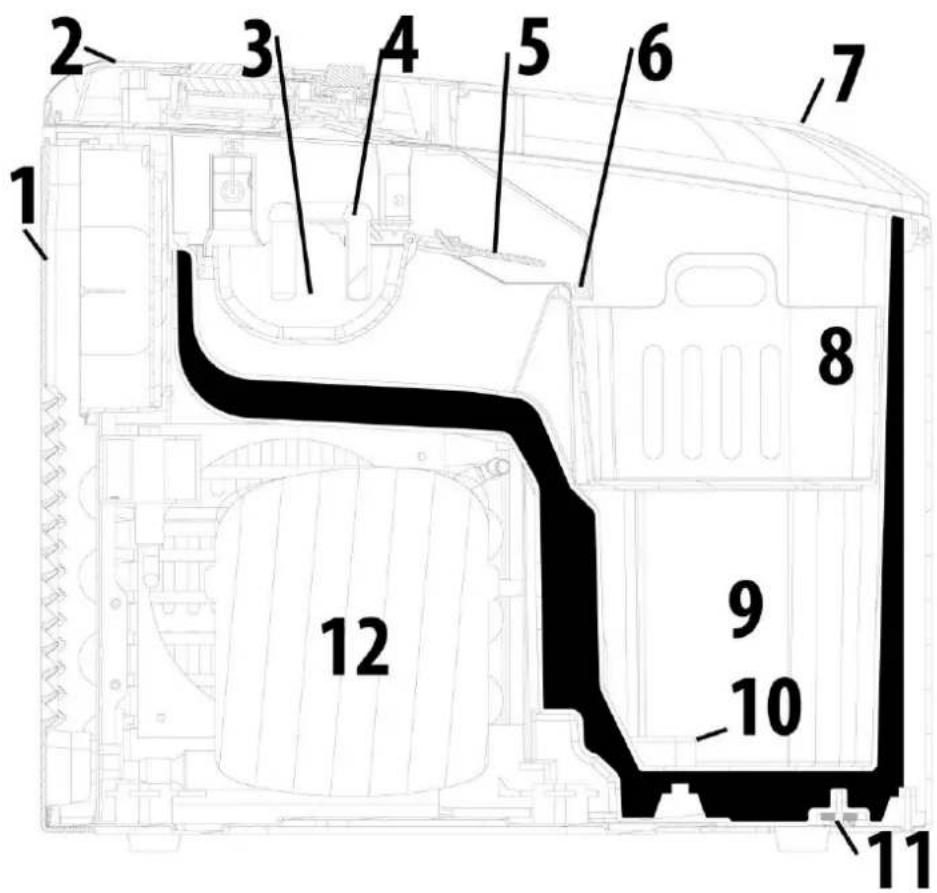

1 2 3 4 5 6 7 8 9 10 11 12

1 rear cover
2 top cover
3 water tray
4 evaporator

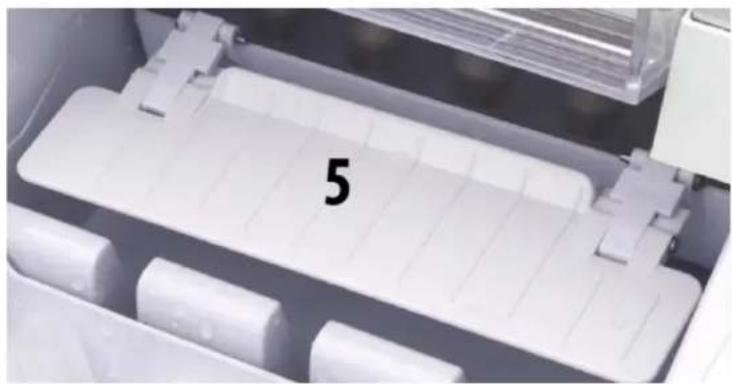

5 ice pusher
6 sensor for ice full indicator
7 transparent cover
8 ice basket
9 water tank
10 filter
11 silicon plug
12 compressor

Close-up of a printer's internal structure with a numbered component '5' visible (no text or symbols beyond the number)

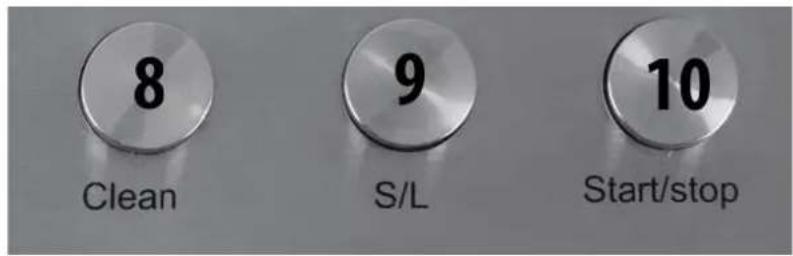

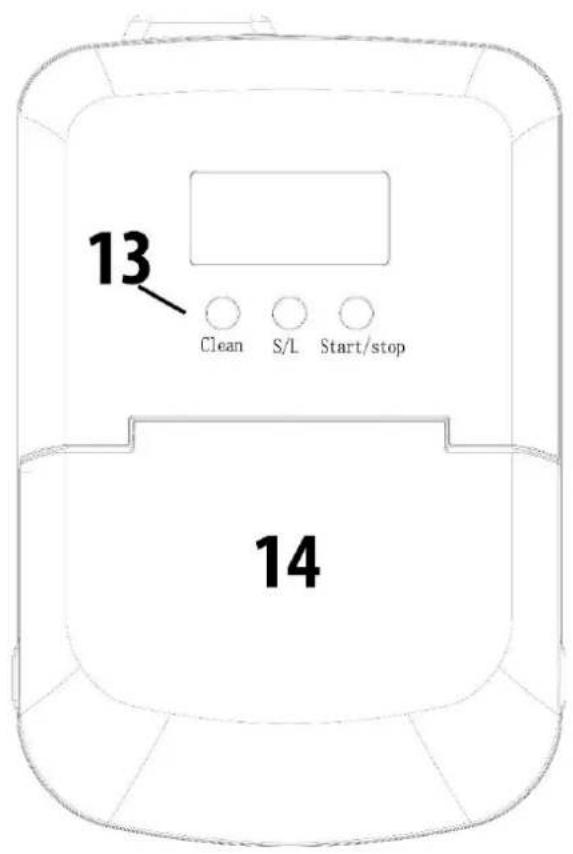

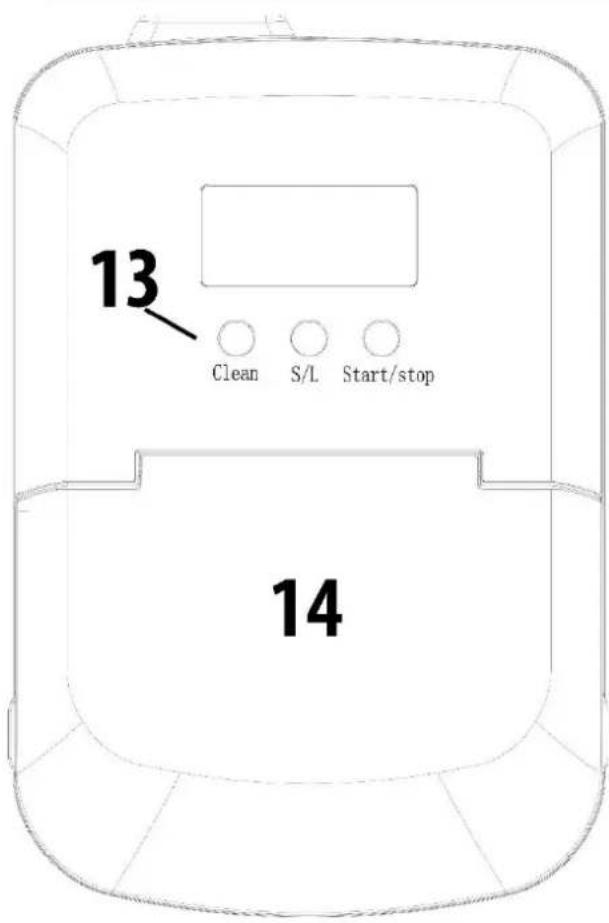

13 Clean S/L Start/stop 14

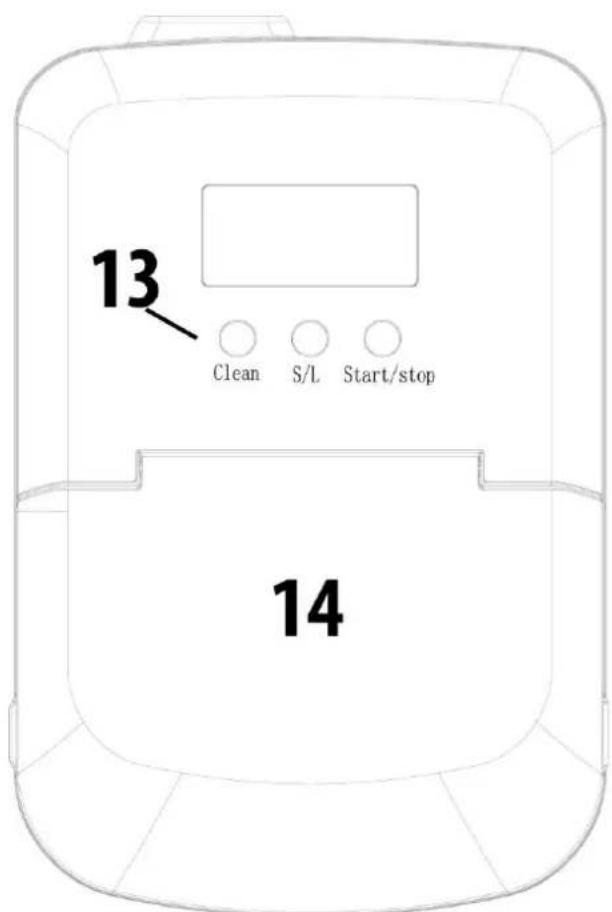

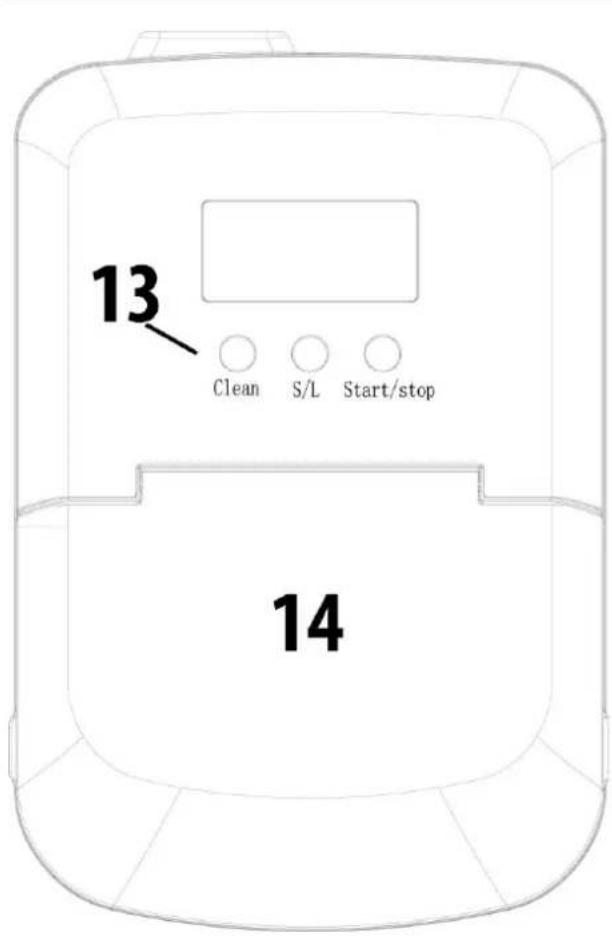

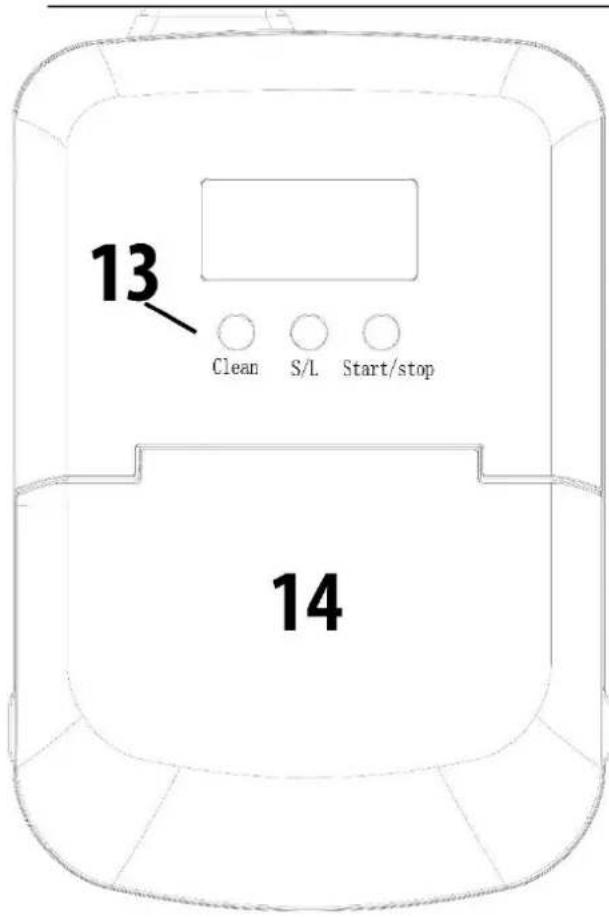

13 buttons

14 lid

White plastic soap shaker with handle, labeled number 16 on the left (no other text or symbols)

15 MAX

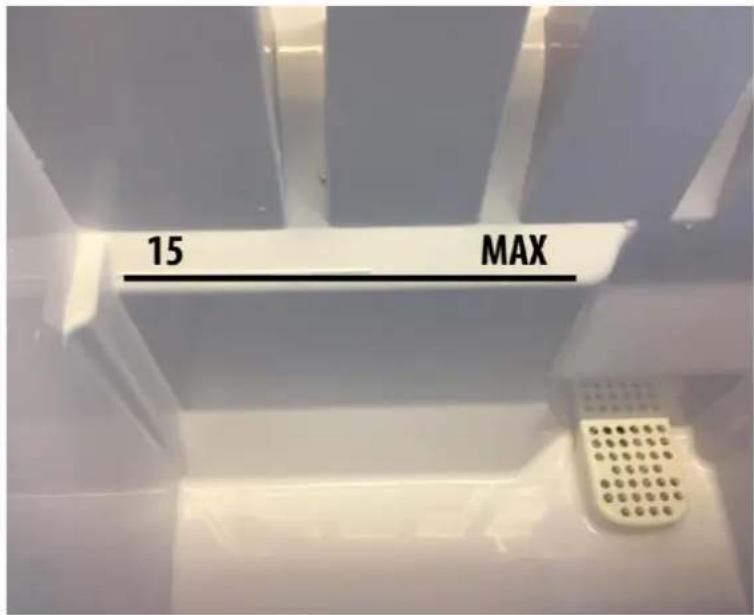

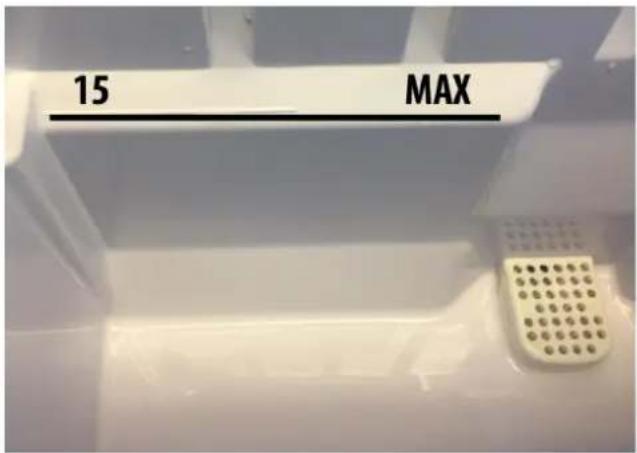

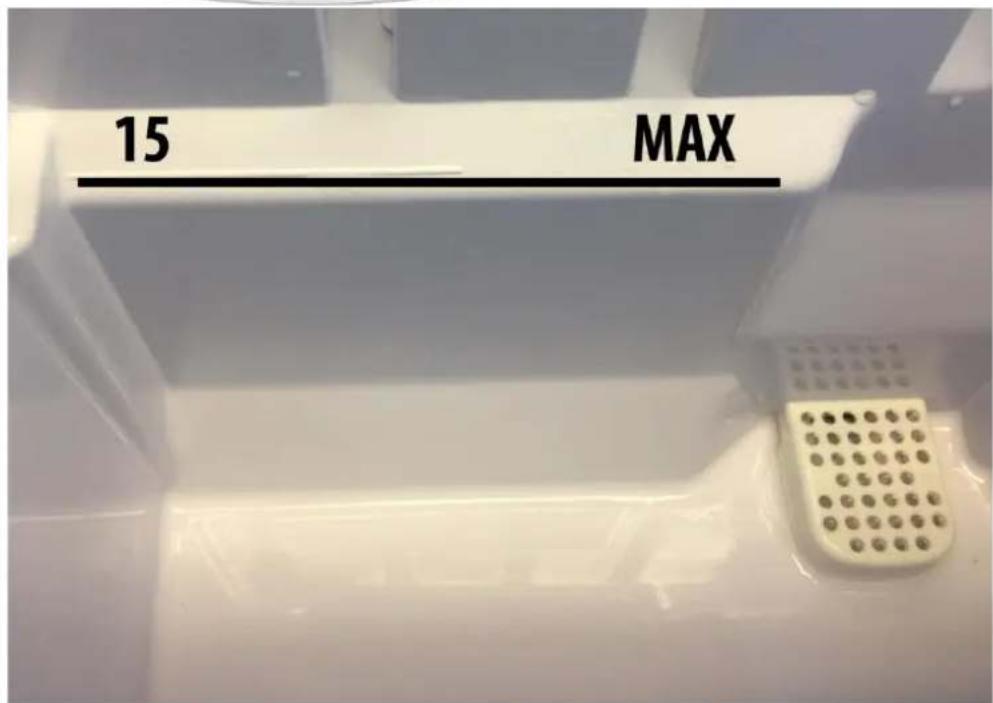

15 MAX marking
16 ice shovel

14.1 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

Warning

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

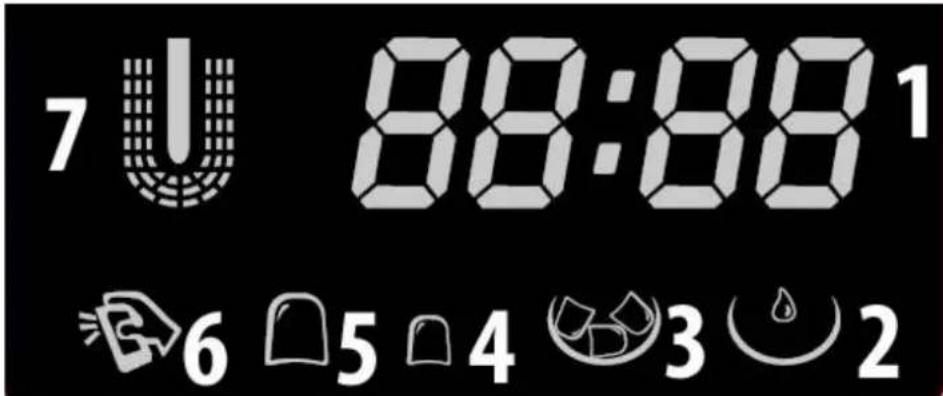

15.1 Key functions

7 U 88:88 1 6 5 4 3 2

1 Time

2 WATER: Add water into the tank

3 JLL: The ice basket is full

4 or for small ice cubes.

5 or for large ice cubes.

6 or of the cleaning function

7 ice making status

8 Clean 9 S/L 10 Start/stop

8 Clean – Select the cleaning function

9 S/L – button for selection of the size of the ice cubes

10 Start / stop - button

15.2 Operation

HINWEIS Please note

▶ Please wait min 24 hours before you switch on the ice maker. You will find that the cooling agent settles out in this time.

- Open the cover of the ice maker and remove the ice basket.

- Check that silicon plug is correctly placed in water outlet.

- Fill water into the water reservoir and observe the max marking. Close the lid of the device.

- Press the Start/stop button to begin the ice making cycle.

- Press the S / L button and select the desired ice cube size. S = small and L = large. The corresponding indicator lights up. Default selection = large ice cubes.

HINWEIS Please note

▶ If the room temperature is below 15^ C, then please select the small ice cube size.

▶ If the room temperature is above 30^ C, then please select the large ice cube size.

- Depending on water and room temperature, the ice making cycle lasts approx. 6 to 13 minutes.

- If water pump can't inject water, the ice maker will stop automatically (after 5 seconds).

The water for the watertank lights up. Press the Start/stop button and fill the tank with water.

- The ice maker stops working when the ice basket is full. In this case the indicator will light up.

- Drain all the water, if unit isn't used. Always store the unit without water in the water reservoir.

HINWEIS

Please note

▶ During the first three production cycles, the ice cubes are small and irregular.
▶ When the ice basket is full, remove the ice cubes directly to prevent overflowing of the ice basket.

▲VORSICHT

Attention

▶ Change water in the water reservoir every 24 hours to avoid pathogenic organisms.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT

Attention

Please observe the safety instructions, before cleaning your ice maker.

▶ Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level.
▶ Before cleaning switch off the unit and take the power plug out of the outlet.
▶ Clean the unit with a soft cloth.
▶ Don't clean the ice maker with inflammable detergents.
▶ Clean the ice maker again thoroughly when the machine hasn't been used for a long time.

16.2 Cleaning (also before first use)

• Take out the ice basket.
- Clean the interior with diluted detergent, warm water and a soft cloth.
- Clean the interior of the machine with lukewarm water. Drain out the water by unplugging the drain cap.
- Clean the outside of the ice maker with a soft cloth and warm water.

16.3 Cleaning function

Press clean button, then you can see a press start/stop button to start the cleaning function. The device rinses with water.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Security advices

▲VORSICHT ATTENTION

▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

17.2 Troubleshooting

Problem	Possible cause	Solution
indicator lights up.	Lack of water.	Stop the ice maker and press "on/off"button again to restart the unit.
indicator lights up	Ice is full in basket.	Remove ice from ice basket.
Ice cubes stick together.	The ice making cycle is too long.	Stop the ice maker and start it again when the ice blocks are melt.
	Water temperature in inner tank is too low.	Replace the water. Temperature of water recommended at 8-32°C.
Ice making cycle is normal but no ice formed.	Room temperature or water temperature in inner tank is too high.	The room temperature should be 5-40°, water temperature should be 8-32°C.
	Not enough cooling agent in the coolant reservoir or a part of the electronics is defect.	Contact your customer service.

HINWEIS Please note

▶ If above mentioned steps don't solve the problem, please contact your customer service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.
  ▶ Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device	Ice cube Maker
Name	IceChef Pro
Item No.:	3302
Mains data	220-240 V, 50 Hz
Power consumption	120 W
External measurements (W x D x H):	250 x 325 x 370 mm
Net weight	9,0 kg

Exterior view of a stainless steel industrial appliance with a clear lid and label 'COSO DESIGN' (no other text or symbols visible)

CE =

21 Mode d'emploi

21.1 Généralités

Close-up of a white plastic printer holder with a black number '5' on the cover (no text or symbols beyond the number)

13 Clean S/L Start/stop 14

White plastic soap shaker with handle, labeled number 16 (no text or symbols on the object itself)

8 Clean 9 S/L 10 Start/stop

Exterior view of a modern stainless steel appliance with a transparent lid and label 'COSO DESIGN' (no additional text or symbols visible)

CE

31 Istruzione d'uso

31.1 In generale

Close-up of a printer's internal structure with a numbered label '5' on the cover (no other text or symbols visible)

13 Clean S/L Start/stop 14

13 Tasti

14 Coperchio

15 Marcatura MAX

White plastic soap shaker with handle, labeled number 16 (no text or symbols on the object itself)

8 Clean 9 S/L 10 Start/stop

Exterior view of a stainless steel CASO design appliance with clear lid (no text or symbols on body)

13 Clean S/L Start/stop 14

13 Botones
14 Tapa
15 Marca MAX
16 Pala de hielo

15 MAX

White plastic soap shaker with handle, labeled number 16 (no text or symbols on the object itself)

8 Clean 9 S/L 10 Start/stop

Exterior view of a modern stainless steel CosO design appliance with a transparent lid (no text or symbols on the device itself)

CE HUA HUA

Close-up of a printer's internal structure with a numbered label '5' on the cover (no other text or symbols visible)

13 Clean S/L Start/stop 14

13 Knoppen

14 Deksel

15 MAX-markering

16 Ijsschep

15 MAX

White plastic soap shaker with handle, labeled number 16 (no text or symbols on the object itself)

54.1 Typeplaatje

8 Clean 9 S/L 10 Start/stop

Exterior view of a modern stainless steel appliance with a clear lid (no visible text or symbols on the device body)

CE

Close-up of a printer's internal structure with a numbered part '5' on the cover (no text or symbols beyond the number)

13 Clean S/L Start/stop 14

13 Кнопки

14 Крышка

White plastic soap shaker with handle, labeled number 16 (no text or symbols on the object itself)

15 MAX

8 Clean 9 S/L 10 Start/stop
