USER MANUAL IceCreamer 3298 CASO

9 Entsorgung des Altgerätes 25
10 Garantie 26
11 Technische Daten 26
12 Operating Manual 27
12.1 General 27
12.2 Information on this manual 28
12.3 Warning notices 28
12.4 Limitation of liability 29
12.5 Copyright protection 29
13 Safety 29
13.1 Intended use 29
13.2 General Safety information 30
13.3 Risk of fire / flammable materials used 32
13.4 Dangers due to electrical power 32
14 Commissioning 33
14.1 Safety information 33
14.2 Delivery scope and transport inspection 33
14.3 Unpacking 34
14.4 Disposal of the packaging 34
14.5 Setup location requirements: 34
14.6 Electrical connection 35
15 Function 35
15.1 Overview 35
15.2 Rating plate 36
16 Operation and Handing 36
16.1 Before use 36
16.2 Control panel 37
16.3 Operation 37
16.3.1 Ice cream and yoghurt making 37
16.3.2 Removal of the ice cream / yoghurt mass 39
16.3.3 Follow-up cooling function 39

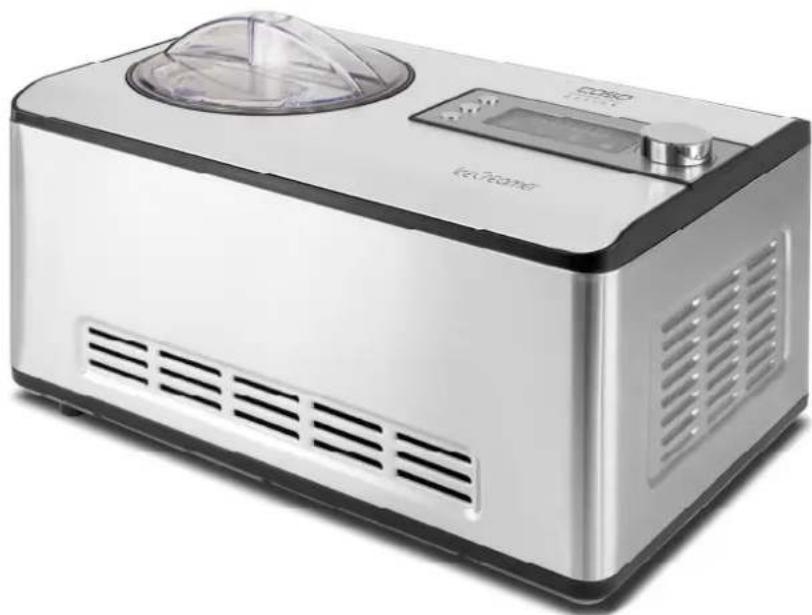

Ice cream and yoghurt maker

IceCreamer (3298)

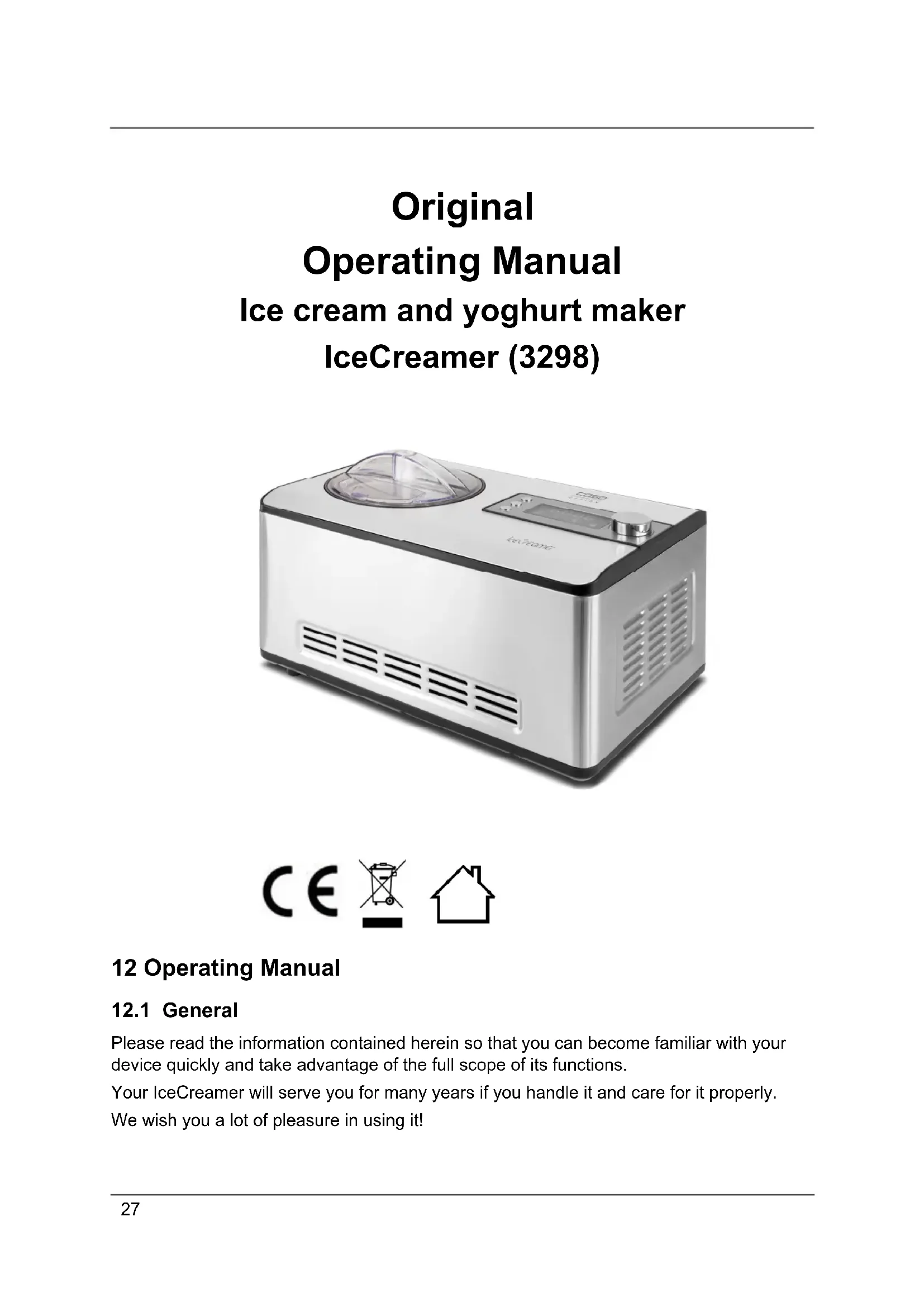

12 Operating Manual

12.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your IceCreamer will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

12.2 Information on this manual

These Operating Instructions are a component of the IceCreamer (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning Operation
- Troubleshooting and/or - Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

12.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR

D A N G E R

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

12.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observation of the manual
Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

13 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

13.1 Intended use

This device is only intended for household use indoors for the making of ice cream and yoghurt. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; - in B&Bs,
• in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNING Warning

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

13.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Only food may be filled into the container.

HINWEIS

Please note

• Do not tilt the device or place it at an angle. Do not tilt the device at an angle of more than 45^ .
• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
  Do not leave the device unsupervised when it is in operation.
• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
  Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
  The Device is not intended to be operated by means of an external timer or separate remote-control system.
• Never immerse the device in water or other liquids and do not place in the dishwasher.

13.3 Risk of fire / flammable materials used.

GEFAHR

Danger

Warning: Risk of fire / flammable materials used.

• Avoid open flames, fire or other sources of fire near the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this device.
• Blowing gas inside the unit is flammable. Dispose of this flammable material in accordance with the national regulations.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use any mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

13.4 Dangers due to electrical power

GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.

▲GEFAHR Danger

• Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

14 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

14.1 Safety information

WARNING Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

• Packaging materials may not be used for playing. There is a danger of suffocation.

14.2 Delivery scope and transport inspection

As a rule, the Ice cream and yoghurt maker IceCreamer is delivered with the following components:

• IceCreamer - Container
• Mixer - Ice-cream scoop
• Measuring beaker
• Operating Instructions

HINWEIS Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

14.3 Unpacking

Unpack your ice maker as follows:

• Take out the ice maker from the box and remove the interior and exterior packaging.
• Leave the device to stand in its final location for at least 24 hours after unpacking or transporting it. The coolant in the device requires this amount of time to settle.

14.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

14.5 Setup location requirements:

• In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.
• Do not leave the device to direct sunlight.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 10cm on all sides.
• Do not cover any ventilation openings of the device and do not block them.
• Do not remove the device's adjustable feet.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

14.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

15 Function

In this chapter, you'll find important information on the function of the device.

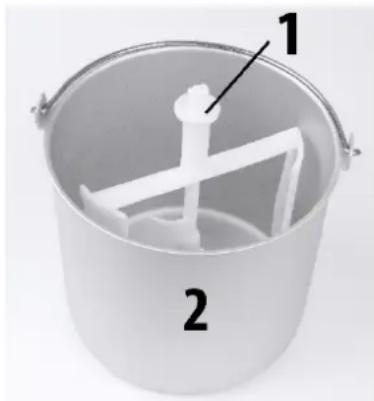

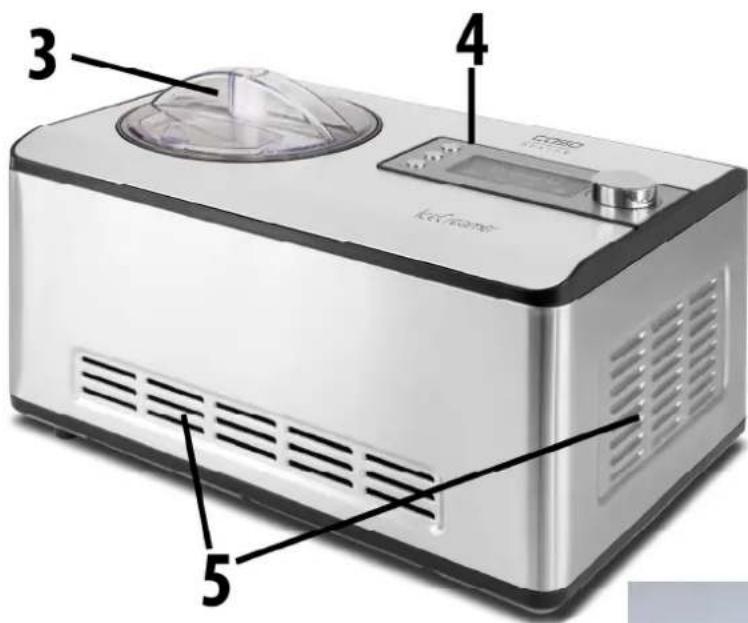

15.1 Overview

1 Mixer
2 Removable container

3 Lid with refill opening
4 Control panel with display
5 Ventilation slots

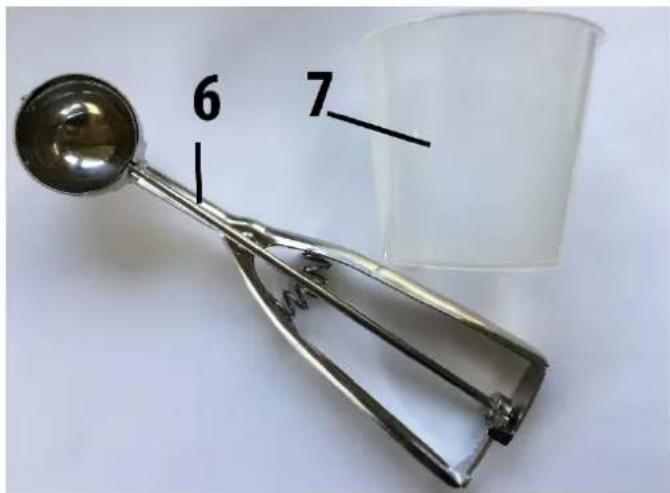

6 Ice-cream scoop (do not scratch out the container with the scoop)

7 Measuring beaker

15.2 Rating plate

The rating plate with the connection and performance data can be found beneath the device.

16 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Before use

Clean the device before first use to remove any production residues. Observe our cleaning instructions in the Cleaning and maintenance chapter.

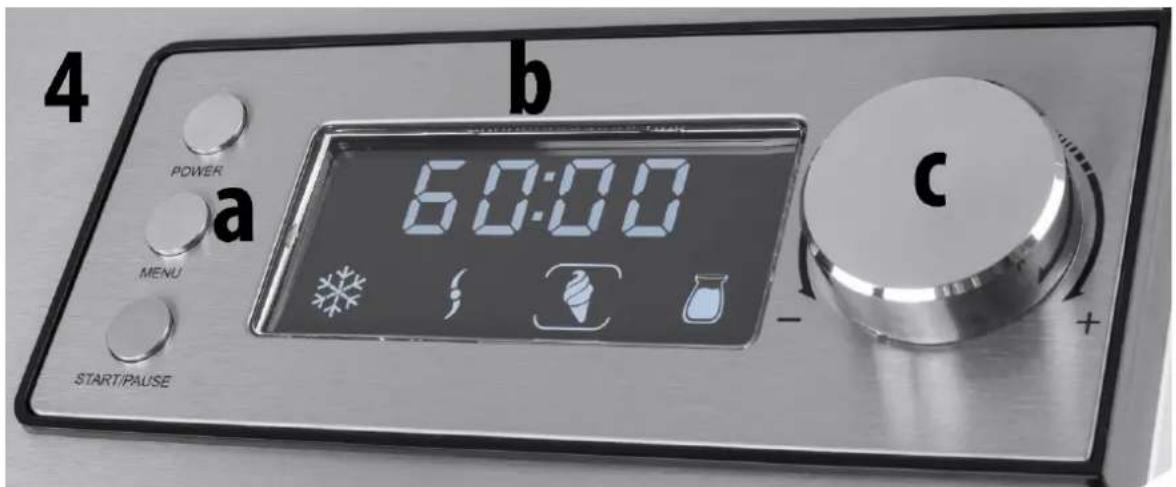

16.2 Control panel

a Buttons:

b Display

c Rotary controller

POWER

MENU

START/PAUSE

16.3 Operation

HINWEIS

Notice

• Wait at least 24 hours before you turn on the appliance. The coolant requires this amount of time to settle.
  The removable container and the recess into which the container is inserted must be dry before use, otherwise the container may freeze during ice cream production / cooling.
  The container does not have to be pre-cooled / cooled down.
  Always fill food directly into the container and not into the recess into which the container is inserted.
  Never use the device without the inserted container.
• Fill the container up to a maximum level of 60% (about 1 litre of liquid), as the ice cream mixture expands during the freezing process.
  Only use the mixer for the mixing and ice cream programme.

WARNING

WARNING

Do not hold any objects in the device during operation, especially the mixer, and do not reach into the device with your hand. There is a risk of injuries!

16.3.1 Ice cream and yoghurt making

Please refer to the Recipes chapter to obtain important preparation instructions for the production of ice cream and yoghurt.

1. Prepare the ingredients according to the recipe in a separate container.

2. Open the lid of the device and remove the container. Insert the mixer for making of

ice cream into the container. (The yoghurt function does not require a mixer). Fill the finished ice cream / yoghurt mixture into the removable container.

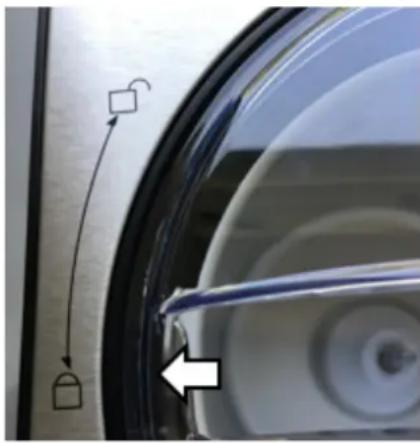

1. Place the container into the recess of the device. Close it with the lid by turning it anti-clockwise until it locks into place.
2. Plug in the mains plug and "CASO" appears in the display. The device is in the standby mode.
3. Press the POWER button. The standard ICE CREAM menu and the time of 60:00 will appear on the display.
4. Select the desired programme with the MENU button:

Symbol	Menu Function	Minimum time Maximum	time
	COOLING ONLY	Cooling 05:00	(5 minutes)	60:00 (minutes)
	MIXING ONLY	Mixing 05:00	(5 minutes)	60:00 (minutes)
	ICE CREAM Production	uction of ice cream, sorbet, soft ice cream, frozen yogurt	05:00 (5 minutes)	60:00 (minutes)
	YOGHURT Yoghurt	production 08	hours (8 hours)	24H (hours)

You access the Standby mode once more by pressing the POWER button.

1. Use the rotary knob to set the desired preparation time (varies according to consistency and amount of ingredients) and start the programme with the START / PAUSE button. You can interrupt the process at any time by pressing the START / PAUSE button.
2. The display will now show the remaining running time of the selected programme. The flashing symbol indicates that you have started the programme.

The time is displayed in minutes in the ice, cooling and mixing programme. In the case of the yoghurt programme it is displayed in hours (from 90 minutes it is the displayed in minutes again).
9. The ice cream or yoghurt production has finished once the device beeps 3 times and the display shows "00:00".
10. Check whether the desired level of consistency was reached. If further preparation time is required, press the POWER button and repeat the sequence from step 5.

16.3.2 Removal of the ice cream / yoghurt mass

HINWEIS Please note

• Depending on the type of preparation, it is possible that the stirring process stops before the set preparation time is reached. This is to protect the motor. The ice cream can be removed.
• Only use a plastic or wooden spoon to remove the ice cream / yoghurt, do not use a metal spoon, otherwise the surface of the container may be damaged.

• You can eat the yoghurt directly after cooling it or add fruit, honey, etc. You can cool the container in the fridge.
  Ambient temperatures and the prepared yoghurt base influence the production time. If you use chilled milk with yoghurt bacteria as a base, adjust the time accordingly. If you use pure yoghurt as a base, then the production time should not exceed 10 hours.

• Before remove the ice cream / yogurt, switch the device to standby mode using the POWER button and unplug the power cord from the wall outlet.

• Open the lid to subsequently remove the container from the appliance.
• Remove the mixer (if present) and refill the mixture into an appropriate container.

a. Eat the ice cream immediately or store it in the freezer.
b. Allow the yoghurt to cool to room temperature and then store in the refrigerator. After the end of the programme, we recommend leaving the mixture in the switched-on device for about 2 hours (the device cools the mixture automatically)

1. If desired, you can continue with the production of the yoghurt / ice cream immediately following this. Start again at Point 1 to this end.

16.3.3 Follow-up cooling function

The follow-up cooling function starts automatically following the production of the ice cream / yoghurt.

Ice Cream:

If the ice cream is not removed from the device 10 minutes after its production or the device is not switched off, the follow-up cooling function will start, which is indicated on the display as "COOL". In 10-minute stages, the device then cools your ice cream for one hour.

Following its production, follow the steps for the removal of the ice cream / yoghurt. Please note that the device only cools in this process and therefore the consistency inside and outside of the container may vary. Mix the mixture following the removal of the mixer and before filling it into an appropriate container.

YOGHURT:

When the yoghurt program has finished and the yoghurt is ready, the display will show "00:00". The device automatically starts the follow-up cooling function with the display showing "COOL".

Following its production, follow the steps for the removal of the ice cream / yoghurt. If no further entry is made, the device remains in the cooling mode until it is switched off.

17 Recipes

At www.caso-design.de you will find more recipe ideas for the 2-in-1 ice cream and yoghurt maker "IceCreamer".

YOGHURT

Yoghurt is produced using the ingredients of milk and yoghurt or alternatively using yoghurt cultures. Depending on the flavour, additional ingredients can be added to the natural yoghurt, such as fruits, honey, cereals, etc.

Natural yoghurt:

1,000 ml milk (3.5%)

200 g Natural yoghurt (3.5%)

Initially heat the milk for ten minutes in a pan. Following this allow it to cool down to 50^ and add the yoghurt mixture. Fill the prepared mixture into the container of the IceCreamer container and select the "yoghurt" menu - set the timer to 8 hours. To ensure a firm creamy consistency, we recommend that you cool the mixture in the removable container overnight in the refrigerator or in the device (device cools the mixture automatically following the end of the programme) and filter out the excess whey with a cheesecloth / kitchen towel.

ICE CREAM

Creamy ice cream is made by blending ingredients such as milk, sugar, cream, possibly egg yolks and, depending on your taste, with other ingredients, which are made through constant stirring and even cooling.

Chocolate ice cream:

200 ml milk (3.5%)
100 g chocolate, fine bitter (70% cocoa content)
100 g chocolate, whole milk
300 g cream
80 g sugar (vary according to your preferred taste)

Heat up the milk. Add chocolate and mix while constantly stirring and allow it to cool. Whip the cream with sugar until it is semi-stiff and mixed the cooled milk chocolate mixture into the cream. Fill the prepared mixture into the container of the IceCreamer container and select the "ice cream" menu - set the timer to 50 hours. After making it, fill the ice cream into a separate container and let it cool down further to taste.

SORBET

Sorbet is made from a variety of fruits and can be prepared sweet or sour according to your preferred taste.

Basic recipe:

500 g Fruit pulp or fruit juice

50 - 120 g sugar according to taste

It is also possible to add further ingredients such as ground skin of lemon and much more besides

Raspberry sorbet

300 g raspberries (fresh or frozen)

125 ml water

50 g sugar

Small dash of balsamic blanco

Thaw the frozen raspberries to begin with. Following this purée the thawed or fresh raspberries and stir the mixture through a fine sieve to remove the cores from the mixture. At the same time, heat the water and add the sugar whilst constantly stirring it until it has completely dissolved. Mix the raspberry pulp together with the sugar water and the dash of balsamico blanco shot and fill it into the IceCreamer container. Fill the prepared mass into the container of the IceCreamer container and select the "ice cream" menu - set the timer to 45 minutes. After making it fill the sorbet into a separate container and eat it directly or let it cool down further according to taste.

18 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

18.1 Safety information

AVORSICHT ATTENTION

Please observe the safety instructions, before cleaning your device.

Before cleaning switch off the unit and take the power plug out of the outlet.
Clean the device with a soft cloth.
Do not clean the device with cleaning agents that are scratch or chafe or are flammable.
If you have not used the device for a long time, thoroughly clean it before reusing it.
Never immerse the device in water or other liquids and do not place in the dishwasher.
Do not clean the accessory in the dishwasher.

18.2 Cleaning

1. Before and after use, we recommend cleaning all removable parts, such as the removable container, mixer, lid, ice cream scoop and measuring cup, with a mild dishwashing liquid and warm water, and to subsequently dry it thoroughly with a soft cloth.

2. Wipe the housing, as well as the recess for the container clean with a damp cloth, and also dry it with a soft cloth.

3. Then assemble all the components and place them back in the appliance.
4. Place the device on a even and dry working surface.

19 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

19.1 Security advices

AVORSICHT ATTENTION

Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

19.2 Troubleshooting

Problem Possible cause	Solution
The container can no longer be removed from the device after the ice / cooling function.	Possible moisture in the recess has contributed towards the freezing of the container	Wait 1 to 2 minutes and then remove the container.
The mixer does not move anymore	The ice consistency is very hard. The mixer stops working due to the overheating protection of the motor.	Stop the ice cream programme. Mix the mixture with a suitable spoon until it moves more easily and then press the Start button again.
The display shows “E1” or “E2”	Overheat protection of the motor	Switch the device off and then on again. Please contact customer service if the problem has not been rectified.

AVORSICHT ATTENTION

If above mentioned steps don't solve the problem, please contact your customer service.

20 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  Ensure that your old device is stored safely away from children until it is taken away.
• Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

21 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

22 Technical Data

Device Ice cream and yoghurt maker
Name IceCreamer
Item No.: 3298
Mains data 220-240V~, 50Hz
Input power 180W
External measurements (W x D x H): 42,8 x 29 x 27 cm
Net weight 11,9 kg
Capacity 2 L

Mode d'emploi

25.6 Raccordement electrique
