ULG 300 B1 - Laminating machine UNITED OFFICE - Free user manual and instructions
Find the device manual for free ULG 300 B1 UNITED OFFICE in PDF.
| Product type | Laminating machine |
| Brand | United Office |
| Model | ULG 300 B1 |
| Power supply | 220-240 V ~, 50 Hz, 1.4 A, 300 W |
| Protection class | II |
| Lamination types | Hot and cold |
| Maximum film width | 320 mm |
| Film thickness (hot lamination) | Up to 125 microns |
| Film thickness (cold lamination) | Up to 200 microns |
| Lamination speed (A4, 80µ) | Approximately 54 seconds |
| Lamination speed (A4, 125µ) | Approximately 76 seconds |
| Lamination speed (A3, 80µ) | Approximately 75 seconds |
| Lamination speed (A3, 125µ) | Approximately 105 seconds |
| Anti-jam function | Yes (ABS) |
| Cutting function | Integrated guillotine |
| Guillotine cutting capacity | Up to 3 sheets (80 g/m²) or 1 laminated document (80µ) |
| Overheat protection | Yes |
| Dimensions (L x W x H, approx.) | Approx. 500 x 200 x 100 mm |
| Weight (approx.) | Approx. 2.5 kg |
| Included accessories | 8 DIN A3 laminating pouches (80 microns), instruction manual |
| Maintenance and cleaning | Clean rollers by passing a folded paper sheet |
| Safety | Moving parts, do not open the housing, use indoors |
| Warranty | 3 years |
| Intended use | Domestic, lamination of paper or cardboard documents |
Frequently Asked Questions - ULG 300 B1 UNITED OFFICE
User questions about ULG 300 B1 UNITED OFFICE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laminating machine in PDF format for free! Find your manual ULG 300 B1 - UNITED OFFICE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ULG 300 B1 by UNITED OFFICE.
USER MANUAL ULG 300 B1 UNITED OFFICE
GB
LAMINATOR
Operating instructions and safety instructions
FR
PLASTIFIEUSE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB Operating instructions and safety instructions Page 1
Package contents and transport inspection .... 2
Appliance description....3
Technical data....3
Safety information .... 4
Setting up 6
Handling and use ....6
Suitable laminating pouches 6
Switching levels 7
Preparing for hot lamination 7
Preparing for cold lamination 9
Lamination process 10
Anti-blocking function (ABS) 11
Cutting function 11
Cleaning....12
Storage 13
Disposal....13
Disposal of the appliance 13
Disposal of the packaging....13
Kompernass Handels GmbH warranty....14
Service....15
Importer....15

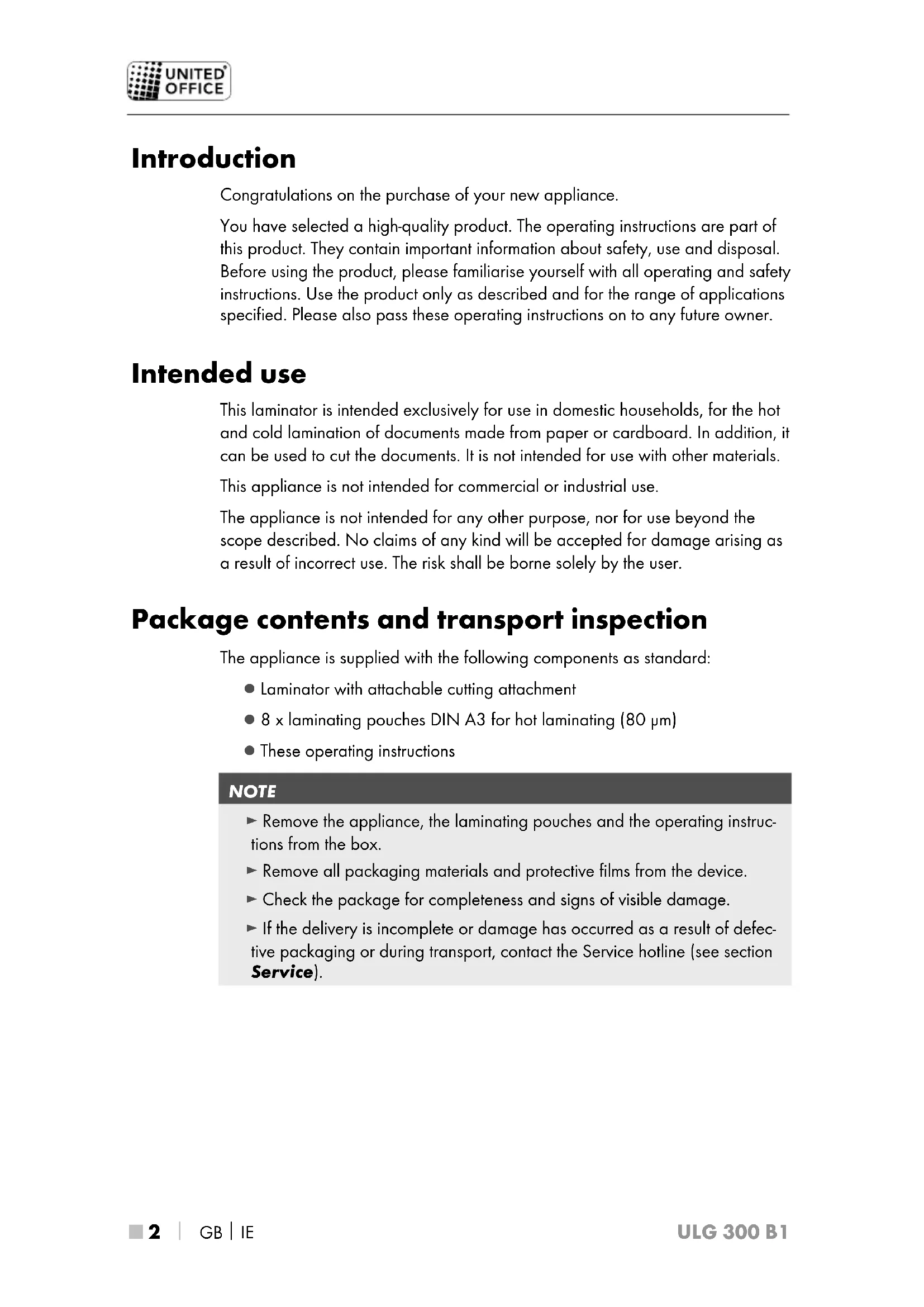

Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This laminator is intended exclusively for use in domestic households, for the hot and cold lamination of documents made from paper or cardboard. In addition, it can be used to cut the documents. It is not intended for use with other materials.
This appliance is not intended for commercial or industrial use.
The appliance is not intended for any other purpose, nor for use beyond the scope described. No claims of any kind will be accepted for damage arising as a result of incorrect use. The risk shall be borne solely by the user.
Package contents and transport inspection
The appliance is supplied with the following components as standard:
● Laminator with attachable cutting attachment
- 8 x laminating pouches DIN A3 for hot laminating (80 µm)
• These operating instructions
NOTE
▶ Remove the appliance, the laminating pouches and the operating instructions from the box.
▶ Remove all packaging materials and protective films from the device.
▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).
Appliance description
Figure A:
① Pouch guide rail (rear)
② Cutting rail
③ Cutting head
4 Pouch format guide
5 Slot for manual pouch insertion
6 Indicator lamp "Ready"
⑦ ON/OFF switch
8 Selector switch for hot and cold lamination (HOT/COLD)
9 ON/OFF indicator lamp (Power)
10 Pouch slot (front)
⑪ Document support
⑫ Cutting attachment
Figure B:
13 Anti-blocking switch and pouch thickness switch
Technical data
| Operating voltage 220–240 V ~ (AC), 50 Hz | |
| Current consumption 1.4 A | |
| Power consumption 300 W | |
| Protection class | II / ☐ |
| Pouch width max. 320 mm | |
| Pouch thickness for hot lamination max. 125 μm | |
| Pouch thickness for cold lamination max. 200 μm | |
| Cutting capacity of the cutting attachment 12 | max. 3 sheets (80 g/m2) or one laminated document (80 μm) |
| Lamination times | ||
| Pouch size | Pouch thickness switch 13 position: 80 μm | Pouch thickness switch 13 position: 125 μm |
| DIN A4 approx. 54 s approx. 76 s | ||
| DIN A3 approx. 75 s approx. 105 s | ||
Overheating protection
This appliance is fitted with overheating protection.
If the motor overheats due to overloading, the appliance switches itself off automatically. In this case, disconnect the power cable and wait until the appliance has cooled down to room temperature. You can then reconnect the plug to a mains power socket and take the appliance back into use.
We recommend that you let the appliance cool down for about 30 minutes after 2 hours of operation.
Safety information
■ Check the appliance for visible external damage before use. Never operate an appliance that is damaged. There is a risk of electrocution.
■ All repairs must be carried out by authorised specialist companies or by the customer service department. Improper repairs can pose significant risks to the user. It will also invalidate any warranty claims.
■ To avoid risks, arrange for a defective power cable to be replaced by qualified technicians or by our Customer Service Department.
■ NEVER use the appliance with a defective power cable. There is a risk of electrocution.
■ Do not use extension cables or power socket strips that do not meet the required safety standards.
■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.
■ Do not use an external timer switch or a separate remote control system to operate the appliance.
The device is suitable for indoor use only.
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
■ Never perform hot lamination on flammable, heat-sensitive and/or meltable materials and do not laminate drawings on temperature-sensitive paper or material that will undergo changes in colour or quality when subjected to heat.
■ Never laminate valuable or unique documents. Although the appliance complies with all current safety norms/standards, malfunctions can never be completely ruled out. Malfunctions with the laminator can result in damage to the document being laminated.
■ Do not allow children to play with packaging materials. There is a risk of suffocation.
■ Do not operate the appliance if it has been dropped or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians if necessary.
WARNING - RISK OF INJURY!
Moving parts
Keep body parts away from moving parts. There is risk of crushing injuries!
Setting up
For the safe and trouble-free operation of the device, the set-up location must fulfil the following requirements:
■ Place the appliance on a firm, flat and level surface.
■ Set up the appliance so that there is enough free space in front of the laminator to allow the pouch to come completely out of the laminator.
- Do not operate the device in a hot, wet or extremely damp environment or near flammable materials.
■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency.
Handling and use
In this chapter you will receive important information on the handling and operation of the appliance.
Suitable laminating pouches
For hot lamination, you can use pouches with a width of up to 320 mm and a maximum thickness of 125 m. Please note that each laminating pouch may only be used once.
NOTE
For hot lamination, use only laminating pouches that are expressly intended for hot lamination.
For cold lamination, use only laminating pouches that are expressly intended for cold lamination.
▶ Take note that the laminating pouches supplied with the laminator are intended exclusively for hot lamination.
Switching levels
| Selector switch 8 position | Pouch thickness switch 13 position | Laminating pouch thickness |
| HOT 80 >60-80 | ||
| HOT 125 85-125 | ||
| COLD 125 up to 200 | ||
NOTE
For high-gloss photos, you should choose the setting "125" as well as well as the corresponding laminating pouch thickness.
Preparing for hot lamination
Place the pouch guide rail ① into the holes designed for this purpose on the rear of the laminator.
◆ Fold out the document support⑪ so that the documents are pulled into the slot for manual pouch insertion ⑤ straight.
◆ Insert the plug of the laminator into a mains power socket.
◆ Set the ON/OFF switch⑦ to "ON" (I).
- Set the selector switch for hot and cold lamination ^8 to "HOT" (I).
- Set the pouch thickness switch ^3 to the desired pouch thickness (see also section Switching levels). The red ON/OFF indicator lamp ^9 lights up. The laminator heats up to operating temperature.
As soon as the green indicator lamp "Ready" ⑥ lights up, the laminator has reached its operating temperature.
NOTE
The attainment of the operating temperature is indicated by the lighting up of the green indicator lamp "Ready" ⑥. For a more uniform laminating result we recommend, especially for thinner foils (below 125 m ), and after adjustment to a different foil thickness, that you first wait an additional 2-3 minutes before starting the lamination.
It is possible that the green indicator lamp "Ready⑥ occasionally goes out and lights up again. This means that the appliance is maintaining the temperature and has heated up again a little. This is not a malfunction of the appliance!
Place the document to be laminated into a laminating pouch of the appropriate size.
NOTE
▶ Ensure that all edges of the document have at least two millimetres of space to the edges of the laminating pouch, as shown in Fig. 1.
▶ Make certain that you use only one pouch for laminating. First flip it up, as shown in Fig. 2.
For further information about the lamination process, please read the section Lamination process.


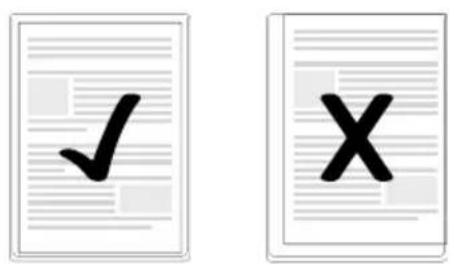

Two document icons: one with a checkmark and the other with an 'X' symbol, likely indicating approval or cancellation.Fig. 1


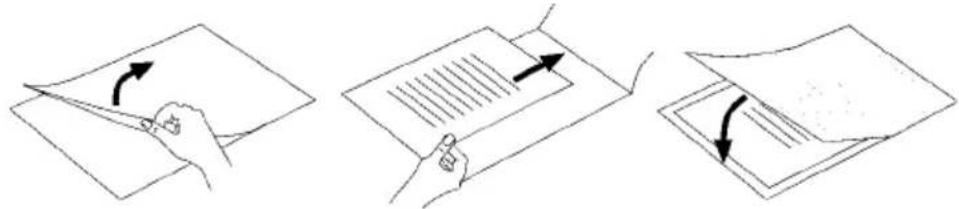

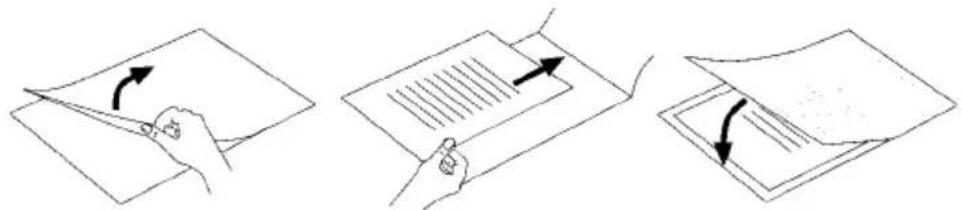

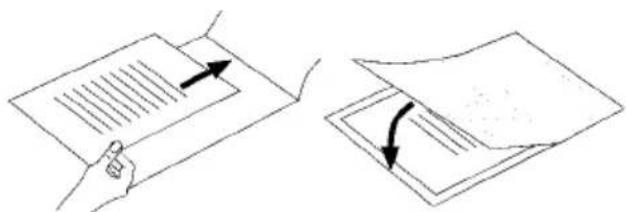

Three-step diagram illustrating document editing: page folding, sheet writing with arrows, and sheet alignment.Fig. 2
Preparing for cold lamination
CAUTION
▶ After hot laminating, allow the laminator to cool down completely before beginning with cold lamination. Bear in mind, the rollers inside the laminator will still be hot. This could damage the laminating pouch and the document to be laminated!
Place the pouch guide ra1 into the holes designed for this purpose on the rear of the laminator.
◆ Pull out the document support ⑪ so that the documents are pulled into the slot for manual pouch insertion ⑤ straight.
◆ Insert the plug of the laminator into a mains power socket.
◆ Set the ON/OFF switch⑦ to "ON" (I).
Set the selector switch for hot and cold lamination ^8 to "COLD" (O).
NOTE
Note: for cold laminating, always set the pouch thickness switch ^13 to 125 μm. The red ON/OFF indicator lamp ^9 and the green indicator lamp "Ready" ^6 light up.
◆ Place the document to be laminated into a laminating pouch of the appropriate size.
NOTE
▶ Ensure that all edges of the document have at least two millimetres of space to the edges of the laminating pouch, as shown in Fig. 1.
▶ Make certain that you use only one pouch for laminating. First flip it up, as shown in Fig. 2.
For further information about the lamination process, please read the section Lamination process.
Lamination process
Lay the laminating pouch on the pouch guide rail ①. Lay the right or left edge of the laminating pouch onto the pouch format guide ④ (closed side to the front).
◆ Push the pouch format guid ^4 together until the desired format is reached. In this way, you will ensure that the pouch is not pulled in at an angle.
NOTE
▶ If, despite this, the pouch is pulled in at an angle, use the "Anti-blocking function", as described in the section Anti-blocking function (ABS).
Now push the laminating pouch slowly into the slot for manual pouch insertion 5.
When you have slid the pouch several centimetres into the slot for manual pouch insertion ⑤ it will then be pulled in the rest of the way automatically. Release the pouch as soon as you notice that it is being pulled in automatically.
CAUTION
▶ Ensure there is at least 45 cm of open space in front of the laminator. Otherwise, the pouch will not be ejected completely from the laminator after lamination. This could damage the pouch.
- The finished laminated pouch is ejected from the pouch slot of the laminator.
NOTE
▶ Only after hot laminating: When the finished laminated pouch is ejected from the pouch slot 10 of the laminator, it is hot and can easily change its shape. For this reason, let the laminated pouch cool down for a minute before touching it.
▶ To improve the lamination result, you can weigh down a still hot laminated pouch with a book, a file folder or any other heavy, flat object. This will help ensure a smooth, perfect surface.
◆ If you are finished laminating, set the ON/OFF switch⑦ to "OFF" (O).
◆ Remove the power plug from the mains power socket.
Anti-blocking function (ABS)
At the start of the lamination process, the pouch may be pulled in at an angle or jam itself inside the appliance.
- Turn the anti-blocking switch ^13 to the position ABS. The pouch will no longer be drawn in.
◆ Remove the pouch and turn the anti-blocking switch ^13 back to the desired pouch thickness.
◆ Re-start the lamination process.
Cutting function
If you want to use the cutting function on the pouch guide rail ①, take off the pouch guide rail ①.
If necessary, fold in the document support ^11 .
- Attach the cutting attachment ^12 so that it creates a flat surface with the pouch guide rail ^1 . To do this, place the pouch guide rail ^1 on a table or another flat surface.
◆ Push the cutting head ③ as far as the stop. The cutting head ③ can be pushed to both ends of the cutting rail ②.
♦ Flip up the cutting ra② up using the rounded handle and position the documents on the pouch guide rail ①. Fix the document in place by pushing the pouch format guide ④ together until it is touching both sides of the document.
◆ Use the markings on the scale table to align your document precisely.
◆ Flip the cutting ra12 down so it clicks into place.
◆ Hold the paper firmly in place with one hand.
To cut, press the cutting head ③ downwards with the other hand and push it over the document in a single movement.
Cleaning
DANGER
Risk to life from electrical current!
▶ Remove the power plug from the mains socket before starting to clean the appliance.
▶ Ensure that no moisture can penetrate the device during cleaning.
▶ Never immerse the appliance parts in water or other liquids!
▶ Never open the appliance housing. There are no serviceable parts whatsoever inside.
CAUTION
Possible damage to the device.
▶ Do not use aggressive or abrasive cleaning agents, as these may corrode the surface of the casing.
◆ Clean the housing of the appliance only with a lightly moistened cloth and a mild detergent.
Cleaning the inside of the appliance:
During every lamination, contaminants collect on the rollers inside the laminator. Over time, this adversely affects the performance of the laminator. Therefore, you should clean the rollers inside the laminator after every use.
Prepare the appliance as described in the section Preparing for hot lamination, until the green indicator lamp "Ready" ⑥ lights up. Set the pouch thickness switch ⑬ to 80 mic.
- Then insert a sheet of A3 paper folded in the middle (maximum thickness 1.0 mm), without a pouch and with the fold at the front, slowly into the slot for manual pouch insertion ⑤.
◆ Release the sheet as soon as you notice that it is being pulled in automatically.
The contaminants on the rollers inside the laminator now firmly attach themselves to the sheet of paper. The paper is ejected from the pouch slot ⑩ of the laminator.
♦ Repeat this cleaning process several times. Use a fresh sheet of paper each time.
When you no longer see any contaminants on the paper, the rollers inside the laminator are clean.
Storage
◆ Allow the appliance to cool down before putting it away.
◆ Store the appliance in a clean, dry place away from direct sunlight.
Disposal
Disposal of the appliance
Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).
Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please observe the currently applicable regulations. Please contact your waste disposal centre if you are in any doubt..
The product is recyclable, subject to extended producer responsibility and is collected separately.
Disposal of the packaging
The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.
Dispose of the packaging in an environmentally friendly manner.
Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1-7: Plastics,
20-22: Paper and cardboard,
80-98: Composites.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 354467_2010.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 354467_2010
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhaltsverzeichnis
Einleitung....18
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Table des matières
Introduction....34
Protection anti-surchauffe
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Inhoud
Inleiding....52
⚠ WAARSCHUWING - LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Obsah
Úvod....68
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Spis treści
Wstep....84
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Obsah
Úvod....100
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Índice
Introducción....116
Uso previsto ....116
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Indholdsfortegnelse
Indledning....132
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie
Stav informaci · Stan informacji · Stav informacií · Estado de las informaciones · Tilstand af information:
02 / 2021 · Ident.-No.: ULG300B1-012021-1
