Product Type	Electric steam bottle sterilizer
Brand	Philips
Model	Avent SCF922
Power supply	Mains, 220-240 V ~ 50/60 Hz
Capacity	6 standard bottles (large basket) + small accessories (small basket)
Sterilization cycle duration	Approximately 10 minutes
Required water quantity	90 ml
Material	BPA-free plastic (polypropylene)
Cleaning of baskets and lid	By hand with dish soap
Descaling	Weekly with a mixture of water and white vinegar (60 ml water + 30 ml vinegar)
Safety	Automatic shut-off, do not immerse base, hot surfaces, hot steam
Warranty	2 years
After-sales service	Philips Avent Authorized Service Centers
Repairability	Not user repairable - contact authorized service
Weight (approx.)	1.2 kg
Dimensions (approx.)	30 x 30 x 30 cm
Color	White and transparent
Operating indicator light	Yes
Emergency stop	Stop button "O"

Frequently Asked Questions - Avent SCF922 PHILIPS

How to use the sterilizer for the first time?

Before first use, run an empty cycle: pour 90 ml of water onto the heating plate, place the baskets and lid, plug in and press the start button. The appliance stops automatically after about 10 minutes. Let it cool, then rinse and dry the baskets.

Why does water leak from the sterilizer?

This may be due to excess water (do not exceed 90 ml) or improper positioning of the power cord in its compartment at the base. Make sure the appliance is on a stable, level surface.

How to clean the sterilizer?

Unplug the appliance and let it cool. Empty the remaining water from the heating plate. Clean the exterior surfaces with a soft cloth. Wash the baskets and lid by hand with dish soap, then dry them. Never immerse the base.

How often should you descale the sterilizer?

It is recommended to descale weekly with a mixture of 60 ml water and 30 ml white vinegar (6-8% acetic acid). Let it sit until the limescale disappears (about 20 minutes, max 1 hour), then rinse thoroughly.

Why do white spots form on the heating plate or baskets?

These are limescale deposits, normal with hard water. Descale the appliance regularly to prevent accumulation.

Why does the lid release a lot of steam?

Check that the lid is properly positioned and securely attached to the small basket. Improper fit may cause steam leakage.

What to do if the sterilization cycle is too long or too short?

The standard duration is 10 minutes with 90 ml of water. If you add too much water, the cycle will be longer; if too little, it will be shorter. Adjust the water amount to 90 ml.

Can I use the sterilizer for items other than bottles?

Yes, you can sterilize any item suitable for steam (teats, breast pumps, teething rings without liquid). Ensure the items can withstand heat and place openings facing down.

How do I know the sterilizer has finished its cycle?

The power indicator turns off and the appliance stops automatically. Wait about 10 minutes for cooling before opening the lid to avoid burns.

What to do if the appliance does not restart after a cycle?

The appliance requires a cooling time of about 10 minutes after each cycle before it can be reused. Wait for the heating plate to cool down, then try again.

USER MANUAL Avent SCF922 PHILIPS

Spocifioors are subject to change without notice.

0X

Aunisereed

4741210454-3

EN Lern manat 5

CS Priaa production 14

FR Mode compay 23

PL Instruetie abligo 32

TH	yijin	10
VI	Hiridng de xu	20
64	p#n###	AR
72

2

3

4

5

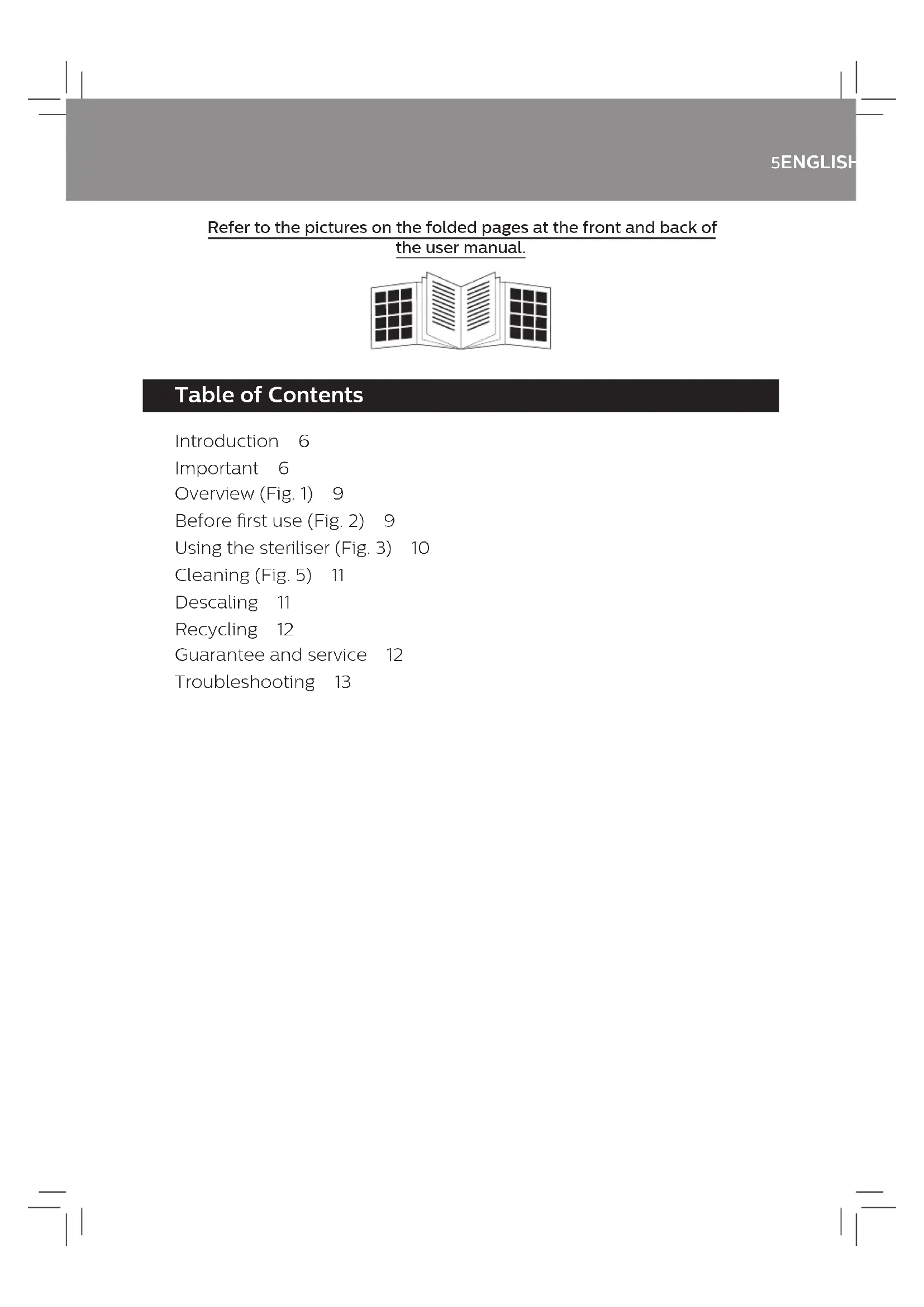

Refer to the pictures on the folded pages at the front and back of the user manual.

Table of Contents

Introduction 6

Important 6

Overview (Fig. 1) 9

Before first use (Fig. 2) 9

Using the steriliser (Fig. 3) 10

Cleaning (Fig. 5) 11

Dscaling 11

Recycling 12

Guarantee and service 12

Troubleshooting 13

6 ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your product at www.philips.com/welcome.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Never immerse the base, the mains cord or the mains plug in water or any other liquid.
  -Failure to follow the descaling instructions may cause irreparable damage.
• Never disassemble the base to avoid the risk of electric shock.

Warning

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

-Children shall not play with the appliance.

-Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

-Only connect the appliance to an earthed wall socket, and make sure the plug is firmly inserted in the wall socket. Keep the mains cord away from hot surfaces.

-Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.

-If the mains cord is damaged, it must be replaced by Philips Avent, a service centre authorised by Philips

7ENGLISH

Avent or similarly qualified persons in order to avoid a hazard.

• There are no serviceable parts inside the electric steam steriliser. Do not attempt to open, service or repair the electric steam steriliser by yourself.

• The appliance becomes very hot during sterilisation and may cause burns if it is touched.

-Beware of hot steam that comes out of the vent in the lid or when you remove the lid. Steam can cause burns.

-Do not touch the base, the baskets and the lid during or shortly after sterilisation to avoid getting burnt. Only lift the lid by its grip.

• Never move or open the appliance when it is in use or before it has cooled down.

• Never place items on top of the appliance when it is in use.

-Only use water without any additives for sterilisation.
Recommend to use purified water to decrease limescale.

-Only use white vinegar according to the user manual when descaling. Do not put bleach or other chemicals in the appliance.

-Only sterilise baby bottles and other items that are suitable for steam sterilisers. Check the user manual of the items you want to sterilise, to make sure they are suitable for steam sterilisers.

• To stop the sterilisation under urgent circumstances, press the power-off button, and unplug the appliance. Sterilising for a shorter period of time may affect the sterilisation efficacy.

• The heating plate surface is subject to residual heat after use. Be careful not to get burnt by it.

• This appliance is intended for household use only.

-Do not use abrasive or aggressive cleaning agents (e.g. bleach) or a scouring pad to clean this appliance.

8 ENGLISH

Caution

• Never use any accessories or parts from other manufacturers or that Philips Avent does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

• The appliance is intended to be used indoors. Do not expose it to extreme heat or direct sunlight.

• Always unplug the appliance and let it cool down before moving or storing it.

-Do not sterilise very small items which can fall through the holes to the heating plate.

• Never place items directly on the heating plate when the appliance is switched on.

-Do not use the appliance if it has fallen or is damaged in any way. Take it to an authorised Philips Avent service centre for repair.

• Always place and use the appliance on a dry, stable, level and horizontal surface.

-Do not place the appliance on a hot surface.

-Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.

-Pour any remaining water out of the appliance after use and when the appliance has cooled down.

• Always unplug the appliance after use.

• Environmental conditions, such as altitude above 2500 meters, may affect the sterilising performance of this appliance.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

-Cleaning and user maintenance shall not be made by children.

• Always disconnect the device from supply if it's left unattended.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

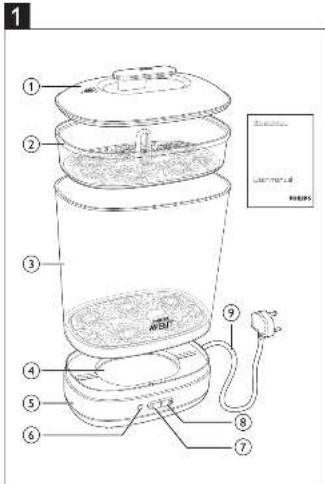

Overview (Fig. 1)

① Lid
② Small basket
③ Big basket
Heating plate
⑤ Base
Power-on indicator
⑦ Power-on button “I”
⑧ Power-off button “O”
⑨ Mains cord

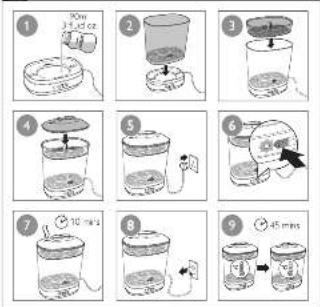

Before first use (Fig. 2)

When you use the appliance for the first time, we advise you to let it complete one sterilisation process with empty baskets.

1 Use a baby bottle and pour 90ml / 3 fluid oz purified water or tap water directly into the heating plate. (Fig. 2-1)
2 Place the big basket on the base. Adjust the position of the big basket so that it fits properly on the base. (Fig. 2-2)
3 Place the small basket in the big basket. Adjust the position of the small basket so that it fits properly in the big basket. (Fig. 2-3)
4 Place the lid on top of the small basket. Adjust the position of the lid so that it fits properly on the small basket. (Fig. 2-4)
5 Put the plug in the wall socket. (Fig. 2-5)
6 Press the power-on button to switch on the appliance. (Fig. 2-6)

The power-on indicator lights up to indicate that the appliance starts operating.
A sterilising cycle takes around 10 minutes (Fig. 2-7). When the sterilisation process is finished, the power-on indicator goes out and the appliance switches off automatically.
7 Unplug the appliance (Fig. 2-8). Wait until the appliance has cooled down completely (Fig. 2-9), and then remove the lid, the small basket and the big basket, and wipe them dry.

Note

• The appliance does not work for about 10 minutes after a sterilising cycle, it needs to cool down first.

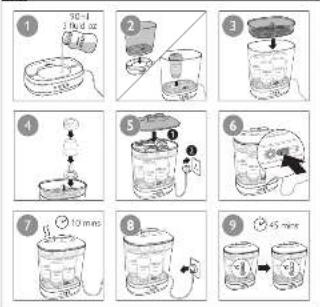

Using the steriliser (Fig. 3)

Note

• To make sure the steriliser stands stable, clip the mains cord into the cord slot in the bottom of the base.
• Make sure all parts that need to be sterilised are completely disassembled and place them in the basket with their openings pointing down to prevent them from filling up with water.
• Only place items which are suitable for sterilising in the steriliser. Do not sterilise items that are filled with liquid, e.g. a teether with cooling fluid.

1 Thoroughly clean the items to be sterilised.
2 Use a baby bottle and pour 90ml / 3 fluid oz purified water or tap water directly into the heating plate. (Fig. 3-1)
3 Place the big basket on the base. Adjust the position of the basket so that it fits properly on the base. Then put the bottles in the basket with their openings pointing down. (Fig. 3-2)
4 Place the small basket in the big basket (Fig. 3-3). Adjust the position of the small basket so that it fits properly in the big basket, then put the accessories in the small basket.

Tip

• When putting larger teats in the small basket, place the teat in the basket first, then place the dome cap on the teat, and place the screw ring on the dome cap. (Fig. 3-4)

5 Place the lid on top of the small basket. Adjust the position of the lid so that it fits properly on the small basket. (Fig. 3-5-1)
6 Put the plug in the wall socket. (Fig. 3-5-2)
7 Press the power-on button to switch on the appliance. (Fig. 3-6)

The power-on indicator lights up to indicate that the appliance starts operating.
A sterilising cycle takes around 10 minutes (Fig. 3-7). When the sterilisation process is finished, the power-on indicator goes out and the appliance switches off automatically.
8 Unplug the appliance (Fig. 3-8). Wait until the appliance has cooled down completely (Fig. 3-9), and then remove the lid and the sterilised items from the baskets.

Warning

• Be careful when removing the lid, hot steam may come out of the steriliser.
  The sterilised items might be hot. Be careful not to get burnt by them.

Note

• Make sure you wash your hands thoroughly before you touch the sterilised items.

Tip

• After the appliance has cooled down, you can hang the lid on the side of the big basket (Fig. 4-1). You can also place the lid on a table with the handle facing down (Fig. 4-2), this way you can put the small basket on the tilted lid to keep it hygienic, and easily take out the sterilised items in the big basket.
• When removing the items from the big and small baskets, you can use a Philips Avent bottle tong (sold separately).

Cleaning (Fig. 5)

Warning

• Do not use abrasive or aggressive cleaning agents (e.g. bleach) or a scouring pad to clean this appliance.
• Never immerse the base, the mains cord or the mains plug in water or any other liquid.
• The steriliser is not dishwasher-proof.

1 Always unplug the appliance after use. (Fig. 5-1)
2 After the appliance has cooled down, pour out any remaining water from the heating plate (Fig. 5-2), and then clean the surfaces around the base and heating plate with a soft cloth (Fig. 5-3).
3 Clean the big basket, small basket and lid under the tap with some washing-up liquid, and wipe them dry.

Note

After cleaning, store the steriliser in a clean and dry place.

Dscaling

When you use the steriliser, small spots may appear on the heating plate in the base. This is limescale that is building up. The harder the water, the faster limescale builds up. Descale the steriliser once each week to ensure that it continues to work effectively. The frequency of descending depends on how much limescale is building up.

12 ENGLISH

1 Pour 60ml / 2 fluid oz of water and 30ml / 1 fluid oz of white vinegar (6 - 8%) acetic acid) into the heating plate.
2 Leave the solution in the heating plate until the limescale has resolved. The process takes about 20 minutes, but should not be longer than 1 hour.
3 Empty the heating plate, thoroughly rinse it and wipe with a soft cloth.

Note

• When descending, do not put the plug in the wall socket.
  After descaling, store the steriliser in a clean and dry place.

Recycling

This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Guarantee and service

Philips Consumer Lifestyle guarantees its products under correct usage for a period of two years after the date of purchase. If any defect due to faulty materials and workmanship occurs within this two-year guarantee period, Philips Consumer Lifestyle will repair or replace the product at its expense. For repair or replacement, make sure to provide convincing proof, for instance by means of a receipt, that the day on which service is claimed is within the guarantee period.

The guarantee only covers the base and its electrical components. It does not cover non-electrical parts, accessories and consumable parts. The guarantee does not cover shipping and handling fees, and on-site services fees either.

If you need service or information, or if you have a problem, please contact the Philips Avent Service Centre in your country.

Website: http://www.philips.com/support

Troubleshooting

This chapter lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, contact the Consumer Care Centre in your country.

Question Solution

Why does water flow out of the steriliser?	• You may have poured too much water into the steriliser. Do not pour more than 90ml water into the heating plate. • The steriliser may not be stably positioned. Make sure the mains cord is well fitted inside of the cord slot in the bottom of the base.
Why are there white spots on the heating plate, the baskets or the lid?	• Limescale build-up is normal and occurs more quickly in hard water areas. Descale the appliance regularly (see chapter ‘Descaling').
Why does a lot of steam escape from under the lid?	• Check if the lid has been placed on the small basket properly.
Why does the sterilisation process take so long?	• To sterilise the items thoroughly, the default sterilising time is around 10 minutes (when 90ml water is poured into the heating plate). • You may have poured too much water into the steriliser (see chapter ‘Using the steriliser’). The amount of water in the steriliser and the number of items placed in the baskets determine the actual sterilising time.
Why is the sterilisation process so short?	• You may have poured too little water into the steriliser (see chapter ‘Using the steriliser’).
Why does the appliance start to heat up, and the power-on indicator lights up immediately when I plug it in?	• When you press the power-on button before you put the plug in the wall socket, the steriliser starts operating immediately when you plug it in. Do not touch the heating plate as it starts heating up immediately. You can press the power-off button to stop the heating process.
Why can’t I restart the appliance?	• After a sterilising cycle, the appliance does not work before it has cooled down. Wait for around 10 minutes before you switch on the appliance again.

1 92777777777777777777777777777777777777777777777777777777777777777777777777
2 2-2)
3 2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2n2
4 4
5 12-5
6 naiJuiiieoiaeWaiuoiinai (2-6)

46 nnn

WwBn7111111111111111111111
10 2-7

7 7

97

-

（3）

93726

-

• 1

Lam sach (Hinh 5) 55

Tay sach can bam 56

Táché 56

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Overview (Fig. 1)

① Nap
② Than may nhô
③ Than may l'on
④ Dēnhiet
⑤ De
⑥ Chí bǎo nguǒn dièn
⑦ Nutbatnguon“l”
8 Nut tānguδn“O”
⑨ Day dien nguo

54 TIÊNG VIÊT

Luru y truoc khi sutung lan dau tien (hinh 2)

Khi su dung lan dau tien, ban nén de thiet bi chay hoan tát mot qui trinh khur trung voi than may trong, khong chu a bat cu vat dung nao.

1 Sūr dung binh sūa va do 90 ml/3 oz nuóc dā loc hoac nuóc may truc tiēp vao de nhiet. (Hinh 2-1)
2 Dāt than may lón tren dé. Dieu chinh vi tri than may dé khit vua khóp tren dé. (Hinh 2-2)
3 Dāt than may nhô lèn than may lón. Dieu chinh ví tri cúa than may nhô de nam vua vân trên than may lón. (Hinh 2-3)
4 Day nap len than may nhô. Dieu chinh vi tri cua nap de khô pv i than may nhô. (Hinh 2-4)
5 Cam day dien vao cam. (Hinh 2-5)
6 Bam nut bata ngon de bat thiet bi. (Hinh 2-6) Chi bao ngon dien bat sang de bao hieu thiet bi bat dau hoat dong.

(2012/19/EU) aaii iiaai jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii

(3,0j0g-1)

ab = 36

aal l aai i 11111111111111111111111111111 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a

Lgaaa aaiy jayal yaiy 3/090 wjag Jia bai yao (3-1. qy) .y

1. 2
   3
   4

m = 311

aell 10

.
.

g> 10 ggej jaej jgi iisLgai

ab = x0

Lgaoaie gill salll and Jue Jue Jue Jue

2 1
Lgaii
8.
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J

Lg y gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ gJ g

40

Philips Avent 1

P

Saaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aegaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aagaaa aogaaa

#

a 1

1 1

J 1

S OBC = S BOC + S BOC - S BOC

a

#

JLabiJIgIiOJcIeAeLwogJg31jgl31IooaXlaBbUoS

glaal glaaas 1 glaaasaa aal aal

gucu 11 11 11 11 11 11 11 11

.4

jLgdy

a111 1

jLg1JU

1 1

a111111111111111

LJIa c Jg 1 g JI aolal 11 w g Jl S 13 jg pss

g Philips Avent 1

Ji j

Lgss sss gss Lols as ssgsb aasaaas

5
6
7
1

1 1

8
8

a0s, 1000gio 1000s gocdool s wos

jLgacdaJ 100000000000000000000000000000000000000

L 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

gjg jybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjybjy

1

g

72

Lis aol, 0y, yls (sloal), slgul glu, ool li cnaa yglai

Jb0

71 4020
71
69
69
68
67
67 0 < < , ,
66
66
66

(1)

(2)

(3J<）oiiis jigacwolE:wojolLoLaiW

(5)

jolos g aoli
