Midland 210 DS is the brand new Multi Standard CB transceiver, essential in its functionalities but with advanced performances:

Phase Locked Loop circuitry gives precise frequency control and stability over all channels (pinpoint channel tuning accuracy with separate scan up and down controls); the ceramic filters give superior selectivity and freedom from adjacent channel interference.

Midland 210 DS is also supplied with digital automatic squelch, that allows a very clear reception of all the incoming signals and eliminates the unwanted background noise.

Midland 210 DS is supplied with a microphone, mounting bracket and cigarette lighter power cable for an immediate use.

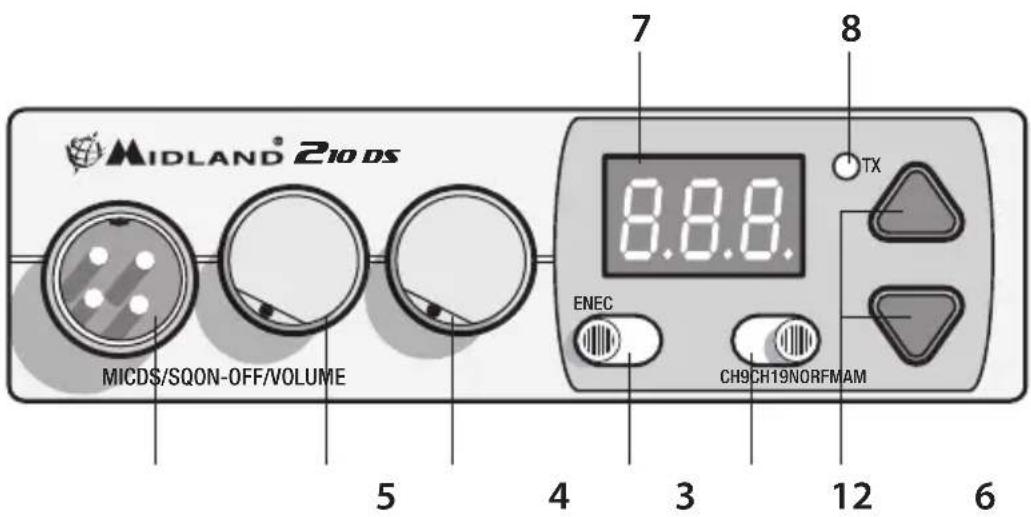

FUNCTIONS AND LOCATION OF THE CONTROLS

1. Channel UP/DOWN switch: it allows the manual channel selection.
2. Dual function switch.

AM/FM: to select AM or FM modulation.

EN/EC: when UP appears on the display (UK band selected), move the switch to activate the EN band (English band) or EC (new European band).

1. "ON/OFF Volume" knob:

"OFF" position: transceiver turned off.

"VOLUME" position: to set the audio level

1. Squelch knob: to eliminate 'chopping' signals during message reception and to operate in DS mode (Digital Squelch).
2. Microphone jack: jack for the mic connector
3. CH 9-19 switch: to turn immediately on priority channels 9 or 19.
4. Channel display: shows the number of the channel in use.
5. TX led: lights up when the radio is transmitting

2 | Midland 210 DS Instruction Guide

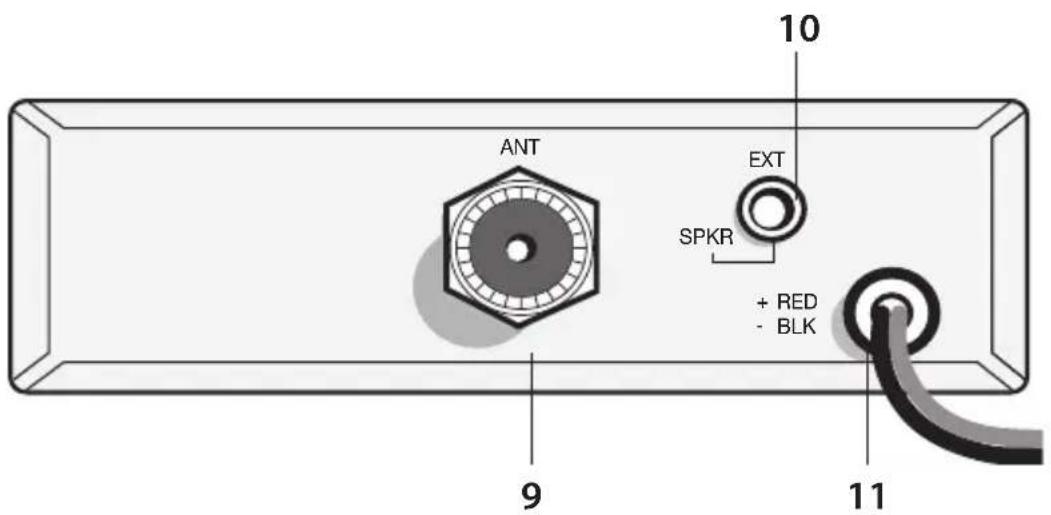

REAR PANEL

1. Antenna connector: PL connector type
2. EXT SPKR jack: external loudspeaker jack.(the internal loudspeaker will be excluded)
3. Power supply cable: power 12,6V DC ± 10%

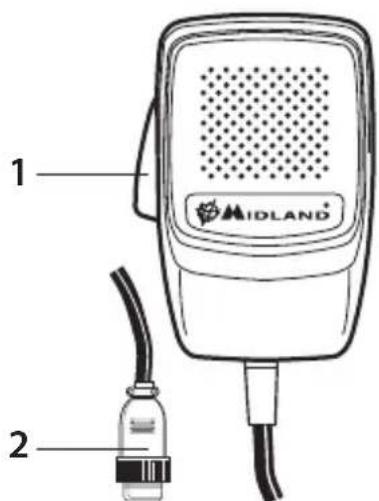

MICROPHONE

1. PTT: transmission button
2. 4 pin microphone connector

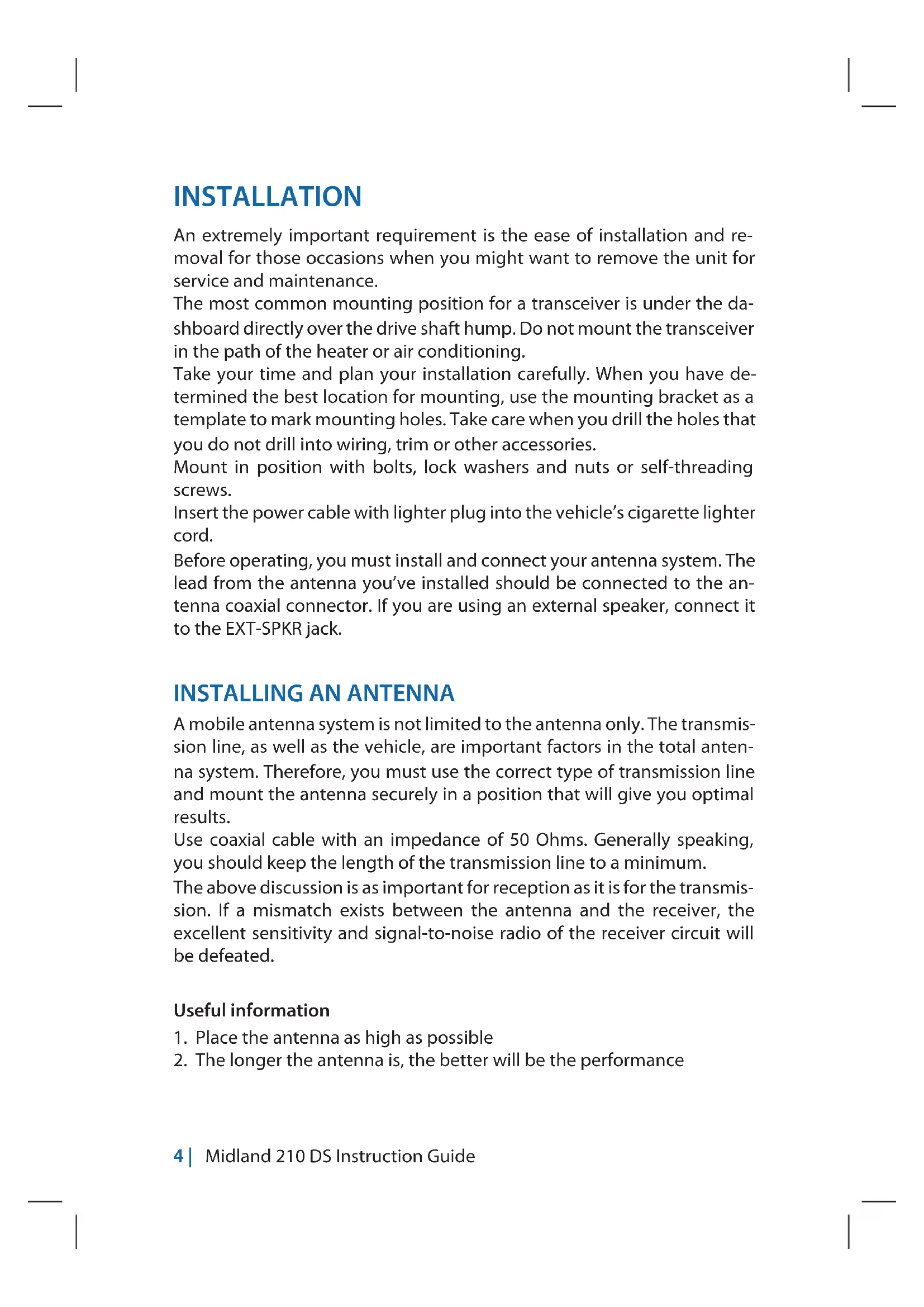

INSTALLATION

An extremely important requirement is the ease of installation and removal for those occasions when you might want to remove the unit for service and maintenance.

The most common mounting position for a transceiver is under the dashboard directly over the drive shaft hump. Do not mount the transceiver in the path of the heater or air conditioning.

Take your time and plan your installation carefully. When you have determined the best location for mounting, use the mounting bracket as a template to mark mounting holes. Take care when you drill the holes that you do not drill into wiring, trim or other accessories.

Mount in position with bolts, lock washers and nuts or self-threading screws.

Insert the power cable with lighter plug into the vehicle's cigarette lighter cord.

Before operating, you must install and connect your antenna system. The lead from the antenna you've installed should be connected to the antenna coaxial connector. If you are using an external speaker, connect it to the EXT-SPKR jack.

INSTALLING AN ANTENNA

A mobile antenna system is not limited to the antenna only. The transmission line, as well as the vehicle, are important factors in the total antenna system. Therefore, you must use the correct type of transmission line and mount the antenna securely in a position that will give you optimal results.

Use coaxial cable with an impedance of 50 Ohms. Generally speaking, you should keep the length of the transmission line to a minimum.

The above discussion is as important for reception as it is for the transmission. If a mismatch exists between the antenna and the receiver, the excellent sensitivity and signal-to-noise radio of the receiver circuit will be defeated.

Useful information

1. Place the antenna as high as possible

2. The longer the antenna is, the better will be the performance

3. Mount the antenna and keep antenna cable away from noise sources, such as the ignition switch, gauges, etc.

4. Make sure you have a solid metal-to-metal ground connection.
5. Prevent cable damage during antenna installation.

There are many types of mobile CB antennas: a full quarter-wave length whip, a center loaded whip, top loaded whip and the base loaded type. For a greater efficiency it is recommended 2.5m long, full quarter-wave whip. Antenna length is directly related to efficiency.

A vertically polarized whip antenna is best suited for mobile service. It is omni-directional.

Roof mount is the best ever as in this position the antenna radiates equally in all directions.

WARNING: To avoid damage, never operate your CB radio without connecting a proper antenna. A periodical control of the cable and of the S.W.R. is recommended.

HOW TO OPERATE YOUR MIDLAND 210 DS

After have installed and cabled your CB transceiver, follow these steps to operate with your device:

1. Screw the microphone plug into the microphone jack and check that the unit is properly connected
2. Make sure your antenna is connected to the antenna connector.
3. Make sure the SQUELCH control is turned fully counter clockwise.
4. Select AM or FM mode. The EN/EC switch operates depending on the frequency band selected. In case you selected U you can switch from 40CH EN to 40CH EC. In case you selected EC or I2 band, this switch recalls the last channel in use.
5. Turn on the unit and select the frequency band to use
6. Adjust the volume to a suitable listening level
7. Select your desired channel.
8. Adjust the squelch (in case you use the manual squelch).
9. To transmit, press the PTT button and speak in a normal tone of voice.
10. To receive, release the PTT button.

The frequency bands must be chosen according to the country where you are going to operate.

Your Midland 210 DS can be set on 8 different frequency bands:

IT(it): 40CH 26.965 MHz - 27.405 MHz 4W AM/FM

EU(EU): 40CH 26.965 MHz - 27.405 MHz 1W AM/4W FM

PL(PL): 40CH 26.960 MHz - 27.400 MHz 4W AM/FM

D3(d3): 80CH from CH1 to CH40 26.965MHz - 27.405 MHz 1W AM/4W FM from CH41 to CH80 26.565MHz - 26.955 MHz 4W FM

D4 (d4): 80CH. CH1 - CH40 26.965MHz - 27.405 MHz 4W AM/ FM CH41 - CH80 26.565MHz - 26.955 MHz 4W FM

UK (U) 40CH 27.60125MHz - 27.99125MHz (EN) FM 4W
40CH 26.965MHz - 27.405MHz (EC) FM 4W

EC (EC): 40CH 26.965MHz - 27.405MHz FM 4W

12 (i2): 34CH 26.875MHz - 27.205MHz AM/FM 4W

Procedure:

1. Switch off the unit.
2. Turn the device on and contemporary keep pressed the UP/DOWN buttons.
3. Select the desired frequency band by pushing the UP/DOWN buttons
4. To confirm the selection, press the PTT button.

Note: Once have set the frequency band, every time you turn on the radio, the display will show for 1 second the frequency band in use. To change the frequency band, follow the steps upon described.

SQUEELCH

The squelch function cuts out annoying background noise when no signal is being received. To do this, set the channel selector to a channel where no signals are present or wait until signals cease on your channel.

Midland 210 DS is supplied with two types of squelch: manual and automatic.

Manual: rotate the squelch knob in a counter-clockwise direction and stop before you hear a 'clic', then rotate it clockwise to the point where the background noise just stops. Do not set the squelch too high, otherwise weak signals will not be able to open the squelch circuit.

Automatic: rotate completely the squelch knob counterclockwise and stop after you will hear a 'clic'. Now the squelch will be automatically adjusted according to the background noise.

EMERGENCY CHANNELS (CH 9-19)

Midland 210 DS is equipped with a switch that allows to be immediately set on the Priority cannels 9 and 19.

CH 9 is for Emergency communications, while CH 19 is used for asking road condition information.

The centre position of the switch is for tuning on the latest selected channel.

A 4 Ohm speaker, rated at 3-10 watts, should be used for this function. Plug the speaker into the EXT SPKR jack at the rear of the transceiver. When the external speaker is plugged in, the internal speaker is disconnected.

TECHNICAL SPECIFICATIONS

RECEIVER

Frequency coverage* .from 26.565 to 27.99125 MHz Sensitivity better than 1.0~ V for 20 dB SINAD Adjacent Channel Rejection .60 dB at 10 kHz; 70 dB for 20 KHz Intermediate Frequency .1st IF=10.7 MHz; 2nd IF=455 KHz Audio Output power.. 4 watts max Frequency Response (-6dB). 6 dB: 450-2500 Hz Squelch adjustable from 0,5 uV to 150mV

TRASMITTER

Frequency coverage..from 26.565 to 27.99125 MHz
Duty cycle. .5/5/90
Output Power ..1/4 W
Type of modulation AM/FM
Max Deviation. 2.0 KHz FM; 80% AM
Spurious Radiation. 62 dB or better
Frequency Tolerance .0.002%
Power supply .12,6 Vdc ± 10% Current Drain FM:1.3 AAM1.8A
Dimensions. 124x38x190 mm
Weight .1.2 kg

All specifications are subject to change without notice.

• (covering all approved EU frequency bands)

A readily accessible disconnect device shall be incorporated in the installation wiring. The disconnect device shall disconnect both poles simultaneously.

Hereby, CTE International declares that Midland 210 DS is in compliance with the essential requirements and other relevant provisions of Directive 99/05/EC.
