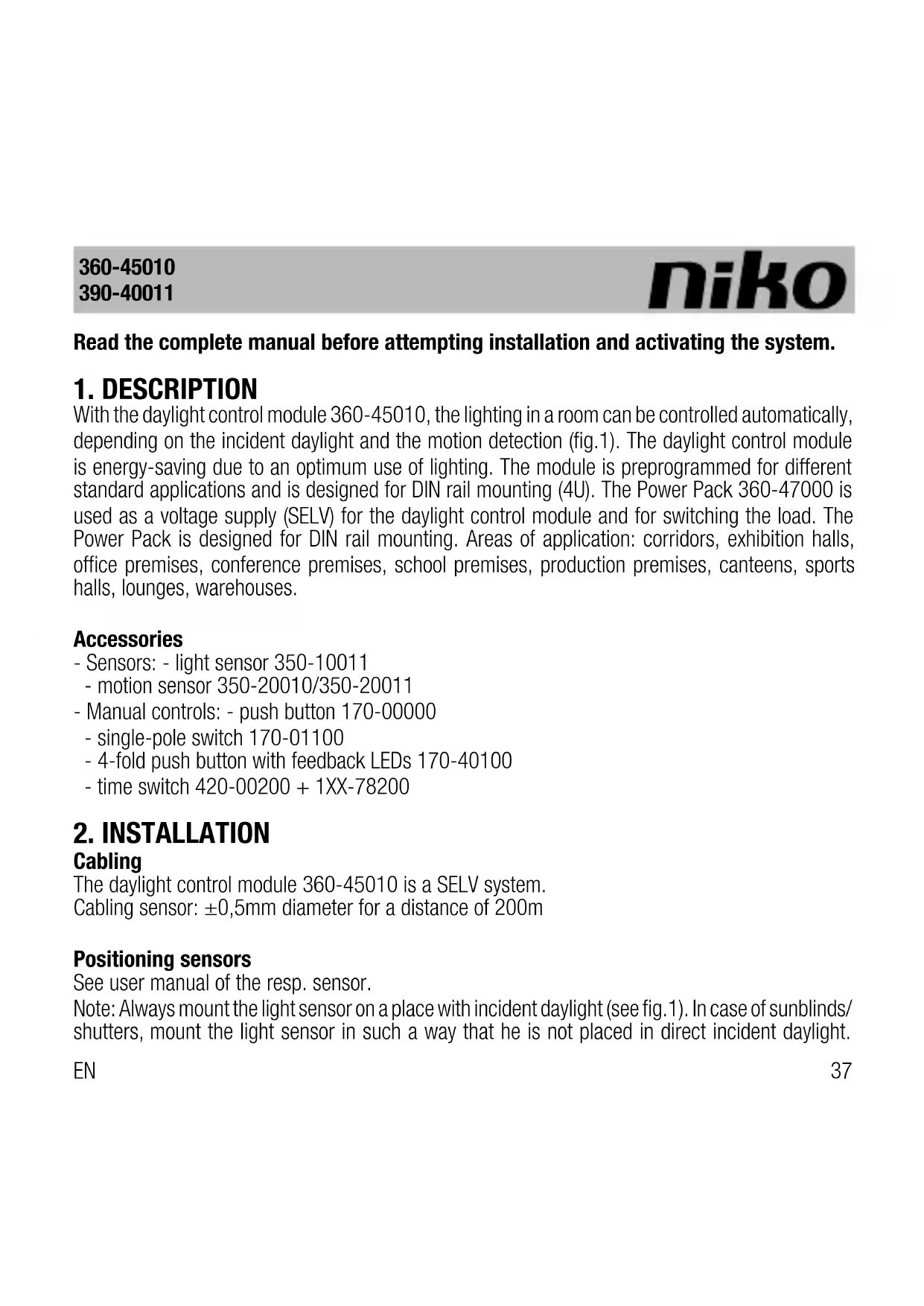

Read the complete manual before attempting installation and activating the system.

1.DESCRIPTION

With the daylight control module 360-45010, the lighting in a room can be controlled automatically, depending on the incident daylight and the motion detection (fig.1). The daylight control module is energy-saving due to an optimum use of lighting. The module is preprogrammed for different standard applications and is designed for DIN rail mounting (4U). The Power Pack 360-47000 is used as a voltage supply (SELV) for the daylight control module and for switching the load. The Power Pack is designed for DIN rail mounting. Areas of application: corridors, exhibition halls, office premises, conference premises, school premises, production premises, canteens, sports halls, lounges, warehouses.

Accessories

• Sensors: - light sensor 350-10011
• motion sensor 350-20010/350-20011
• Manual controls: - push button 170-00000
  single-pole switch 170-01100
• 4-fold push button with feedback LEDs 170-40100
  -time switch 420-00200 + 1XX-78200

2. INSTALLATION

Cabling

The daylight control module 360-45010 is a SELV system.

Cabling sensor: ±0,5mm diameter for a distance of 200m

Positioning sensors

See user manual of the resp. sensor.

Note: Always mount the light sensor on a place with incident daylight (see fig.1). In case of sunblinds/ shutters, mount the light sensor in such a way that he is not placed in direct incident daylight.

EN

Wiring diagram (fig.2)

• Connect the light sensor (350-10011) and motion sensor (350-20010/350-20011) to terminal range A. You can connect several motion sensors (max. 8) in parallel. You can only connect one light sensor per system.
• Connect the manual controls to terminal range B.
• Connect the RJ12-inputs of the Power Pack and the daylight control module via 390-40011.

Startup

The light sensor (350-10011) has to be placed and connected correctly before switching on the mains supply. Proceed as follows:

• Switch on the mains supply.
• Confirm the sensor value on the display.
• The module is powering up.
• The module is ready for use.

If the daylight control module has already been switched on before the light sensor was placed and connected correctly, you can repeat the initiation of the sensor (see '4.2.ADJUSTMENT>adjust settings').

3. OPERATION AND USE

3.1 Light sensor (350-10011) (fig.2)

The lighting is switched on if the sensor measured insufficient daylight.

3.2 Motion sensor (350-20010/350-20011) (fig.2)

The motion sensor(s), max. 8 in parallel, enable the lighting to be switched on in case motion is detected.

3.3 Manual control (fig.2)

Push button 170-00000

Depending on the application (see 3.4), you can connect a manual push button to switch the lighting on and off.

Time switch 420-00200 + 1XX-78200

Depending on the application (see 3.4), you can connect a time switch in order to switch the lighting on and off.

Single-pole switch 170-01100

You can connect an energy-saving switch (loadshedding --> see '4.2 ADJUSTMENT') to the daylight control module in order to only switch on the lighting at a lower level of daylight.

4-fold push button with feedback LEDs 170-40100

For every application (see 4.4), you can connect a 4-fold push button with feedback LEDs. Only 2 of the 4 push buttons with feedback are used, because the module can only switch the lighting:

• Auto (with feedback): The system goes to automatic mode, the lighting is daylight controlled according to the settings of the application.
• I/O (with feedback): 'on-off'. The system is set to manual mode. You can switch the lighting on or off by pressing the push button. If the lighting is switched on, it is NOT daylight controlled, but is switched on in all areas.

3.4 Applications

The daylight control module is provided with a number of preprogrammed applications as a standard (fig.3) For how to select an application, see 'Quickguide'.

Application 00.01 (fabric setting):

Automatic on/off via motion sensor (fig.4a)

If the motion sensor detects movement, the 3-channel on/off daylight control module is activated. The light is controlled in 3 channels in accordance with the set parameters. If the min. daylight level for a channel (zone) is reached, the light is switched off. If the motion sensor(s) do not detect movement, the light automatically switches off after a preset time. For use in e.g. corridors, halls (factory setting).

Application 01.01:

On/off via time switch 420-00200 + 1XX-78200 (fig.4b)

The 3-channel on/off daylight control module is switched on and off via an external time switch. The light is controlled in 3 channels in accordance with the set parameters. If the min. daylight level for a channel (zone) is reached, the light is switched off. For use in e.g. exhibition premises

Application 02.01:

Manual on/off via push button (170-00000), automatic off via motion sensor (fig.4c)

The 3-channel daylight control module on/off is switched on and off via a push button (170-00000). For as long as the motion sensor detects movement, the light is controlled in 3 channels in accordance with the set parameters. As the daylight incidence increases, the light dims in the premises in order to reach the required, min. light level. If the motion sensor(s) do not detect movement, the light switches off automatically after a preset period. For use in e.g. warehouses.

Application 04.01:

3-channel daylight control module on/off, manual on/off via a push button (170-00000), automatic off via time switch (fig.4d)

The 3-channel on/off daylight control module is switched on and off via a push button (170-00000). The light is controlled in 3 channels in accordance with the set parameters. As the daylight incidence increases, the light dims in the premises in order to reach the required, min. light level. The light can be switched off automatically via a time switch. For use in e.g. production premises.

4. SETTINGS

You can easily program and set the different parameters on the daylight control module by means of the 4 control keys (see also 'Quickguide').

4.1. General set (see 'Quickguide', A and D)

In this menu, you can:

Select the type of application (00.01, 01.01, 02.01, 04.01)

Select the number of active channels (1, 2 or 3)

Select the mode:

• Custom: In this mode, you can modify the settings and parameters of the daylight control module.
• Backup: In this mode, you can view the saved settings and parameters of the daylight control module.
• Factory: In this mode, the daylight control module operates according to the fabric settings.

You can only view these settings, you can not modify them.

4.2. Adjustment (see 'Quickguide', B, C and D)

In this menu, you can:

Set the daylight factor:

The daylight factor is the relation between the actual daylight level (lx ind) in a zone and the daylight level measured by the light sensor. The parameters for the daylight factor should be measured at a moment of the day when there is sufficient daylight and there is NO influence of artificial light. Parameters:

• Range: standard 30-30kIx
• Lx ind X: Insert the daylight level you measure by a lux meter in the different zones (1, 2, 3). Preferably measure the daylight level at table height.
• Sensor: Insert the daylight level the sensor (placed by the window) measures. The displayed sensor value is a snapshot of the actual sensor value at the moment you opened this sub menu.

Adjust CH X:

In these 3 sub menus, you can set the parameters per channel (CH).

• Setp X (fig.5): Setpoint. This is the min. light level that is actually required in a zone zone (1, 2, 3). If there is insufficient daylight, the lighting is switched on and is dimmed to the desired light level.
  Hysteresis X (fig.5): positive hysteresis (Y%)

A positive hysteresis makes sure the lighting in a zone is only switched off at a higher level of daylight. This prevents the lighting from being constantly switched on and off when the level of daylight has a value around setpoint.

Adjustable between: 10 - 80%; standard 70%.

• Tin X (fig.5): The lighting in a zone is actually switched on if the level of daylight stays below the set value for longer than or equally long as Tin.

Adjustable between: 0 - 60s; standard 5s.

• Tout X (fig.5): The lighting in a zone is switched off if the daylight level stays above the set value and hysteresis for longer than or equally long as Tout.

Adjustable between: 0-60min; standard 5min.

• Off delay: only adjustable below CH1, but functions identically for all active channels (max. 3 channels).

After the last detected movement, the system counts down the 'off delay'. If the set time elapses before a new movement is detected, the load (lighting) is switched off for all active channels.

Adjustable between: 1 - 60min; standard 10min

• Loadshedding X: energy-saving switch (fig.1)

In case of a closed contact, this value is taken as setpoint. The value lies below the actual setpoint (lux), as a result of which the lighting is only switched on in case of a lower level of daylight.

Application: close the energy-saving switch in order to save energy at specific moments.

Adjust Settings:

- Copy settings:

1) Custom to Backup: the settings in custom mode are copied to backup mode
2) Backup to Custom: the settings in backup mode are copied to custom mode, so making changes is possible.
3) Factory to Custom: the factory settings are loaded in custom mode.
4) Factory to Backup: the factory settings are loaded in backup mode.

You are recommended to always make a backup of the settings. After you have done this, preferably work in backup mode (see '4.1. GENERAL SET' and 'Quickguide', A and D).

- Initiate sensor:

If the system is started without the light sensor is connected or if you have the impression that the light sensor measures wrong values, you can best initiate the sensor once again.

4.3.Status (see 'Quickguide', D)

In this menu, you can view the status of a number of parameters (see 'Quickguide', D).

Ch1.........channel 1

Ch2....................channel 2

Ch3.......channel 3

360-45010

390-40011

niko

CutIn X.....lux value, measured by light sensor, at which the lighting in zone X is switched on CutOut X.....lux value, measured by light sensor, at which the lighting in zone X is switched off
Df1 .........daylight factor 1; relation between Lx ind1 and sensor
Df2 .........daylight factor 2; relation between Lx ind2 and sensor
Df3 .........daylight factor 3; relation between Lx ind3 and sensor

4.4. Terminal data (see 'Quickguide', D)

In this menu, you can view the status of a number of system components.

5. TECHNICAL DATA

RJ12-1:

Pin1 supply+24V DC+10% (SEL)
Pin2 supply - 24V DC ±10% (SELV)
Pin3 I/O (170-40100) ......potentials free contact
Pin4 Ch1 .NPN 24V / 25mA; short circuit proof.
Pin5 Ch2. NPN 24V / 25mA; short circuit proof.
Pin6 Ch3. NPN 24V / 25mA; short circuit proof.

RJ12-2:

For updating software. Not obligatory.

Power consumption:
Active. 6VA
Standby. 2VA
Ambient temperature +5 to +50^
Storage temperature -20 to +60^
Protection rating .IP20
Dimensions .70mm(W) x 55mm(H)
CE in accordance with.....EN60669-2-1

EN

360-45010

390-40011

6. CONNECTION OF ACCESSORIES

supply to sensor:

B1/A11......+ 24V DC ±10% (SELV)

• 4-fold push button (170-40100):

B2.....earthing

B3......auto

B4.1/0

B7.....LED...auto

B8.....LED...I/O

• push button (door) (170-0000):

B2.....earthing

B9.

-time switch (420-00200):

B2....earthing

B11

• energy saving switch:

A12.....earthing

B12

• motion sensor, NPN (350-20010/350-20011):

A11 + 24V DC ±10%, max. 100mA A12

A9

360-45010

390-40011

• light sensor (350-10011):
  A11
  A12.
  A10

7. WARNINGS REGARDING INSTALLATION

• The installation should be carried out by a registered installer and in compliance with the statutory regulations.
• This user manual should be presented to the user. It should be included in the electrical installation file, and it should be passed on to any new owners. Additional copies are available on the Niko website or via the Niko support service.

• During installation, the following should be taken into account (non-exhaustive list):

• the statutory laws, standards and regulations.

• the technology currently available at the time of installation.
• this user manual, which only states general regulations and should therefore be read within the scope of each specific installation.
• the rules of proper workmanship.

This product complies with all of the relevant European guidelines and regulations. If applicable, you can find the EC declaration of conformity regarding this product at www.niko.eu.

EN

8. NIKO SUPPORT

In case of doubt or for the specific exchange procedure in case of a possible defect, contact the Niko support service in Belgium at [phone] or your wholesaler/installer. Contact details and more information can be found at www.niko.eu under the "Help and advice" section.

9. GUARANTEE PROVISIONS

• The period of guarantee is four years from the date of delivery. The delivery date is the invoice date of purchase of the product by the consumer. If there is no invoice, the date of production applies.
• The consumer is obliged to inform Niko in writing about the non-conformity, within two months after stating the defect.
  In case of a non-conformity, the consumer only has the right to a product repair or replacement free of charge, which shall be decided by Niko.
• Niko shall not be held liable for a defect or damage resulting from incorrect installation, improper or careless use, incorrect operation, transformation of the product, maintenance that does not adhere to the maintenance instructions or an external cause, such as damage due to moisture or overvoltage.
• The compulsory regulations of the national legislation concerning the sale of consumer goods and the protection of the consumer in the countries where Niko sells, directly or via sister companies, subsidiaries, chain stores, distributors, agents or permanent sales representatives, take priority over the above-mentioned rules and regulations.
