USER MANUAL BGKS 2440 EINHELL

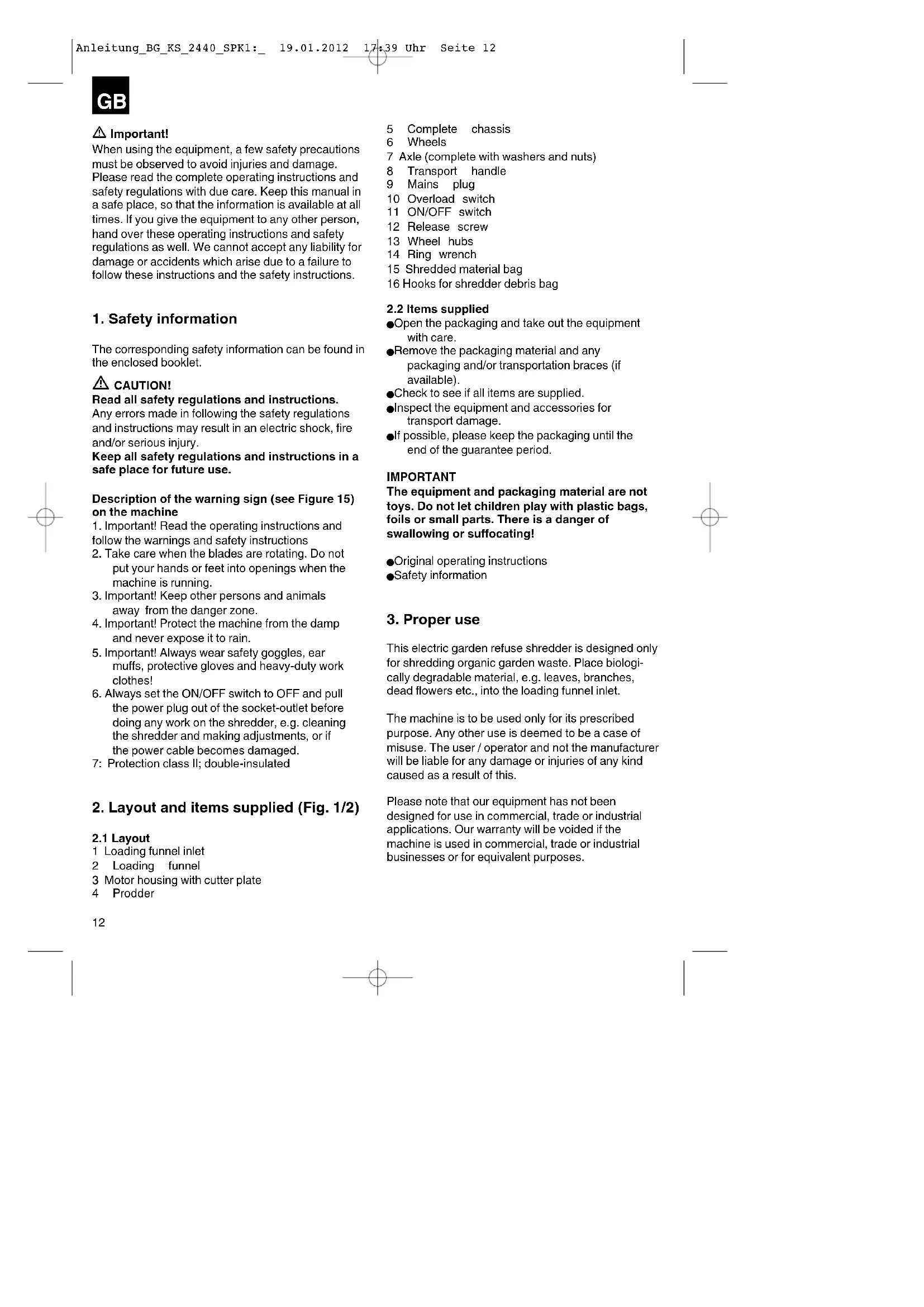

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety information

The corresponding safety information can be found in the enclosed booklet.

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Description of the warning sign (see Figure 15) on the machine

1. Important! Read the operating instructions and follow the warnings and safety instructions
2. Take care when the blades are rotating. Do not put your hands or feet into openings when the machine is running.
3. Important! Keep other persons and animals away from the danger zone.
4. Important! Protect the machine from the damp and never expose it to rain.
5. Important! Always wear safety goggles, ear muffs, protective gloves and heavy-duty work clothes!
6. Always set the ON/OFF switch to OFF and pull the power plug out of the socket-outlet before doing any work on the shredder, e.g. cleaning the shredder and making adjustments, or if the power cable becomes damaged.
   7: Protection class II; double-insulated

2. Layout and items supplied (Fig. 1/2)

2.1 Layout

1 Loading funnel inlet
2 Loading funnel
3 Motor housing with cutter plate
4 Prodder

12

5 Complete chassis
6 Wheels
7 Axle (complete with washers and nuts)
8 Transport handle
9 Mains plug
10 Overload switch
11 ON/OFF switch
12 Release screw
13 Wheel hubs
14 Ring wrench
15 Shredded material bag
16 Hooks for shredder debris bag

2.2 Items supplied

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.
  Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

IMPORTANT

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Original operating instructions
Safety information

3. Proper use

This electric garden refuse shredder is designed only for shredding organic garden waste. Place biologically degradable material, e.g. leaves, branches, dead flowers etc., into the loading funnel inlet.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

4. Technical data

Mains voltage: 230V 50Hz

Power input: 2400 W (S6-40%)

2000 W (S1)

Idle speed _0 4500

Branch diameter: max. 40 mm

_pA sound pressure level: 100 dB

Kuncertainty 3 dB (A)

LWA sound power level: 113 dB

Weight: 12.6

Protection class: II

Protection type: IP24

Operating mode S6 40% : Continuous operation with idling (cycle time 10 minutes). To ensure that the motor does not become excessively hot, it may only be operated for 40% of the cycle at the specified rating and must then be allowed to idle for 60% of the cycle.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Installation

The garden shredder is delivered unassembled. The chassis and the wheels must be fitted before use. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the machine rpm

5.1 Assembling the chassis (Fig. 3)

• Place the motor housing upside down on the floor.
• Insert the chassis into the provided openings as far as it will go.

kg

5.2 Assembling the axle and wheels (Figs. 4-10)

• Remove the nuts and washers from the axle.
• Mount the chassis as shown in Figs. 4-10.

6. Operation

Please observe the statutory regulations governing noise abatement during operating times, which may differ from town to town.

6.1 Connecting up the machine and switching it on

Connect the coupling on the machine connection cable (extension) to the power cable (Fig. 1/Item 9).
The machine can be switched ON (switch position "1") and OFF (switch position "0") using the ON/OFF switch (Figure 1/Item 11).

Note: The machine cannot be switched on if there is no voltage being supplied to it. If the power supply is interrupted, the machine will switch off automatically (switch position "0"). The machine cannot be switched on again until the voltage supply has been re-established and the ON/OFF switch has been moved to position "1".

6.2 Overload protection (motor circuit-breaker)

The motor is protected from overloads by an overload switch.

During operation the control pin projects out of the overload switch housing by around 4mm . If the motor is overloaded for a lengthy period, the overload switch will trip and switch off the machine. In this case the pin on the overload switch will project out of the housing by around 8mm and the ON/OFF switch will automatically move to "0".

After waiting for at least 1 minute the control pin in the overload switch can be pressed and the ON/OFF switch then switched on again (switch position "I").

GB

If the motor fails to start, clean the ejector chute.

6.3 Practical tips

• Be sure to observe the safety instructions (see supplied booklet).
  Wear work gloves, goggles and ear protection.
  The material is drawn into the shredder automatically. CAUTION! Long pieces of material projecting out of the funnel inlet may whiplash when it is drawn in - keep a safe distance between yourself and the machine.
• Judge the quantity of material which you put into the funnel inlet so that the funnel does not clog.
  If you want to shred withered, damp material that has been lying in the garden for several days, alternate between putting in this material and branches. This will help to prevent the loading funnel becoming clogged with material.
• Do not shred soft waste (e.g. kitchen waste) - put it straight in the compost box.
• Entangled branches and leaves should be thoroughly shredded before loading any more material.
  Do not allow the discharge opening to become clogged with shredded material - risk of pile-ups.
  -Do not cover the ventilation slits.
  Do not place heavy material or thick branches into the machine continuously. This may cause the blade to jam.
• Use a plunger or hook to remove jammed objects from the funnel or discharge openings.

6.4 Safety

The shredder has a safety switch (Figure 12a/Item A) in its interior on the motor housing. The control unit for it (Figure 13/Item F) is located on the loading funnel. If the loading hopping is not perfectly position or if it is not pressed against the motor housing, the SAFETY SWITCH will trip and prevent the motor from working. If this situation occurs, open the loading funnel as described above. Carefully clean the interior. Close the loading funnel again as described above and ensure that when you switch on the machine again the loading funnel is correctly position and the safety screw is screwed right in.

CAUTION! NEVER undo the release screw (Figure 1/Item 12) without first switching off the machine at the ON/OFF switch (Figure 1/Item 11) and disconnecting the coupling on the machine connection cable (extension) from the machine plug.

6.5 Fitting the shredder debris bag (Fig. 14)

As an option you can fit the supplied shredder debris bag to the equipment. To do so, hang the shredder debris bag (Fig. 14 / Item 15) on the hooks provided for the purpose (Fig. 14 / Item 16).

7. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

8.1 Maintenance and storage

Clean the machine regularly. This will help to keep the machine in good working order and is the basis for a long working life.
- Keep the vent slots clean while you work.
Clean the plastic body and other plastic parts with a mild household cleaning agent and a damp cloth. Do not use any aggressive agents or solvents for cleaning purposes.
- Never clean the shredder by spraying with water.
Prevent water getting inside the machine at all cost.
- Check the chassis securing screws from time to time to ensure that they are tight.
If you do not intend to use the shredder for a lengthy period, protect it from corrosion using environmentally friendly oil.
-Store the device in a dry room.
-Store the device out of reach of children.
- When you have finished your work, pull the loading funnel forwards and clean the inside. Use a brush to remove deposits from metal parts on the inside. Apply a thin coating of oil to the cleaned blade plate and blades.
- When you close the loading funnel, make sure that the safety switch and the release screw are clean.

8.2 Replace, sharp and change blades

The blades on the blade plate are replaceable. If you have to replace any blade, you must only use genuine blades to ensure that they meet the relevant quality and safety criteria.

Please note: For safety reasons we recommend that you have all sharpening and blade replacement work carried out by a specialist workshop.

Always wear heavy duty working gloves

• Undo the fastening nut (Figure 12a/Item B)
• Undo the eight Philips screws (Figure 12b/Item C) and remove the cover plate
• Secure the rotary disk so that it cannot rotate (for example by jamming it with a screwdriver, see Figure 12c)
• Undo the four blade screws (Figure 12c/Item D) and remove the blades (Figure 12c/Item E)
  Each of the blades can be turned once as they are ground sharp on both ends. Then they must be replaced by new blades.

To assemble, proceed in reverse order.

8.3 Ordering replacement parts

Please quote the following data when ordering replacement parts:

-Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

10. Troubleshooting guide

The machine does not work	a) No power at the plug b) Machine is switched off c) Overload switch has tripped d) Ejector chute is blocked e) Loading funnel is not secure on the motor housing	a) Check the power cable and fuse b) Switch on machine c) Press control on overload switch b) Clean ejector chute e) Clean interior and tighten safety screw
Shredding performance unsatisfactory	a) Blades worn a) Turn, sharpen or replace blades
Shredding performance falls in quality	a) Blades worn a) Turn, sharpen or replace blades

F

Attention!

6.2 Overlapsakring (motorskydd)

Notified Body: Notified Body No.:

Reg.No.:

2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured L_WA = 110,66 dB (A); guaranteed L_WA = 113 dB (A)

P=2.4kW; L/0=cm

Notified Body:

2004/26/EC

Emission No.

Standard references: EN 13683; EN 60335-1; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-11

First CE: 11 Archive-File/Record: NAPR004124

Art-No.:34.303.50 I-No.:11011

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

Documents registrar: Scheiff Alexander

Nur fur EU-Länder

For EU countries only

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices: As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

Endast for EU-lander

Given unfavorable conditions in the power supply the equipment may cause the voltage to drop temporarily. If the supply impedance "Z" at the connection point to the public power supply exceeds 0,391 it may be necessary to take further measures before the equipment can be used as intended from this power supply. If necessary, you can ask your local electricity supply company for the impedance value.

F

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
