USER MANUAL SHE 3 A1 SILVERCREST

ID: SHE 3 A1_14_V1.0

5. General information about calluses ...............8

6.2 Attachment and removal of roller holder........... 9

8. Cleaning and maintenance of the device .....11

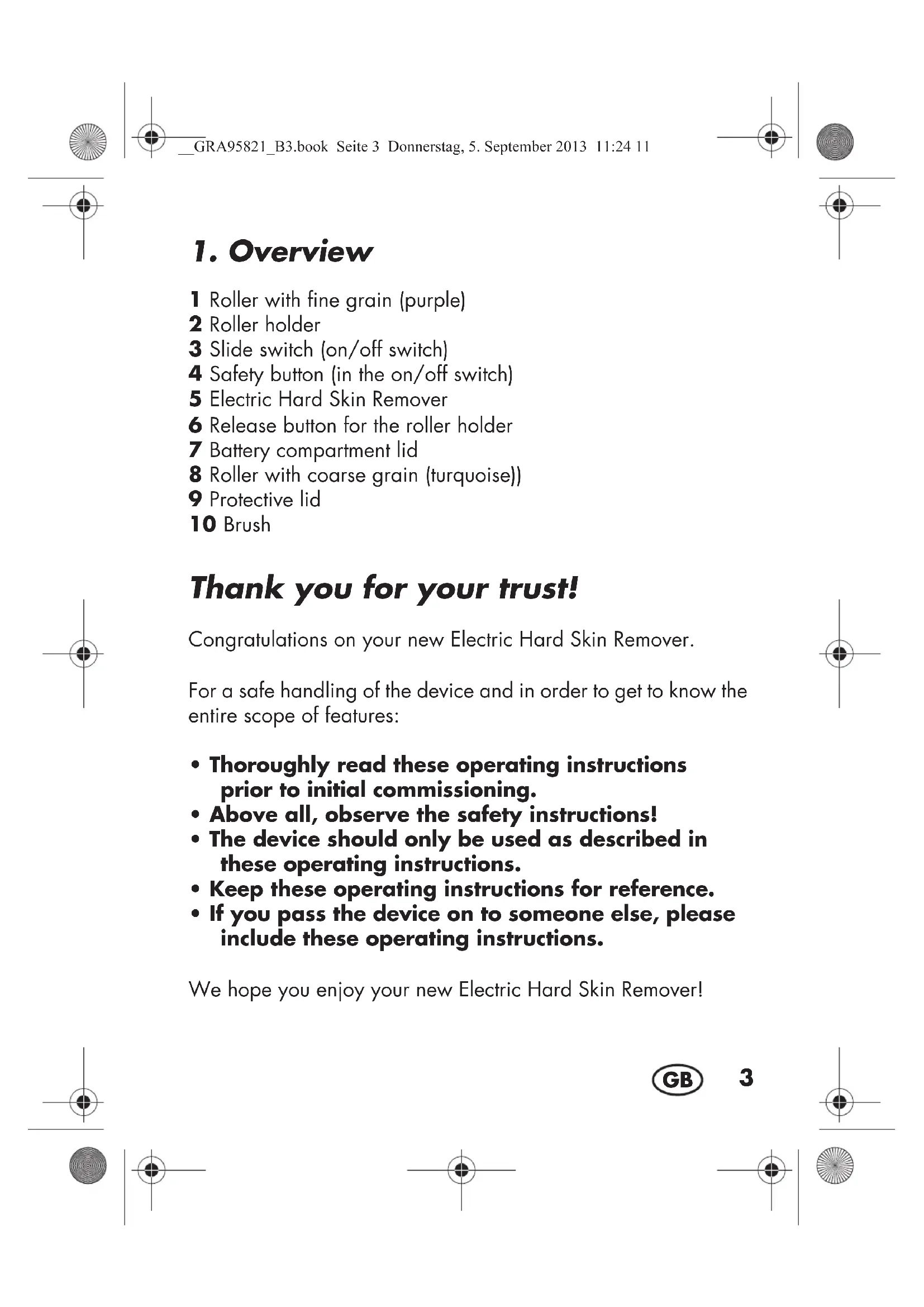

1 Roller with fine grain (purple) 2 Roller holder 3 Slide switch (on/off switch) 4 Safety button (in the on/off switch) 5 Electric Hard Skin Remover 6 Release button for the roller holder 7 Battery compartment lid 8 Roller with coarse grain (turquoise)) 9 Protective lid 10 Brush Thank you for your trust! Congratulations on your new Electric Hard Skin Remover. For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.

• Above all, observe the safety instructions!

• The device should only be used as described in these operating instructions.

• Keep these operating instructions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new Electric Hard Skin Remover! __GRA95821_B3.book Seite 3 Donnerstag, 5. September 2013 11:24 114

The Electric Hard Skin Remover is intended for the removal of cal- lus formation. It is designed solely for use on humans. It has been developed for private use and is unsuitable for commercial pur- poses. Foreseeable misuse DANGER! Risk of injury!

• The device may not be used on reddened, injured or burnt skin. Similarly, healthy skin without calluses may not be treated with this device. Birth marks, warts and other protru- sions (except calluses) must not be treated with this device. In all of these cases, this could lead to injuries of the skin and deeper tissue layers.

• Diabetics and persons with high blood pressure may only use this device after consultation with their general practitioner.

3. Safety information

Warnings If necessary, the following warnings will be used in these operat- ing instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage. __GRA95821_B3.book Seite 4 Donnerstag, 5. September 2013 11:24 115

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage. NOTE: circumstances and specifics that must be observed when handling the device. Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people with- out adequate experience and/or understand- ing, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks. Children should not be allowed to play with the device. Cleaning and user maintenance must not be performed by unsupervised children. DANGER as small parts may be swallowed The cleaning brush is a small part that could be swallowed. Keep these away from children under the age of 36 months. DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation.

DANGER! Risk of injury!

• Do not use the device if there is visible damage to the device.

• To avoid any risk, do not make modifications to the product. Repairs must be carried out by a specialist workshop or the Service Centre. DANGER from batteries

• Be sure to observe the correct polarity when inserting the batteries. Replace only with the same or an equivalent type.

• Batteries can be life-threatening if swallowed. Therefore you should store batteries out of the reach of young children. If a battery has been swallowed, medical assistance must be sought immediately.

• DANGER OF EXPLOSION! Batteries must not be charged or reactivated by other means, nor must they be dismantled, thrown into a fire or short-circuited.

• Always remove used batteries from the device immediately, since these may leak and therefore cause damage.

• Remove the batteries from the device if you intend not to use it for an extended period of time. The batteries may leak and damage the device.

• Do not subject batteries to extreme conditions, place them on radiators or expose them to direct sunlight. Otherwise, there is an increased danger of batteries leaking.

• Always replace all batteries at the same time.

• If battery acid has leaked, avoid contact with the skin, eyes and mucous membranes. In case of contact with the acid, rinse the affected area at once with plenty of clean water and seek medical assistance immediately.

• Batteries must be properly disposed of after use. __GRA95821_B3.book Seite 6 Donnerstag, 5. September 2013 11:24 117

WARNING! Risk of injury and skin irritation

• Do not use the device if the roller shows damages.

• Do not file over previously damaged skin areas (e.g. through eczema or wounds), or over raised skin areas (such as e.g. birth marks or warts). WARNING! Risk of material damage

• Only use the original accessories.

• Do not use any astringent or abrasive cleaning agents.

• Protect your device from shocks and prevent it from falling down.

• Use this device on human callused skin only. Other surfaces could damage the rollers.

• Only clean the roller with the brush.

luses Calloused skin is normal, especially on the feet. However, it should not become too thick or hard. Both of these conditions can cause pain. Causes An increase in calloused skin can be caused by the wrong shoes, obesity, an incorrect gait, bone deformations or extremely dry skin. Should you suffer from an increase in calloused skin, you should search for the causes and try to eliminate them. Also ask your doctor. Prevention

• Regular foot baths refresh and relax your feet.

• Moisturise your feet regularly (especially after every foot bath).

• Make sure that your shoes fit well and, if possible, change your shoes daily. __GRA95821_B3.book Seite 8 Donnerstag, 5. September 2013 11:24 119

• Check that the delivery is complete.

WARNING! Risk of material damage! Be sure to observe the correct polarity when inserting the batteries.

1. Slide the battery compartment lid 7 off the housing.

2. If necessary, replace the old batteries with new ones.

3. Slide the battery compartment lid 7 back on to the housing.

6.2 Attachment and removal of roller

1. Figure A: place the roller holder 2 on the top of the device

in such a way, that the cog wheels of the roller and the device are above one another.

2. Press the roller holder 2 on to the device until it engages

3. Check that it is secure.

Two complete rollers 1/8 with roller holders 2 are supplied. They have different grains.

• The coarser grain (turquoise roller 8) is for use on thick cal- luses.

• The finer grain (purple roller 1) also removes calluses, but also smoothes them. This roller is especially suitable for smoothing after having used the coarser roller 8. WARNING! Exert only light pressure. Do not treat one spot longer than 2-3seconds. If too much pressure is exerted or if the treatment duration is too long, this can lead to skin injuries.

• Make sure the skin is dry.

• It is imperative that the skin is taut.

• Stop the treatment immediately in case of pain.

• Lay a blanket or towel down, on which the removed cal- loused skin can fall.

1. Expose the parts from which the calluses are to be removed.

2. Press the safety button 4 down and then press the slide

switch 3 up. The roller 1/8 starts to rotate.

3. Apply the rotating roller slowly and carefully to the callus,

which is to be removed.

4. Apply the roller 1/8 to the callus with only a little pressure.

5. To switch off the device, slide the button 3 down.

7.2 Skin care after application

• Apply body lotion, oil or cream to the skin.

• Do not apply any substances to the treated areas, which could irritate the skin (e.g. deodorant).

8. Cleaning and maintenance of the

• Do not switch the device on if the roller unit has been removed.

• Do not use any astringent or abrasive cleaning agents.

• None of the parts may be cleaned under water. After every application

• Clean the roller holder 2 and the roller 1/8 after every application.

1. Switch off the device.

2. Clean the roller holder and the rollers with the brush 10

after every application.

• Wipe down the housing of the device with a damp cloth when necessary.

• Check whether the surface of the roller 1/8 is undamaged. To do so, turn the roller and check the surface carefully. __GRA95821_B3.book Seite 11 Donnerstag, 5. September 2013 11:24 1112

DANGER! Keep the device out of the reach of children. NOTE: to prevent soiling, store the device with attached roller and protective lid.

• When the device is not being used, place the protective lid 9 on the roller holder 2.

• If you are not going to be using the device for a longer peri- od of time, remove the batteries.

10. Replacing the roller

WARNING! Do not use the device if the surface of the roller is damaged. NOTE: replacement rollers can be ordered at: - on www.hoyerhandel.com - or at the service centre hotline, which is listed in the chapter "Warranty of the HOYER HandelGmbH" on page 15. When must the roller be replaced?

• When you can see signs of damage.

• If you need an increasing amount of time for the same result.

• Depending on the intensity of use, but generally after one year. __GRA95821_B3.book Seite 12 Donnerstag, 5. September 2013 11:24 1113

Removal Press the button 6 and remove the roller holder upwards. Attachment

1. Figure A: place the roller holder 2 on the top of the device

in such a way, that the cog wheels of the roller and the device are above one another.

2. Press the roller holder 2 on to the device until it engages

3. Check that it is secure.

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Do not attempt to repair the device yourself under any circumstances. Fault Possible causes/Action The device cannot be switched on.

• Are the batteries flat?

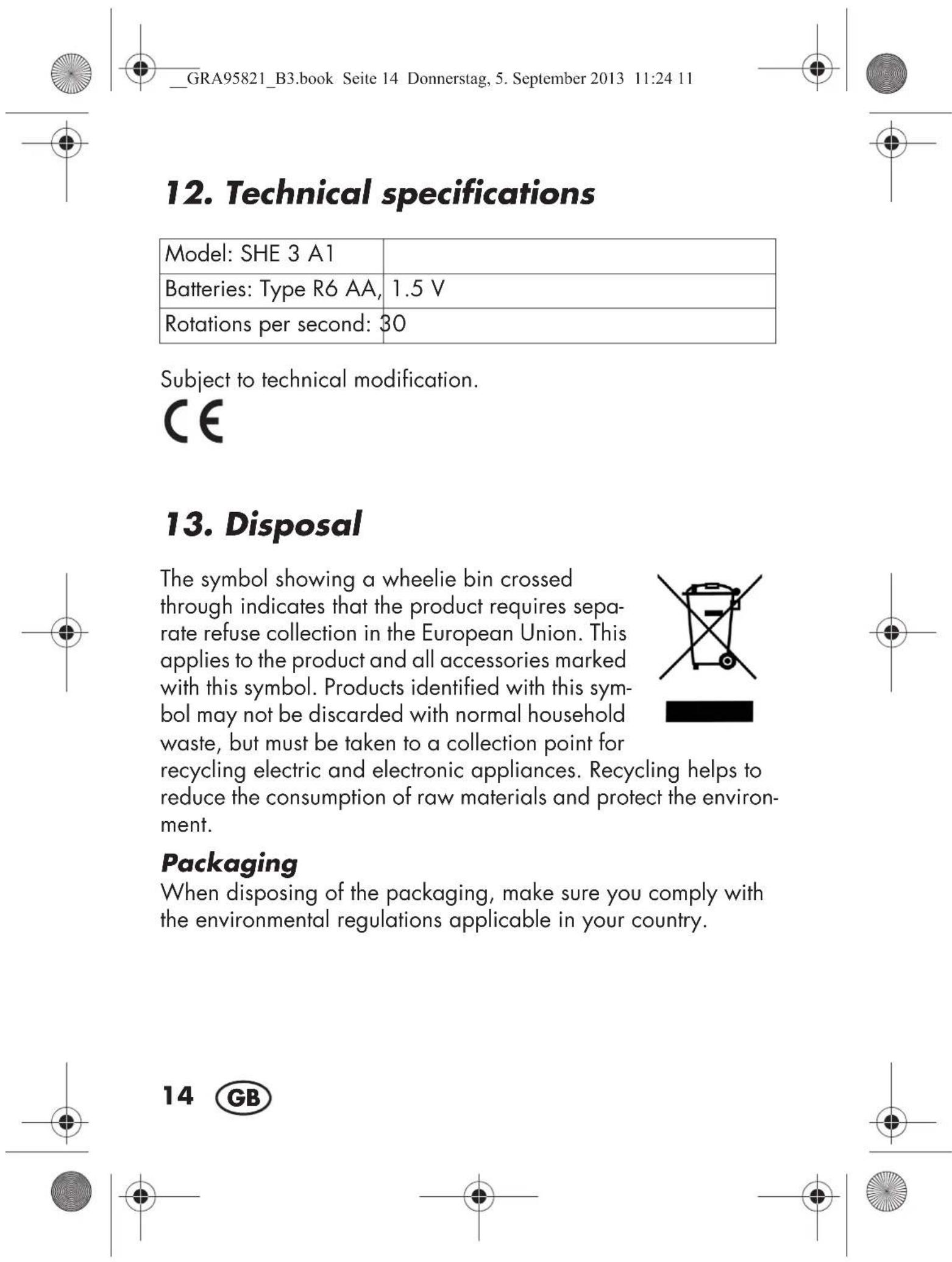

Subject to technical modification.

The symbol showing a wheelie bin crossed through indicates that the product requires sepa- rate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this sym- bol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environ- ment. Packaging When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country. Model: SHE 3 A1 Batteries: Type R6 AA, 1.5 V Rotations per second: 30 __GRA95821_B3.book Seite 14 Donnerstag, 5. September 2013 11:24 1115

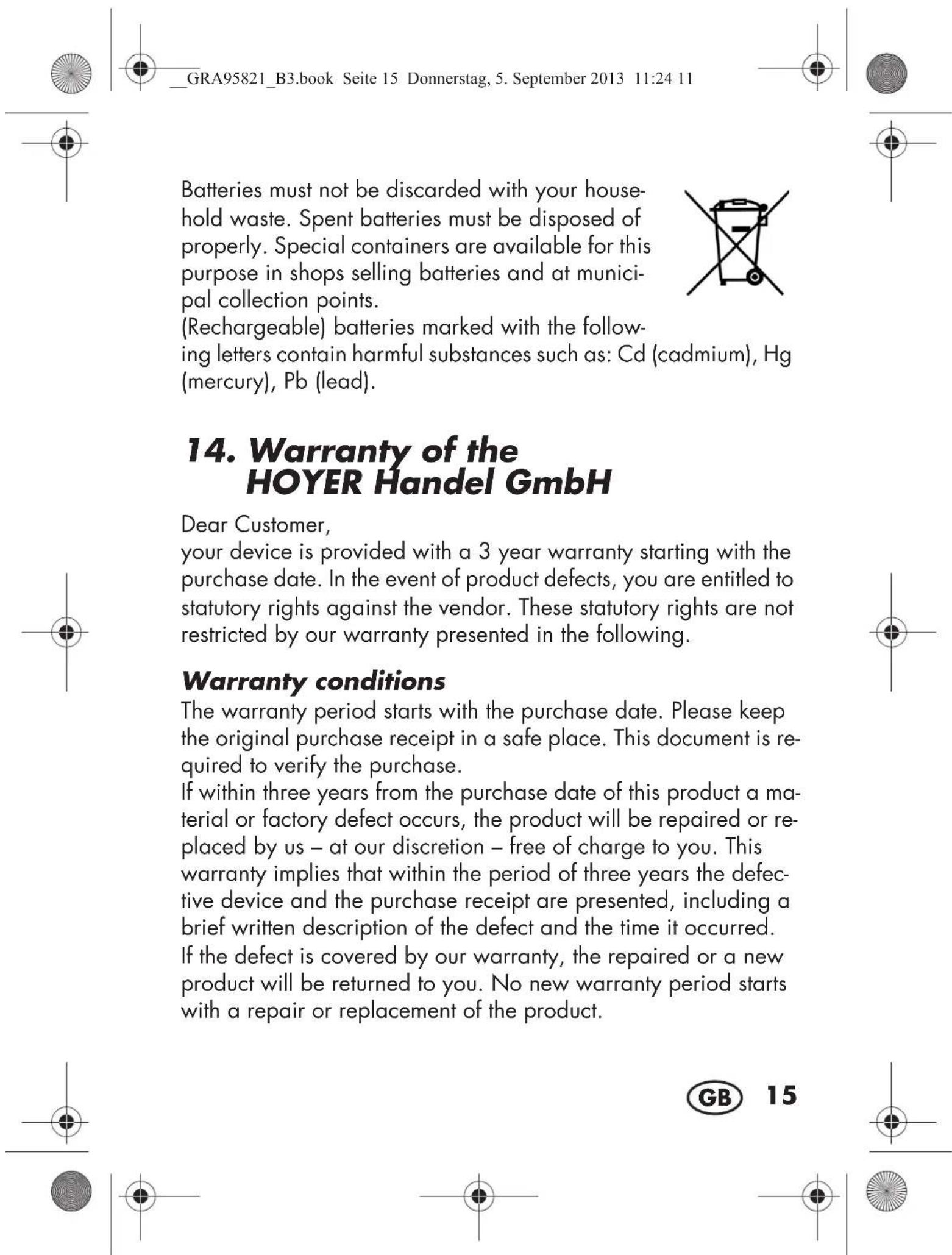

Batteries must not be discarded with your house- hold waste. Spent batteries must be disposed of properly. Special containers are available for this purpose in shops selling batteries and at munici- pal collection points. (Rechargeable) batteries marked with the follow- ing letters contain harmful substances such as: Cd (cadmium), Hg (mercury), Pb (lead).

HOYER HandelGmbH Dear Customer, your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a ma- terial or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defec- tive device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. __GRA95821_B3.book Seite 15 Donnerstag, 5. September 2013 11:24 1116

Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass. This warranty expires if the product is damaged, not used as in- tended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be ob- served carefully. Any form of use and handling that is advised against in the operating instructions or warned against must al- ways be avoided. The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Cen- tre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please ob- serve the following notes:

• Please keep the article number IAN: 95821 and the pur- chase receipt as a purchase verification for all inquiries. __GRA95821_B3.book Seite 16 Donnerstag, 5. September 2013 11:24 1117

• If faulty operation or other defects occur, first contact the Ser- vice Centre listed in the following by telephone or email.

• Then, you are able to send a product reported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the information on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and software. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie IAN: 95821 Supplier Please note that the following address is no service address. First contact the aforementioned Service Centre. HOYER Handel GmbH Kühnehöfe 5 22761 Hamburg Germany
