SHE 3 D4 - Callus removal SILVERCREST - Free user manual and instructions
Find the device manual for free SHE 3 D4 SILVERCREST in PDF.
| Product type | Electric callus file |
| Brand | SilverCrest |
| Model | SHE 3 D4 |
| Model numbers | HG04539A (silver), HG04539B (pink) |
| Power supply | 2 AA batteries (LR6) 1.5 V |
| Rated current | 1 A |
| Sound pressure level | < 70 dB(A), K = 3 dB |
| Speeds | 2 speeds (I and II) |
| Provided heads | 2 interchangeable rollers: coarse granulation (mint green) and fine granulation (silver) |
| Protective cover | Yes, included |
| Safety button | Yes, requires simultaneous press to turn on |
| Intended use | Removal of human calluses on feet; do not use on head, aorta, or areas with blood vessels |
| Usage precautions | Do not apply excessive pressure, move in circular motions, check temperature regularly |
| Cleaning | Clean rollers and roller holders with the included brush after each use; do not immerse |
| Roller replacement | Possible, order online (www.optimex-shop.com) |
| Included accessories | Cleaning brush, 2 AA batteries, protective cover, 2 rollers |
| Warranty | 3 years |
| Use | Private use only |
Frequently Asked Questions - SHE 3 D4 SILVERCREST
User questions about SHE 3 D4 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Callus removal in PDF format for free! Find your manual SHE 3 D4 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHE 3 D4 by SILVERCREST.
USER MANUAL SHE 3 D4 SILVERCREST
DE AT CH
Operation and safety notes
FR BE
RAPE ELECTRIQUE ANTI- CALLOSITÉ
GB/IE Operation and safety notes Page 23
Intended use....Page 24
Scope of delivery ...... Page 24
Parts description ...... Page 25
Technical data.... Page 25
Safety notices....Page 25
Safety instructions for batteries / rechargeable batteries .... Page 31
Before use.... Page 34
Inserting / replacing batteries....Page 34
Operation Page 34
Using different attachments..... Page 35
Skin care after application....Page 36
Cleaning and care....Page 36
Replacing the roller Page 37
Disposal Page 37
Ordering accessories ...... Page 38
Translation of the original declaration of conformity ...... Page 39
Warranty Page 40

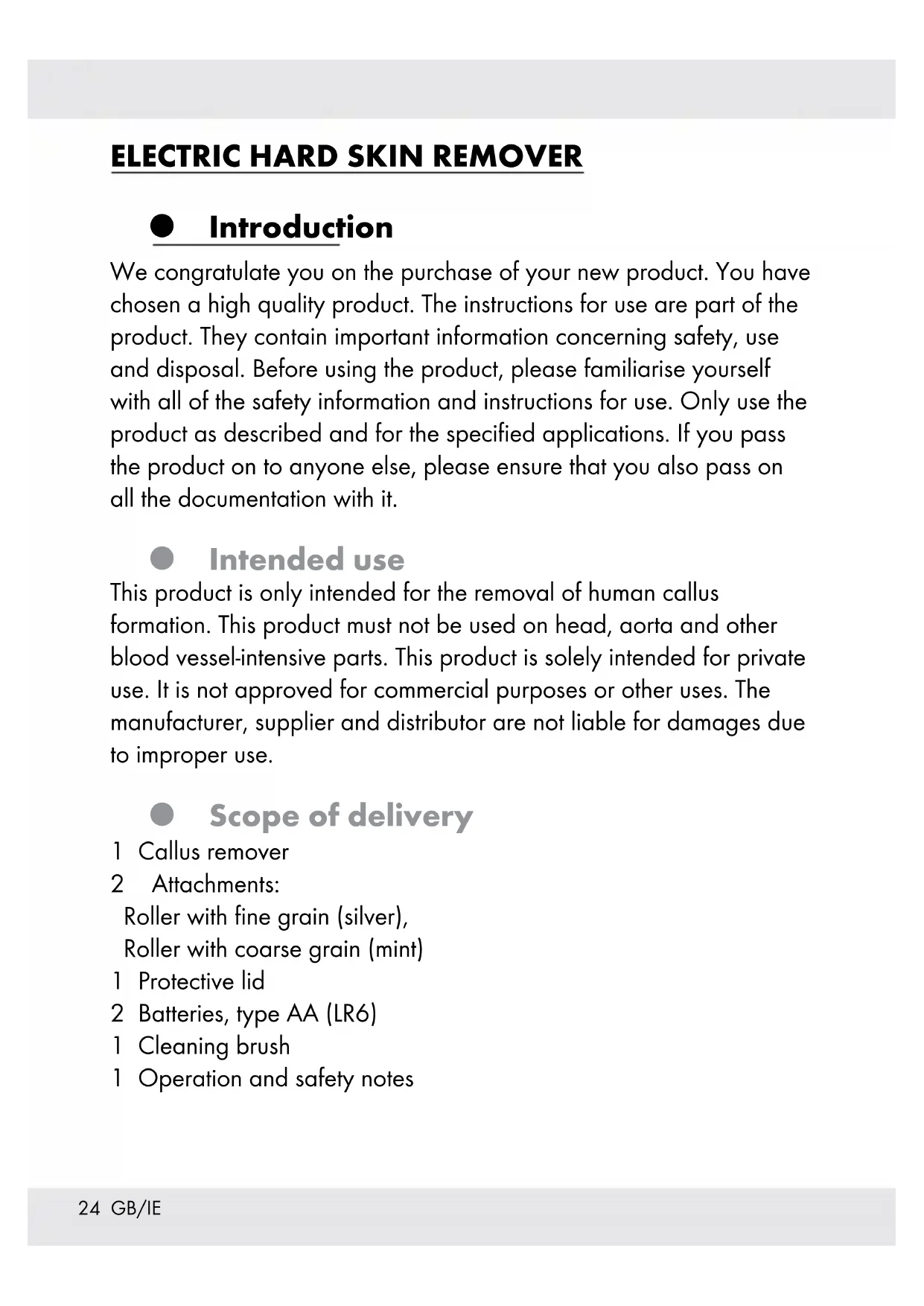

ELECTRIC HARD SKIN REMOVER
● Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This product is only intended for the removal of human callus formation. This product must not be used on head, aorta and other blood vessel-intensive parts. This product is solely intended for private use. It is not approved for commercial purposes or other uses. The manufacturer, supplier and distributor are not liable for damages due to improper use.
- Scope of delivery
1 Callus remover
2 Attachments:
Roller with fine grain (silver),
Roller with coarse grain (mint)
1 Protective lid
2 Batteries, type AA (LR6)
1 Cleaning brush
1 Operation and safety notes
Parts description
1 Roller with fine grain (silver)
2 Roller holder
3 Slide switch
4 Safety button
5 Main housing
6 Battery compartment cover
7 Release button for the roller holder
8 Roller with coarse grain (mint)
9 Protective lid
10 Cleaning brush
11 Battery compartment
- Technical data
Battery: 2 x 1.5 V (direct current)
battery, type AA (LR6)
Rated current: 1 A
Emission sound pressure level: < 70 dB(A); K = 3 dB
Model number: HG04539A: Silver
HG04539B: Rose
Safety notices
PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE FOR FUTURE REFERENCE!
WARNING!
This product will generate high heat when used for extended periods, which may cause burns. Therefore regularly check the result during use. Diabetics in particular are less sensitive if burns occur. Be very careful. If necessary, consult your physician.
CAUTION! This product is not a toy!
Children frequently underestimate the risks associated with electric appliances.
The product can be used by children aged from 3 years under supervision.
This product may be used by children 8 years and up as well as persons with physical, sensory or mental impairments or lacking experience and knowledge, when supervised or instructed in the safe use of the product and understand the associated risks.
Do not allow children to play with the product. Cleaning and user maintenance shall not be performed by children without supervision.
Do not use the product if it is damaged. Injuries may otherwise occur. Verify there are no foreign objects inside the product.
■ Only open the product to replace the battery.
This product has no parts which can be serviced by the user.
■ Switch off the product before cleaning and care.
- Do not expose the product to extreme temperatures to prevent damage.
- Avoid severe shock or mechanical stress to the product to prevent damage.
■ Please contact a professional for damage, repairs or other problems with the product.
■ Never immerse the product in water. Never use the product in a bathtub, shower, swimming pool or a basin filled with water.
- Do not use the product if you have wounds on your hands or feet or have stressed skin areas.
⚠️ CAUTION! Carefully move the product in circular motions and do not pause in one area. Painful heat may otherwise build.
⚠️ CAUTION! Do not apply excessive pressure and always carefully move the attachments over the areas being treated.
- Verify the roller is always able to rotate freely. It must not be permanently blocked or high heat may develop, damaging the product.
⚠️ CAUTION! Regularly check the result during use. If you notice bothersome skin reactions, stop immediately.
For reasons of hygiene the product should only be used by one person.
- Do not drop the product to prevent damage to internal parts.
Do not allow water to enter the product. In this case remove the batteries and only use the product again once it has dried completely.
- Check the product before each use. Do not use the product if the roller is damaged or malfunction, otherwise, injuries may occur.
To avoid injury, only use the roller supplied with the product or ordered from online. See section "Ordering accessories" for the order information.
■ Only use the product with dry hands.
WARNING! Protect the hand-held unit from moisture! Never immerse the hand-held unit in water.
WARNING! Keep the product dry.
Safety instructions for batteries / rechargeable batteries
■ DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION!
Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
■ Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (−) on the battery / rechargeable battery and the product.
Use a dry, lint-free cloth to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
Before use
■ Only use the product with dry hands.
■ Remove all parts from the package.
- Inserting / replacing batteries
- Switching off the product: Slide down the slide switch to the "0" position.
Put the protective 2 on the roller 1 / 8. Hold the main housing 5 firmly. Slide the battery compartment cover 6 off the main housing.
■ Remove the used batteries, if present. - Insert 2 new batteries (type AA, LR6) into the battery compartment 11.
Pay attention to the correct polarity. This is indicated on the front side of the battery compartment 11.
■ Slide the battery compartment cover back onto the main housing 5.
Operation
- Switching on the product: Press the safety button. Simultaneously, slide up the slide switch 3 to the required speed level.
Note: We recommend that you start working at speed level "I". If the results are satisfactory – and you feel comfortable handling the product – then you may switch up to speed level "II".
■ Apply the roller / 8 slowly and carefully with only a little pressure to the callus, which is to be removed.
■ Switching off the product: Slide down the slide switch to the "0" position.
- Using different attachments
- Select the attachments with care. Improper use may result in injuries.
■ 2 complete rollers / 8 with roller holders 2 are supplied.
Roller with coarse grain (mint) 8
■ To remove the thick calluses.
Roller with fine grain (silver) 1
To remove calluses, but also smoothes them. This attachment is especially suitable for smoothing after having used the roller with coarse grain (mint) 8.
Changing attachment (fig. B)
Note: To avoid injury, only use the roller 1 / 8 supplied with the product or ordered from online. See section "Ordering accessories" for the order information.
Note: Switch off the product before changing the attachment.
- Slide down the slide switch to the "0" position.
■ Replacing the current roller / 8: Press the release button for the roller holder 7. Simultaneously, remove the roller holder 2 with the current roller 1 / 8 from the main housing 5.
Press and hold the release button for the roller holder again. Simultaneously, place the other roller holder 2 with roller 8 / 1 on top of the product in such a way that the gear of the roller holder 2 and the product are above one another.
■ Make sure that all parts are completely attached before releasing the release button for the roller holder 7.
● Skin care after application
■ Apply body lotion, oil or cream to the skin.
Do not apply any substances (e.g. deodorant) to the treated areas, which could irritate the skin.
- Cleaning and care
Roller holder 2 and the roller 1 / 8:
Note: Clean the roller holder 2 and the roller 1 / 8 after every application. Check whether the surface of the roller 1 / 8 is undamaged. To do so, turn the roller and check the surface carefully.
Note: Switch off the product before cleaning and care.
- Switch off the product (see section "Inserting / replacing batteries").
- Clean the roller holder and the rollers 1 / 8 with the cleaning brush 10 after every application.
Place the protective 2 on the roller holder 2 .
Wipe down other parts with a damp cloth, when necessary.
● Replacing the roller
⚠ WARNING! Do not use the product if the surface of the roller 1 / 8 is damaged.
Note: Replacement rollers can be ordered (see "Ordering accessories").
When must the roller be replaced?
■ When you can see signs of damage.
If you need an increasing amount of time for the same result.
■ Depending on the intensity of use, but generally after 1 year.
● Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
- Ordering accessories
Sets with additional rollers 1 / 8 for the ELECTRIC HARD SKIN REMOVER SHE 3 E1 can be reordered.
Order online
www.optimex-shop.com
● Translation of the original declaration of conformity
We, OWIM GmbH & Co. KG Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility the product: ELECTRIC HARD SKIN REMOVER, model no.: HG04539A / HG04539B, Version: 12 / 2018, to which this declaration refers, complies with Directives 2006/42/EC, 2014/30/EU und 2011/65/EU.
Harmonised standard applied:
EN 60335-1:2012/A11:2014
EN 60335-2-8:2015/A1:2016
EN 62233:2008
EN ISO 12100:2010
EN 50581:2012
EN 55014-1:2017
EN 55014-2:2015
Serial number: IAN 311870
Department Manager
Neckarsulm, 7 Dec 2018
The declaration of conformity is also available at: www.owim.com
● Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
