USER MANUAL IAN 52691 AURIOL

Usage and safety instructions

SE RADIOSTYRT

ARMBANDSUR

Anvandor-ochsakerhetsinstruktioner

FR BE MONTRE-BRACELET

RADIOGUIDEE

GB IE Usage and safety instructions. 1

GB usage and safety instructions

Table of contents

Table of contents

Introduction 2

Intended use 2

Scope of delivery 2

Technical specifications. 2

Important safety information. 2

-Batteries 2

• The wristwatch should not be in the hands of children.

Features 3

Display modes. 3

Manually starting time signal reception. 3

Changing the time zone 3

Manual time setting 4

Day of the week language selection 4

Calibration 4

Calibrating the minute hand 4

Calibrating the hour hand. 4

Troubleshooting 4

Strap shortening instructions. 5

Metal strap shortening instructions 5

Replacement of battery. 6

Water resistance 6

Cleaning instructions 6

Disposal of the watch. 6

Disposal of the batteries 6

Declaration of Conformity 6

digi-tech gmbh warranty. 7

Warranty conditions 7

Warranty period and defects liability 7

Scope of the warranty 7

Warranty claim procedure.

Service 8

Supplier 8

-1.

GB

IE

RADIO-CONTROLLED WRISTWATCH

Introduction

Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications.

If the watch is given to someone else, include all documentation with the watch.

Intended use

This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• Wristwatch
• Instruction manual

Technical specifications

Operating temperature range	0 °C to 60 °C
Time signal	DCF77

Important safety information

- Batteries

Batteries / rechargeable batteries must be inserted in the correct polarity. Don't try to recharge nonrechargeable batteries and under no circumstances throw them into fire. Danger of explosion. Do not use unequal batteries (old and new, Alkaline and carbon, etc.) simultaneously. If you will not use the device for a long time, remove the batteries and store the device in a dry and dust-free place. Improper use of batteries may cause an explosion or leakage. If the batteries have leaked, use gloves and clean the wristwatch thoroughly with a dry cloth.

- The wristwatch should not be in the hands of children

Never let children use electrical devices unsupervised. Children can't always recognize the possible dangers properly. Batteries/rechargeable batteries can be life threatening when swallowed. Store the batteries where they cannot be reached by small children. If a battery is swallowed, medical aid must be sought immediately. Also keep the packaging foils away from children. Danger of suffocation.

-2-

GB

IE

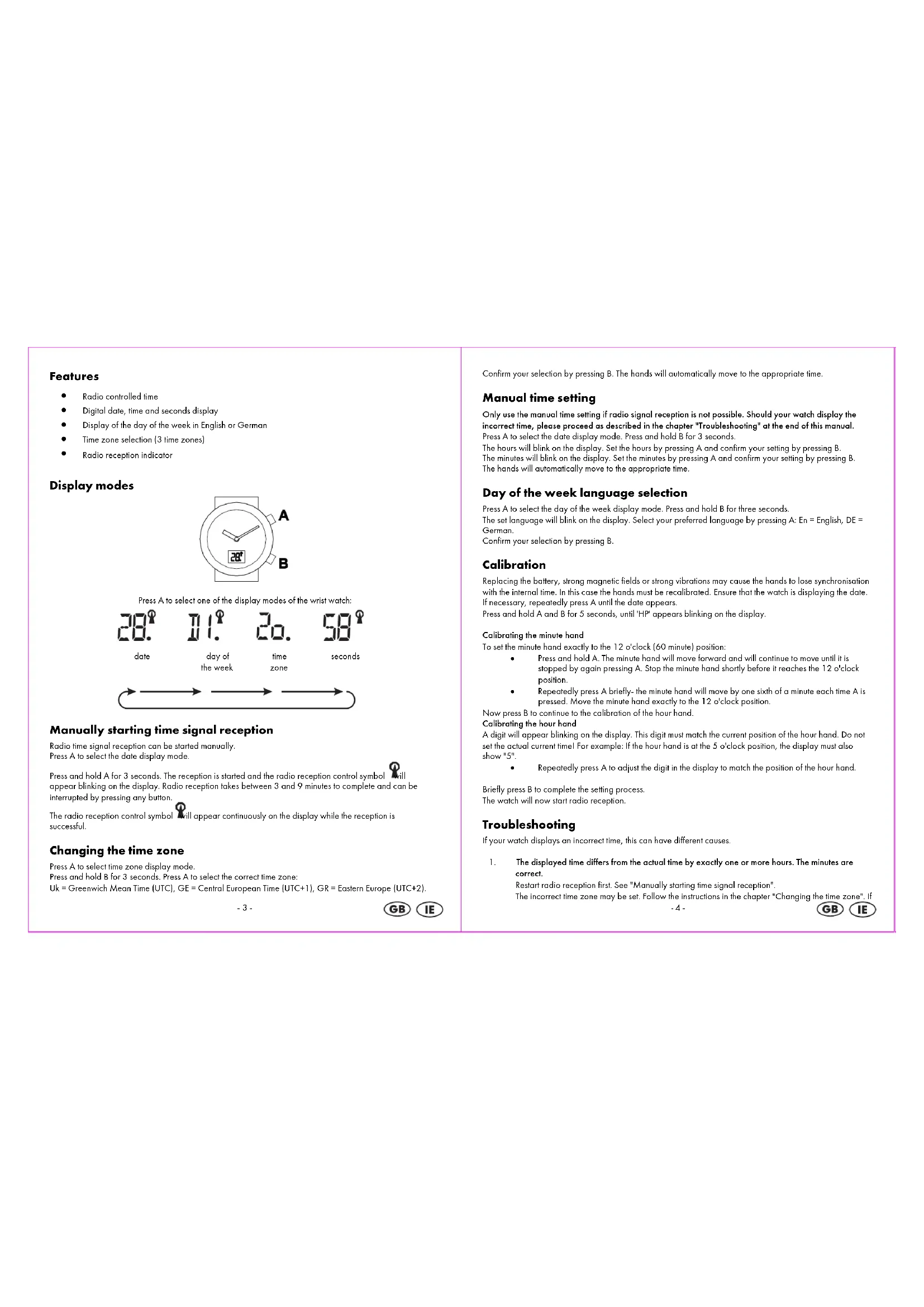

Features

Radio controlled time
Digital date, time and seconds display
Display of the day of the week in English or German
Time zone selection [3 time zones]
Radio reception indicator

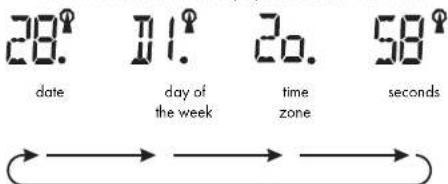

Display modes

Press A to select one of the display modes of the wrist watch:

Manually starting time signal reception

Radio time signal reception can be stated manually. Press A to select the date display mode.

Press and hold A for 3 seconds. The reception is started and the radio reception control symbol will appear blinking on the display. Radio reception takes between 3 and 9 minutes to complete and can be interrupted by pressing any button.

The radio reception control symbol will appear continuously on the display while the reception is successful.

Changing the time zone

Press A to select time zone display mode. Press and hold B for 3 seconds. Press A to select the correct time zone: Uk = Greenwich Mean Time [UTC], GE = Central European Time [UTC+1], GR = Eastern Europe [UTC+2].

-3-

Confirm your selection by pressing B. The hands will automatically move to the appropriate time.

Manual time setting

Only use the manual time setting if radio signal reception is not possible. Should your watch display the incorrect time, please proceed as described in the chapter "Troubleshooting" at the end of this manual. Press A to select the date display mode. Press and hold B for 3 seconds. The hours will blink on the display. Set the hours by pressing A and confirm your setting by pressing B. The minutes will blink on the display. Set the minutes by pressing A and confirm your setting by pressing B. The hands will automatically move to the appropriate time.

Day of the week language selection

Press A to select the day of the week display mode. Press and hold B for three seconds. The set language will blink on the display. Select your preferred language by pressing A: En = English, DE = German. Confirm your selection by pressing B.

Calibration

Replacing the battery, strong magnetic fields or strong vibrations may cause the hands to lose synchronisation with the internal time. In this case the hands must be recalibrated. Ensure that the watch is displaying the date. If necessary, repeatedly press A until the date appears. Press and hold A and B for 5 seconds, until 'HP' appears blinking on the display.

Calibrating the minute hand

To set the minute hand exactly to the 12 o'clock (60 minute) position:

Press and hold A. The minute hand will move forward and will continue to move until it is stopped by again pressing A. Stop the minute hand shortly before it reaches the 12 o'clock position.
- Repeatedly press A briefly: the minute hand will move by one sixth of a minute each time A is pressed. Move the minute hand exactly to the 12 o'clock position.

Now press B to continue to the calibration of the hour hand. Calibrating the hour hand

A digit will appear blinking on the display. This digit must match the current position of the hour hand. Do not set the actual current time! For example: if the hour hand is at the 5 o'clock position, the display must also show "5".
Repeatedly press A to adjust the digit in the display to match the position of the hour hand.

Briefly press B to complete the setting process. The watch will now start radio reception.

Troubleshooting

If your watch displays an incorrect time, this can have different causes.

1. The displayed time differs from the actual time by exactly one or more hours. The minutes are correct.

Restart radio reception first. See "Manually starting time signal reception". The incorrect time zone may be set. Follow the instructions in the chapter "Changing the time zone". If

-4-

the problem persists, follow the instructions in the chapter "Calibration".

1. The time differs by one or more minutes and possibly hours. Restart radio reception first. See "Manually starting time signal reception". If the problem persists, follow the instructions in the chapter "Calibration".

2. The battery power may be too low for time signal reception. Have the battery replaced by an expert. Restart radio reception first. See "Manually starting time signal reception". If the problem persists, follow the instructions in the chapter "Calibration".

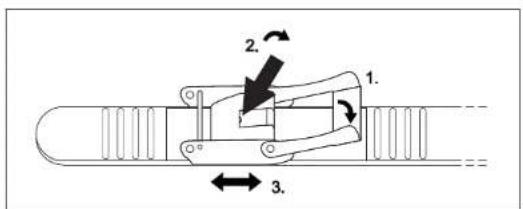

Strap shortening instructions

To facilitate easy strap shortening, the strap has a movable clasp.

1. Use a pointed tool to open the lock.
2. Move the clasp to a new position to achieve the proper strap length.

Press the lock back down to fasten the clasp.

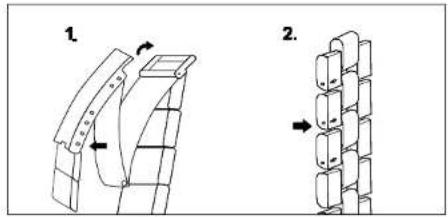

Metal strap shortening instructions

Your wristwatch strap may be shortened in two ways.

-5-

GB 1E

1. At the buckle (see fig. 1.)

Unlock the safety cover (if applicable) and open the buckle. The strap is held in position by a spring bar. The spring bar can be compressed with a pointed tool to enable shortening of the strap. Move the strap to the desired position and allow the spring bar to lock into place.

1. At the strap (see fig. 2)

Shortening of the strap can also be achieved by removing segments. Open the buckle and remove the spring bar as described in part 1.

Place the wristwatch on a soft surface with the dial facing downward. The segments that can be removed are marked with an arrow. Push a pointed tool into the opening on the backside of the strap and push the bolt out of the strap in the direction of the arrow. Pull out the bolt (you may need to use tweezers).

The strap can now be disassembled.

Remove as many segments as necessary in the described fashion and reassemble the strap by pushing the bolt inwards in the opposite direction of the arrow. Reassemble the buckle with the spring bar.

Replacement of battery

2-LD3824-(1-3,5)=CR2032，2-LD3824-[7,10]=CR1620

Battery replacements must be performed by an expert to avoid damaging the case or gaskets.

Water resistance

Water resistant up to 5 bar. The bar value specifies the atmospheric overpressure which is applied during testing [DIN 8310].

3 BAR WATER RESISTANT	✓	X	X	X
5 BAR WATER RESISTANT	✓	✓	X	X
10 BAR WATER RESISTANT	✓	✓	✓	X
20 BAR WATER RESISTANT	✓	✓	✓	✓

Cleaning instructions

Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Disposal of the watch

This wristwatch may not be disposed of with normal household waste. Disposc of the wristwatch at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the watch. Contact the disposal system if in doubt.

Disposal of the batteries

Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Disperse of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt.

Declaration of Conformity

If used as intended this product conforms to the basic standards of 3 and the other relevant provisions of the FTEG (Section 3 of the R&TTE directive). The declaration of conformity may be requested here: [e-mail]

-6-

GB

IE

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts mode of glass. This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired. For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided. The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

Have your receipt (as proof of purchase) and the article number (52691) handy.
- The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

-7

Service

Please note that the following address is not a service address.

Please first contact the service address (see above).

Name: digi-tech gmbh

Street. Valterweg 27A

Town: Eppstein 65817

Country: Germany

-8-
