Product type	Audio receiver / AM/FM tuner
Brand	TEAC
Model	Lago (T-R650)
Dimensions (W x H x D)	435 x 85 x 295 mm
Net weight	3.2 kg
Power supply	AC 230 V, 50 Hz
Power consumption	9 W (standby: 0.5 W)
FM tuning range	87.50 - 108.00 MHz (50 kHz steps)
AM tuning range	522 - 1629 kHz (9 kHz steps)
FM sensitivity	6 dBμ (usable)
AM sensitivity	55 dBμ (useful)
FM harmonic distortion	0.8% (mono), 1.2% (stereo)
FM signal-to-noise ratio	70 dB (mono), 65 dB (stereo)
Number of presets	30 FM + 30 AM
Main functions	Manual, automatic, preset tuning; RDS (PS, PT, RT, TA, CT); daily timer; sleep timer; remote control (via A-R650 amplifier)
Supplied accessories	AM loop antenna, FM wire antenna, remote control connection cord, RCA stereo cable, instruction manual, warranty card
Maintenance and cleaning	Wipe with a soft dry or slightly damp cloth; do not use solvents (thinner, benzene, alcohol)
Safety	Do not expose to water, do not open the casing, unplug by pulling the plug, keep away from heat sources
Repairability	Entrust any repair to a qualified professional; spare parts available from TEAC after-sales service
Operating temperature	+5°C to +35°C
Operating humidity	5% to 85% (without condensation)

Frequently Asked Questions - Lago TEAC

How to set the clock?

Press TIME ADJ. Turn the TUNING/SELECT knob to set the hour, press ENTER, then set the minutes and confirm. The clock is in 24-hour format.

How to store a station as a preset?

Tune to the desired station, press MEMORY, then within 4 seconds turn TUNING/SELECT to select a preset number, and press MEMORY again.

How to use RDS?

Press RDS MODE to cycle through modes: PS (station name), PT (program type), RT (radio text), TA (traffic info), CT (time). PTY search is done by holding RDS MODE for more than 2 seconds.

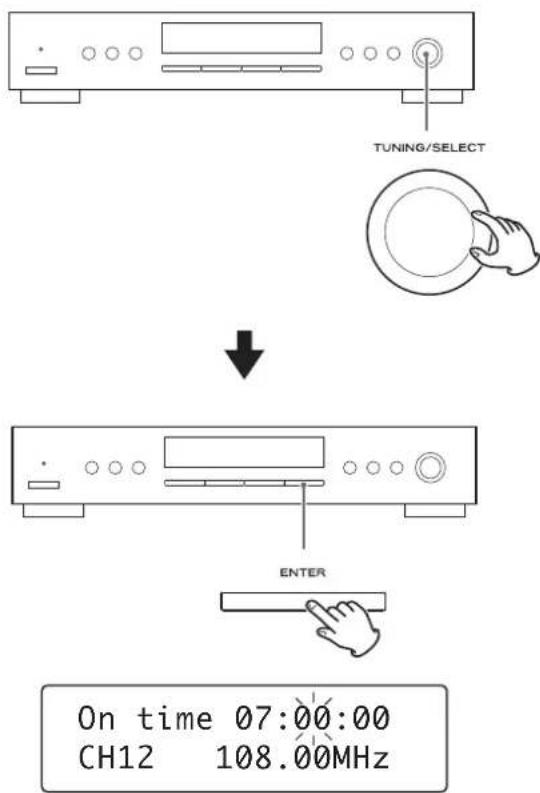

How to set the daily timer?

Press DAILY (or hold TIME ADJ on the remote). Set the start time (On time) and end time (Off time) with TUNING/SELECT and ENTER. Then activate the timer with TIMER until 'Timer On' is displayed.

How to use the sleep timer?

Press SLEEP several times to select a duration from 10 to 90 minutes. The device will turn off automatically after this time. To cancel, press until normal display returns.

What to do if there is no sound?

Check that the device is properly connected to the amplifier via the LINE OUT jacks. Make sure the amplifier is on and the 'TUNER' source is selected.

How to connect the tuner to a TEAC A-R650 amplifier?

Use the supplied RCA stereo cable to connect the LINE OUT jacks of the tuner to the TUNER jacks of the amplifier. Also connect the REMOTE CONTROL jacks with the supplied cord for the remote control.

How to improve FM or AM reception?

For FM, extend the wire antenna and place it near a window. For AM, use the supplied loop antenna and orient it for better reception. In weak signal areas, an outdoor antenna may be necessary.

How to reset the device to factory settings?

Press and hold the TIMER and BAND buttons simultaneously for a few seconds. This will erase all custom settings, including preset stations.

What to do in case of persistent malfunction?

Unplug the power cord, wait a few seconds, then plug it back in. If the problem persists, contact TEAC after-sales service. Do not attempt to repair the device yourself.

USER MANUAL Lago TEAC

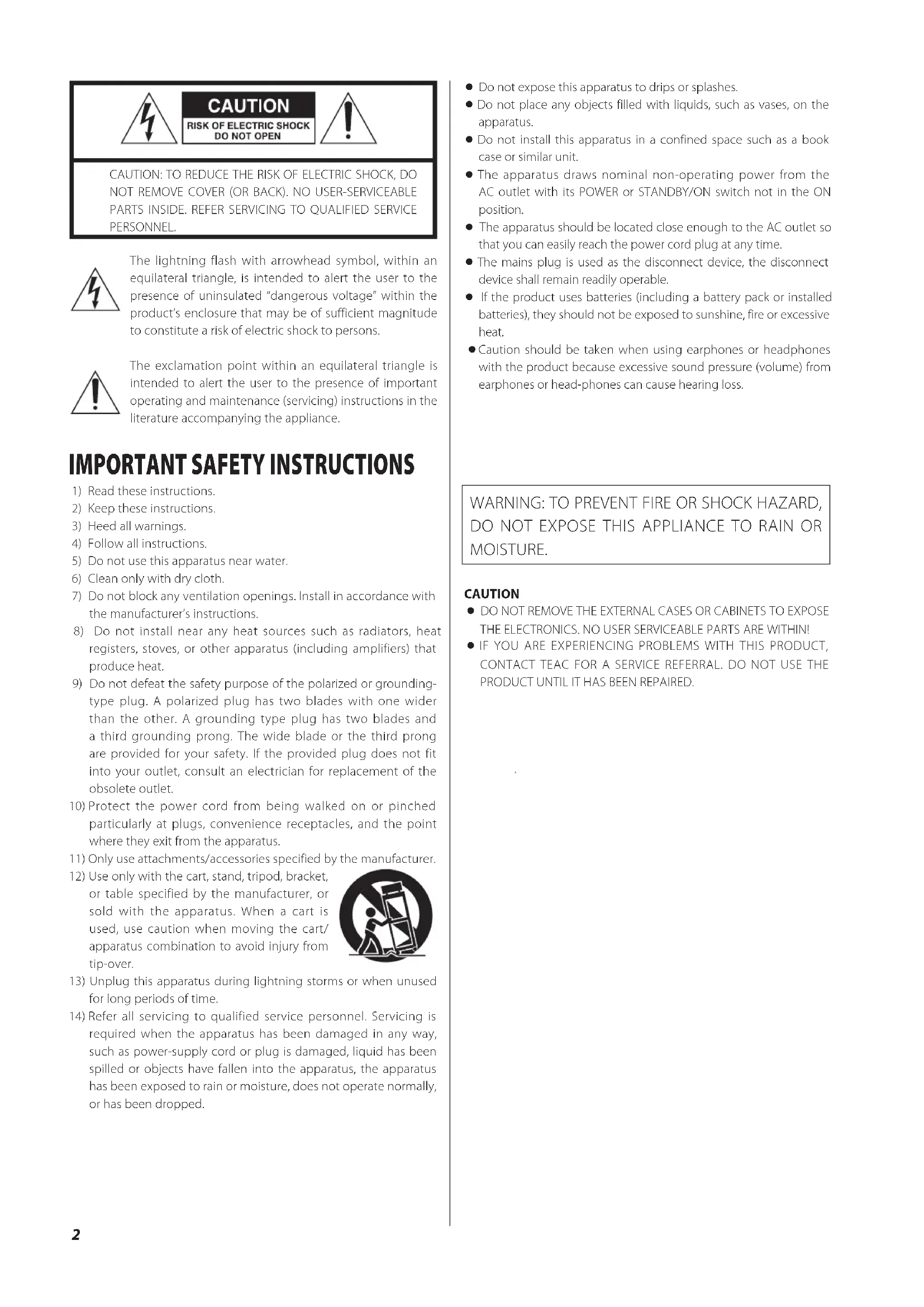

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
• The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or head-phones can cause hearing loss.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

• DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!
• IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

Contents

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

Before use....3

Connection....4

Connecting Antennas 5

Parts Identification 6

Basic operations....7

Listening to FM/AM 8

Preset Tuning....9

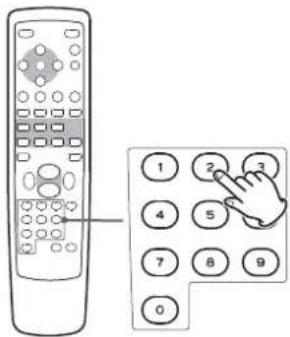

Preset Tuning (Remote Control) 11

RDS 13

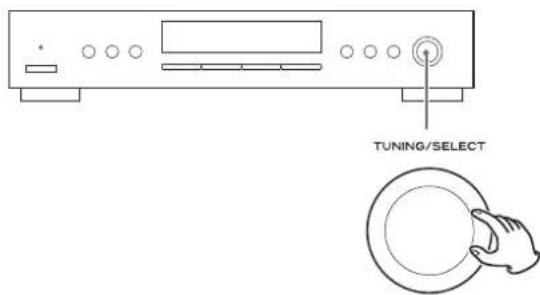

PTY Search 14

Setting the Clock....16

Setting the Daily Timer....16

Sleep timer....18

Troubleshooting....19

Specifications....20

Before use

Read this before attempting any operations.

• The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.
• Do not place the unit on an amplifier/receiver.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank the cord.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry or slightly damp cloth.
• Keep this manual in a safe place for future reference.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit.

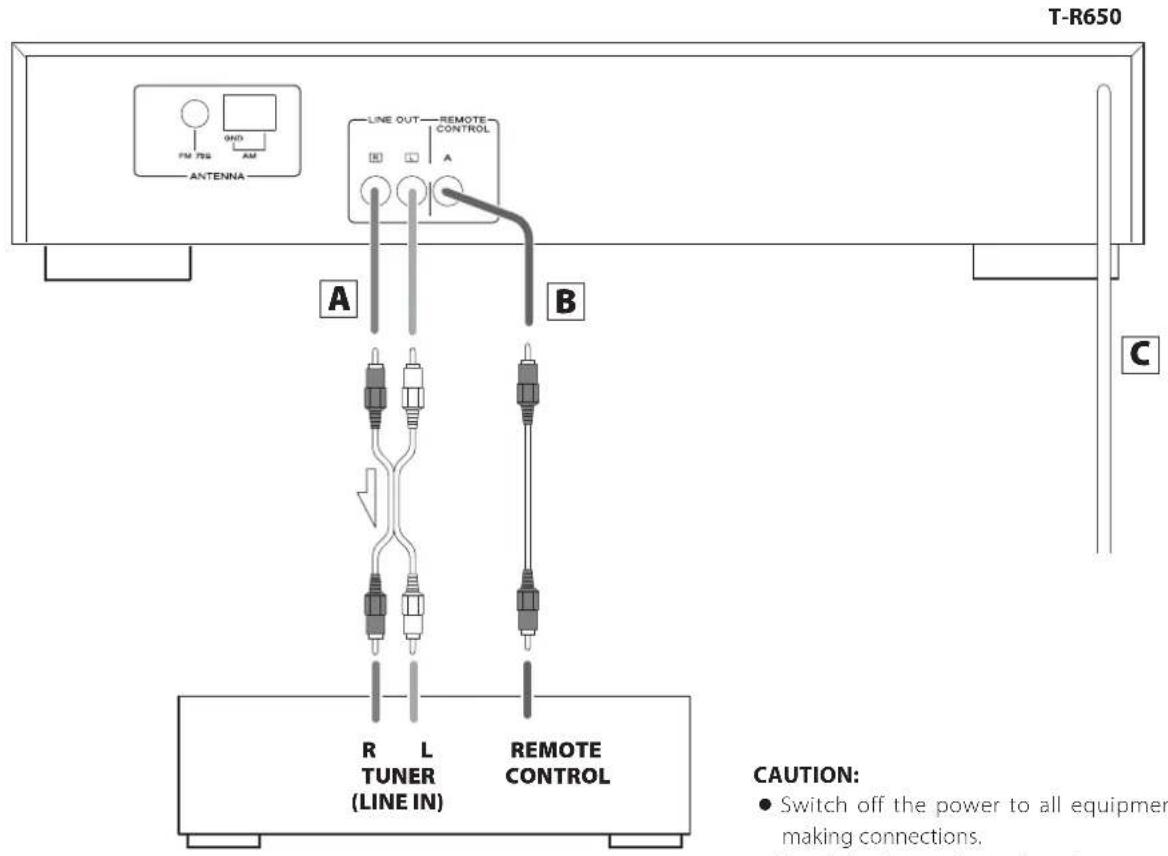

T-R650 FM PIS GND AM ANTENNA LINE OUT REMOTE CONTROL A B C R L TUNER (LINE IN) REMOTE CONTROL CAUTION: ● Switch off the power to all equipment making connections.

Amplifier (A-R650)

CAUTION:

• Switch off the power to all equipment before making connections.
• Read the instructions of each component you intend to use with this unit.

A LINE OUT jacks

These jacks transmit an analog 2-channel audio signal. Connect these jacks to the TUNER jacks of the amplifier (A-R650) with a stereo RCA pin cable.

Make sure to connect the cable as follows: white plug → white jack (L: left channel) red plug → red jack (R: right channel)

- Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal interconnection cables together with the AC power cord or speaker cables.

B REMOTE CONTROL jack

If you have TEAC A-R650, connect this jack to the A-R650's remote control jack with remote control connection cord. Convenient system control operations are available.

- When you tune in a station, the input selector of the A-R650 is set to "TUNER" automatically.

When you want to use the remote control functions, connect the REMOTE CONTROL jack of each component by a remote control connection cord.

- You can use the remote control unit UR-431 (provided for A-R650). Aim the remote control unit at the A-R650 to operate this unit.

Note:

The remote control unit is not provided for this unit.

C AC power cord

After all other connections are complete, connect the plug to the AC wall socket.

• Be sure to connect the power cord to an AC outlet which supplies the correct voltage.
• Hold the power plug when plugging or unplugging the power cord.

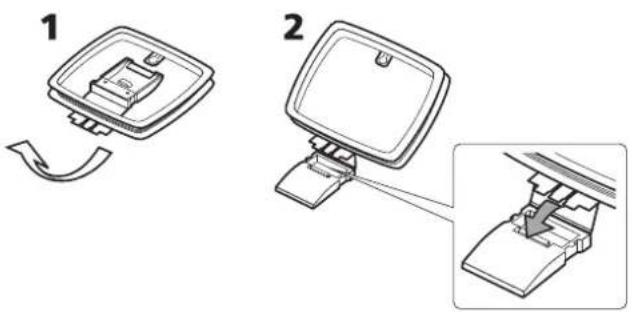

AM Indoor Loop Antenna

The high-performance AM loop antenna provided with this unit is sufficient for good reception in most areas.

To stand the loop antenna on a surface, fix the claw to the slot in the antenna base.

Diagram showing two steps of a computer mouse control panel, labeled 1 and 2, with an arrow indicating rotation.

Connect the loop antenna's wires to the AM antenna terminals.

● Make sure to connect the black wire to the GND terminal.

Place the antenna on a shelf or hang it on a window frame, etc., in the direction which gives the best reception. Keep all other wires such as power cords, speaker wires or interconnected wires as far away as possible from the antenna.

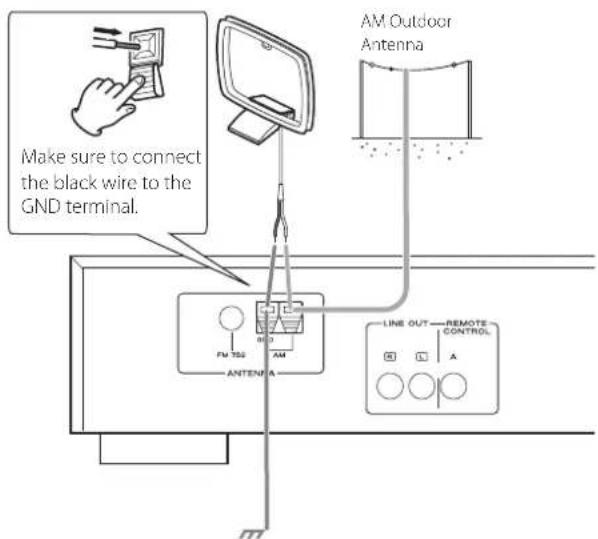

AM Outdoor Antenna

If the AM loop antenna provided does not deliver sufficient reception (often due to being too far from the transmitter or in a concrete building, etc.), it may be necessary to use an outdoor AM antenna.

Make sure to connect the black wire to the GND terminal. AM Outdoor Antenna FM TSS AM ANTENIA LINE OUT — REMOTE CONTROL A

Use either a high quality commercially available AM antenna or, if not available, an insulated wire more than 5 m long, strip one end, and connect this to the terminal as shown.

The antenna wire should be strung outdoors or indoors near a window. For better reception, connect the GND terminal to a reliable ground.

- Even when using an outdoor AM antenna, do not disconnect the AM loop antenna.

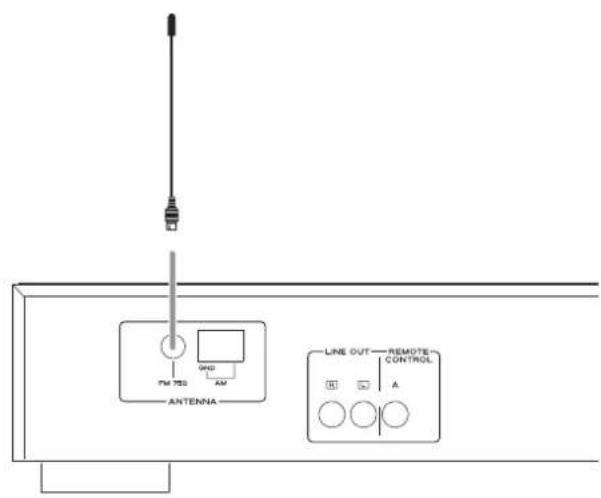

FM Indoor Antenna

Connect the lead-type FM antenna to the FM 75Ω socket, extend the lead and tune in your favourite station (see page 8).

Adjust the antenna in a suitable location like a window frame or wall which gives the best reception and then fix the antenna in that position with thumbtacks or the like.

PM 750 GND AM ANTENNA LINE OUT REMOTE CONTROL A

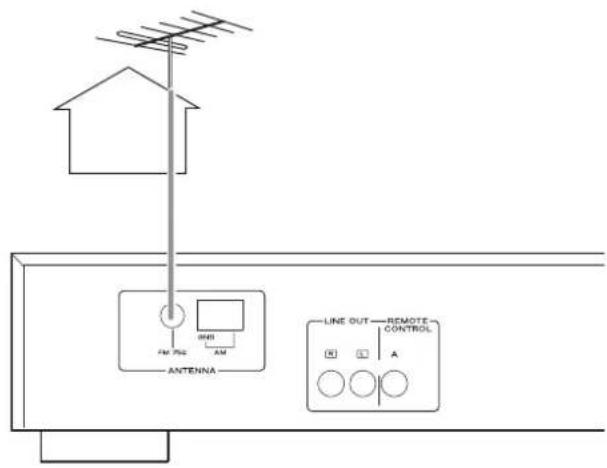

FM Outdoor Antenna

In an area where FM signals are weak, it will be necessary to use an outdoor FM antenna. Generally, a 3-element antenna will be sufficient; if you live in an area where the FM signals are particularly weak, it may be necessary to use one with 5 or more elements.

- Disconnect the FM indoor antenna when using an outdoor antenna.

FM 752 AM ANTENNA LINE OUT — REMOTE CONTROL A

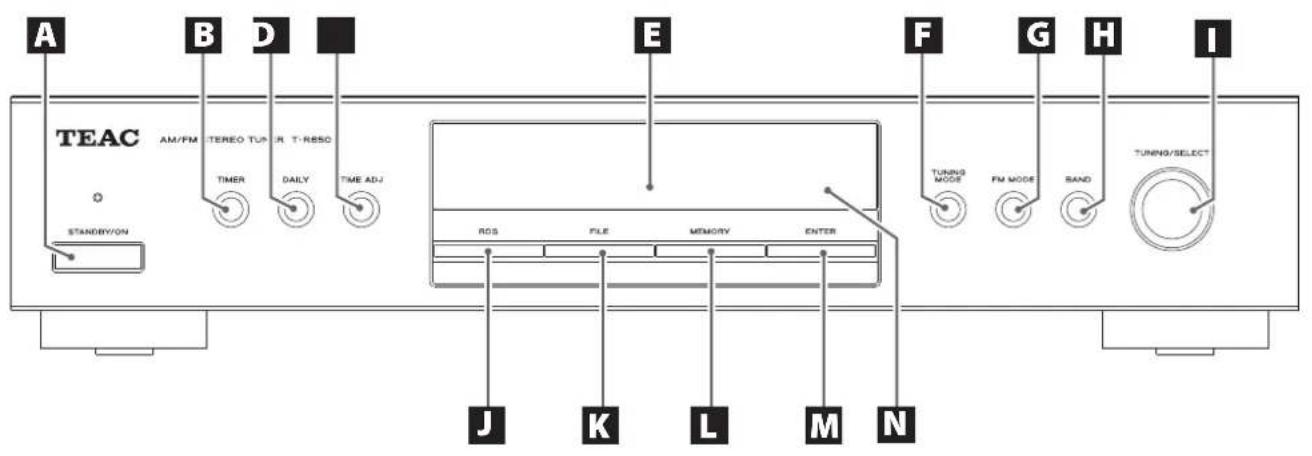

A B D TEAC AM/FM TEREO TUR R T-RESO STANDBY/ON TIMER DAILY TIME ADJ E F G H I ROS FILE MEMORY ENTER TUNING MODE FM MODE SAND TUNING/SELECT J K L M N

a M K L H C-D ON STANDBY b SHUFFLE ENTER REPEAT MENU/ FILE TIME STOP PLAY/ PAUSE MEMORY BAND INFO/ROS FM MODE TURER PHONO CD TAPE 1 TAPE 2 AUX 1/ MONITOR Monitor iPod iPod AUX 2 TIME ADJ TIMER VOLUME MUTING + SLEEP - dimmer 1 2 3 4 5 6 7 8 9 CLEAR PROGRAM 0 B e TEAC

UR-431
Remote control unit provided with A-R650

A STANDBY/ON

Press this button to turn the unit on or put in the standby mode. The standby indicator lights red when the unit is in the standby mode. When the unit is turned on, it goes out.

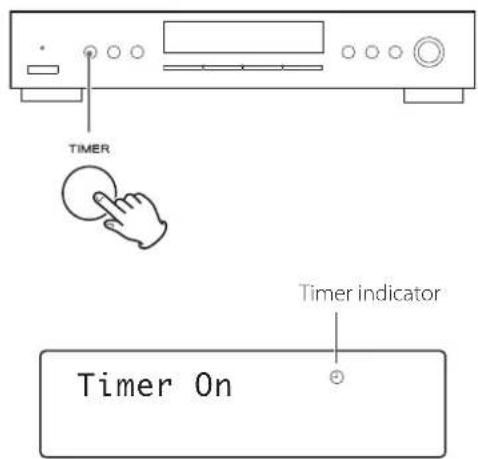

B TIMER

Press this button to turn on or off the timer function.

C DAILY

Press this button to set the timer. On the remote control, press and hold the TIME ADJ button for more than 2 seconds.

D TIME ADJ

Press this button to adjust the clock.

E Display

F TUNING MODE

Press this button to change the tuning mode.

G FM MODE

In FM mode, use this button to select stereo or monaural.

H BAND

Press this button to select FM or AM.

TUNING/SELECT

Turn this knob to tune in a station, to select a preset station, or to select a menu item.

Basic operations

J RDS

Press this button to select the RDS mode.

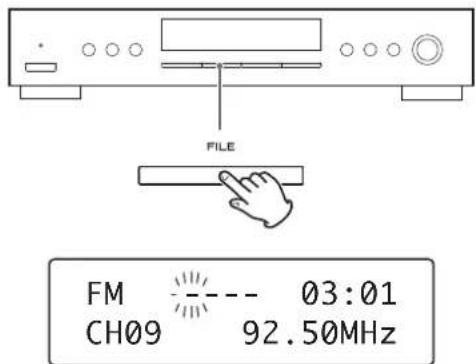

K FILE

Use this button to assign names to the preset stations.

L MEMORY

Press this button to store preset stations into memory.

M ENTER

Press this button to enter your selection.

N Remote sensor

When using the remote control unit, point it towards the remote sensor.

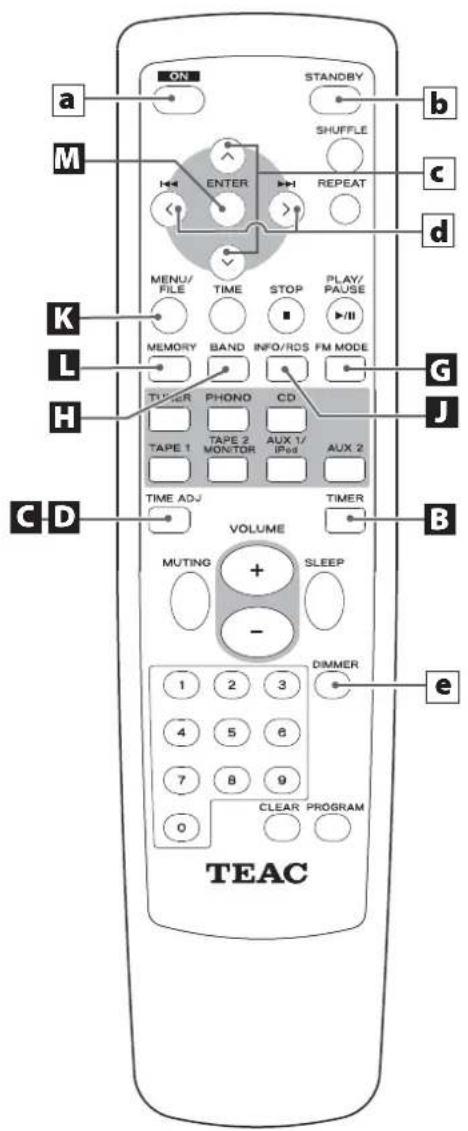

Remote control unit (provided with A-R650)

a ON

Press this button to turn the unit on.

b STANDBY

Press this button to turn the unit standby mode.

☐ (Manual tuning UP DOWN button (AM/FM))

Use this button to tune in a station and select the preset number for the station at manual preset.

144 301

(Preset tuning UP DOWN button (AM/FM))

Use this button to select the preset number for the station.

e DIMMER

Press this button to dim the display.

Note:

The remote control unit is not provided for this unit.

How to turn the unit on or off

Press the STANDBY/ON button to turn the unit on.

standby indicator

The standby indicator goes out.

Dimmer

Each time you press the DIMMER button, the display changes as follows:

DIMMER

Normal → Dimmed → Display off

This function is available only when the REMOTE CONTROL jack of the T-R650 and the A-R650 are connected with a remote control connection cord.

1 Select FM or AM by pressing the BAND button repeatedly.

BAND

2 Select the desired tuning mode.

TUNING MODE

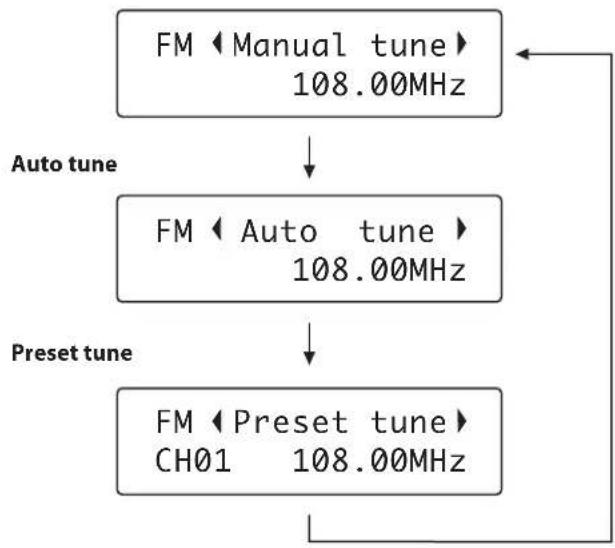

Each time the TUNING MODE button is pressed, the tuning mode changes as follows:

Manual tune


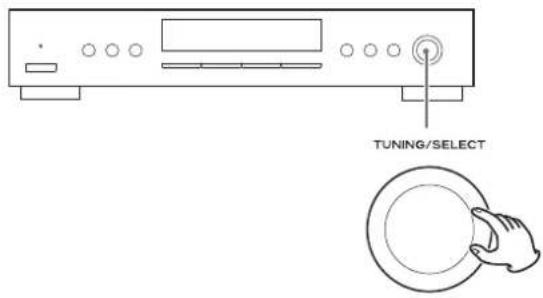

3 Select the station you want to listen to.

TUNING/SELECT

Manual tuning mode

Turn the TUNING/SELECT knob until the station you want to listen to is found.

The frequency changes by a fixed step (FM: 50 kHz steps, AM: 9 kHz steps).

Auto tuning mode

Turn the TUNING/SELECT knob to begin auto tuning.

When a station is found, the unit tunes in the station automatically. Repeat this step until the station you want to listen to is found.

• Press the ENTER button to stop the auto tuning. (on the front panel of the unit)
• Use the TUNING button (∧ ∨) when using the remote control unit.

Preset tuning mode

See page 9 to 13.

FM Mode

Pressing the FM MODE button alternates between Stereo mode and Mono mode.

FM MODE

Stereo:

FM stereo broadcasts are received in stereo and "Stereo" is displayed.

Mono:

Select this mode when the signal is weak. Reception will be forced monaural, reducing unwanted noise.

Preset Tuning 1

Manual Preset

You can store up to 30 FM and 30 AM stations.

1 Select AM or FM by pressing the BAND button repeatedly.

BAND

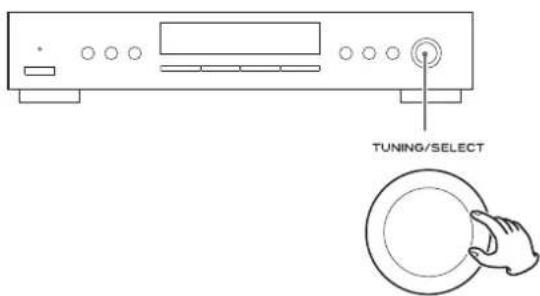

2 Tune in the station you want to store.

See the previous pages for the procedure of tuning.

TUNING/SELECT

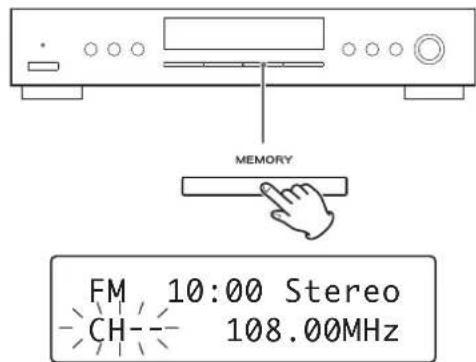

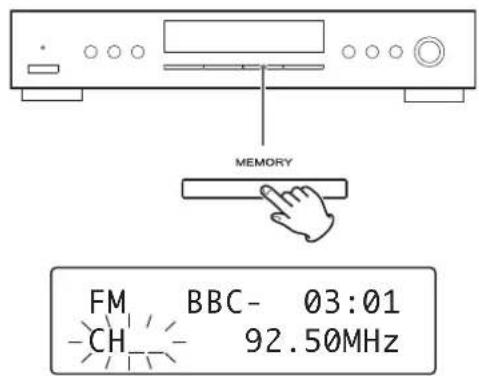

3 Press the MEMORY button.

MEMORY FM 10:00 Stereo CH-- 108.00MHz

- If you do not operate within 4 seconds after pressing the MEMORY button, presetting will be cancelled.

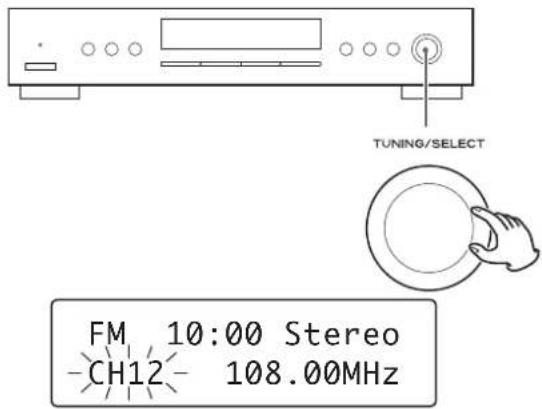

4 Within 4 seconds, select the preset number for this station.

Turn the TUNING/SELECT knob.

TUNING/SELECT FM 10:00 Stereo -CH12- 108.00MHz

5 Within 4 seconds, press the MEMORY button.

MEMORY

The station is stored.

- To store more stations, repeat steps 2 to 5.

Presetting Automatically

1 Select FM or AM by pressing the BAND button repeatedly.

BAND

2 Press and hold the MEMORY button for more than 2 seconds.

MEMORY

Up to 30 of the best received stations in your area will be stored automatically.

How to select preset stations (FM/AM)

1 Select AM or FM by pressing the BAND button repeatedly.

BAND

2 Select the preset tuning mode.

Press the TUNING MODE button repeatedly until "Preset tune" is displayed.

TUNING MODE

FM ◆ Preset tune CH01 108.00MHz

3 Select a preset channel by turning the TUNING/SELECT knob.

TUNING/SELECT

The selected preset channel is tuned in.

You can assign names to the preset stations. (Up to 4 characters) When the FILE button is pressed, the assigned name is displayed instead of the clock. Press the FILE button again to return to the normal display (clock).

Assigning the Names to the Preset Stations

1 Select a preset channel you want to assign the name in the "Preset tune" mode.

- Or you can assign the name to the current tuned station, and preset it into the memory.

BAND

2 Hold down the FILE button for more than 1.5 seconds.

FILE FM ---- 03:01 CH09 92.50MHz

"----" appears, and the first "-" flashes on the display.

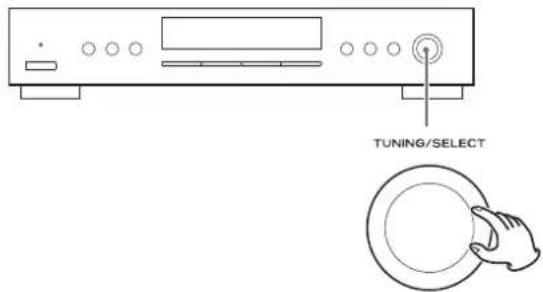

3 Select a character using the TUNING/SELECT button.

TUNING/SELECT

Available characters:

ABCDEFGHIJKLMNOPQRSTUVWXYZ[] _NC\BUGEE\±∠°A&EIIÓÚÚŘČŠZL'Å ÄEÍTÓÓÚÚÅÄY∅RČSŽÖ" % & '()*+,-. /0123456789=?@

4 Press the ENTER button.

ENTER

The next "-" flashes.

Up to 4 characters can be used per station.

Repeat steps 3 and 4 to input characters.

5 Press the MEMORY button.

MEMORY FM BBC- 03:01 -CH 92.50MHz

"CH_" flashes.

6 Select a preset channel to store the station using the TUNING/SELECT knob.

TUNING/SELECT

7 Press the MEMORY button.

MEMORY

The assigned name is kept in memory.

If the old name is in memory, it will be overwritten.

Preset Tuning 1 (Remote Control)

Manual Preset

You can store up to 30 FM and 30 AM stations.

1 Select AM or FM by pressing the BAND button repeatedly.

BAND

2 Press the or button to select the station you want to store.

Diagram showing a remote control with a hand pointing to an 'ENTE' button, alongside a circular dial with directional arrows.

3 Press the MEMORY button.

MEMORY

FM 10:00 Stereo CH-- 108.00MHz

- If you do not operate within 4 seconds after pressing the MEMORY button, presetting will be cancelled.

4 Within 4 seconds, press the or button to select the preset number for this station.

ENTE

FM 10:00 Stereo -CH12- 108.00MHz

You can also use the numeric buttons.

- When you use the numeric buttons, press the TUNER button of the remote control first.

Diagram showing a remote control with labeled buttons and a hand pointing to a keypad interface.

For instance, to select preset number 25, first press the TUNER button, and then press "2" and "5".

To select numbers less than 10, press "0" and then the number. As an example, to select number 5, press "0" and "5". (Optionally, you may press just the number "5" and then wait a few seconds.)

5 Within 4 seconds, press the MEMORY button.

MEMORY

The station is stored.

• To store more stations, repeat steps 2 to 5

Presetting Automatically

1 Select FM or AM by pressing the BAND button repeatedly.

BAND

2 Press and hold the MEMORY button for more than 2 seconds.

MEMORY

Up to 30 of the best received stations in your area will be stored automatically.

RDS 1

How to select preset stations

1 Select AM or FM by pressing the BAND button repeatedly.

BAND

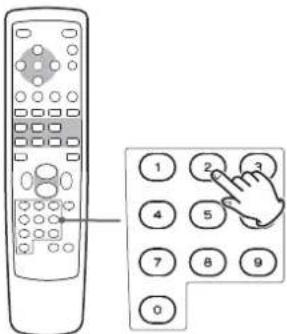

2 Select a preset channel by the numeric buttons.

Diagram showing a remote control with labeled buttons and a hand pointing to a keypad

The selected preset channel is tuned in.

For instance, to select preset number 25, first press the TUNER button, and then press "2" and "5".

To select numbers less than 10, press "0" and then the number. As an example, to select number 5, press "0" and "5". (Optionally, you may press just the number "5" and then wait a few seconds.)

The Radio Data System (RDS) is a broadcasting service which allows stations to send additional information along with the regular radio programme signal.

RDS works on the FM waveband in Europe only.

1 Tune in an FM station (see page 8).

2 Press the RDS MODE button.

RDS

Each time the RDS MODE button is pressed, the RDS mode is changed as follows:

PS (PROGRAM SERVICE)

When you select PROGRAM SERVICE, "PROGRAM SERVICE" will blink for about 3 seconds and then the programme service name or a station's name will be displayed. If there is no programme service data, the frequency will be displayed.

PTY (PROGRAM TYPE)

When you select PROGRAM TYPE, "PROGRAM TYPE" will blink for about 3 seconds and then the programme type will be displayed.

RT (RADIO TEXT)

When you select RADIO TEXT, "RADIO TEXT" will blink for about 3 seconds and then the news of stations composed of up to 64 symbols will be displayed.

If there is no radio text data, RDS mode will be automatically switched to PROGRAM SERVICE mode.

TA (TRAFFIC ANNOUNCE)

When you select TRAFFIC ANNOUNCE, "TRAFFIC ANNOUNCE" will blink for 3 seconds and then the unit searches for a traffic announcement.

- When a traffic programme is found, the TRAFFIC ANNOUNCE mode is switched to PROGRAM SERVICE mode. If the station currently selected is transmitting a traffic program signal, the RDS mode will be switched to PROGRAM SERVICE mode without searching for a traffic program.

CT (CLOCK TIME)

Displays the information about times provided from the station. When you select CLOCK TIME, "CLOCK TIME" will blink for about 3 seconds and then the clock time will be displayed.

RDS 2

The clock setting of this unit is automatically adjusted according to the CLOCK TIME (CT) data.

If you tune in an RDS station broadcasting incorrect CT data, the clock might be wrongly adjusted, and that may eventually affect the timer operation.

When you do not want the clock of this unit to be set according to the CT data, turn off the auto clock adjustment.

- No matter which RDS mode is selected, the unit receives CT data and adjusts the clock.

To turn off the auto clock adjustment, press and hold the RDS MODE button for more than 8 seconds.

RDS

• To turn on the auto clock adjustment again, press and hold the RDS MODE button for more than 8 seconds.
• When the auto clock adjustment is turned off, CLOCK TIME is not displayed.

PTY Search

You can search for stations by programme type.

1 Select FM by pressing the BAND button repeatedly.

BAND

2 Press the RDS MODE button for more than 2 seconds.

RDS

3 Select the desired programme type (PTY).

Turn the TUNING/SELECT knob to select an item

TUNING/SELECT

Select your desired one from among 31 kinds of PTY programmes. The programme type will blink.

4 Press the ENTER button.

ENTER

Searching starts.

• When the broadcast whose programme type you have selected is found, searching stops and the programme type will be displayed.
• If the broadcast of selected programme type is not found during PTY Search, it will stop at the beginning frequency.
• If you want to stop searching, press the RDS MODE button.

31 kind of PTY programmes:

News:

brief announcements, events, public opinion, reports, actual situations.

Current Affairs:

a kind of suggestion including practical announcements other than news, documents, discussion, analysis and so on.

Information:

daily information or reference such as weather forecast, consumer guide, medical assistance and so on.

Sport:

sports related programmes.

Education:

educational and cultural information.

Drama:

all kinds of radio concert and serial drama.

Cultures:

all aspects of national or local culture including religious events, philosophy, social science, language, theatre, and so on.

Science:

programmes on natural science and technology.

Varied Speech:

popular programmes such as quiz, entertainment, private interview, comedy, satire and so on.

Pop Music:

programme on commercial, practical and popular songs, and sale volume of discs, etc.

Rock Music:

practical modern music generally composed and played by young musicians.

Easy Listening:

popular music usually lasting for less than 5 minutes.

Light Classics M:

classical music, instrumental music, chorus, and light music favoured by non-professionals.

Serious Classics:

orchestra including great operas, symphony, chamber music and so on.

Other Music:

other music styles (Rhythm & Blues, Reggae, etc.).

Weather & Meter:

weather reports, forecast.

Finance:

financial reports, commerce, trading.

Children's Progs:

children's programmes.

Social Affairs:

social affairs.

Religion:

religious programmes.

Phone In:

programme in which the public expresses its view by phone.

Travel & Touring:

travel reports.

Leisure & Hobby:

programmes concerning recreational activities.

Jazz Music:

jazz music.

Country Music:

country music.

National Music:

national music.

Oldies Music:

music from the so-called golden age of popular music.

Folk Music:

folk music.

Documentary:

documentaries.

Alarm Test

Alarm-Alarm!:

a programme notifying an emergency or a natural disaster.

Setting the Clock

- The unit uses the 24-hour clock.

1 Press the TIME ADJ button.

TIME ADJ C-time 00:00:00 CH12 108.00MHz

The hour value flashes.

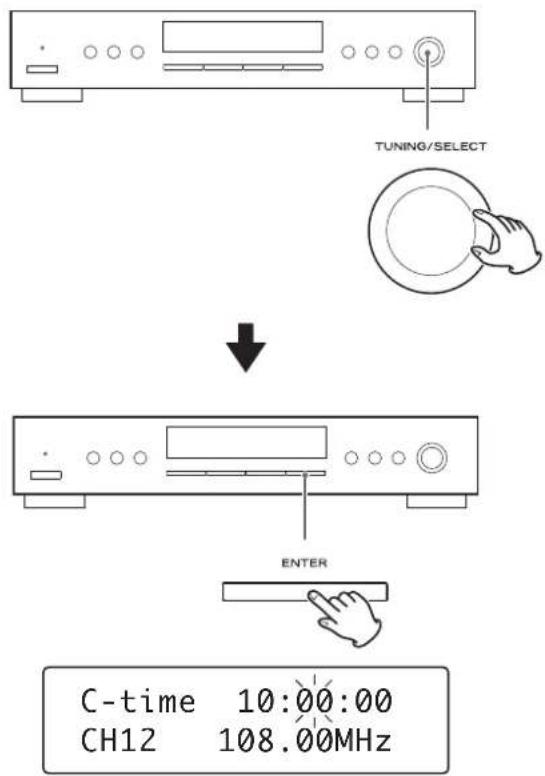

2 Turn the TUNING/SELECT knob to set the current hour, and press the ENTER button.

TUNING/SELECT ENTER C-time 10:00:00 CH12 108.00MHz

The hour is set, and the minute value flashes.

3 Turn the TUNING/SELECT knob to set the current minute, and press the ENTER button.

TUNING/SELECT ENTER

The clock starts from 00 second.

Setting the Daily Timer 1

This function is available only when REMOTE CONTROL jacks of the T-R650 and the A-R650 are connected with a remote control connection cord.

- Adjust the clock before setting the timer.

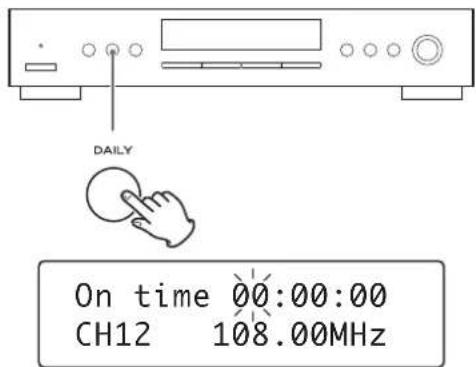

1 Press the DAILY button.

DAILY On time 00:00:00 CH12 108.00MHz

"On time" appears on the display, and the hour value flashes.

- When you use the remote control, press the TIME ADJ button for 2 or more seconds.

2 Turn the TUNING/SELECT knob to set the start time (hour), and press the ENTER button.

TUNING/SELECT ↓ ENTER On time 07:00:00 CH12 108.00MHz

The hour is set, and the minute value flashes.

3 Turn the TUNING/SELECT knob to set the start time (minutes), and press the ENTER button.

TUNING/SELECT ENTER Off time00:00:00 CH12 108.00MHz

The on-time is set. "Off time" appears on the display, and the hour value flashes.

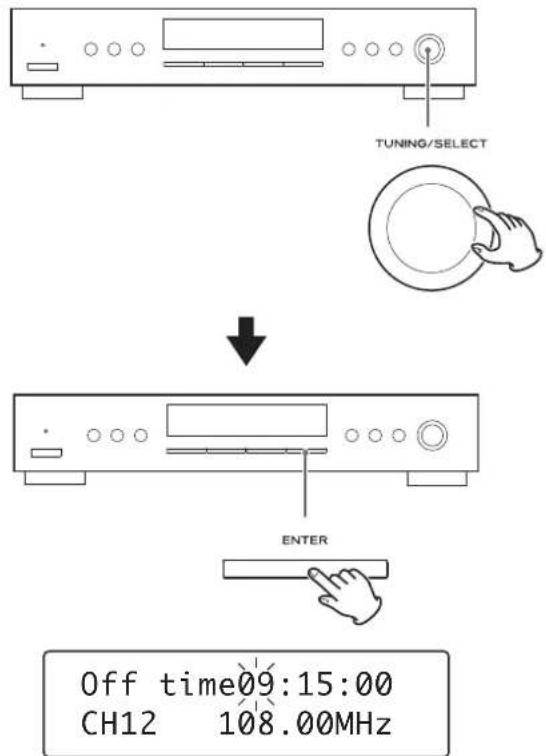

4 Turn the TUNING/SELECT knob to set the stop time (hour), and press the ENTER button.

TUNING/SELECT ↓ ENTER Off time09:15:00 CH12 108.00MHz

The hour is set, and the minute value flashes.

5 Turn the TUNING/SELECT knob to set the stop time (minutes), and press the ENTER button.

TUNING/SELECT ↓ ENTER Off time09:15:00 CH12 108.00MHz

Now the timer setting is stored in memory.

Setting the Daily Timer 2

To turn on the timer

1 Press the TIMER button repeatedly until "Timer On" is displayed.

The timer indicator (⊕) is appeard right side on the display.

TIMER Timer indicator Timer On

2 On A-R650, select "TUNER" by tuning the INPUT SELECTOR (or pressing one of the TUNER button of remote control unit of A-R50).

3 Press the STANDBY/ON button of the remote control unit of A-R650 to turn all the units standby.

• When the timer is turned on and the source is AM or FM, the timer indicator lights up on the display of this unit.
• When the on-time comes, all the units connected by remote control cords turn on together. On this unit the last station is turned in, and on the A-R650, the last source is selected.
• When the off-time comes, all the units connected by remote control cords turn into standby.
  ● After setting timer, it is possible to turn on or turn off the timer when in the standby mode by pressing timer button.

To turn off the timer

Press the TIMER button repeatedly until "Timer Off" is displayed.

Timer indicator (⊕) is disappeared on the display.

TIMER

Sleep timer

SLEEP

This function is available only when the REMOTE CONTROL jack of the T-R650 and the A-R650 are connected with a remote control connection cord.

The power can be switched off after a specified amount of time. Press the SLEEP button repeatedly until desired time appears on the display.

SL: 90 (80, 70 60, 50, 40, 30, 20 or 10)

The power will be switched off 90 (80, 70, 60, 50, 40, 30, 20 or 10) minutes later.

Normal display

The sleep timer is off.

- If you want to check the remaining time, press the SLEEP button once. The remaining time will be displayed for 2.5 seconds, and return to the normal display.

If you experience any problems with the unit, please take a moment to look through this chart and see if you can solve the problem yourself before you call your dealer or a TEAC service centre.

No power

→ Check the connection to the AC power supply. Check and make sure the AC source is not a switched outlet and that, if it is, the switch is turned on. Make sure there is power to the AC outlet by plugging another item such as a lamp or fan.

No sound

→Check the connection to the amplifier.
→Check the operation of the amplifier.

Cannot listen to any station, or signal is too weak.

→ Make sure the antenna is properly connected.
→Tune in the station properly.
→ Install the antenna again after relocating it to a better reception position.
→ An external antenna may be required.

Sound is noisy.

→ Place the antenna as far away from a TV or a CD player as possible.
→ If a TV or a CD player is near the unit, turn it off.

Though the broadcast is stereo, it sounds monaural.

→Press the FM MODE button.

If normal operation cannot be recovered, unplug the power cord from the outlet and plug it again.

To reset your unit to the factory default

If your unit is not working properly, it might help to reset it to the factory default.

This will clear your settings (including pass keys) and other user settings (preset stations etc.).

Hold on TIMER button and Band button for a few second.

TIMER BAND

T-R650 will be factory default setting.

Specifications

FM Tuner

Tuning range	87.50 - 108.00 MHz (50 kHz steps)
Usable sensitivity	6 dBμ
Harmonic distortion	0.8 % (Mono)
1.2 % (Stereo)
Signal-to-Noise ratio	70 dB (Mono)
65 dB (Stereo)
Stereo separation	35 dB (1 kHz)
Preset stations	30

AM Tuner

Tuning range	522 - 1,629 kHz (9 kHz steps)
Usable sensitivity	55 dBμ
Harmonic distortion	1.5 % (at 74 dBμ)
Signal-to-Noise ratio	45 dB (at 80 dBμ)
Preset stations	30

General

Power Requirement	A C 230 V, 50 Hz
Power Consumption	9 W (Standby: 0.5W)
Dimensions (W x H x D)	435 x 85 x 295 mm
Weight (Net)	3.2 kg
Operating temperature	+5°C - +35°C
Operating humidity	5% - 85% (no condensation)
Storage temperature	-20°C - +55°C

Accessories

AM Loop Antenna x 1 FM Lead-type Antenna x 1 Stereo RCA cable x 1 Remote control connection cord x 1 Owner's Manual (this document) x 1 Warranty Card

• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.
  ● Illustrations may differ slightly from production models.

For European Customers

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom right two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Sommaire

Blanc (L) Rouge (R) Blanc (L) Rouge (R)

Diagram showing two labeled components of a device with a scroll, and a close-up view of the component being inserted.

Diagram showing a remote control with labeled buttons and a hand interacting with a keypad

Diagram showing a remote control with labeled buttons and a hand pointing to a keypad with numbers 0 to 9.

31 types de programme PTY:

News (nouvelles) :

Children's Progs (enfants):

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Pb

Contenido

Diagram showing two labeled mechanical components with arrows indicating motion, including a zoomed-in view of the component.

FM CH09 03:01 92.50MHz

Diagram showing a remote control with a hand pointing to a button labeled 'ENTEI' and a circular dial with checkmark.

Diagram showing a remote control with labeled buttons and a hand interacting with a keypad

Diagram showing a remote control with keypad and hand cursor interacting with the keypad

Cultures (culturas):

Children's Progs (programas infantiles):

Diagram showing two labeled mechanical components: one with a curved arrow and the other with a magnified inset of its base.

Diagram showing a remote control with a mouse and a CD with 'ENTE' button, alongside a hand pointing to it.

FM 10:00 Stereo -CH12- 108.00MHz

Diagram showing a remote control with labeled buttons and a hand pointing to a keypad interface.

Diagram showing a remote control with labeled buttons and a hand pointing to a keypad

Diagram showing two steps of a device mounting mechanism, labeled 1 and 2, with a magnified inset view.

Diagram showing a remote control with a hand pointing to a CD interface labeled 'ENTER' and 'OPEN'.

Diagram showing a remote control with keypad and hand cursor interacting with the keypad

Diagram showing a remote control with keypad and hand cursor interacting with the keypad

Diagram showing two steps of a computer monitor with an arrow indicating rotation, labeled 1 and 2.

De frequentie verandert in stappen (FM: sskip the blue words 50 kHz, AM: 9 kHz).

TUNING MODE FM ◆ Preset tune ▶ CH01 108.00MHz

Diagram showing a remote control with a hand interacting with a button labeled 'ENTER' and directional arrows indicating action.

3 Druk op MEMORY.

MEMORY

FM 10:00 Stereo CH-- 108.00MHz

Diagram showing a remote control with keypad and hand cursor interacting with the keypad

Diagram showing a remote control with labeled buttons and a hand interacting with a keypad

SL:90 (80, 70, 60, 50, 40, 30, 20 of 10)

De T-R650 schakelt na 90 (80, 70, 60, 50, 40, 30, 20 of 10) minuten automatisch uit.

Normaal display

This appliance has a serial number located on the rear panel. Please record the model number and serial number and retain them for your records.

Model

number

Serial

number
