USER MANUAL Saneo CLP DOMETIC

CAUTION! The toilet may be installed only by trained personnel!NOTICE! Cleaning agents for the toilet may not contain chlorine or alcohol! Do not shake the cassette tank vigorously. All components of the system must be installed in frost-free areas. In freezing temperatures, there is a risk of damage caused by frost. Do not use antifreeze. These agents may damage the cassette toilet. The operating pressure (water pressure) of the solenoid valve should not exceed 6 bar. The solenoid valve is damaged by excessive pressure. Saneo B Saneo C Saneo BLP Saneo CLP Saneo BS Saneo CS Saneo BW Saneo CWEN Saneo B, Saneo C

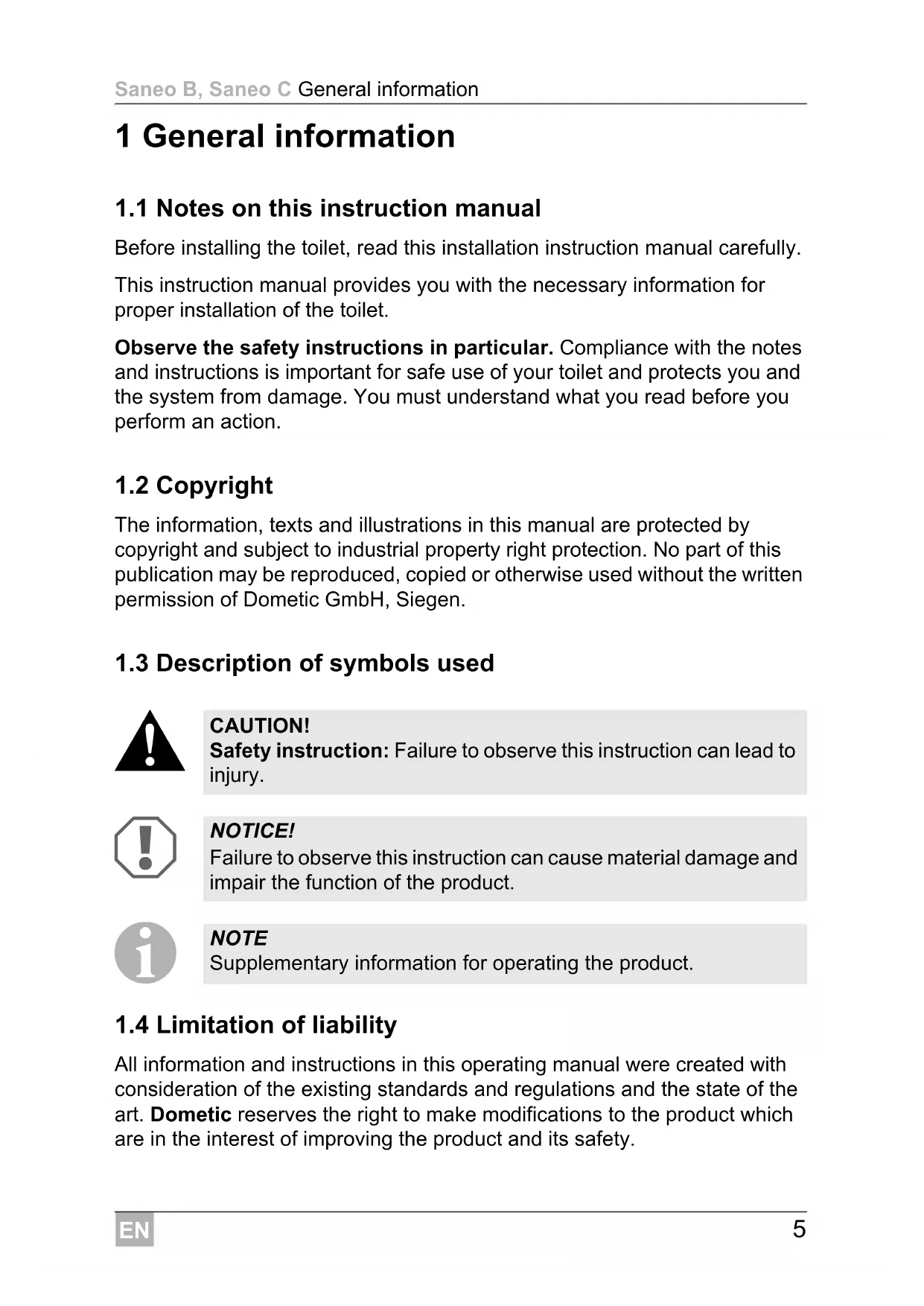

1.1 Notes on this instruction manual

Before installing the toilet, read this installation instruction manual carefully. This instruction manual provides you with the necessary information for proper installation of the toilet. Observe the safety instructions in particular. Compliance with the notes and instructions is important for safe use of your toilet and protects you and the system from damage. You must understand what you read before you perform an action.

The information, texts and illustrations in this manual are protected by copyright and subject to industrial property right protection. No part of this publication may be reproduced, copied or otherwise used without the written permission of Dometic GmbH, Siegen.

1.3 Description of symbols used

1.4 Limitation of liability

All information and instructions in this operating manual were created with consideration of the existing standards and regulations and the state of the art. Dometic reserves the right to make modifications to the product which are in the interest of improving the product and its safety. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product.EN General information Saneo B, Saneo C

Dometic accepts no liability for damage due to: Failure to obey the installation instructions Failure to observe the operating manual Improper use Use of non-original spare parts Device changes and interventions

The warranty arrangements are in accordance with European Directive 44/1999/EC and the customary conditions for the country. In case of warranty claims or service needs, please contact our customer service. Faults caused by operator errors are not covered by the warranty. Any modifications to the device or use of spare parts that are not original Dometic spare parts, as well as failure to follow the instructions in the installation and operating manuals, void the warranty and cause liability claims to be excluded.

1.6 Environmental notes

Disposal In order to ensure recycling of recyclable packaging materials, they must be disposed of according to the local collection systems.EN Saneo B, Saneo C General information

1.7 Declaration of Conformity

Dometic products correspond to the specified characteristics in accordance with the respective European directives. You can request the current Declaration of Conformity directly from Dometic, Siegen.EN Safety instructions Saneo B, Saneo C

This toilet is designed for installation and use in recreational vehicles such as campervans or motor caravans.

2.2 Responsibility of the user

WARNING! This device can be used by children aged 8 or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks. Cleaning and user maintenance must not carried out by unsupervised children. Children must be supervised to ensure that they do not play with the device.

2.3 Installation instructions

The toilet must be installed so that it is easily accessible for service work, easy to de-install and install, and easily removed from the vehicle.

2.4 Rules and standards

When setting up and connecting the device, the following stipulations, which correspond to the latest state of the art, must be observed: The electrical installation must comply with national and local regulations. European standard – EN 1645-1, EN 1646-1, EN 1648-1, EN 1648-2 NOTICE! The toilet may be installed only by trained personnel!EN Saneo B, Saneo C Model description

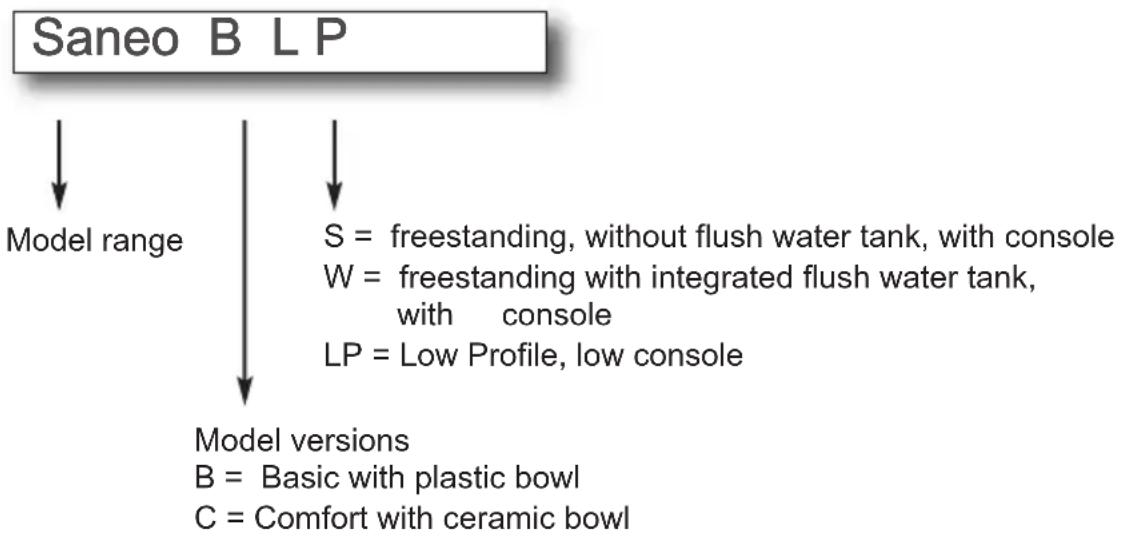

Example: The cassette toilet Saneo Consists of a toilet permanently installed in the vehicle and a removable, mobile cassette as a holding tank. The cassette is externally accessible through a door. Depending on the model, the toilet gets the rinse water from a tank integrated in the housing or from a freshwater tank in the vehicle. The following model versions are available: Saneo B, Saneo C: freestanding, without water tank, without console Saneo BS, Saneo CS: freestanding, without water tank, with console Saneo BW, Saneo CW: freestanding, with a water tank in the console Saneo BLP, Saneo CLP: freestanding, without water tank, low console S = freestanding, without flush water tank, with consoleW = freestanding with integrated flush water tank, with consoleLP = Low Profile, low consoleModel rangeModel versionsB = Basic with plastic bowlC = Comfort with ceramic bowl Saneo B L PEN Model description Saneo B, Saneo C

The type plate contains all the important data. There you can see the model name, product number and serial number. You will need this information whenever you contact the customer service or order spare parts. You can find the type plate in the cassette housing after removal of the cassette. Item Description 1 Model number 2 Product number 3 Serial number

Dometic SaneoSupply voltage: 12 VgCurrent: Max. 2 A with internal pumpMax. 10 A with external pumpDimensions: See information in appendixOperating temperature: 0 °C to +50 °CCapacity: 16 l (cassette tank)7 l (freshwater tank, optional)Test mark:N1 10 R – 047317 NOTE Water supply (vehicle-side pump): The toilet requires a min. of 7 l/min provided by the vehicle at the outlet of the hose connection of the toilet in order to ensure satisfactory flushing output of 5 l/min. 1EN Model description Saneo B, Saneo C

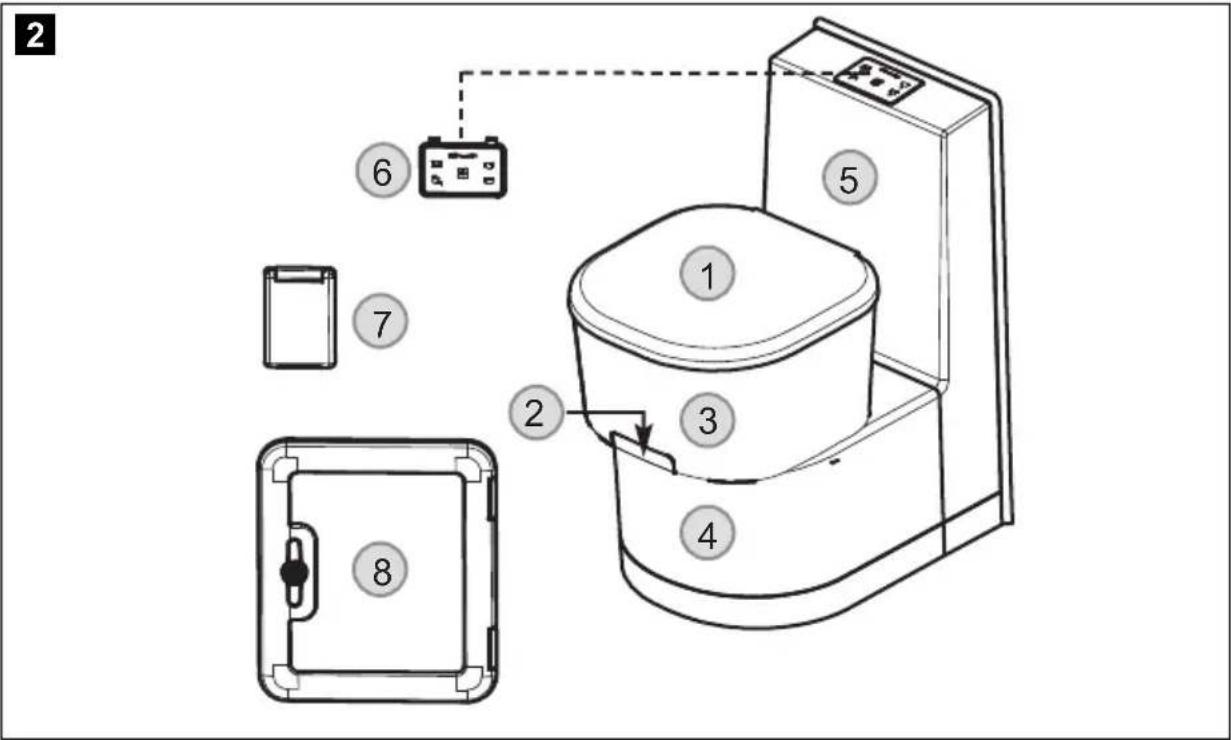

3.4 Explanation of components

Item Description 1 Lid and seat, removable 2 Emptying slider for toilet bowl 3 Rotatable toilet bowl, plastic or ceramic 4 Cassette housing 5 Console for water tank 6 Level indicator / operating panel (flushing) 7 Saneo BW/CW only: tank flap / freshwater filler neck 8 Service door

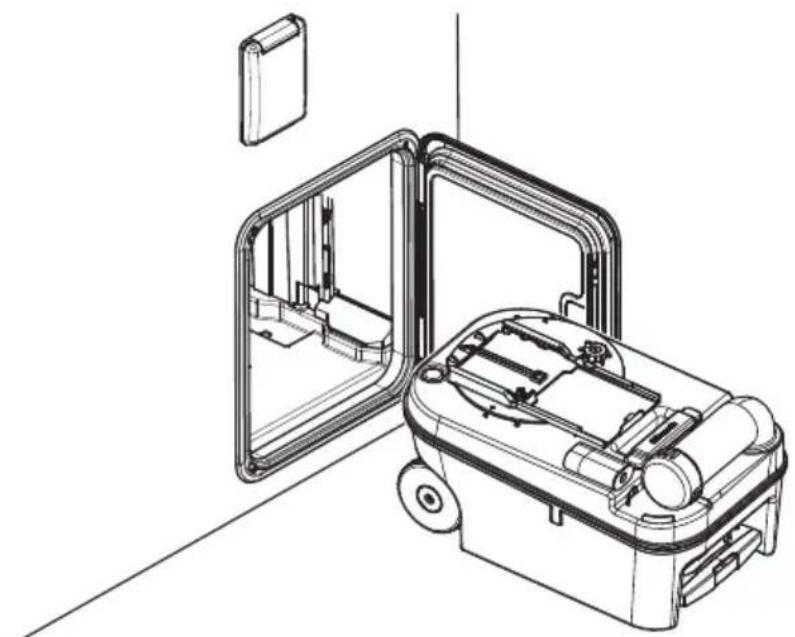

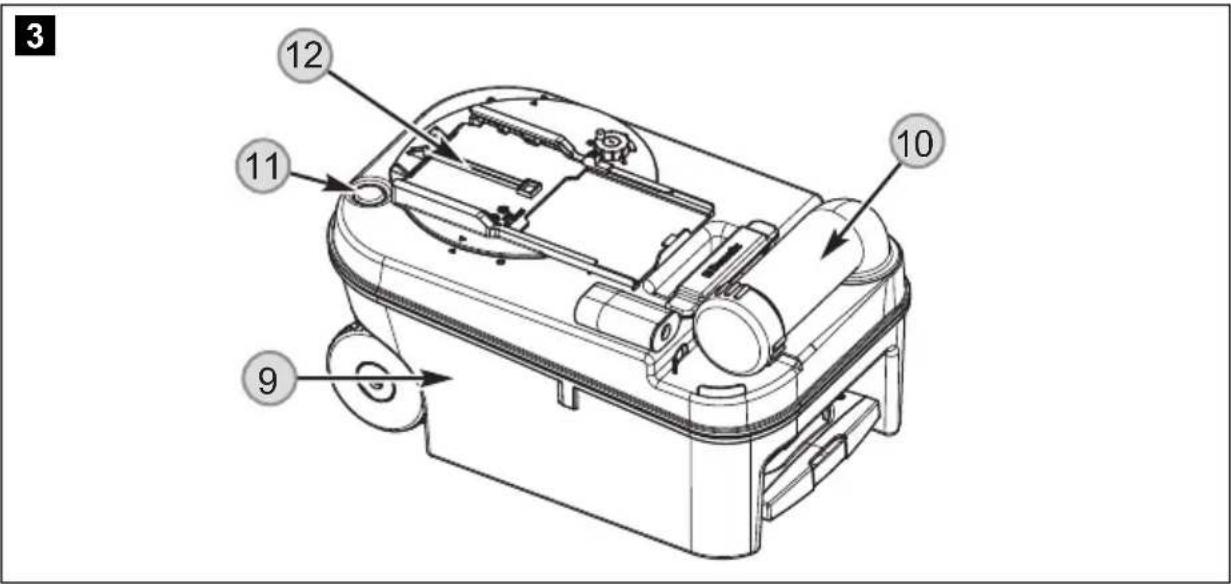

The description for installation of the service door can be found in the enclosed document ( Dometic Seitz SK 5) (optional and depends on the model). Item Description9 Cassette tank10 Draining neck11 Vent knob for draining12 Slider on the cassette

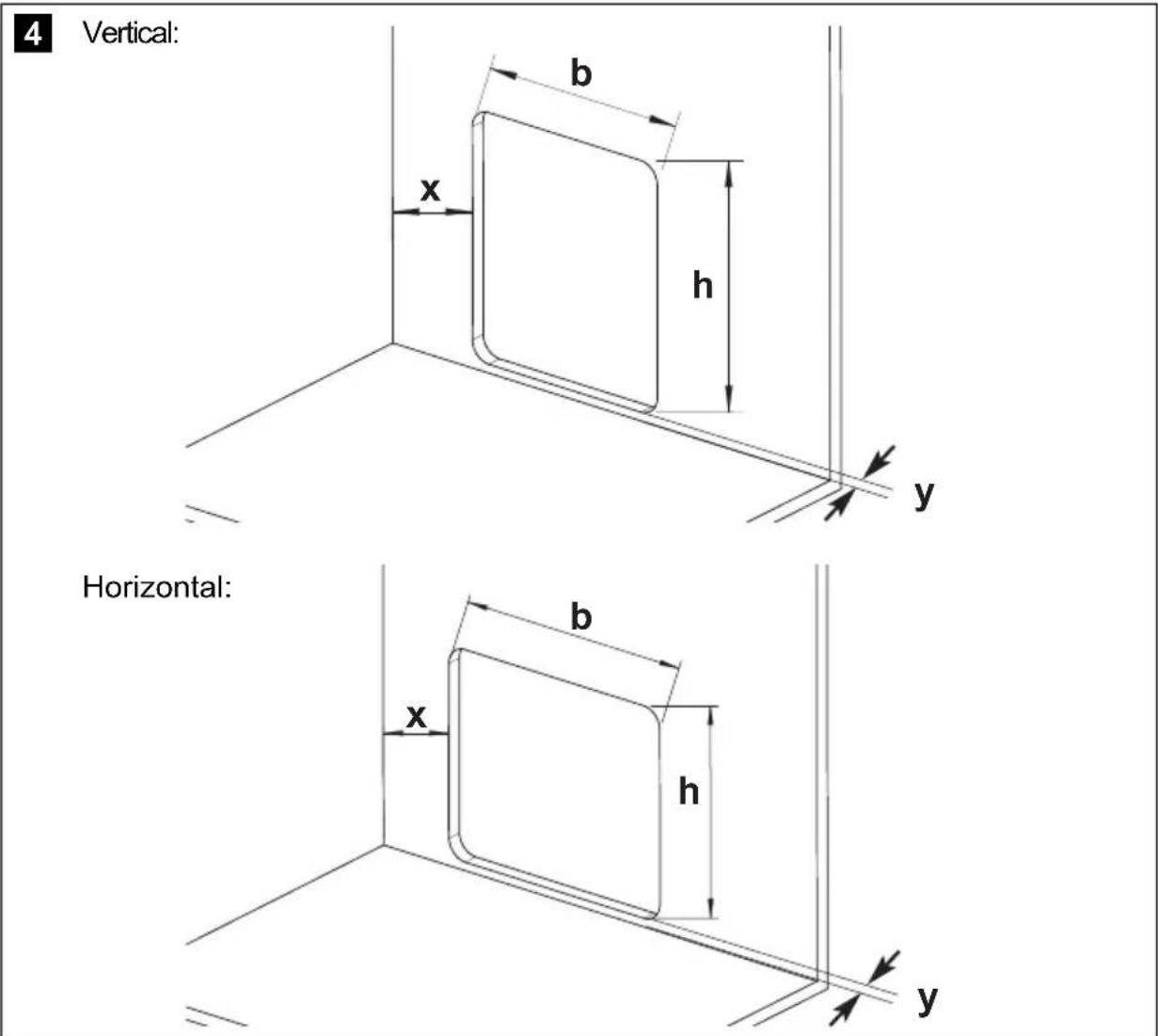

➤ Make a cutout in the wall for the cassette with the dimensions: For service door SK5 vertical

min = 12.5 mm, y max = 26 mm; – b = 360 mm +/- 1 mm, h = 310 mm +/- 1 mm. The dimension x results from the placement of the toilet. Note the position of the service door (template (3) and (4) on the packaging).

4.2.2 Wall cutout for the tank flap

The tank flap is used with models Saneo BW and CW Saneo with integrated water tank. ➤ Use template (1), item 5.3.1 on page 163, for making the cutout for the tank flap. You can find the installation description of the tank flap in chapter “Installing the tank flap” on page 26.

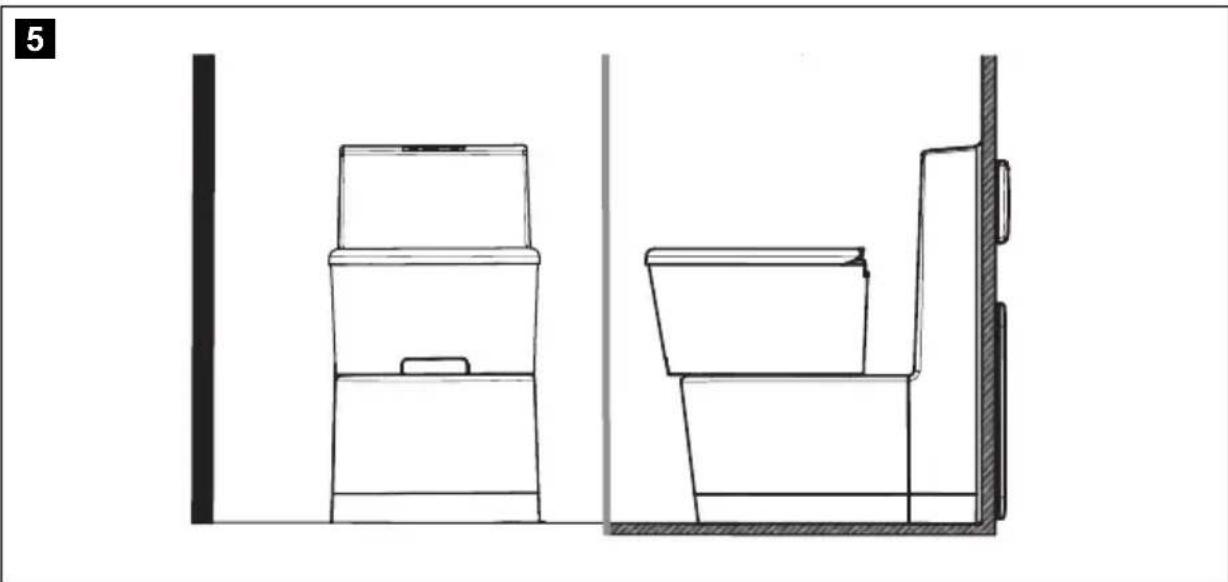

➤ Install the toilet according to the description for the respective model version. ➤ Set up the toilet so that it is flush to a vertical wall only. ➤ Leave at least 60 mm space to the side walls so that the swivelling of the upper part of the toilet (with seat) is not restricted. ➤ For installation, use the dimensioned drawings and templates in the appendix (items 5.2 on page 153, 5.3 on page 162). When installing the toilet in a wet room, we recommend that you connect the toilet to the shower tray. NOTICE! All components of the system must be installed in frost-free areas. In freezing temperatures, there is a risk of damage caused by frost. 5EN Installing the toilet Saneo B, Saneo C

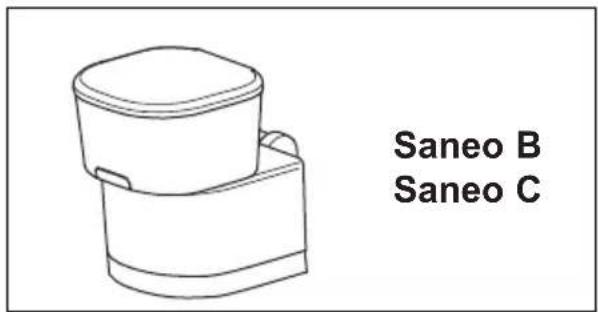

The freestanding models Saneo B and Saneo C have no integrated water tank. Set up this model so that the wall behind it can accommodate the operating unit of the toilet, the electrical connections and possibly a water tank. It is ideal if you put a box in front of the room wall, as shown in fig. 6. Install the control and operating panel in the wall in the immediate vicinity of the toilet (chapter “Installation of control and operating panel of the toilets Saneo B, Saneo C” on page 19).

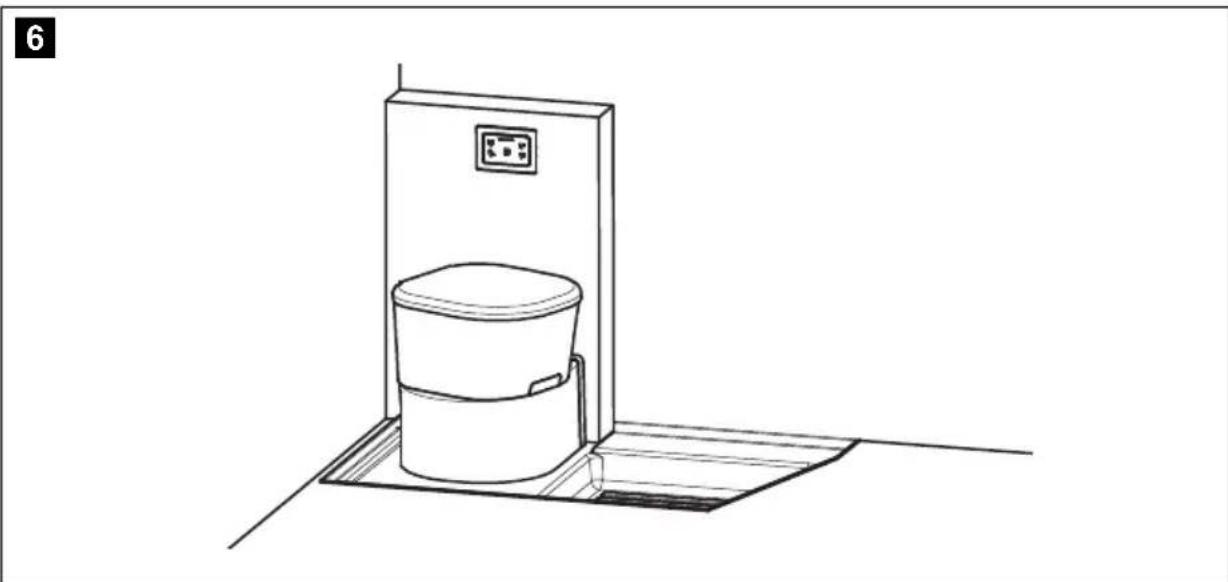

NOTE The figure shows exemplary installation in a shower tray. 6EN Saneo B, Saneo C Installing the toilet

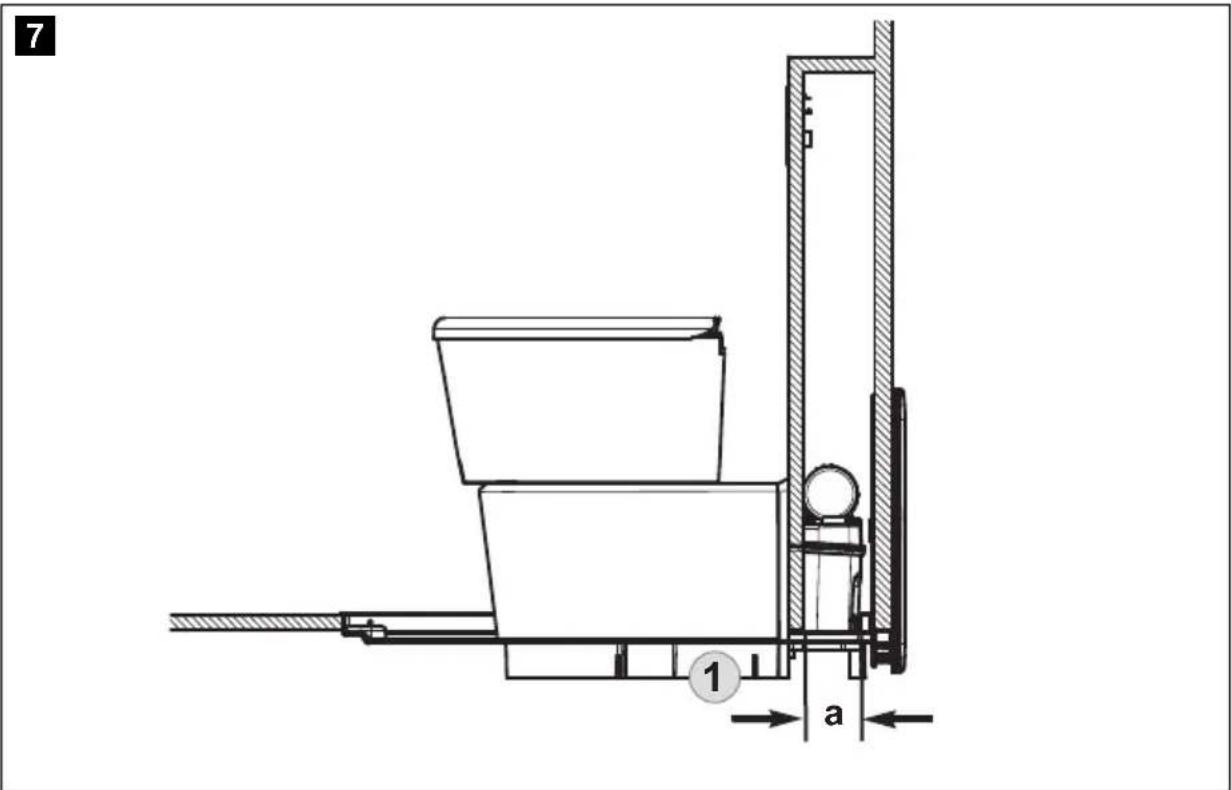

Note that the cassette protrudes 112 mm (a) out of the cassette housing (fig. 7).

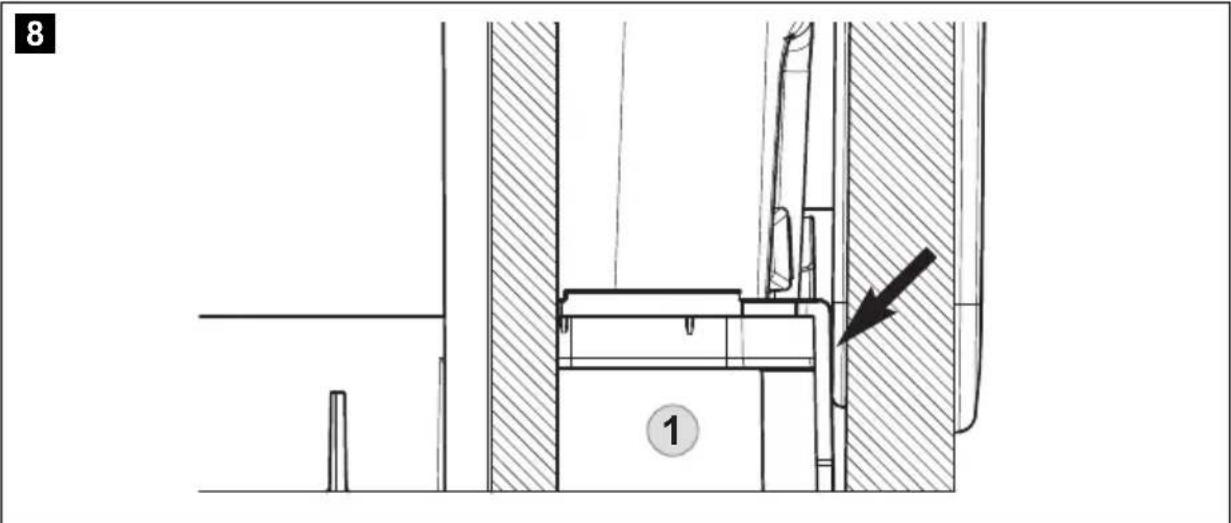

➤ Place the housing base (1) flush with the installation frame of the service door so that there is a clean transition and no gap.NOTE The figure shows exemplary installation in a shower tray.

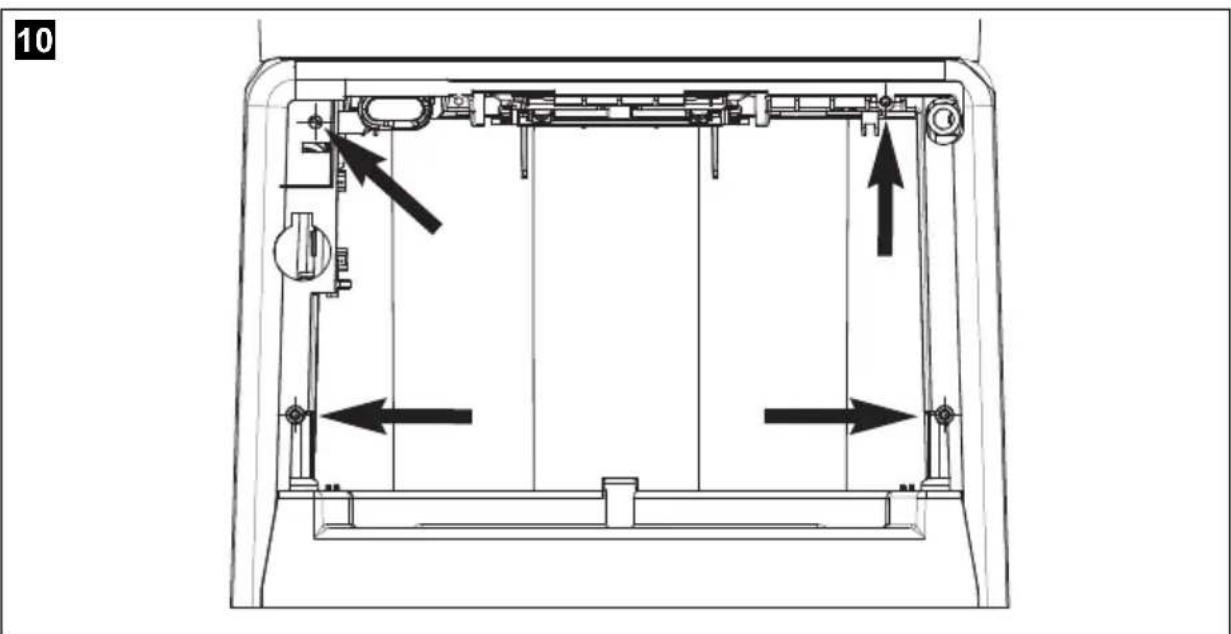

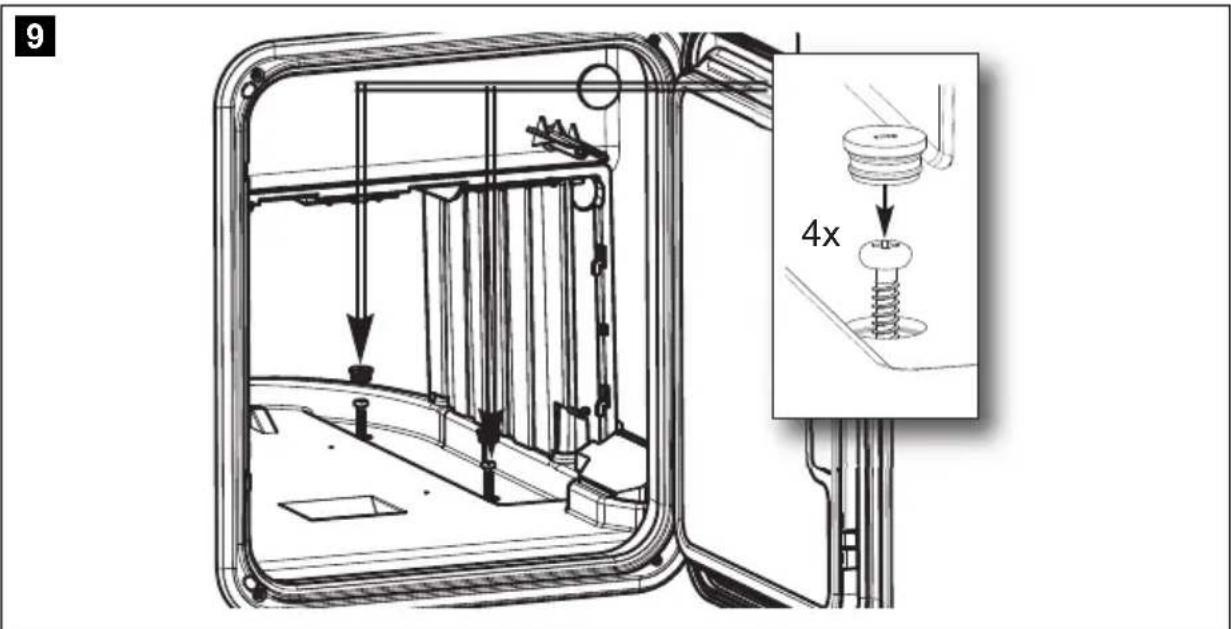

Attaching the toilets Saneo B, Saneo C ➤ After the toilet is placed at the desired position, secure the base plate with four bolts (supplied) (fig. 9). ➤ Then bolt the toilet housing to the wall (using a maximum of 4 bolts, not included) (fig. 0).

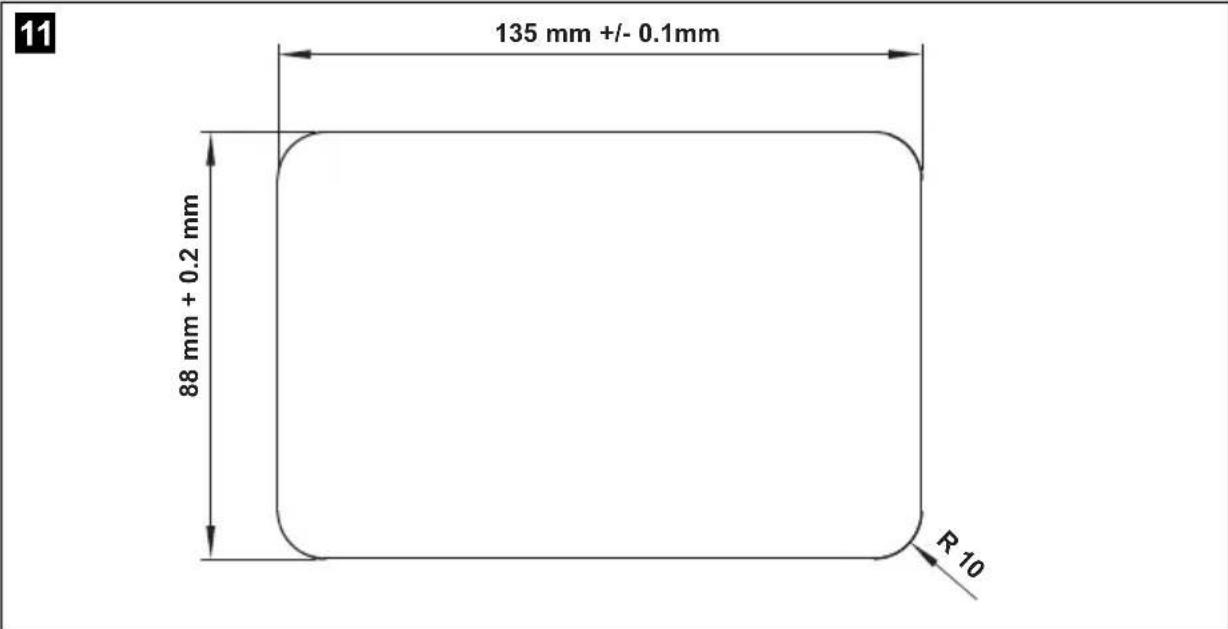

Installation of control and operating panel of the toilets Saneo B, Saneo C ➤ Attach the control and operating panel and for the toilets Saneo B, Saneo C at an easily accessible location in the wall. Make a cutout in the wall beforehand (fig. a). Use the scale template (4) to make the cutout. ➤ To insert the operating panel in the wall cut-out, press back the retaining springs (fig. b 1) of the control and operating panel.

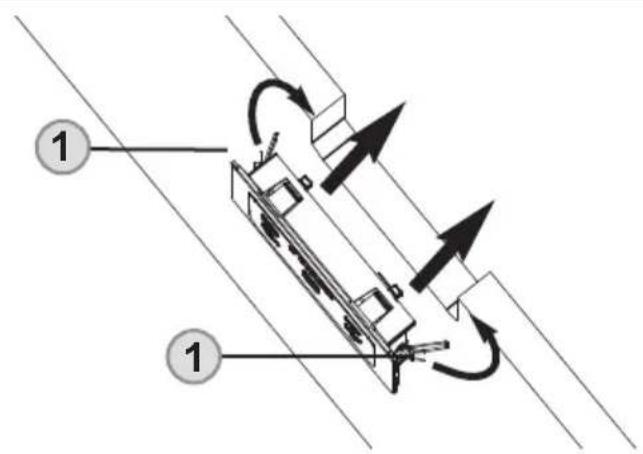

➤ Connect the electrical cables to the couplings for installation of the operating and control panel (supplied unassembled) (chapter “Electrical connection” on page 27). CAUTION! There is a risk of injury due to the springs springing back! 135 mm +/- 0.1mm R 10 88 mm + 0.2 mm

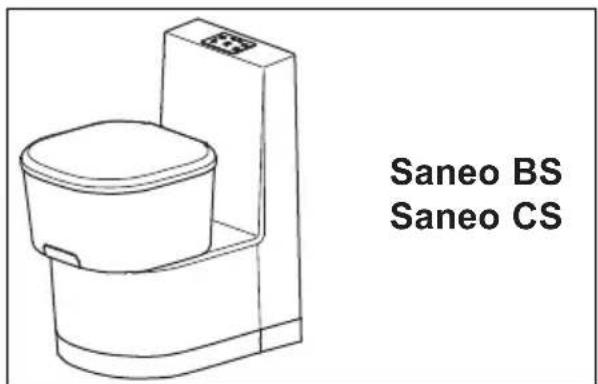

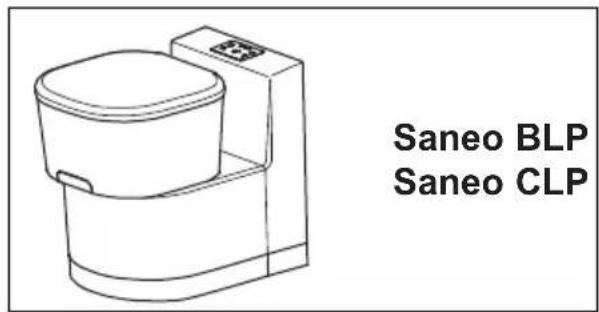

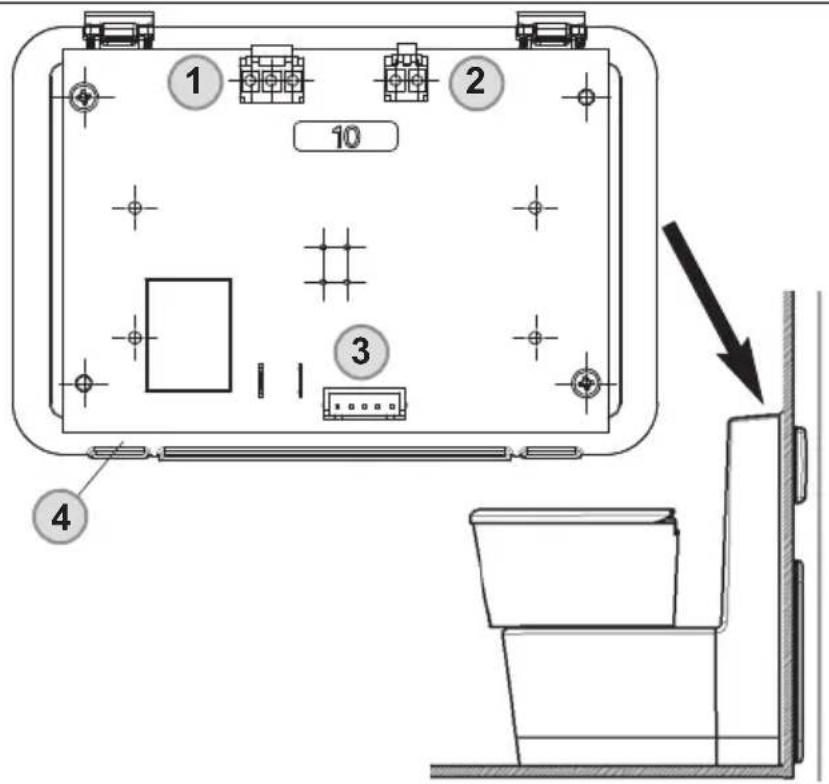

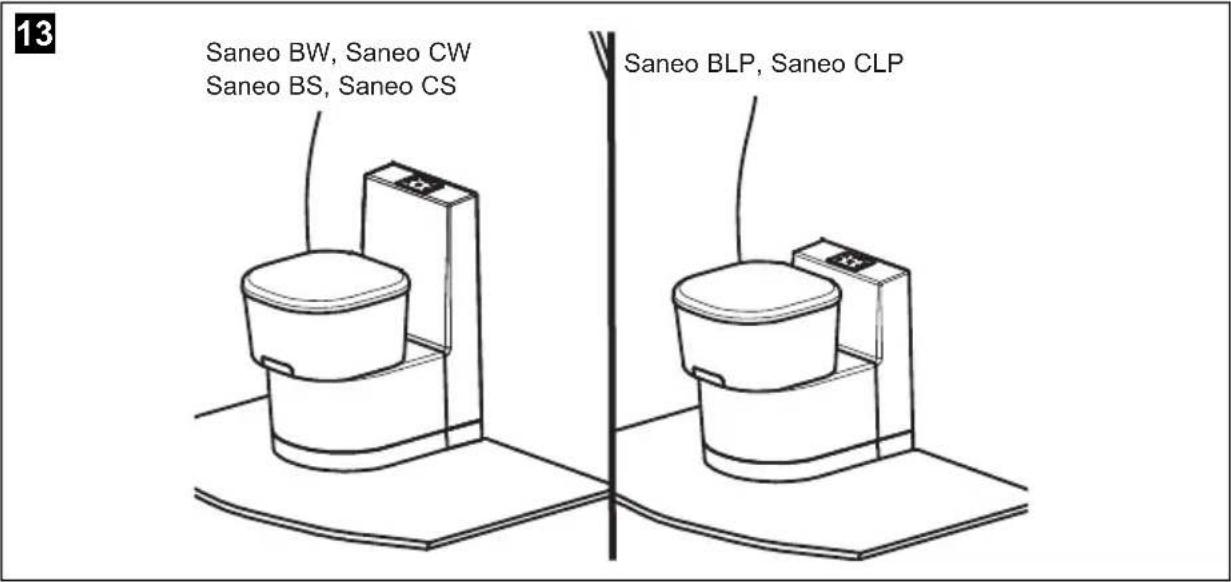

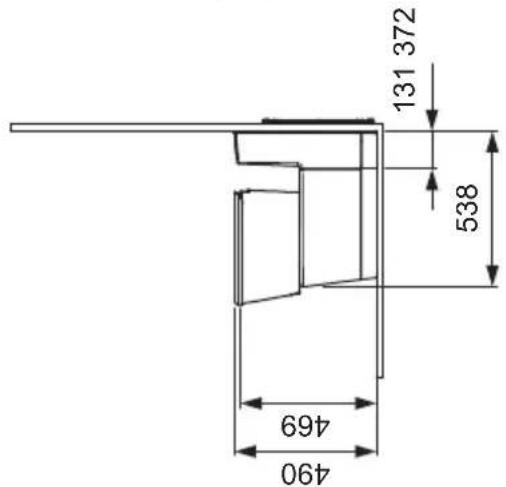

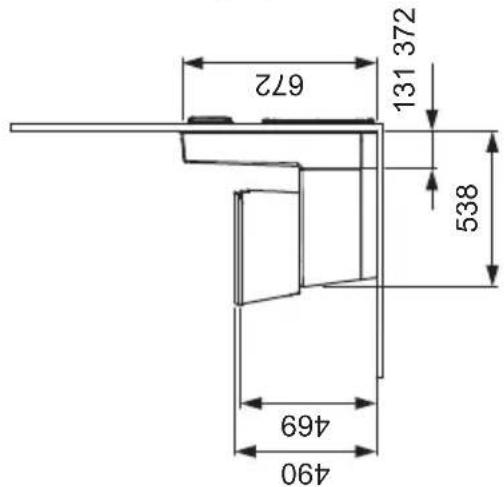

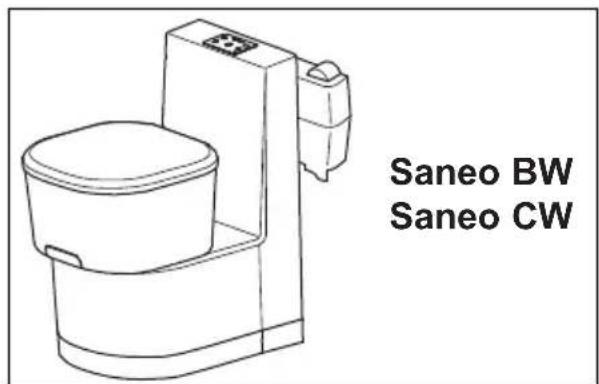

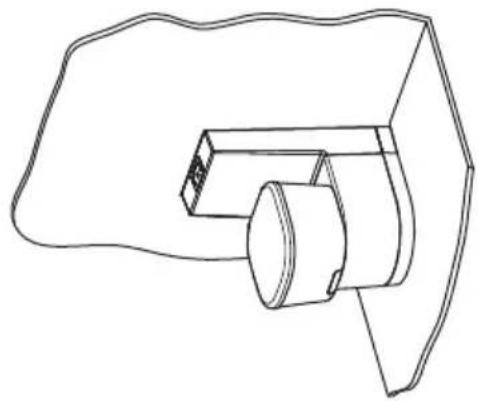

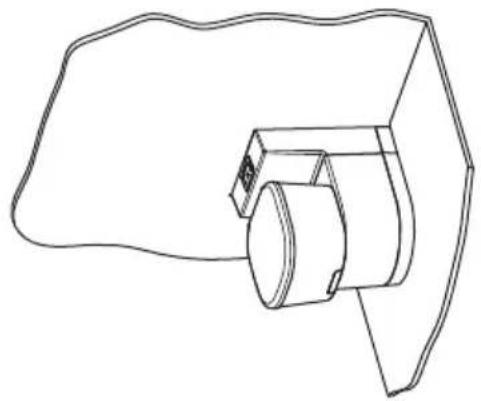

Saneo CS, Saneo BLP, Saneo CLP These models have a wall connection console. The control and operating panel is integrated in the wall connection console. Models Saneo BW and Saneo CW feature a built-in water tank, while models Saneo BS and Saneo CS do not have a water tank. Set up all models with wall connection console directly against the room wall (fig. c). A previously attached wall bracket is used to secure the toilet and the console (chapter “Attachment of the wall bracket” on page 21). Saneo BW, Saneo CW Saneo BS, Saneo CS Saneo BLP, Saneo CLP cEN Saneo B, Saneo C Installing the toilet

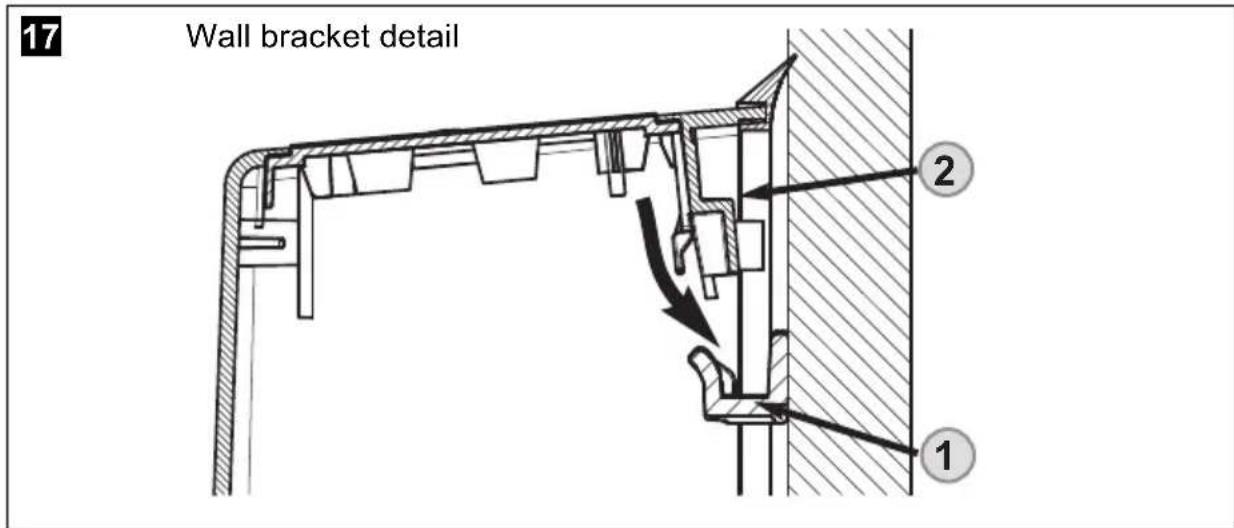

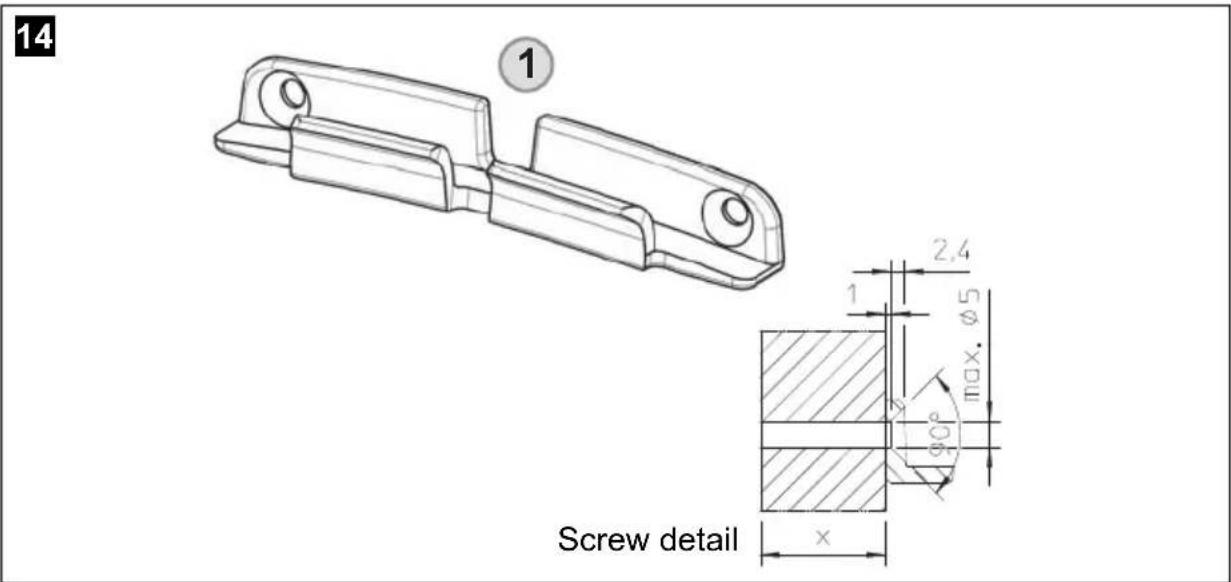

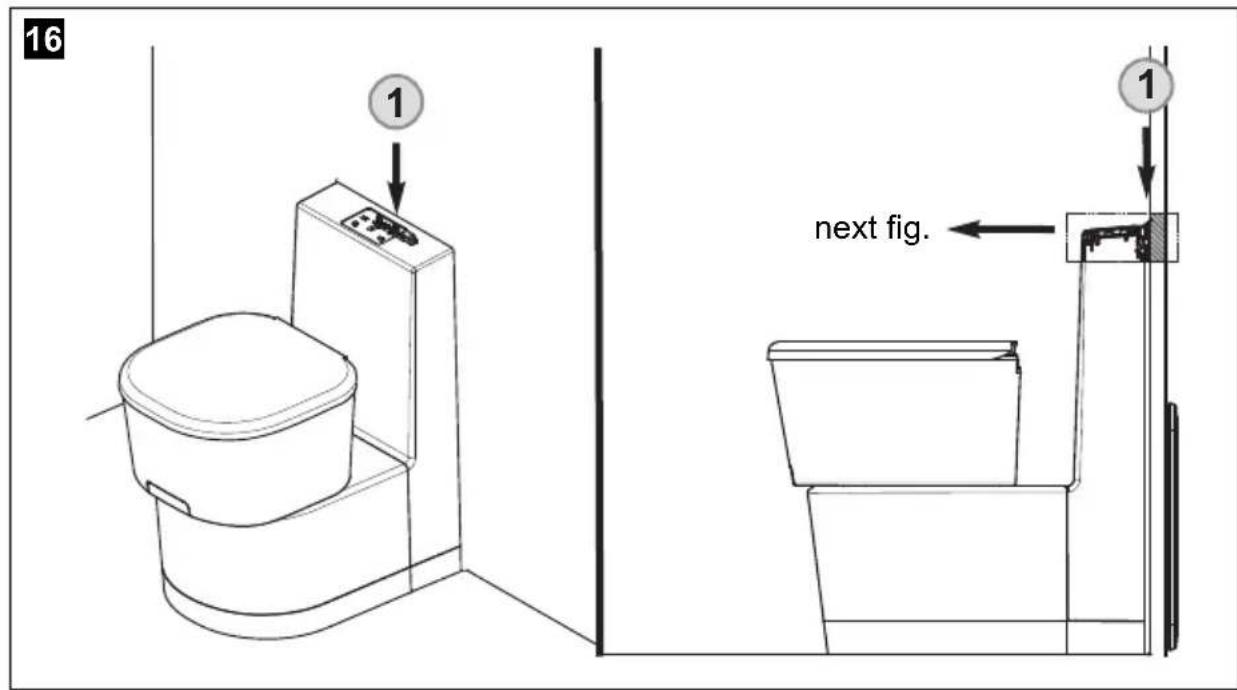

Attaching the toilets Saneo BW, Saneo CW, Saneo BS, Saneo CS, Saneo BLP, Saneo CLP ➤ Put the entire toilet module into the desired position in front of the wall bracket. ➤ Lift the toilet. Then put the toilet down so that the wall-side part of the housing hooks into the wall bracket (fig. f). Item Description1 Wall bracket2 Wall connection console

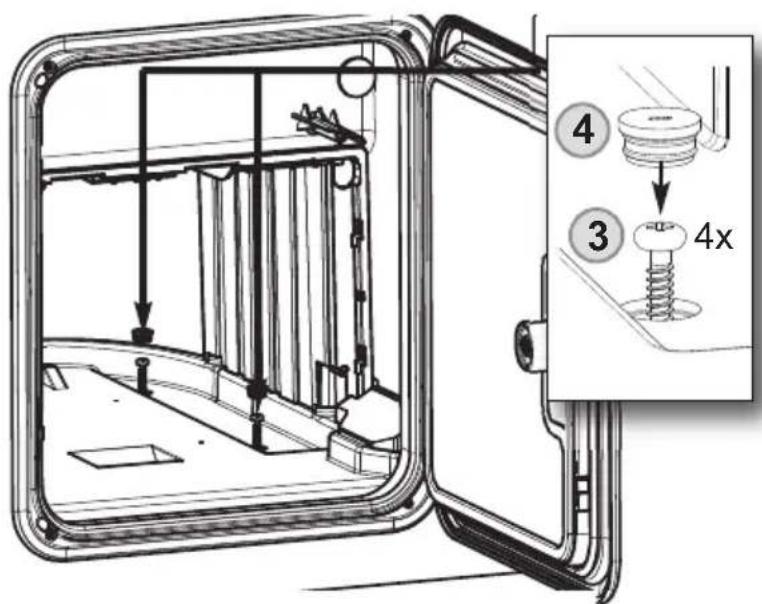

Once the toilet is set up in the desired position, securely bolt the base plate with four bolts (fig. h, page 23) and slide in the mobile tank cassette (fig. i, page 23). Fastening bolts (3) and cover caps (4) are included.

4.5 Water connection

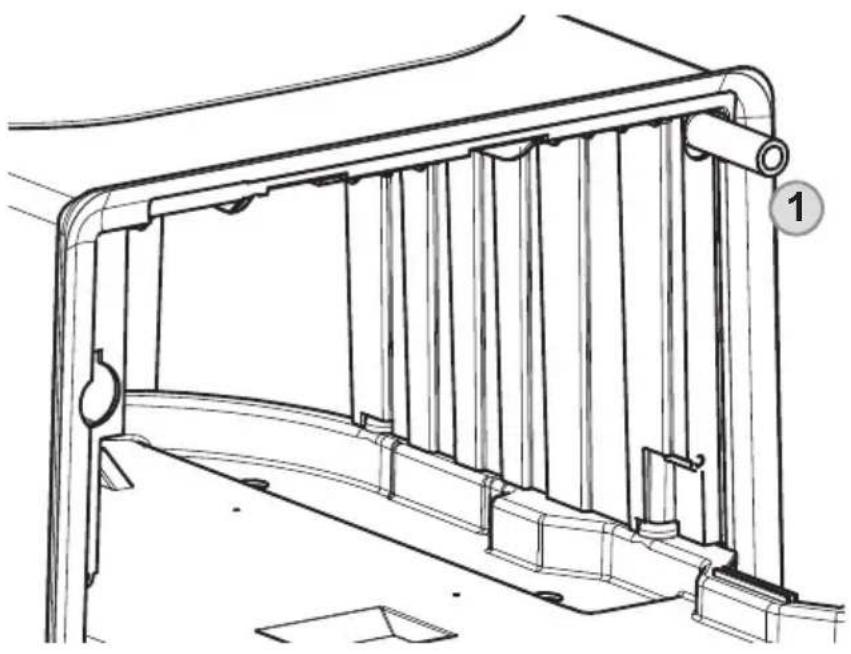

The water supply is connected with a smooth hose connection (1). The connection socket is not included in the scope of delivery. ➤ Then check the leak tightness.

NOTICE! The operating pressure (water pressure) of the solenoid valve should not exceed 6 bar. The solenoid valve is damaged by excessive pressure.

Performing a measurement to test the flushing output For performing a measurement to test the flushing output, there are two variants: Variant 1: ➤ Disconnect the hose connection of the toilet from the vehicle line. ➤ Place the open end of the line into a bucket. ➤ Actuate the flushing for 1 minute using the toilet operating unit. ➤ Measure the volume of water in the bucket. The volume of water that is in the bucket corresponds to the water flow rate in l/min. Variant 2: ➤ Disconnect the hose connection of the toilet from the vehicle line. ➤ Connect a Gardena water meter to the toilet water line. ➤ Actuate the flushing using the toilet operating unit. ➤ Read the water flow in l/min on the Gardena water meter. With all Saneo models, the water connection is established as described above. Exception: Models Saneo xW with integrated water tank.

NOTE Water supply (vehicle-side pump): The toilet requires a min. of 7 l/min provided by the vehicle at the outlet of the hose connection of the toilet in order to ensure satisfactory flushing output of 5 l/min.EN Installing the toilet Saneo B, Saneo C

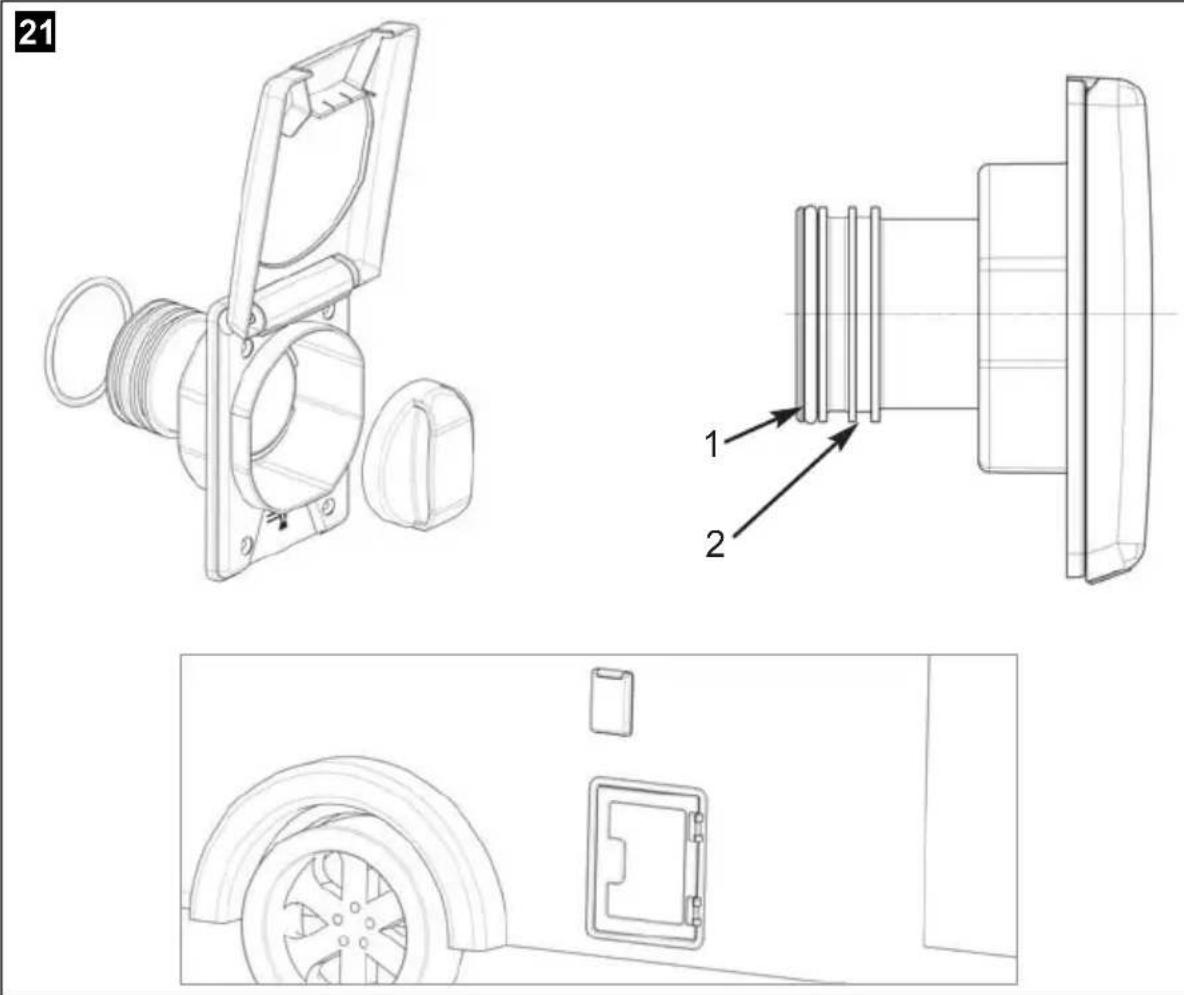

4.6 Installing the tank flap

➤ Use the tank flap when using the models Saneo BW and CW Saneo with integrated water tank. ➤ For installing the tank flap, use the template (1), item 5.3.1 on page 163, to make the cutout in the wall. ➤ Provide a sealant (butyl rubber) between the vehicle outer wall and the tank flap. ➤ Then place the tank flap on the tank and secure the tank flap with bolts. ➤ Use grease to lubricate the O-ring in order to prevent difficulties when connecting the filler neck to the upper part of the tank. The tank flap is bolted with four countersunk screws (C4x25) (not included). Item Description 1 Position of the O-ring with a wall thickness of 30 mm – 50 mm 2 Position of the O-ring with a wall thickness of 20.5 mm – 30 mm

4.7 Electrical connection

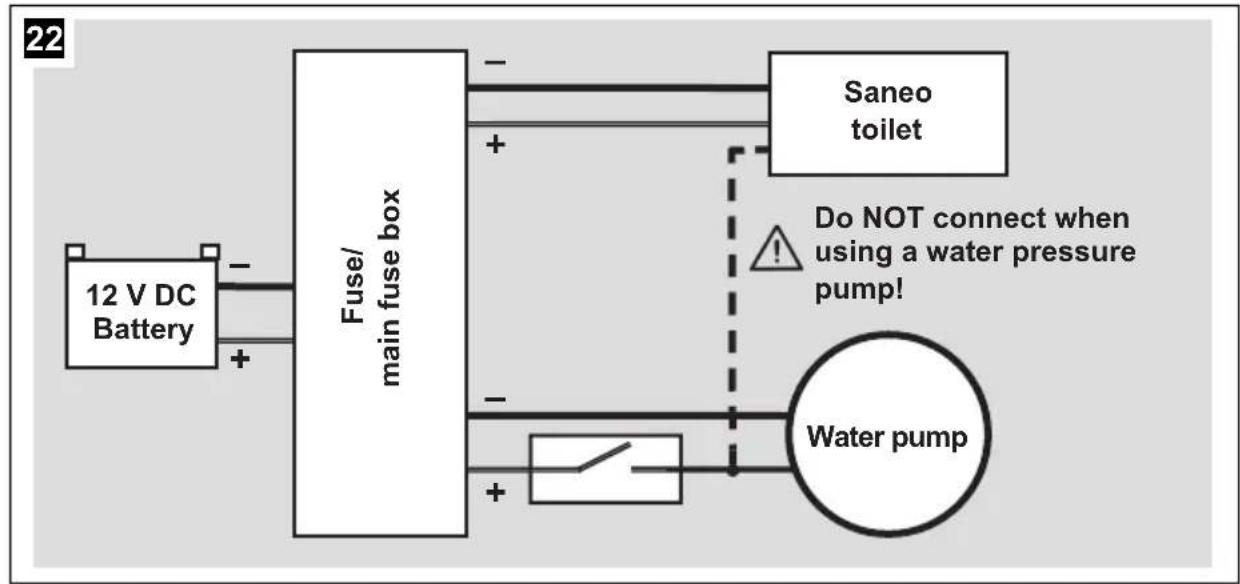

General system scheme

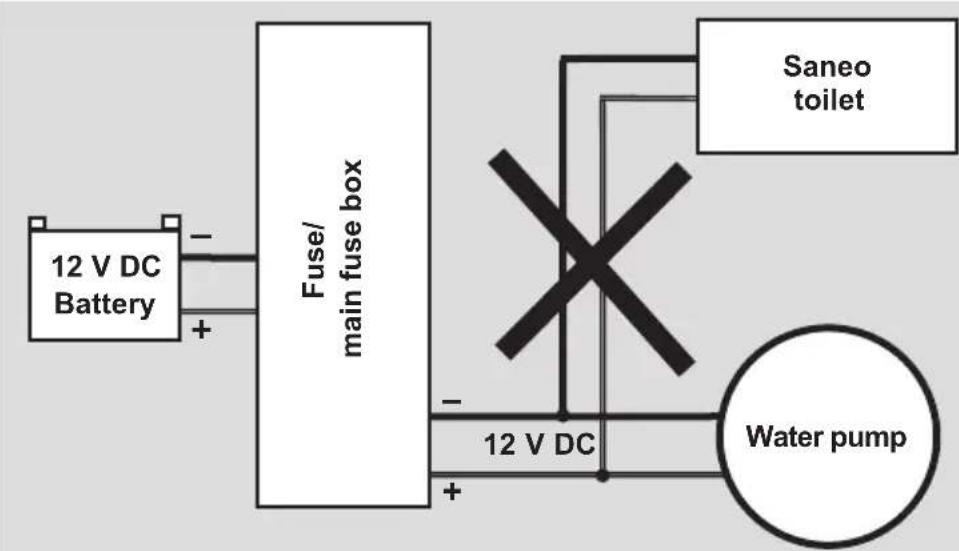

Please note the following instructions before installing the cassette toilet: Connect the toilet to its own voltage supply from the main terminal block of the vehicle (fig. l). The toilet should not be directly connected in parallel with other power- consuming devices, since there can otherwise be malfunctions or the toilet control can be damaged (fig. m). A pre-fuse is not necessary, because the toilet is internally fused. WARNING! The electrical system must be wired by qualified personnel. 12 V DCBatteryFuse/main fuse boxSaneotoiletWater pumpDo NOT connect whenusing a water pressurepump!

NOTICE! Do not connect the toilet to the voltage supply directly in parallel with other power-consuming devices. NOTE Circuit diagrams can be found in section 5, appendix. 12 V DC

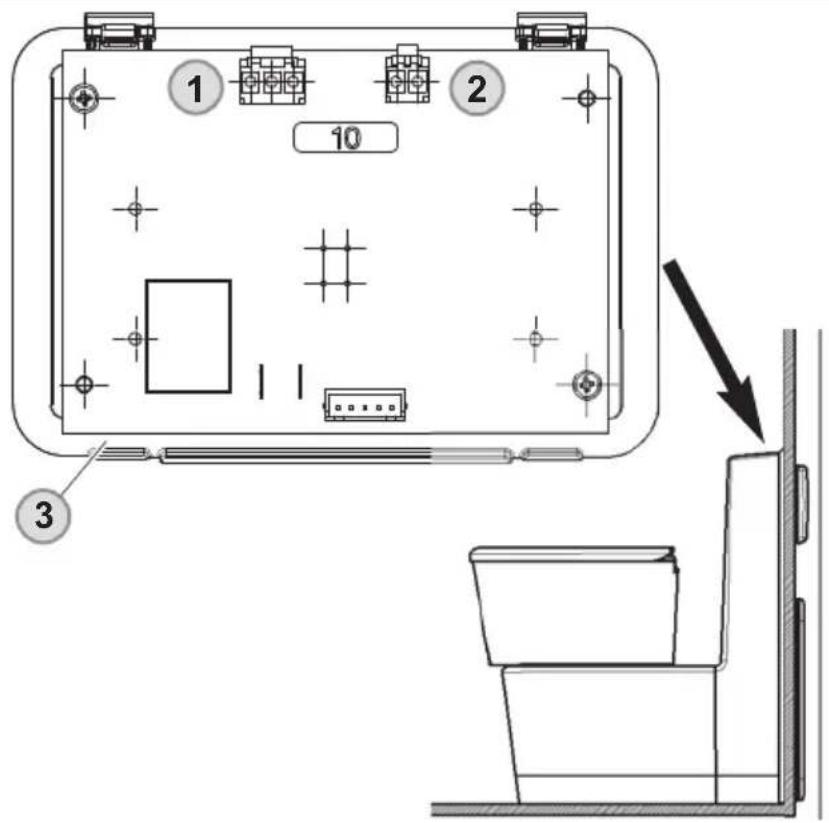

System scheme (model Saneo xW with internal water pump) Supply voltage: 12 Vg Cross-section of 12 V connection cable: at least 0.75 mm² Toilet control fuse: 10 A (automotive fuse integrated) Power consumption of the pump: max. 2 A Item Description 1 12 V supply connection 2 Solenoid valve connection 3 Control and operating panel

System scheme (models Saneo B, C/ Saneo xS/ Saneo xLP with external water pump) Supply voltage: 12 Vg Cross-section of 12 V connection cable: min. 1.5 mm² Toilet control fuse: 10 A (automotive fuse integrated) Power consumption of the external pump: max. 8 A

NOTICE! The external water pump may not exceed a rated power of 100 W. NOTE The external water pump is not included in the scope of delivery. Item Description1 12 V supply connection2 Solenoid valve connection3 External pump connection4 Control and operating panel

5.1.1 Circuit diagram (models with external water tank)

5.1.2 Circuit diagram (models with internal water tank)

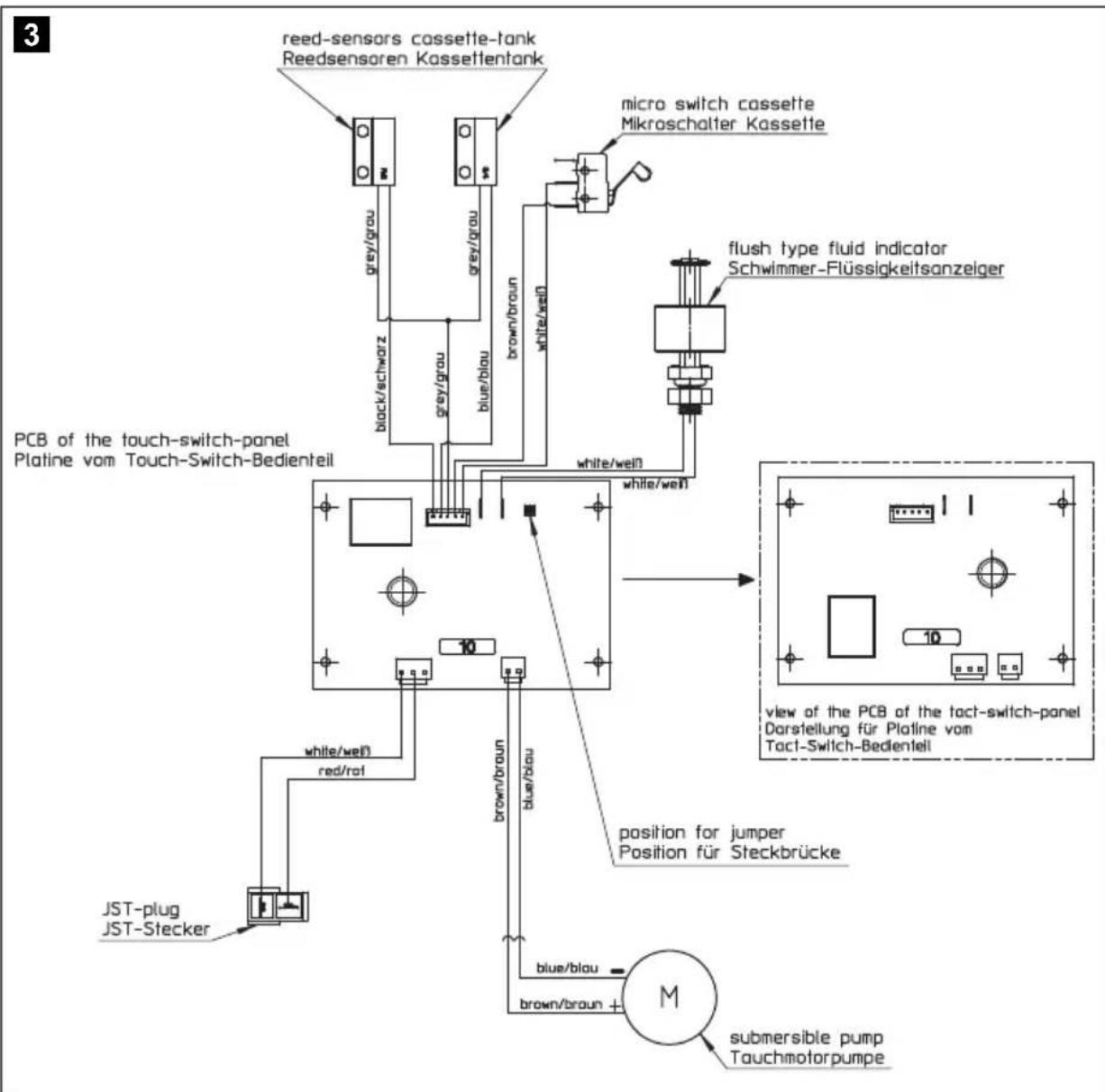

5.1.3 Circuit diagram (models with internal water tank, UK)

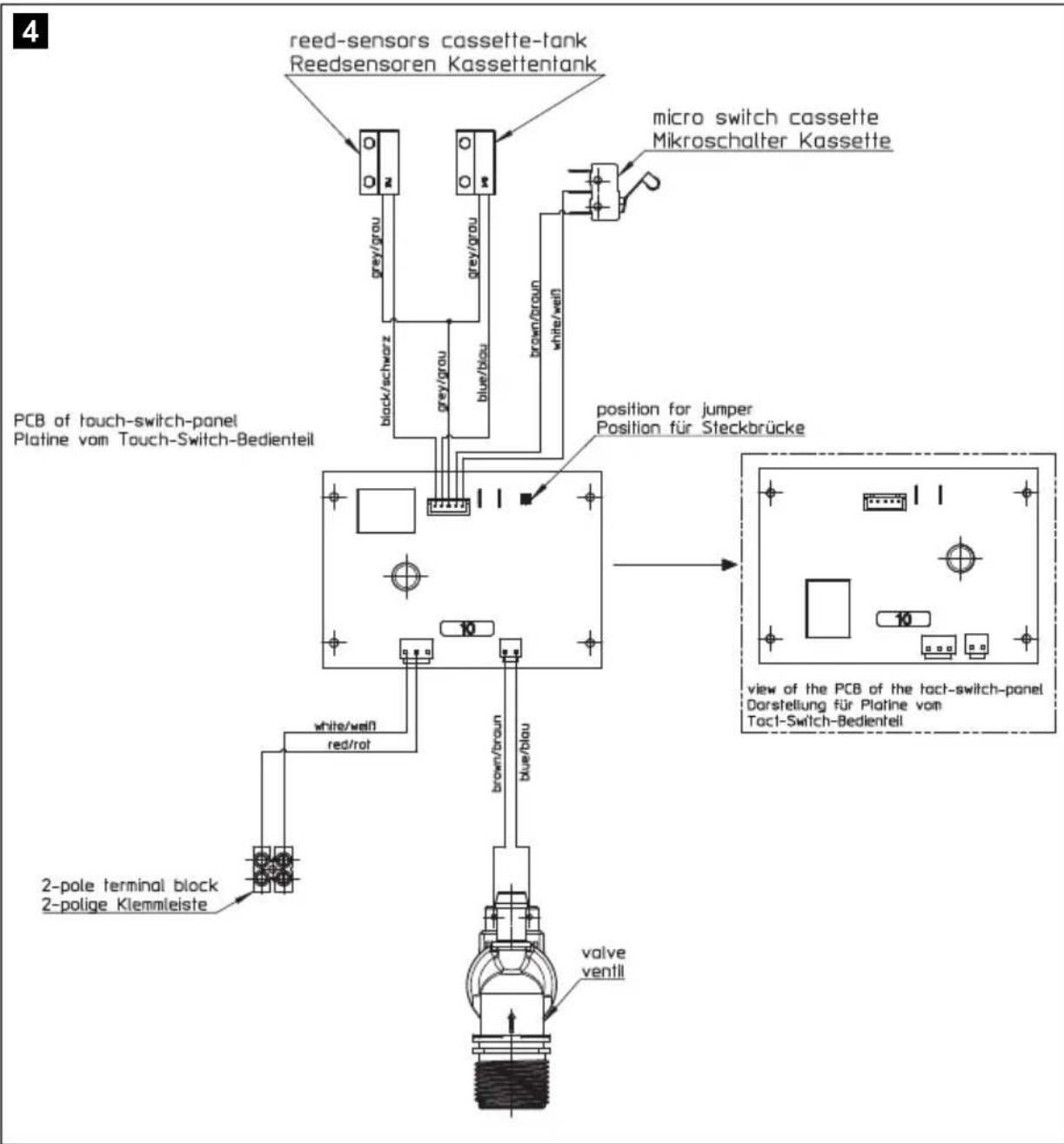

5.1.4 Circuit diagram (models with external water tank and

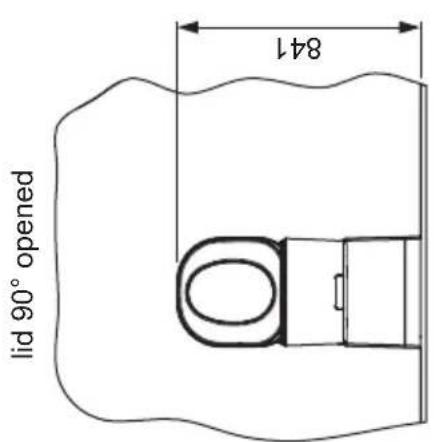

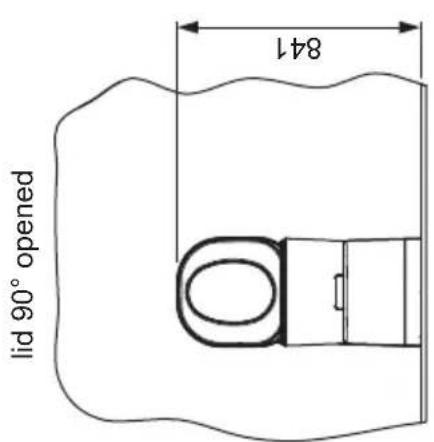

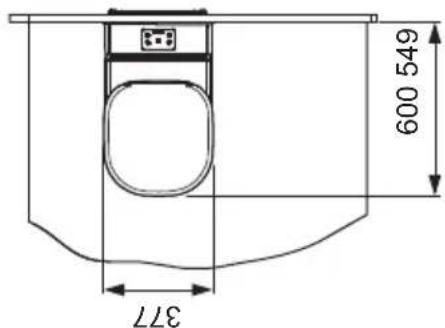

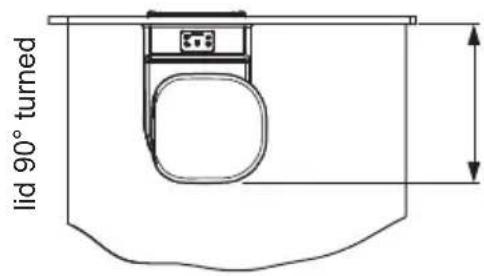

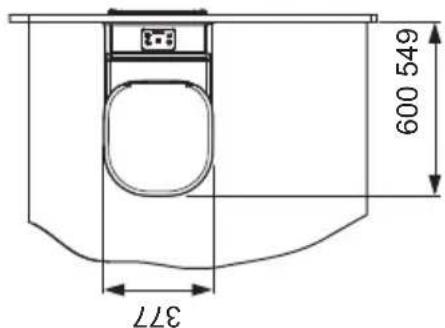

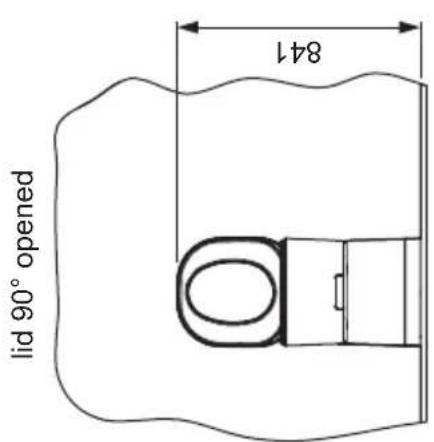

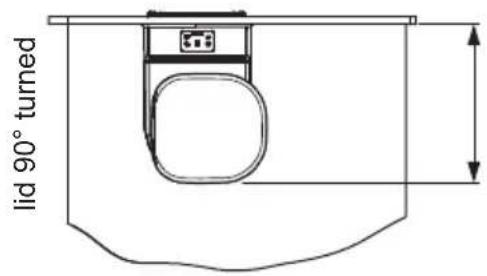

lid 90° opened lid 90° turned

lid 90° opened lid 90° turned

lid 90° opened lid 90° turned

lid 90° opened lid 90° turned

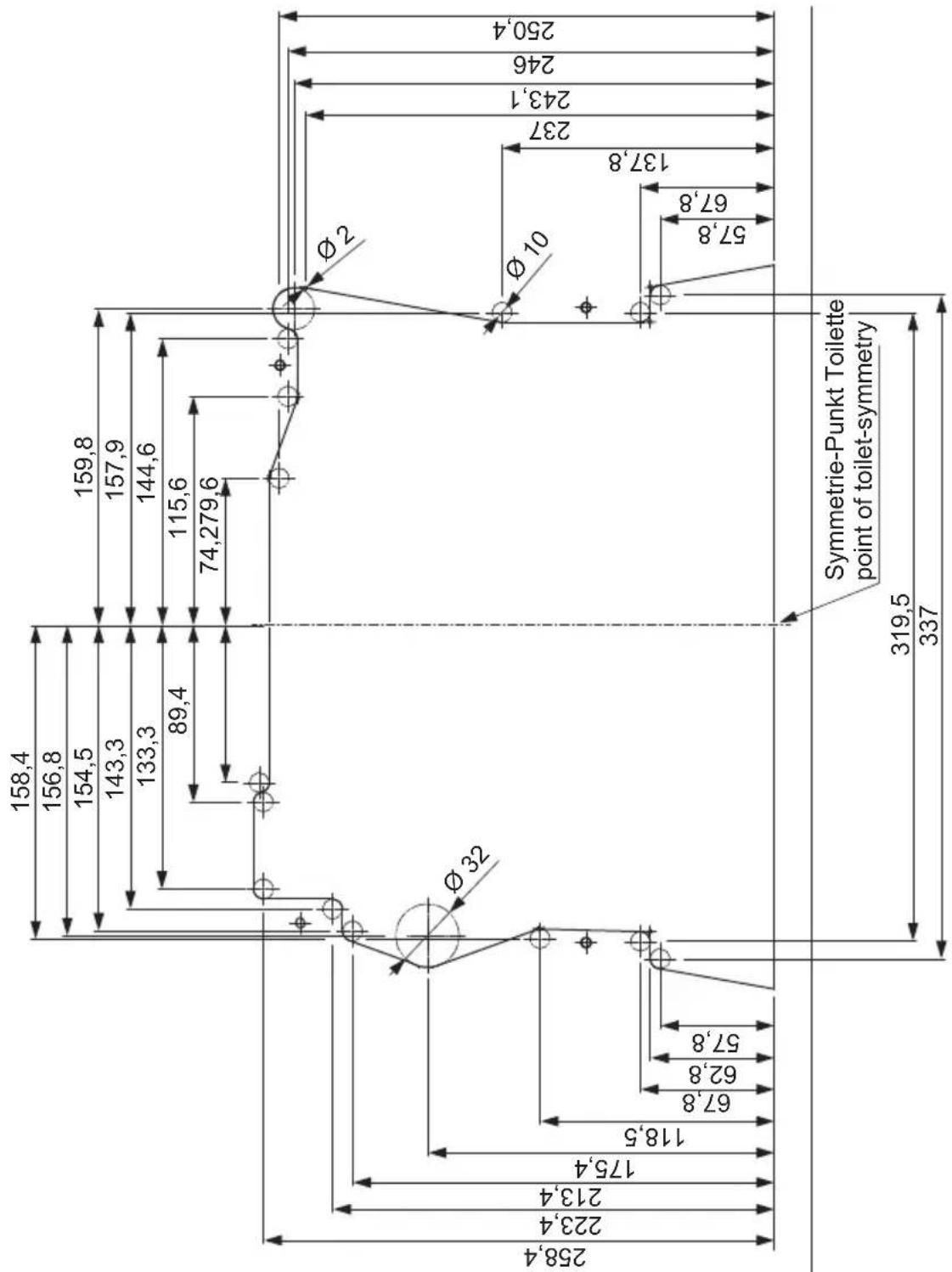

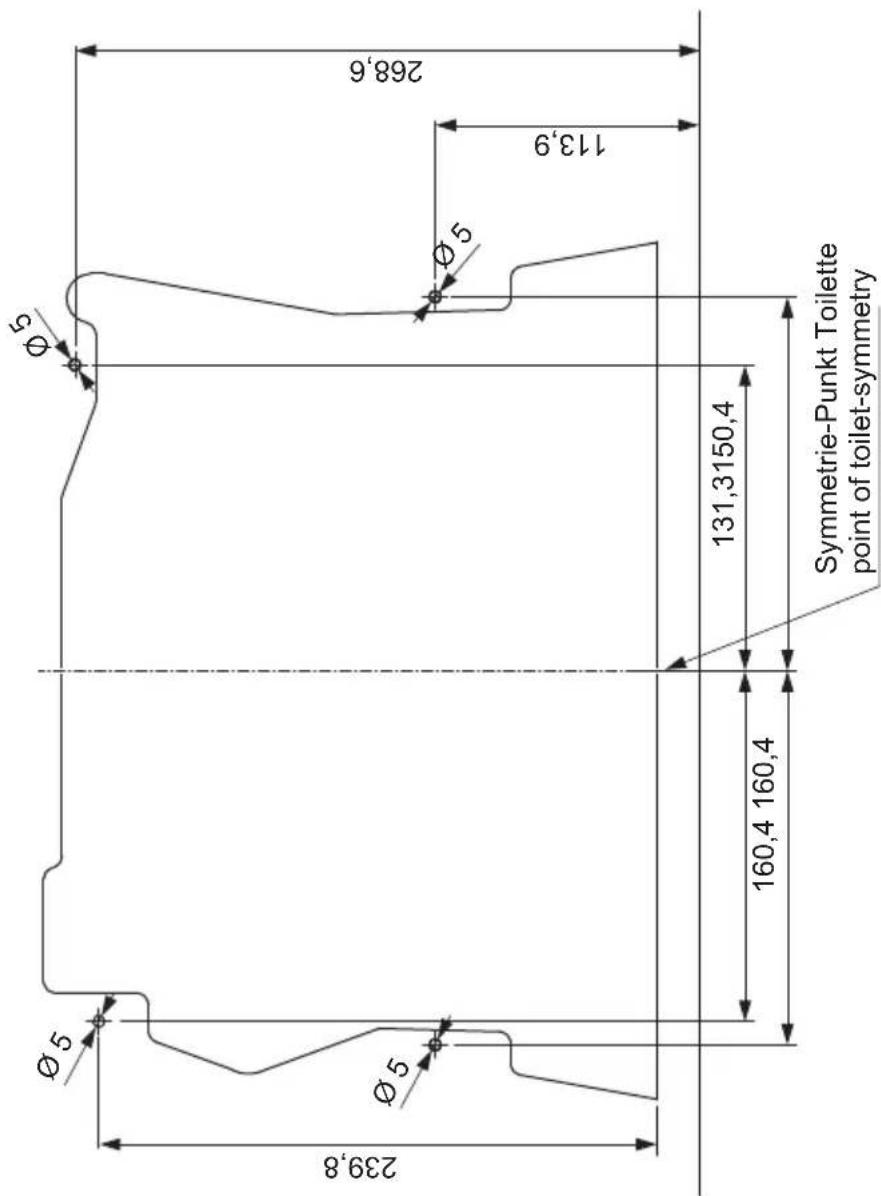

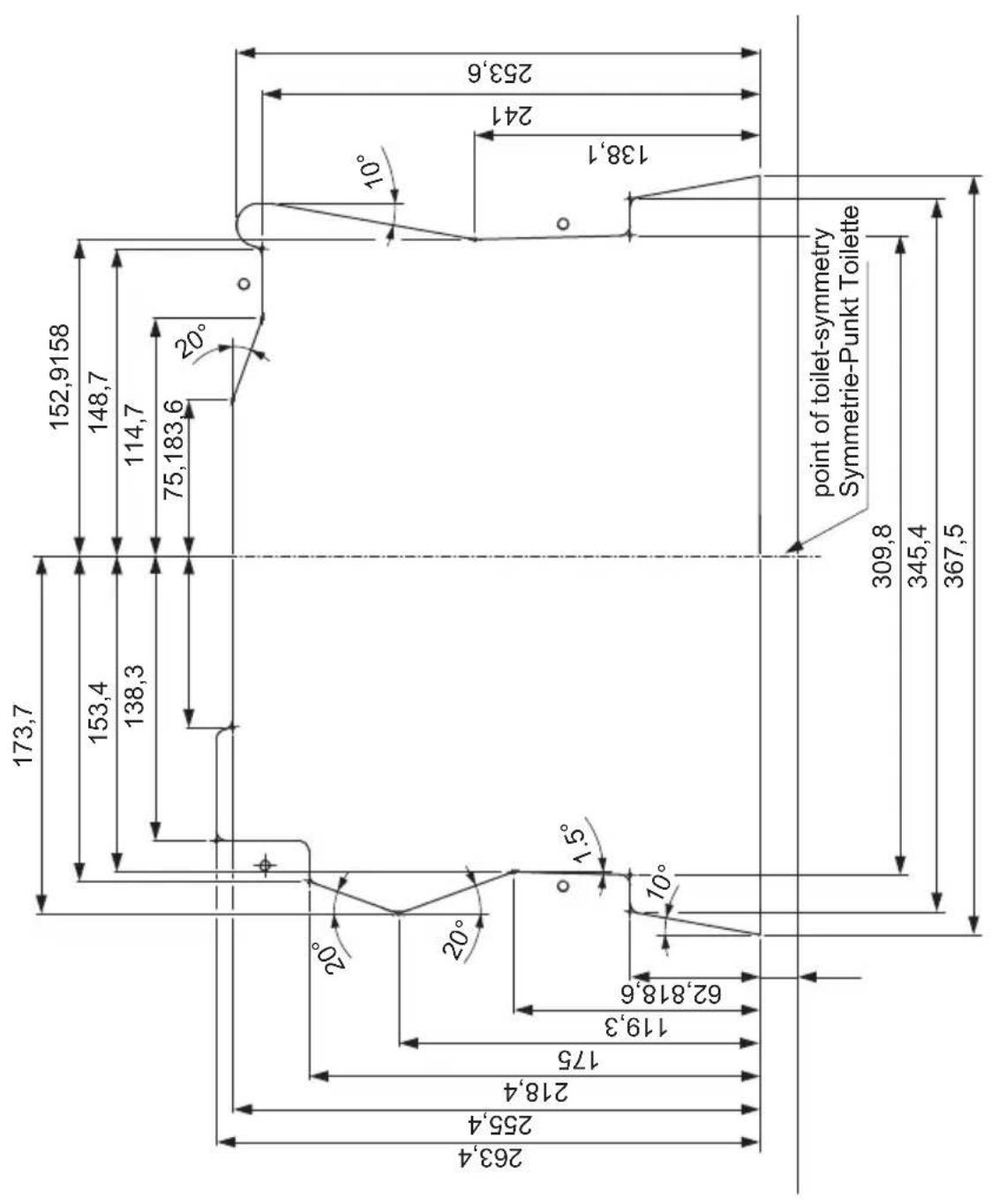

5.3.2 Template (4) control and operator panel
