USER MANUAL Lets Cook Deluxe 172661 PRINCESS

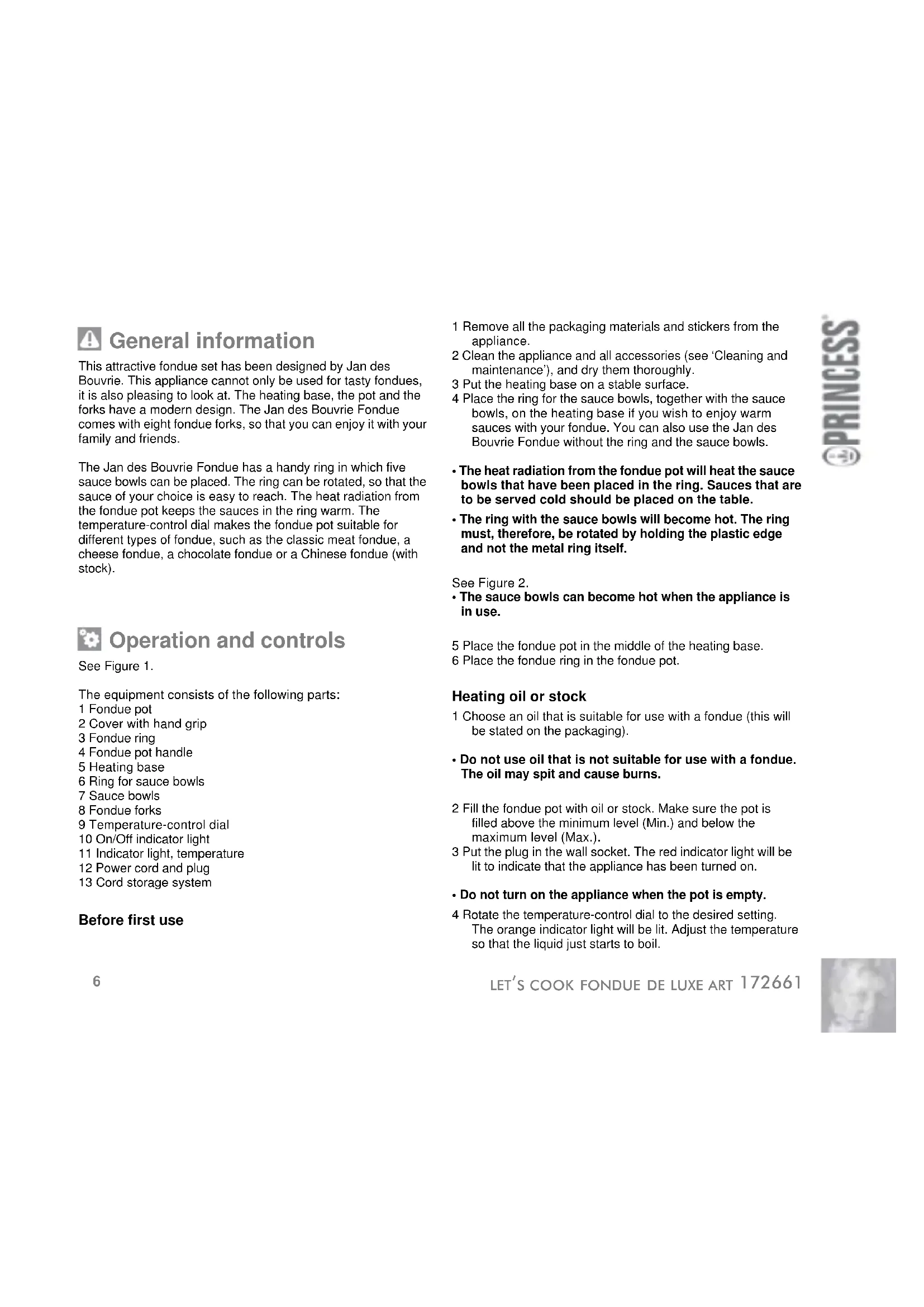

General information This attractive fondue set has been designed by Jan des Bouvrie. This appliance cannot only be used for tasty fondues, it is also pleasing to look at. The heating base, the pot and the forks have a modern design. The Jan des Bouvrie Fondue comes with eight fondue forks, so that you can enjoy it with your family and friends. The Jan des Bouvrie Fondue has a handy ring in which five sauce bowls can be placed. The ring can be rotated, so that the sauce of your choice is easy to reach. The heat radiation from the fondue pot keeps the sauces in the ring warm. The temperature-control dial makes the fondue pot suitable for different types of fondue, such as the classic meat fondue, a cheese fondue, a chocolate fondue or a Chinese fondue (with stock). Operation and controls See Figure 1. The equipment consists of the following parts: 1 Fondue pot 2 Cover with hand grip 3 Fondue ring 4 Fondue pot handle 5 Heating base 6 Ring for sauce bowls 7 Sauce bowls 8 Fondue forks 9 Temperature-control dial 10 On/Off indicator light 11 Indicator light, temperature 12 Power cord and plug 13 Cord storage system Before first use 1 Remove all the packaging materials and stickers from the appliance. 2 Clean the appliance and all accessories (see ‘Cleaning and maintenance’), and dry them thoroughly. 3 Put the heating base on a stable surface. 4 Place the ring for the sauce bowls, together with the sauce bowls, on the heating base if you wish to enjoy warm sauces with your fondue. You can also use the Jan des Bouvrie Fondue without the ring and the sauce bowls.

• The heat radiation from the fondue pot will heat the sauce bowls that have been placed in the ring. Sauces that are to be served cold should be placed on the table.

• The ring with the sauce bowls will become hot. The ring must, therefore, be rotated by holding the plastic edge and not the metal ring itself. See Figure 2.

• The sauce bowls can become hot when the appliance is in use. 5 Place the fondue pot in the middle of the heating base. 6 Place the fondue ring in the fondue pot. Heating oil or stock 1 Choose an oil that is suitable for use with a fondue (this will be stated on the packaging).

• Do not use oil that is not suitable for use with a fondue. The oil may spit and cause burns. 2 Fill the fondue pot with oil or stock. Make sure the pot is filled above the minimum level (Min.) and below the maximum level (Max.). 3 Put the plug in the wall socket. The red indicator light will be lit to indicate that the appliance has been turned on.

• Do not turn on the appliance when the pot is empty. 4 Rotate the temperature-control dial to the desired setting. The orange indicator light will be lit. Adjust the temperature so that the liquid just starts to boil./(7

• NEVER place the lid on the appliance when the appliance is warming up nor whilst fonduing. 5 Whilst heating the liquid, stir the pot every now and then so that the liquid is slowly heated. 6 The light will go out once the desired temperature has been reached. You can now start to fondue. Heating cheese or chocolate 1 Select a recipe for cheese or chocolate fondue. 2 Put the plug in the wall socket. The red indicator light will be lit to indicate that the appliance has been turned on. 3 Prepare the mixture for the fondue according to the recipe. 4 Rotate the temperature-control dial to the desired setting. The orange indicator light will be lit.

• Do not set the temperature too high when heating cheese or chocolate, otherwise the mixture may become burnt or boil over. 5 Whilst heating the mixture, stir the pot every now and then so that the mixture is slowly heated and does not become lumpy. 6 The light will go out once the desired temperature has been reached. You can now start to fondue. Fondue 1 Prick a piece of food onto the fondue fork. 2 Place the fork in the heated mixture. If using oil or stock, allow the piece of food to cook by resting the fork on the fondue ring. If using cheese or chocolate, you only have to dip the piece of food in the fondue.

• If using oil, make sure the food is not too moist, otherwise the oil may spit.

• To avoid damage, do not prick the forks into the pot. 3 Remove the fork from the pot. The food can now be eaten.

• Be careful, the food will be hot! Cleaning and maintenance

• Never move the appliance when it is switched on or is still hot. Switch off the appliance and wait until it has cooled down before moving it.

• Never use corrosive or scouring cleaning agents.

• Make sure that the plug has been removed from the wall socket before cleaning the appliance.

• Never immerse the appliance in water.

• Ensure that no moisture gets into the electrical parts of the appliance. 1 Remove the plug from the wall socket and let the appliance cool down completely. 2 Remove the mixture from the fondue pot. Use kitchen paper to dry the pot. 3 Clean the fondue pot with warm soapy water.

• Cleaning tip: place a cup of water and a small amount of washing-up liquid in the pot. Set the heating element to the lowest setting. Leave for 10 minutes and then turn off the appliance. Rinse the pot thoroughly and then dry it.

• The fondue pot, the fondue ring and the sauce bowls can also be cleaned in a dishwasher. 4 Clean the heating base with a damp cloth, Dry it thoroughly afterwards./(7

• Please read these instructions carefully and retain them for future reference.

• Use this appliance solely in accordance with these instructions.

• Use this appliance only for domestic purposes.

• The use of this appliance by children or persons with a physical, sensorial, mental or motor disability or with a lack of the necessary knowledge and experience can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

• Make sure that children do not play with the appliance.

• Have repairs carried out by a qualified service technician. Never try to repair the appliance yourself. Heat and electricity

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.

• Plug the appliance into an earthed wall socket.

• Always remove the plug from the wall socket when the appliance is not in use.

• Always remove the plug from the wall socket by pulling the plug, not the power cord.

• Do not use the appliance if the power cord or the appliance is damaged. For your safety, return the appliance to our service department. A damaged power cord can be replaced solely by our service department, who have the special tools required for the repair.

• Make sure that the appliance and the power cord do not come in contact with sources of heat, such as a hot hob or a naked flame.

• Make sure that the appliance, the power cord and plug do not come into contact with water.

• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.

• Take care when touching the appliance and its parts. Allow the appliance to cool before touching it. The appliance and its various parts will become hot during use.

• The appliance must be able to dissipate its heat to avoid a risk of fire. Therefore, ensure that there is sufficient clearance around the appliance and that it cannot come into contact with flammable materials. The appliance may not be covered. During use

• Never use the appliance outdoors.

• Never use the appliance in damp areas.

• Place the appliance on a flat, stable surface where it cannot fall.

• Never allow the power cord to hang over the edge of the draining board, worktop or table.

• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.

• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, before cleaning the appliance, before fitting or removing an accessory and before storing the appliance after use.

• Never leave the appliance unattended when in use.

• Never move the appliance when it is switched on or is still hot. Switch off the appliance and wait until it has cooled down before moving it.

• Never turn the appliance on when the pot is empty.

• When filling the fondue pot, pay attention to the maximum and minimum levels indicated by the MIN and MAX marks in the fondue pot.

• Do not use sharp objects in the pot, such as metal spatulas, knives and forks. These will damage the non- stick coating./(7

• Make sure that small children cannot reach the appliance. The appliance and its various parts will become hot during use.

• Only hold the appliance by the handle.

• Regularly check whether the handles are firmly attached to the pot.

• Clean the appliance thoroughly after use (see ‘Cleaning and maintenance’).

• The parts of this set have a PTFE non-stick coating. On heating this coating, it may release small amounts of gases which are totally harmless for people. However, the nervous system of birds has been found to be extremely sensitive to these gases, Therefore, do not use this fondue set near birds (tropical birds, such as parrots).

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

• GREEN/YELLOWEARTH As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/ YELLOW

WARNING: THIS APPLIANCE MUST BE EARTHED

The Environment Dispose of packaging materials, such as plastic and boxes, in the appropriate containers. If you want to dispose of the appliance while it still works properly or can be repaired simply, ensure that the appliance is recycled. At the end of its lifespan, you must have the appliance processed in a responsible manner so that the appliance or parts of it can be reused. Do not dispose of the appliance with unsorted refuse, but hand it in at the retailer's or at a recognised collection point. Contact your local authority for information about available disposal and collection systems. Applicable European guideline:

Recipes Meat fondue For 4 people 750 grams of different types of lean, tender meat, such as steak, veal, pork, lamb, chicken breasts, meatballs, mincemeat, minced steak or frankfurter sausages 1 litre of oil Cut the meat into blocks which are approximately 1½ cm thick and roll the mincemeat and the minced steak into balls of approximately the same size. Pour the oil into the fondue pot and rotate the temperature-control dial to the maximum setting. Heat the oil for approximately 15 minutes.

• Tip: The temperature of the oil can be checked by placing a piece of bread in it. If the oil fizzes, then it is hot enough. This also reduces the smell of the frying odours. Prick a piece of meat onto the fondue fork and cook it in the oil for approximately 4 minutes. Delicious with baguette, salad, roast potatoes, sweet pepper, onion, mushrooms and various sauces. Chinese fondue (Stock fondue) For 4 people 500 grams of meat or fish, such as steak, veal, pork, lamb, chicken breasts, meatballs, mincemeat, minced steak, salmon, turbot, cod, monkfish, wolf fish or prawns 500 grams of fresh vegetables, such as onions, mushrooms, carrots, leeks, Chinese cabbage, courgette or bean sprouts 2 litres of vegetable stock Cut the meat and the fish into blocks which are approximately 1½ cm thick and roll the mincemeat and the minced steak into balls of approximately the same size. Cut the vegetables into small blocks or strips. Pour the stock into the fondue pot and bring it to the boil. Prick a piece of meat, fish or a vegetable onto the fondue fork and cook it in the stock. Delicious with baguette, salad, roast potatoes and various sauces. Swiss cheese fondue For 4 people 375 grams of grated Gruyère 375 grams of grated Emmental 1 tablespoon of cornflour 1 teaspoon of garlic 375 millilitres of dry white wine 20 millilitres of Kirsch (approximately one shot glass) 1 teaspoon of lemon juice Pepper and nutmeg Baguette Mix the cheese with the cornflour. Bring this mixture to the boil with the wine, lemon juice and Kirsch in a pan with a thick base whilst stirring. Allow the mixture to simmer for a couple of minutes. Add pepper and nutmeg to taste. Rub the fondue pot with garlic. Pour the mixture into the fondue pot and set the temperature-control dial to the middle setting. Cut the baguette into pieces and dip it into the cheese fondue. Also delicious with raw mushrooms, al dente broccoli flowers and courgette. Chocolate fondue For 4 people 250 grams of pure chocolate 1/8 litre of whipping cream 1/8 litre of milk 15 grams of butter Fruit, such as pineapple, banana, strawberry, apple and pear Break the chocolate into pieces and place it in a bowl together with the cream and the milk. Place the bowl in a pan full of hot water (bain-marie) that is slowly heated. Allow the chocolate to slowly melt whilst occasionally stirring it. Remove the bowl from the pan and mix the butter through the chocolate sauce. Pour the mixture into the fondue pot and set the temperature-control dial to the middle setting. Cut the fruit into blocks and dip them into the chocolate fondue. Also delicious with biscuits and pieces of sponge cake./(7
