Bistro 1070916 - Toaster BODUM - Free user manual and instructions

Product type	Toaster
Brand	Bodum
Model	Bistro 1070916
Rated voltage (EU)	220-240 V ~ 50/60 Hz
Rated voltage (US)	120 V / 60 Hz
Rated power (EU)	900-980 W
Rated power (US)	900 W
Cord length	Approx. 100 cm
Slot dimensions (L x W)	Approx. 14 cm x 3 cm
Main functions	Browning control (5 positions), defrost, cancel, roll/croissant warmer, crumb tray, cord storage
Capacity	2 slices of bread
Housing material	Plastic with metal parts
Care and cleaning	Unplug before cleaning; empty crumb tray regularly; clean exterior with a damp cloth; do not immerse in water
Safety	Auto shut-off at end of cycle, hot surface indicator, overheat protection (not specified), polarized plug (US version)
Warranty	2 years against material and workmanship defects
Spare parts and repairability	Parts available from authorized Bodum dealers; do not repair yourself
General information	Household use only; do not use outdoors

Frequently Asked Questions - Bistro 1070916 BODUM

How to adjust the browning level?

Turn the browning control (A) from 1 (very light) to 5 (very dark) according to your preference. For optimal results, select a lower level if the bread is dry or thin.

How to use the defrost function?

Insert frozen bread, lower the lever (D), then press the defrost button (B) within 2 seconds. The indicator light stays on and the toasting time is automatically extended.

How to stop toasting mid-cycle?

Press the cancel button (C) at any time to immediately interrupt the process.

How to warm rolls or croissants?

Slide the button (G) to deploy the warming rack (F). Place the items on the rack, lower the lever (D) and the toaster will warm them.

How to clean the toaster?

Unplug the appliance and let it cool down. Regularly empty the crumb tray (H) to prevent fire hazards. Clean the exterior with a damp cloth and dry it. Never immerse the appliance in water.

What to do if a slice of bread gets stuck?

Never use metal objects. Unplug the appliance and gently turn it upside down over the sink to shake out the bread. If necessary, use a wooden or plastic utensil.

Why is my bread burning?

The browning level is too high or the bread is very dry/thin. Reduce the level (A) and monitor the toasting next time. A 30-second interval between uses allows better regulation.

Can I toast foods wrapped in aluminum foil?

No, this may cause a short circuit or fire. Only insert foods without metallic packaging.

How to store the power cord?

Wind the excess cord into the cord storage under the base of the appliance to avoid tangling.

Where to find spare parts?

Contact your authorized Bodum dealer, a Bodum Shop, or visit www.bodum.com. The 2-year warranty covers manufacturing defects.

USER MANUAL Bistro 1070916 BODUM

Instruction for use ENGLISH

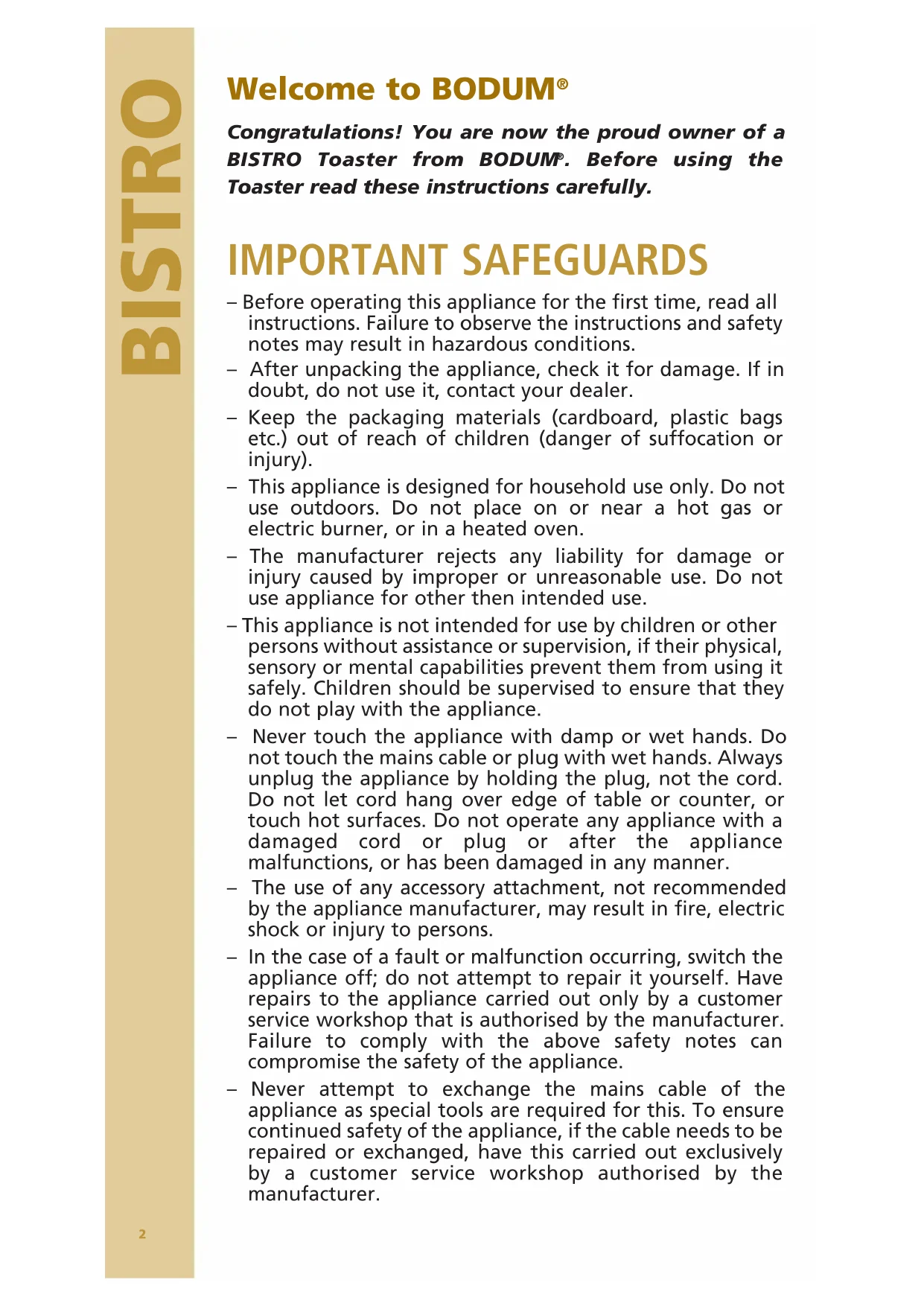

Congratulations! You are now the proud owner of a BISTRO Toaster from BODUM. Before using the Toaster read these instructions carefully.

IMPORTANT SAFEGUARDS

• Before operating this appliance for the first time, read all instructions. Failure to observe the instructions and safety notes may result in hazardous conditions.
• After unpacking the appliance, check it for damage. If in doubt, do not use it, contact your dealer.
• Keep the packaging materials (cardboard, plastic bags etc.) out of reach of children (danger of suffocation or injury).
• This appliance is designed for household use only. Do not use outdoors. Do not place on or near a hot gas or electric burner, or in a heated oven.
• The manufacturer rejects any liability for damage or injury caused by improper or unreasonable use. Do not use appliance for other then intended use.
• This appliance is not intended for use by children or other persons without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.
• Never touch the appliance with damp or wet hands. Do not touch the mains cable or plug with wet hands. Always unplug the appliance by holding the plug, not the cord. Do not let cord hang over edge of table or counter, or touch hot surfaces. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of any accessory attachment, not recommended by the appliance manufacturer, may result in fire, electric shock or injury to persons.
• In the case of a fault or malfunction occurring, switch the appliance off; do not attempt to repair it yourself. Have repairs to the appliance carried out only by a customer service workshop that is authorised by the manufacturer. Failure to comply with the above safety notes can compromise the safety of the appliance.

• Never attempt to exchange the mains cable of the appliance as special tools are required for this. To ensure continued safety of the appliance, if the cable needs to be repaired or exchanged, have this carried out exclusively by a customer service workshop authorised by the manufacturer.

• Unplug from outlet when not in use and before cleaning. Never immerse the item in water: Only clean the appliance using a damp cloth. Remember this is an electrical appliance.

• To protect against fire, electric shock and injury to persons do not immerse cord or plugs in water or other liquid.
• When the appliance is plugged into the electrical socket and whilst switched on never place hands into the bread toasting slots.
• Do not insert foil-covered, oversized foods or utensils into the toaster as they may involve a risk of fire or electric shock.
• Never insert sharp or abrasive objects into the slots, as this will cause damage.
• The sides of the toaster and the areas surrounding the bread slots become very hot during use: operating the toaster should be carried out touching only the plastic button and handles.
• Do not cover the appliance while it is in use.
• Do not wrap the mains cord around the body of the toaster during or after use. The cord storage facility is located on the underside of the toaster.
• A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, wall, and the like, when in operation.
• Do not attempt to dislodge food when toaster is plugged in.
• The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS

POLARIZATION

For US Customers only. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in appolarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

DESCRIPTION OF APPLIANCE

A Variable browning setting knob

B Defrost button

C Stop button

D Control lever/ high rise

E Variable width toasting slots

F Rack for bread/ bagels/ croissants

G Lift button for the racks

H Slide out crumb tray

I Cord storage

K Power cord

INSTALLATION

• Place the appliance on a stable flat surface which is neither hot nor near a heat source. The surface must be dry. Keep the appliance and its mains cable out of reach of children.

• Ensure that the voltage indicated on the rating plate of the appliance agrees with the mains voltage in your area. Connect the appliance only to a properly earthed power point with a minimum output of European 5A /US 8A. (Use a residual current device (RCD) or seeks the advice of an electrician.) While the appliance is in use, the mains plug must be accessible in case of an emergency. The manufacturer declines any liability for accidents caused by faulty or non existing earthing of the appliance.

• If the power point is unsuitable for accommodating the plug of your appliance, have the power point changed by a licensed electrician.

USING FOR THE FIRST TIME

• Carefully unpack the toaster and remove all of the packaging material.

• Before using for the first time, to eliminate the new smell, operate the toaster without bread inside for at least 5 minutes. Ensure there is plenty of ventilation in the room.

CAUTION:

This sign (hot surfaces) is placed on the top of the toaster!

Be cautious of hot surfaces!

Coming into contact with hot surfaces can cause burns.

USING THE TOASTER

• Ensure control lever (D) is raised.
• Plug (K) into a suitable mains supply socket.
• Insert up to two slices of bread into toasting slots (E).
• Turn the variable browning setting knob (A) dial to required setting. (1=lightest, 5=darkest)
• Press down control lever (D) until it locks.
• Once the chosen level of browning has been reached, the toast will automatically raise ready for removal from the slots.
• If the first slices are not browned sufficiently, select a higher setting (A) next time.
• If you want to interrupt the toasting process, press the stop button (C) at any time to stop the toasting process.

USING THE DEFROST BUTTON

• When using bread straight from the freezer set the browning control to the required position and press down the control lever (D) until it locks. Press within 2 sec. the defrost button (B). The defrost light will remain on while the defrost function is in use, and toasting time will be automatically extended. Always keep an eye on the bread for any signs of burning.

USING THE CANCEL BUTTON

• Press the stop button (C) at any time to stop the toasting process.

USING THE RACK

• Slide the lift button (G) to lift the integrated warming rack (F).
• Put the buns and croissants to warm on the rack (F).
• Press down control lever (D) until it locks.

USING THE CORD STORAGE

• You can store excess power cord (K) by winding around the cord storage (I) inside the base.

CLEANING AND MAINTENANCE

• Always remove plug from the power outlet, before cleaning.
• To clean the inside, turn toaster upside down over the sink and gently shake.
• The crumb tray (H) should be emptied regularly as a build-up of crumbs could be a potential fire hazard.

After toasting, allow the toaster to cool down thoroughly, and then slide out the crumb tray (H) and empty.

• Use a soft dampened cloth to wipe the outside of the toaster and dry with a soft, dry cloth.
• Never use chemicals, steel wool or abrasive agents to clean the exterior of the toaster.
• Do not immerse your toaster in water.
• Do not use any sharp or pointed articles for cleaning the inside as this will damage the heating element.
• Never put metal objects or your fingers into the toasting slots.

HINTS AND TIPS FOR BETTER TOASTING

• For best results use bread slices of even thickness, size and freshness. Select a lower setting if:
  a) using stale bread (toasts more quickly than fresh bread) b) using thin bread (toasts more quickly than thick bread)
• To keep items such as muffins, crumpets bagels warm slide the button to lift the rack and put the items at the top.
• To achieve even browning, we suggest a minimum of 30 seconds between each toasting to allow the control to automatically reset.
• Never use the toaster without bread inserted.
• Do not use very thin or broken slices of bread.
• Do not insert other foods that may drip during the toasting process. As well as making the cleaning procedure more difficult it may be a potential fire hazard. It is also very important to clean the crumb tray before each use.
• Do not insert (by force) foods that are too big for the slots.
• Do not insert forks or other utensils into the toaster in order to remove bread, as it may damage the resistance coils of the appliance. Remove the plug from the socket and turn the appliance over, gently shaking it to remove the lodged items.

TECHNICAL DATA

Nominal voltage EURO 220-240 V \~50/60Hz

Nominal voltage USA 120 V/60 Hz

Nominal power EURO 900-980 Watt

Nominal power USA 900 Watt

Cord length approx. 100cm /39.4 inch

Slot size (L/W) approx. 14 cm/3 cm - 5.5 inch /1.2inch

Approval GS, CE, UL, CUL

SERVICE & GUARANTEE CONDITIONS

All BODUM® products are made of high-quality, durable materials. However, should parts require replacement, please contact one of the following: your BODUM® dealer - the BODUM® SHOP - the BODUM® representative in your country, or our homepage at www.bodum.com

Guarantee. BODUM® guarantees the toaster for 2 years from date of purchase against material defects or malfunctions which can be traced back to defects in manufacturing or design. Repair is free of charge provided all guarantee requirements are fulfilled. No refunds can be made.

Guarantee requirements. The guarantee certificate must be completely filled out by the seller at the time of purchase. Only agents authorized by BODUM may perform guarantee services.

BODUM® makes no guarantee for damage which can be attributed to use for unintended purposes, incorrect handling, normal wear and tear, defective or incorrect maintenance or service work, incorrect operation or manipulation by unauthorized persons

V = Volt W = Watt Hz = Hertz ~ = Wechselstrom

SERVICE & GARANTIEBEDINGUNGEN

Certifications GS, CE, UL, CUL

SERVICE APRès-VENTE & GARANTIE

BESCHRIJVING VAN HET APPARAAT

Nominate spanning US 120V/60 Hz

Nominal vermogen EU 900-980 watt

Nominal vermogen US 900 watt

Kabellengte ca. 100~cm / 39.4 inch

Lenght van de opening (L/B) ca.14 cm/3 cm - 5.5 inch /1.2inch
