TLPA211 - Powerline Adapter TP-LINK - Free user manual and instructions

Product Type	Powerline Adapter
Brand	TP-Link
Model	TL-PA211
Communication Standard	HomePlug AV, IEEE 1901
Maximum Speed	Up to 200 Mbps
Network Interface	1 x 10/100 Mbps RJ-45 Ethernet port
Power Socket	Passthrough socket (with power passthrough)
Function Button	Pair button (secure pairing)
LED Indicators	Power, Powerline, Ethernet
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	< 3 W (estimated)
Operating Temperature	0°C to 40°C (estimated)
Operating Humidity	10% to 90% non-condensing (estimated)
Dimensions	70 x 60 x 30 mm (estimated)
Weight	Approx. 100 g (estimated)
Network Security	128-bit AES encryption (via Pair button)
Plug and Play	Yes
Advanced Configuration	tpPLC utility (downloadable)
Warranty	3 years
Certifications	CE, RoHS
Maintenance	Clean with a dry cloth, do not use liquid or abrasive products.
Installation Safety	Plug directly into a wall socket, avoid power strips. Do not expose to water or heat.
Repair	Not user-serviceable. In case of failure, contact customer support.

Frequently Asked Questions - TLPA211 TP-LINK

How to install the TL-PA211 Powerline adapters?

Connect one adapter to your router's LAN port using an Ethernet cable. Plug the other adapter into a power outlet on the same circuit. Wait for the Powerline LEDs to light up, then connect your computer to the adapter with an Ethernet cable.

How to secure my Powerline network with the Pair button?

Press the Pair button on one adapter for 1 second. Within 2 minutes, press the Pair button on the other adapter for 1 second. The network is now secured.

How to add a new Powerline adapter to my existing network?

Press the Pair button on an already configured adapter for 1 second. Within 2 minutes, press the Pair button on the new adapter for 1 second. It will join the secured network.

How to reset my Powerline adapter to factory defaults?

With the adapter plugged in, press and hold the Pair button until the power LED goes off briefly. You can also use the tpPLC utility.

What to do if I have no Internet access via my Powerline network?

Check that all adapters are on the same electrical circuit. Make sure the Powerline LEDs are lit; if not, re-pair them. Check the Ethernet connections and that your computer is on the same subnet as the router.

Why do my Powerline adapters sometimes disconnect?

Try plugging them into different outlets on the same circuit. Re-pair them if needed. Avoid interference from household appliances (dryer, air conditioner) by plugging them into the adapter's passthrough socket if available.

Can I plug a Powerline adapter into a power strip?

No, always plug the adapter directly into a wall socket. The passthrough socket allows plugging a power strip into the adapter, but not the other way around.

What do the LED indicators on the adapter mean?

The Power LED is solid green if the adapter is on. The Powerline LED is solid green if the Powerline connection is established, and flashes during data transfer. The Ethernet LED is solid green if an Ethernet cable is connected.

What is the maximum distance between two Powerline adapters?

Theoretically up to 300 meters on the power grid, but in practice, the effective range is about 100 meters depending on the wiring quality.

How to maintain and clean my Powerline adapter?

Unplug the adapter and clean it with a soft, dry cloth. Do not use liquid or abrasive products. Store it in a dry place away from heat.

USER MANUAL TLPA211 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

(2-144),Cardiff Road,Reading,RG1 8EW.

mursi 151,24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any use of this technology. The use of any other products, services, or information on the Technologies Co., Ltd. Copyright © 2018 IP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eλληνικα
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 /Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

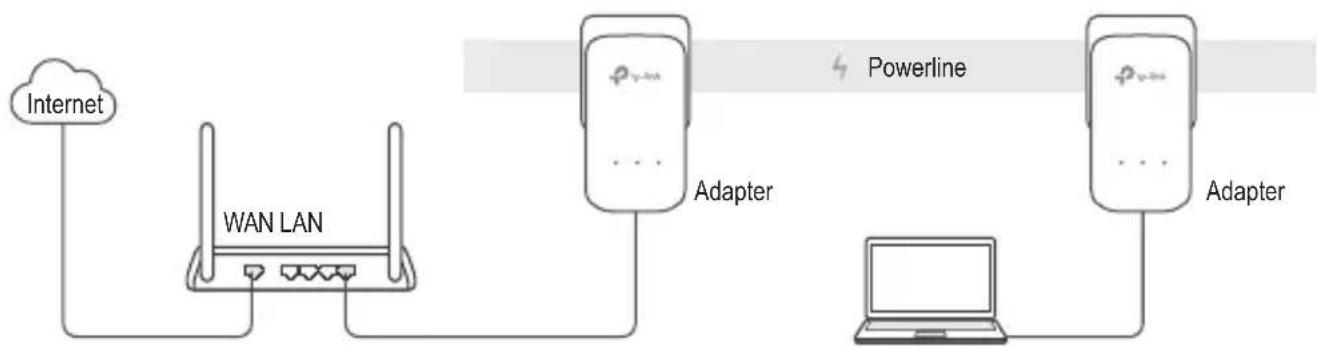

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

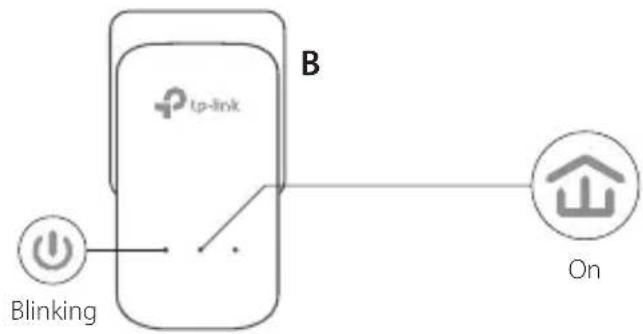

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.
A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.
A3. Make sure all hardware connections are correctly and securely connected.
A4. Check if you have an internet connection by connecting the computer directly to the modem or router.
A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.
A2. Try to pair it again, and make sure the Powerline LED is on.
A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

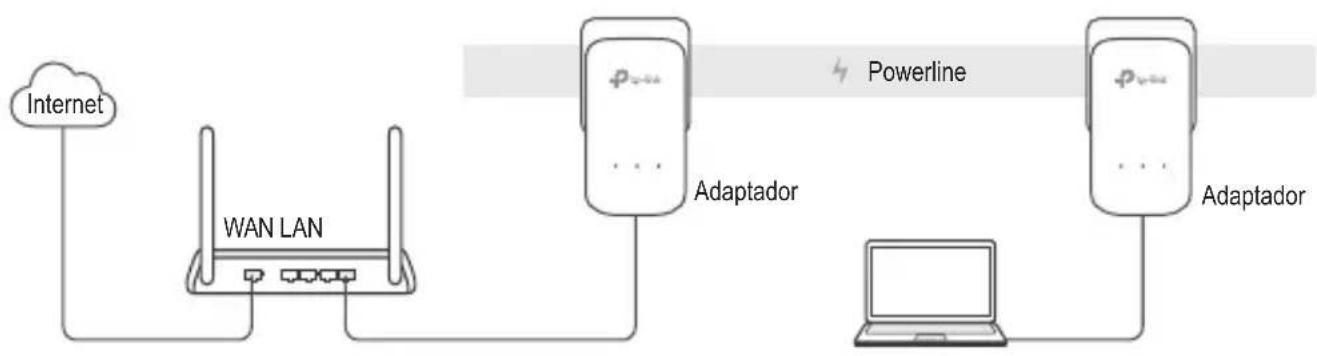

Plug and Play

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.
