Product Type	L2 Managed Switch
Brand	TP-Link
Model	JetStream L2 Managed TLSL3428
Category	Switch
Ethernet Ports	24 RJ45 10/100/1000 Mbps ports
SFP Ports	4 SFP slots
Console Port	1 RJ45 console port
Management	Web Interface, CLI, Controller
L2 Features	VLAN, QoS, Spanning Tree, IGMP Snooping, Link Aggregation
Security	ACL, MAC filtering, 802.1X
Dimensions (W x D x H)	440 x 220 x 44 mm
Weight	Approximately 3 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Max 20 W
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% RH
Installation	Desktop or 19-inch rack mount
Maintenance and Cleaning	Unplug the device, clean with a dry, lint-free cloth
Warranty	3 years (according to TP-Link conditions)
Certifications	CE, RoHS

Frequently Asked Questions - JetStream L2 Managed TLSL3428 TP-LINK

How to access the switch's web interface?

Connect your computer to an Ethernet port of the switch. Set a static IP address in the same subnet (e.g., 192.168.0.x, subnet mask 255.255.255.0). Open a web browser and enter http://192.168.0.1. Log in with the username admin and password admin (lowercase).

What are the default passwords?

The default username and password are both admin (lowercase).

How to reset the switch to factory defaults?

Press and hold the Reset button (located on the front or back of the device) for about 6 seconds until the LEDs flash. Release. The switch will reboot with default settings.

How to configure a VLAN on the switch?

Access the web interface, go to the VLAN section. Create a VLAN with an ID and name. Assign the desired ports to the VLAN in Tagged or Untagged mode. Apply the changes.

How to mount the switch in a rack?

Attach the provided mounting brackets to each side of the switch using the screws. Place the switch in the rack and use suitable bolts (not included) to secure it firmly.

Which SFP modules are compatible?

The switch accepts standard 1000BASE-SX/LX SFP modules from TP-Link or compatible brands. Ensure the module is inserted correctly with the latch facing down.

How to update the firmware?

In the web interface, go to System Tools > Firmware Upgrade. Download the latest firmware from the TP-Link website. Select the file and click Upgrade. Do not power off during the update.

What to do if the web interface does not display?

Check that your computer is on the same subnet (192.168.0.x). Disable the firewall or proxy. Try a different browser. If the issue persists, reset the switch.

Is the switch compatible with the Omada controller?

This model is not compatible with the Omada controller. It is an individually managed L2 switch via its web interface or CLI.

What is the warranty period?

TP-Link warranty covers this switch for 3 years from the date of purchase, subject to the general conditions available on the TP-Link website.

USER MANUAL JetStream L2 Managed TLSL3428 TP-LINK

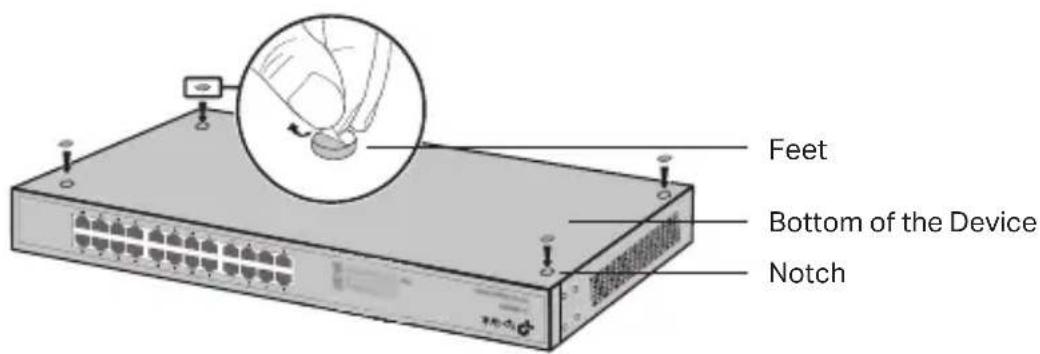

Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

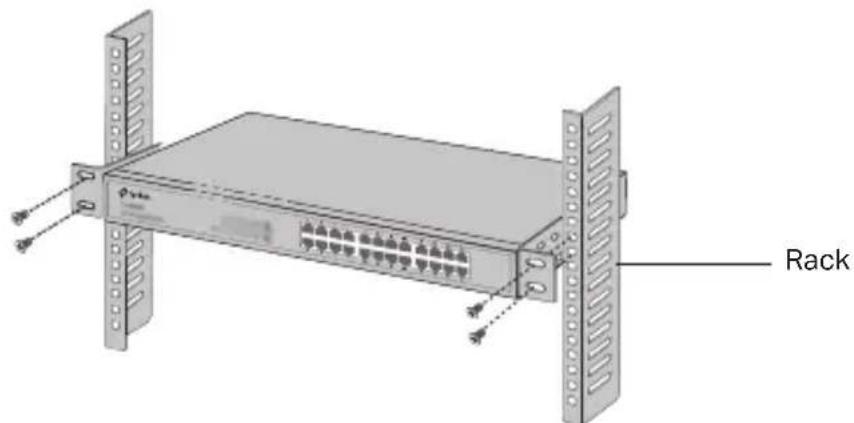

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

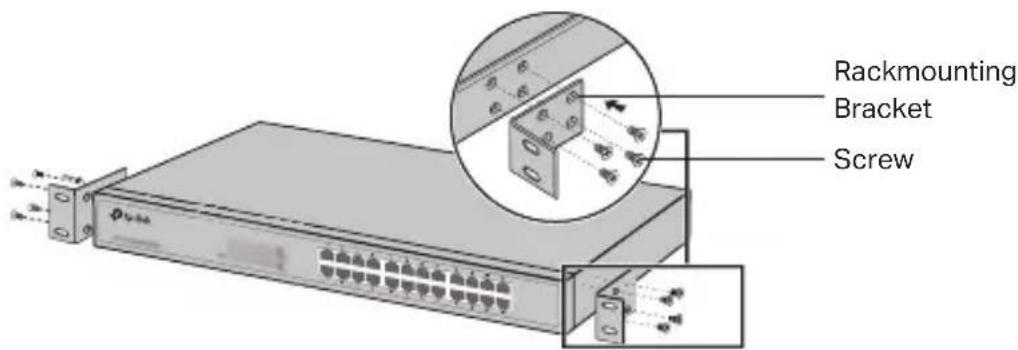

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

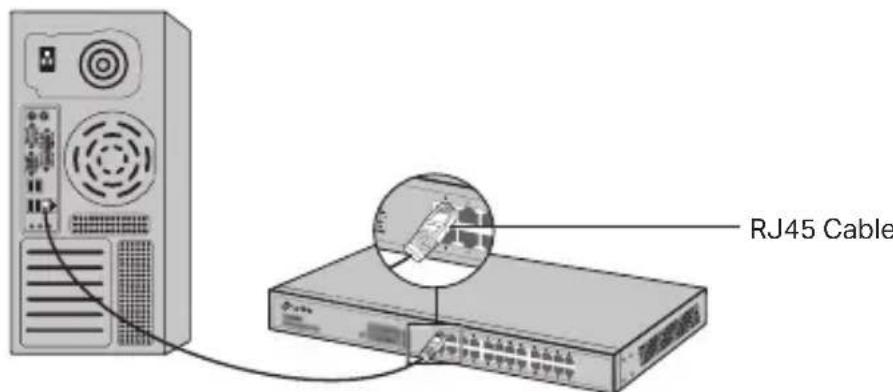

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

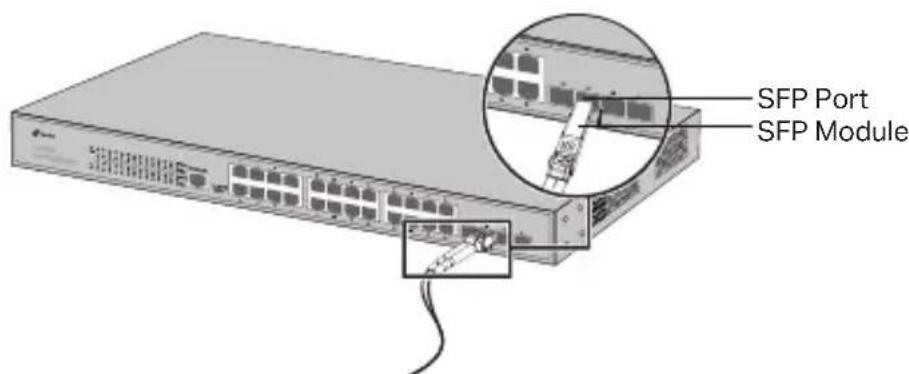

SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

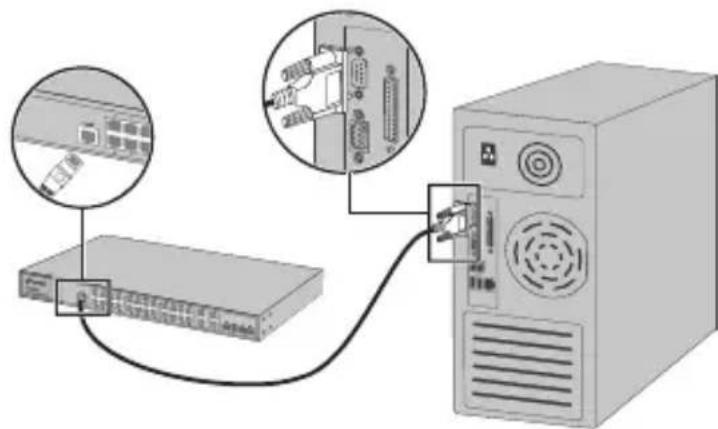

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

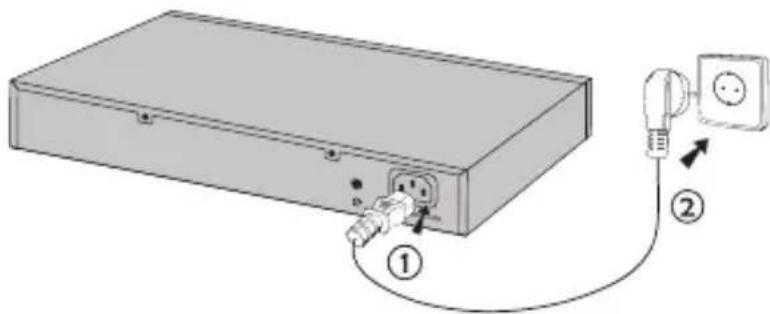

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

(Unavailable for Unmanaged Switches)

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x ("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.

2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.

3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.

4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the Controller

(Only for Smart Switches, Easy Managed Switches and Managed Switches)

You can use the Controller to centrally manage the entire network of the switches. For the detailed information as to how to do this, please refer to the product specifications and the Controller User Guide.

- Configure the Switch Using the CLI

(Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility

(Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage the entire network of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

(Móvo yα Smart Switches, Easy Managed Switches και Managed Switches)

(Móvo yα Smart Switches και Managed Switches)

(Solo per Switch Smart, Switch Easy Managed e Switch Managed)

(Solo per Switch Smart e Managed)

(Apenas para Smart Switches, Easy Managed Switches e Managed Switches)

Desktop installation

(Endast for Easy Smart Switches)

(Kun for Smart Switches, Easy Managed Switches og Managed Switches)

(Kun for Easy Smart-switches)

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.
• Place the device with its bottom surface downward.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Limited Product Warranty

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND

CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/

Espanol
