FWK 1612 - Wine cellar QLIMA - Free user manual and instructions

Product type	Wine cellar
Brand	Qlima
Model	FWK 1612
Dimensions (W x H x D)	540 x 500 x 375 mm
Weight	15.5 kg
Power supply	220-240 V ~ 50 Hz
Annual power consumption	242 kWh/year
Energy class	D
Temperature range	8 °C to 18 °C
Storage capacity	Not specified
Number of temperature zones	1 zone
Interior lighting	LED, switchable
Reversible door	Yes
Display	Digital LED, temperature display
Refrigerant	Without compressor (absorption system)
Insulating gas type	Cyclopentane
Noise level	41 dB(A)
Climate class	N (ambient temperature 10 °C to 32 °C)
Intended use	Wine storage, indoor domestic use
Maintenance and cleaning	Unplug before cleaning, use a damp cloth, do not use abrasive products
Leveling feet	Yes, adjustable
Warranty	24 months (parts and labor)

Frequently Asked Questions - FWK 1612 QLIMA

How to adjust the temperature of the FWK 1612 wine cellar?

Use the (+) and (A) buttons on the control panel to increase or decrease the temperature. The adjustable range is 8 °C to 18 °C. The display flashes for 5 seconds then shows the interior temperature.

How to change the display from °C to °F?

For the FWK 1612 model, press the (+) and (A) buttons simultaneously for more than 3 seconds to switch between °C and °F.

Why is my wine cellar not cooling enough?

Check that the appliance is plugged in and the voltage is correct. Ensure the set temperature is appropriate. Move the cellar away from a heat source and leave a ventilation space of at least 50 mm at the back. Close the door properly and avoid opening it too frequently.

How to reverse the door opening direction?

The door is reversible. Follow the manual instructions to disassemble the door, reverse the hinges, and reassemble. This allows the door to open from left to right or right to left.

What to do if frost accumulates inside?

This may be due to excessive humidity or too low temperature. Stop the appliance, unplug it, and remove the frost by hand. Plug it back in once the ice has melted. Check that the door closes properly.

How to clean the wine cellar?

Unplug the appliance. Remove bottles and shelves. Clean the interior with a warm damp cloth. Do not use abrasive cleaners. For door gaskets, use mild soapy water. Dry all surfaces thoroughly.

My wine cellar makes noise, is that normal?

Check that the appliance is level (adjust the feet). Make sure there is enough space around for ventilation. Bottles should be placed properly. A slight noise may be normal, but excessive noise may indicate a ventilation or leveling problem.

What is the warranty period?

The Qlima FWK 1612 wine cellar comes with a 24-month warranty from the purchase date, covering manufacturing and material defects. Keep the original proof of purchase.

Can I use a damaged power cord?

No, never use the appliance with a damaged cord or plug. Have it replaced by a qualified professional or your dealer.

Where to install the wine cellar?

Place it on a flat and stable surface, indoors, away from direct sunlight and heat sources. Leave at least 50 mm of space at the back and 19 mm on the sides for good ventilation. The ambient temperature should be between 10 °C and 32 °C.

USER MANUAL FWK 1612 QLIMA

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this appliance. We strongly recommend keeping this manual in a safe place for future reference.

A. Do not use a damaged cable. B. Do not clamp or bend the cable. C. Do not place unevenly. D. Do not place in front of an open window. E. Do not bring in contact with chemicals. F. Do not place near a heat source. G. Do not immerse in water. H. Do not spill.

SAFETY

Illustration 4: FWK 1612

IV OPERATION OF YOUR WINE COOLER

Initial setup

IX TECHNICAL DATA / PRODUCT SHEET

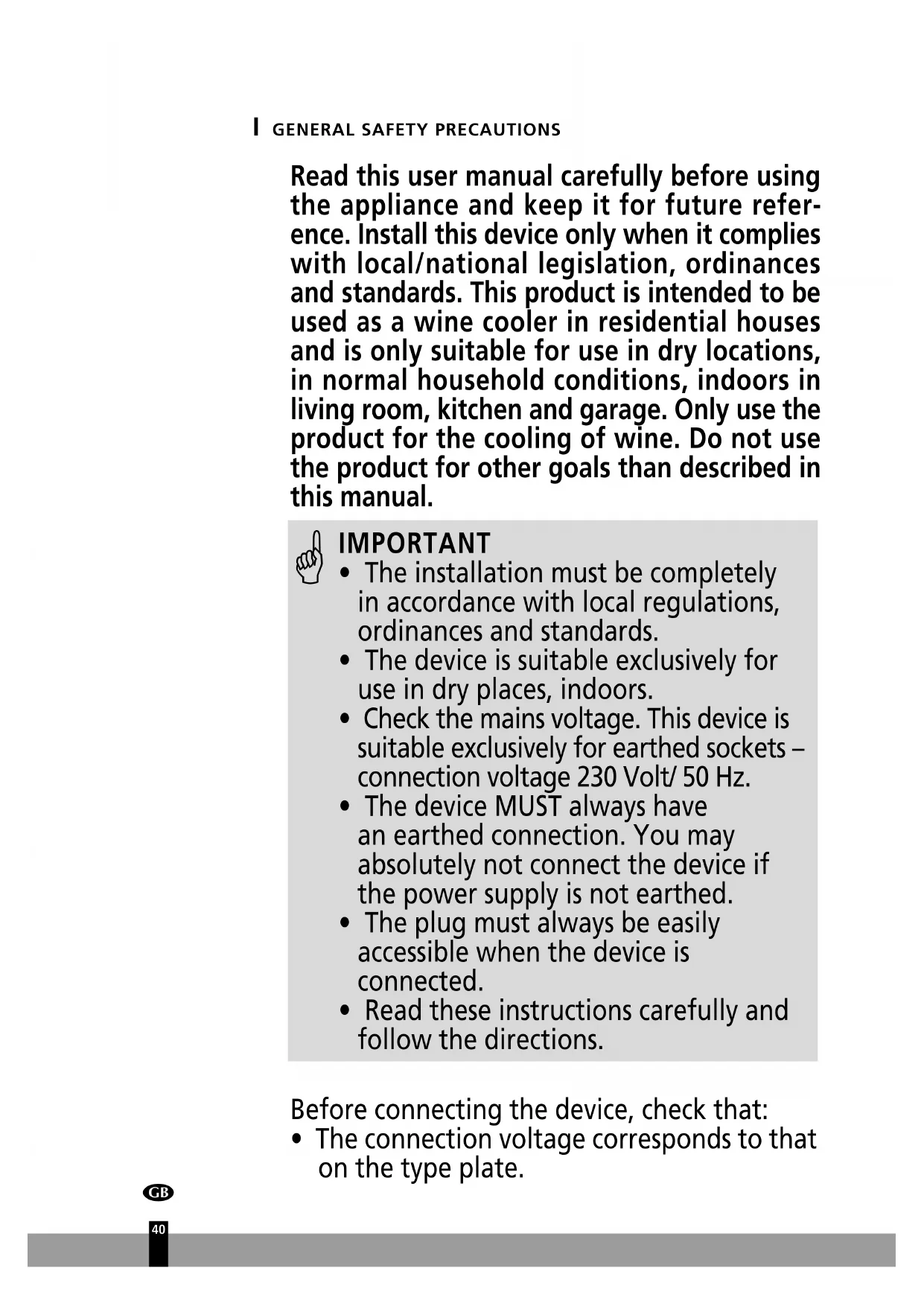

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a wine cooler in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage. Only use the product for the cooling of wine. Do not use the product for other goals than described in this manual.

IMPORTANT

• The installation must be completely in accordance with local regulations, ordinances and standards.
• The device is suitable exclusively for use in dry places, indoors.
• Check the mains voltage. This device is suitable exclusively for earthed sockets - connection voltage 230 Volt/ 50 Hz.
• The device MUST always have an earthed connection. You may absolutely not connect the device if the power supply is not earthed.
• The plug must always be easily accessible when the device is connected.
• Read these instructions carefully and follow the directions.

Before connecting the device, check that:

• The connection voltage corresponds to that on the type plate.
• The socket and power supply are suitable for the device.
• The plug on the cable fits the socket.
• The device is on a stable and flat surface.

Have the electrical installation checked by a recognised expert if you are not sure that everything is in order.

• The wine cooler is a safe device, manufactured in accordance with CE safety standards. Nevertheless, as with every electrical device, exercise caution when using it. Always take the plug out of the socket before cleaning or replacing the device or a part of the device.
• Always consider the safety of children in the vicinity of this device, as with every electrical device.
• Always have any repairs – beyond regular maintenance – carried out by a recognized service engineer. Failure to do so may lead to invalidation of the guarantee. Always take the plug out of the socket when the device is not in use.
• A damaged electricity cable may only be replaced by the supplier or an authorized person/service point.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.

WARNING!

• Keep ventilation openings - in the appliance enclosure or in the built-in structure - clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

BEFORE USING YOUR WINE COOLER:

Make sure the wine cooler stays in an upright position during transportation. After removing the appliance from its packaging, make sure it is in good condition. If there are any issues with the wine cooler, please contact an authorized service center immediately.

• Place the appliance on a level floor surface that will be strong enough to support it when it is at full capacity. To level the wine cooler adjust the leveling feet located at the bottom of the appliance.
• Do not use this wine cooler in applications for which it is not intended. Damage that occurs from improper use or from unauthorized repairs will void the warranty.
• For proper air circulation, please maintain a 50 mm minimum clearance in between the back of the wine cooler and the wall.
• Do not operate this wine cooler in excessively moist or humid environments.
• Keep the wine cooler away from direct sunlight.
• Keep the wine cooler away from hazardous materials or combustible/flammable substances.

CAUTION:

• This wine cooler is only designed for freestanding applications.
• DANGER: RISK OF CHILD ENTRAPMENT: An empty wine cooler can be dangerous to children. Remove any latches, lids, locks, and/or doors from unused or discarded appliances to prevent child entrapment and suffocation. Never allow children to operate, play with or crawl inside this appliance.

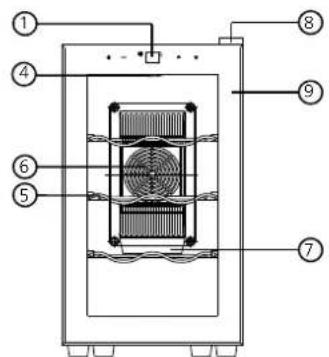

PARTS LIST Fig.1: FWK 1608

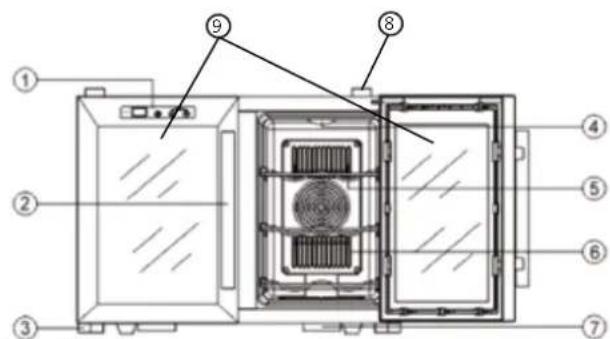

Fig.2: FWK 1612

	ENG	NL	FR	IT	DK	ES	SE
1	Display	Display	Afficheur	Display	Display	Pantalla	Display
2	Handle	Handgreep	Poinée	Maniglia	Håndtag	Tirador	Handtag
3	Levelling foot	Stelvoet	Pied régla-ble	Piedino livellante	Nivelle-ringsfod	Pata de nivelación	Justerbar fot
4	Light	Lampje	Éclairage	Luce	Lys	Luz	Belysning
5	Shelves	Legplan-ken	Rayons	Ripiani	Hylder	Estantes	Hyllor
6	Fan	Ventilator	Ventilateur	Ventola	Ventilator	Ventilador	Flåkt
7	Water tray	Waterbak	Réserveir àeau	Vassoio per l'accua	Vandbakke	Bandeja para reco-ger el agua	Vattenfack
8	Hinge cover	Scharnier-kap	Protection de charnière	Copri cer-niera	Haengsel-afskærm-ing	Carcasa de la bisagra	Gångjärnsskydd
9	Door	Deur	Porte	Sportello	Dør	Puerta	Dörr

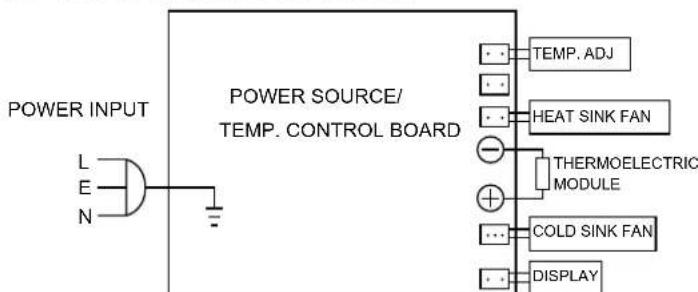

III ELECTRICAL DIAGRAM Fig. 3: FWK 1608 - electrical diagram

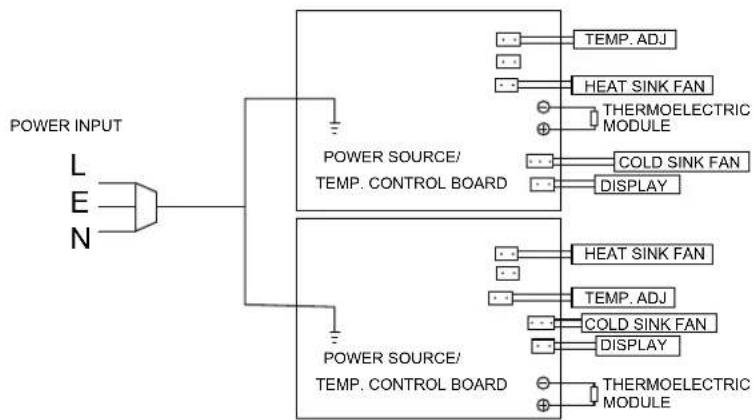

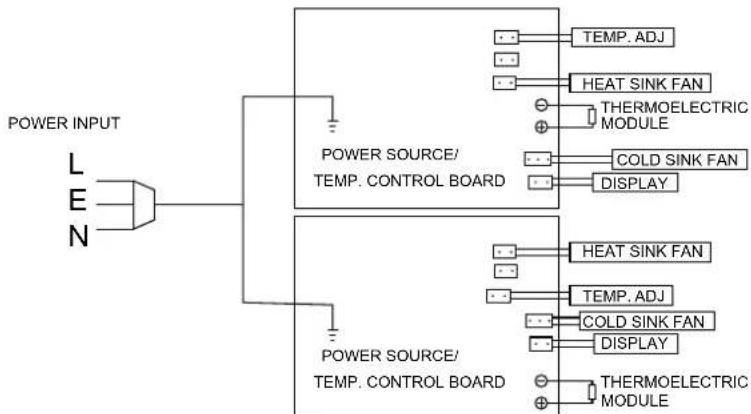

Fig. 4: FWK 1612 - electrical diagram

Remove exterior and interior packing materials and connect the wine cooler to a power supply. Once it is plugged in, let it run for at least 30 minutes. Do not change the temperature or adjust any settings at this time.

Temperature Adjustment

Your wine cooler can be set to your desired temperature. The unit's temperature range is: 8°C to 18°C.

NOTE!

The wine cooler does not have a compressor. This means that the wine cooler is very suitable for keeping the wine cool within the limitations of the design. The wine cooler will use (much) longer time to cool down multiple bottles of warm wine. Especially in a warm environment.

When initially turned on, the LED will display the ambient temperature and then the internal cabinet temperature. The zone temperature may have a difference of 3°C from setting depending on loading and ambient conditions.

1. Lower the temperature: press
2. Increase the temperature: press A

Once you have set the desired temperature, the display will flash for 5 seconds and then revert to the internal cabinet temperature.

1. the interior light ON or OFF: press

Change from °C to °F

FWK 1608: press the °F/°C button on the display

FWK 1612: press both buttons together for more than 3 seconds.

CHANGING THE REVERSIBLE DOOR

This appliance is designed with a reversible door feature. You have the option of configuring the door to open/close either from the left or the right side. In order to reverse the opening direction of your door, please follow these simple instructions.

OPTIMIZING PERFORMANCE

• Your wine cooler can be set to your desired temperature. The unit's temperature range is: 8°C to 18°C.

NOTE!

The wine cooler does not have a compressor. This means that the wine cooler is very suitable for keeping the wine cool within the limitations of the design. The wine cooler will use (much) longer time to cool down multiple bottles of warm wine. Especially in a warm environment.

• To ensure maximum performance and efficiency, place your wine cooler in an area where there is proper air circulation.
• Allow for proper clearance around the wine cooler:

Sides: 19 mm

Top: 100 mm

Back: 50 mm

• Do not place the unit in direct sunlight.
• Do not place heavy objects on top of the wine cooler.
• Read the paragraph "BEFORE USING YOUR WINE COOLER" for more tips.

VI INTERNAL MAINTENANCE

• Shut off the power supply before cleaning the unit's cabinet.
• Remove all wines and storage shelves.
• Clean the unit with a warm, humid cloth.
• Thoroughly dry all surfaces.

Note:

a. Do not use abrasive cleaners to clean the wine cooler. b. Use mild, soapy water to clean the unit's door seal. c. To ensure efficient operation, also thoroughly clean the back and bottom of the wine cooler. Make sure the power supply is turned off prior to cleaning the back and bottom of the wine cooler.

VII TROUBLESHOOTING

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the wine cooler to your dealer for repairs if these instructions do not provide a solution.

Symptoms Possible cause	Solutions
The wine cooler does not cool.	The unit is not plugged in.	Plug in the unit.
	The voltage is incorrect. Ens	are proper voltage.
	A fuse may be broken. Have	the unit's fuse replaced.
The wine cooler does not get cold enough.	The temperature setting may be incorrect.	Make sure the set temperature is correct.
	The wine cooler may be placed too close to a heat source.	Keep the wine cooler away from direct sunlight or other heat sources.
	There is insufficient ventilation.	Place the wine cooler in an area with proper ventilation and clearances.
	The door is not completely closed or the door seal is not working properly.	Close the door tightly. Do not open the door frequently and do not keep the door open for extended periods of time.
	Door opened too frequently or door open for too long time	Keep door closed as much as possible
	Too many bottles of a too warm wine	See chapter 'optimizing performance'
	Fan does not work Check plug	, check fuse. Else: fan motor might be broken: have winecooler repaired
	Bad ventilation Position the	winecooler with better ventilation
The wine cooler seems to make too much noise	The unit is not leveled or positioned properly.	Adjust the unit's feet and ensure the product is level.
	There is insufficient ventilation.	Allow sufficient clearance around the unit.
	The unit is too close to a wall or another surface.	Allow sufficient clearance around the unit.
	Incorrectly placed bottles Make sure bottles are correctly placed.
Frost is building up in the unit.	There is excess humidity or the interior temperature is too low.	Turn off the wine cooler, unplug it and remove the frost buildup manually. Reconnect the power once the ice has thawed.
Inside light flash Set temp	Temperature higher than indoor temperature	Adjust temperature
	Automatic defrost function is working	Normal function. No change needed

VIII GUARANTEE CONDITIONS

The wine cooler is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted, or repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the wine cooler or wine cooler components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Qlima filters is not covered by the guarantee.

Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge. Do not throw batteries into the fire, where they can explode or release dangerous liquids. If you replace or destroy the remote control, remove the batteries and throw them away in accordance with the applicable regulations because they are harmful to the environment.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

IX TECHNICAL DATA/PRODUCT FICHE

Brand	Qlima
Type	FWK1608 FWK1612
Category of household refrigeration appliance	Refrigerator cellar, Cellar, Wine stora-ge appliances
Energy efficiency Class B D
Mains V/Hz/ph 220 - 240 / 50 / 1
Annual energy consumption (kWh/yr) 160 242
Nett storage volume of each compartment (liters) 24 tba
Design temperature of other compartments	not applicable
Frost free compartments	no
Power cut safe (hours)	not applicable
Freezing capacity (kg/24 hrs)	not applicable
Climate class	SN, N, this appliance is intended to be used at an ambient tempera- rature between 10°C and 32°C
Air borne sound emission (dB (A) re 1 pW)	41
Usage	Free standing only
Intended use	This appliance is intended to be used exclusively for the storage of wine
Min./Max. storage temperature °C	8-18
Power consumption kW	0,07	0,13
Power consumption lamp (W)	0.5
Current nom. A	0.55	1,1
Compressor type	Not applicable
Refrigerant type/gr	Not applicable
Dimensions (w x h x d) mm	260 x 440 x 505	540 x 500 x 375
Weight kg	8 15.5
Unit protection	IP X0
Insulation blowing gass	Cyclopentane

BEFORE USING YOUR WINE COOLER:

Distributed in Europe by PVG Holding B.V.

If you need more information or if you encounter any problems, please visit our website at www.qlima.com or contact our customer service (phone number available on www.qlima.com). For further information or if you have any problems with the device, please refer to www.qlima.com or your local customer service center (phone numbers can be found on www.qlima.com). If you need information or if you have any problems, please visit our website www.qlima.com or contact our customer service (you will find the phone number on www.qlima.com). If you would like additional information or if you encounter a problem, please visit our website (www.qlima.com) or contact our customer service (you will find the address and phone number on www.qlima.com). If you need more information or if you have problems with the device, please visit our website at www.qlima.com or ask for advice from PVG's consumer service center (www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (you will find its phone number on www.qlima.com). For information and in case of problems, please visit the website www.qlima.com or contact the Customer Service Center (to find out the phone number, consult www.qlima.com). If you need information or if you have a problem with the product, you can visit the website www.qlima.com. Alternatively, you can contact PVG's consumer service (phone numbers are on www.qlima.com). If you need more information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support department (address and phone number on www.qlima.com). If you need information or if you have problems, please visit the website www.qlima.com or contact the Assistance Center (phone number on www.qlima.com). In case of problems or for more detailed information, please visit the Qlima website at www.qlima.com or contact the Qlima contact center (www.qlima.com). If you need service or information or if you have a problem with the device, you can visit www.qlima.com or contact Qlima customer service (you will find the phone number on www.qlima.com). If you need additional information, please visit the company's website at www.qlima.com or call the phone number (www.qlima.com). If you need more information or if you encounter a problem, please visit the Qlima website at www.qlima.com or contact the Qlima customer service center in your country (phone number: www.qlima.com).
