USER MANUAL FWK1628 QLIMA

guarantee

YEARS

D	GEBRAUCHSANWEISUNG	12
DK	BRUGSANVISNING	24
E	INSTRUCCIONES DE USO	34
F	MANUEL D’UTILISATION	46
GB	OPERATING MANUAL	58
I	ISTRUZIONI D’USO	68
N	BRUKSANVISNING	80
NL	GEBRUIKSAANWIJZING	90
PL	INSTRUKCJA OBSŁUGI	102
S	BRUKSANVISNING	114

General Safety Precautions 58

Parts List 62

Electrical Diagram 62

Operating Your Wine Cooler 62

Optimizing Performance 65

Maintenance 65

Troubleshooting 65

Guarantee Conditions 66

Technical Data 67

INDEX

S TABLE OF CONTENTS

A

B

C

GENERAL SAFETY

D

E

F

G

H

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this appliance. We strongly recommend keeping this manual in a safe place for future reference.

A. Do not use a damaged cable. B. Do not clamp or bend the cable. C. Do not place unevenly. D. Do not place in front of an open window. E. Do not bring in contact with chemicals. F. Do not place near a heat source. G. Do not immerse in water. H. Do not spill.

A

B

C

SAFETY

D

E

F

G

H

GENERAL SAFETY

Fig. 4 Fig. 5

TECHNICAL DATA/PRODUCT DATA SHEET

Images 1A: FWK 1628 Images 1B: FWK 1628A

USING YOUR ANGLE GRINDER

Temperature adjustment: FWK 1628A

Figure 1A: FWK 1628 Figure 1B: FWK 1628A

1. Thermostat
2. Light switch
3. LED light

Temperature adjustment: FWK 1628A

Figure 4 Figure 5

Illustration 1A: FWK 1628 Illustration 1B: FWK 1628A

Illustration 4 Illustration 5

OPTIMIZING PERFORMANCE

WARRANTY CONDITIONS

TECHNICAL DATA/PRODUCT SHEET

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a wine cooler in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage. Only use the product for the cooling of wine. Do not use the product for other goals than described in this manual.

IMPORTANT

• The installation must be completely in accordance with local regulations, ordinances and standards.
• The device is suitable exclusively for use in dry places, indoors.
• Check the mains voltage. This device is suitable exclusively for earthed sockets – connection voltage 230 Volt/ 50 Hz.
• The device MUST always have an earthed connection. You may absolutely not connect the device if the power supply is not earthed.
• The plug must always be easily accessible when the device is connected.
• Read these instructions carefully and follow the directions.

Before connecting the device, check that:

• The connection voltage corresponds to that on the type plate.
• The socket and power supply are suitable for the device.
• The plug on the cable fits the socket.
• The device is on a stable and flat surface.

Have the electrical installation checked by a recognized expert if you are not sure that everything is in order.

• The wine cooler is a safe device, manufactured in accordance with CE safety standards. Nevertheless, as with every electrical device, exercise caution when using it.
• Never cover the air inlets and outlets.
• Always take the plug out of the socket before cleaning or replacing the device or a part of the device.
• Always consider the safety of children in the vicinity of this device, as with every electrical device.
• Always have any repairs – beyond regular maintenance – carried out by a recognized service engineer. Failure to do so may lead to invalidation of the guarantee.
• Always take the plug out of the socket when the device is not in use.
• A damaged electricity cable may only be replaced by the supplier or an authorized person/service point.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.

WARNING!

• Keep ventilation openings - in the appliance enclosure or in the built-in structure - clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

BEFORE USING YOUR WINE COOLER FOR THE FIRST TIME:

Make sure the wine cooler stays in an upright position during transportation. After removing the appliance from its packaging, make sure it is in good condition. If there are any issues with the wine cooler, please contact an authorized service center immediately.

• Place the appliance on a level floor surface that will be strong enough to support it when it is at full capacity. To level the wine cooler adjust the leveling feet located at the bottom of the appliance.
• Do not use this wine cooler in applications for which it is not intended. Damage that occurs from improper use or from unauthorized repairs will void the warranty.
• For proper air circulation, please maintain a 50mm minimum clearance in between the back of the wine cooler and the wall.
• Do not operate this wine cooler in excessively moist or humid environments.
• Keep the wine cooler away from direct sunlight.
• Keep the wine cooler away from hazardous materials or combustible/flammable substances.

CAUTION:

• This wine cooler is only designed for freestanding applications.
• DANGER: RISK OF CHILD ENTRAPMENT: An empty wine cooler can be dangerous to children. Remove any latches, lids, locks, and/or doors from unused or discarded appliances to prevent child entrapment and suffocation. Never allow children to operate, play with or crawl inside this appliance.

PARTS LIST

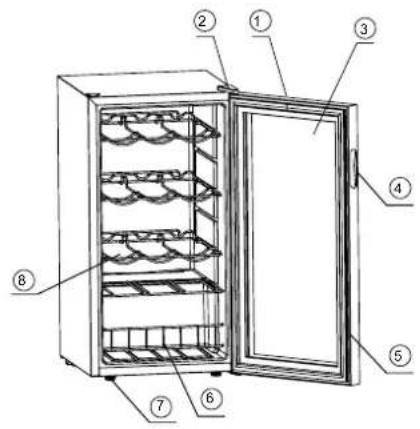

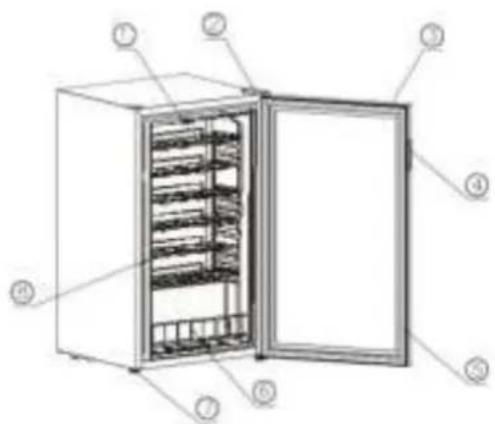

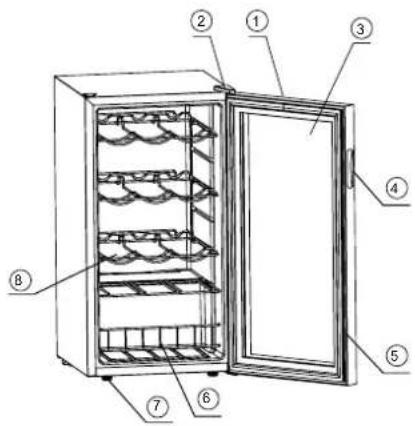

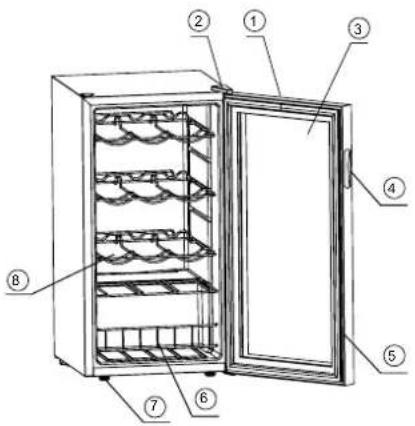

Fig.1A: FWK 1628 Fig.1B: FWK 1628A

1. Temperature Control and light
2. Hinge Cover
3. Glass Door
4. Recessed Handle
5. Door Seal
6. Bottle Holder
7. Leveling Leg
8. Shelf

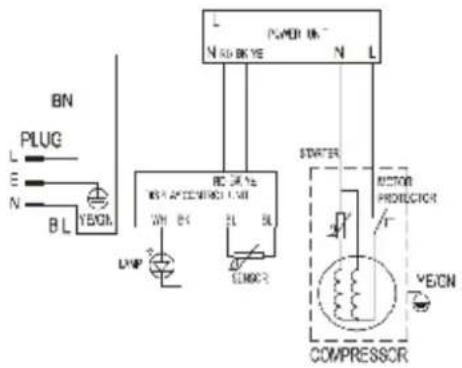

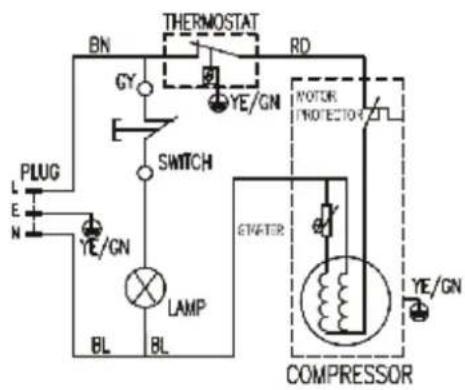

ELECTRICAL DIAGRAM

Remove exterior and interior packing materials and connect the wine cooler to a power supply. Once it is plugged in, let it run for at least 30 minutes. Do not change the temperature or adjust any settings at this time.

Your wine cooler can be set to your desired temperature. The unit's temperature range is 4°C to 18°C.

Temperature Adjustment: FWK 1628

Avoid setting the thermostat too high or too low or the wine cooler may be unable to achieve satisfactory cooling temperatures. The temperature scale runs from 1, the warmest setting, to 7, the coldest. The 0 position is an OFF setting which can be used when the wine cooler is standing empty.

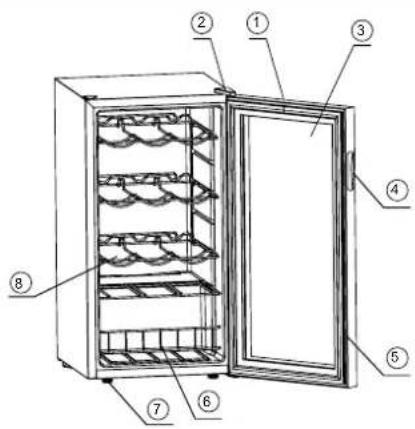

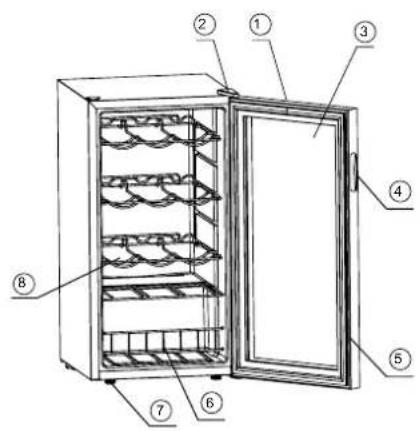

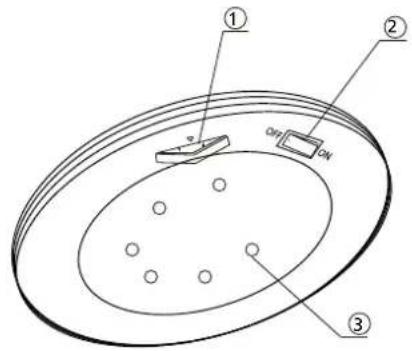

Fig.3A: FWK 1628

1. Thermostat
2. Light Switch
3. Led Light

Temperature Adjustment: FWK 1628A

Set the temperature by pushing the

Fig.3B: FWK 1628A

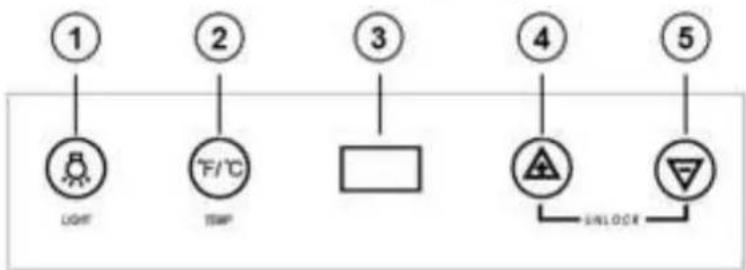

1. Interior Light "ON/OFF" Button
2. °F / °C Display Selector Button
3. Digital Display Window
4. Temperature UP Button
5. Temperature DOWN Button

When storing wines in the wine cooler, keep them away from the rear wall. To allow free circulation of cold air, do not pack wines too tightly on the shelves and never put warm items in the wine cooler.

Red wines, advised temperature 15 - 18°C.

White wines, advised temperature 8 - 14°C.

Sparkling wines, advised temperature 8 - 9°C.

NOTE:

When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LCD readout. This is normal and it is due to the length of the activation time. Once the wine cooler is running for a few hours everything will be back to normal.

CHANGING THE REVERSIBLE DOOR (Note: FWK 1628A is NOT reversible)

FWK1628 is designed with a reversible door feature (door to open/close either from the left or the right side). To reverse the opening direction of your door, please follow these simple instructions.

CAUTION:

- To avoid personal injury to yourself and/or damage to property and/or the wine cooler, it is highly recommended that someone assist you during the door reversal process.

Door Removal

• Turn off the unit and disconnect the power plug from the wall outlet.
• Tilt the unit backwards and secure it at a 45-degree angle.

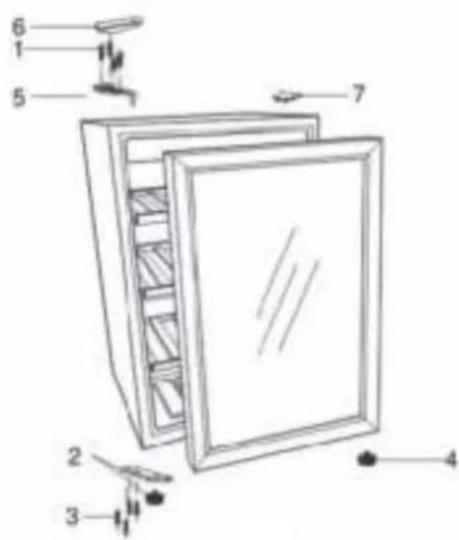

• Remove the upper hinge cover (Fig.4: No.6).
• Remove the screws (Fig.4: No.1) that secure the upper hinge (Fig.4: No.5) to the frame. Remove the upper hinge (Fig.4: No.5).
• Lift the door, remove it from the lower hinge, and place it on a padded surface to prevent damage and scratches.
• Remove the screws (Fig.4: No.3) that hold the lower hinge and front leg (Fig.4: No.2). Remove the lower hinge and front leg (Fig.4: No.2).
• Remove the front leg (Fig.4: No.4) and transfer it to the opposite side.

Door Installation

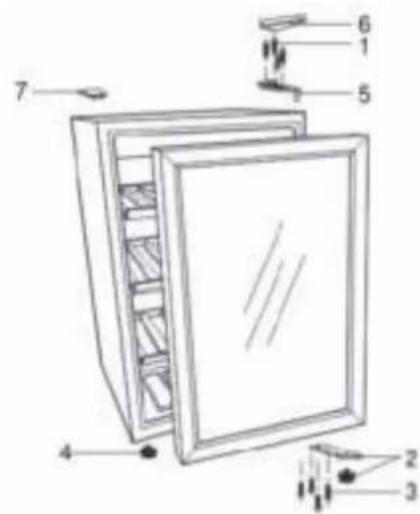

• Remove the cover plate (Fig.5: No.7) covering the upper hinge holes.
• Reverse the direction of the lower hinge (Fig.5: No.2). Install the lower hinge and front leg (Fig.5: No.2) on the lower frame with screws (Fig.5: No.3).
• Secure the door onto the lower hinge.
• Holding the door in the closed position, secure the upper hinge (Fig.5: No.5) to the door and screw it into the frame (Fig.5: No.1). Note: Do not fully tighten the screws (Fig.5: No.1) until the top of the door is level with the top of the unit. Install the upper hinge cover (Fig.5: No.6) over the upper hinge.

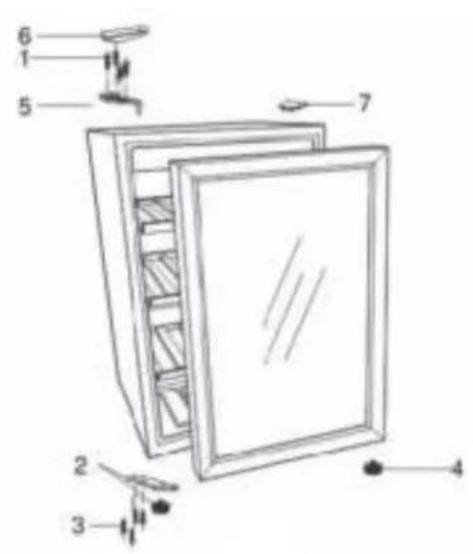

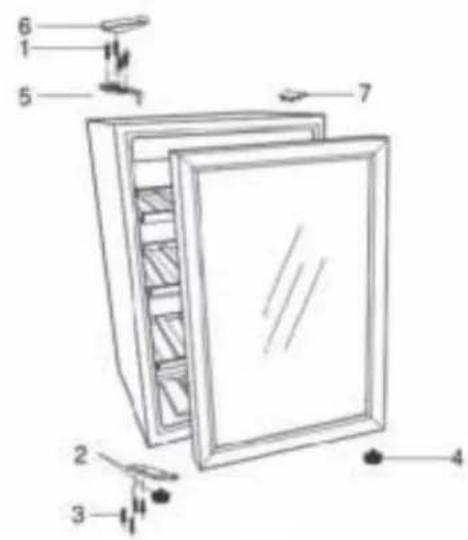

Fig.4 Fig.5

OPTIMIZING PERFORMANCE

• To ensure maximum performance and efficiency, place your wine cooler in an area with proper air circulation.
• Allow for proper clearance around the wine cooler:

Sides: 19 mm

Top: 100 mm

Back: 50 mm

• Do not place the unit in direct sunlight.
• Do not place heavy objects on top of the wine cooler.

INTERNAL MAINTENANCE

• Shut off the power supply before cleaning the unit's cabinet.
• Remove all wines and storage shelves.
• Clean the unit's interior with a warm water and neutral detergent solution. Thoroughly dry all surfaces.

Note:

a. Do not use abrasive cleaners to clean the wine cooler. b. Use mild, soapy water to clean the unit's door seal. c. To ensure efficient operation, also thoroughly clean the back and bottom of the wine cooler. Make sure the power supply is turned off prior to cleaning the back and bottom of the wine cooler.

TROUBLESHOOTING

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the wine cooler to your dealer for repairs if these instructions do not provide a solution.

Symptoms Possible cause	Solutions
The wine cooler does not cool.	The unit is not plugged in.	Plug in the unit.
	The voltage is incorrect. Ensure proper voltage.
	A fuse may be broken. Have the unit's fuse replaced.
The wine cooler does not get cold enough.	The temperature setting may be incorrect.	Make sure the set temperature is correct.
	The wine cooler may be placed too close to a heat source.	Keep the wine cooler away from direct sunlight or other heat sources.
	There is insufficient ventilation.	Place the wine cooler in an area with proper ventilation and clearances.
	The door is not completely closed or the door seal is not working properly.	Close the door tightly. Do not open the door frequently and do not keep the door open for extended periods of time.
Symptoms Possible cause	e Solutions
The wine cooler seems to make too much noise	The unit is not leveled or positioned properly.	Adjust the unit's feet and ensure the product is level.
	There is insufficient ventilation.	Allow sufficient clearance around the unit.
	The unit is too close to a wall or another surface.	Allow sufficient clearance around the unit.
	Incorrectly placed bottles	Make sure bottles are correctly placed.
Frost is building up in the unit.	There is excess humidity or the interior temperature is too low.	Turn off the wine cooler, unplug it and remove the frost buildup manually. Reconnect the power once the ice has thawed.

GUARANTEE CONDITIONS

The wine cooler is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted, or repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the wine cooler or wine cooler components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Qlima filters is not covered by the guarantee.

Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge. Do not throw batteries into the fire, where they can explode or release dangerous liquids. If you replace or destroy the remote control, remove the batteries and throw them away in accordance with the applicable regulations because they are harmful to the environment.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

TECHNICAL DATA/PRODUCT SHEET

Brand	Qlima
Type	FWK 1628 / FWK 1628A
Category of household refrigeration appliance	Refrigerator cellar, Cellar, Wine storage appliances
Energy efficiency Class B
Mains V/Hz/ph 230 / 50 / 1
Annual energy consumption (kWh/yr) 151
Nett storage volume of each compartment (liters) 88
Design temperature of other compartments	not applicable
Frost free compartments	no
Power cut safe (hours)	not applicable
Freezing capacity (kg/24 hrs)	not applicable
Climate class	SN, N, this appliance is intended to be used at an ambient temperature between 10°C and 32°C
Air borne sound emission (dB (A) re 1 pW)	41
Usage	Free standing only
Intended use	This appliance is intended to be used exclusively for the storage of wine
Min./Max. storage temperature °C	4-18
Power consumption kW	0,085
Power consumption lamp (kW)	0.5
Current nom. A	0.55
Compressor type	Reciprocating
Refrigerant type/gr	R600a / 25 gr.
Dimensions (w x h x d) mm	430 x 825 x 480
Weight kg	26
Unit protection	IP X0
Insulation blowing gass	Cyclopentane

Figure 1A: FWK 1628 Figure 1B: FWK 1628A

Figure 3A: FWK 1628

Figure 4 Figure 5

Figure 3A: FWK 1628

1. Thermostat
2. Light switch
3. LED light

Temperature adjustment: FWK 1628A

Image 4 Image 5

OPTIMIZING PERFORMANCE

INTERIOR MAINTENANCE

USING THE WINE COOLER

Temperature Adjustment: FWK 1628A

1. Thermostat
2. Power switch
3. LED light

Temperature Adjustment: FWK 1628A

When storing wines in the wine cooler, keep them away from the rear wall. To allow free circulation of cold air don't pack wines too tightly on the shelves and never put warm items in the wine cooler.

Distributed in Europe by PVG Holding B.V.

If you need more information or encounter any problems, please visit our website at www.qlima.com or contact our customer service (phone number available on www.qlima.com). For all additional information or in case of any problems with the device, please refer to www.qlima.com or the local customer service center (phone numbers can be found at www.qlima.com). (6) If you need information or have any problems, please visit our website www.qlima.com or contact our customer service (you will find the phone number on www.qlima.com). If you would like to obtain additional information or if you encounter a problem, please visit our website (www.qlima.com) or contact our customer service (you will find the address and phone number on www.qlima.com). If you need service, more information, or if you have problems with the device, please visit our website at www.qlima.com or ask for advice from the PVG consumer service center (www.qlima.com). (OR) If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (you will find its phone number on www.qlima.com). For information and in case of problems, please visit the website www.qlima.com or contact the Customer Service Center (to find out the phone number, please consult www.qlima.com). If you need information, or if you have a problem with the product, you can visit the website www.qlima.com. Alternatively, you can contact the PVG consumer service (phone number at www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact the sales support department (address and phone on www.qlima.com). If you need information or if you have problems, please visit the website www.qlima.com or contact the Assistance Center (phone number at www.qlima.com). In case of problems and to obtain detailed information, please visit the Qlima website at www.qlima.com or contact the Qlima contact center (www.qlima.com). If you need service or information or have problems with the device, you can visit www.qlima.com or contact Qlima customer service (you will find the phone number at www.qlima.com). If you need additional information, please visit the company's website at www.qlima.com or call the phone number (www.qlima.com). If you need more information or if you encounter a problem, please visit the Qlima website at www.qlima.com or contact the Qlima customer center in your country (phone number: www.qlima.com).
